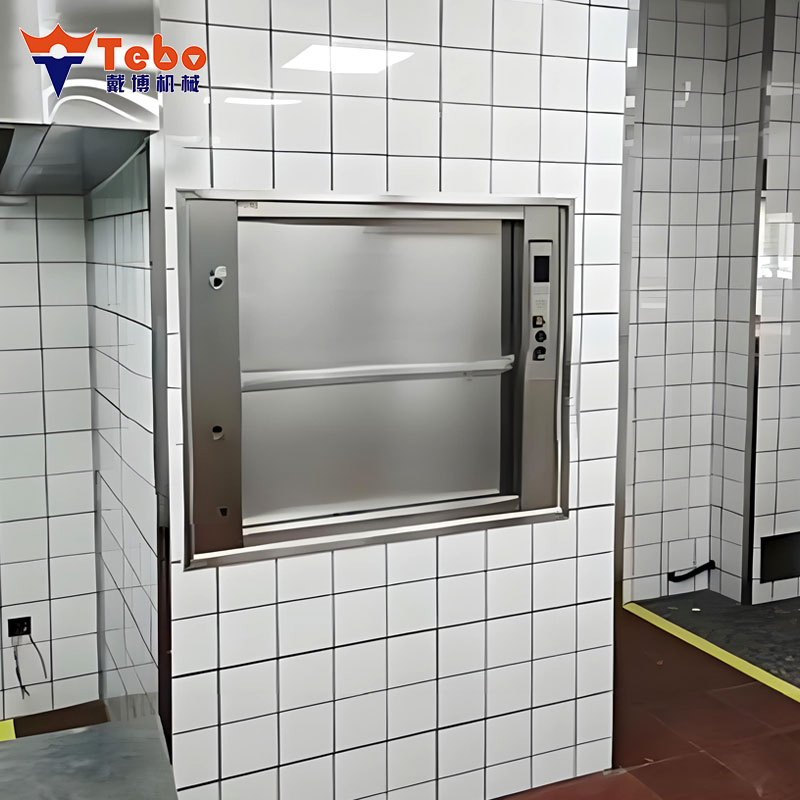

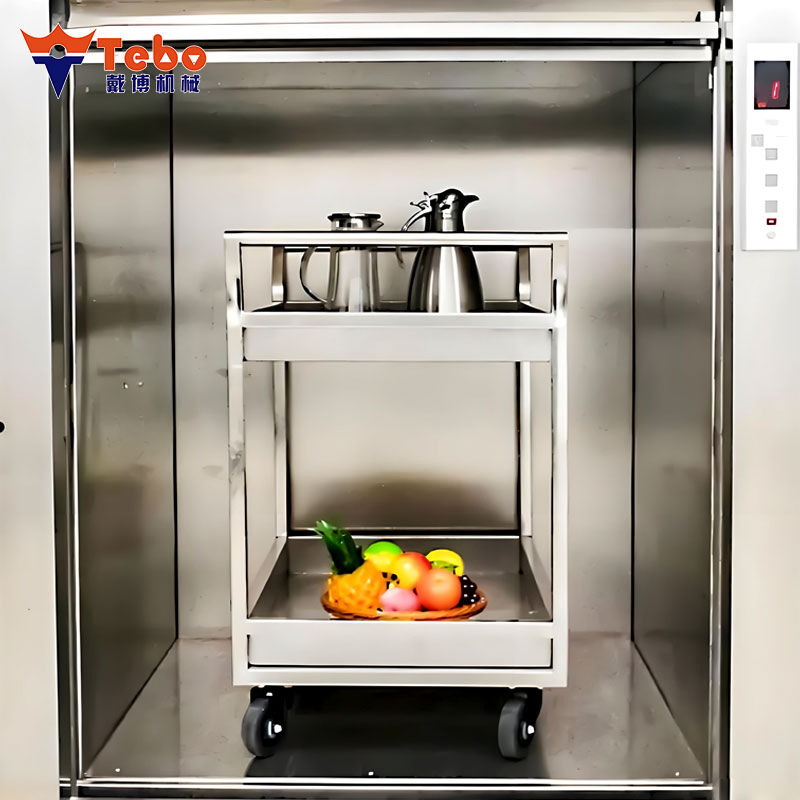

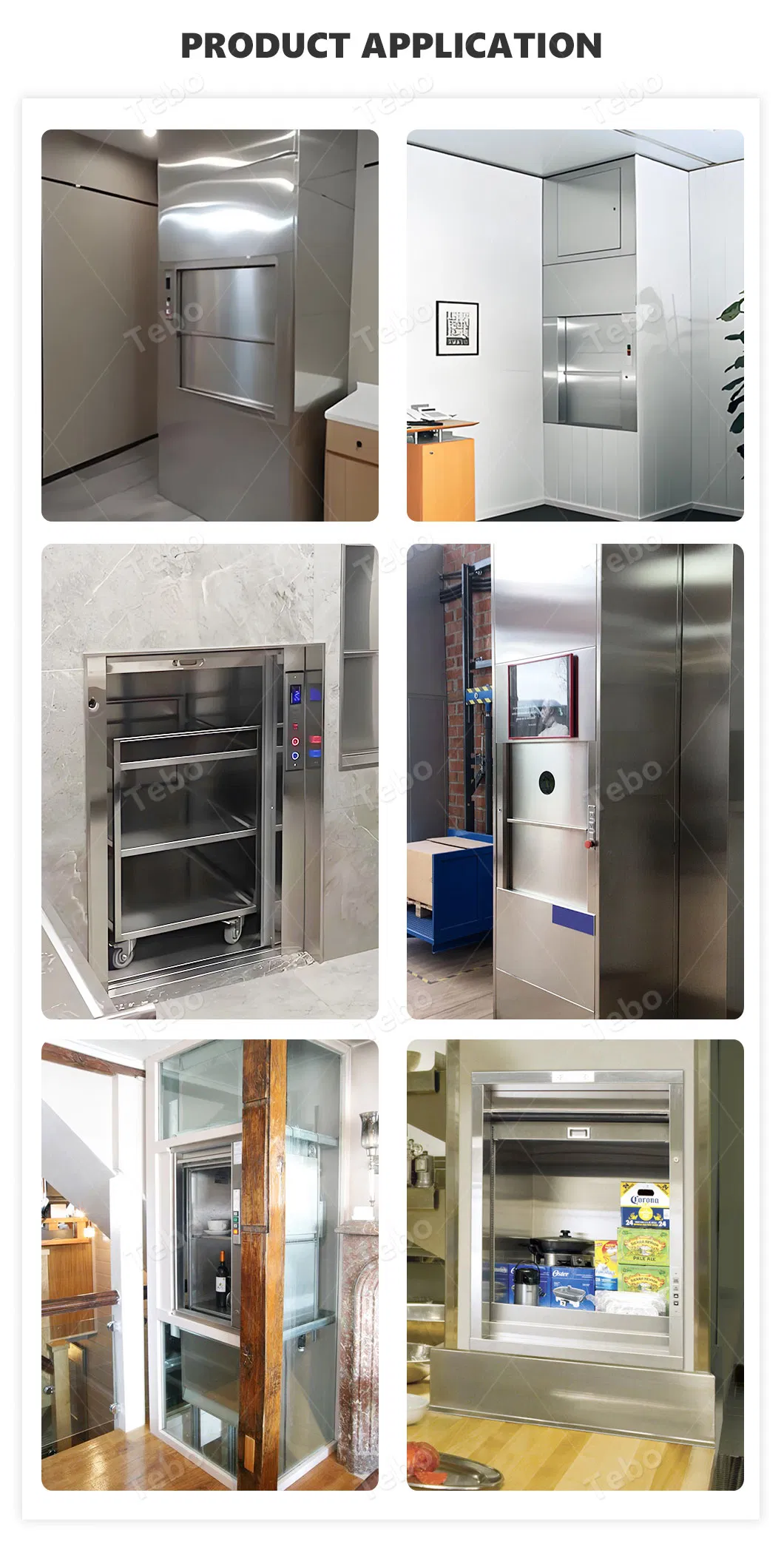

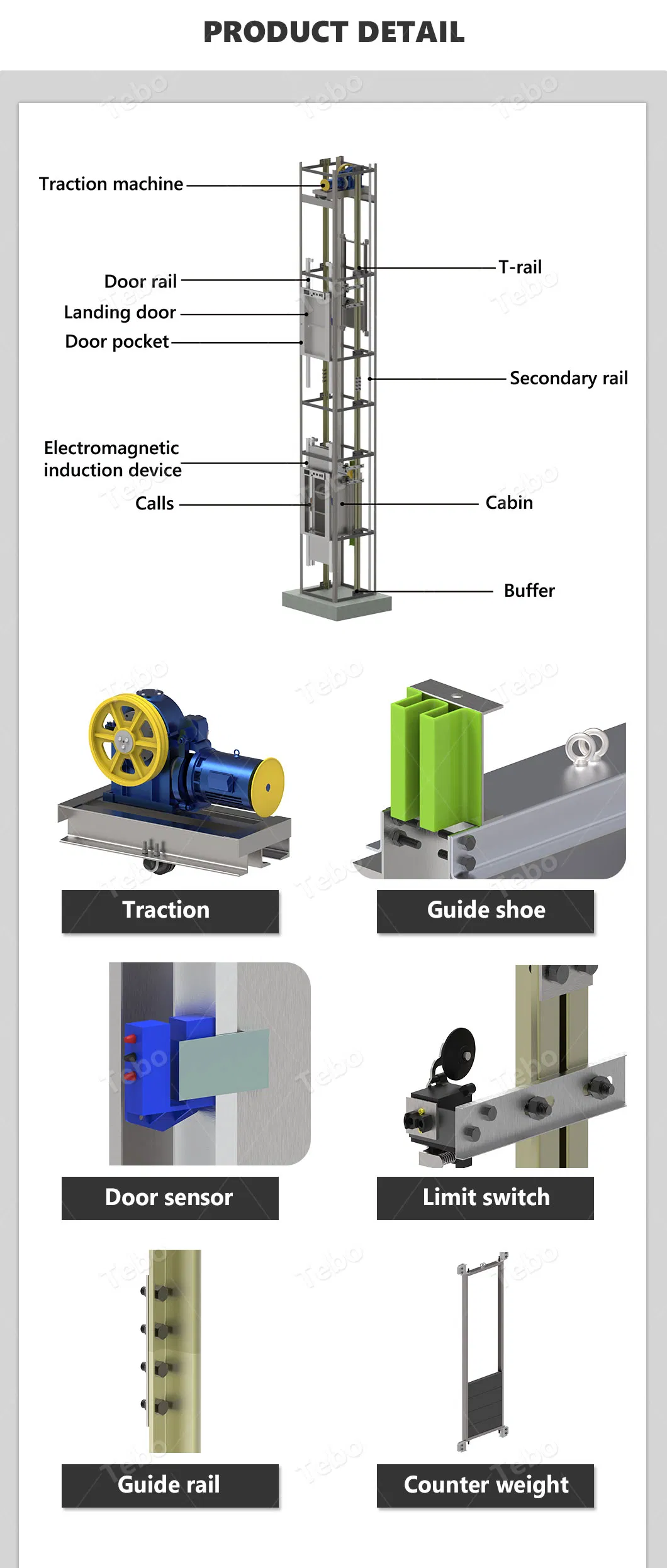

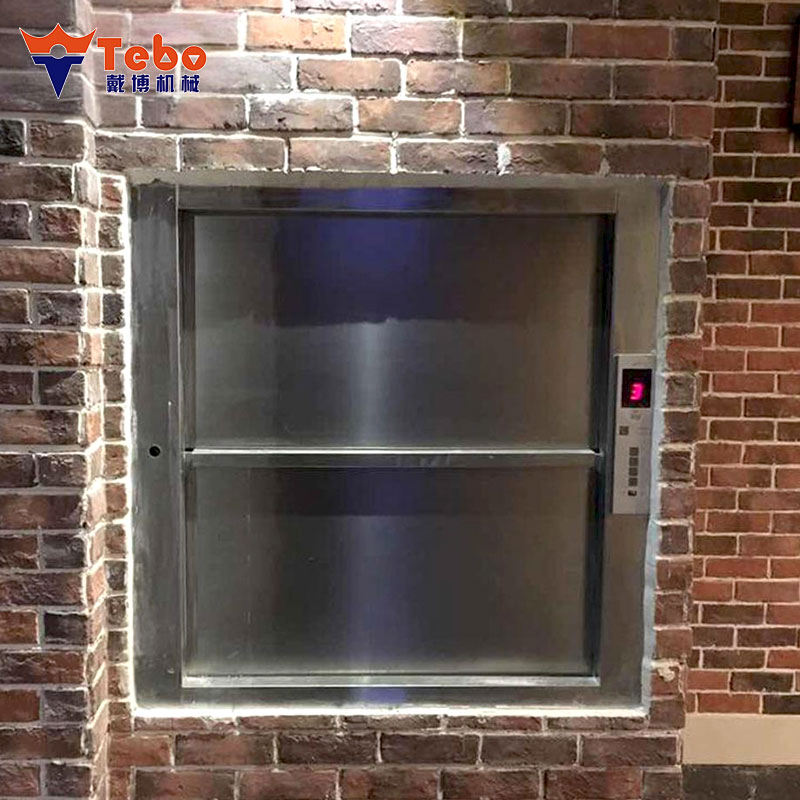

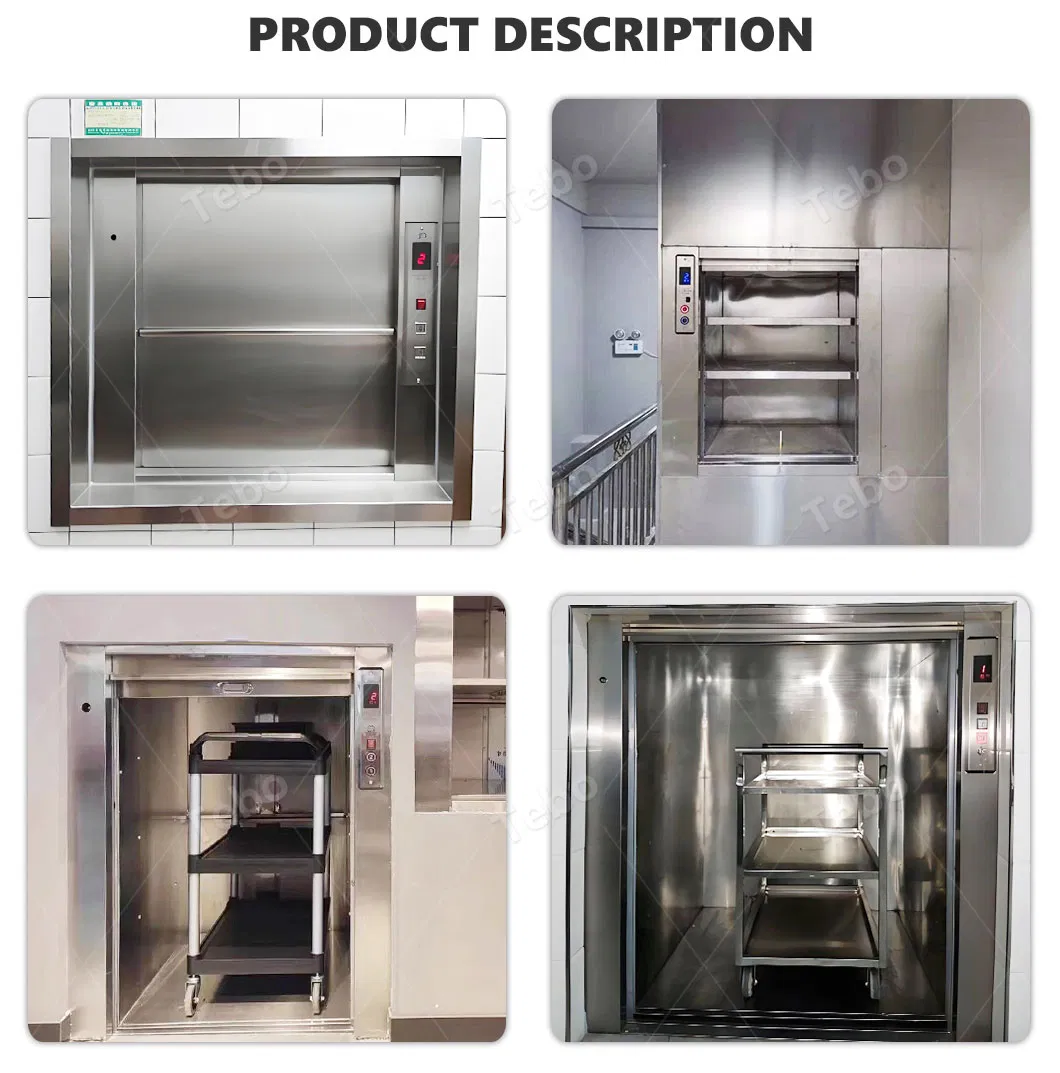

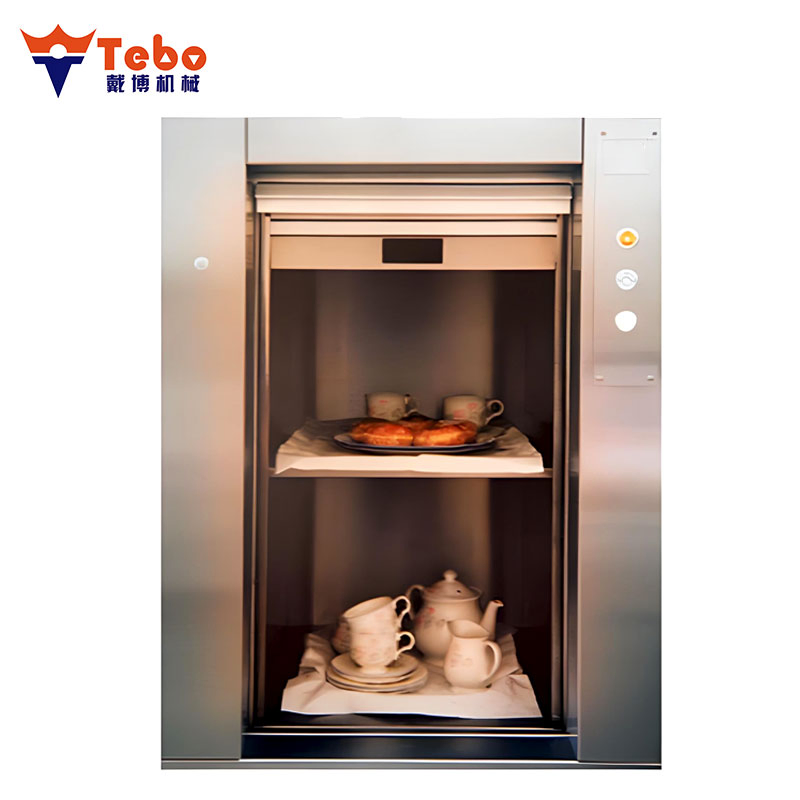

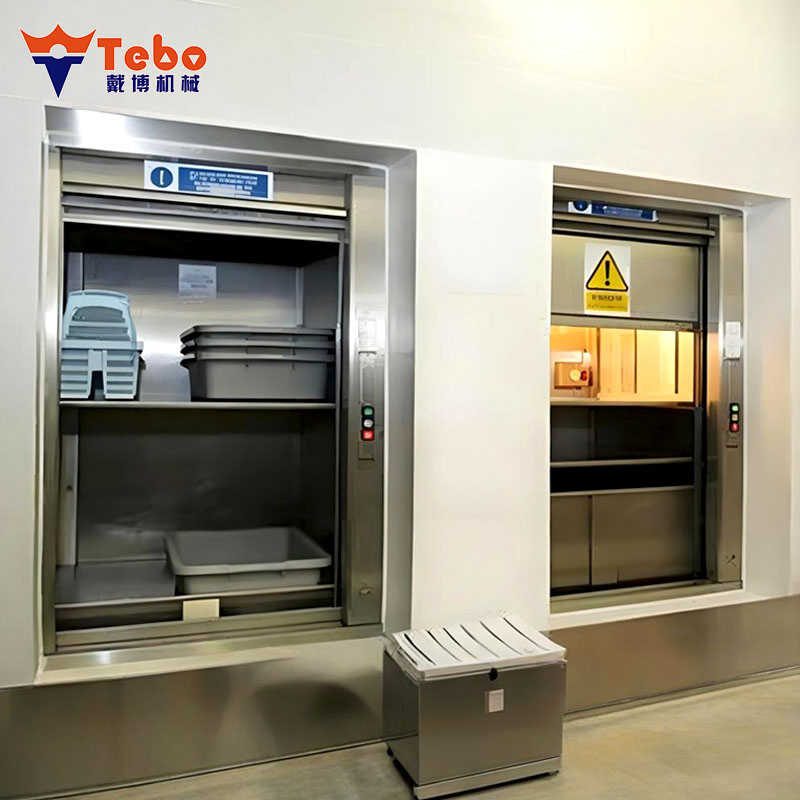

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.
Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use.

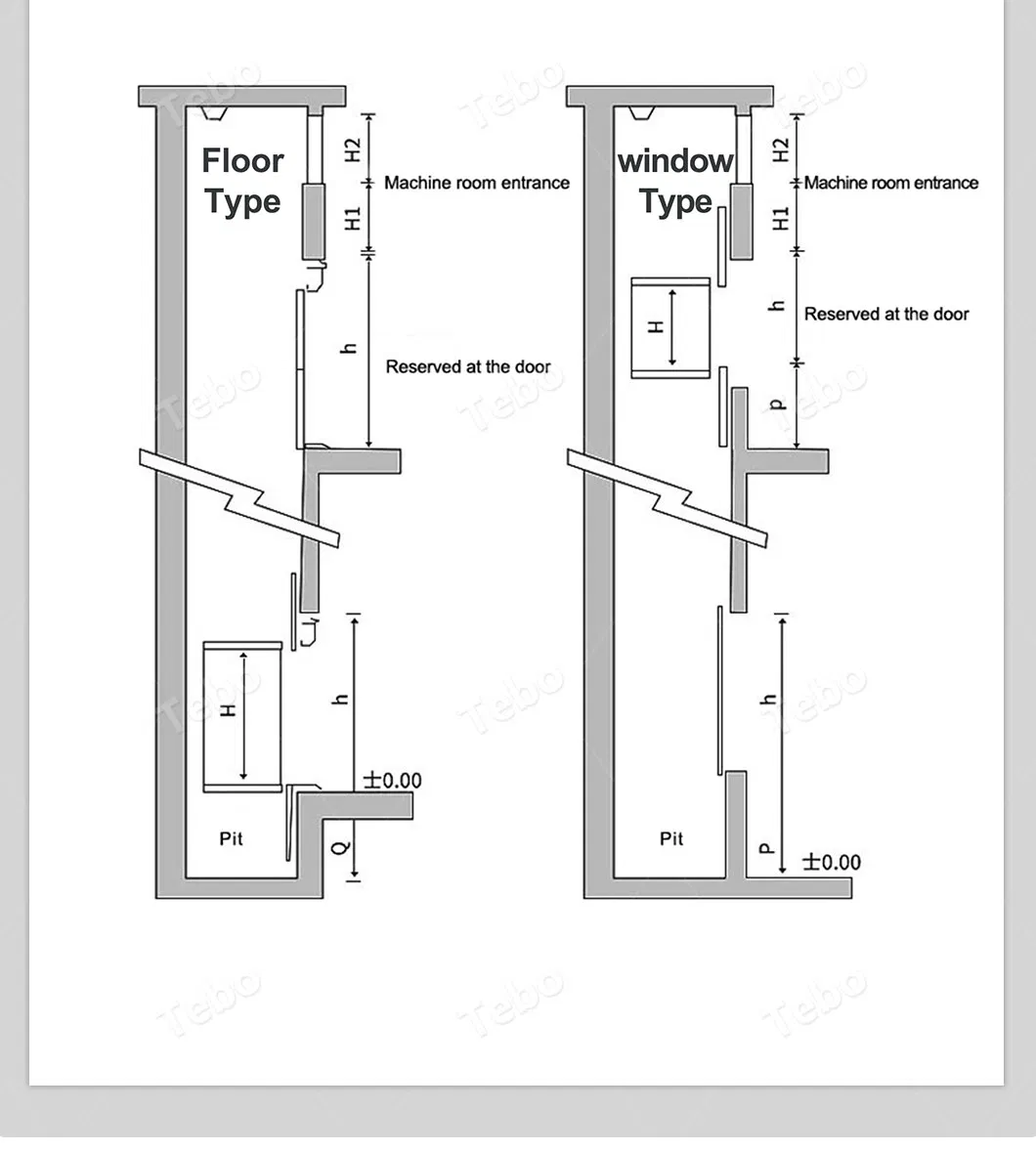

| Type | Load(kg) | Cabin Dimension (W*D*H mm) | Landing Door | Door Size (W*H mm) | Sill Height | Overhead Height |
|---|---|---|---|---|---|---|
| Window Type | 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 |
| Window Type | 200 | 800*800*1000 | Standard | 800*1000 | 800 | 3000 |
| Type | Load(kg) | Cabin Dimension (W*D*H mm) | Landing Door | Door Size (W*H mm) | Min Pit Depth | Overhead Height |
|---|---|---|---|---|---|---|
| Floor Type | 200 | 800*800*1000 | Standard | 800*1000 | 600 | 2800 |
| Floor Type | 300 | 1000*1000*1200 | Standard | 1000*1200 | 700 | 3200 |
| Floor Type | 400 | 1000*1200*1400 | Standard | 1200*1400 | 800 | 3600 |
* The above parameters are for reference only and support customized services.
Our enterprise specializes in the R&D and manufacturing of mechanical equipment. We have assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, having secured numerous independent intellectual property rights and patent technologies.
Equipped with advanced production facilities including modern CNC machining centers and automated welding equipment, we ensure efficient end-to-end production. We have established a comprehensive service system encompassing market analysis, product design, and customized manufacturing.
We use high-quality plywood cases for packaging to ensure maximum protection during transit. Special shipping marks and specific requirements can be accommodated upon request.
