Product Overview

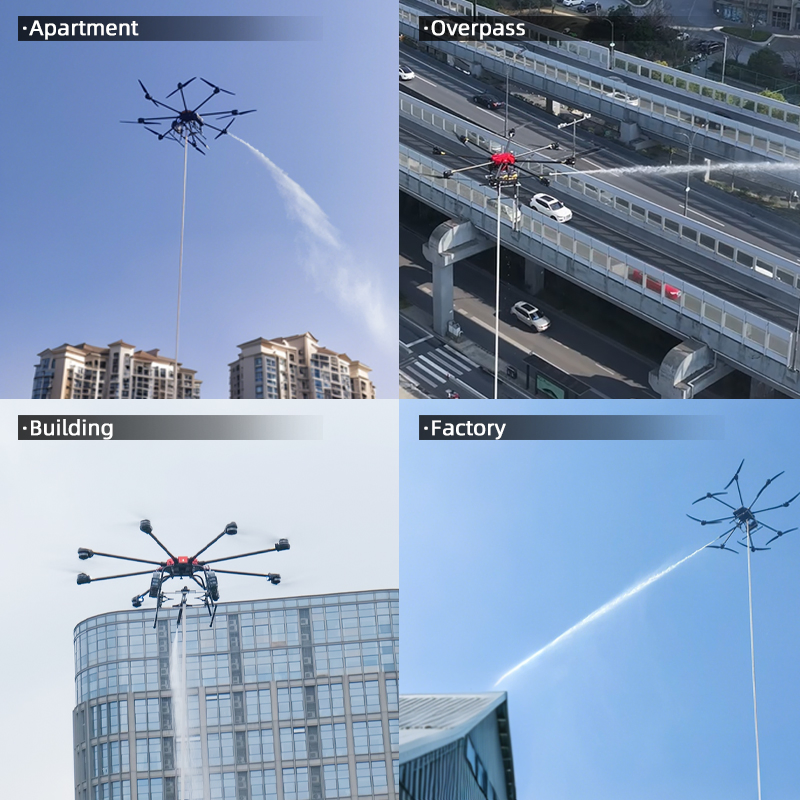

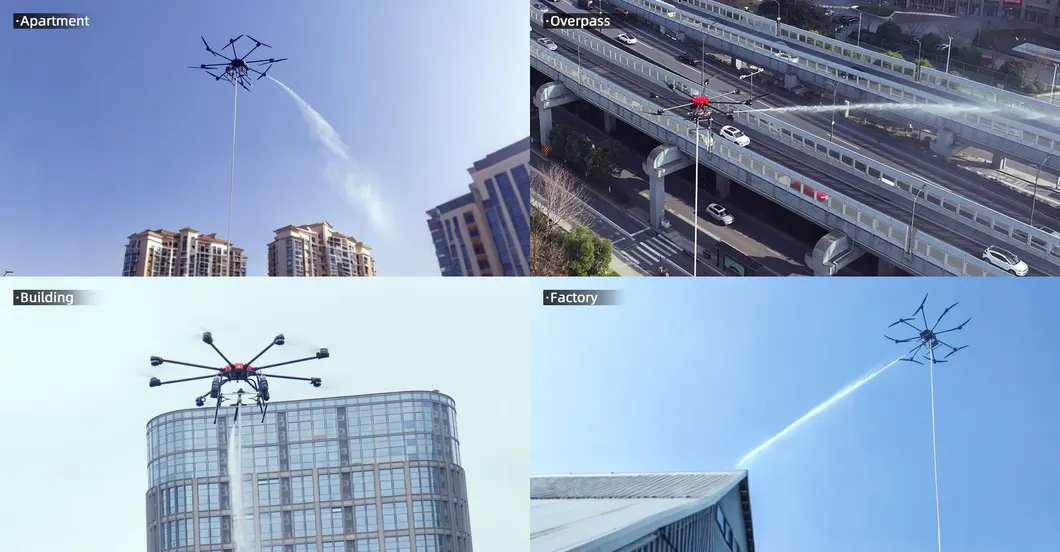

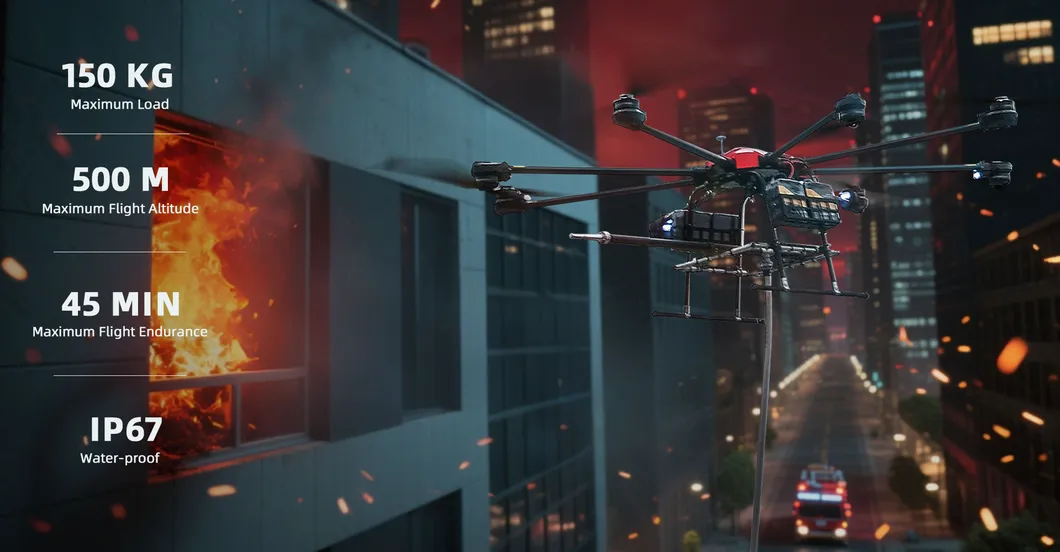

The HZH XF120 is a professional-grade, heavy-lift firefighting drone designed for demanding aerial operations. With a massive 150kg payload capacity and advanced flight stability, it provides a powerful solution for urban high-rise, industrial, and forest fire suppression.
| Basic Information |
| Model NO. | HZH XF120 |
| Size | Large (4605*4605*990mm) |
| Usage | Firefighting / Heavy Industrial |
| Structure | 8-Axis Wing UAV |
| Maximum Load Weight | 150 Kg |
| Max. Takeoff Weight | 257.8 Kg |
| Max. Flight Altitude | 500 M |
| Max. Flight Time | 45 Min |
Standard Configuration & Core Features
✓

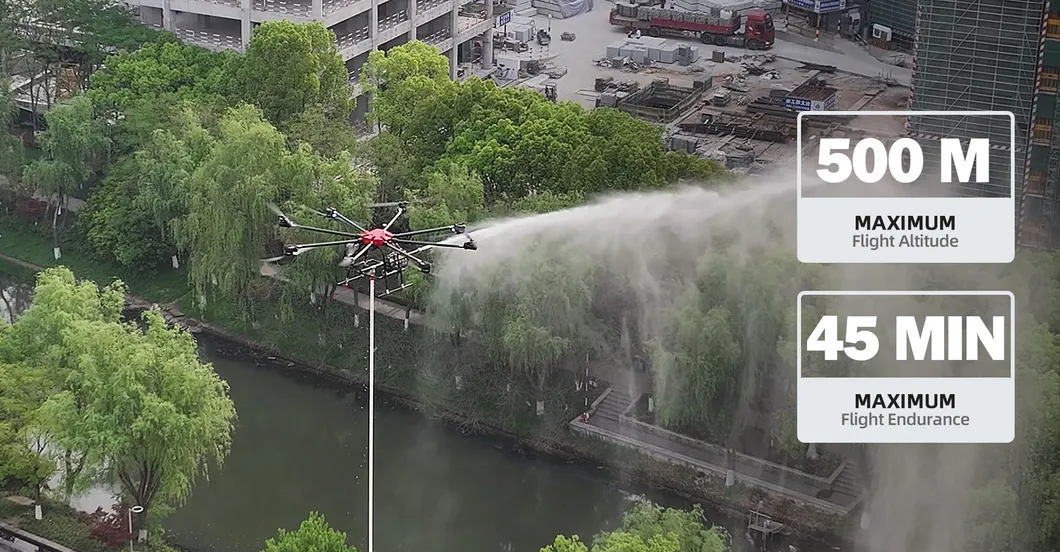

Exceptional Vertical Reach: 500-meter max altitude allows access to skyscraper upper floors and tall industrial structures.
✓
Prolonged Mission Endurance: 45-minute flight time enables sustained suppression missions without frequent battery changes.
✓

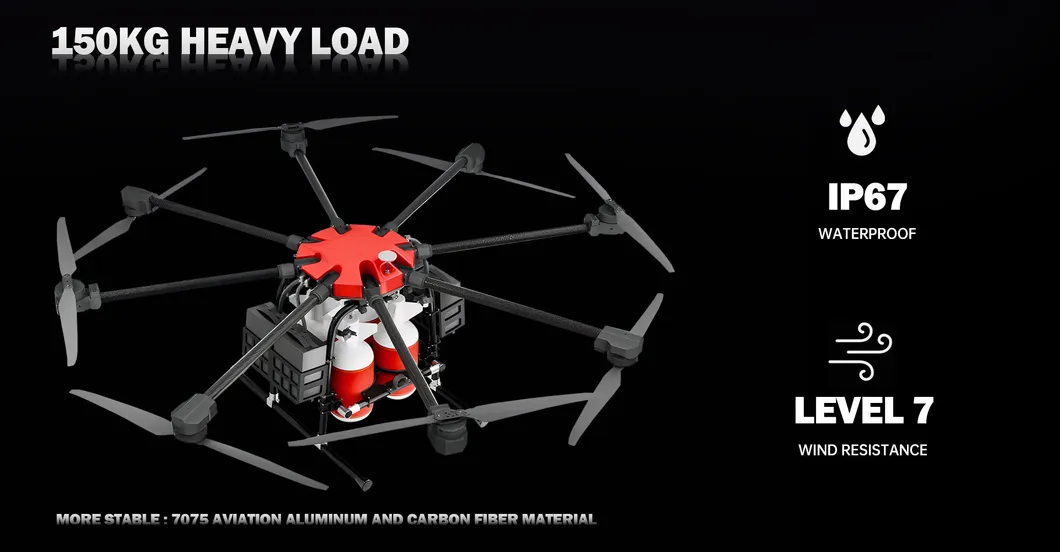

Robust Composite Structure: Built with 7075 aerospace aluminum and carbon fiber for optimal durability and agility.
✓
IP67 Waterproof & Wind Resistance: Rated for level 7 winds and heavy water exposure, ensuring reliability in harsh weather.
✓

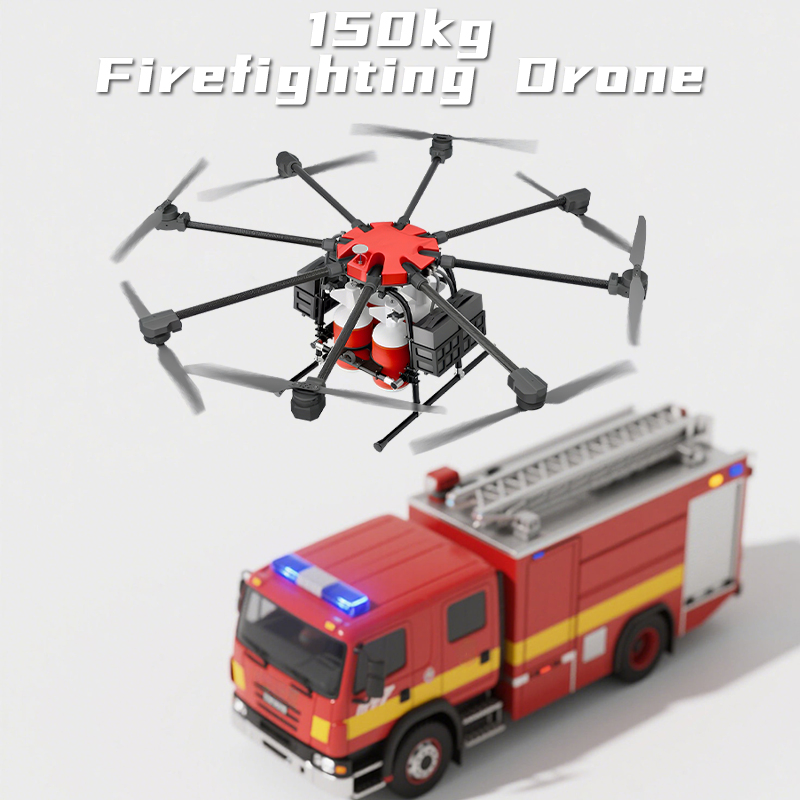

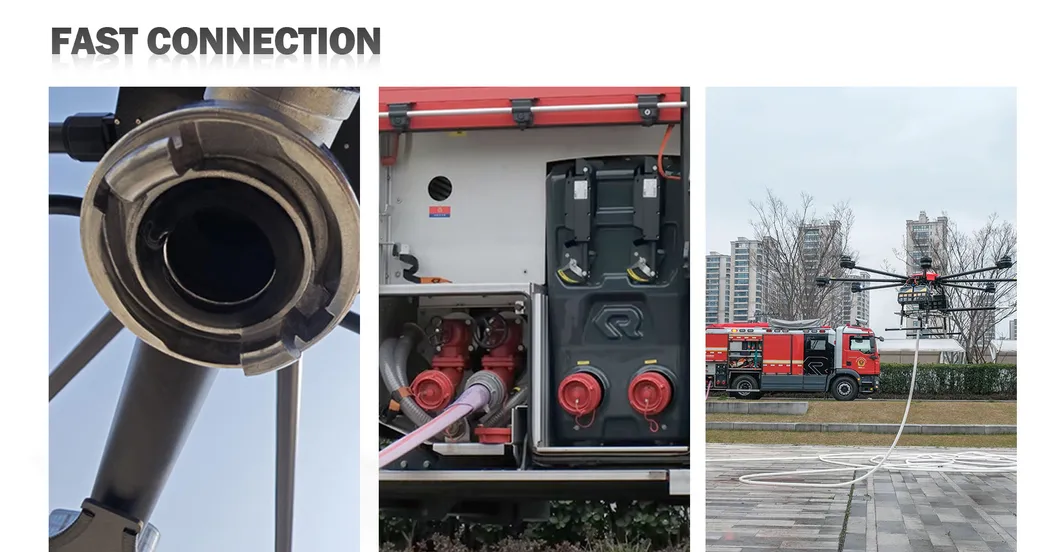

Rapid Deployment: Fully assembled and operational in just 5 minutes from any emergency vehicle.
✓

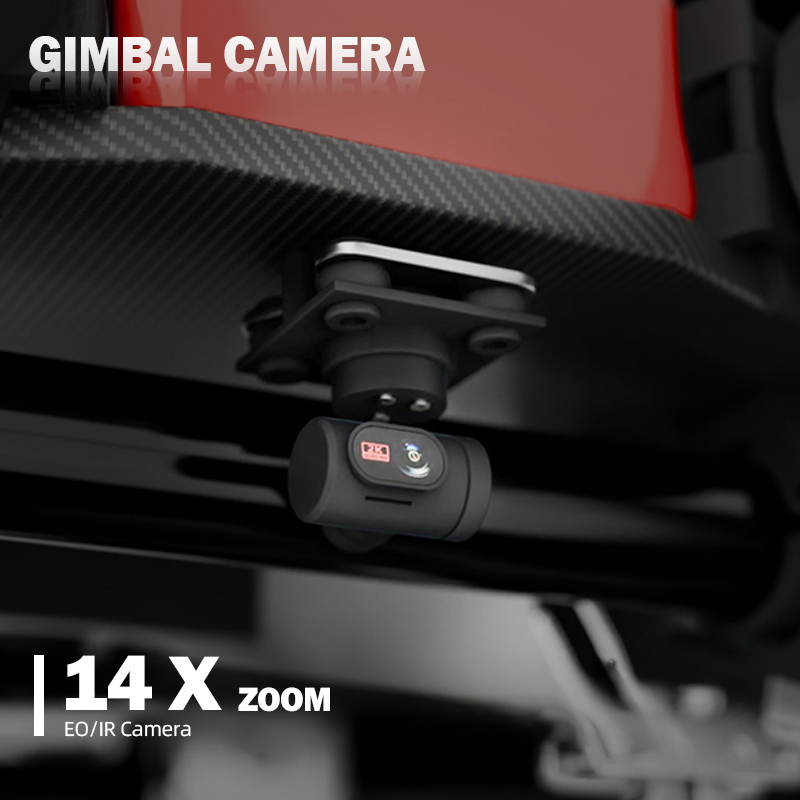

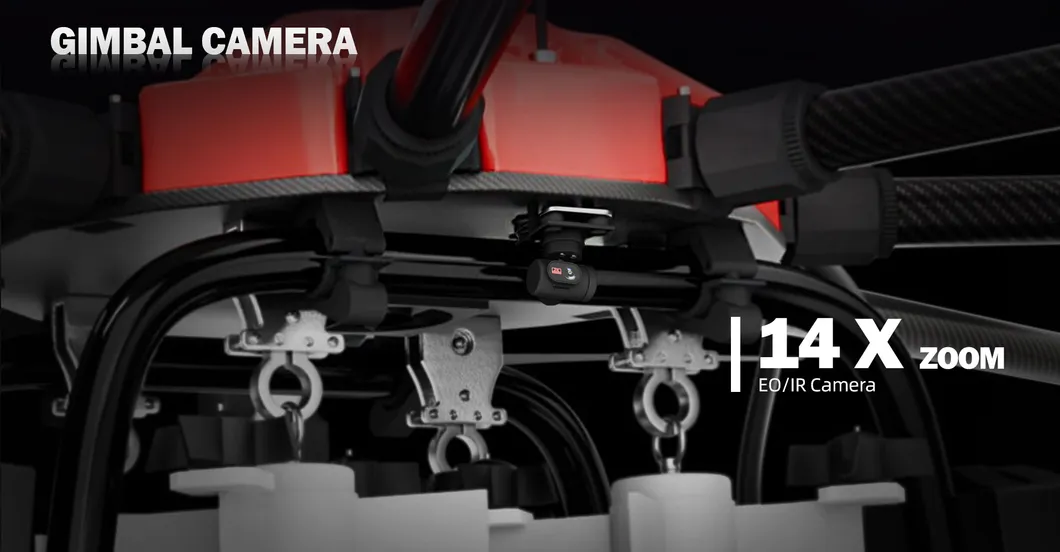

14X Zoom EO/IR Camera: High-precision visible and infrared imaging for detecting heat signatures through thick smoke.
Frequently Asked Questions
Q1: What is the maximum payload and flight time of the HZH XF120?
The drone supports a maximum payload of 150kg and has an impressive flight endurance of up to 45 minutes.

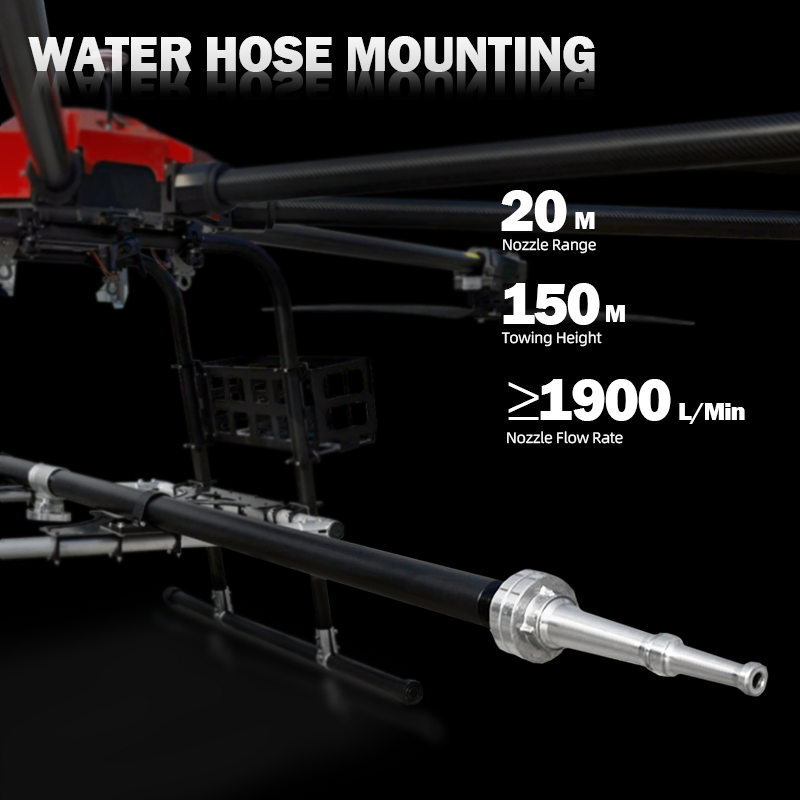

Q2: How effective is the water hose system?
The system features a nozzle flow rate of ≥1900 L/min with a projection range of 20 meters and a towing height capacity of 150 meters.
Q3: Can the drone operate in poor visibility or at night?
Yes, it is equipped with a 14X Zoom EO/IR camera that uses infrared heat signatures to identify fire sources and trapped individuals through smoke.
Q4: What are the fire extinguishing bomb options?
The drone can deploy ABC dry chemical bombs for industrial/electrical fires or water-based agents for residential and forest fires, covering over 50m² per deployment.
Q5: Is the drone durable enough for extreme weather?
Absolutely. It features an IP67 waterproof rating and can resist winds up to level 7, thanks to its aerospace-grade aluminum and carbon fiber construction.
Q6: How long does it take to deploy the drone in an emergency?
The HZH XF120 is designed for rapid deployment and can be fully assembled and ready for flight within 5 minutes.
