Vanguard Lift
Vanguard Lift

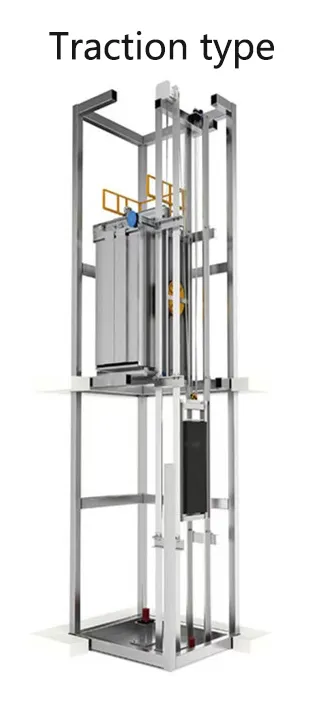

Traction lifts utilize a sophisticated yet simple motor and counterweight system. A motor is attached to a toothed pulley (sheave), with a high-strength rope or cable looped over it, connecting the lift car to a counterweight.
The counterweight balances the system, significantly reducing the strain on the motor. This energy-efficient design requires less power to move the car up or down, providing a smoother ride with gradual acceleration.
| Parameter | Specification |
|---|---|
| Model | VPL Series |
| Load Capacity | 400kg - 500kg |
| Maximum Car Size | 1200 x 1300mm |
| Stops | 2 - 6 Stops |
| Travel Height | Up to 16m (Total height 20m) |
| Rated Speed | Max 0.4m/s (Standard) / Up to 3.50m/s (High-speed options) |
| Power Supply | 220V 2-phase or 380V 3-phase, 50/60Hz |
| Pit Depth | Minimum 150mm |
| Overhead Height | Minimum 2850mm (2300mm in specific configurations) |

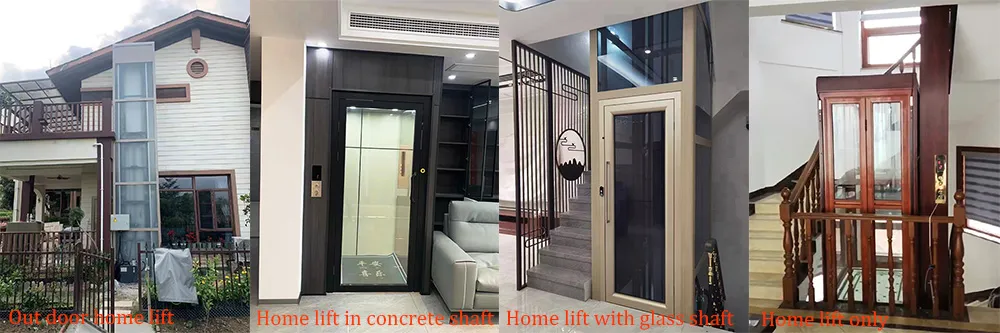

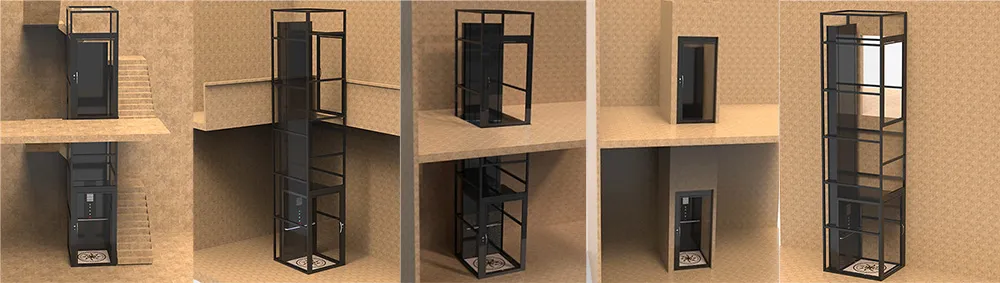

Our traction home lifts are designed to fit various architectural requirements:
| 1. In-car Emergency Lighting | 9. Safety Circuit Protection |
| 2. Full Load Bypass | 10. Limit Protection |
| 3. Overload No-Start Warning | 11. Upper/Lower Limit Protection |
| 4. Automatic Fault Detection | 12. Operating Contactor Protection |
| 5. One-touch Emergency Call | 13. Brake Detection Protection |
| 6. Pit Buffer Device | 14. Electric Brake Release Rescue |
| 7. Light Curtain Door Protection | 15. Power Outage Emergency Leveling (UPS) |
| 8. No Door Opening Outside Zone | 16. One-touch Dialing Function |

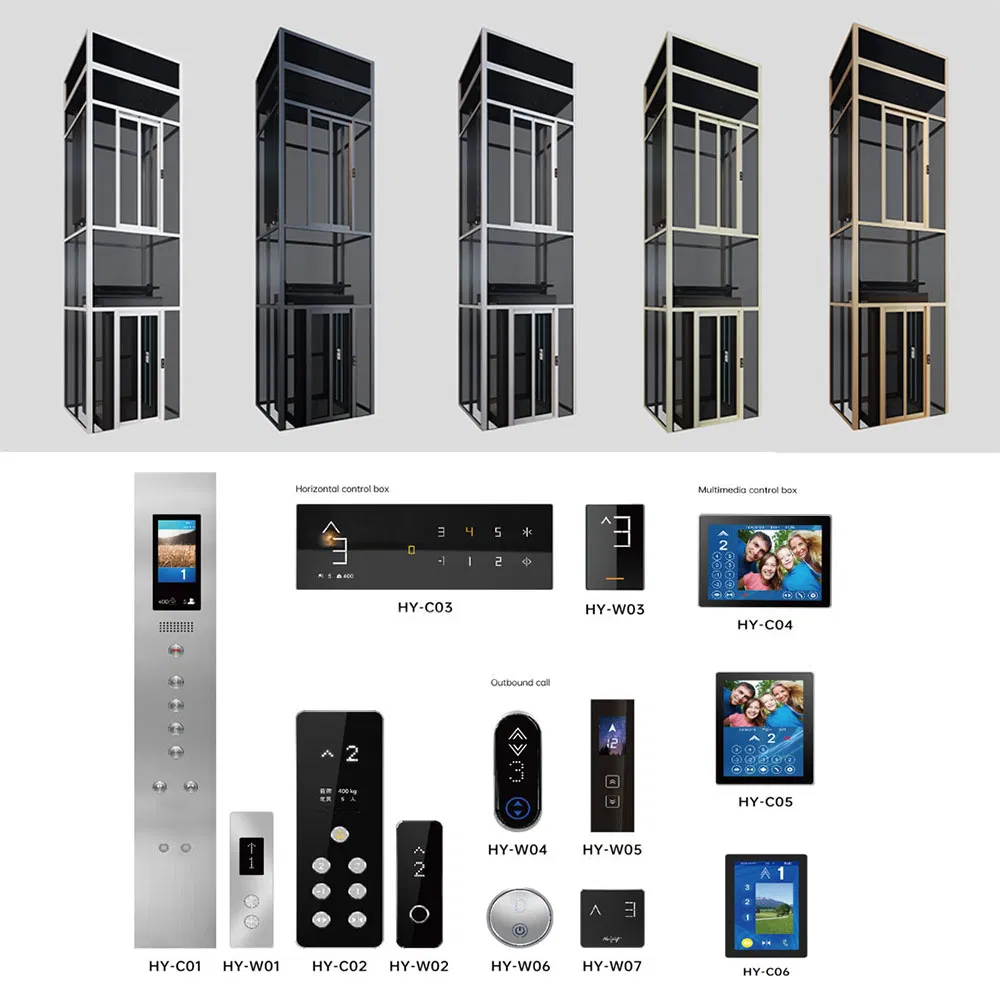

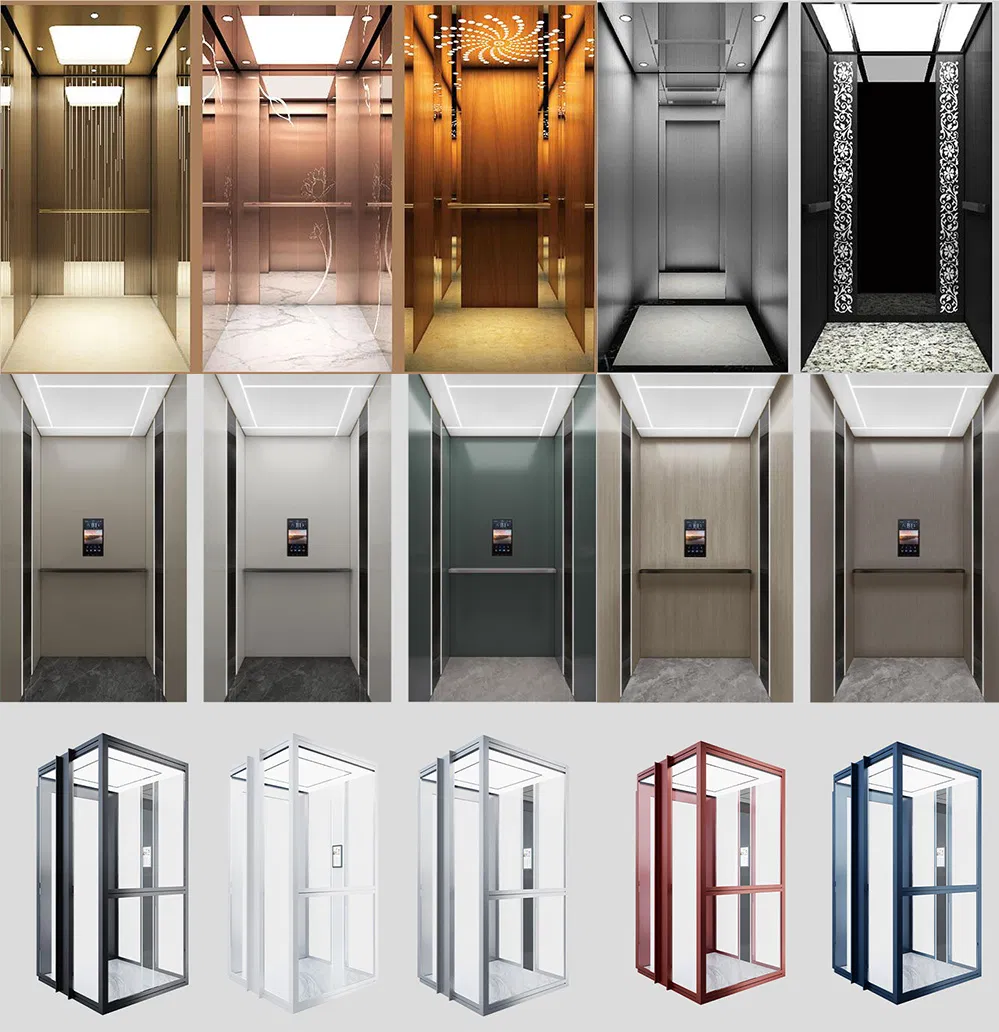

Cabin walls are available in Stainless Steel, Glass, or Wood. Color options include Original, Black, Rose Gold, Gold, and White. Glass can be clear, frosted, or tinted.
Standard flooring is PVC, with options for solid wood or ceramic tiles. Hundreds of ceiling and lighting styles are available to match your home decor.

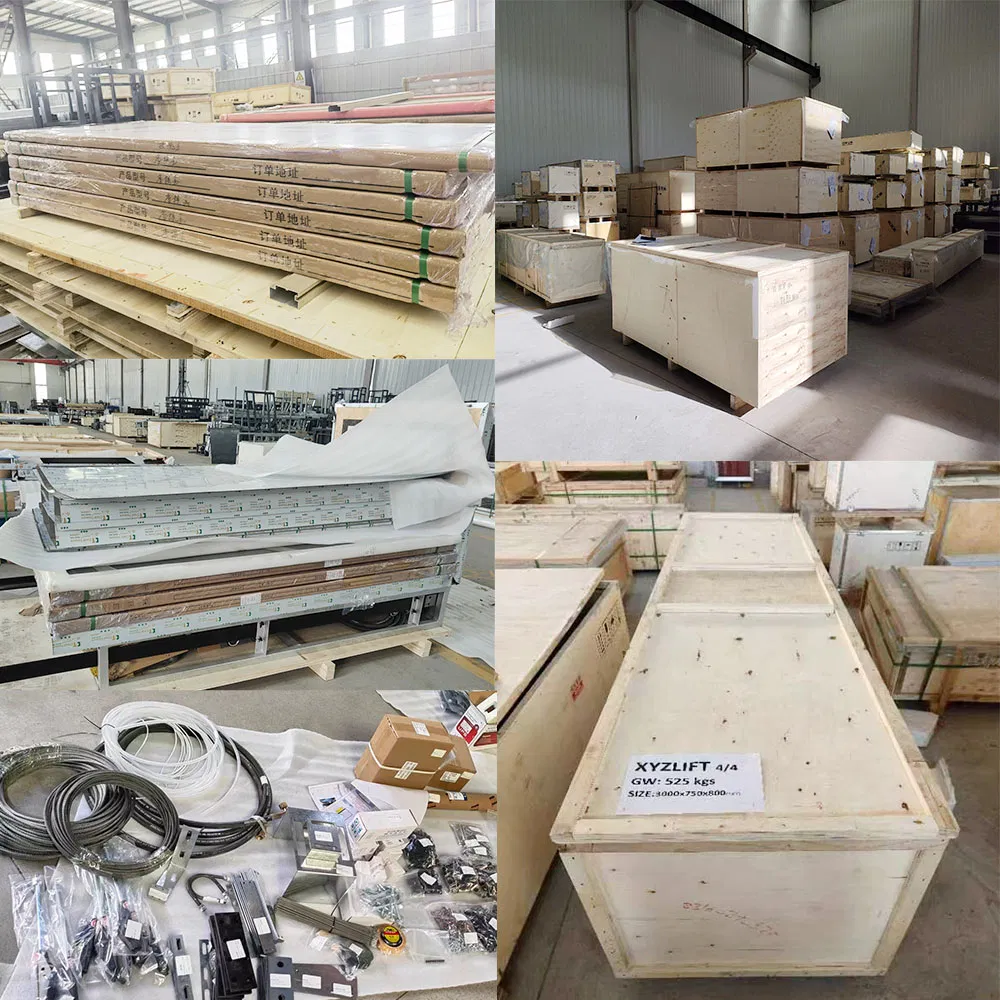

All elevator components are secured in seaworthy standard plywood boxes with moisture-proof plastic lining. Each package includes a detailed packing list and identification tags.
Total Weight: Approx 1450kg - 2600kg depending on configuration.
