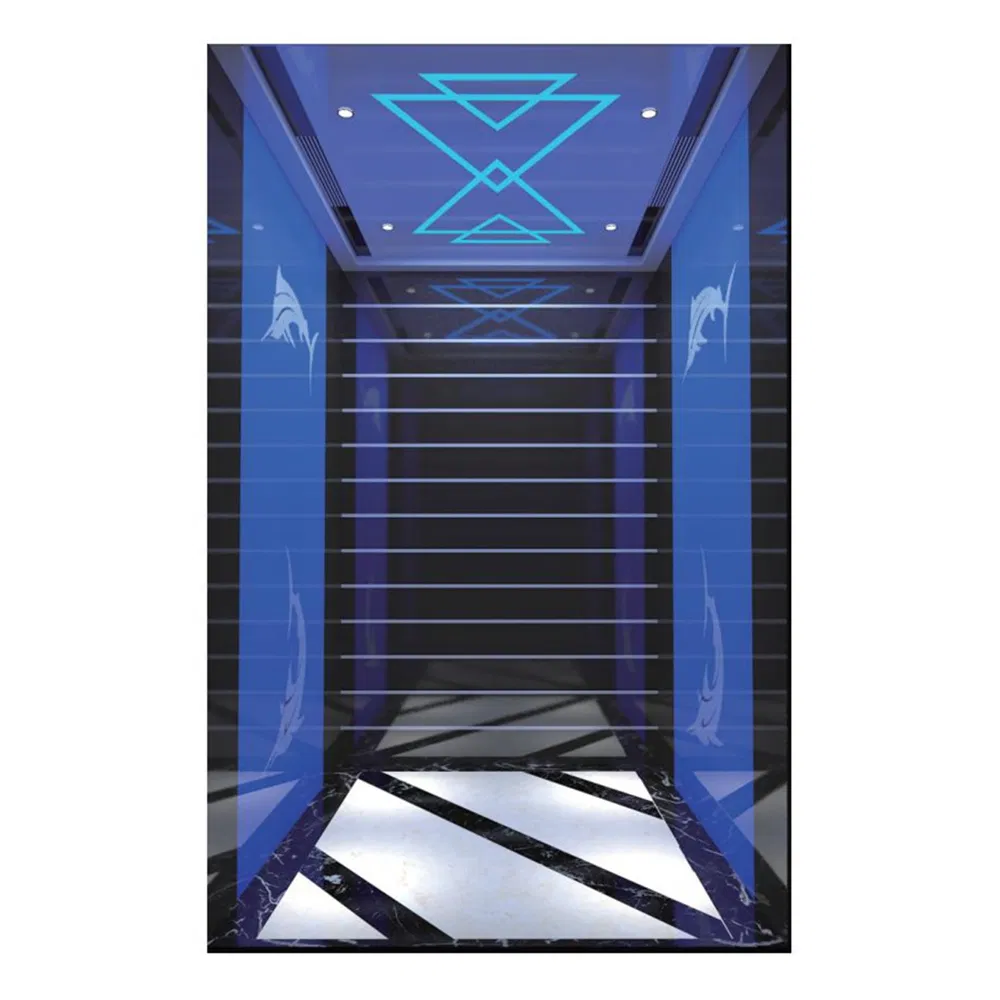

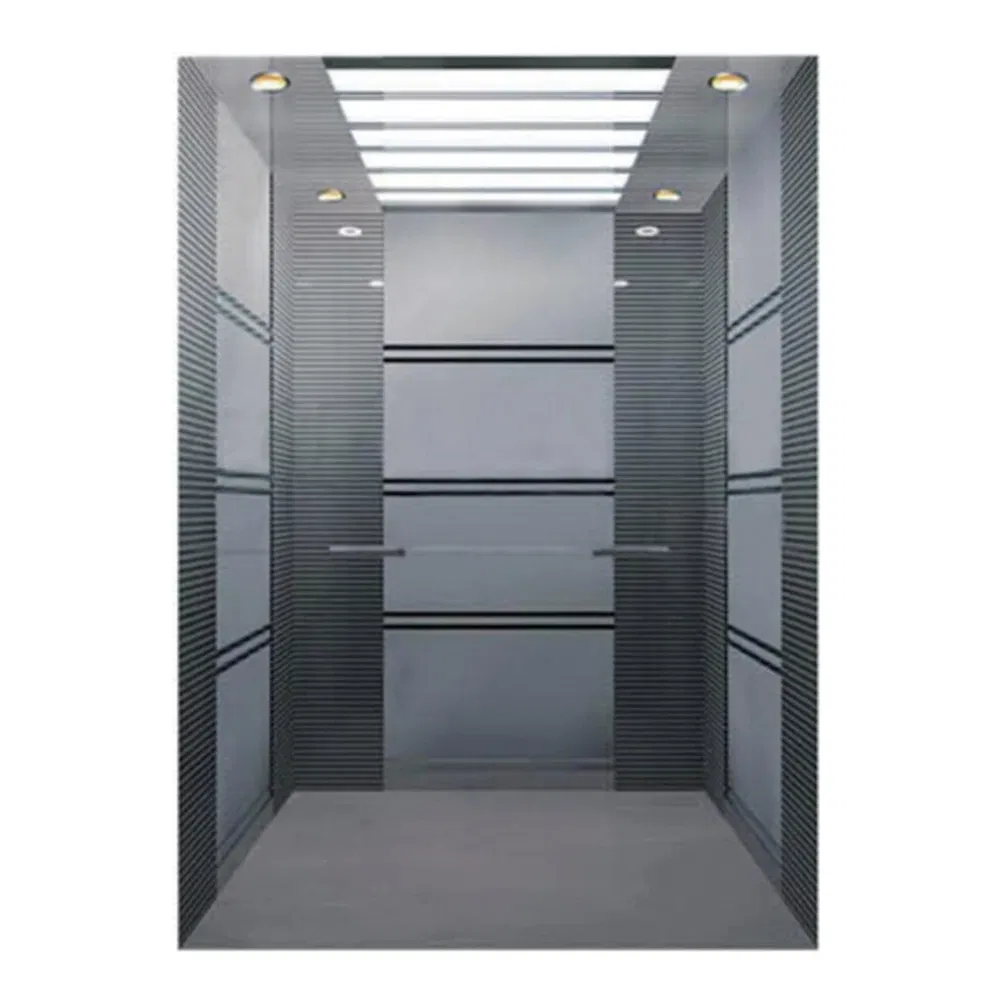

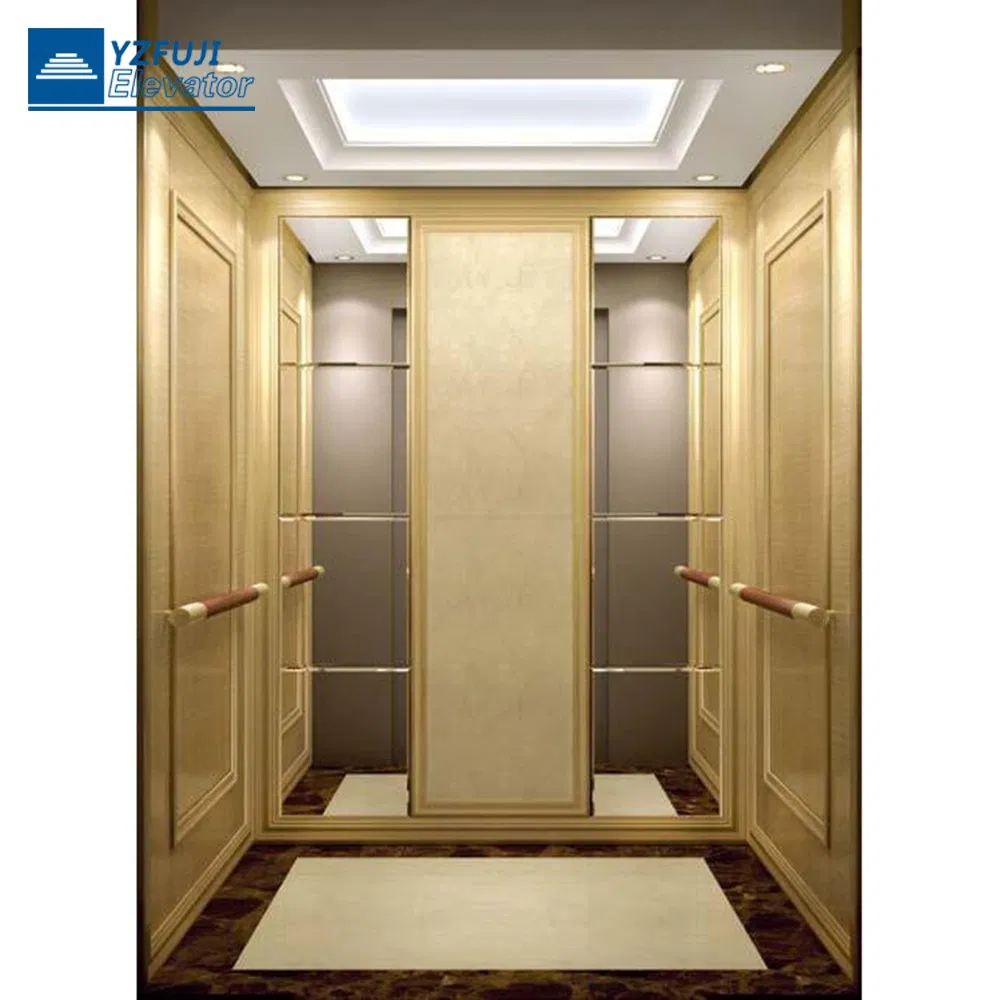

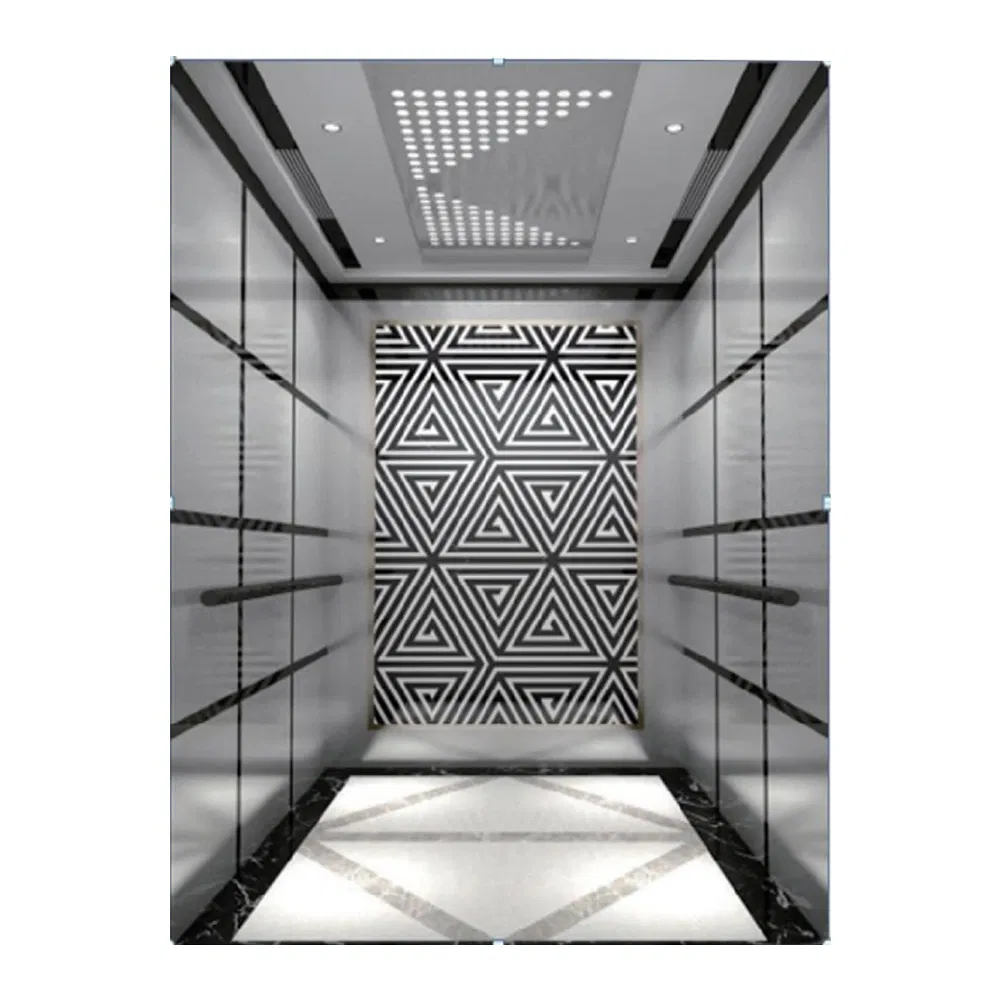

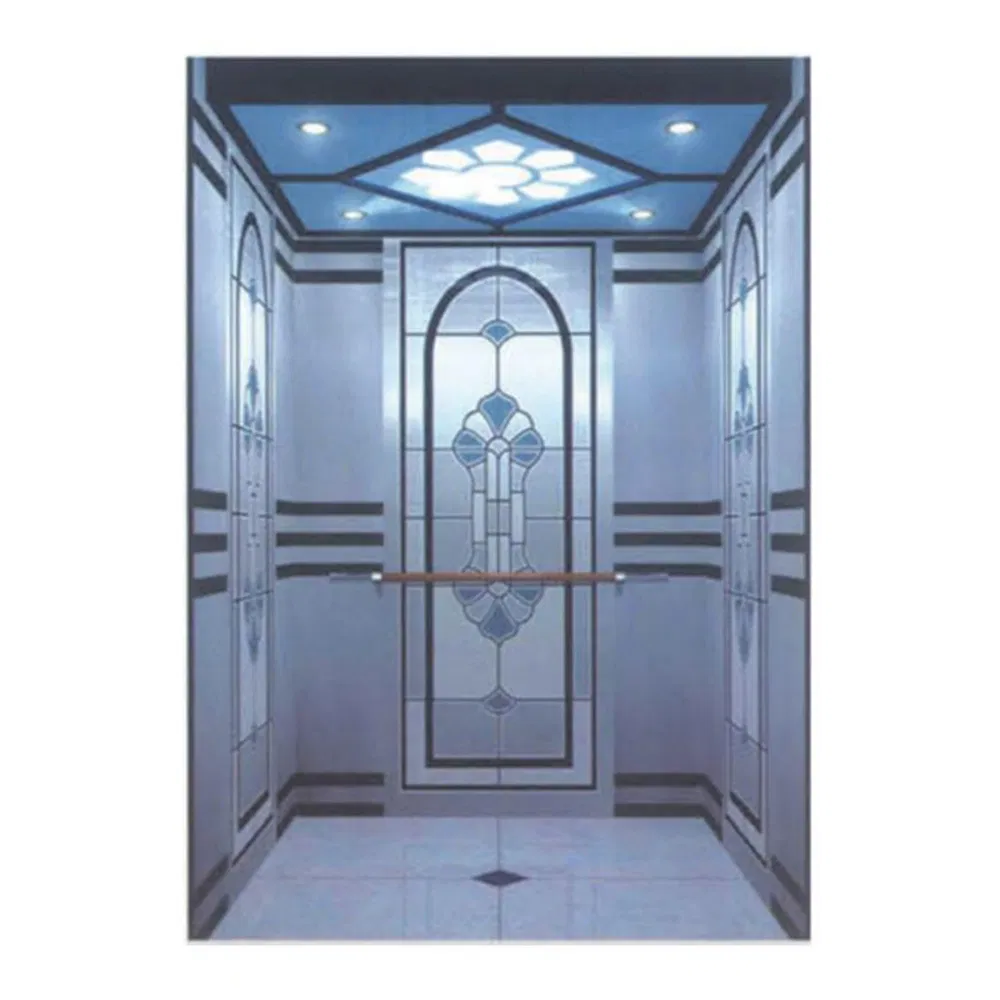

Asia FUJI Passenger Lift Elevator with Small Machine Room

1 / 5

Asia FUJI Passenger Lift Elevator with Small Machine Room

Customization:	Available
After-sales Service:	Installation/Guidance/Warranty
Warranty:	1 Years

Send Inquiry

Product Description

Basic Info.

Model NO.

FUJI-JX

Driving Type

AC Elevator

Capacity

450-1600kg

Persons

6-21

Speed

1.0-4.0m/S

Control Mode

Group Control

Position of Computer Room

Elevator Door

Center Opening Door

Material

304 Stainless Steel

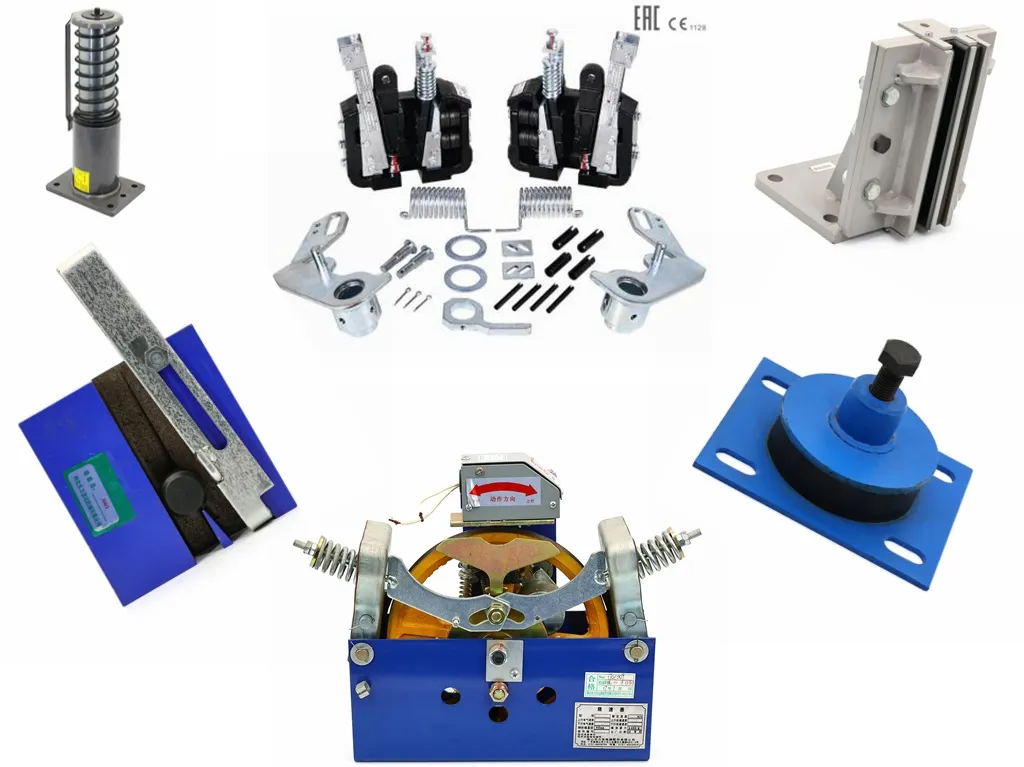

Safety Device

Safety Gear

Energy Saving

More Than 50%

Production Capacity

20000 Pieces/Year

Product Description

Product Parameters

Capacity (Kg)	Person	Speed (m/s)	Entrance(mm)	Clear car dimension (mm)	Hoistway dimension (mm)	Pit depth (mm)	Overhead Height (mm)	Rated power (KW)
450	6	1.0 - 1.5	700	1200x1100	1800x1800	1500 - 1600	4400 - 4500	3.0 - 4.8
630	8	1.0 - 1.5	800	1400x1100	2000x1800	1500 - 1600	4400 - 4500	4.3 - 6.8
800	10	1.0 - 2.0	800	1400x1350	2000x2050	1500 - 1800	4400 - 4700	5.4 - 11
1000	13	1.0 - 4.0	900	1600x1450	2200x2200	1500 - 3800	4400 - 5900	6.4 - 27.7
1250	16	1.0 - 4.0	1000	1800x1550	2400x2300	1500 - 3800	4400 - 5900	8.5 - 34.6
1600	21	1.0 - 4.0	1200	2000x1700	2600x2400	1500 - 3800	4400 - 5900	11 - 34.2

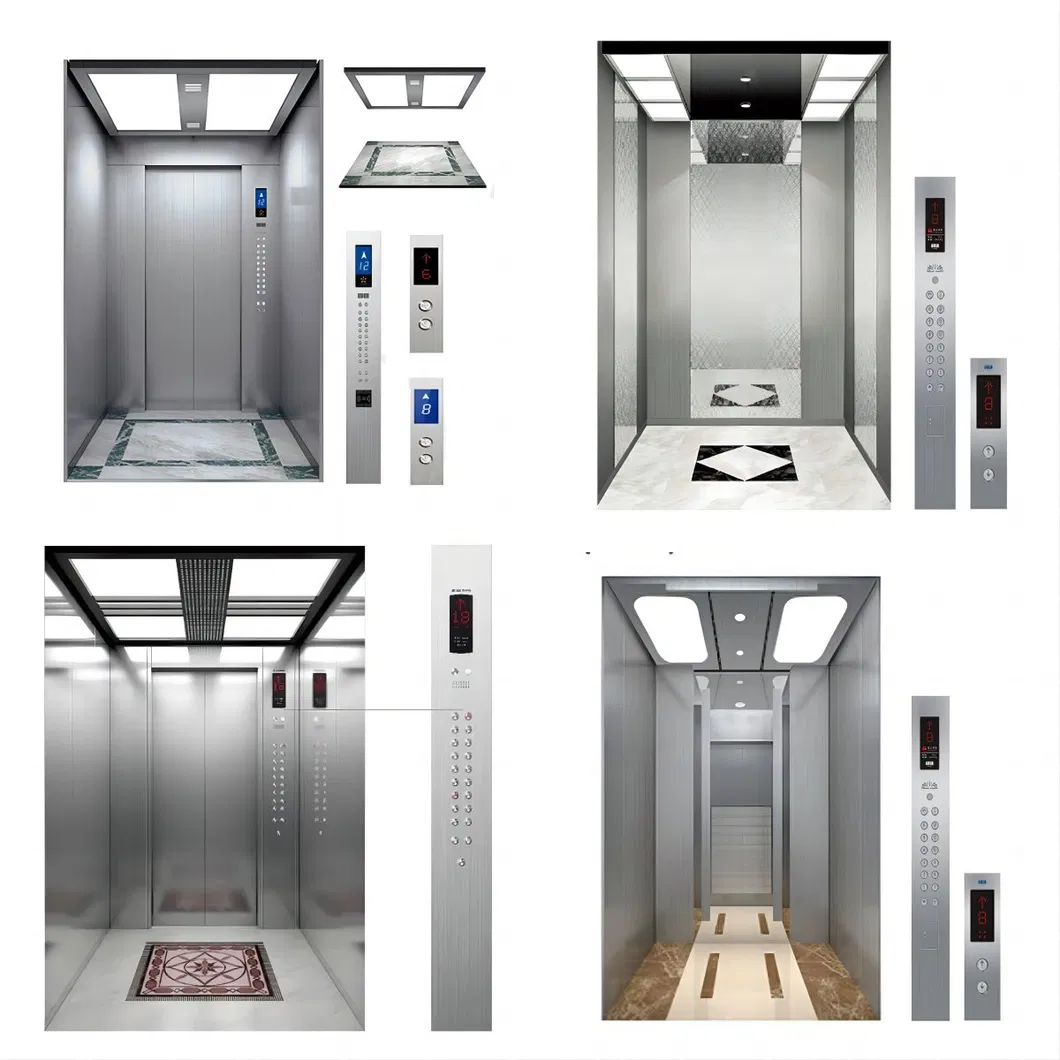

Customization & Decoration

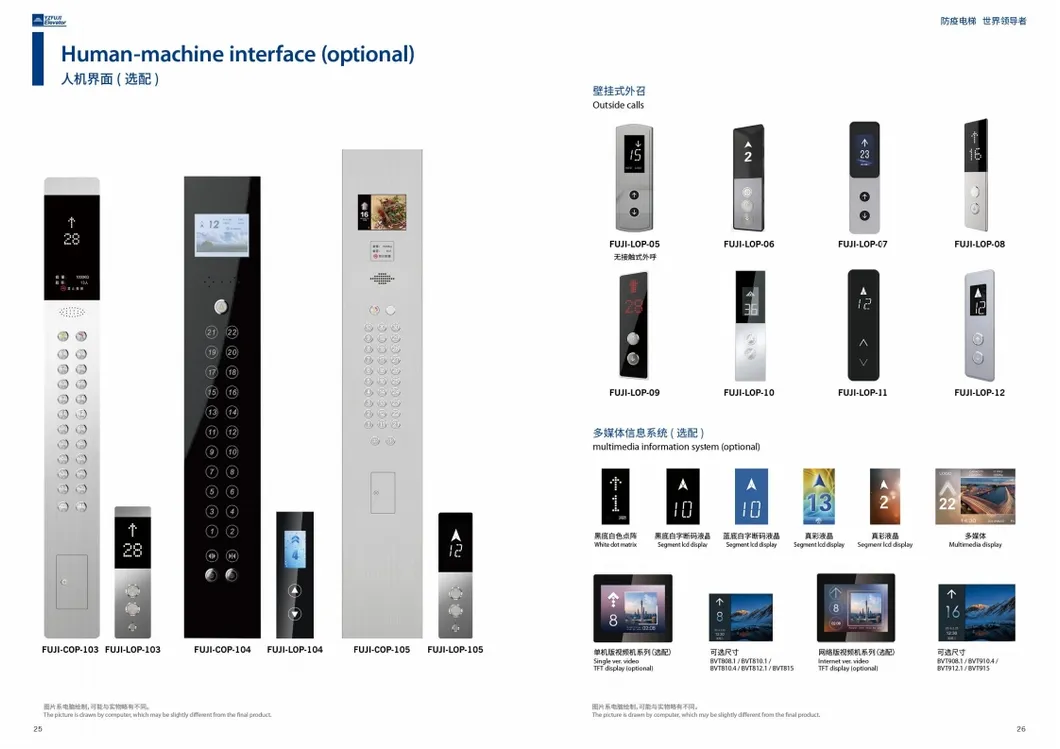

Humanized Design: Customize COP, LOP, and door handle positions according to regional standards.

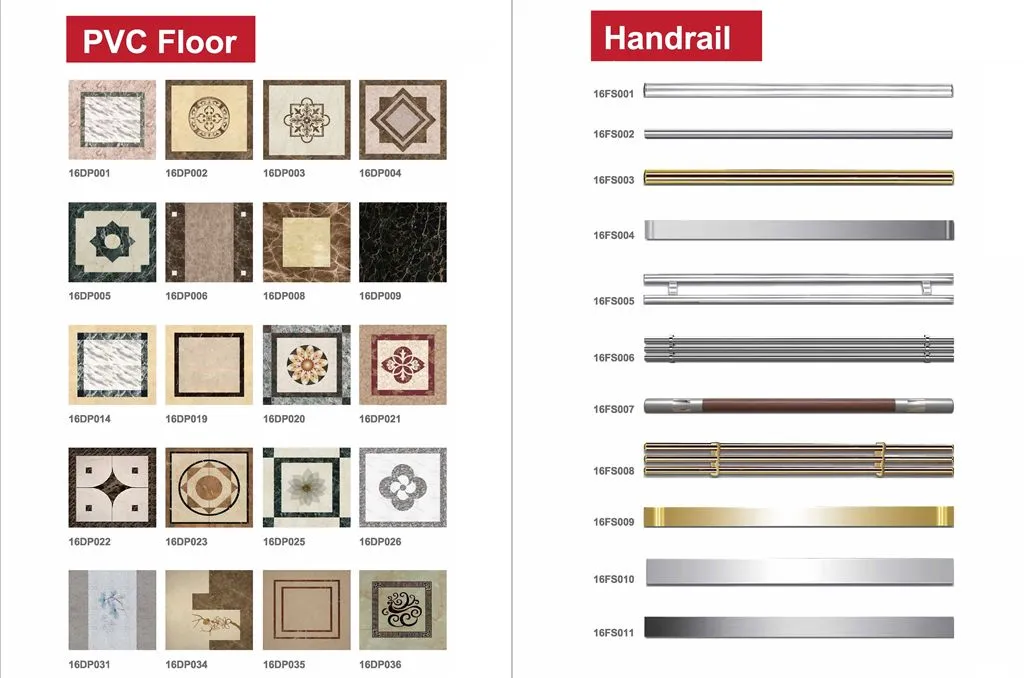

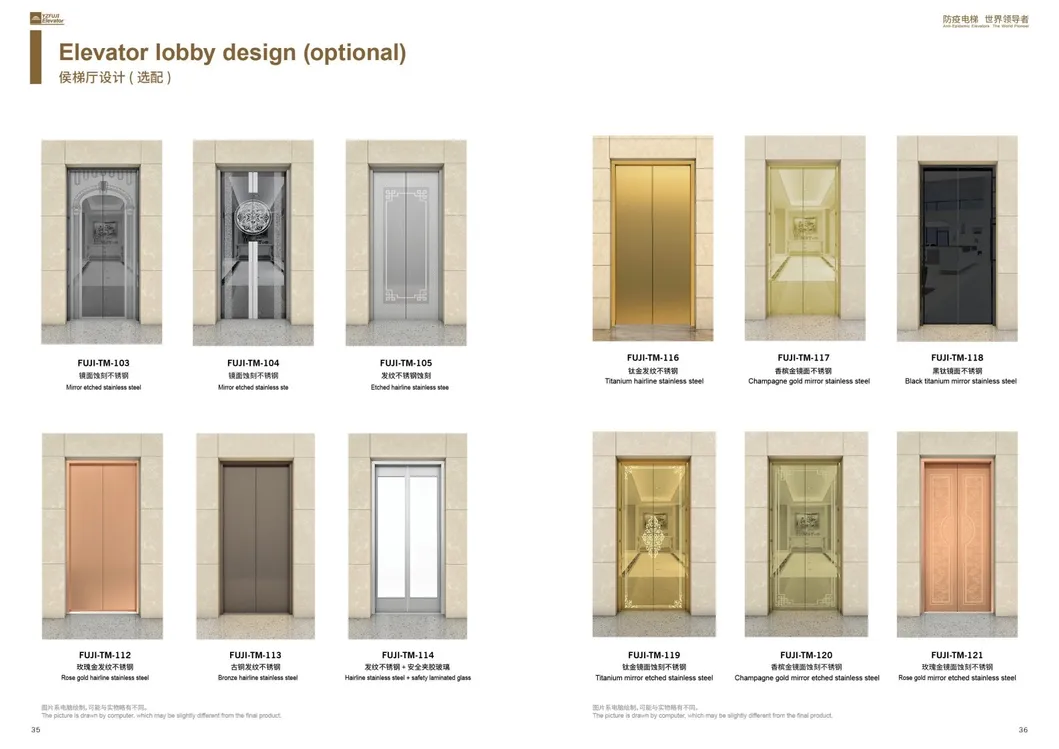

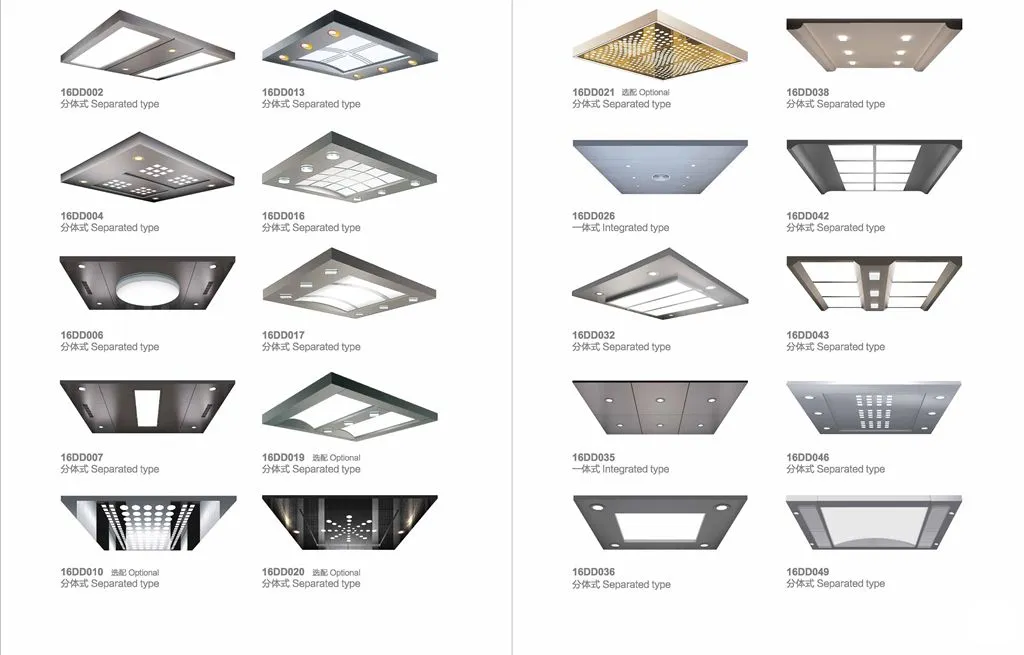

Decoration Customized: Diverse schemes including high-end styles like Hermes Design as per customer requests.

Our Core Advantages

VVVF Frequency Modulation Technology: Adopts low noise vector control inverter and world-advanced IGBT to reduce motor noise and power consumption.

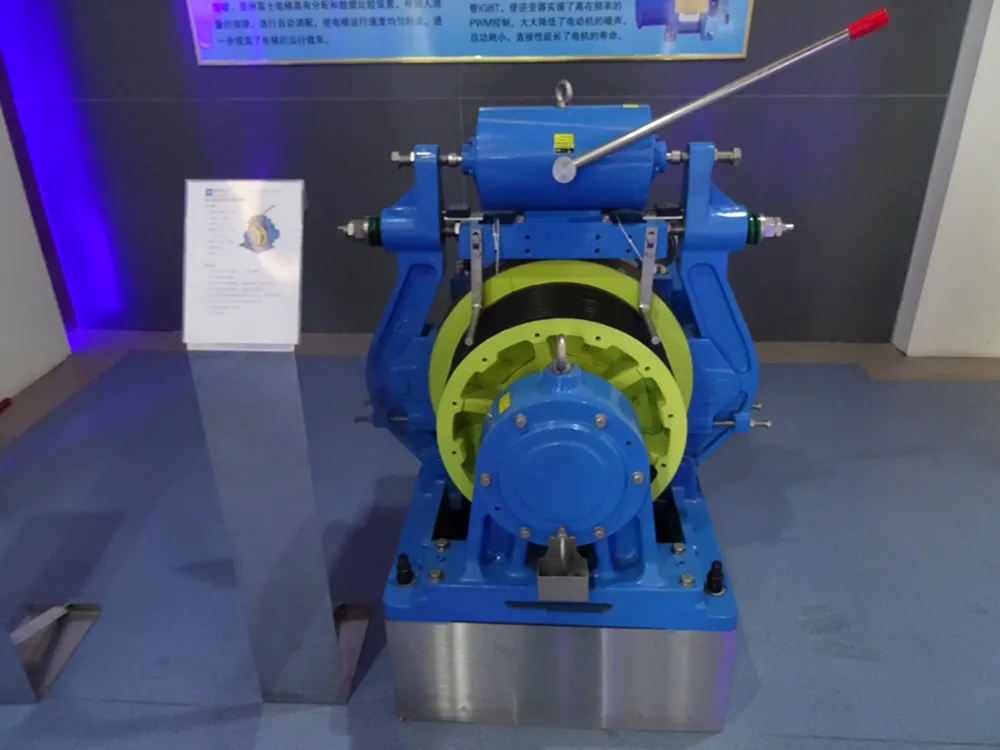

Miniature Energy-Saving Host System: Permanent magnet gearless technology saves more than 60% energy, requires no oil, and minimum maintenance.
Energy Regeneration: Equipped with regenerative braking unit that feeds energy back to the grid, saving 50% more energy than ordinary AC elevators.

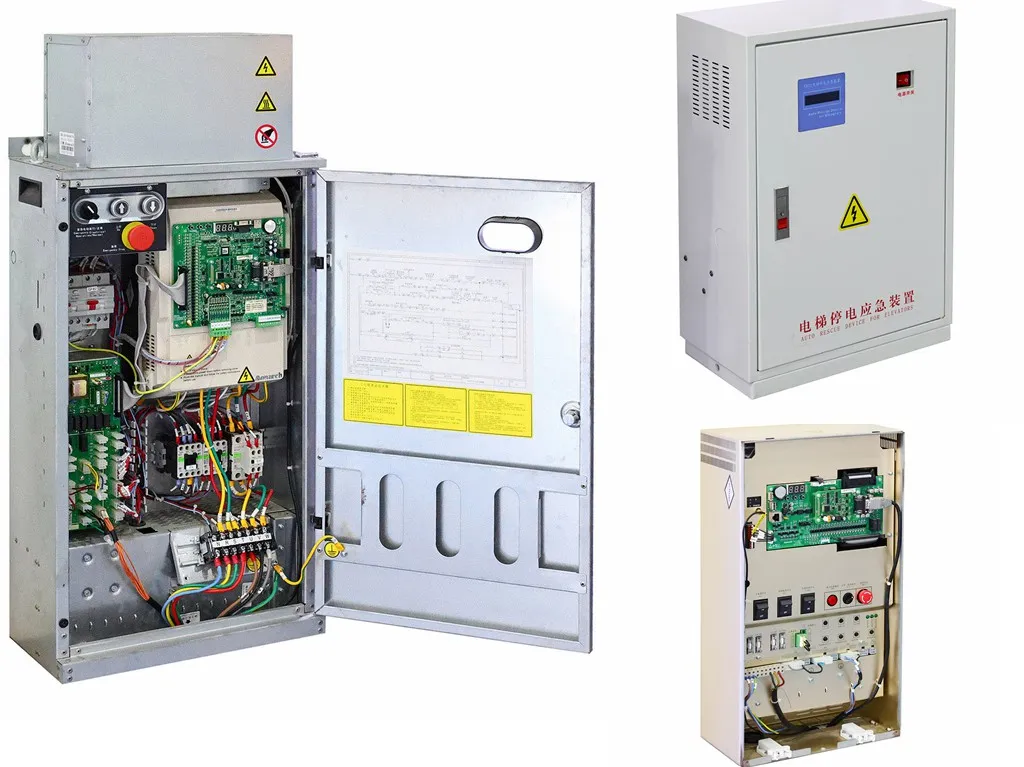

Integrated Control System: Using NICE3000 technology for high-performance vector control and digital direct parking.

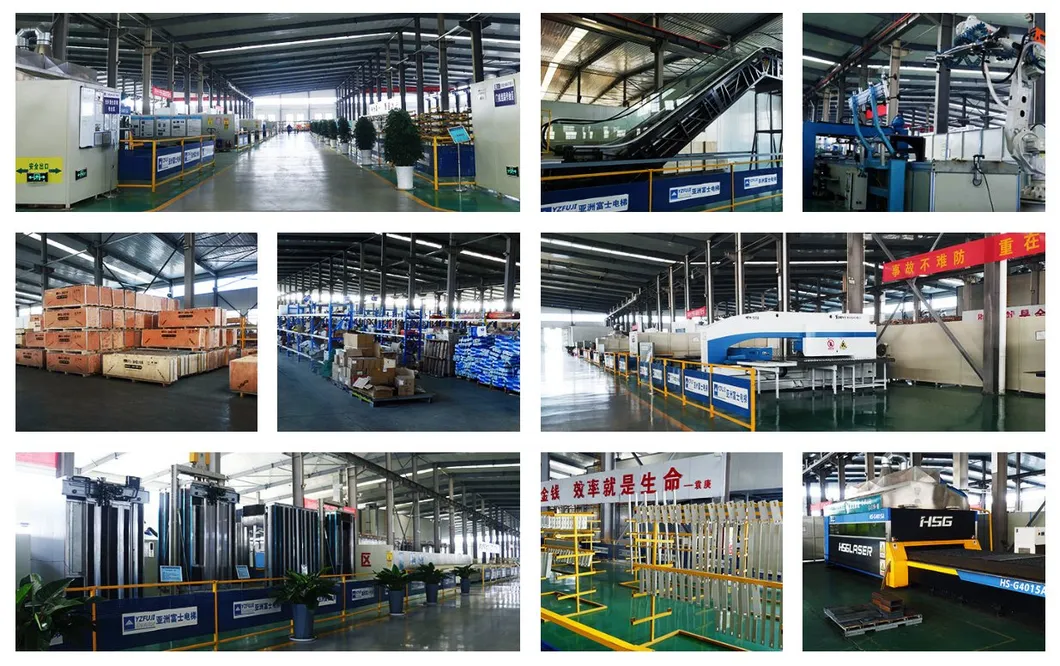

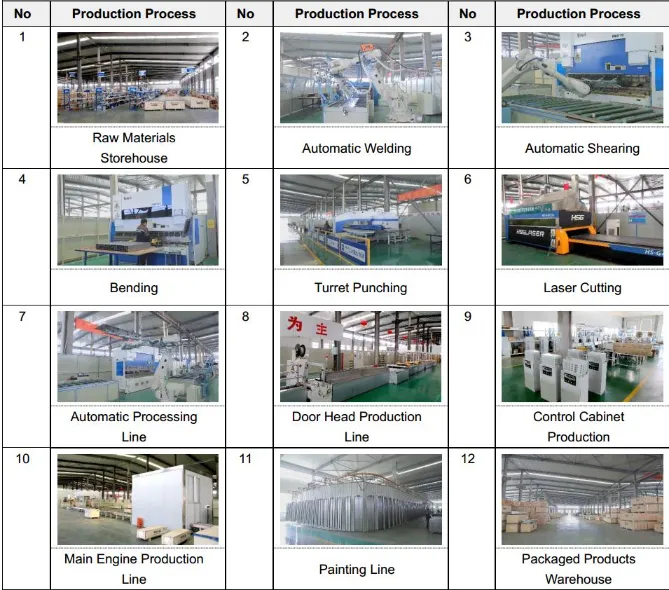

Manufacturing Excellence

Brand Heritage: Established in 1946, a globally recognized brand.

Scale: Total area of 200,000 square meters with an annual capacity of 5,000 units.

Experience: Over 23 years of exporting experience to global markets.

Innovation: Holder of 20 patents in the elevator industry.

Service & Packaging

24/7 Online Support in English.
Systematic packing method with detailed lists for efficient installation.
Each box is classified to ensure 80% of main area components are bundled together.

Frequently Asked Questions

Why choose our elevators?

We are a joint-stock enterprise integrating R&D, design, production, and maintenance. Our brand is globally recognized with numerous domestic and overseas sample projects confirming our quality.

What information is needed for a price quote?

We need to know: 1. Capacity/Number of persons; 2. Number of floors/stops/doors; 3. Shaft size (width x depth); 4. Whether there is a machine room on top.

How is product quality guaranteed?

We inspect all parts during production and keep records. Before shipping, we perform a final inspection and a mock-up of the cabin and sling set, providing photos and videos to the customer.

What are the payment and packaging terms?

Payment is typically 30% in advance and 70% before loading. All parts are packed in solid wooden cases and wrapped in film to prevent damage during long-term transportation.

How is installation and maintenance handled?

We provide detailed guidebooks and technical support. Local engineers can finish the job using our documentation, or we can send engineers to guide installation and train your workers.

What is the guarantee period?

We provide an 18-month guarantee period, during which free replacements for parts are provided. Our technical service support has no time limit.
