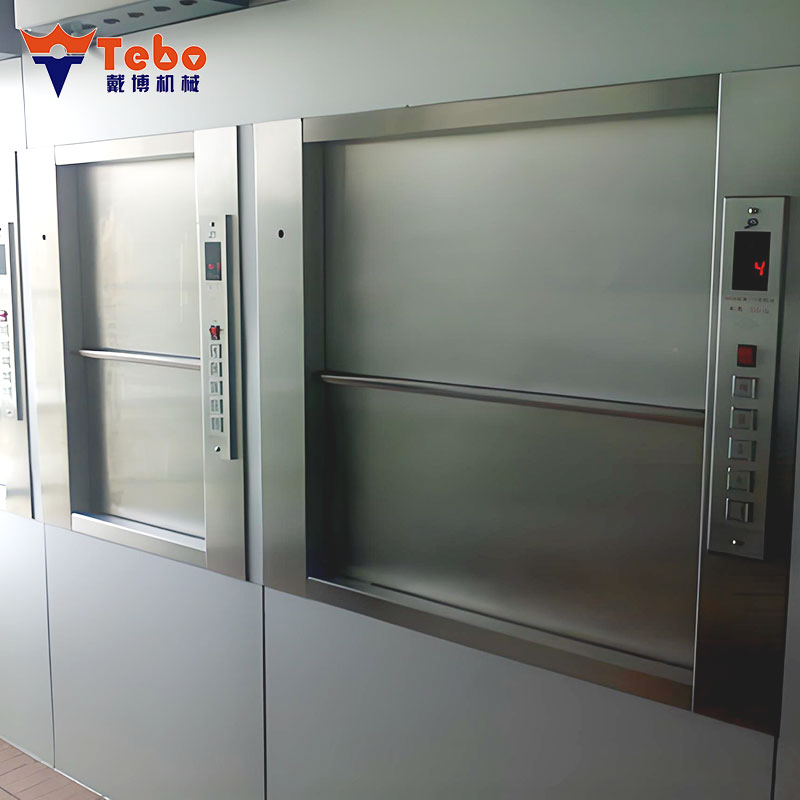

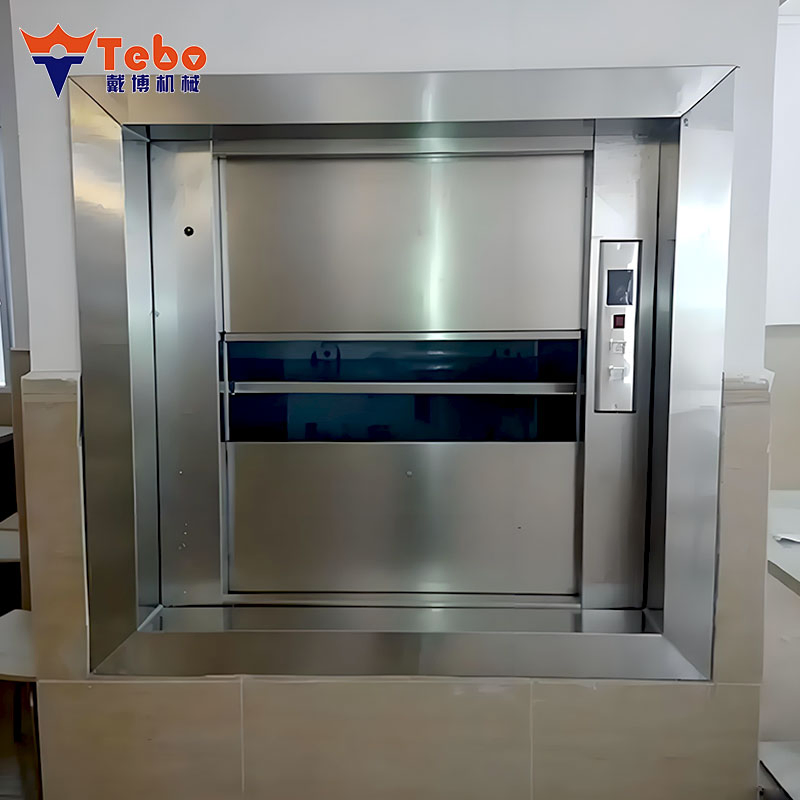

Fast Vertical Dish Transportation with Automatic Dumbwaiters for Efficient Restaurant Operations

📋

Basic Specifications

Model NO.

TBD-23

Type

Wellhole

Load Capacity

50kg-300kg

Speed

0.40m/s

Drive Mode

AC Traction

Open & Close

Manual

Lift Mechanism

Telescoping Lift

Guide Rail

T Guide

Door Type

Center Opening

Production Capacity

1000 Sets/Year

🍽️

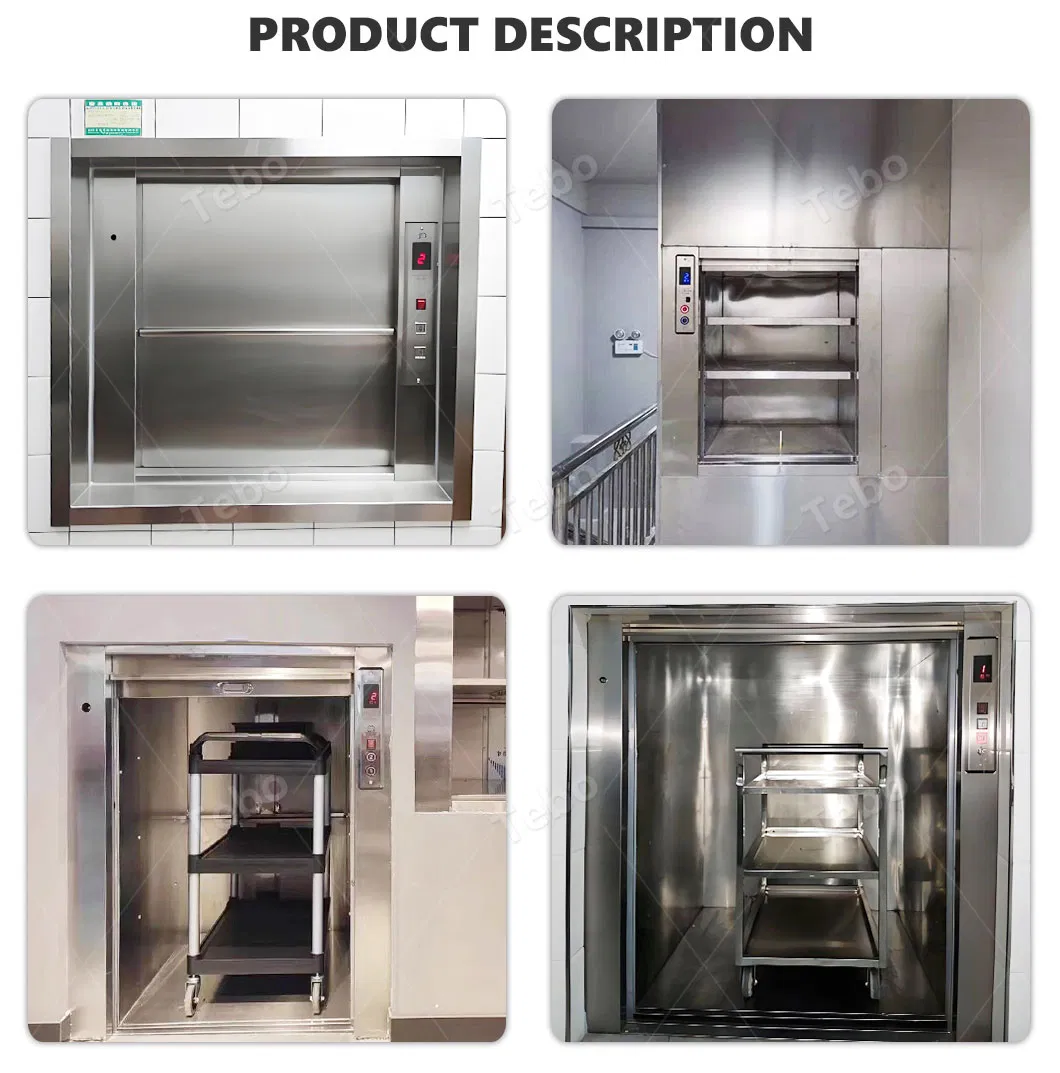

Product Description

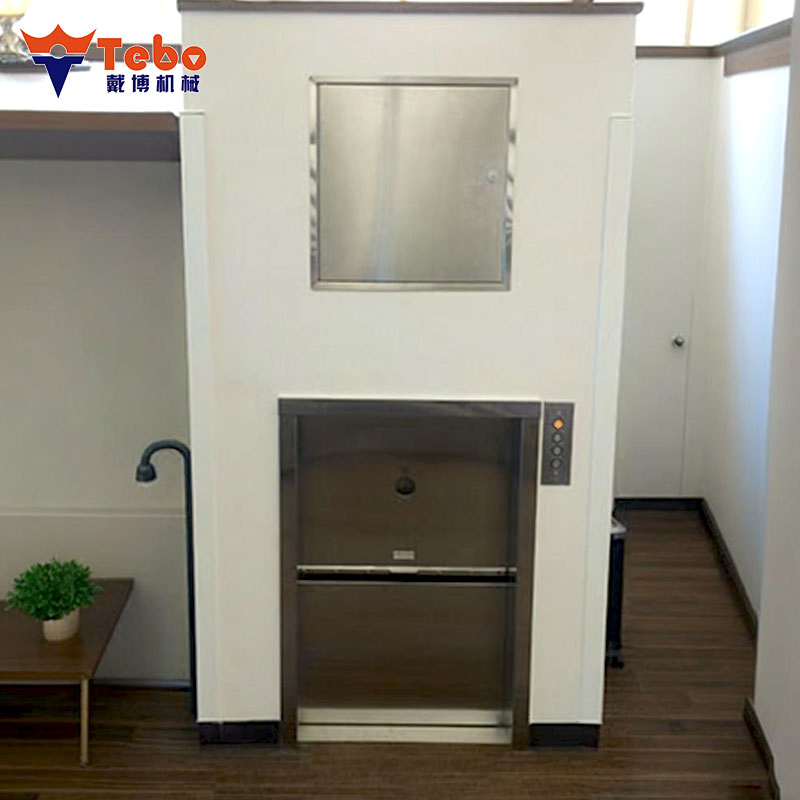

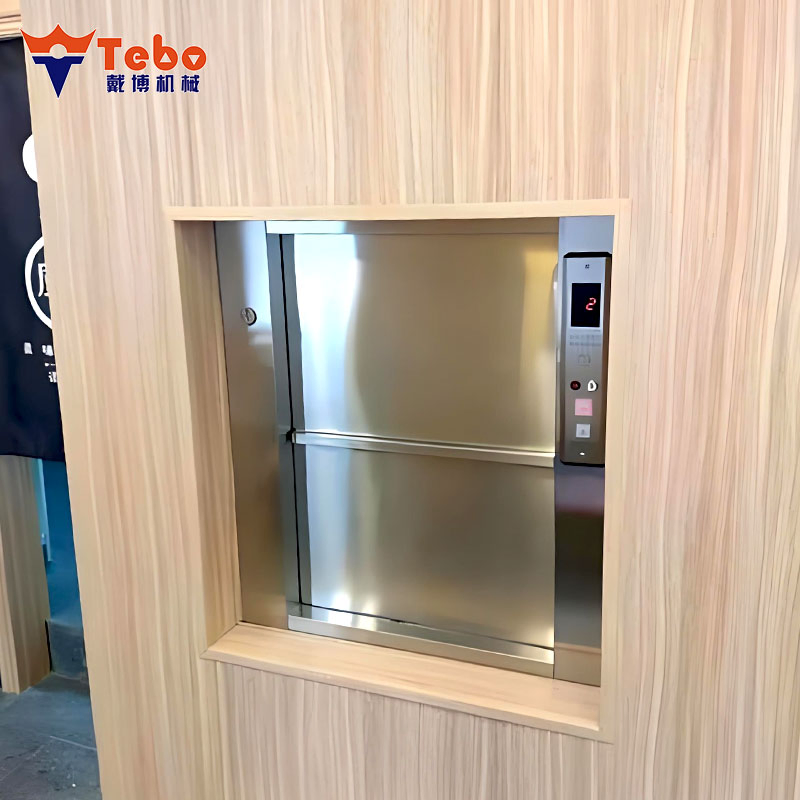

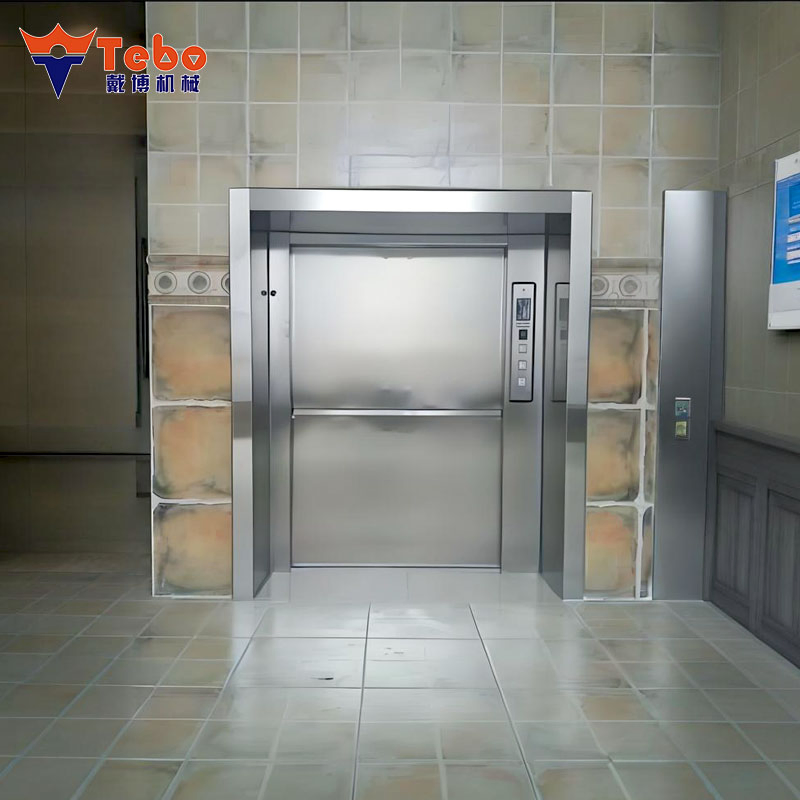

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, private rooms, and other spaces with limited layout conditions.

📊

Technical Parameters

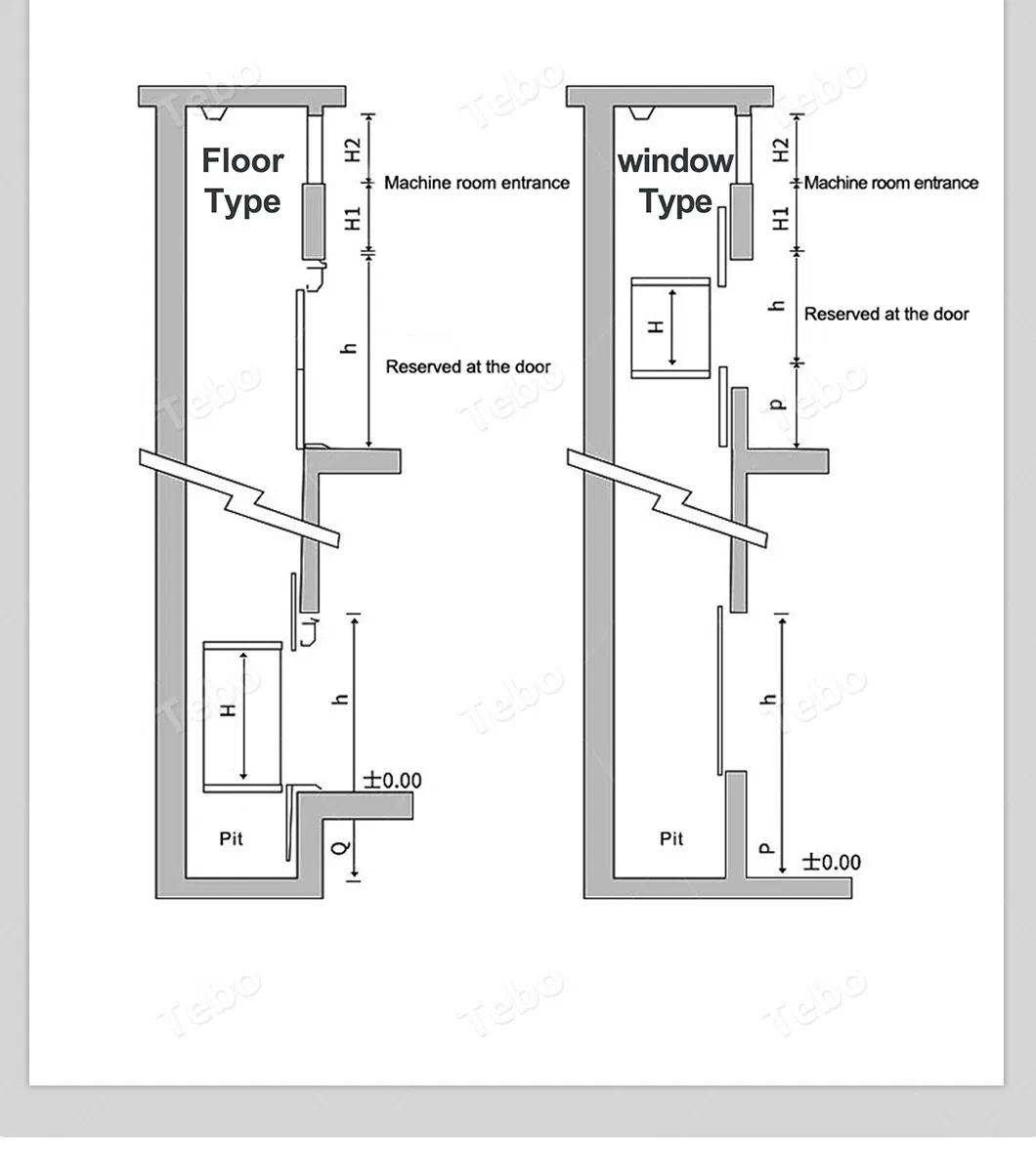

Type	Load (kg)	Cabin Dimension (WDH)	Landing Door	Door Size (W*H)	Sill Height	Overhead Height
Window Type	100	600400800	Standard	600*800	800	2800
Window Type	100	600600800	Standard	600*800	800	2800
Window Type	200	800800800	Standard	800*800	800	2800
Window Type	200	8008001000	Standard	800*1000	800	3000
Floor Type	300	100010001200	Standard	1000*1200	Pit 700	3200
Floor Type	400	100012001400	Standard	1200*1400	Pit 800	3600

* All parameters support customized services based on site requirements.

🔍

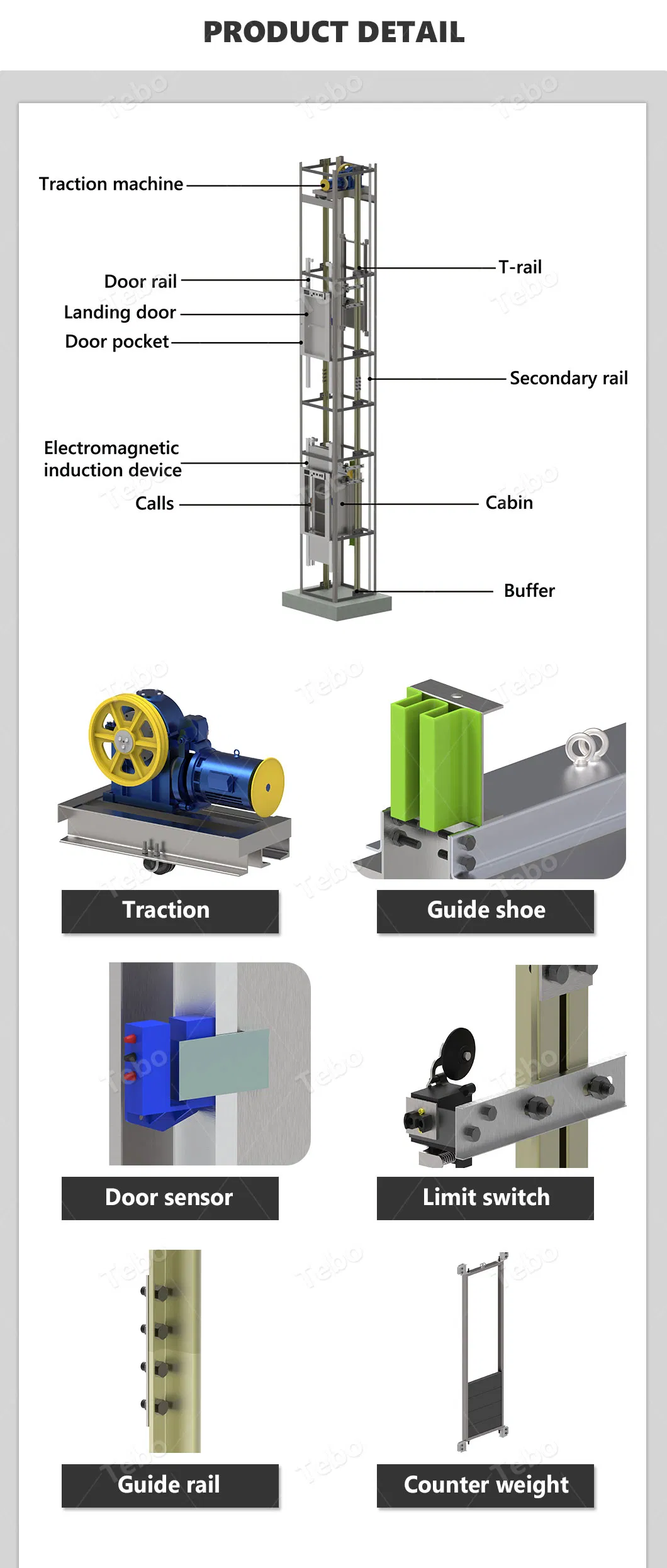

Product Details

🏗️

Manufacturing Excellence

Our operational and production base is equipped with an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability. Utilizing modern CNC machining centers, automated welding equipment, and precision inspection instruments, we ensure efficient end-to-end production from component processing to complete unit assembly.

📜

Certifications & Shipping

💡

Frequently Asked Questions

What are the primary advantages of your dumbwaiter lifts?

We offer high-quality construction with an absolute advantage in market pricing. Our equipment features stable AC traction drives, stainless steel cabins for hygiene, and comprehensive safety systems including door locks and overload protection.

Can the lift dimensions be customized for specific kitchen layouts?

Yes, we provide full customization services. Our engineers can provide detailed blueprints tailored to your bespoke machine requirements, ensuring it fits your specific shaft or kitchen space perfectly.

How is the equipment packaged for international shipping?

We typically use robust plywood cases to ensure the equipment is protected during transit. Special shipping marks and specific packaging requirements can be accommodated based on your needs.

What is the typical lead time for production and delivery?

Normally, shipping occurs within 10 working days after receipt of payment. This may vary slightly depending on the specific customization requirements of your order.

What kind of after-sales support do you provide?

We provide detailed assembly and installation manuals along with clear drawings. Our technical team is available to answer operational questions via email within 2 hours, and we offer a 12-month warranty for the entire equipment.

What payment methods and trade terms do you accept?

We support standard trade terms including EXW, FOB, CFR, and CIF. Typically, payment is required before production, with the remaining balance settled before delivery.
