Vanguard Lift
Vanguard Lift

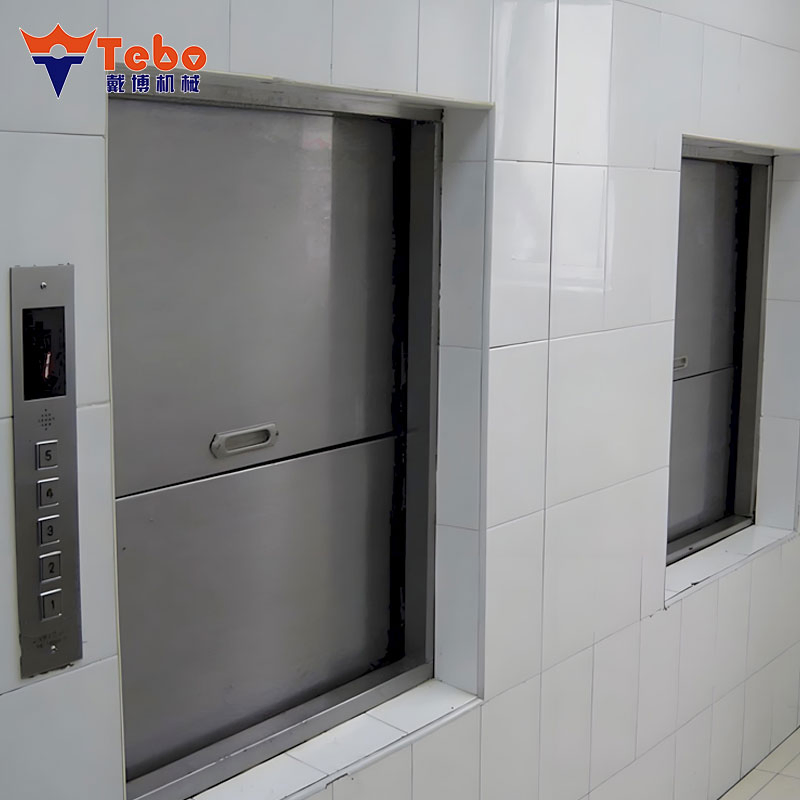

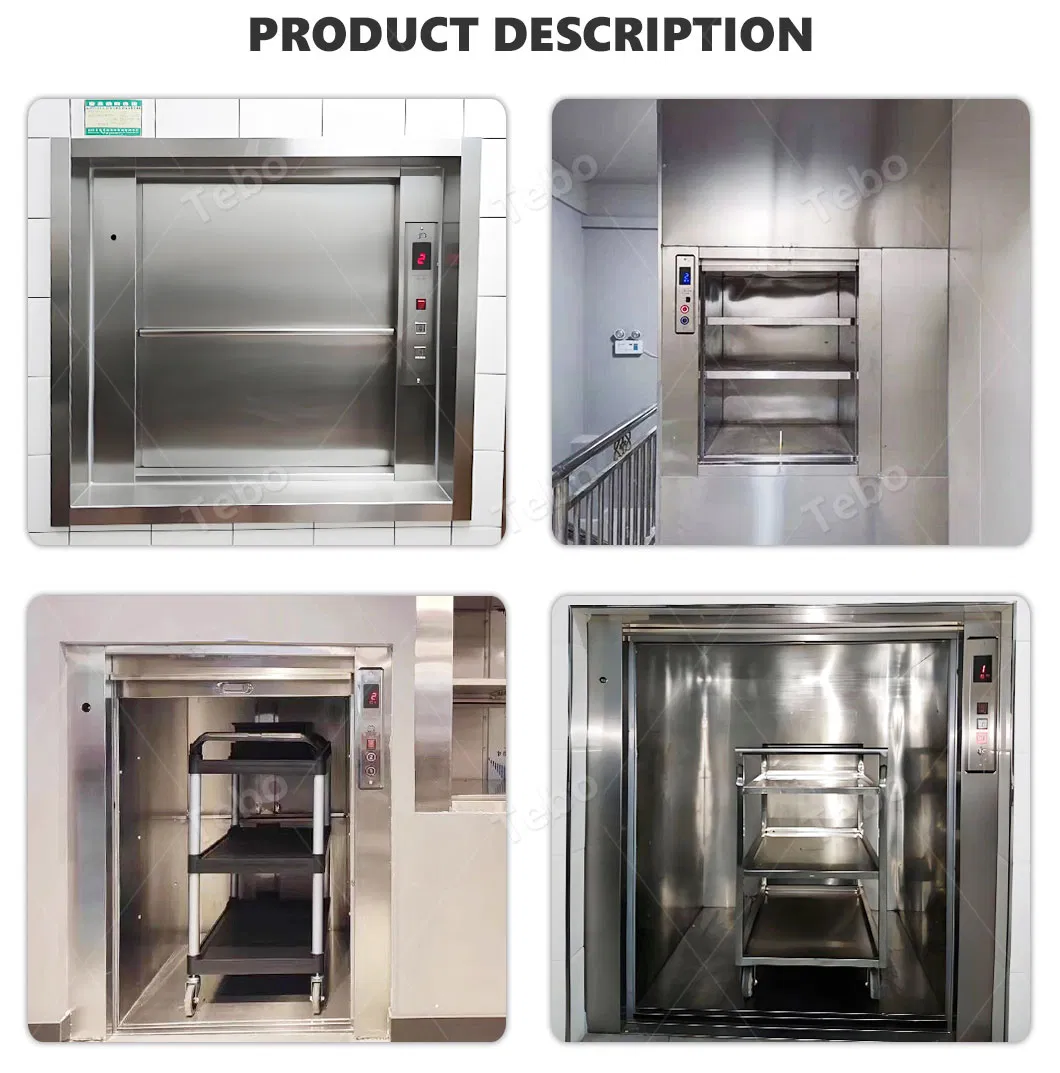

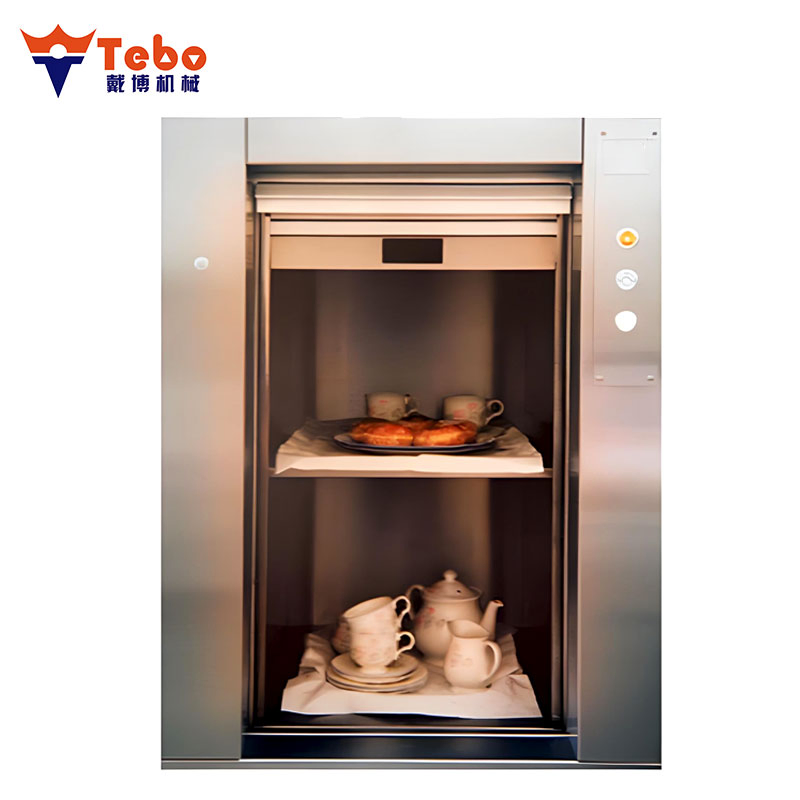

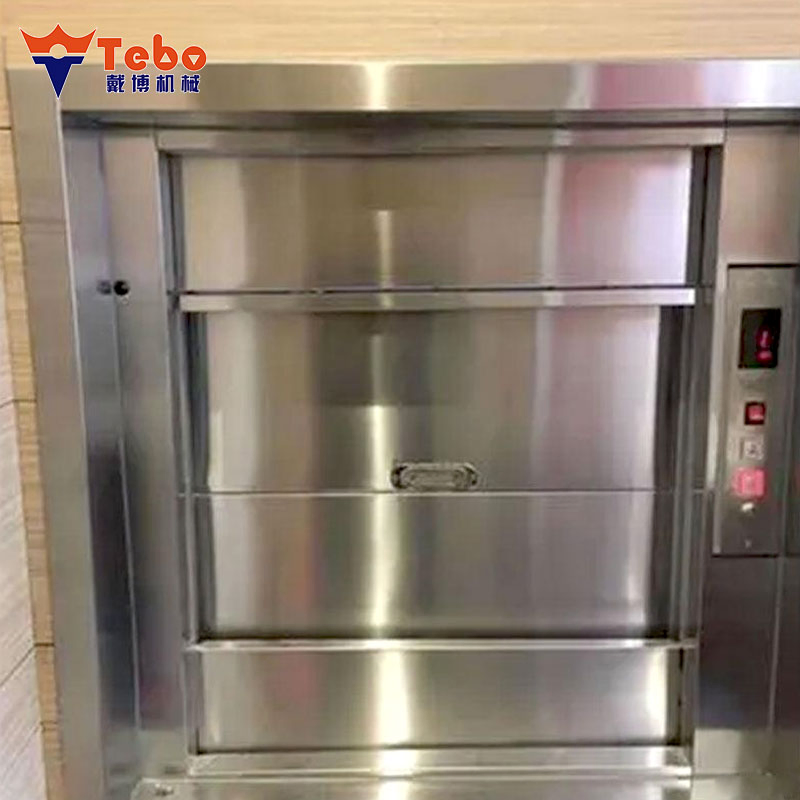

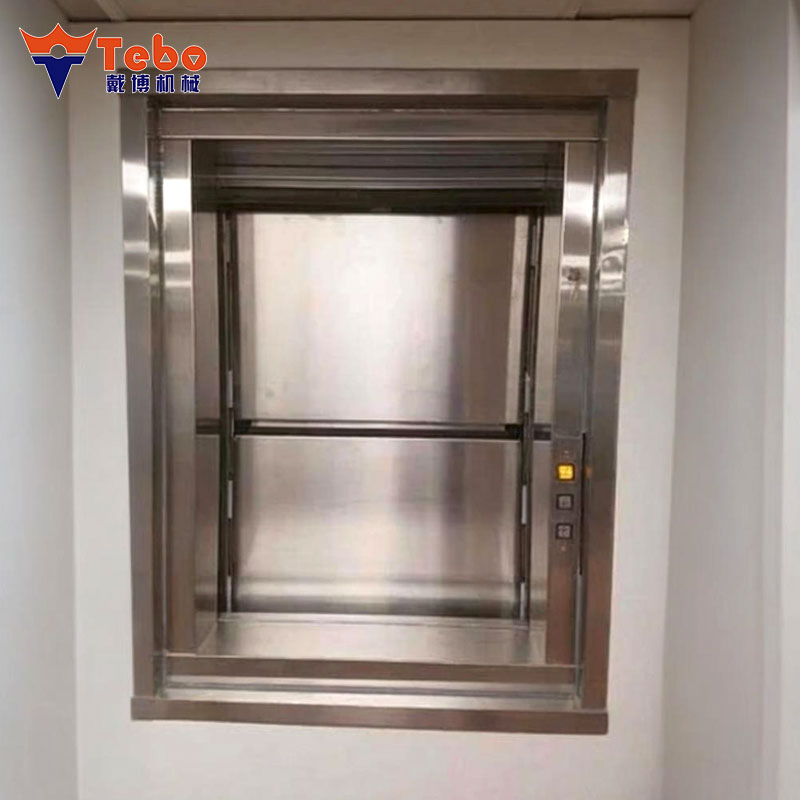

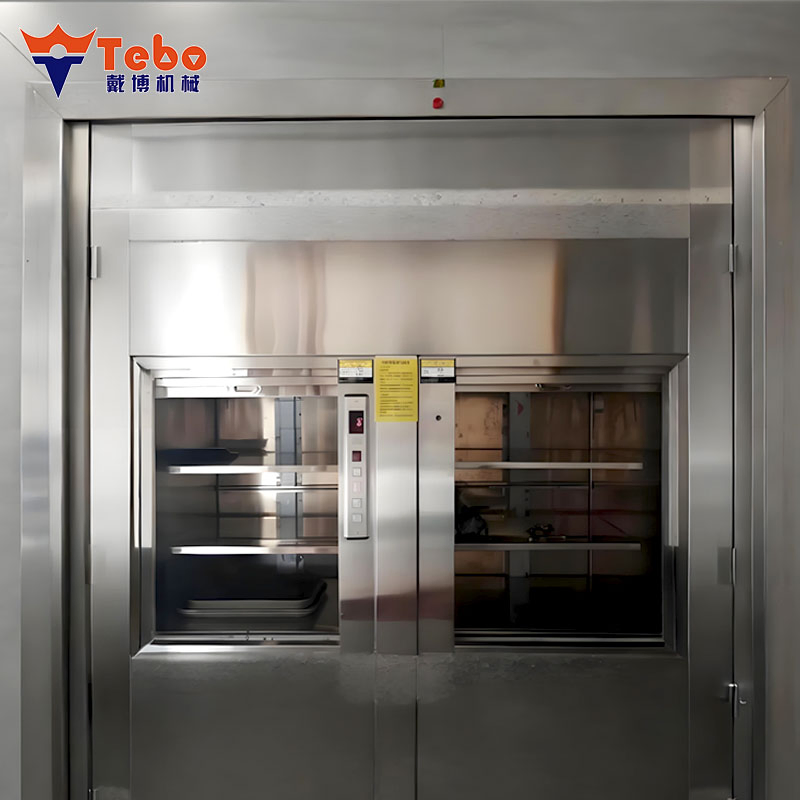

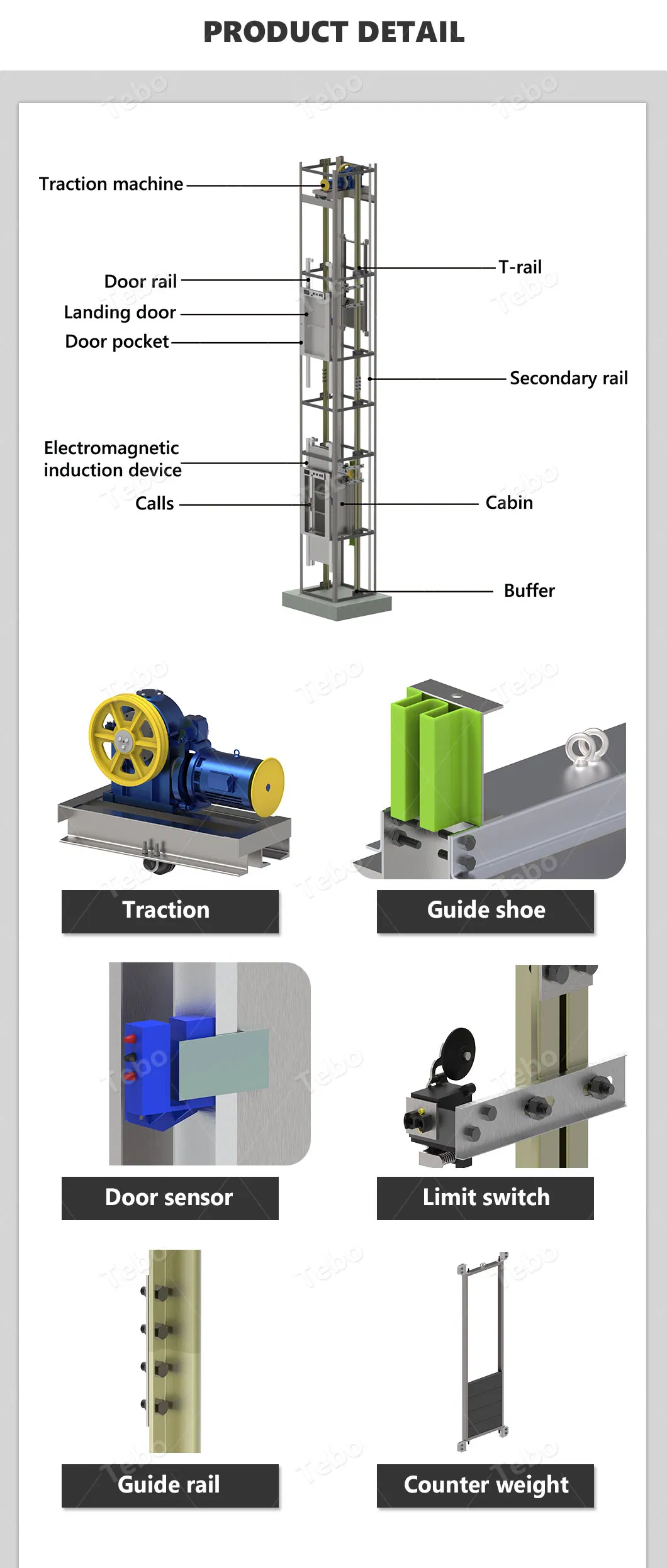

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel carbin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning.

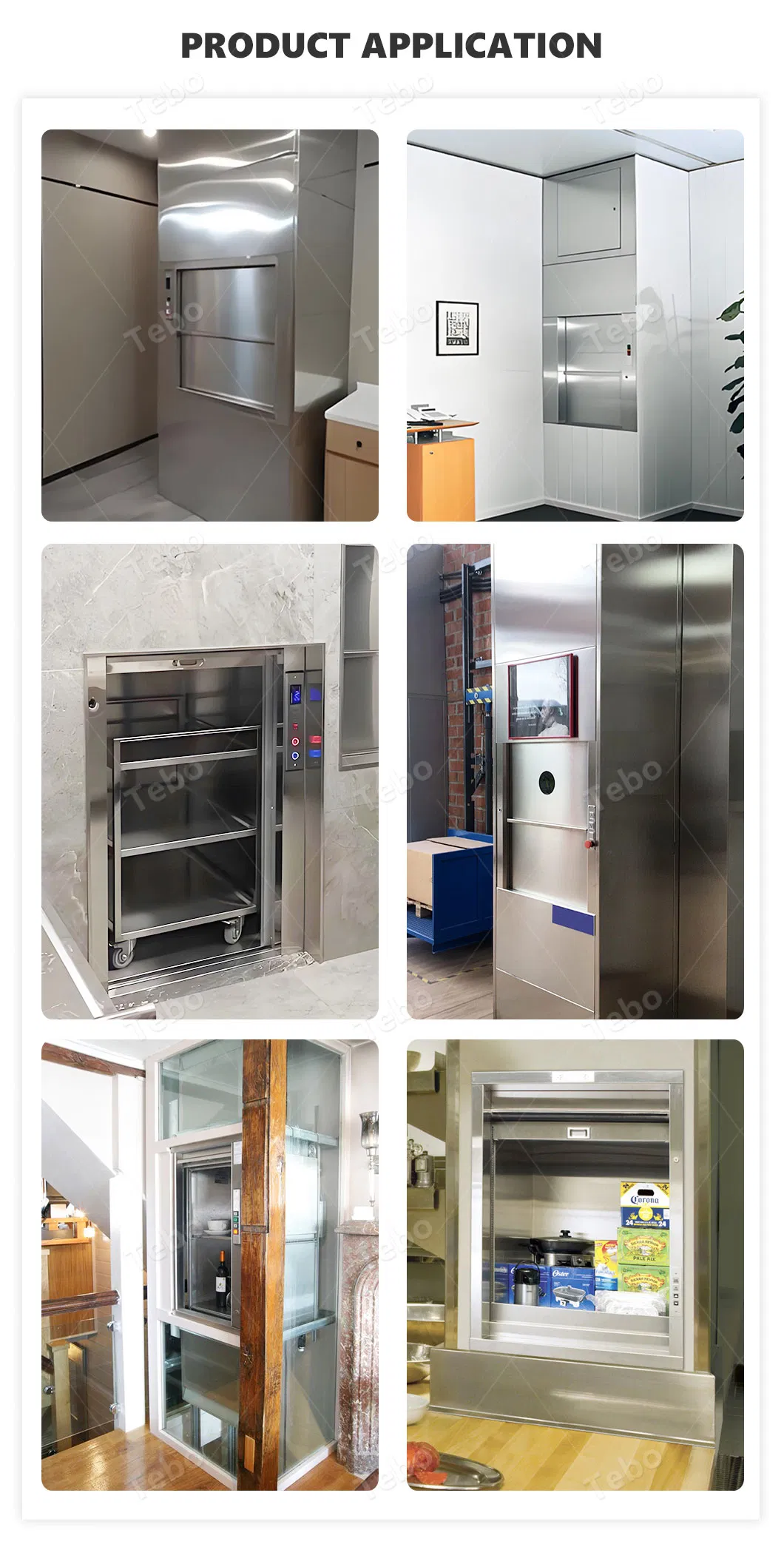

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards.

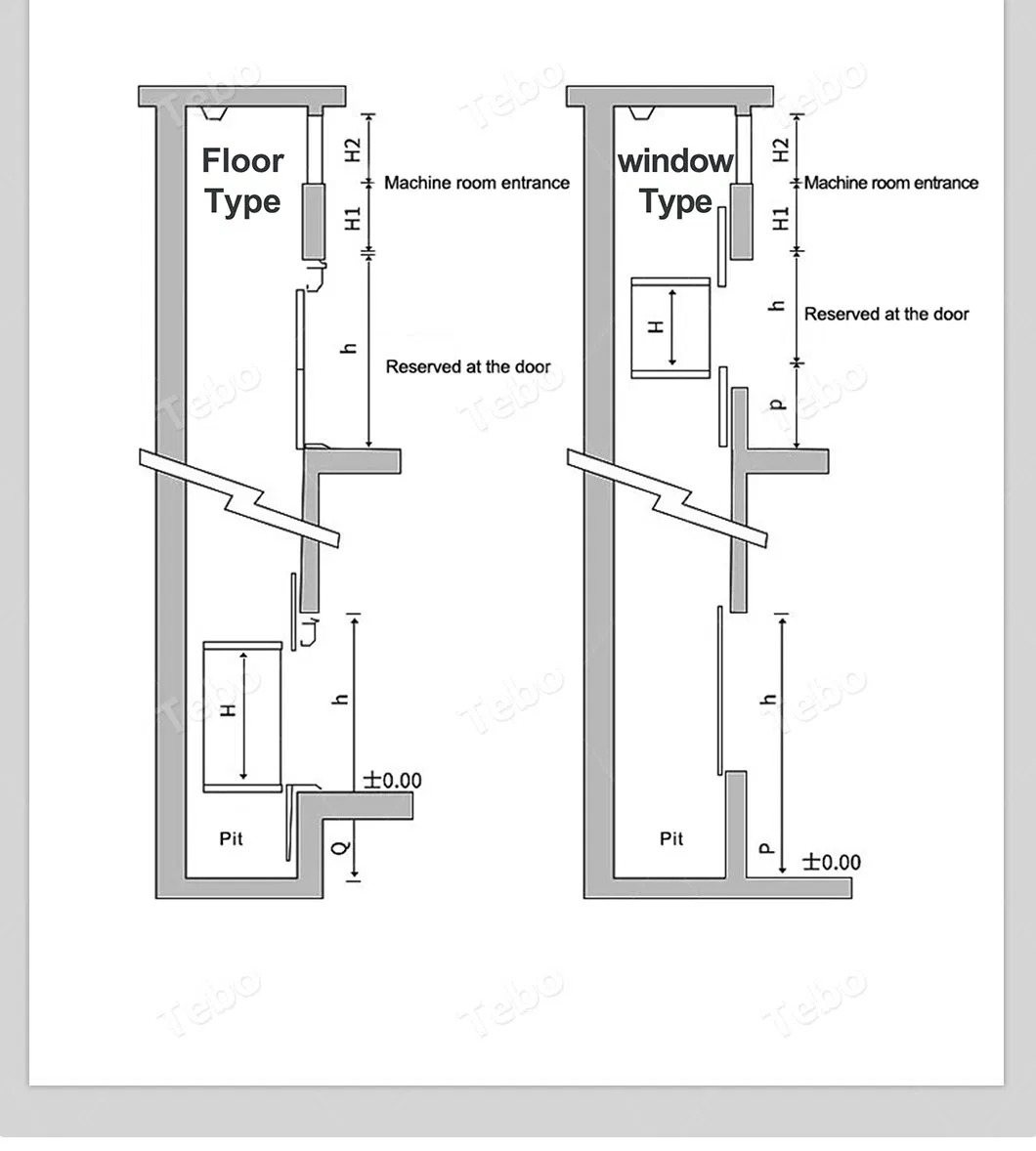

| Type | Load(kg) | Cabin Dimension (W*D*H mm) | Landing Door | Door Size (W*H mm) | Sill Height | Overhead Height |
|---|---|---|---|---|---|---|
| Window Type | 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 |
| Floor Type | 200 | 800*800*1000 | Standard | 800*1000 | Pit 600 | 2800 |
| Floor Type | 300 | 1000*1000*1200 | Standard | 1000*1200 | Pit 700 | 3200 |
| Floor Type | 400 | 1000*1200*1400 | Standard | 1200*1400 | Pit 800 | 3600 |
* Parameters are for reference and support customization.
Our enterprise specializes in the R&D and manufacturing of mechanical equipment. We have assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability.
Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. Utilizing modern CNC machining centers, automated welding equipment, and precision inspection instruments, we ensure efficient end-to-end production.
