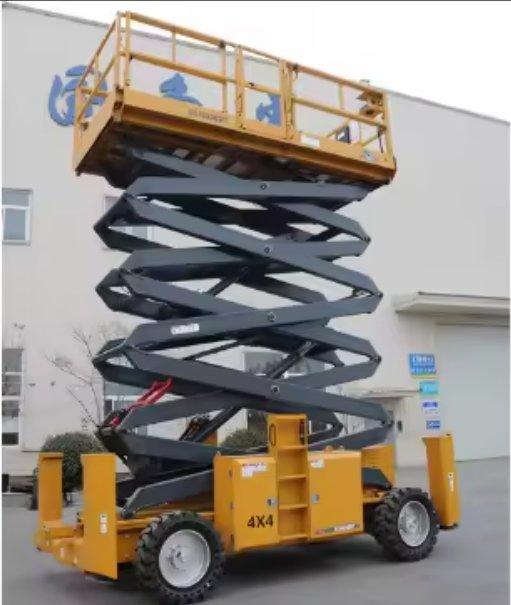

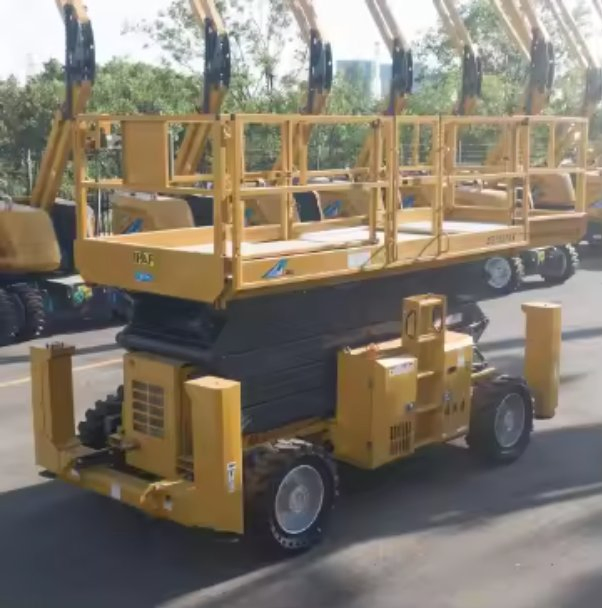

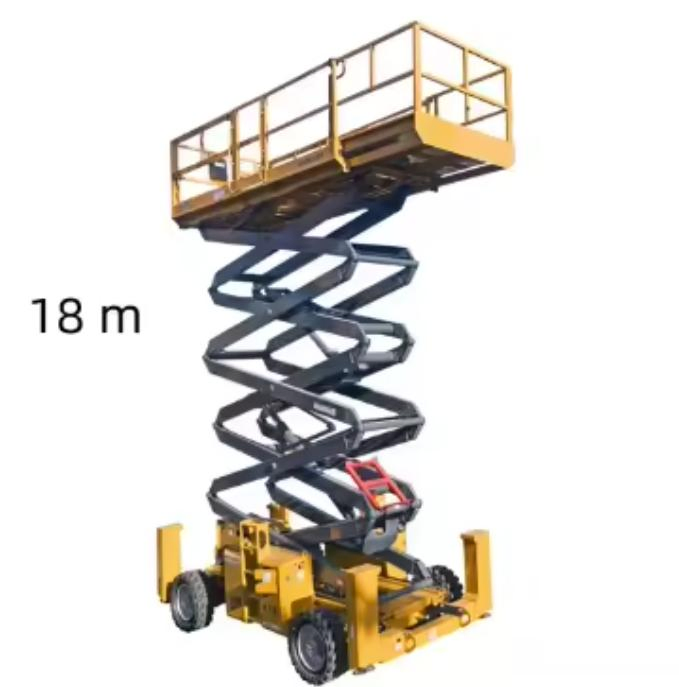

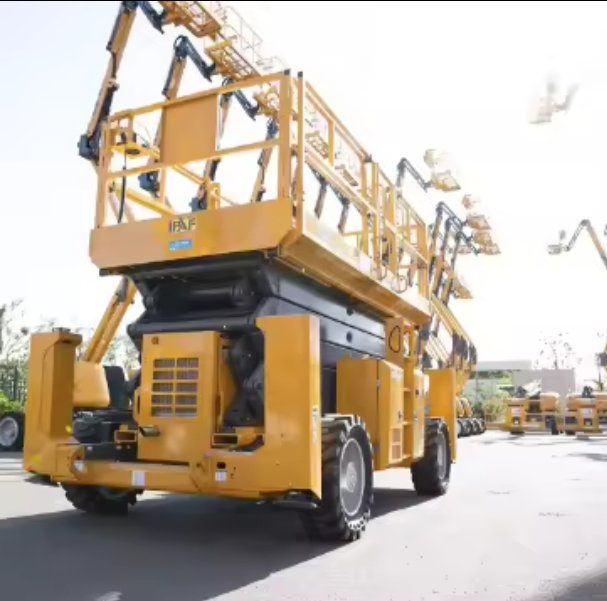

18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
XG1823RT
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Moves
Moving
Driven Type
Hydraulic
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Maximum Working Height
18.1m
Maximum Platform Height
16.1m
Load Capacity
680kg
Gross Mass
8000kg
Turning Radius
5.6m
Origin
China
Product Description
🏗️
Compared with conventional mobile scissors elevating work platform, it features high load capacity and spacious platform and is more applicable for the installations and multi-person collaboration applications of high-load large objects, including firefighting ventilation pipelines, lighting, glasses, curtain wall installation, paint spraying, and wall finishing.
⚙️
The air suction type radiator system applied features compacter structure and higher heat dissipation efficiency than the air-blowing type radiator system and can effectively meet the operating needs in high temperature environment in summer.
📏
The telescoping and extendible work platform achieves a larger working space and works with folding railings to realize easier transportation and translocation.
⚖️
Load capacity at 680kg is leading in this field.
The 6.1km/h drive speed and 25% gradeability make the operations easier.
Product Parameters
Item Metric
Overall dimensions Length (With ladder/Without ladder) 4860mm(-)
Width 2286mm
Height (With platform folded) 3170mm(2510mm)
Work platform dimensions Length x Width x Height 3980x1830x1329mm
Extensible length of auxiliary work platform 1450mm/1140mm
Maximum working height 18.1m
Maximum platform height 16.1m
Load capacity 680kg
Load capacity of extensible work platform 230kg
Maximum gradeability (Without outriggers) 40% (-)
Turning radius (Outer wheel) 5.6m
Gross mass (Without outriggers) 8000kg (-)
Engine model V2403-M-DI
Detailed Photos

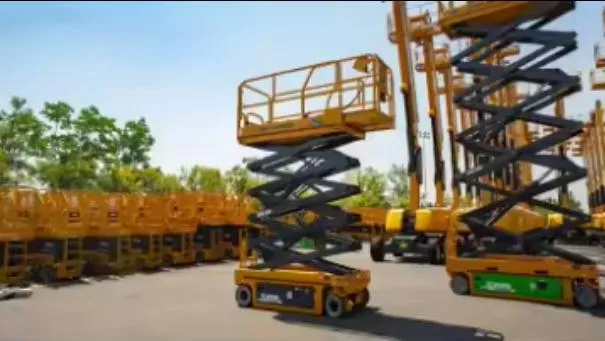

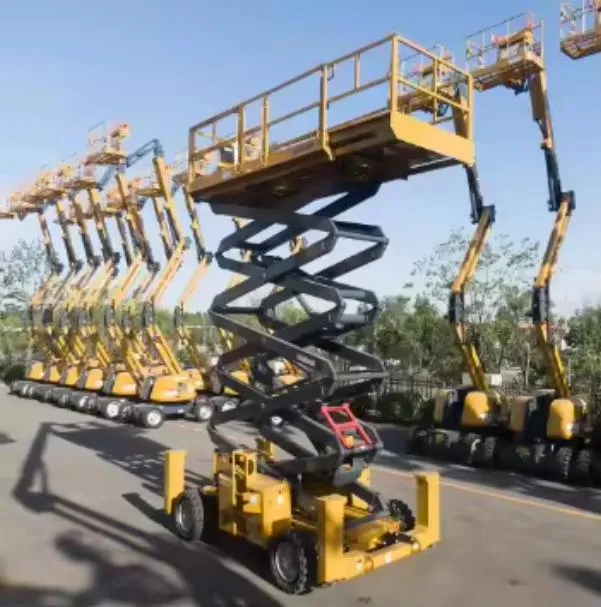

Scissor Lift View 1 Scissor Lift View 2 Scissor Lift View 3 Scissor Lift View 4 Scissor Lift View 5 Scissor Lift View 6 Scissor Lift View 7
Frequently Asked Questions
What is the maximum working height of the XG1823RT?
The XG1823RT scissor lift offers a maximum working height of 18.1 meters and a platform height of 16.1 meters.
What is the load capacity for this model?
The main platform has a heavy-duty load capacity of 680kg, while the extensible auxiliary platform can support up to 230kg.
How does the cooling system perform in hot weather?
It uses an air suction type radiator system which provides higher heat dissipation efficiency than traditional systems, making it ideal for high-temperature summer environments.
Is the work platform extendible?
Yes, the telescoping work platform is extendible by 1450mm/1140mm, providing a larger working space for multi-person collaboration.
What type of engine is used in the XG1823RT?
The unit is powered by a reliable V2403-M-DI engine, ensuring powerful performance for various industrial applications.
What safety certifications does the equipment hold?
The XG1823RT scissor lift is fully certified with CE and ISO 9001 standards, ensuring high quality and safety compliance.
