Professional Hospital Elevator Solution

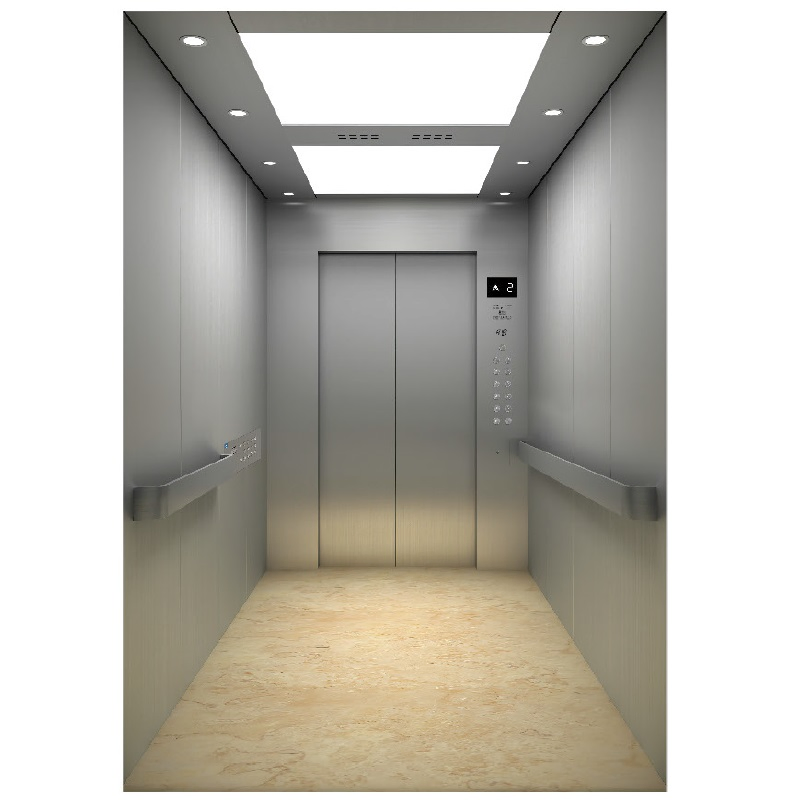

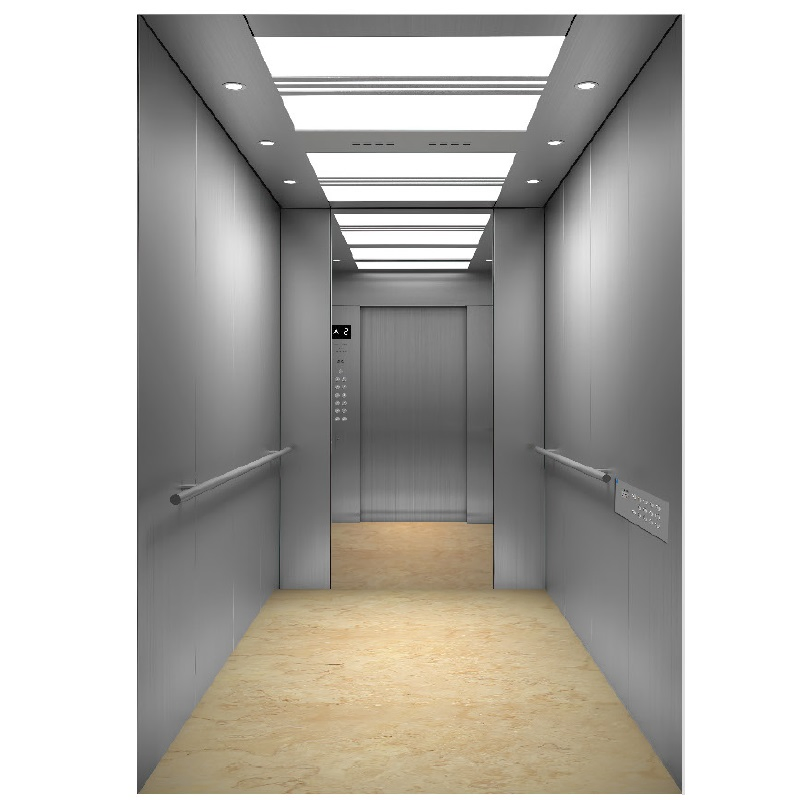

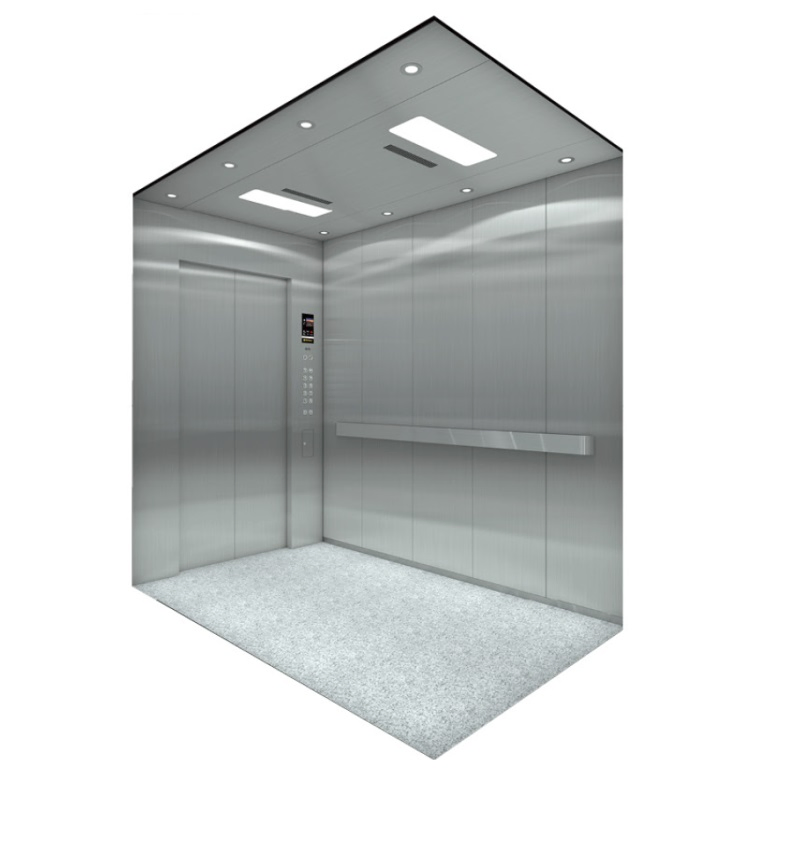

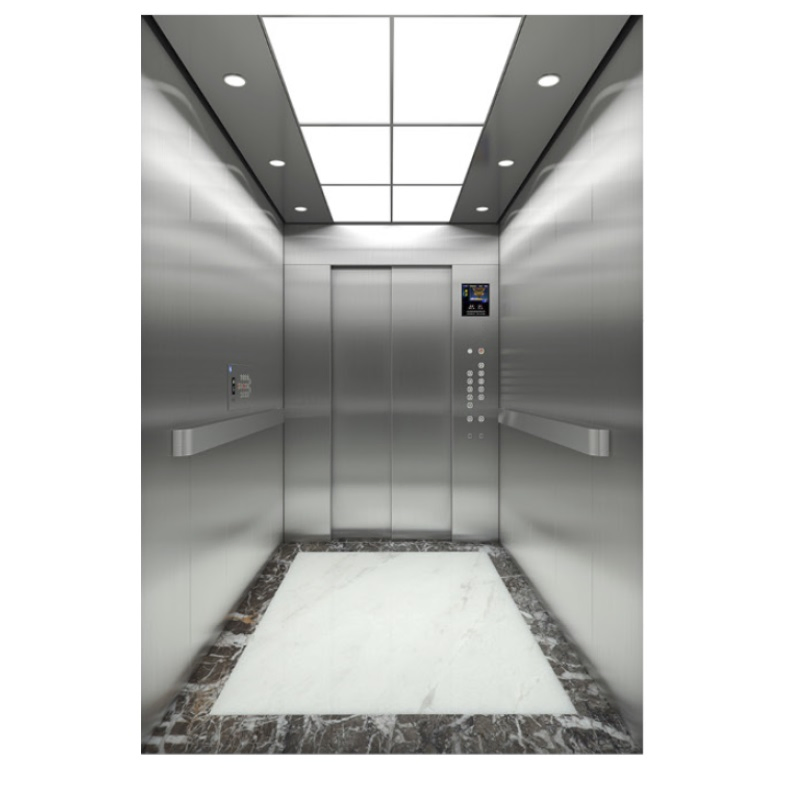

The GSE hospital bed elevator is specifically engineered for medical facilities. Beyond standard passenger transport, it meets rigorous functional requirements essential for healthcare environments. It features precision speed control for exceptionally smooth transitions, ensuring patient comfort and safety. With a humanized design approach, the car structure is optimized to create a quiet, elegant, and bright space that complements the hospital setting.

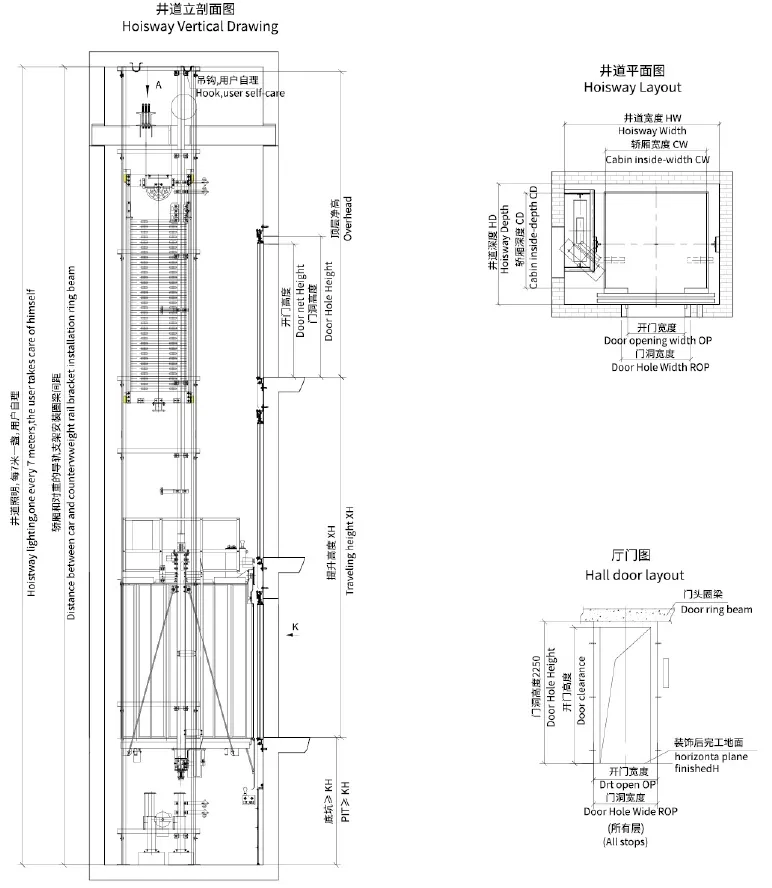

| Load Capacity (kg) |
Speed (m/s) |
CW*CD*CH (mm) |
OP*OPH (mm) |
HW*HD (mm) |
OH (mm) |
PH (mm) |
| 1600 |
1.0 |
1400*2400*2300 |
1100*2100 |
2550*2900 |
4500 |
1500 |
| 1.5-1.75 |
4700 |
1600 |
| 2.0 |
4900 |
1800 |
| 2.5 |
5100 |
2000 |
| 1800 |
1.0 |
1600*2400*2300 |
1200*2100 |
2750*2900 |
4500 |
1500 |
| 1.5 |
4700 |
1600 |
| 1.75 |
4750 |
1600 |
| 2.0 |
4900 |
1800 |
M

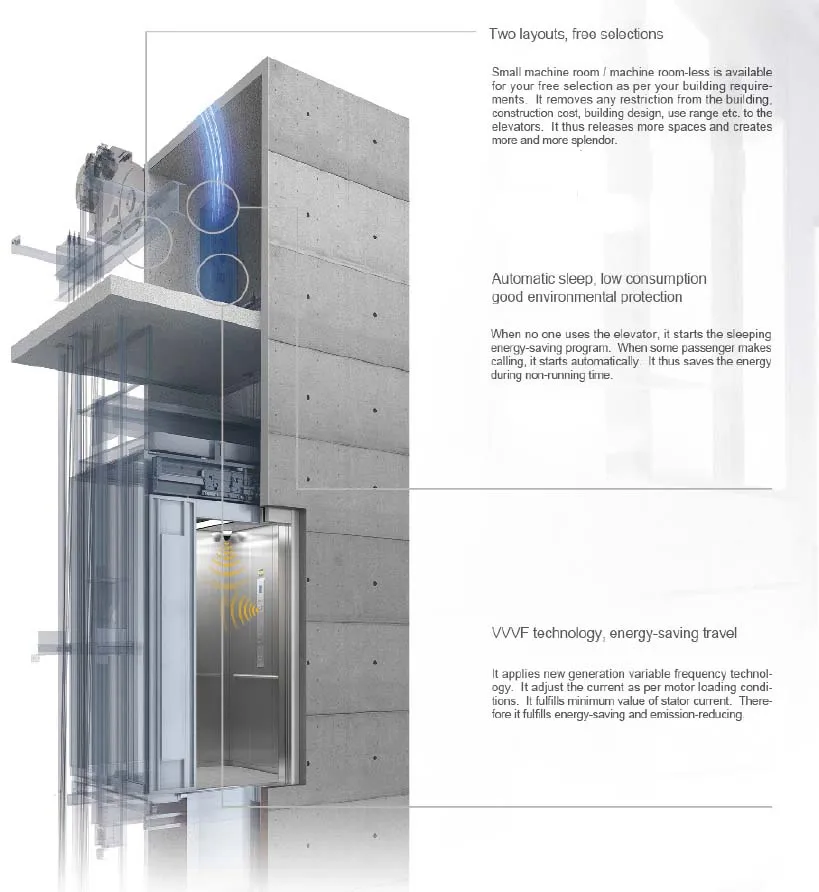

Machine Roomless Technology
Embracing concepts of environmental protection and energy efficiency, the machine roomless passenger elevator reduces construction area and enhances architectural freedom. By requiring only an independent shaft space, it saves up to 40% of electric energy and 10% of building area compared to traditional traction elevators with the same load capacity. This design embodies a commitment to green humanism and modern efficiency.
?
Frequently Asked Questions
Q1: What are the main advantages of a machine roomless (MRL) hospital elevator?
MRL elevators save significant building space and reduce energy consumption by up to 40%. They also offer greater design flexibility for architects by eliminating the need for a rooftop machine room.
Q2: How does the elevator ensure smooth transport for hospital beds?
Our elevators use advanced AC variable frequency drive systems and precise control logic to ensure soft starting, smooth leveling, and gentle stopping, which is critical for patient comfort.
Q3: Is the hospital elevator fireproof?
We offer various fireproof ratings including E30, Ei30, Ei60, and Ei120 to meet different local building safety codes and ensure maximum protection during emergencies.
Q4: What control systems are used in these elevators?
We utilize industry-leading control systems such as Monarch or Step, and we also provide customized controller solutions based on specific project requirements.
Q5: What is the maximum capacity and speed for the GSE/B series?
The GSE/B series supports a capacity range of 1600kg to 2000kg with speeds ranging from 1.0m/s up to 2.5m/s depending on the configuration and hoistway height.
Q6: Are your elevators certified for international markets?
Yes, our products carry CE, EAC, and ISO certifications, ensuring they meet rigorous international safety and quality standards for global deployment.
