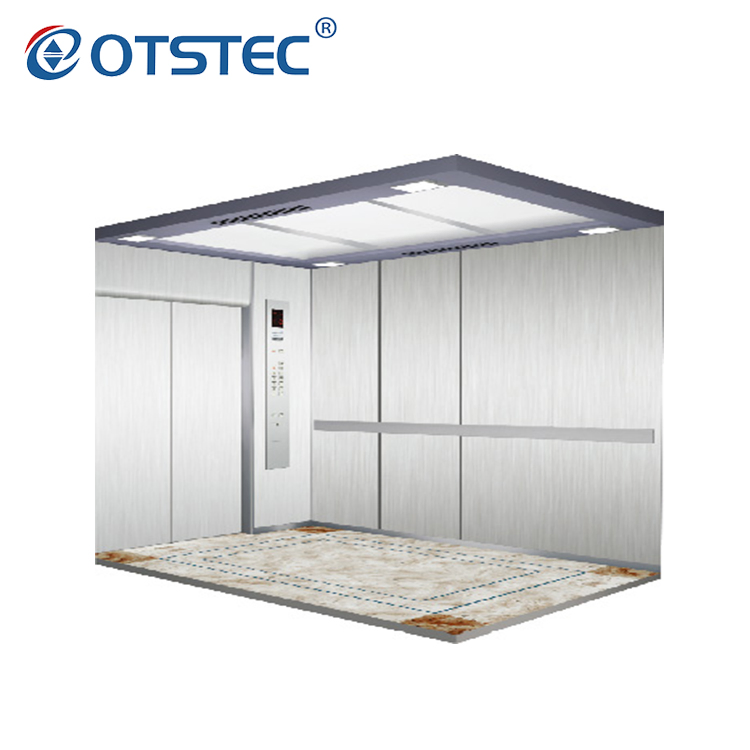

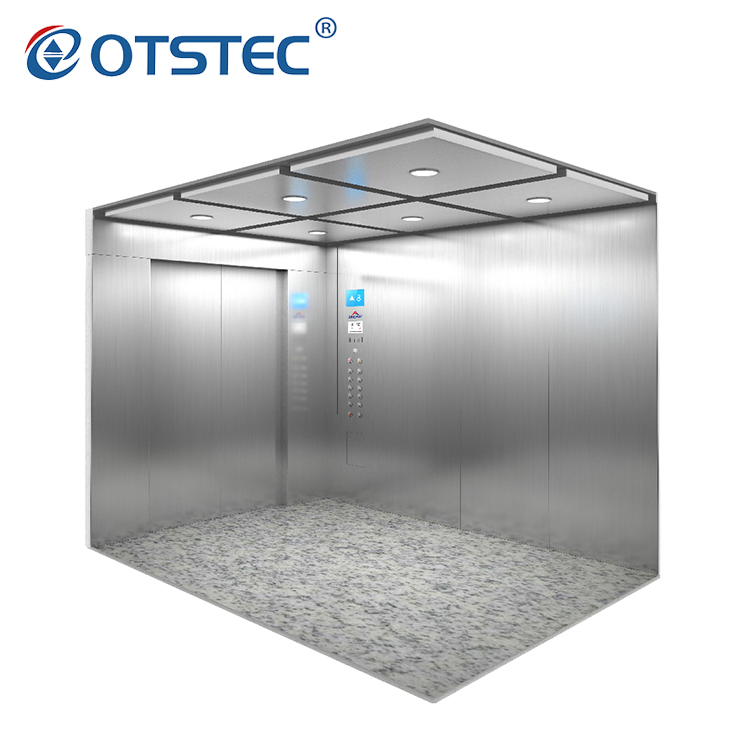

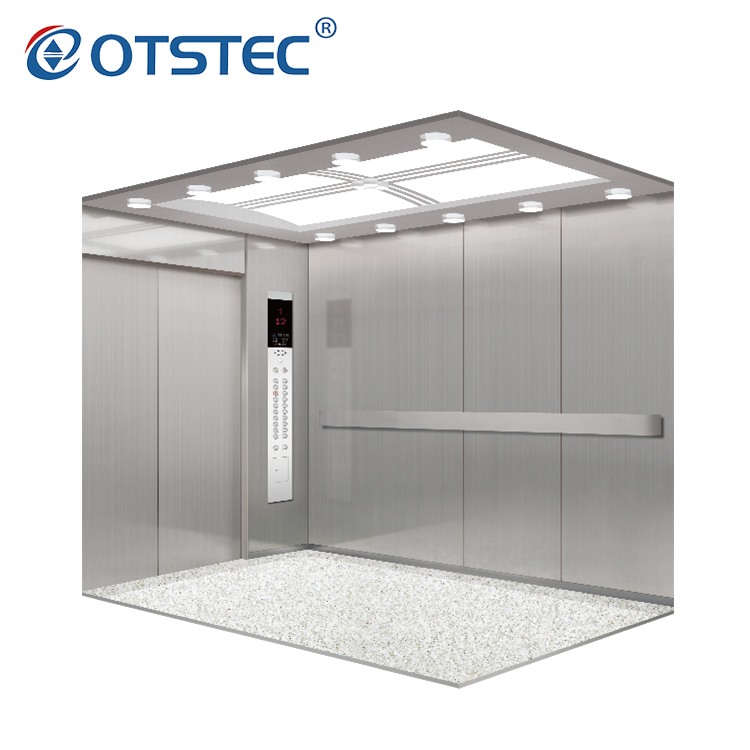

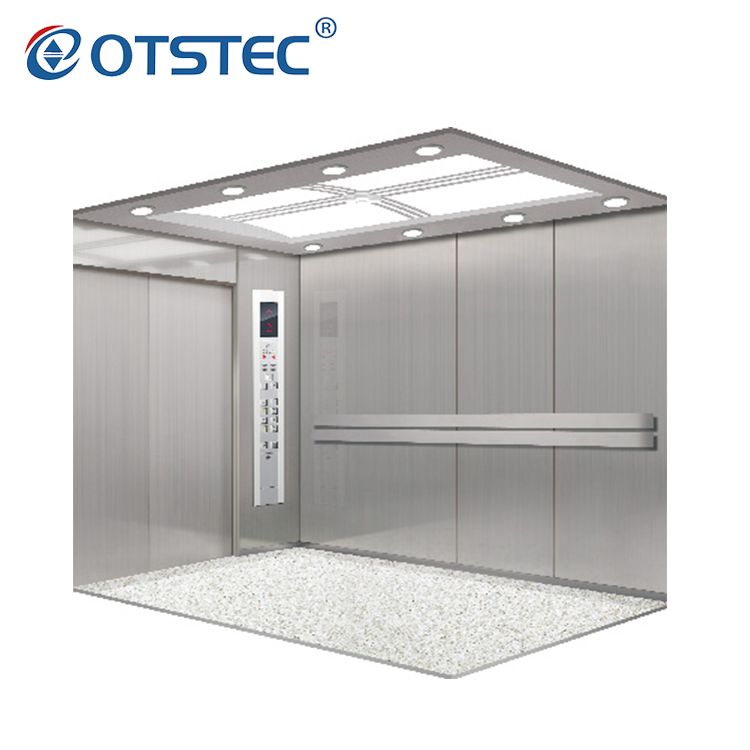

China Bed Lift Big Cabin Hospital Elevator Low Noice

1 / 5

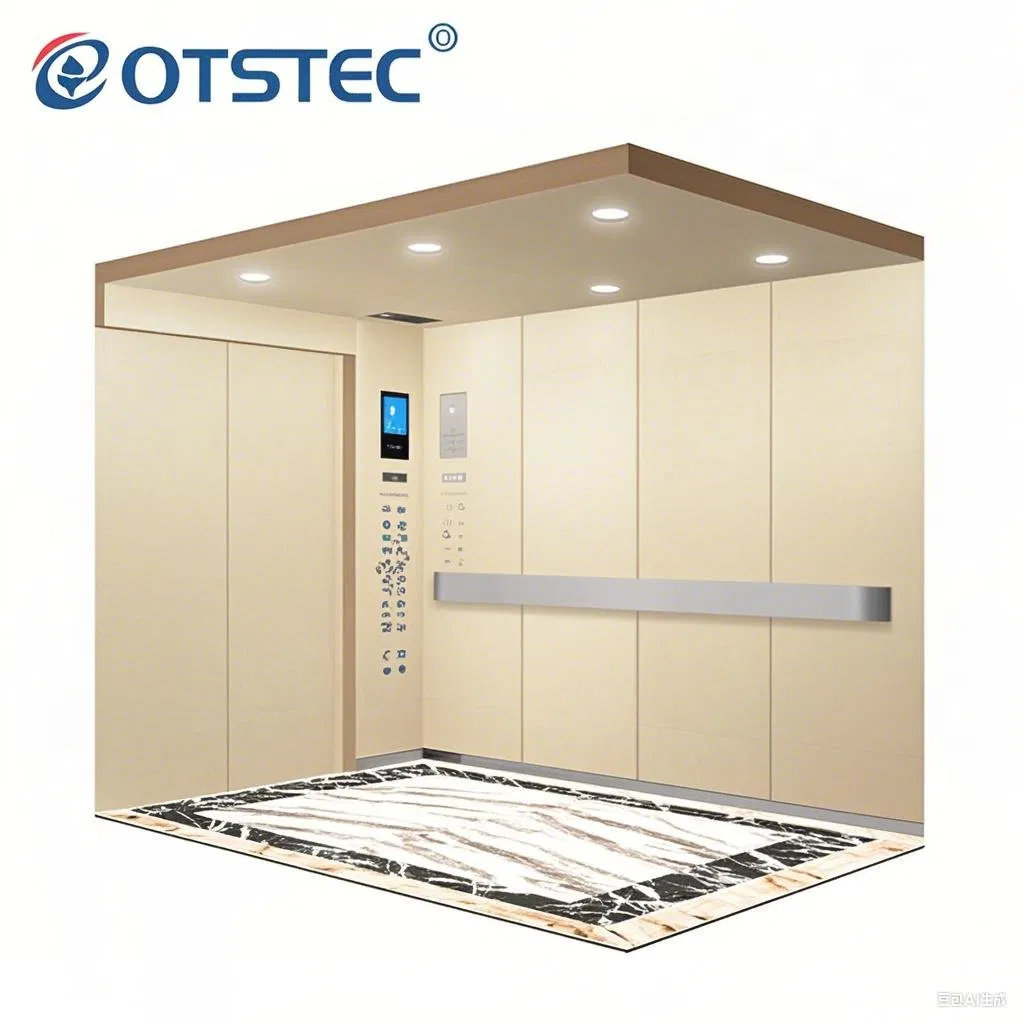

China Bed Lift Big Cabin Hospital Elevator Low Noice

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info.

Model NO.

OTN-30

Driving Type

Gearless Motor

Capacity

>1000kg

Persons

11 - 19

Speed

1.00 - 2.00m/s

Control Mode

Collective Selective Control

Computer Room

Without Computer Room

Elevator Door

Automatical Opening Door

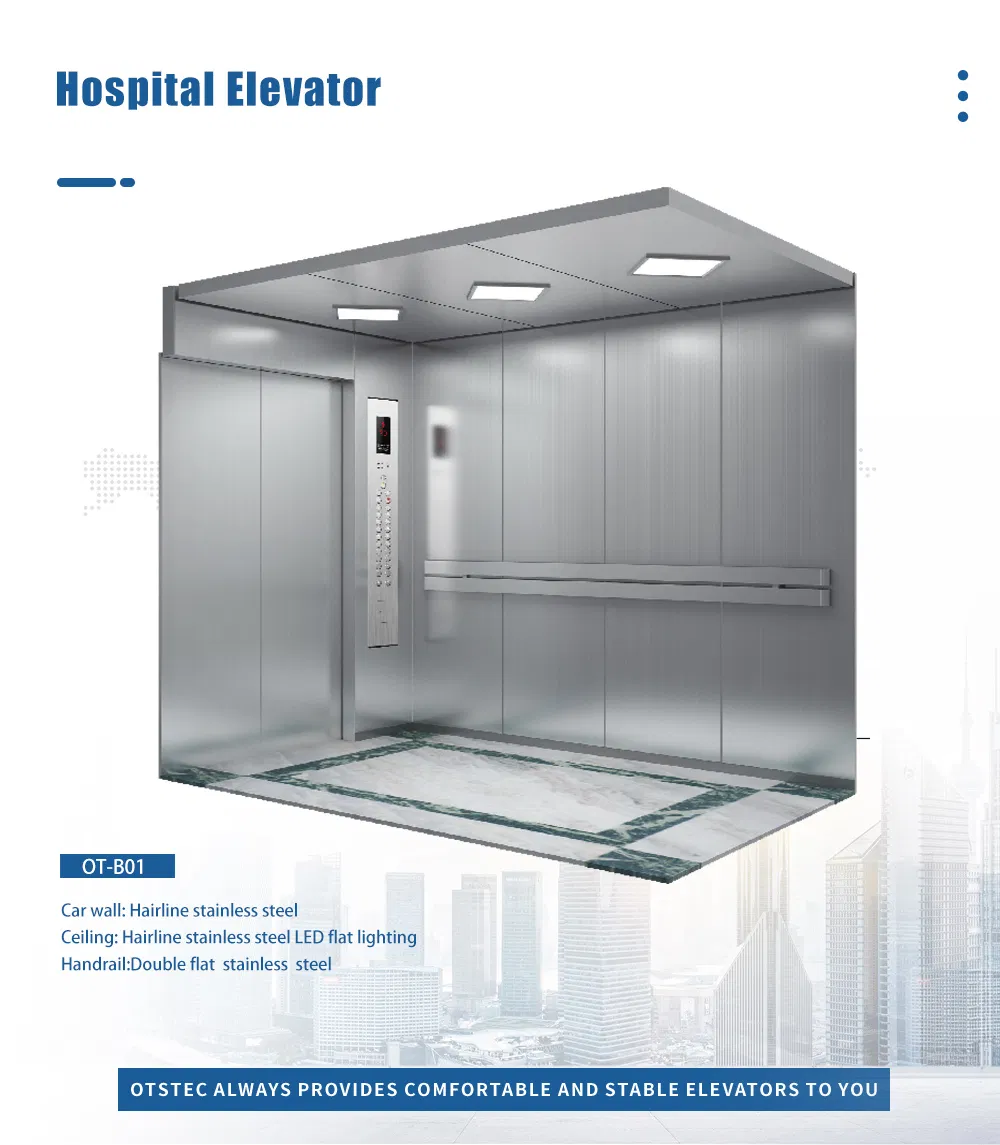

Car Wall

Hairline Stainless Steel/Painted Steel

Car Floor

Checkered Steel Plate

Certificates

CE/ISO

Production Capacity

10000 Sets/Year

Packaging & Delivery

Package Size

155.00cm * 60.00cm * 40.00cm

Gross Weight

50.000kg

Transport Package

Solid Wooden Case

Product Description

Hospital elevators are not only used to convey passengers. They are subject to special and strict requirements because of their specific use, function, and performance. Our hospital elevators accurately control running speed with smooth and comfortable operation. We emphasize humane design, optimizing the car structure to satisfy user demands to the maximum extent, providing a quiet and elegant space.

Product Parameters

Elevator Model	Rated Capacity		Rated Speed	Car Size (mm)		Door Opening Size (mm)
Elevator Model	Kg	Person	m/s	W	D	W	H
OT1600/1.0-VVVF	1600	21	1.0	1400	2400	1200	2100
OT1600/1.75-VVVF	1600	21	1.75	1400	2400	1200	2100
OT2000/1.0-VVVF	2000	26	1.0	1600	2600	1300	2100
OT2000/1.75-VVVF	2000	26	1.75	1600	2600	1300	2100

🛡️

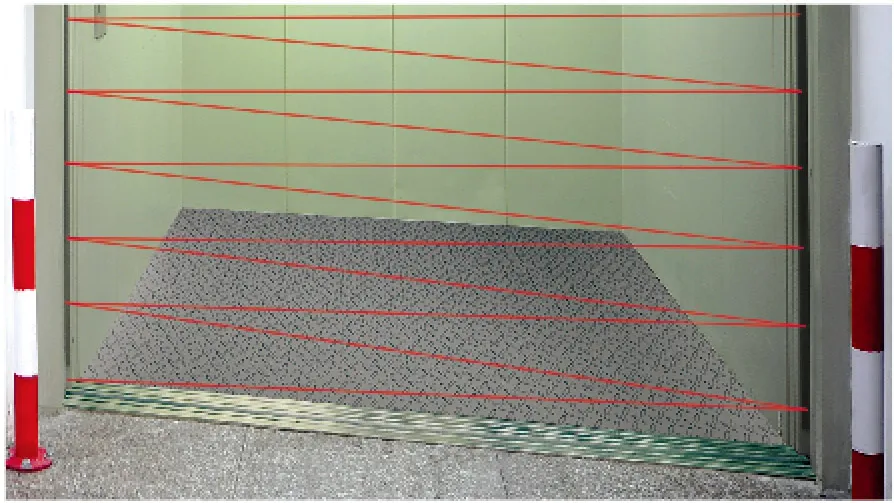

Light Curtain Protection

It forms a light curtain protection screen in the elevator entry and sensitively reacts to any object that enters the probing range. In this way, it efficiently protects the safety of both passengers and freight.

🏗️

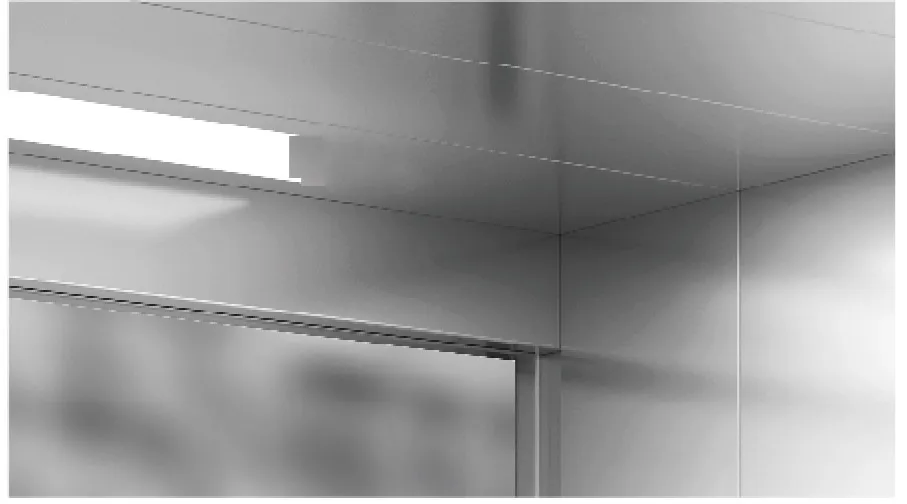

High-strength Materials

Our elevators apply high-intensity section materials to manufacture the cars and implement special reinforcement designs for the car platform, resulting in more durable and anti-aging products.

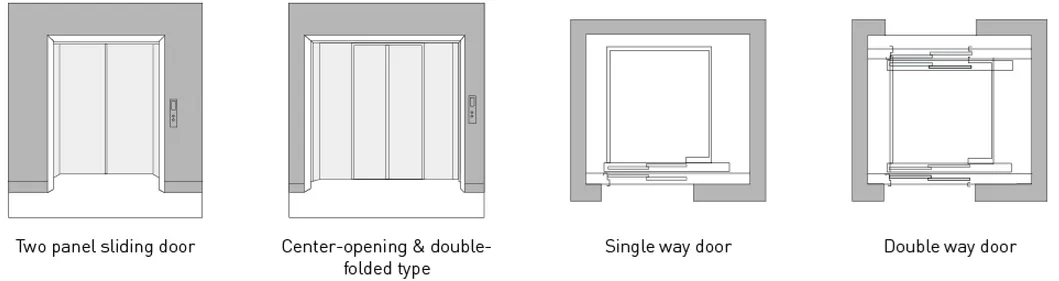

Multiple Door Opening Modes

To satisfy different entry/exit requirements, we offer four door opening modes: side opening, center opening double-folded door, one-way door opening, and opposite door opening. It can flexibly match factories, warehouses, department stores, shopping centers, and housing property management centers.

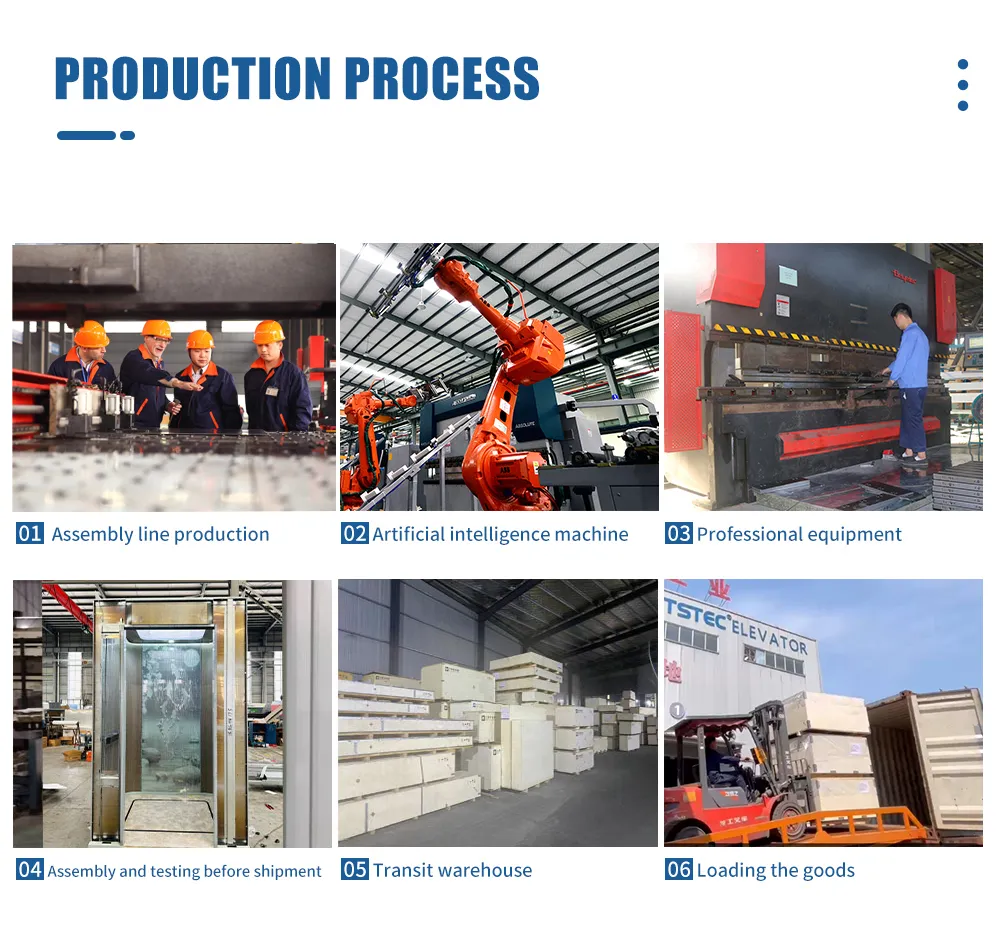

Production & Logistics

Certifications & Exhibitions

Our Advantages

What advantages do our elevators have?

We use the best parts for our elevators, including gearless motors from XIZI, door operators from Shenling or Wittur, and control systems from Monarch or STEP. All these parts come from the largest and best suppliers globally.

As an assembled product, we strictly control the design, control system, parts quality, and delivery. Our management ensures problem-free installation and stable, efficient operation.

Frequently Asked Questions

What are your terms of packing?

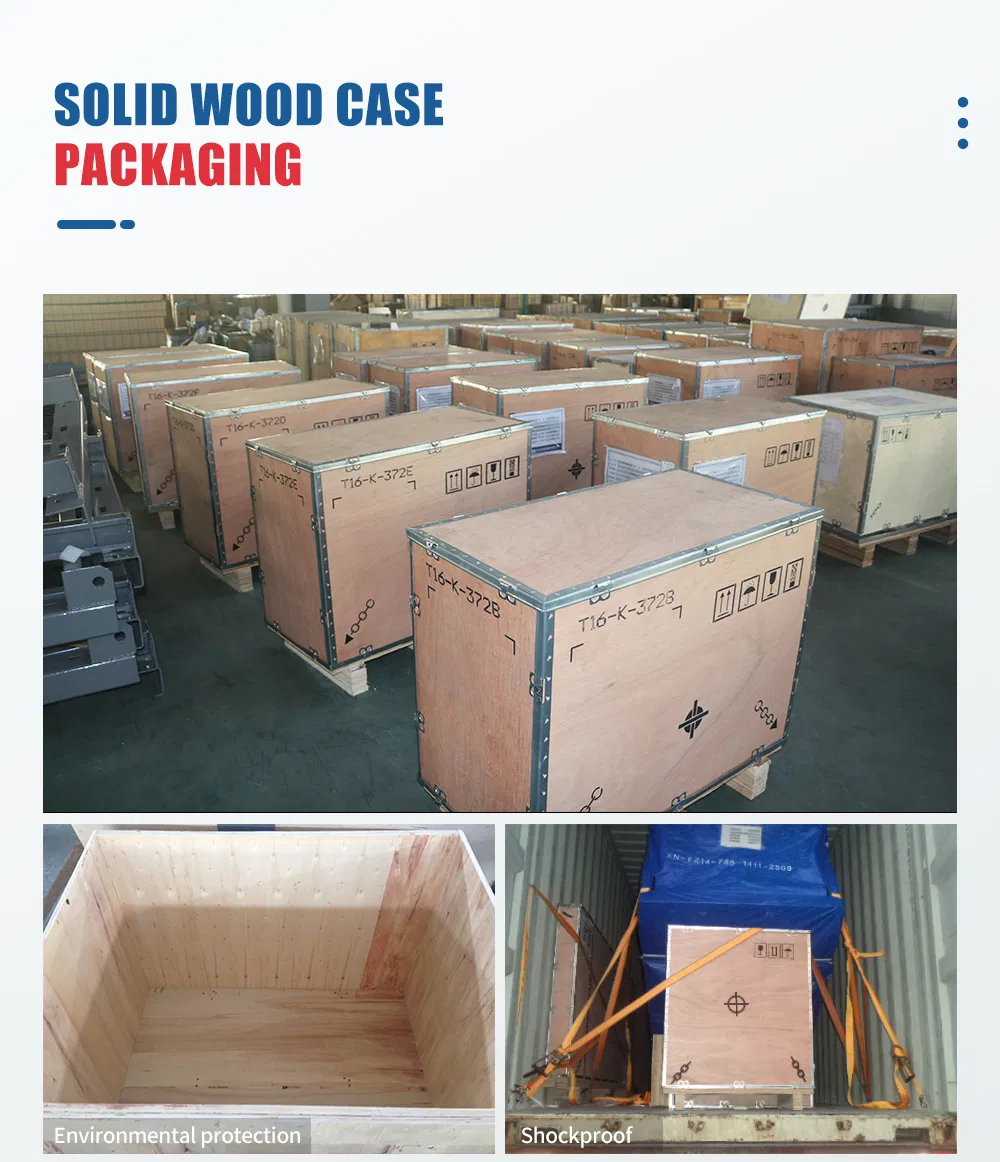

Generally, we pack our goods in solid wood cases. If you have a legally registered patent, we can pack the goods in your branded boxes after receiving your authorization letters.

What are your terms of delivery?

Our standard delivery terms include EXW, FOB, CFR, and CIF.

What happens to passengers if the elevator power goes off suddenly?

In case of power failure, the elevator stops. Passengers can press the Alarm bell button inside the cabin. Maintenance personnel will then bring the elevator to a level stop and open the door. Alternatively, you can purchase an ARD or UPS device to automatically level the elevator and open the door.

How about your delivery time?

Generally, it takes 25 to 30 days after confirming the elevator or escalator specifications and drawings, and receiving your advance payment.

Do you test all your goods before delivery?

Yes. For elevators, we assemble the cabin, frame, and door operator. For escalators, we perform a 72-hour test run before delivery and provide test pictures to the customer.

How do you ensure a long-term business relationship?

We maintain high quality and competitive pricing to ensure our customers benefit. We respect every customer as a friend and conduct business sincerely, regardless of their origin.
