Product Description

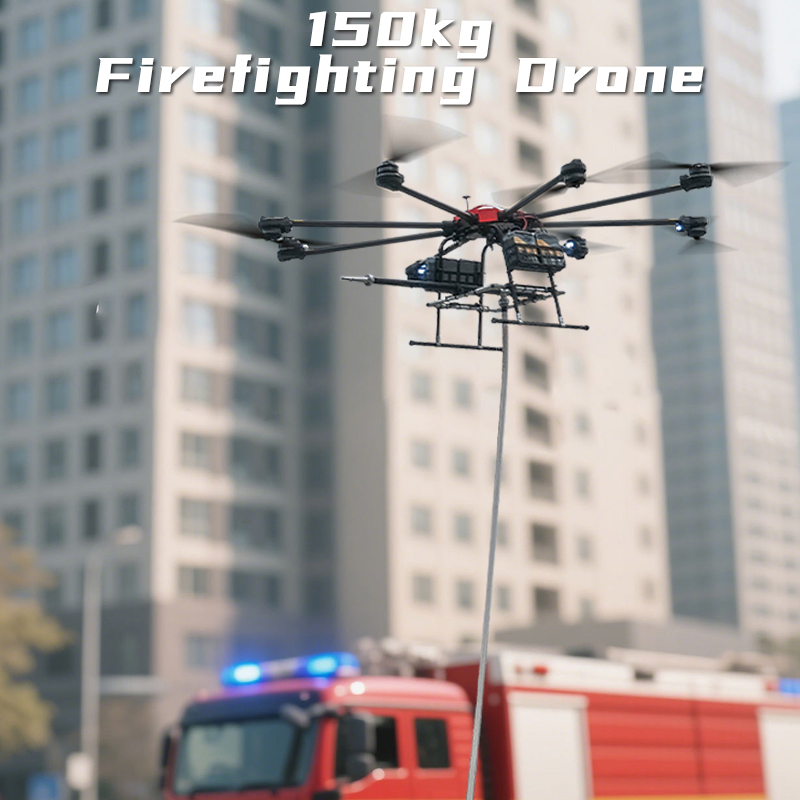

Fire Fighting Drone for Fire Departments with Fire Extinguisher

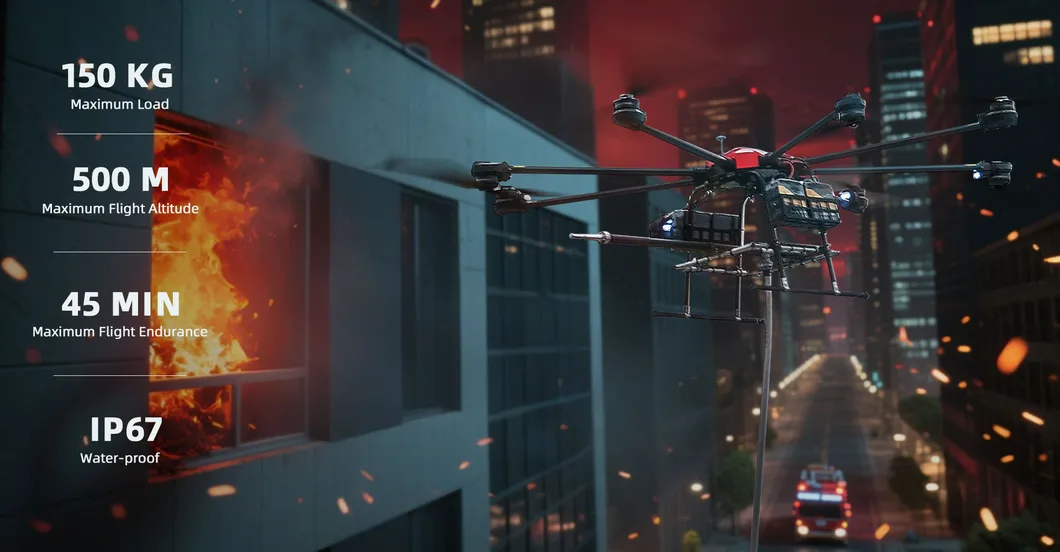

| HZH XF120 Technical Specifications |
| Dimensions (Unfolded) | 4605*4605*990mm |

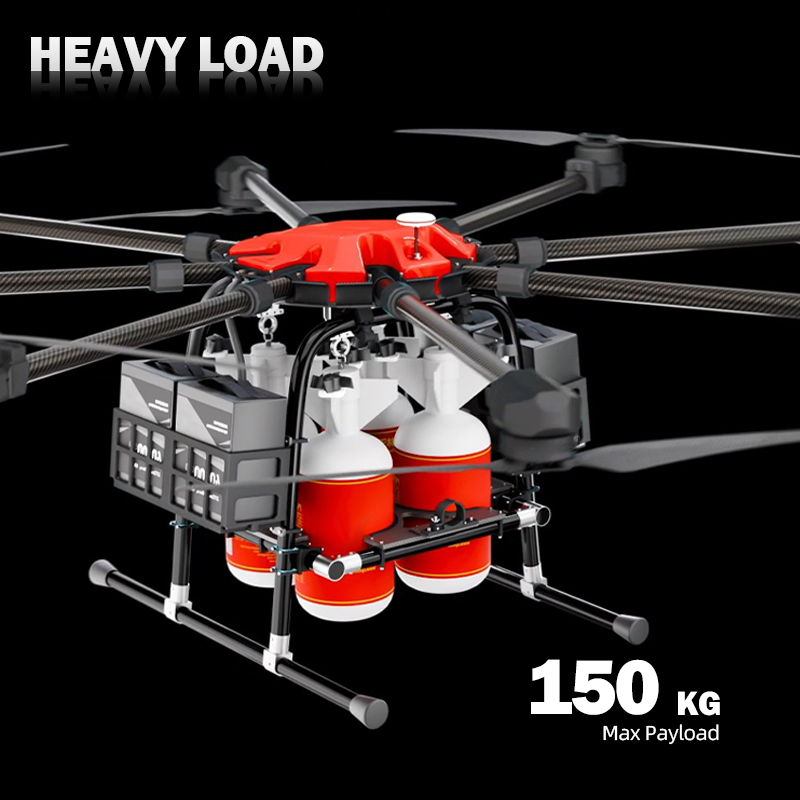

| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

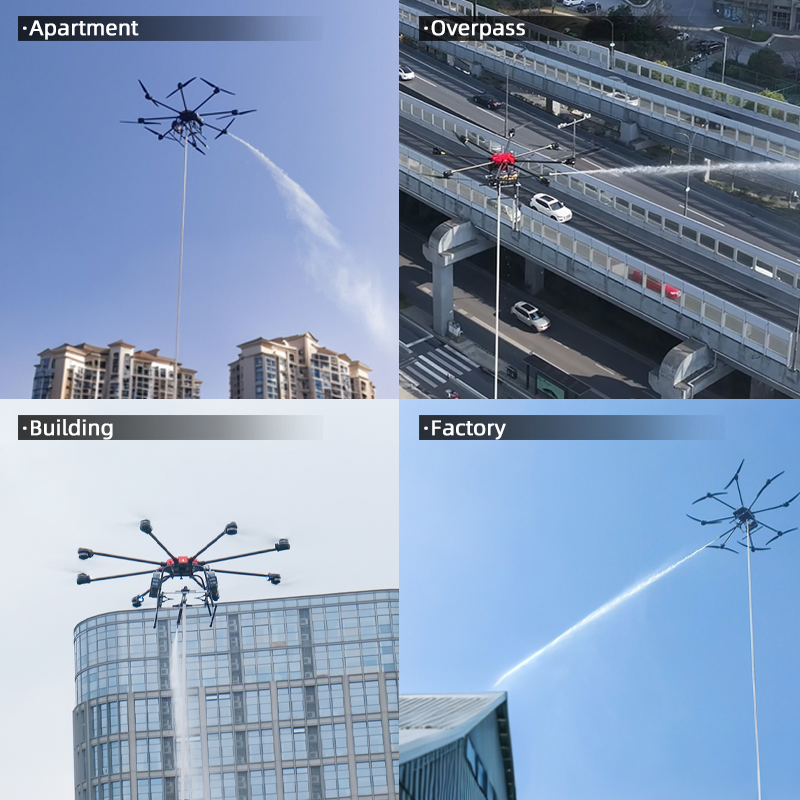

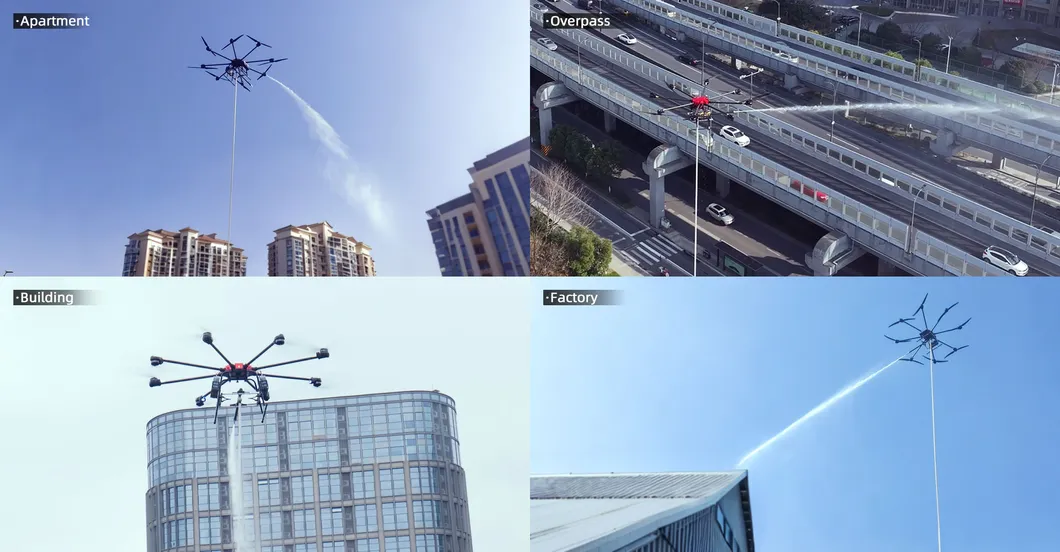

Application Scenarios
🏢 Apartments
In densely populated apartment complexes, firefighting drones are invaluable assets during fire emergencies. These drones can quickly assess the scale and spread of the fire by flying around the building, providing real-time footage to incident commanders. Equipped with high-pressure water nozzles, they can rapidly approach and spray a continuous stream of water, effectively cooling the fire and preventing its vertical spread.
🌉 Overpasses
Overpass fires, often triggered by vehicle accidents or hazardous material spills, pose unique challenges. Firefighting drones excel by rapidly reaching the incident site and deploying fire extinguishing bombs precisely onto the flames. They can operate above traffic, avoiding road congestion that may impede ground-based firefighting efforts.
🏙️ Buildings
In large commercial and office buildings, drones can ascend rapidly to upper stories, bypassing blocked stairwells and elevators. By drenching the fire with a continuous flow of water, these drones can rapidly cool down the flames, curbing the fire's vertical and horizontal progression.
🏭 Factories
Factories with large machinery and combustible materials demand versatile solutions. For fires involving flammable liquids, drones can deploy fire extinguishing bombs to smother the flames. For open-air production areas, the water-spraying function can rapidly cool down the fire and protect adjacent equipment.
Standard Configuration & Features
🚀 Exceptional Vertical Reach

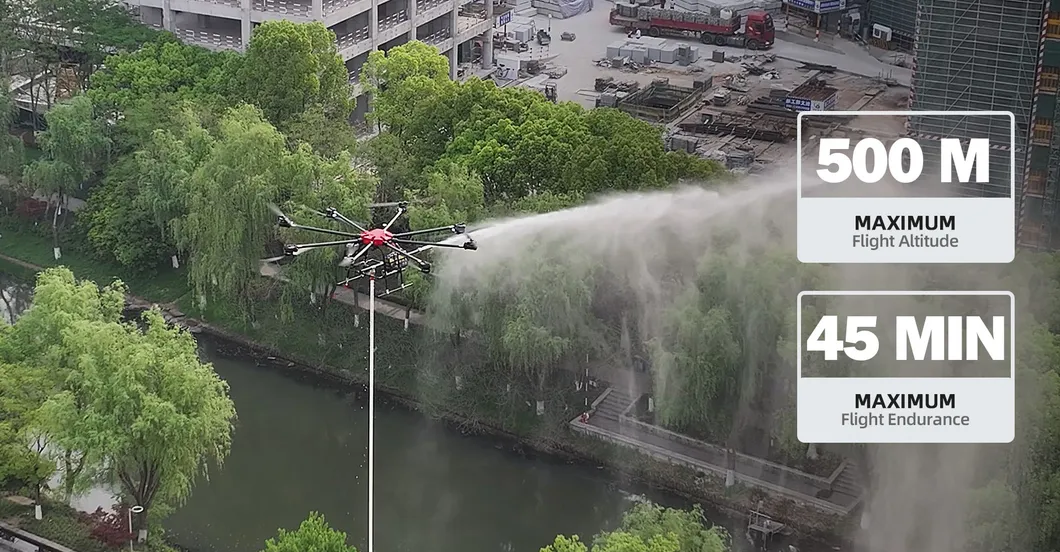

Boasting a remarkable 500-meter maximum flight altitude, this drone transcends traditional limitations, empowering it to access elevated and otherwise inaccessible fire sites like skyscrapers and tall industrial structures.
🔋 Prolonged Mission Endurance
With an impressive 45-minute maximum flight endurance, it enables sustained missions without frequent recharging, providing real-time intelligence and continuous suppression during large-scale fires.

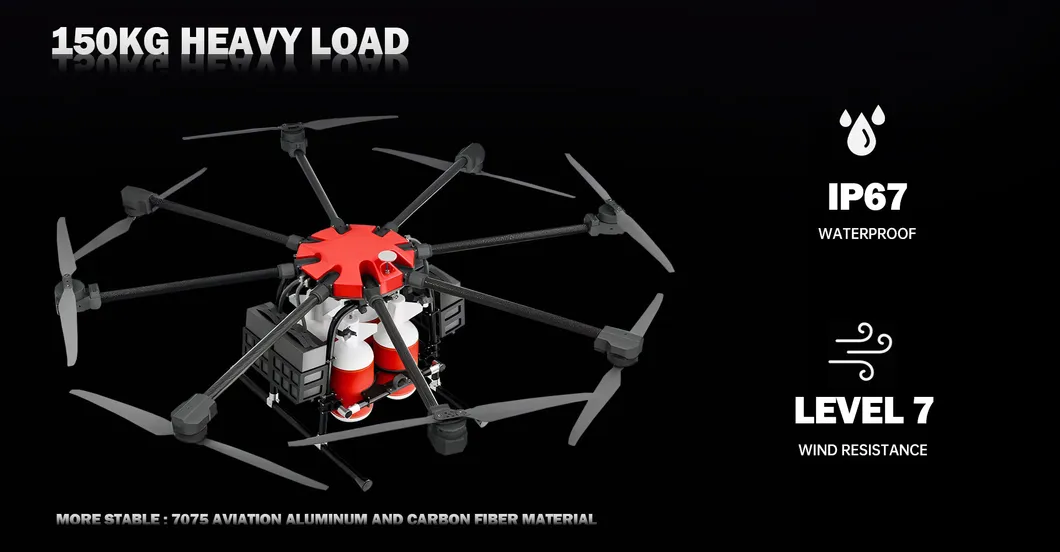

🛡️ Robust Composite Structure
Constructed from 7075 aerospace aluminum and carbon fiber materials, the drone achieves an optimal balance between durability and agility, enduring harsh conditions and impacts.
💧 Superior Waterproof & Wind Resistance
Engineered with an IP67 waterproof rating and the capability to resist winds up to level 7, ensuring stable and efficient operation in challenging weather and water-intensive scenarios.
⏱️ Rapid Deployment
The compact and modular design allows the drone to be fully assembled and ready for operation in a mere 5 minutes, slashing valuable time during critical emergencies.

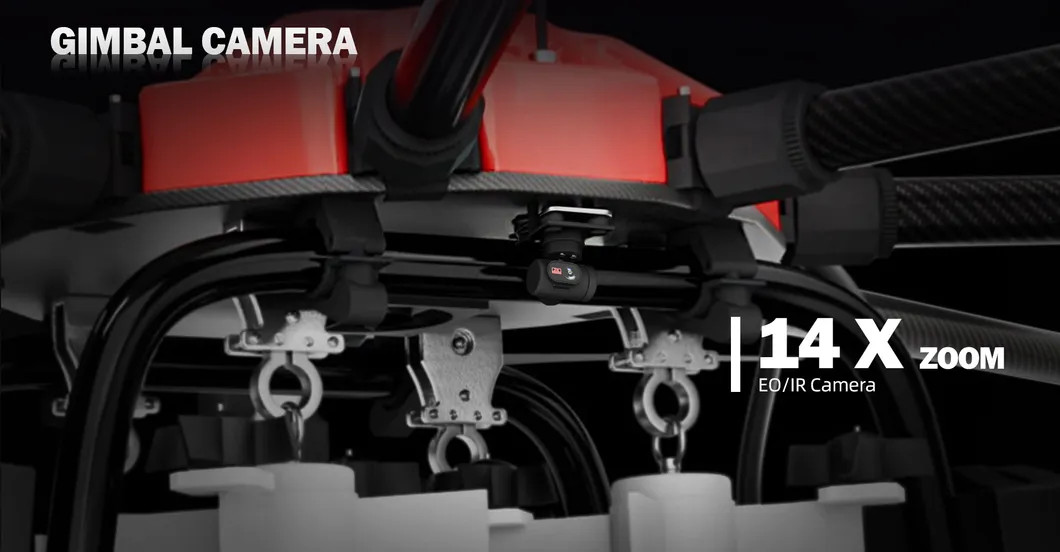

📷 High-Precision Imaging
Outfitted with a 14X Zoom EO/IR camera, providing visible light imaging and infrared heat signature detection to identify hidden fire sources and trapped individuals in low-visibility environments.

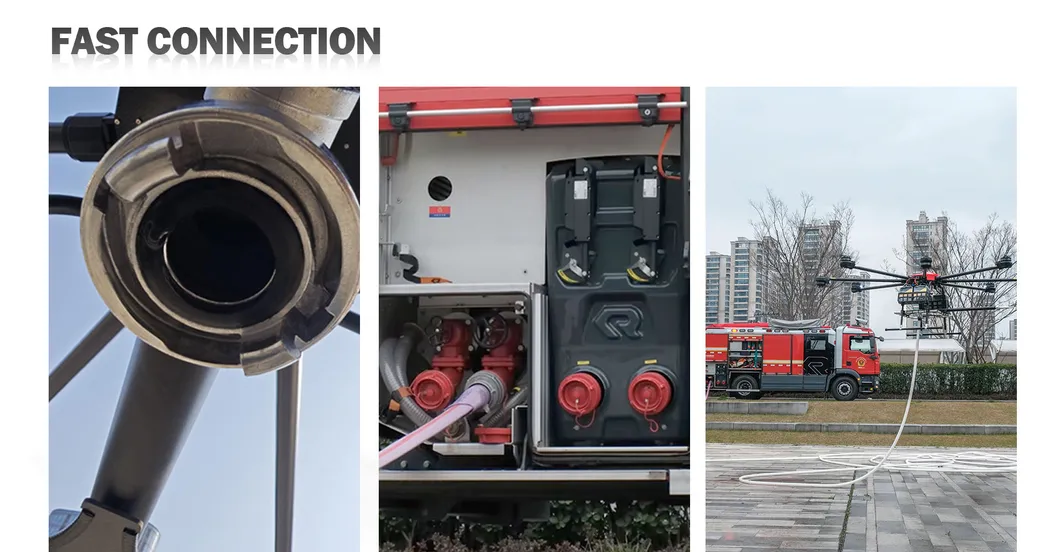

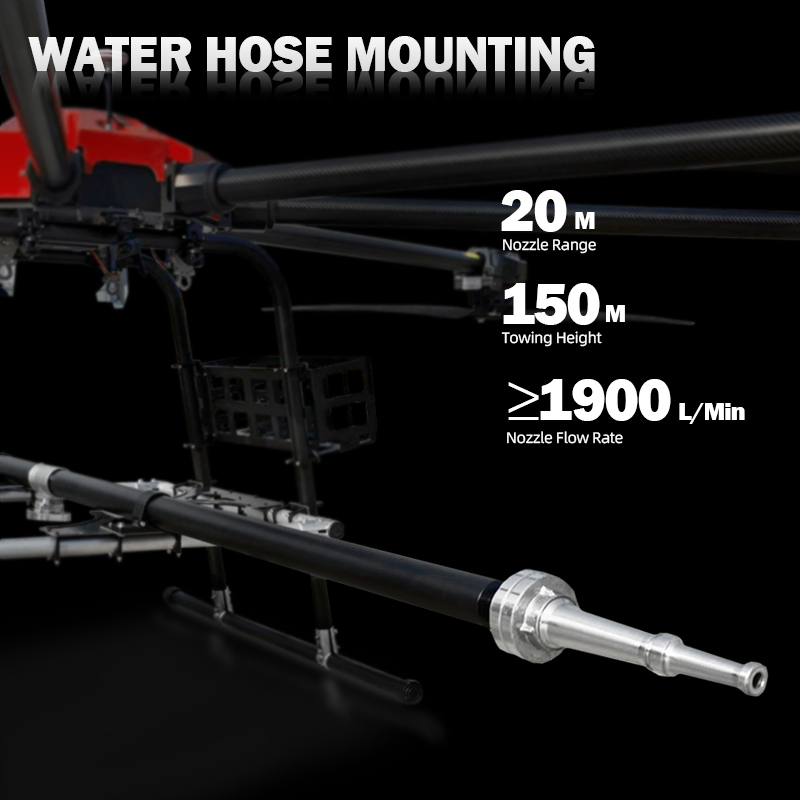

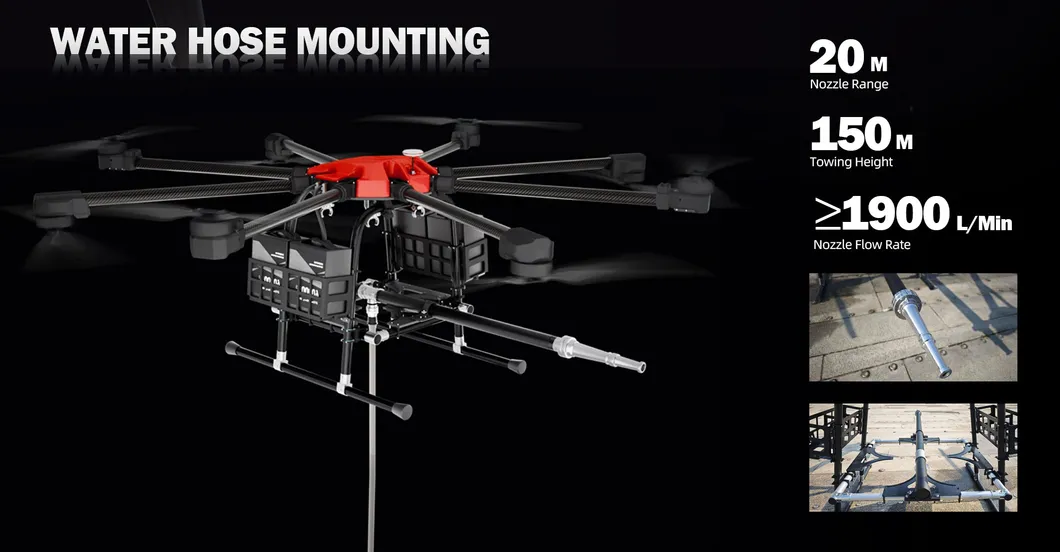

| Water Hose Mounting Parameters |
|---|
| Hose Diameter | 50mm |
| Nozzle Length | 3 M |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |

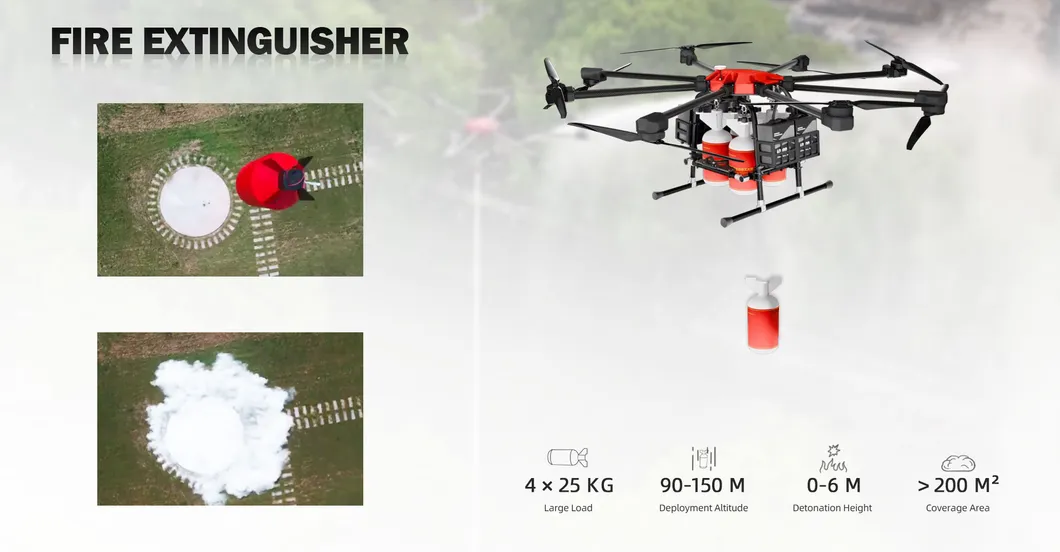

| Fire-extinguisher Parameters |
|---|
| Caliber | ≤ φ 260 mm |
| Total Weight | ≤ 23kg |
| Agent Type | ABC dry chemical or water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Arming Height | ≥ 50 m |
Frequently Asked Questions
What is the maximum flight altitude and endurance of the HZH XF120?
The drone can reach a maximum flight altitude of 500 meters and has a maximum flight endurance of 45 minutes, making it ideal for high-rise firefighting.
How long does it take to deploy the drone on-site?
Thanks to its modular design, the drone can be fully assembled and ready for operation within just 5 minutes.
What types of fire extinguishing agents can be used?
The system is versatile and can deploy either ABC dry chemical agents (for industrial/electrical fires) or water-based extinguishing agents (for residential/forest fires).
Can the drone operate in harsh weather conditions?
Yes, it features an IP67 waterproof rating and can resist winds up to level 7, ensuring reliable performance in difficult environments.
What is the capacity of the water hose system?
The water hose system supports a flow rate of ≥1900L/min with a nozzle range of 20 meters and a towing height of up to 150 meters.
How does the imaging system help in firefighting?
It is equipped with a 14X Zoom EO/IR camera that provides both visible light and infrared thermal imaging to detect heat signatures and trapped individuals through smoke.
