China Kitchen Dumbwaiter for Commercial Use Ideal for Hotels and Hospitality Industry

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Basic Information

Model NO.	ZW001	Type	Wellhole
Load Capacity	300kg	Speed	0.40m/s
Drive Mode	AC	Open & Close Type	Automatic
Lift Mechanism	Telescoping Lift	Deceleration Device	With Deceleration Device
Guide Rail	Hollow Guide	Elevator Door	Straight Fractional Door
Door Open Way	Up and Down Open	Main Power	AC 380V, 3 Phase 50Hz
Production Time	30 Days	Packing	Plywood Box
Origin	China	Production Capacity	11000 Sets Per Year

Product Description

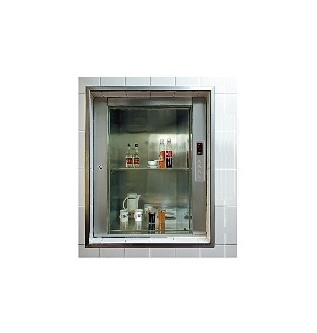

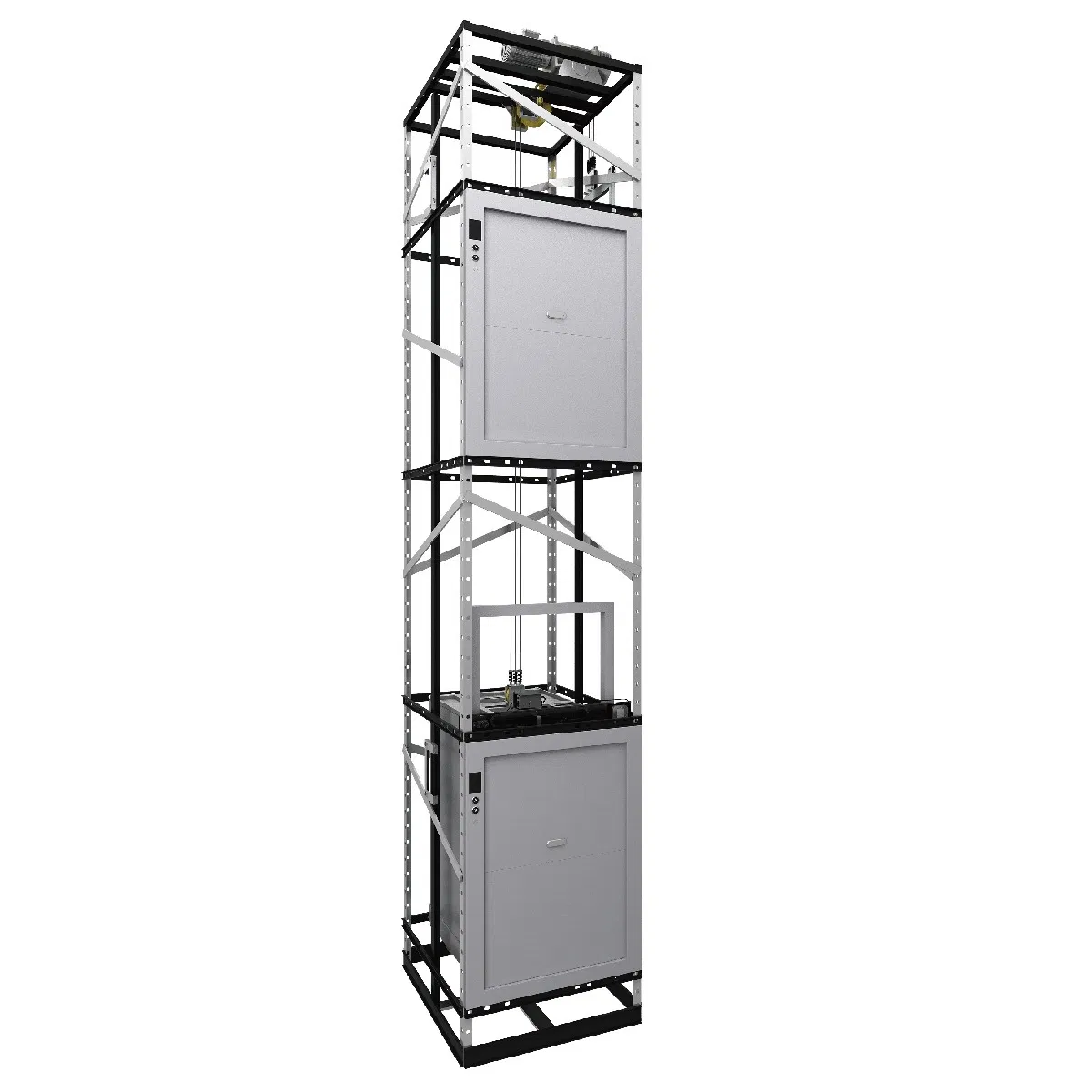

Commercial Use Dumbwaiter for Hotels and Kitchens

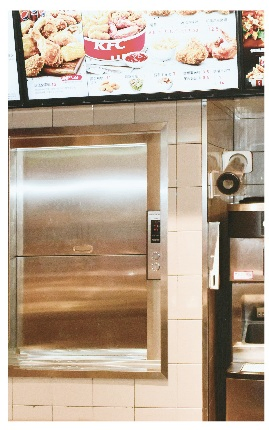

The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift. It silently serves various industries, playing the biggest role within the smallest space.

Key Advantages:

Space Efficient: Occupies a small footprint and does not require strong civil engineering bearing capacity.
Advanced Control: Uses advanced PC control modules for smooth operation and accurate leveling.
Flexible Operation: Humanized design makes the operation more intuitive and flexible.

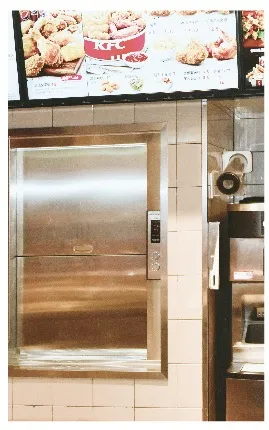

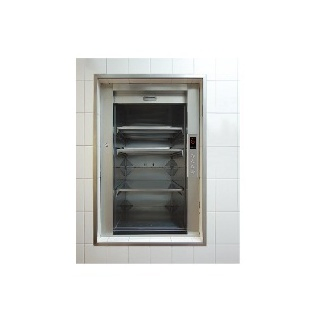

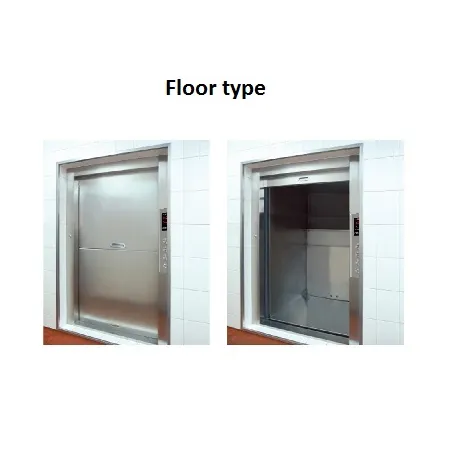

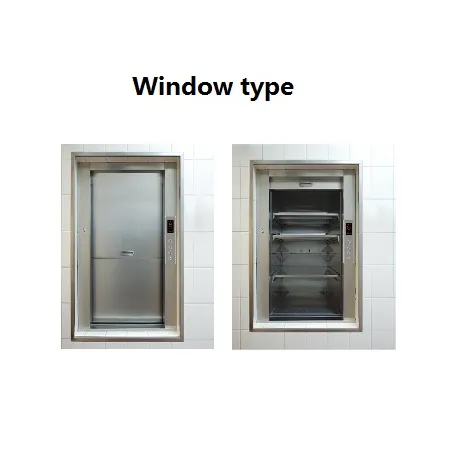

Versatile Types: Available in both window type and floor type to suit different architectural needs.
Easy Maintenance: Safe, practical, elegant, and quiet operation with simple maintenance protocols.

Technical Parameters

Dumbwaiter Elevators Without Machine Room

Load (kg)	Speed (m/s)	Cabin size (WxDxH)mm	Shaft size (WxD)mm	Type
100	0.4	500x500x900	1000x800	Window
200	0.4	600x600x900	1100x900	Window
250	0.4	800x800x900	1300x1100	Window
300	0.4	900x900x900	1400x1200	Window
100	0.4	500x500x1000	1000x800	Floor
300	0.4	900x900x1000	1400x1200	Floor

* Above specifications are for reference. Custom designs are available based on site parameters.

Safety Functions

1. Motor overheat protect	2. Power phase fault detect
3. Drive running time detect	4. Inspection running
5. Emergency door opening key	6. Car door contact
7. Shaft emergency stop switch	8. Car top emergency stop switch
9. Safety gear contact	10. Main power switch

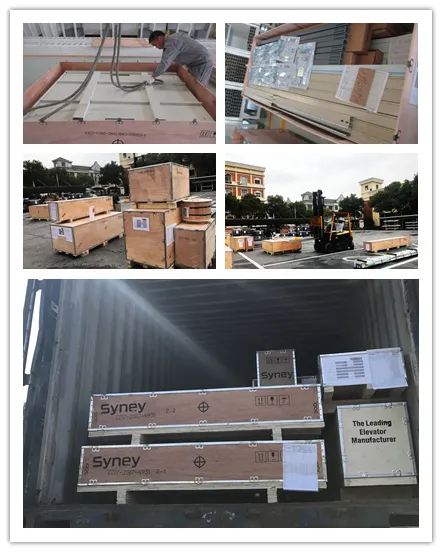

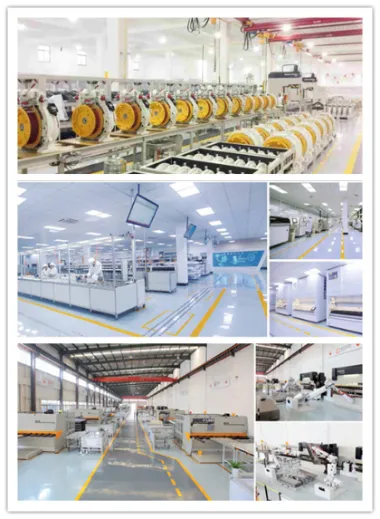

Manufacturing & Packing

Certifications & Global Projects

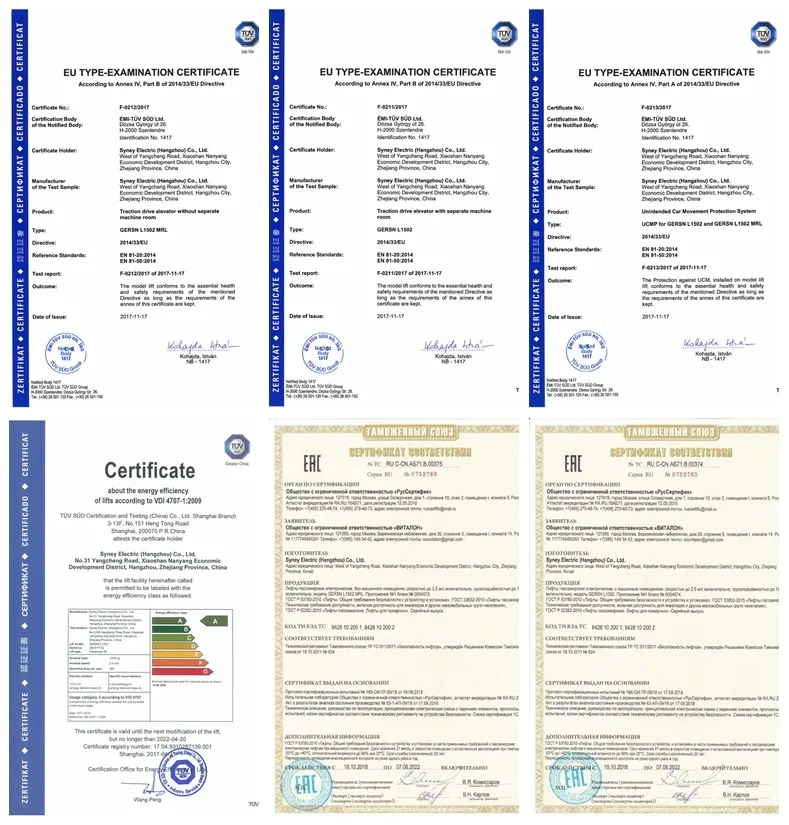

Our products have moved quality certification systems forward to meet international requirements, including Germany TÜV SÜD, CE Certificates, and EAC Certificates.

Frequently Asked Questions

How can I get a fast quotation for a dumbwaiter?

Please provide complete information including: required capacity (e.g., 100kg), number of floors/stops, shaft size, and whether you prefer window type or floor type.

What is the typical delivery time for an order?

Standard production usually takes 30 days after the deposit is received. Urgent production options may be available depending on the project requirements.

What kind of warranty is provided for the lifts?

We provide a standard product warranty of 18 months starting from the date of delivery.

How is the installation and commissioning handled?

We provide a complete set of installation manuals and remote technical guidance. For special large-scale projects, engineers can be dispatched to the site to assist.

Are the dumbwaiters compliant with international standards?

Yes, our elevators meet EN81 and GB7588-2003 specifications and hold CE, TÜV SÜD, and EAC certifications for global safety compliance.

What materials are used for the cabin construction?

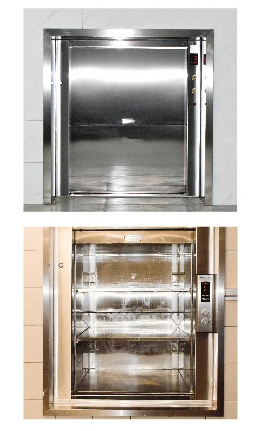

Standard cabins, walls, and landing doors are constructed from high-quality stainless steel for durability and hygiene, especially for kitchen and hospital use.
