Custom Kitchen Elevator Dumbwaiter Food Lift for Residential and Commercial Use Global B2B Supply Solutions

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Basic Information

Model NO.

ZW002

Type

Wellhole

Load Capacity

100kg

Speed

0.40m/s

Drive Mode

AC

Open & Close Type

Automatic

Lift Mechanism

Telescoping Lift

Guide Rail

Hollow Guide

Main Power

AC 380V, 3 Phase 50Hz

Packing

Plywood Box

Product Description

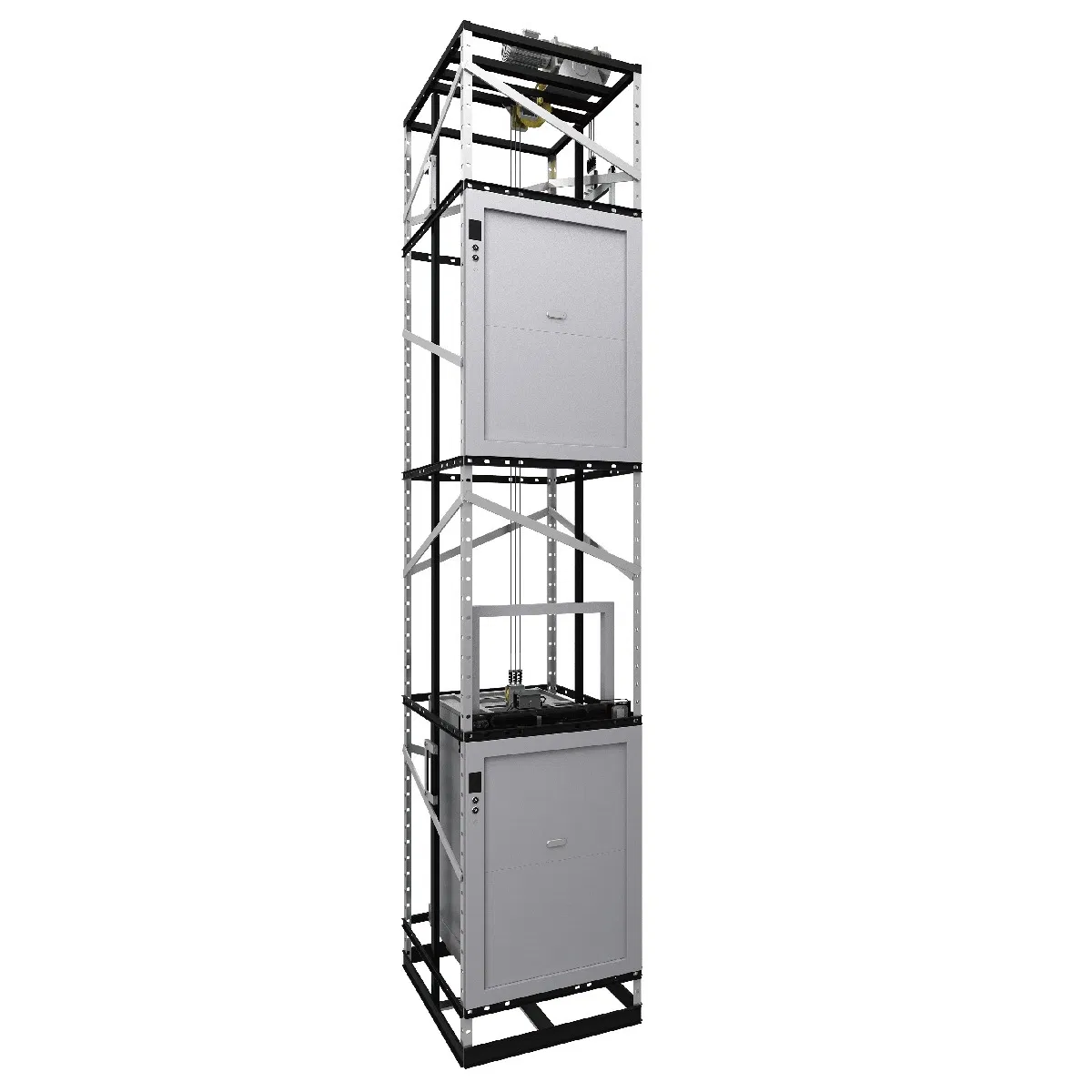

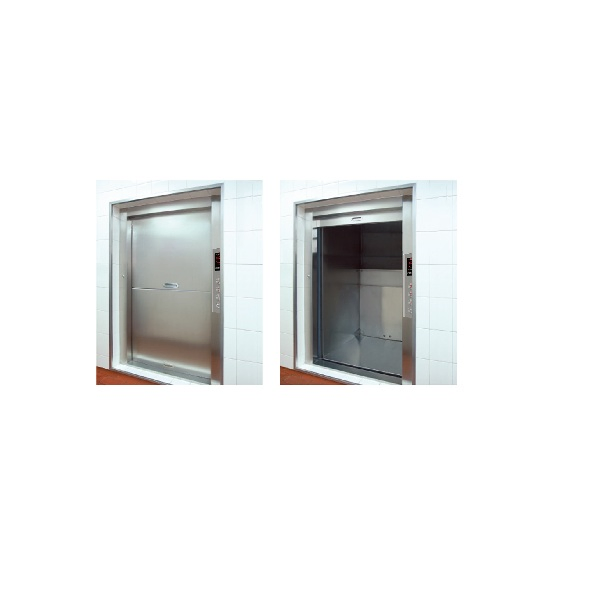

Commercial Customized Residential Floor Service Food Lift Kitchen Elevator Carrier Dumbwaiter

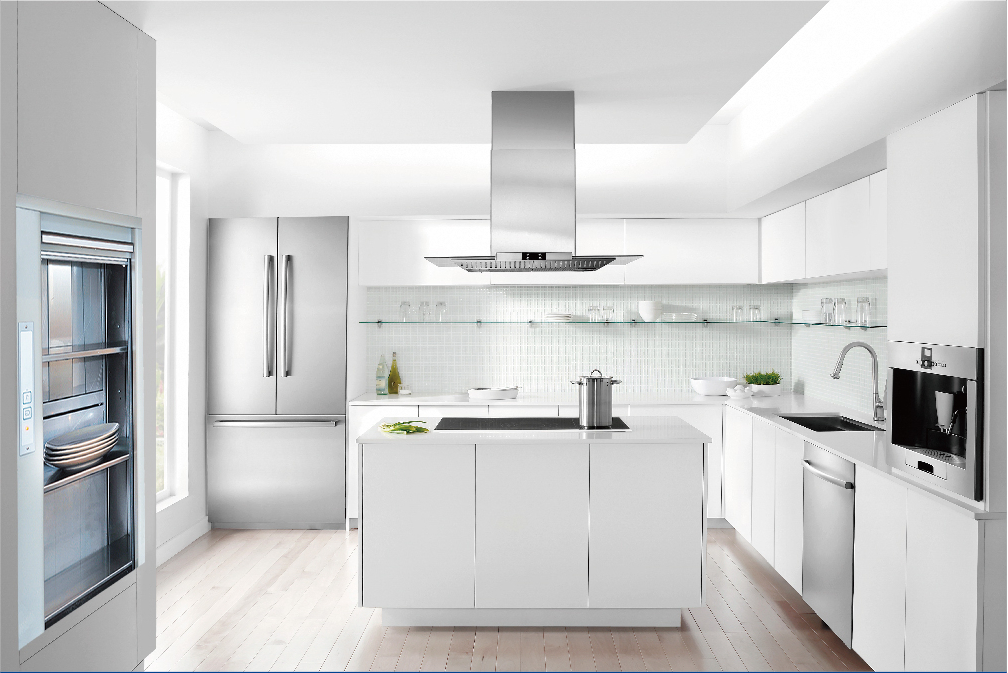

The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift. It silently serves various industries, playing the biggest role within the smallest space. Our product series includes floor type and window type elevators equipped with two different door opening methods. Leading technology and perfect quality make it the most suitable choice for modern buildings.

Key Advantages

Space Efficient: Occupies a small space and does not require strong civil engineering bearing capacity.
Advanced Control: Uses advanced PC control modules for smooth running and accurate leveling.
Humanized Design: Makes the operation more flexible and user-friendly.

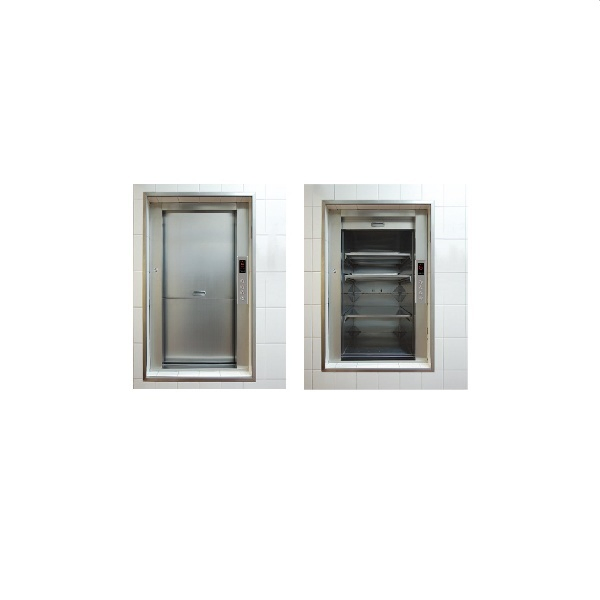

Versatile Types: Available in both window type and floor type based on load needs.
Easy Maintenance: Safe, practical, elegant, quiet, and very easy to maintain.

Product Parameters

Food Elevator Without Machine Room

Load (kg)	Speed (m/s)	Cabin size (WXDXH)mm	Door size (WxH)mm	Shaft size (WxD)mm	Pit depth (mm)	OH (mm)	Working mode

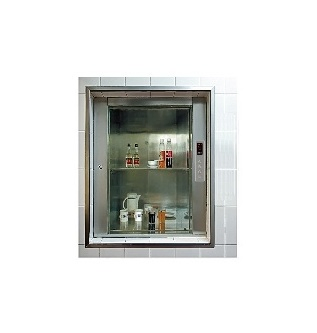

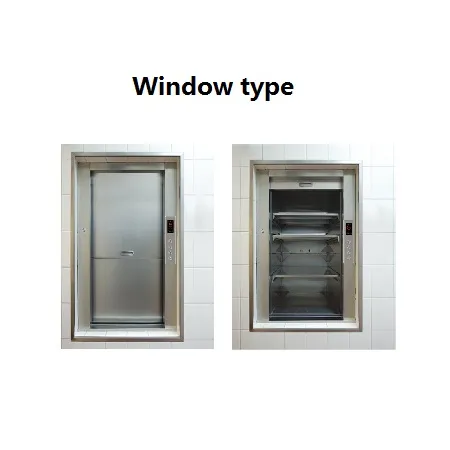

100	0.4	500x500x900	500x900	1000x800	700	4500	Window type
200	0.4	600x600x900	600x900	1100x900	700	4500	Window type
250	0.4	800x800x900	800x900	1300x1100	700	4500	Window type

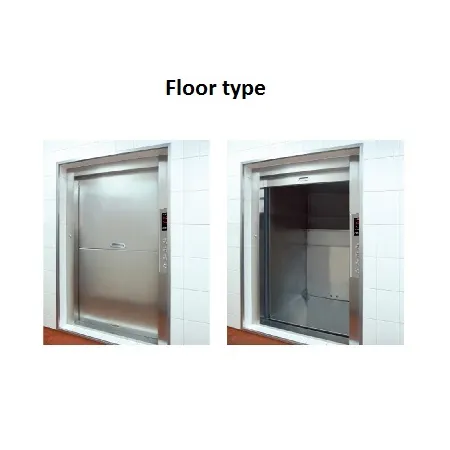

100	0.4	500x500x1000	500x1000	1000x800	1000	4000	Floor type
300	0.4	900x900x1000	900x1000	1400x1200	1000	4000	Floor type

Note: Above standard specification is for reference only. Factory can design suitable solutions according to your specific site parameters.

Safe Functions

1. Motor overheat protect	2. Power phase fault detect	3. Drive running time detect	4. Inspection running
5. Emergency door opening key	6. Car door contact	7. Shaft emergency stop switch	8. Car top emergency stop switch
9. Safety gear contact	10. Main fuse (controller)	11. Main power switch	12. Car lighting switch

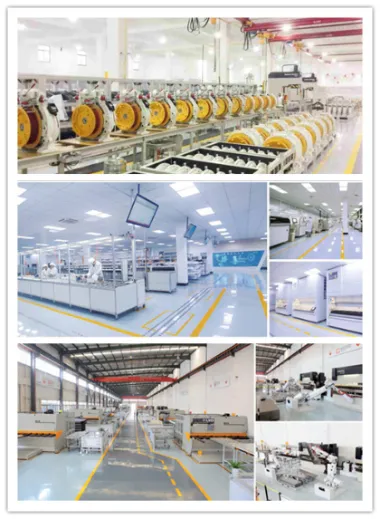

Manufacturing & Packing

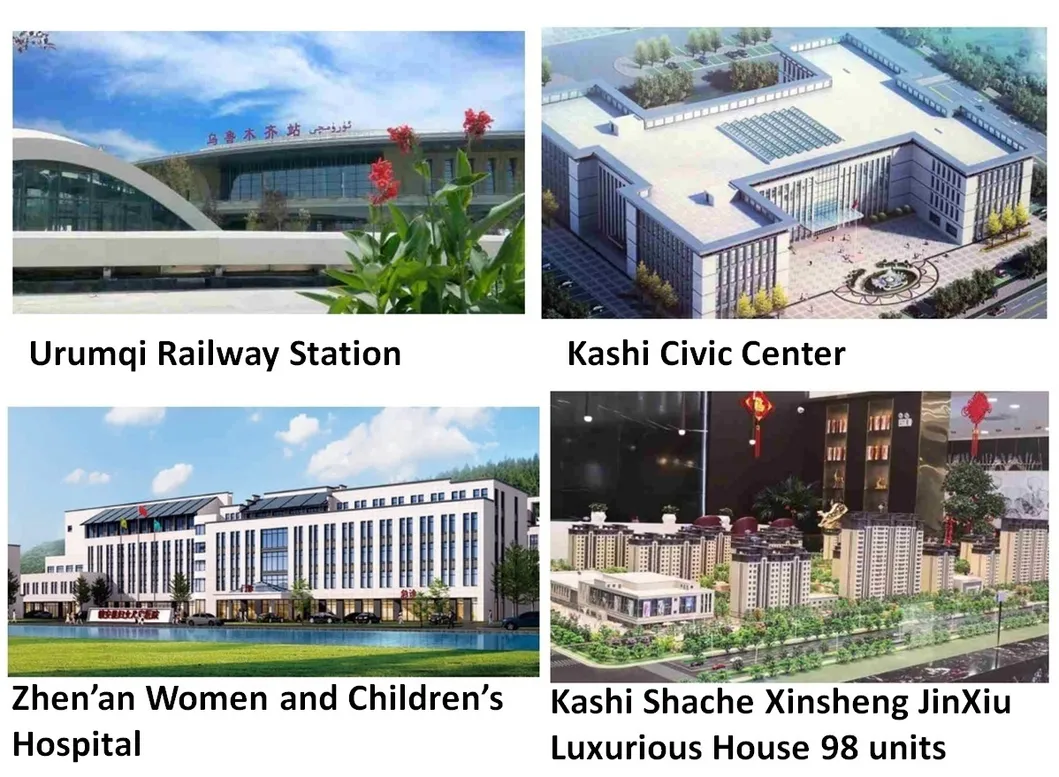

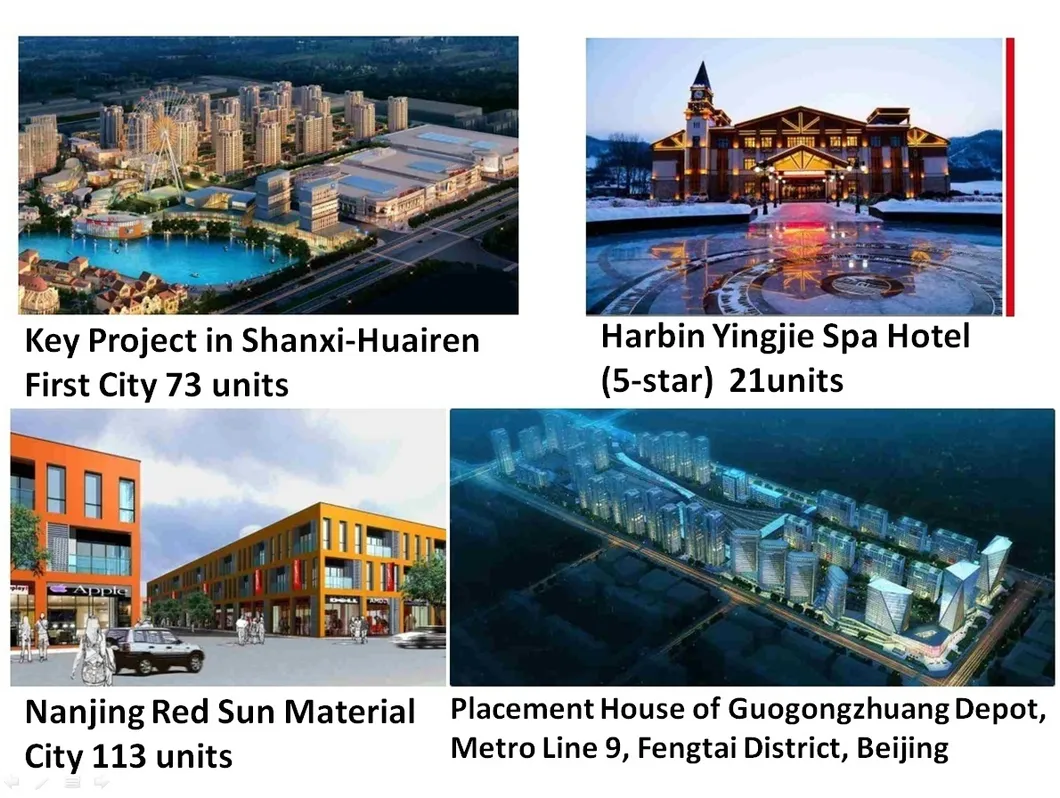

Certifications & Global Projects

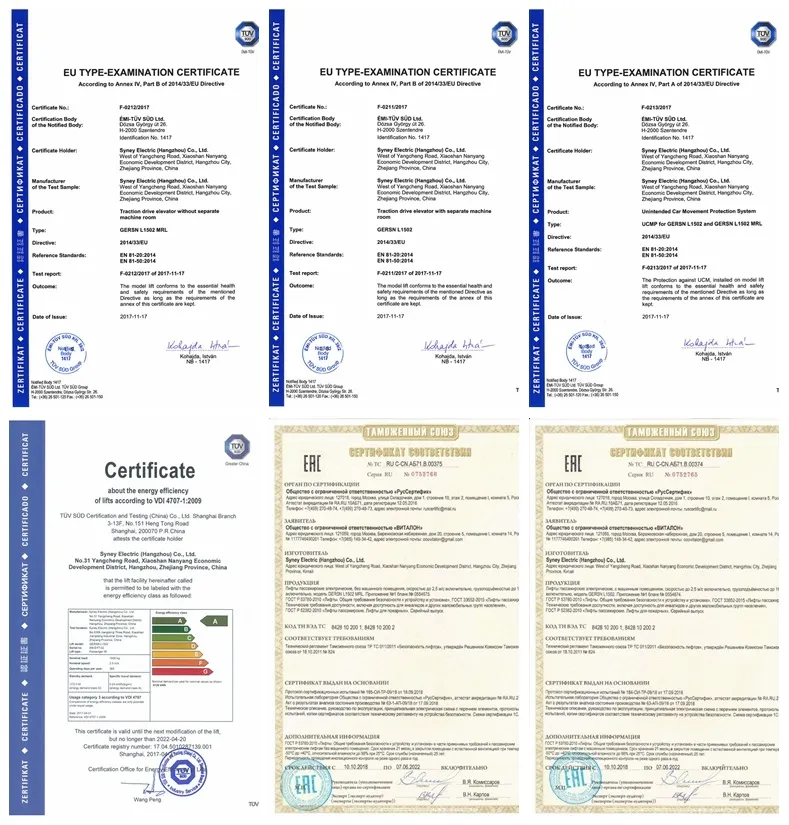

Our products meet international standards including Germany TÜV SÜD, CE, and EAC certifications. This ensures our elevators and parts meet the strictest quality and safety requirements worldwide.

Frequently Asked Questions

How to get a fast reply for an inquiry?

Please provide complete information including elevator type (Kitchen dumbwaiter), capacity (e.g., 100kg), number of floors/stops, shaft size, and whether it is a window or floor type.

How do I place an order?

1) Confirm specifications and drawings; 2) Sign the contract; 3) Production begins after payment; 4) Product finishing and shipping booking; 5) Delivery and document dispatch.

What is the standard delivery time?

Usually 30 days after the arrival of the deposit. Urgent production options are also available for specific project needs.

What is the product warranty period?

The standard warranty for our elevators is 18 months after delivery.

How are installation and commissioning handled?

We provide a complete installation manual and remote guidance for commissioning. For special projects, engineers can be sent to the site to assist.

How do I handle after-sales issues?

Please provide your contract number or product serial number so the factory can check the exact specifications and provide a quick solution.
