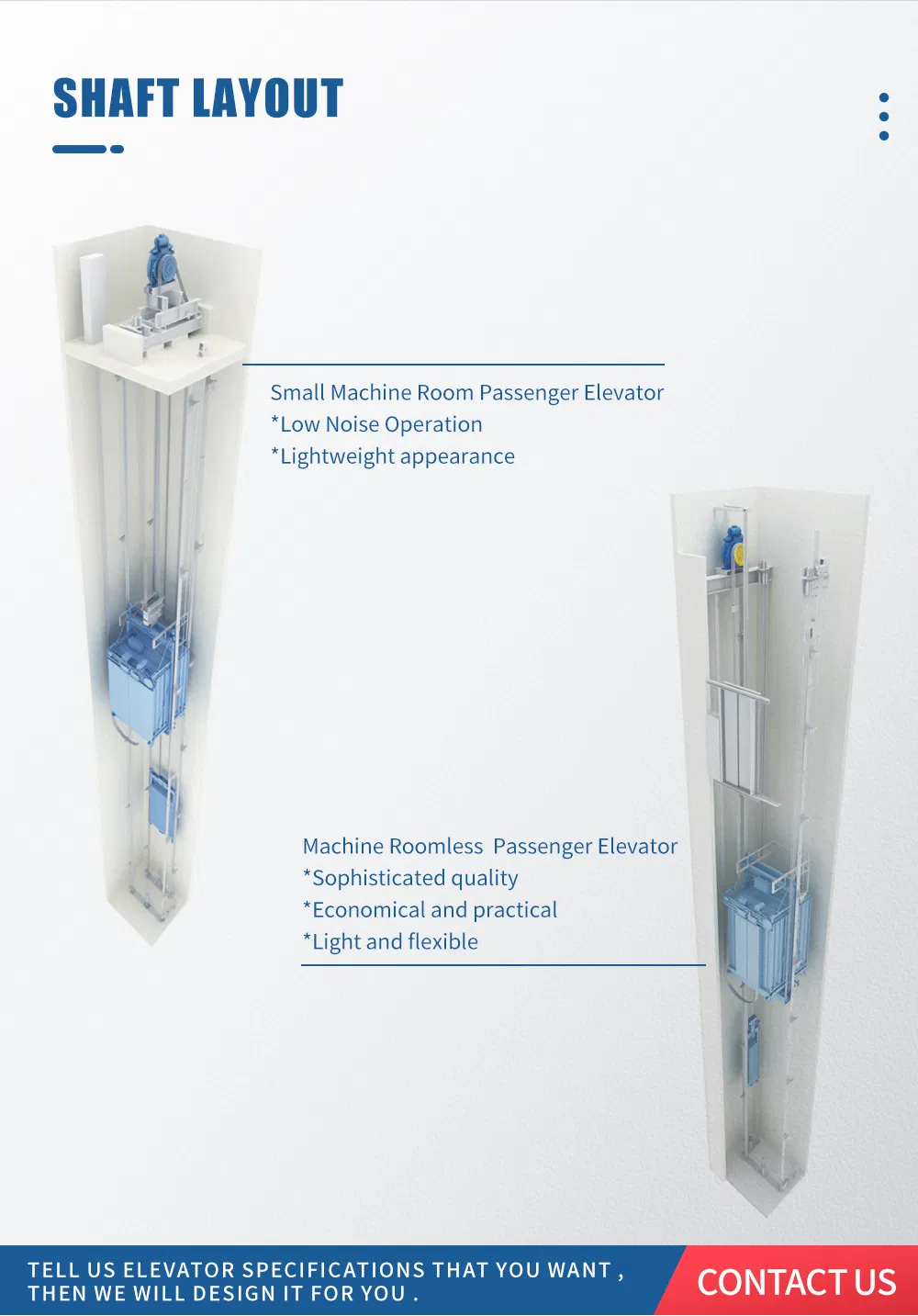

| Small Machine Room Specifications | ||||||
|---|---|---|---|---|---|---|
| Passenger | Capacity (Kg) | Speed (m/s) | Car Size (W*D*H) | Shaft Min. (W*D) | Overhead Height | Max Rise (m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1700*1800 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2000*1800 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2000*2000 | 4500 | 120 |
| 13 | 1000 | 1.0-3.0 | 1600*1500*2400 | 2200*2200 | 4500 | 150 |
| 16 | 1250 | 1.0-4.0 | 1950*1400*2400 | 2600*2100 | 4500 | 180 |

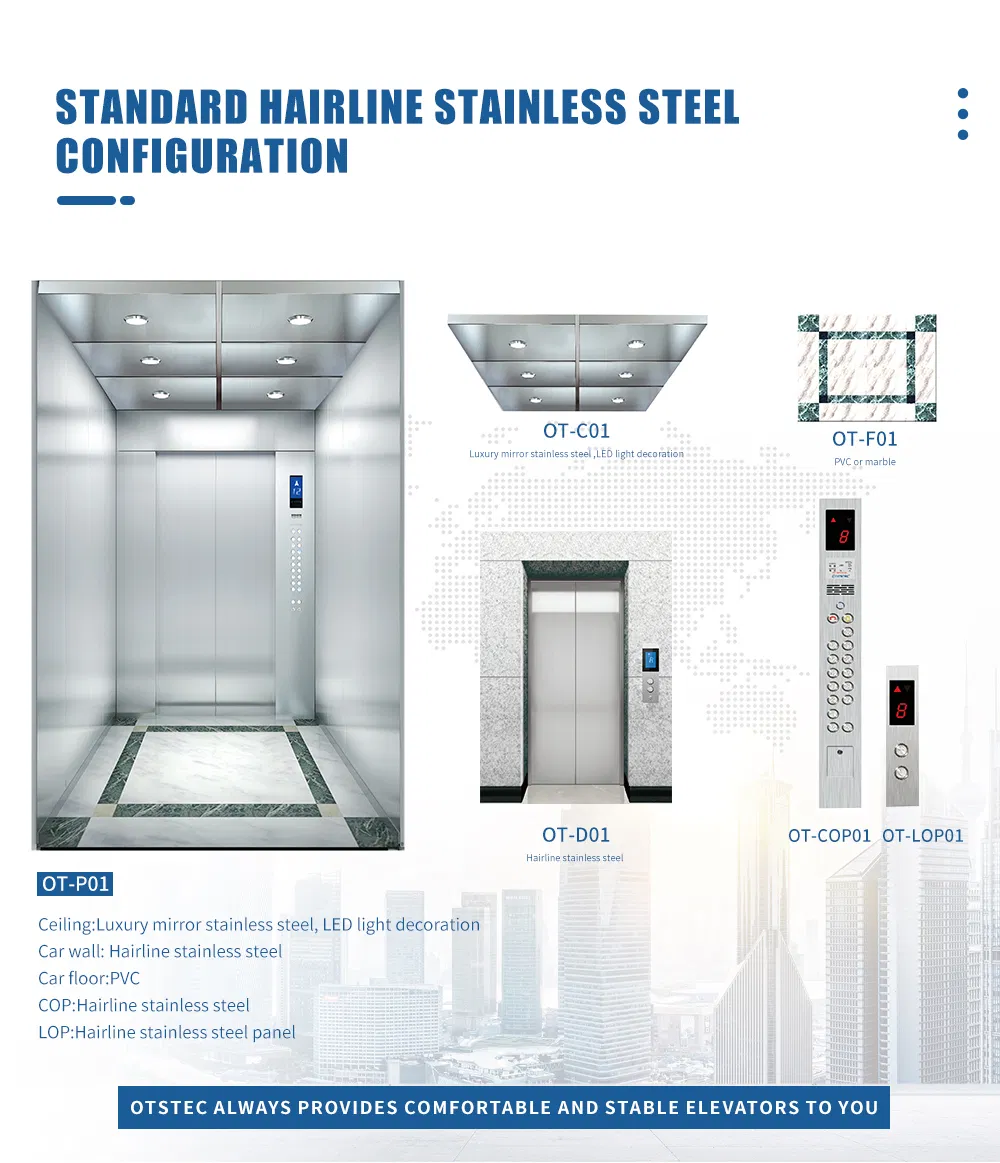

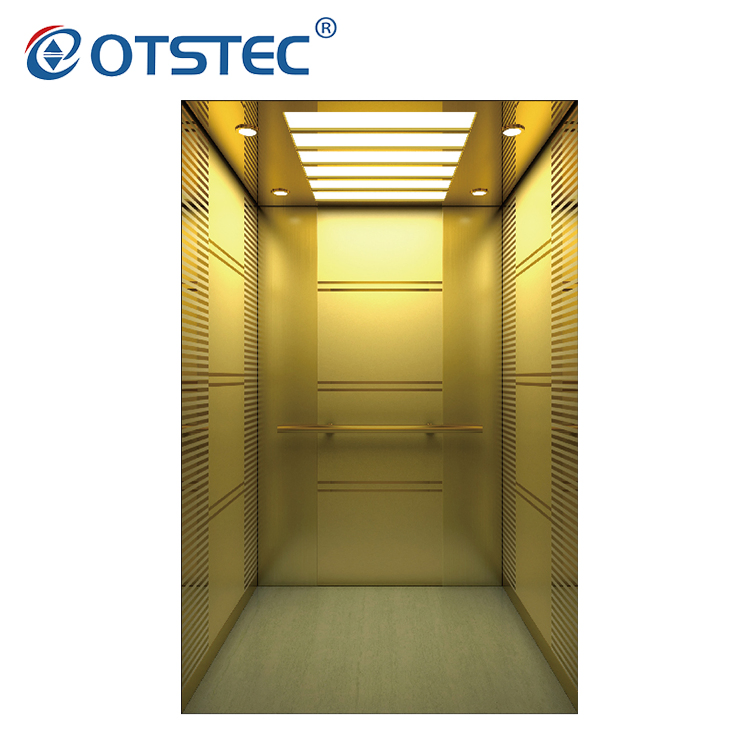

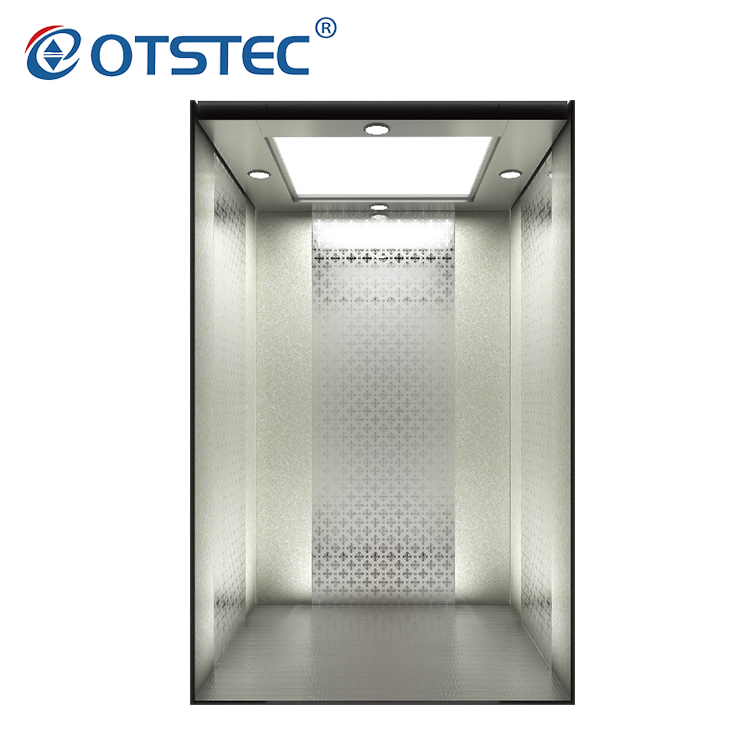

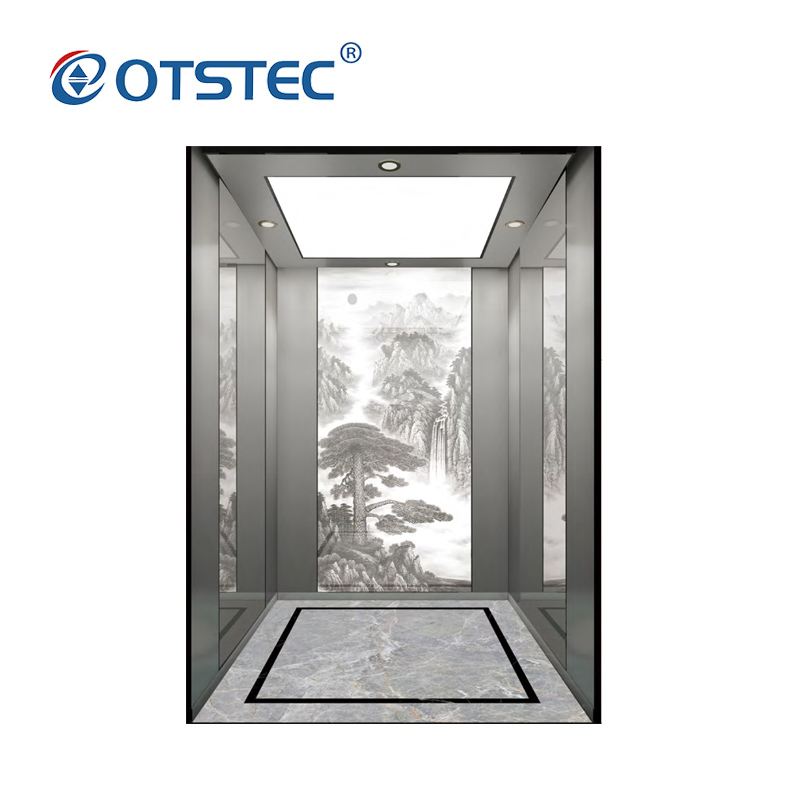

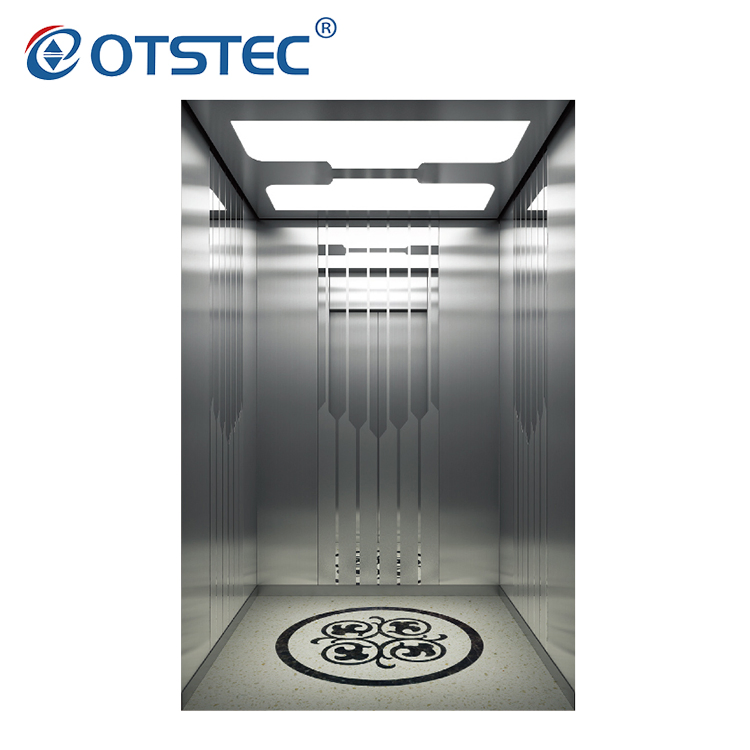

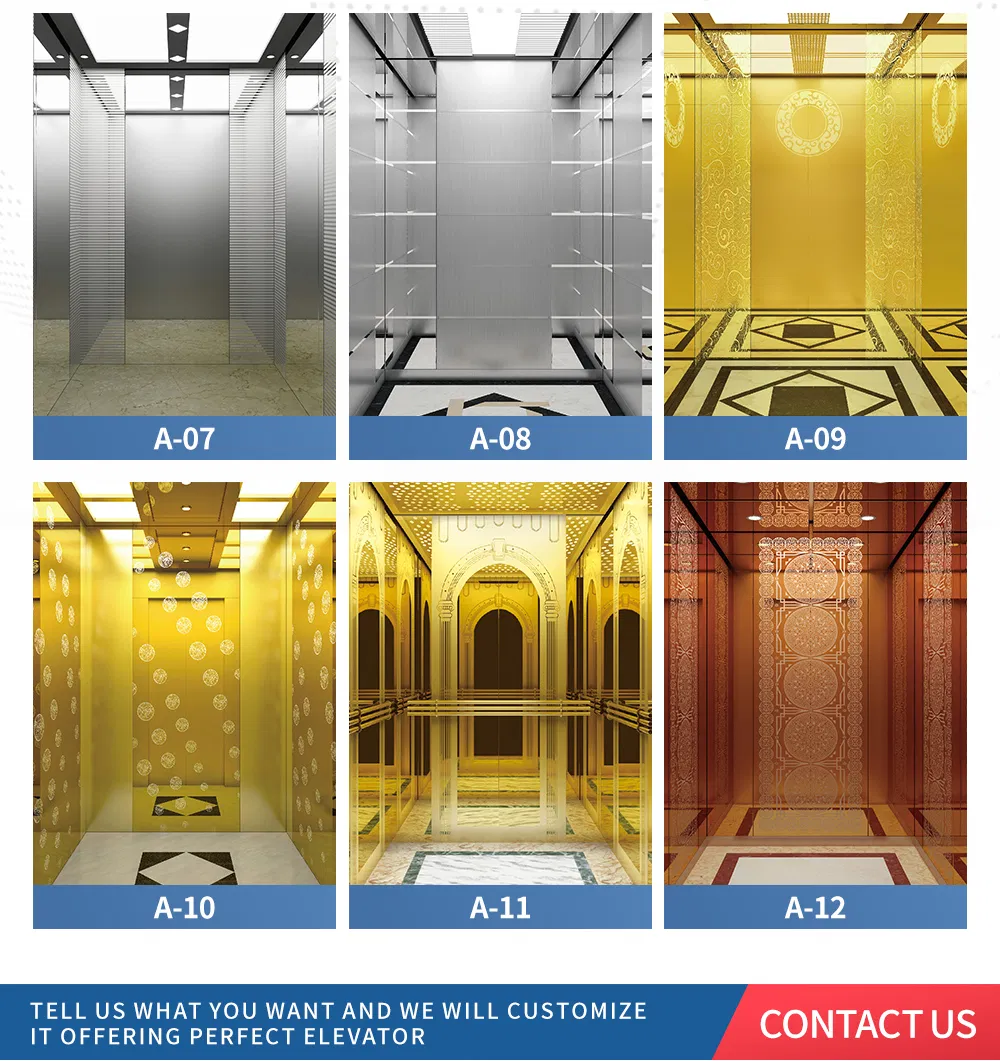

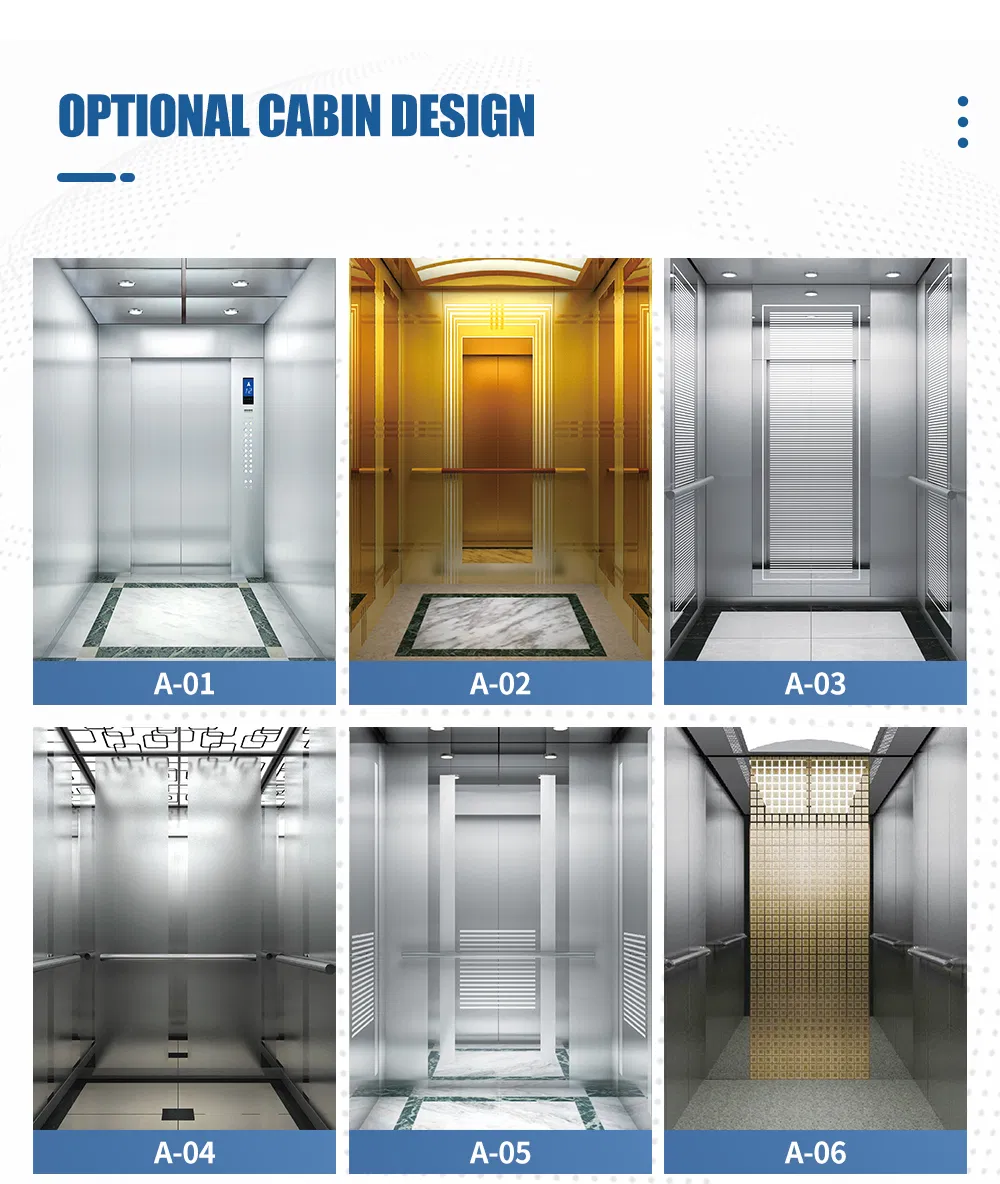

1. Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, glass;
2. Capacity: 250KG, 320kg, 400kg to 1600kg;
3. Speed: 0.4m/s up to 4.0m/s;
4. Control system: Monarch

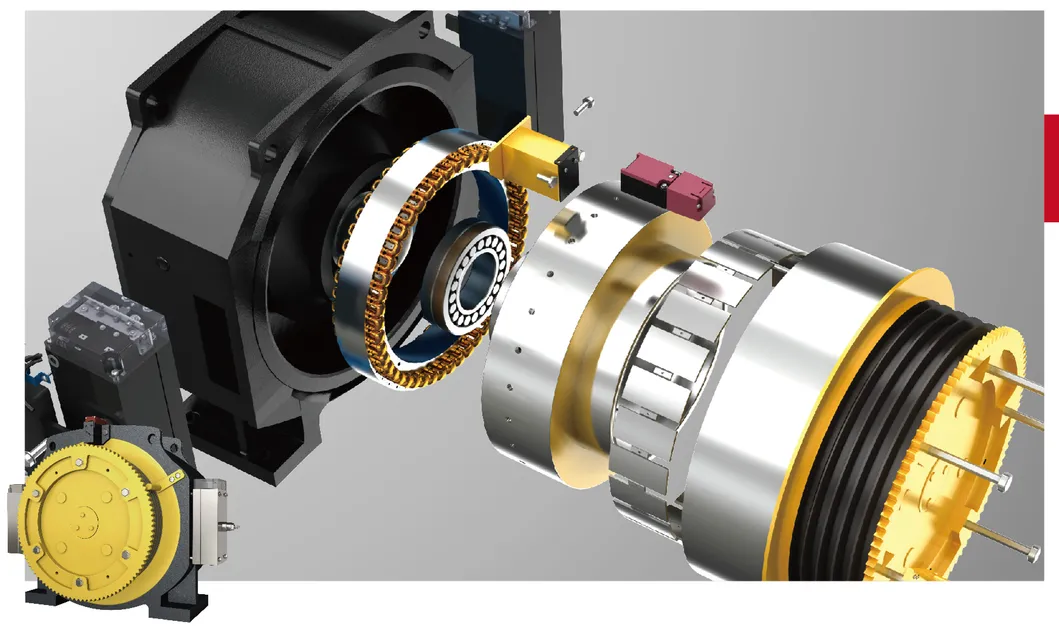

Integrates coaxial transmission technology and digital frequency technology. Highly efficient and energy-saving, reducing operation costs and heat loss. Can save up to 40% energy compared to traditional technology. No grease required, ensuring no oil contamination and a quiet riding space.
Automatically adjusts current and precisely controls torque according to the car load, making the elevator exceptionally stable and comfortable during operation.

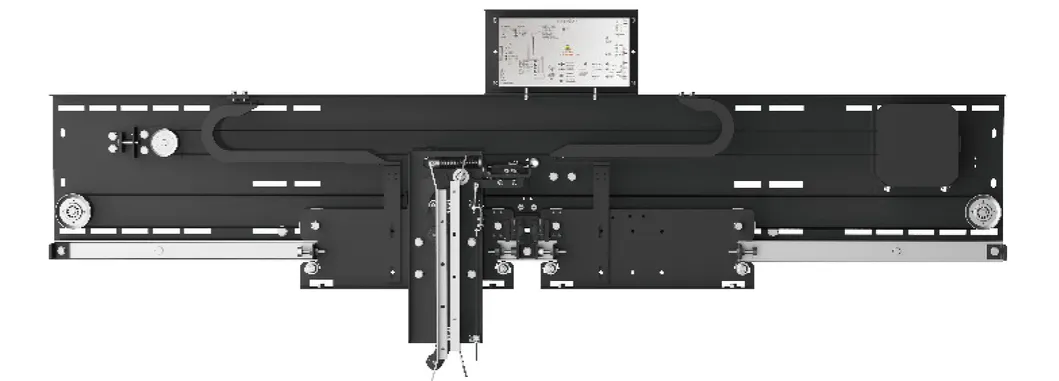

Utilizes VVF control for smooth, quiet opening and closing. Features a door load detector with self-learning ability to monitor changes at each floor and reopen automatically in case of resistance, ensuring maximum safety.
We utilize premium components: gearless motors from XIZI, door operators from Shenling or Wittur, and control systems from Monarch or STEP.

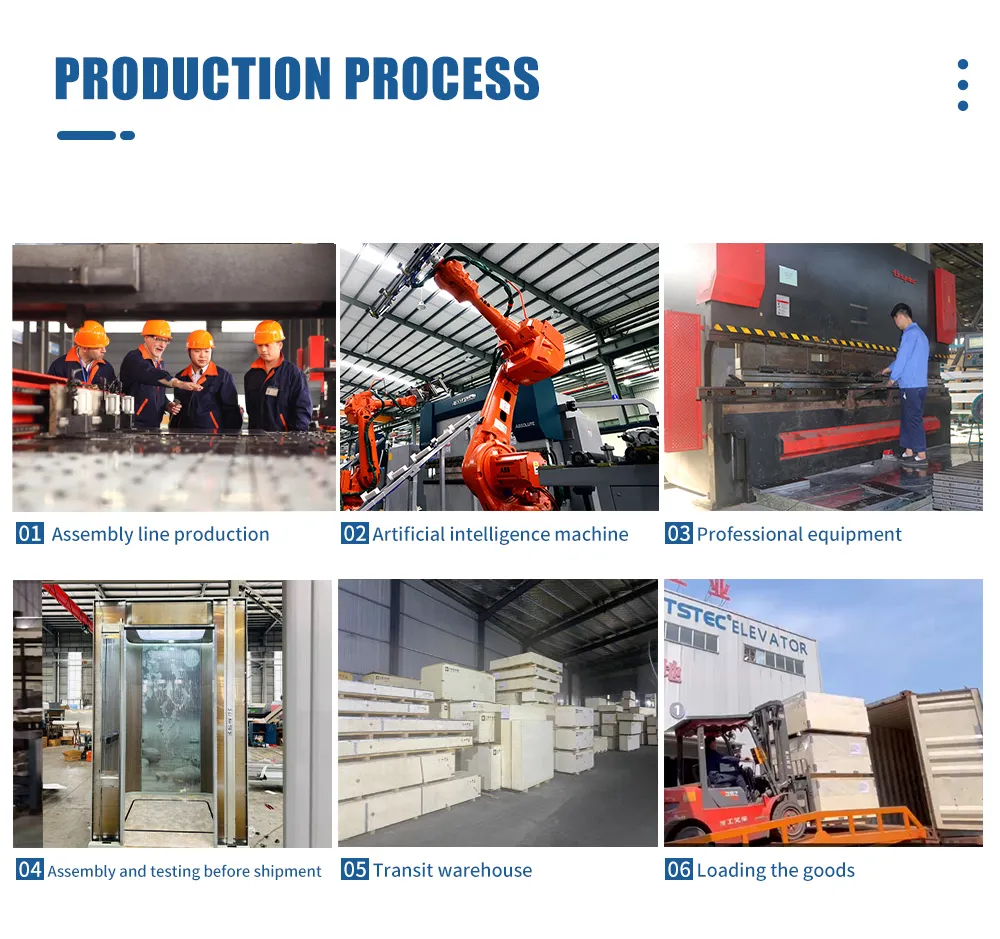

Our strict management ensures seamless installation. The design focus is on stability, efficiency, and long-term reliability.
