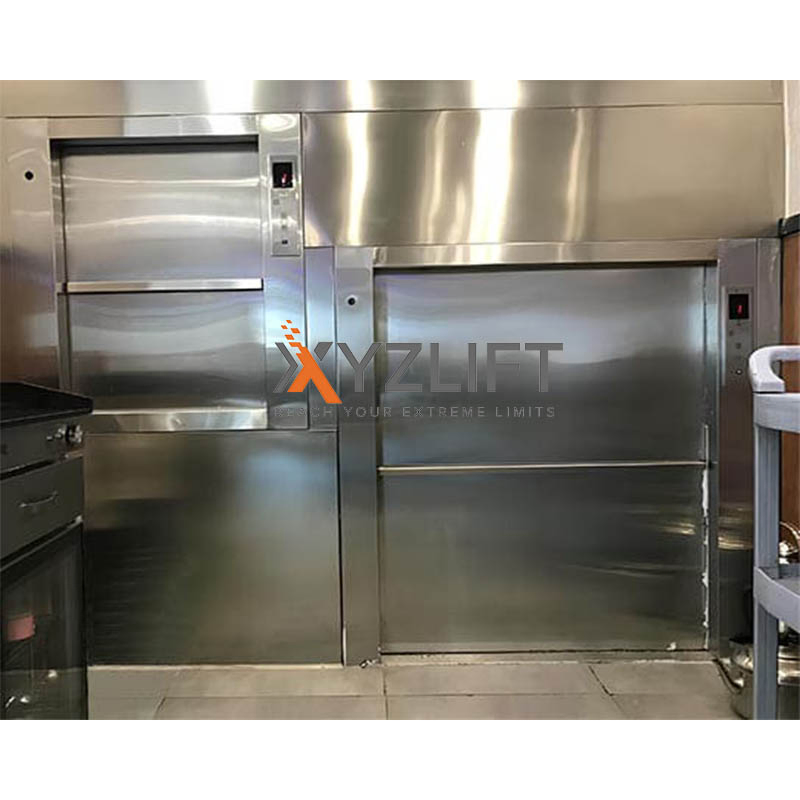

Dining Hall Restaurant Fast Kitchen Lift Dumbwaiter for Sale

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model:XYZD-2
Type:Wellhole and Derrick
Load Capacity:200kgs
Speed:0.40m/s
Drive Mode:AC
Open Type:Manual
Lift Mechanism:Traction
Guide Rail:T Guide
Door Type:Sider Door
Applicable:Restaurant, Hotels, Warehouse, Bank
Certification:CE, ISO 9001
Capacity:1000 Units/Year
🏗️ Product Description
Kitchen Lift Dumbwaiter

Dining Hall Restaurant Fast Kitchen Lift

The dumbwaiter is the perfect partner for transporting small items between floors safely, easily, and silently. It represents an excellent investment for both commercial and residential properties, being affordable in price and simple to install.

Designed for hotels, restaurants, pubs, clubs, care homes, hospitals, and educational institutions, these lifts enhance efficiency and service quality across diverse environments.

  • Lifts up to 500 kg
  • Reaches up to 19 floors
  • Speed: 0.4-1.0 m/s
  • Reverse and ground load options
  • Designed for tight spaces
  • Customizable to your specific needs
⚙️ Product Parameters
Installation Site Size1200*1200mm
Car Size800*800*800mm
Door OpeningSingle opening
Doors MaterialBi-parting Stainless Steel
Floor Height3000mm
Sill Height800mm
Speed0.4m/s
ControlsAutomatic push buttons, call & send with indicators and arrival buzzer
CustomizationHeight, cabin size, and door orientation can be tailored

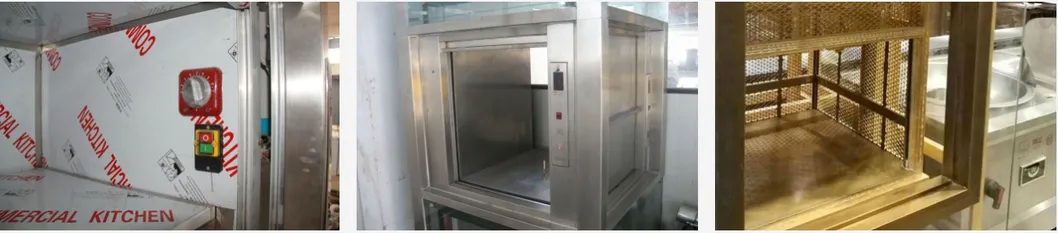

🌟 Options for Better Experience

Tailored Solutions:

1. Thermal Insulation: For cold environments, ensuring temperature stability within the cabin.

2. Flexible Access: Dual door-opening methods at a single floor level for improved workflow.

3. Luxury Finishes: Options like copper plating for high-end aesthetic requirements.

4. Landing Door Options: Choose between automatic, swing, or roller doors to fit your site.

Dumbwaiter Options

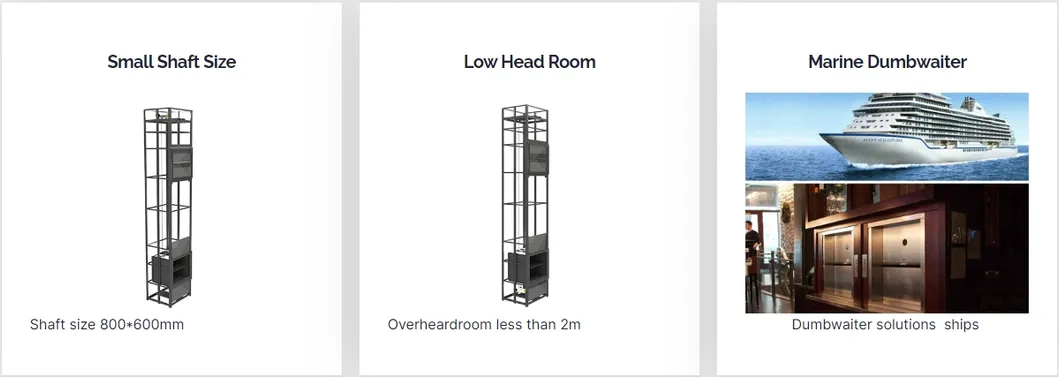

🛠️ Expert Solutions for Complex Sites

No matter what challenging issues you encounter—no pit, small hoistway, limited overhead space, or the need for highly stable marine dumbwaiters—our experienced technical team provides satisfying designs and solutions.

Custom Solutions
🔧 10-Step Installation Guide
1
Shaft Assembly: Connect stand columns and shaft beams on a level foundation.
2
Guide Rails: Attach rails inside beams; ensure vertical alignment.
3
Motor: Install the motor at the top and connect to the drive system.
4
Counterweight: Set up the frame and connect to the cabin via pulley.
5
Cabin: Lower into the shaft and attach guide shoes for smooth movement.
6
Cabin Door: Install and align for proper operation.
7
Landing Doors: Secure and align doors at each floor level.
8
Buffers: Place at the shaft's bottom to absorb impacts safely.
9
Leveling: Install limit switches for precise stops.
10
Controller: Set up the electrical panel and manage operations.

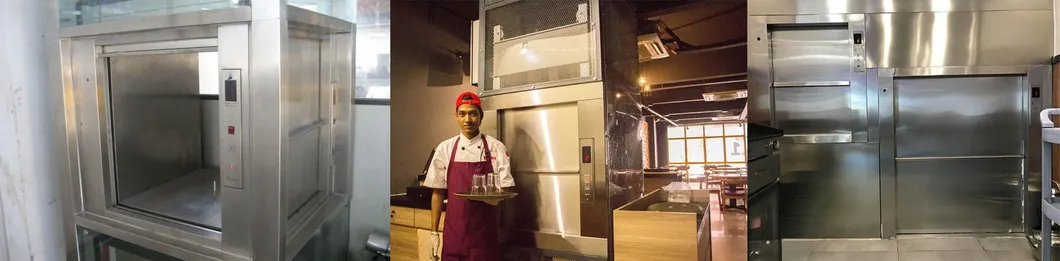

🏢 Project Showcase

Our dumbwaiters are versatile and suitable for houses, villas, child centers, banks, factories, or warehouses, solving vertical transportation problems with ease.

Project Show
✉️ Get A Free Design Proposal

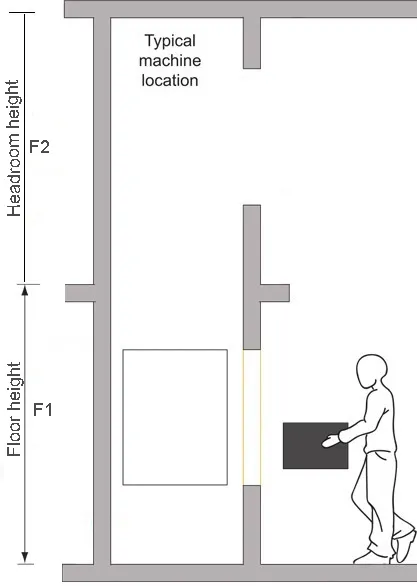

Custom Design

Requirements for Custom Design:

To receive an accurate lift solution within 24 hours, please prepare the following details:

  1. Installation size / Floor hole size / Shaft size
  2. Height of each floor (F1, F2, etc.)
  3. Car door direction requirements
  4. Local power voltage
FAQ - Frequently Asked Questions
1. What is the maximum weight capacity of your dumbwaiters? Our standard models handle 200kg, but we can customize heavy-duty versions that support up to 500kg depending on your needs.
2. Can the cabin size be customized to fit my existing shaft? Yes, we specialize in tailor-made services. We can adjust the cabin dimensions and door orientations to fit tight or non-standard spaces.
3. How long does the installation take? With our 10-step guide and pre-assembled components, installation is straightforward. Most professional teams can complete it within 1-3 days.
4. Is the dumbwaiter suitable for food safety? Absolutely. Our cabins are typically made of high-quality stainless steel, which is easy to clean and meets hygiene standards for kitchen and restaurant use.
5. What safety features are included? Safety is our priority. Our lifts include limit switches for precise stops, emergency stop buttons, door interlocks, and buffers to absorb impact.
6. Do you provide technical support if we encounter issues? Yes, every unit comes with a manual and video. Our technical team is available to resolve installation or operational challenges within 2 hours.
