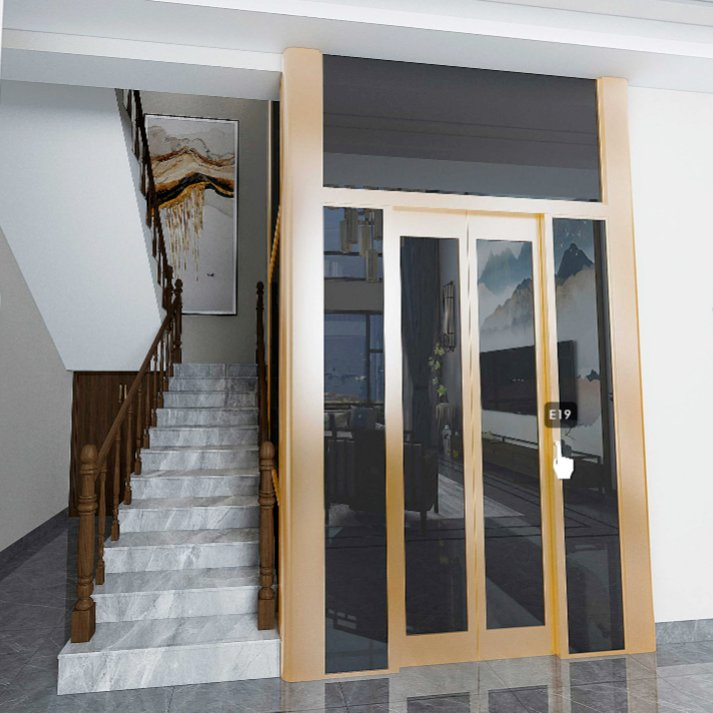

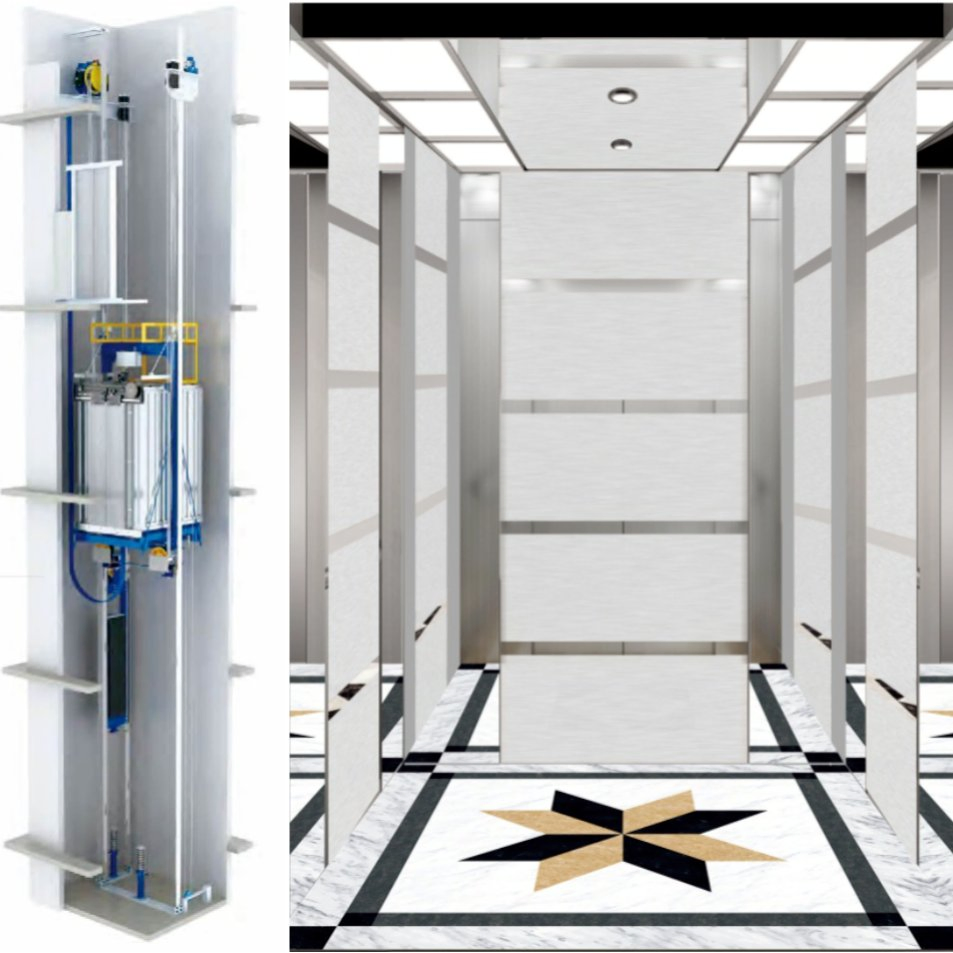

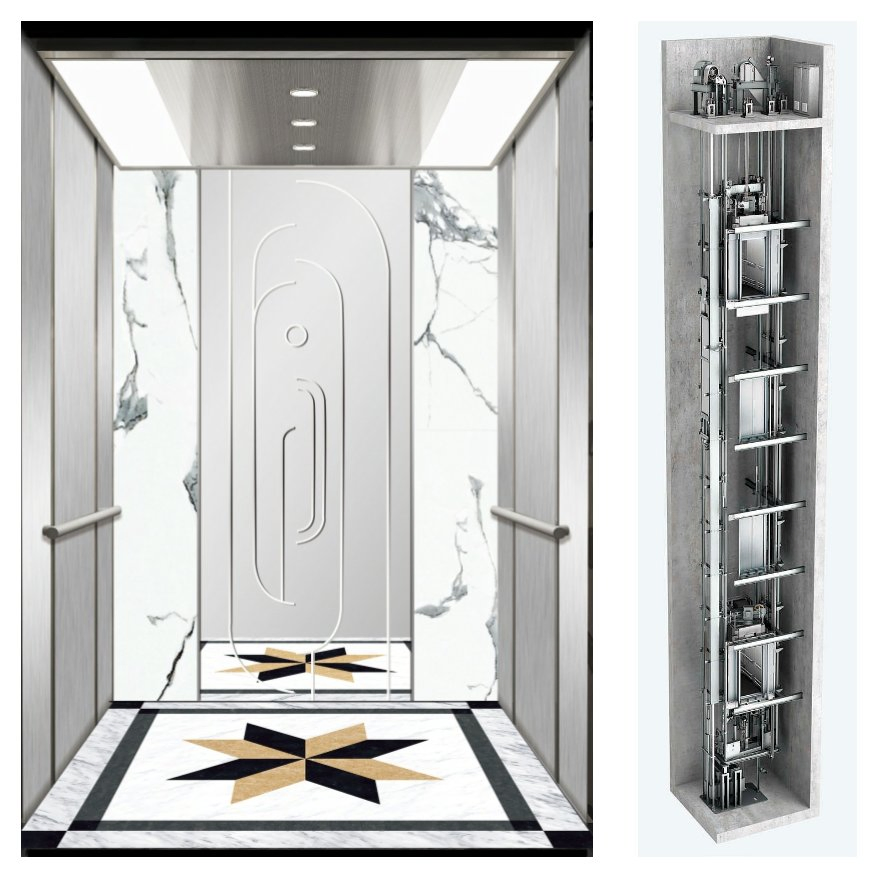

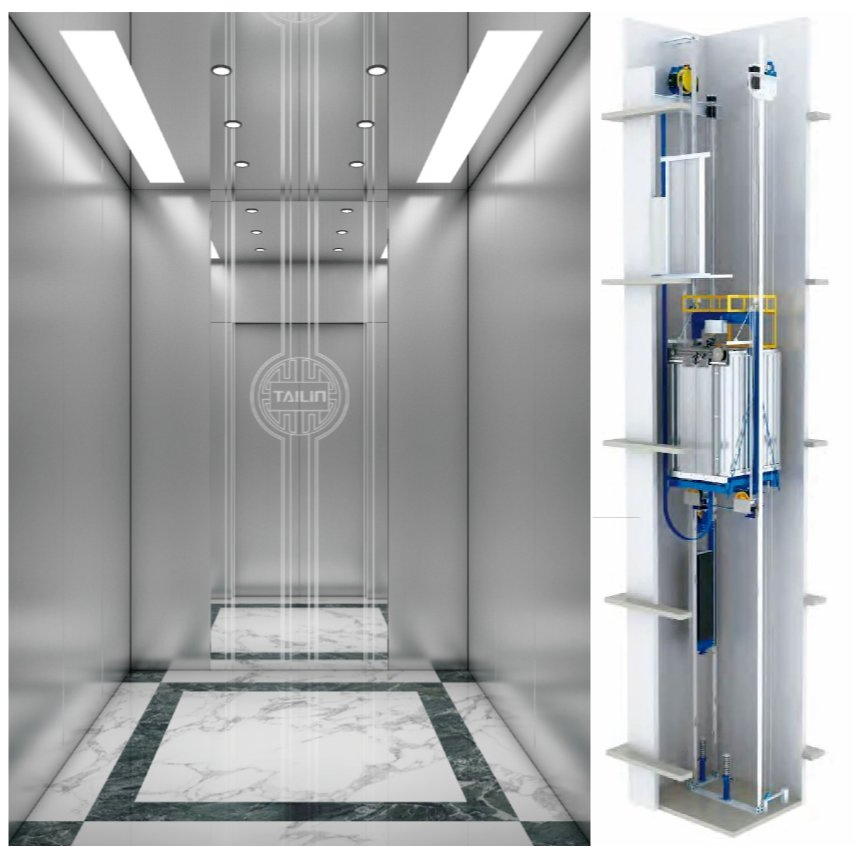

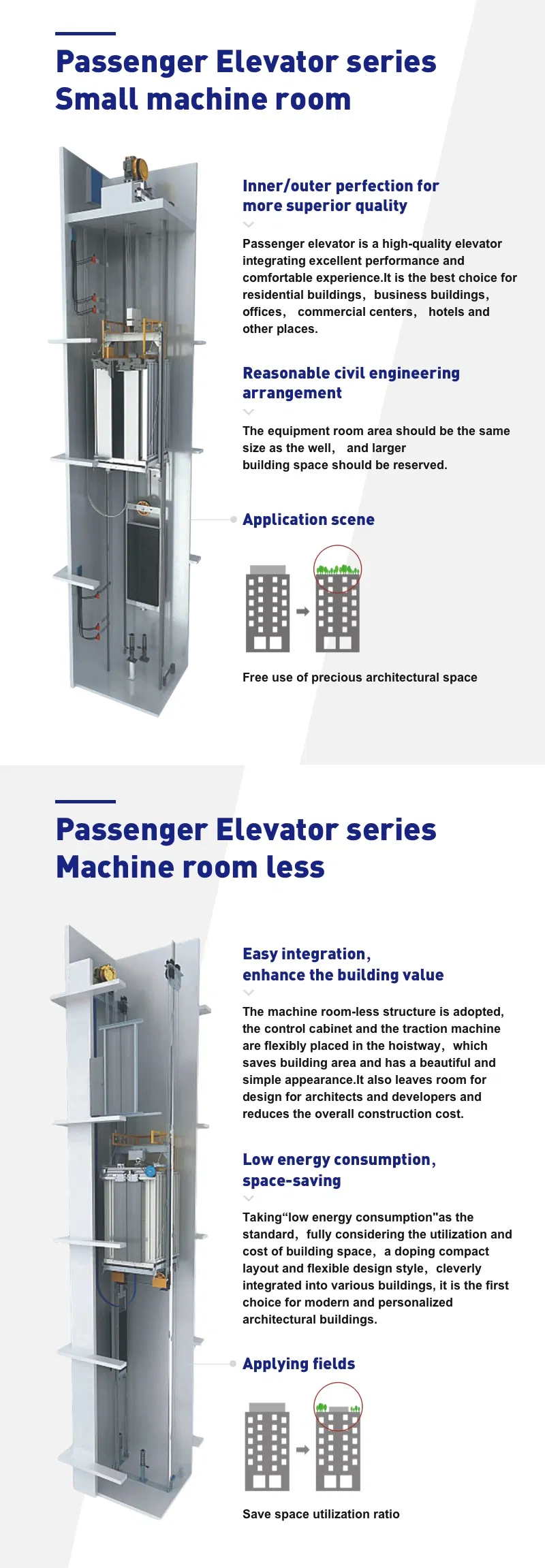

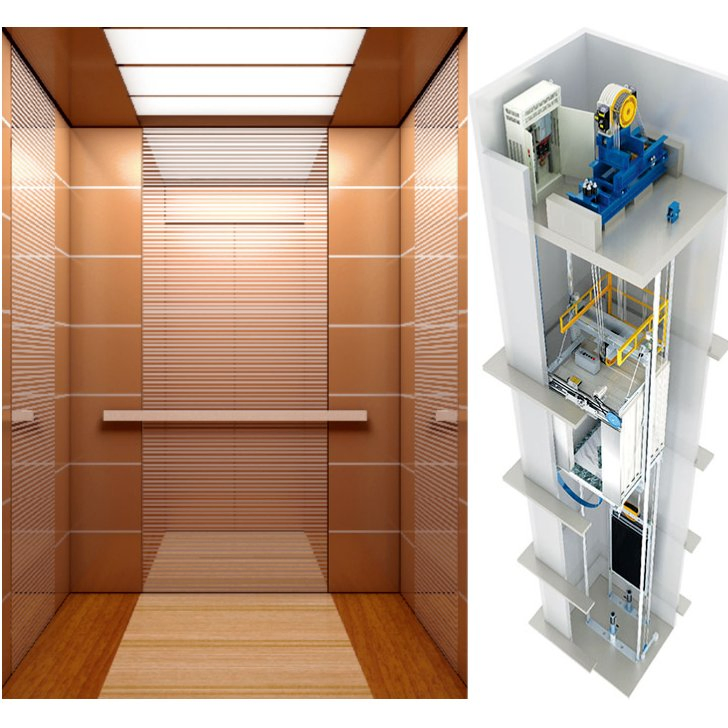

Low to MID-Rise Domestic Traction Lifts Passenger Elevator with/Without Small Machine Room

1 / 5

Low to MID-Rise Domestic Traction Lifts Passenger Elevator with/Without Small Machine Room

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TLLH-PL-P04B

Driving Type

AC Elevator

Capacity

400-1000kgs

Persons

6 - 10

Speed

1.00 - 2.00m/s

Control Mode

Parallel Control

Position of Computer Room

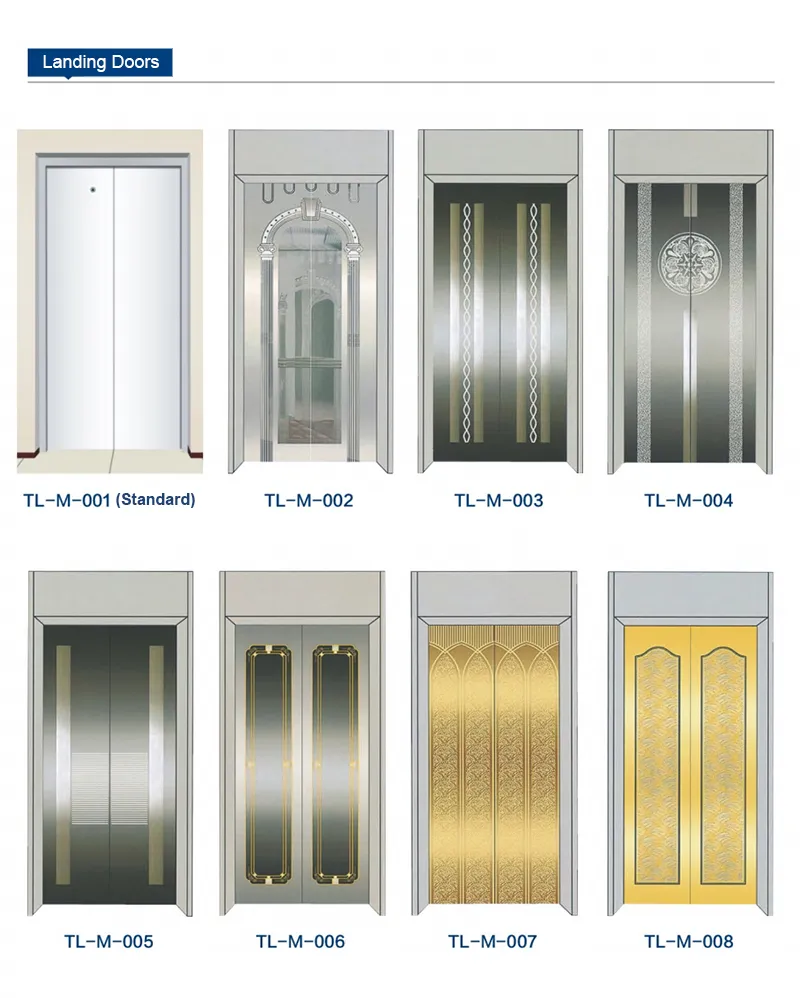

Elevator Door

Center Opening Door

Material

Stainless Steel

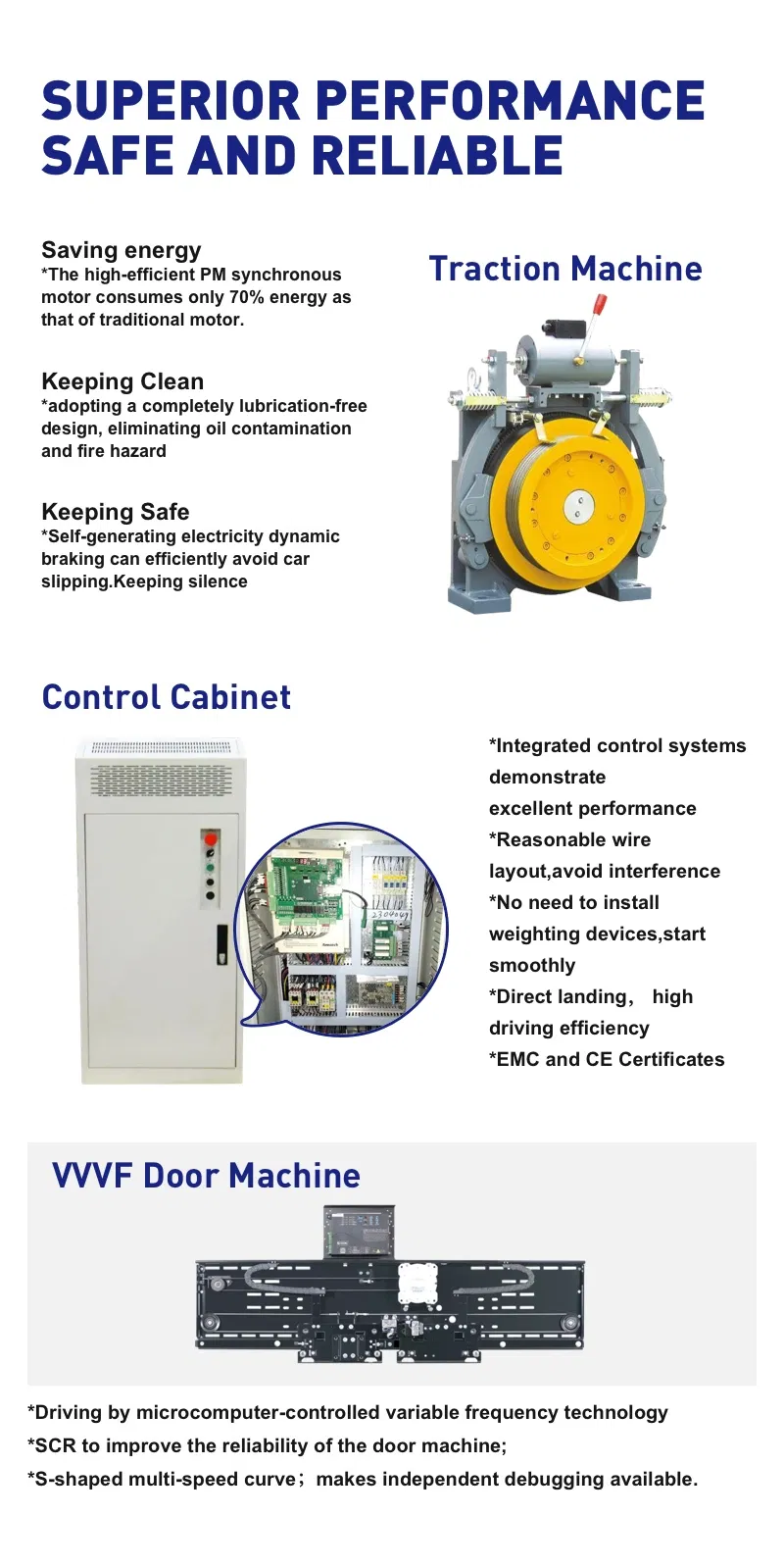

Drive Type

AC Gearless Traction System

Control System

Vvvf Monarch Controller

Application

Residence; Hotel; Commerce

Production Capacity

300 Sets Per Month

HS Code

84281010

Origin

China

Company Profile

Product Description

Technical Functions & Parameters

Basic Functions of Passenger Elevators
1	Full-automatic sorting operation	31	CAN communication fault protection
2	Door closing blocking automatic return	32	Master CPU self-check protection
3	Overload alarm	33	Overheating protection of drive device
4	Straight operation at full load	34	Overspeed protection (Up/Down)
5	Parallel operation	35	Contact detection protection
6	Directly stop operation	36	Leveling fine adjustment
7	Emergency electric driving	37	Car alarm
8	Re-initialize the operation	38	Stop switch
9	Automatic stop	39	Fire switch
10	Automatic leveling	40	Car roof overhaul
11	Automatic stop in case of fault	41	Exchange landing
12	Auto elimination of reverse command	42	Power supply filtering function
13	Auto return to base (Fire Alarm)	43	Speed feedback detection
14	Auto correction of floor signal	44	Brake feedback detection
15	Auto control of lighting & fan	45	Self-learning of shaft location
16	Unattended return to base	46	Self-learning failure diagnosis
17	Overspeed protection	47	Elimination of false command
18	Low speed protection	48	Door opening/closing button
19	Ground protection	49	Fault self-diagnosis
20	Anti-slip protection	50	Running direction indicators
21	Light curtain protection	51	Fault history record
22	Reverse operation protection	52	Arbitrary service layer setting
23	Terminal floor protection	53	Outside hall door opening
24	Motor overload protection	54	Floor display character setting
25	Running timeout protection	55	Independent door control
26	Short-circuit protection (Door lock)	56	Outside door opening protection
27	Fault protection (Door movement)	57	Digital hall/car display
28	Running door lock breakage protection	58	Emergency lighting in car
29	Leveling switch fault protection	59	Five-way communication device
30	Delay protection (Door closing)	60	Setting of floor display

Quality Certifications

Exhibitions & Expo

Frequently Asked Questions

Q1: What is the maximum load capacity for this passenger elevator? The elevator supports a capacity range from 400kgs to 1000kgs, accommodating approximately 6 to 10 persons.

Q2: What type of control system is used in these lifts? We utilize the advanced VVVF Monarch Controller for smooth operation and precise leveling.

Q3: Are these elevators suitable for residential buildings? Yes, they are specifically designed for low to mid-rise applications including residences, hotels, and commercial buildings.

Q4: What safety protections are included? The system includes over 60 safety functions, such as light curtain protection, overspeed protection, emergency lighting, and five-way communication.

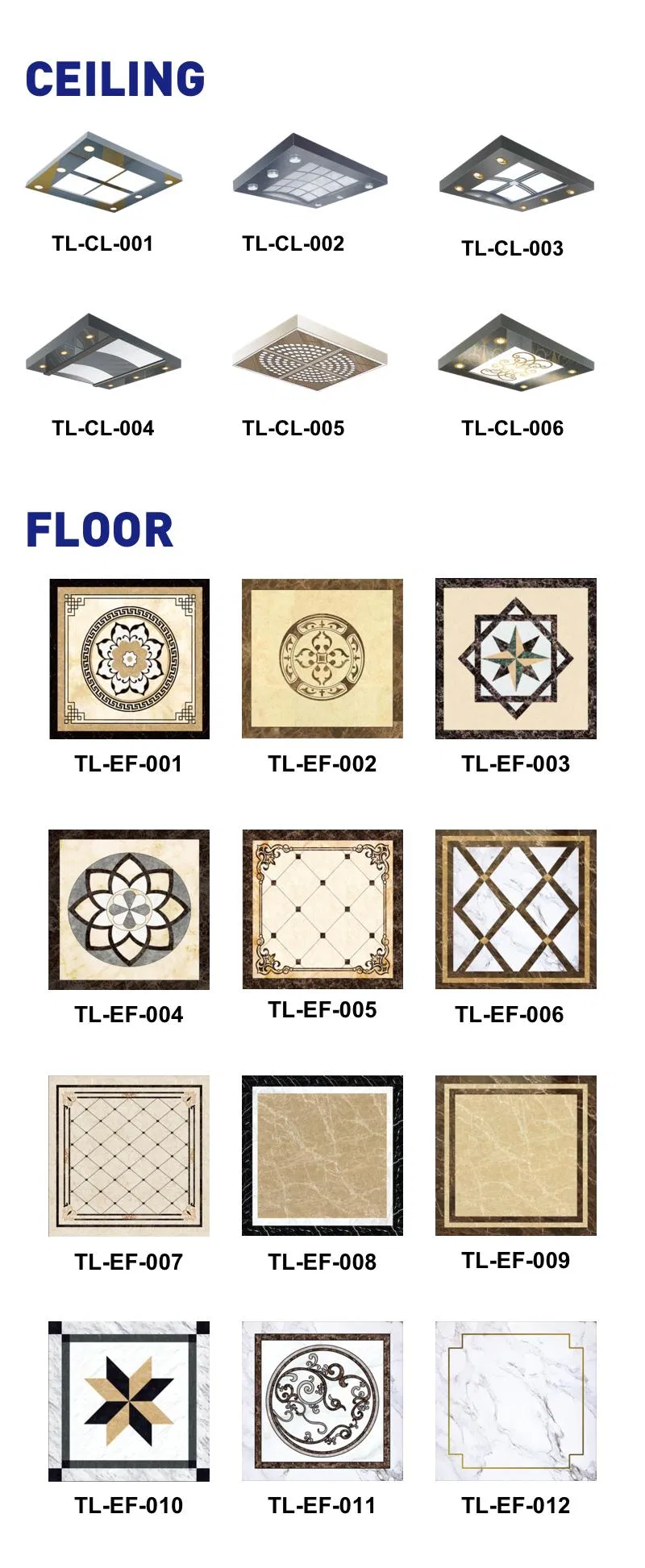

Q5: Can the floor display and interior be customized? Yes, the floor display characters are programmable, and the floors, stops, and doors can be customized to meet specific building requirements.

Q6: What is the standard lead time for production? The standard delivery time is approximately 20 days, with a production capacity of 300 sets per month.
