Vanguard Lift
Vanguard Lift

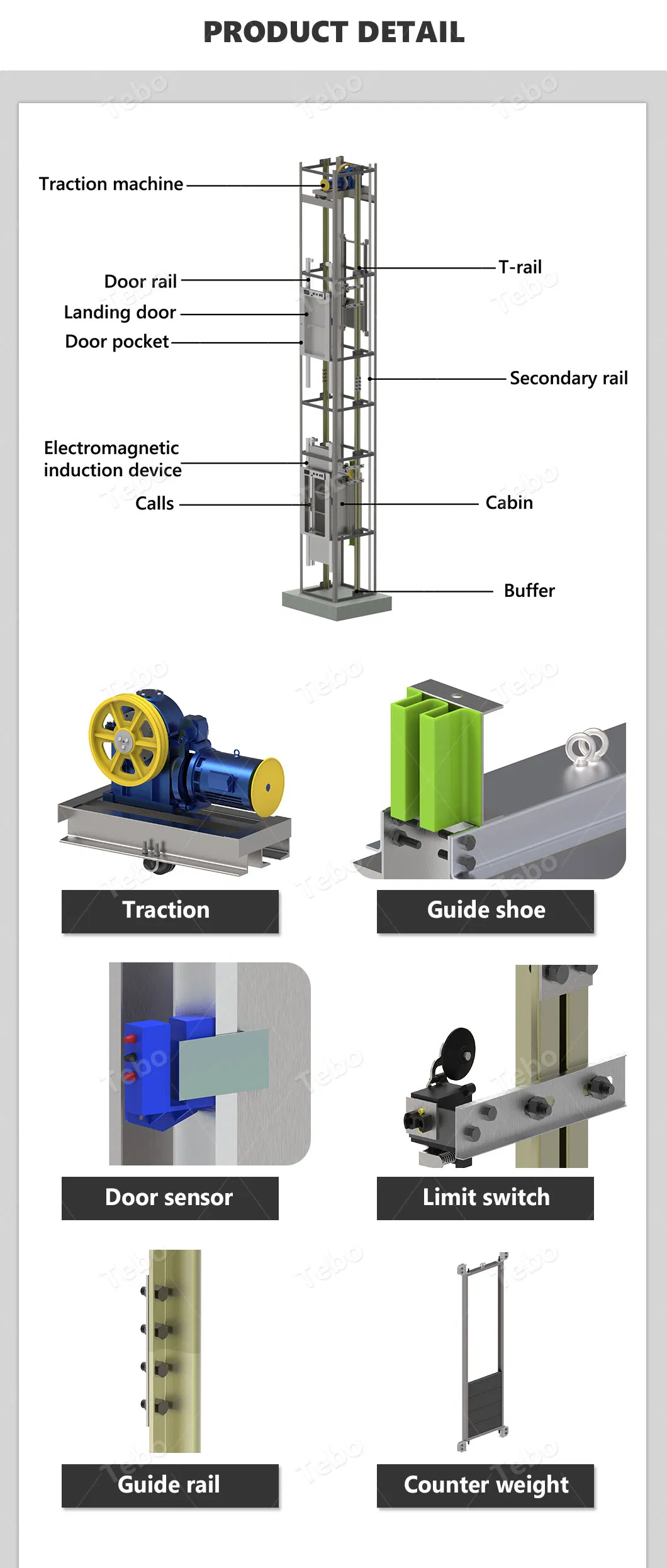

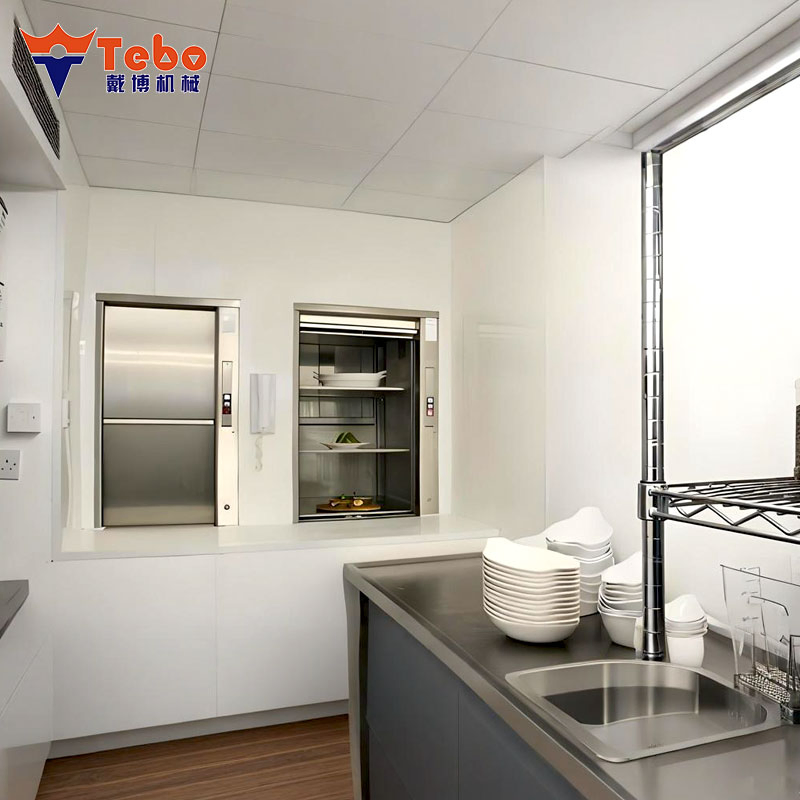

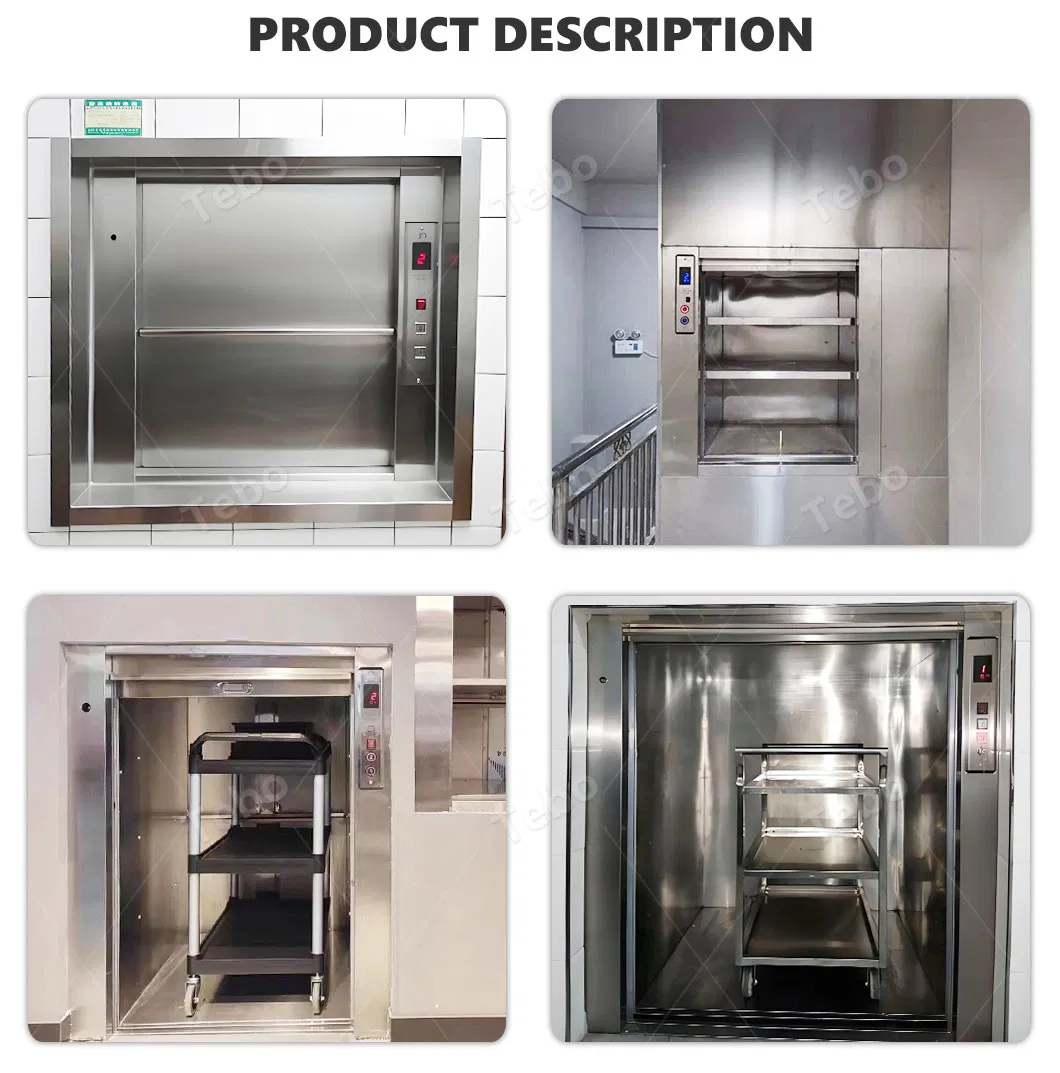

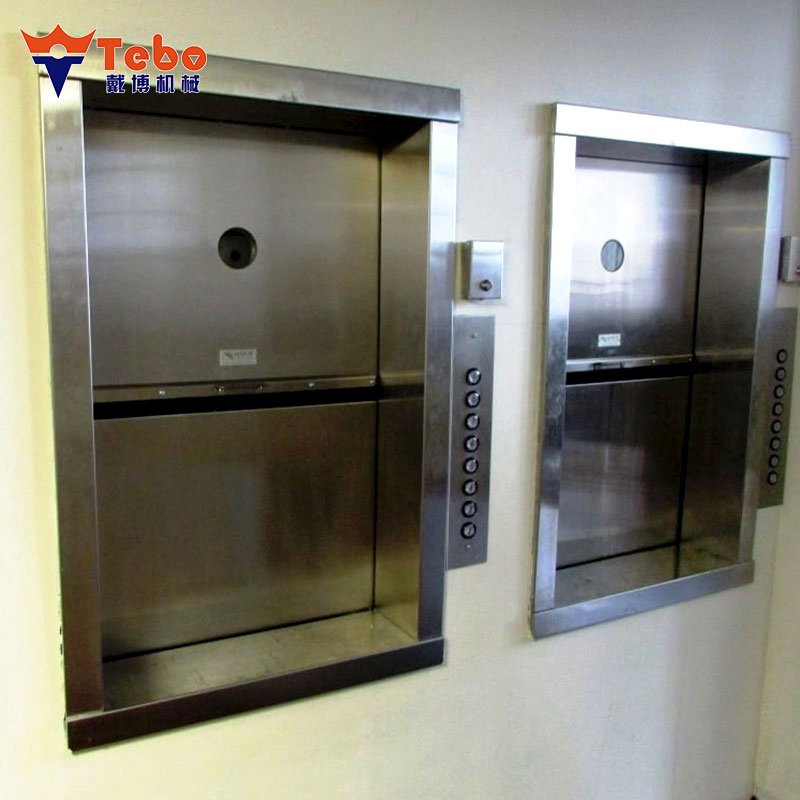

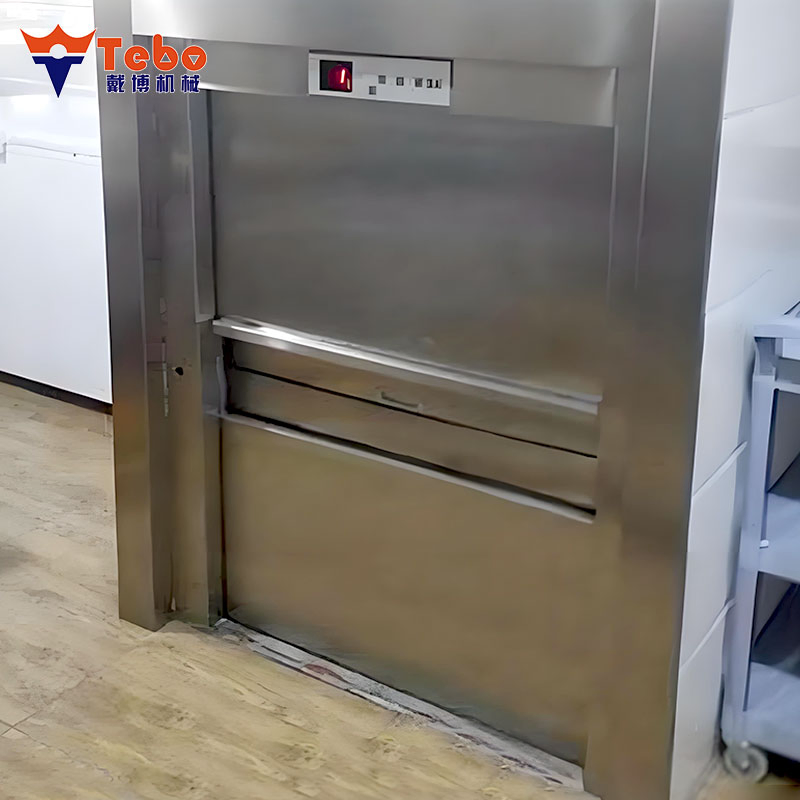

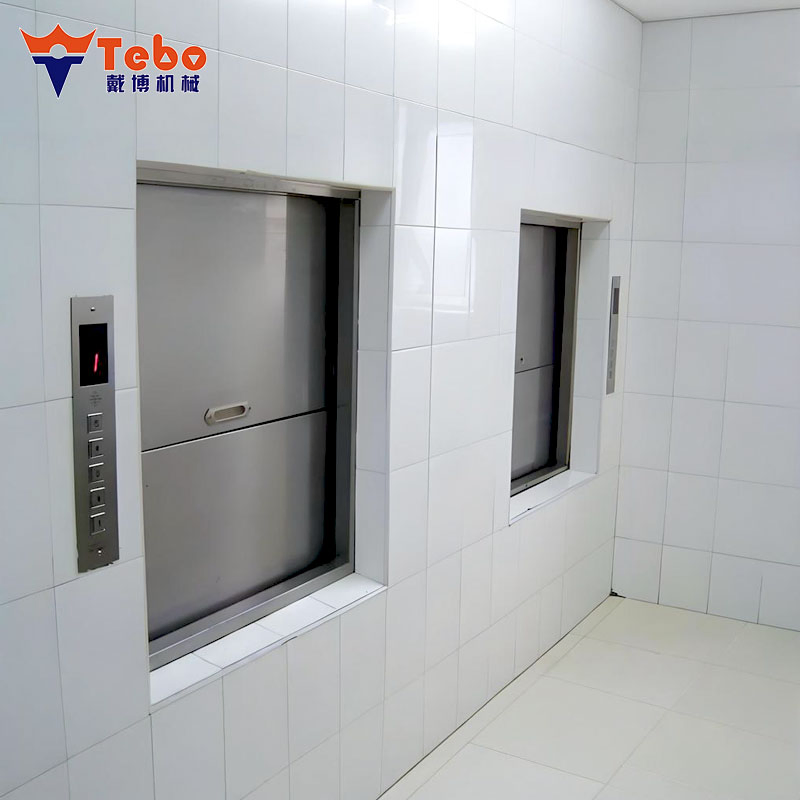

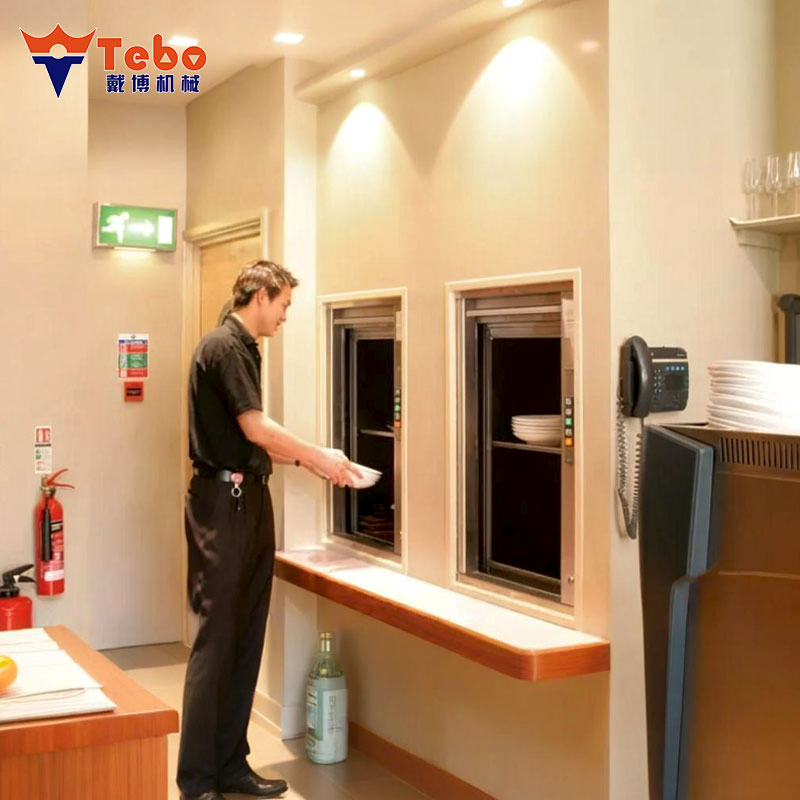

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

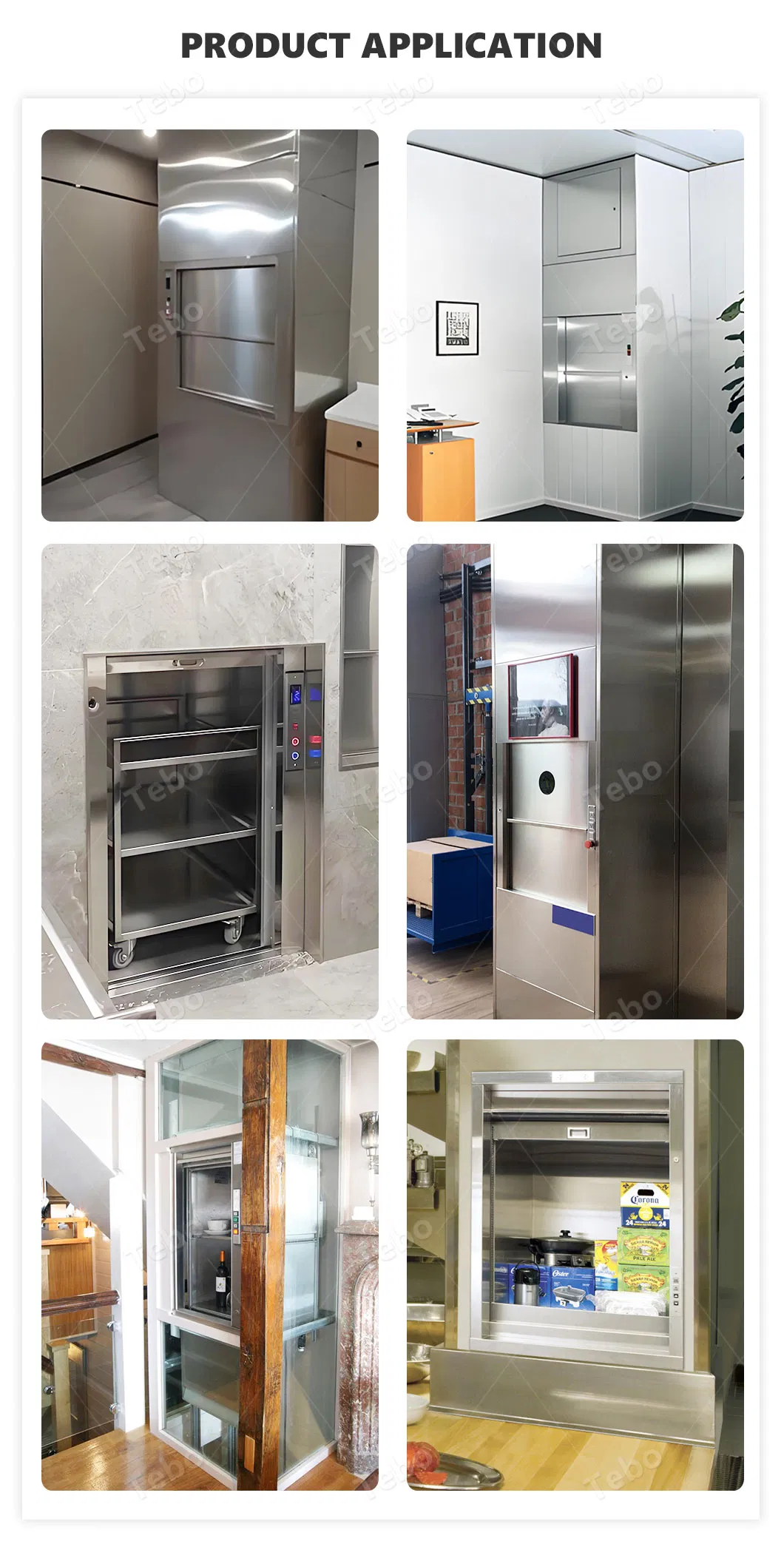

Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.

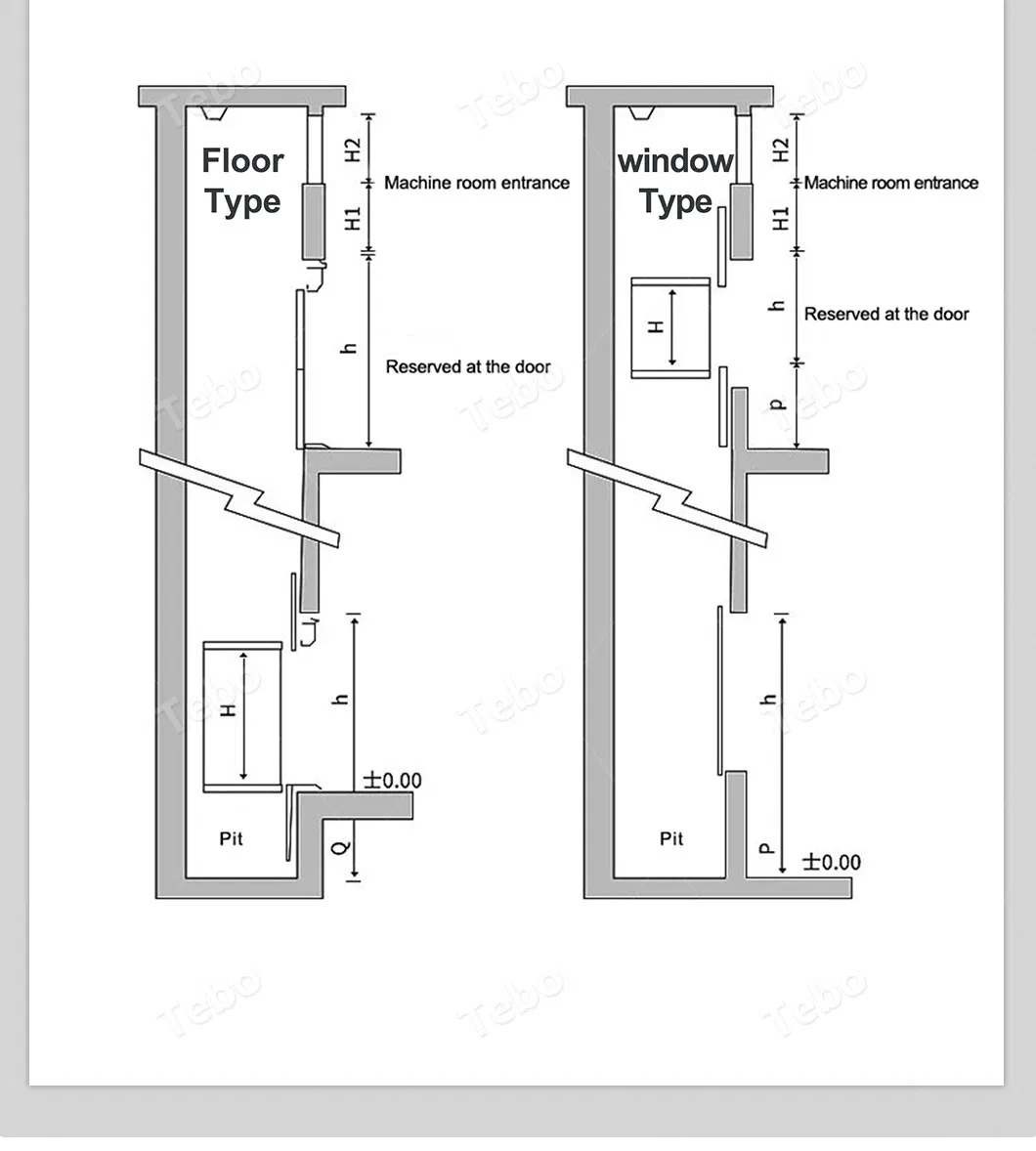

| Type | Load (kg) | Cabin Dimension W*D*H (mm) | Landing Door | Door Size W*H (mm) | Window Sill Height | Overhead Height |
|---|---|---|---|---|---|---|
| Window Type | 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 | |
| 200 | 1000*1000*1000 | Standard | 1000*1000 | 800 | 3200 | |
| Floor Type | 200 | 800*800*1000 | Standard | 800*1000 | Pit: 600 | 2800 |
| 300 | 1000*1000*1200 | Standard | 1000*1200 | Pit: 700 | 3200 | |
| 400 | 1000*1200*1400 | Standard | 1200*1400 | Pit: 800 | 3600 |
We are a specialized enterprise in the R&D and manufacturing of mechanical equipment. Our production base is located in a well-connected industrial hub. With an experienced and innovative technical team, we continuously optimize our product series, securing numerous independent intellectual property rights and patents.
Our core range includes hydraulic home elevators, freight lifts, car lifts, and scissor lift platforms. Equipped with advanced CNC machining centers and automated welding equipment, we ensure efficient production and rigorous quality control from component processing to final assembly.
