Long Endurance Remote Control Wild Firefighting Uav Industrial 150kg Heavy Lift Payload Fire Extinguisher Delivery Transport Drone for Building Forest

1 / 5

Long Endurance Remote Control Wild Firefighting Uav Industrial 150kg Heavy Lift Payload Fire Extinguisher Delivery Transport Drone for Building Forest

Customization:	Available
Height:	Ultra High-Altitude
Operating Radius:	Remote

Send Inquiry

Product Description

📊 Basic Information

Model NO.

HZH XF120

Size

Large (4605*4605*990mm)

Usage

Firefighting

Structure

Wing UAV

Maximum Load

150 Kg

Max Takeoff Weight

257.8 Kg

Max Flight Altitude

500 M

Max Flight Time

45 Min

Axis

🚀 Product Description

Long Endurance Remote Control Wild Firefighting UAV. This industrial-grade heavy lift drone is designed for high-rise buildings and forest fire suppression. With a 150kg payload capacity, it serves as a powerful tool for fire extinguisher delivery and transport.

HZH XF120 Technical Specifications
Dimensions (Unfolded)	46054605990mm

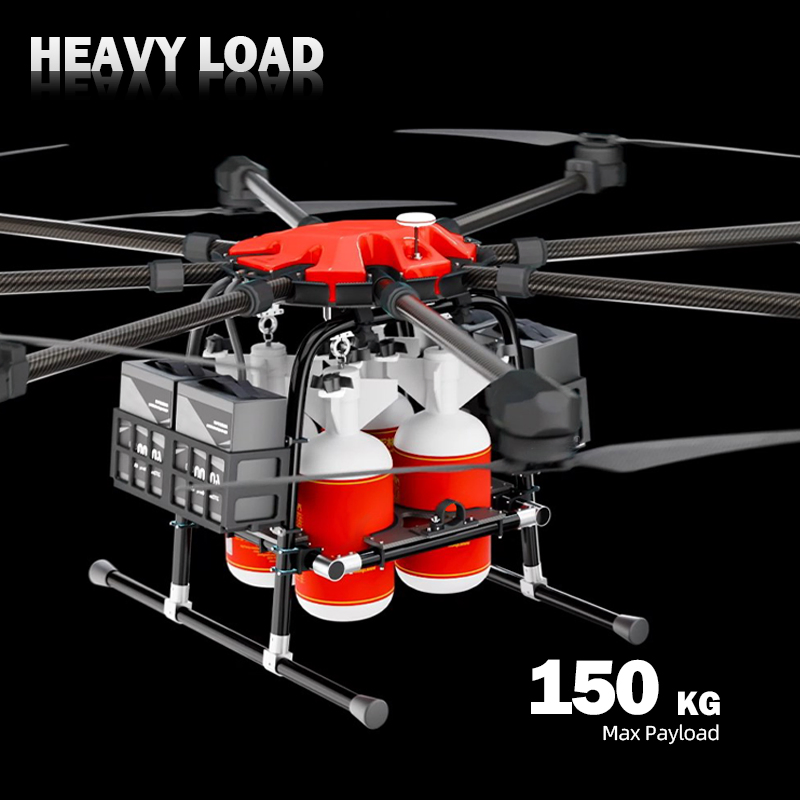

Max. Payload	150kg
Max. Takeoff Weight	257.8 kg
Max. Flight Altitude	500 M
Max. Altitude Limit	4500 m
Max. Flight Time	45 minutes

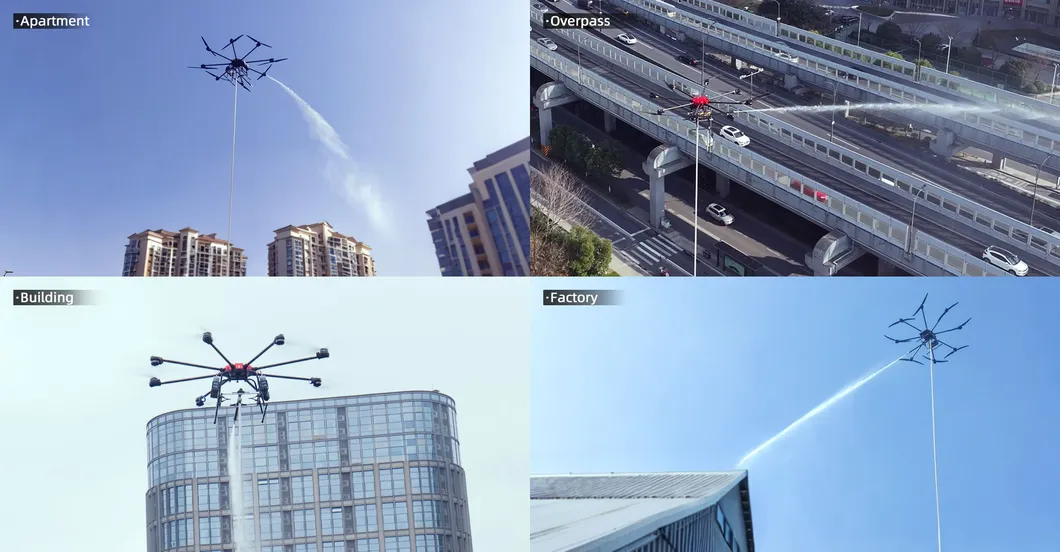

🏢 Application Scenarios

🏘️

Apartments: Quickly assess scale and spread in densely populated areas. Equipped with high-pressure nozzles to cool fires and prevent vertical spread, enhancing resident safety.

🌉

Overpasses: Reaches incident sites rapidly, bypassing traffic congestion. Deploys fire extinguishing bombs precisely onto flames triggered by vehicle accidents.

🏢

High-rise Buildings: Ascends rapidly to upper stories, bypassing blocked stairwells. Drenches fires with continuous flow to curb progression in commercial structures.

🏭

Factories: Versatile solutions for machinery and combustible materials. Uses extinguishing bombs for flammable liquids or water-spraying for machinery cooling.

🛠️ Standard Configuration & Features

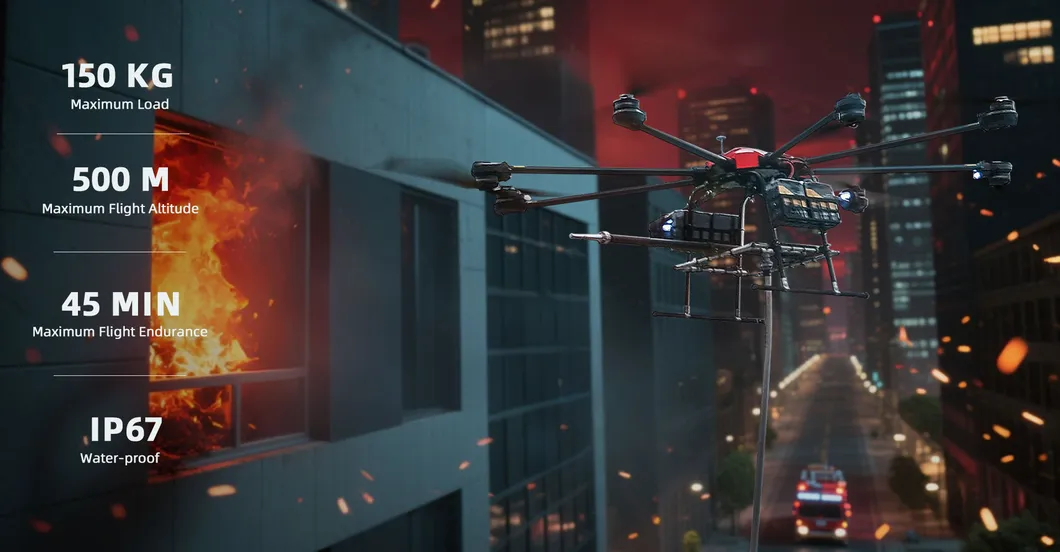

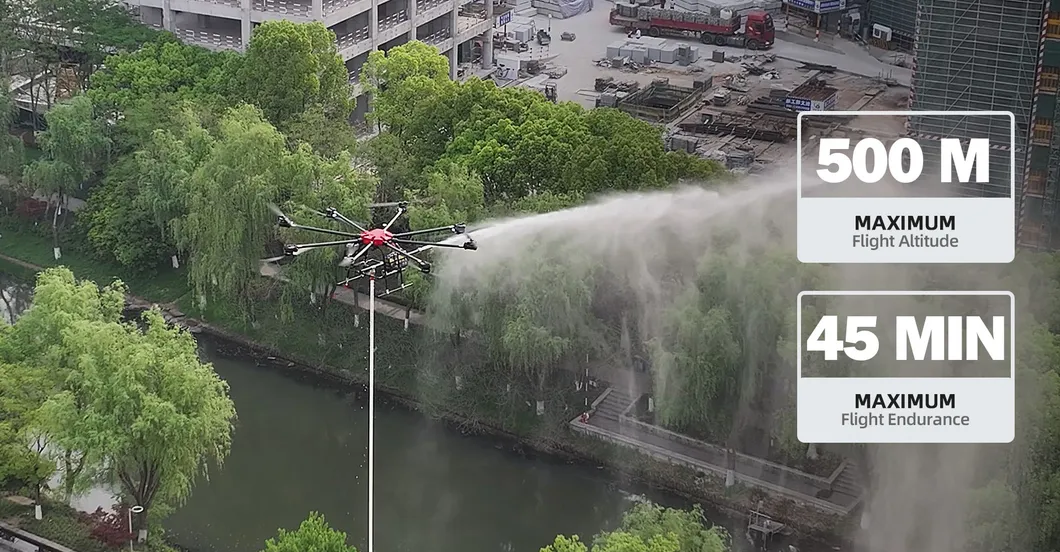

Exceptional Vertical Reach: 500-meter max flight altitude to access skyscrapers and tall industrial structures.
Prolonged Mission Endurance: 45-minute flight time for sustained missions in large-scale fire scenes.

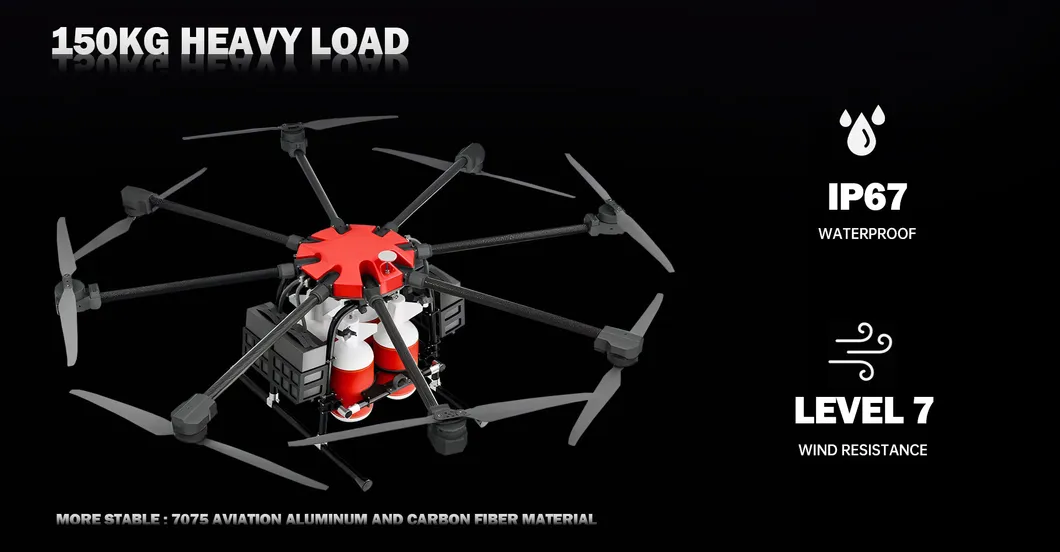

Robust Composite Structure: Built with 7075 aerospace aluminum and carbon fiber for durability and agility.
Superior Waterproof Design: IP67 rating for protection in water-intensive firefighting scenarios.
Rapid Deployment: Modular design allows full assembly and operation in just 5 minutes.

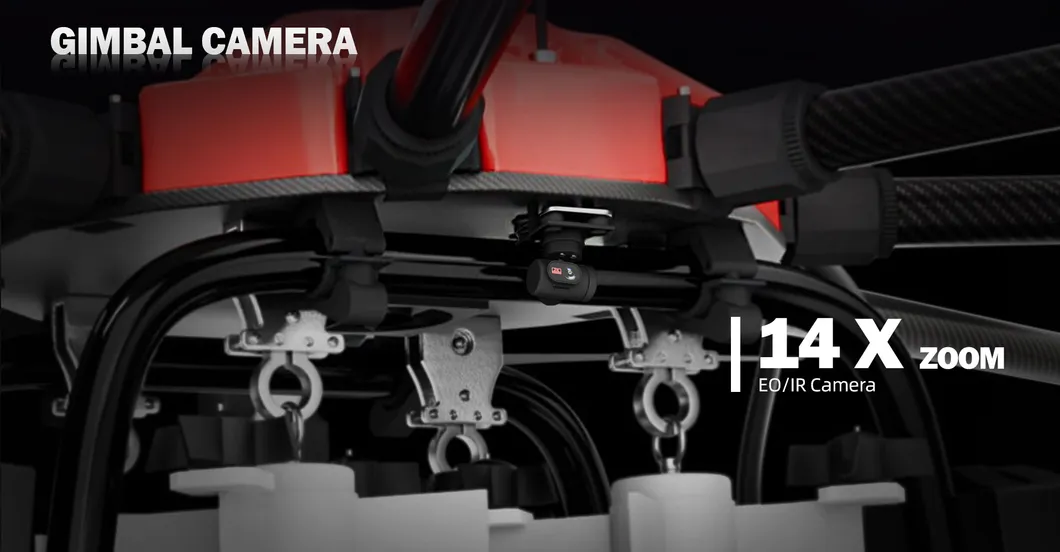

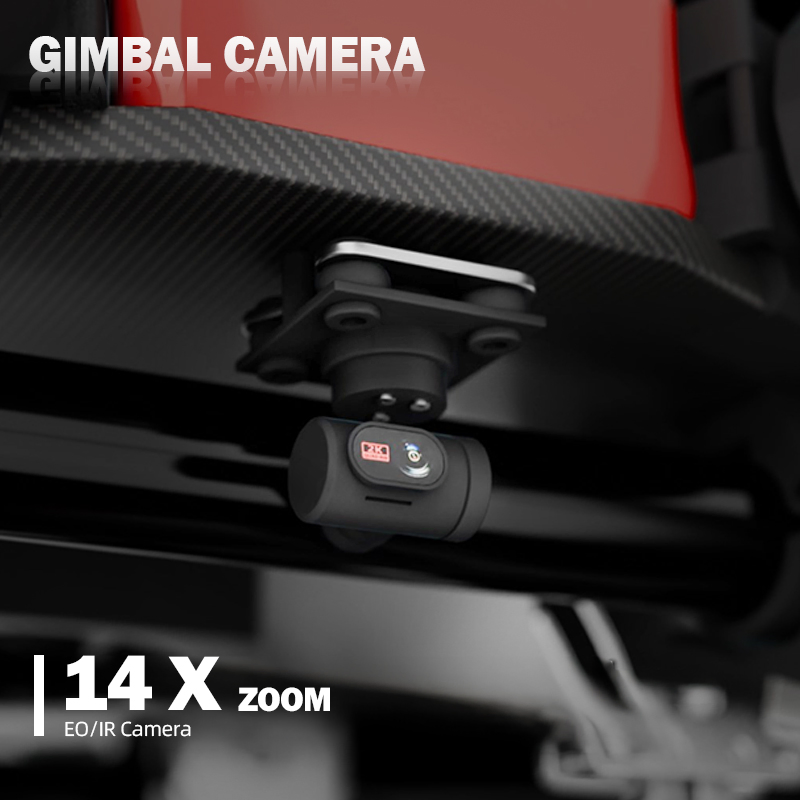

High-Precision Imaging: 14X Zoom EO/IR camera for heat signature detection and situational awareness.

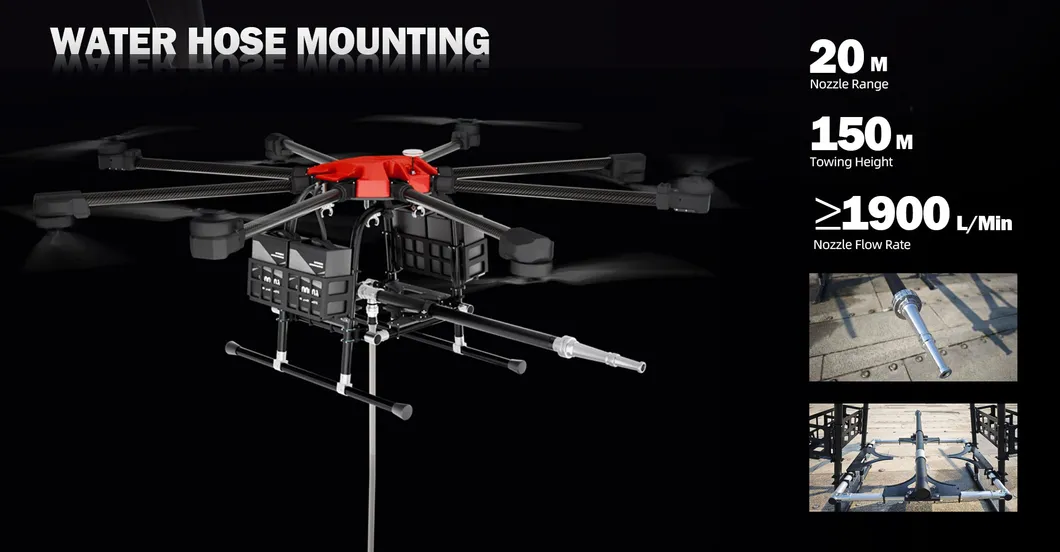

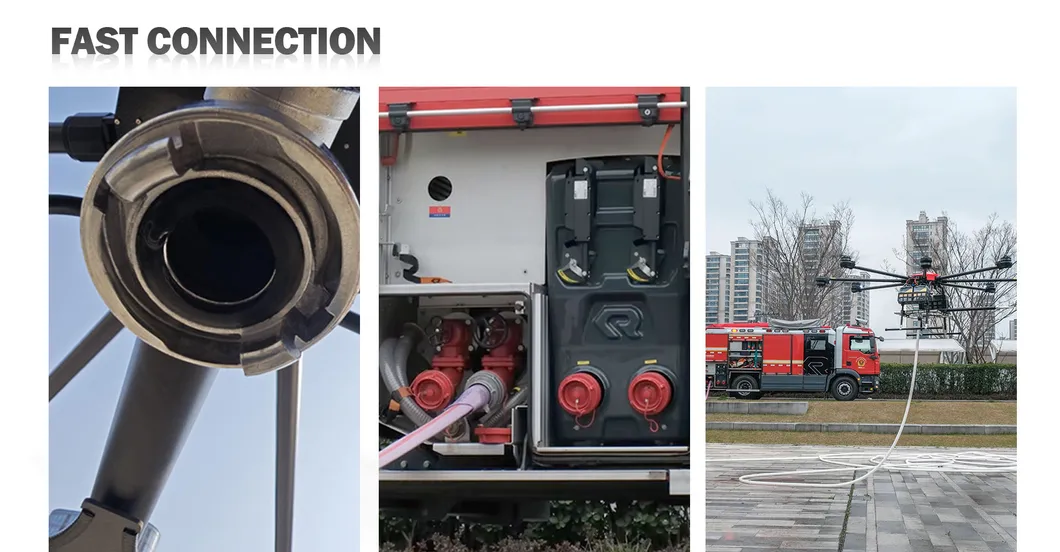

Water Hose Mounting Parameters
Hose Diameter	50mm
Nozzle Range	20m
Nozzle Flow Rate	≥1900L/min
Towing Height	150m

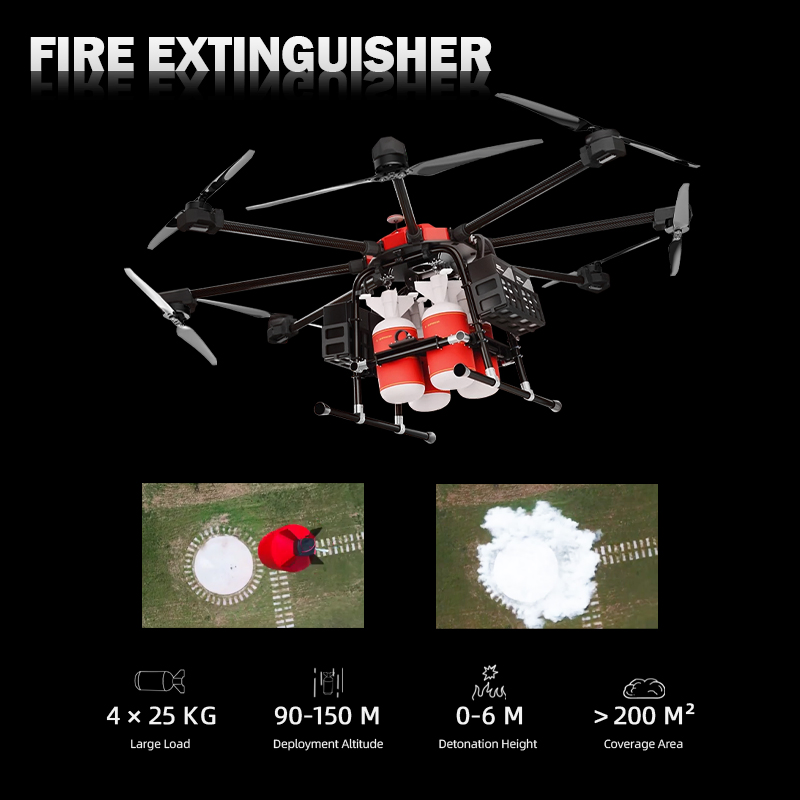

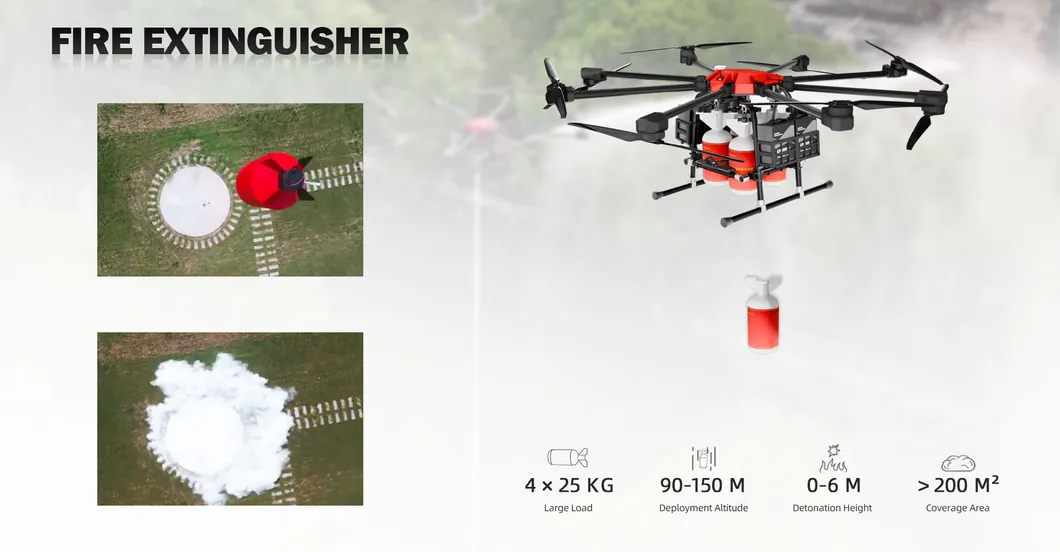

Fire-extinguisher Bomb Parameters
Type of Agent	ABC dry chemical or water-based
Dispersion Radius	≥ 5 m
Coverage Area	≥ 50 m²
Safety Arming Height	≥ 50 m

⭐ Why Choose Our Solutions

✅ Wide range of drone products to meet diverse industrial requirements.

✅ Strong R&D team with a long history of drone manufacturing excellence.

✅ Competitive pricing advantages to help save costs and increase operational efficiency.

✅ Commitment to social responsibility and sustainable resource management.

❓ Frequently Asked Questions

What is the maximum payload capacity of the HZH XF120?

The HZH XF120 firefighting drone can carry a maximum payload of 150kg, making it suitable for heavy-duty fire suppression tasks.

How long can the drone fly during a firefighting mission?

The drone features an impressive maximum flight endurance of 45 minutes, allowing for sustained operations without frequent battery changes.

What is the maximum altitude the drone can reach?

The drone has a maximum flight altitude of 500 meters, which is ideal for reaching the upper floors of high-rise buildings and skyscrapers.

Is the drone capable of operating in rainy conditions?

Yes, the drone is engineered with an IP67 waterproof rating, providing exceptional protection against water intrusion during intensive firefighting scenarios.

How quickly can the drone be deployed at a fire scene?

Thanks to its modular design, the drone can be fully assembled and ready for operation in just 5 minutes after arriving on-site.

What types of fire extinguishing agents can be used?

The drone is versatile and can deploy either ABC dry chemical agents or water-based extinguishing agents depending on the nature of the fire.
