📦 Basic Information
Lift Mechanism
Telescoping Lift
Production Capacity
1000 Sets/Year

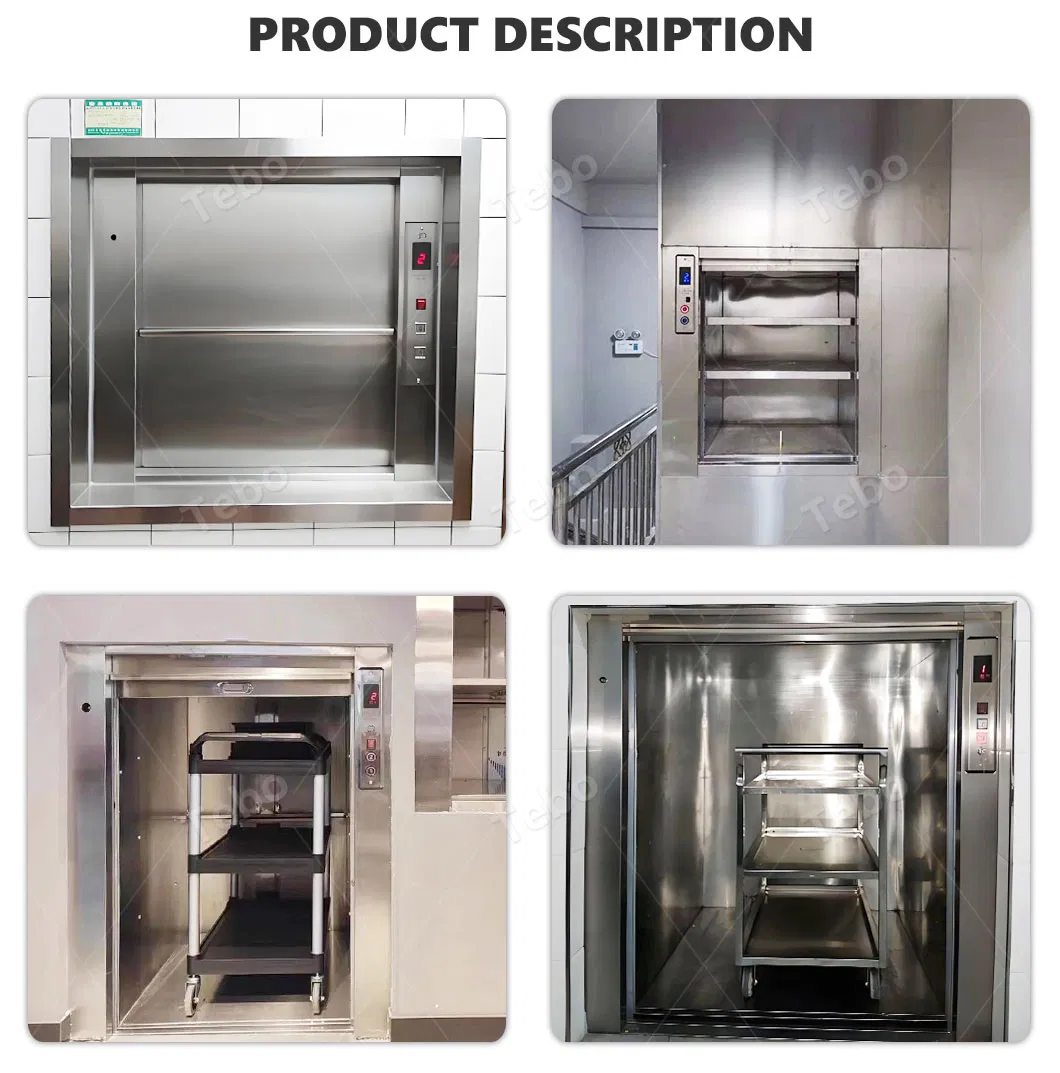

🔍 Product Description

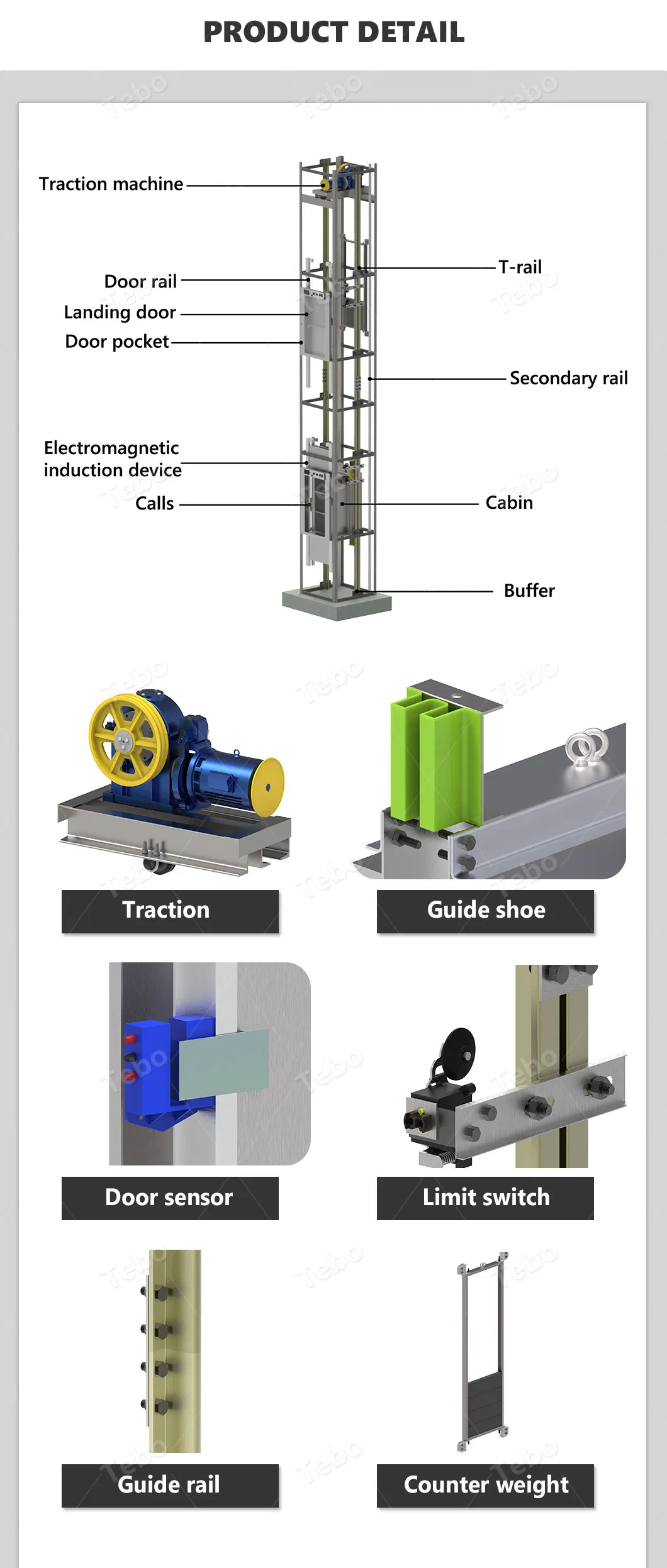

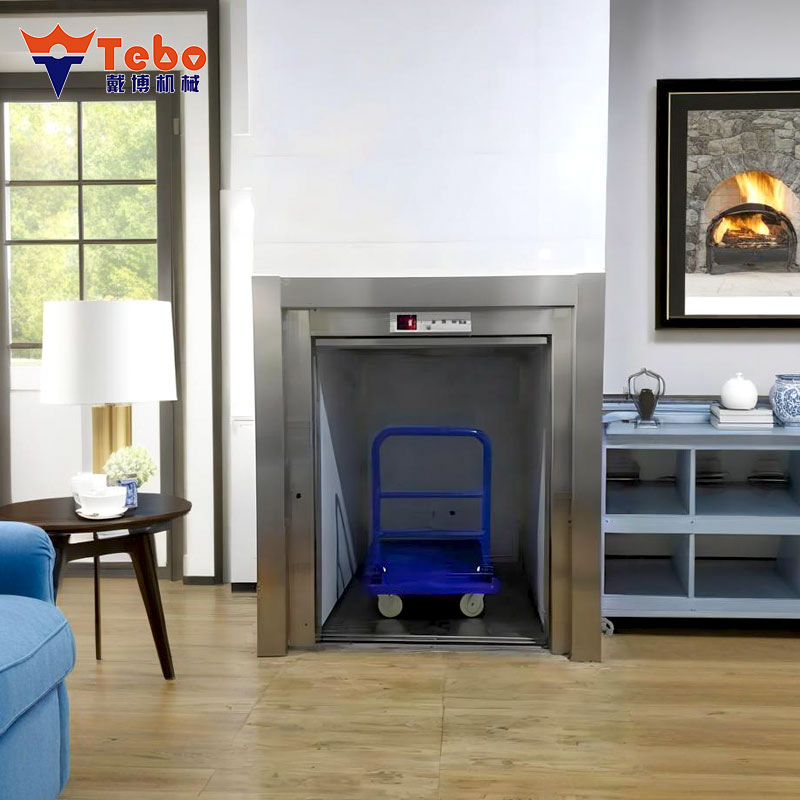

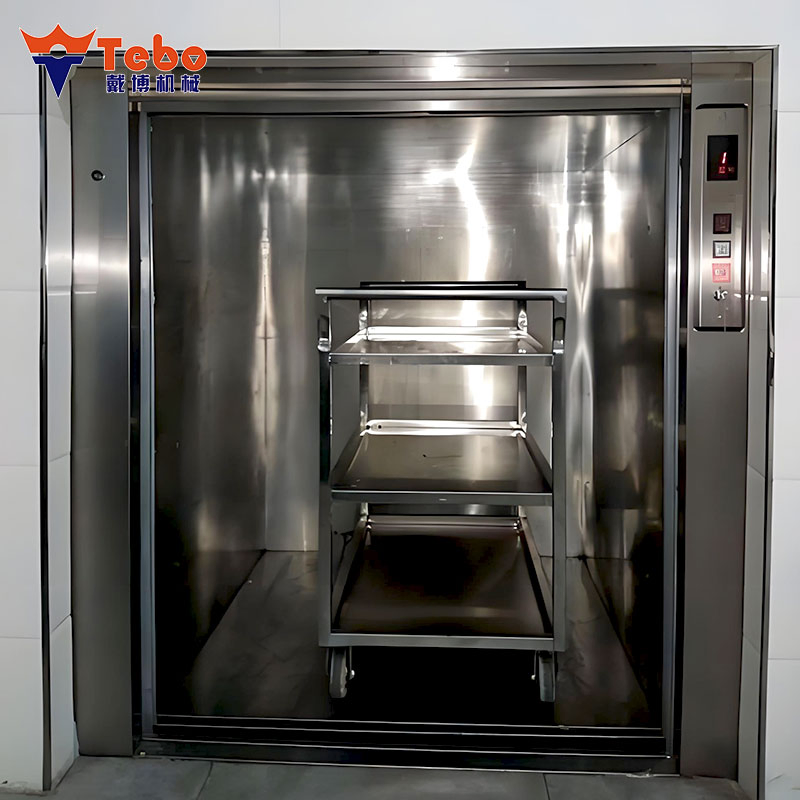

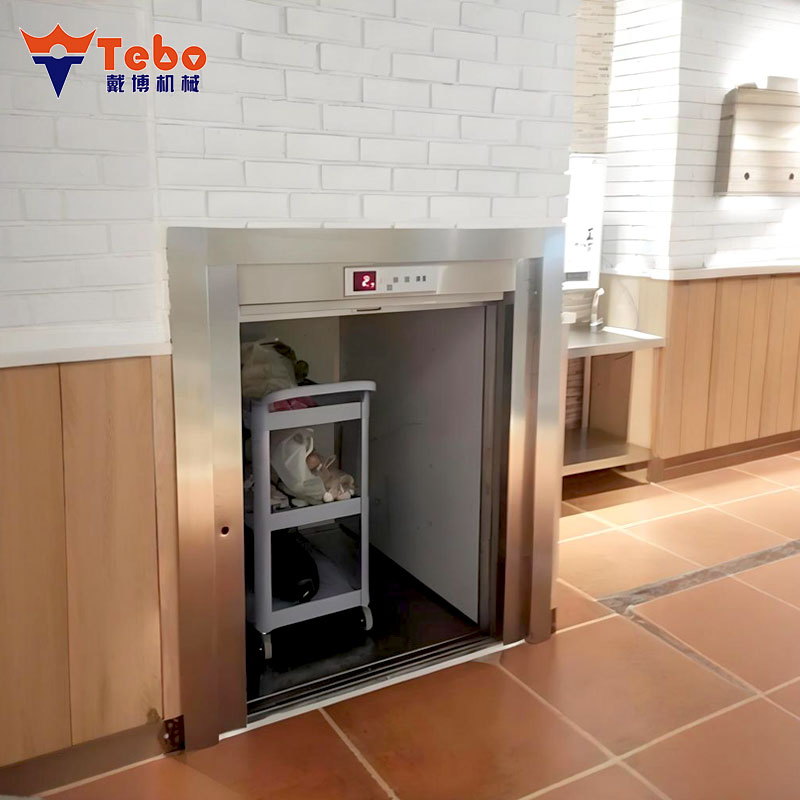

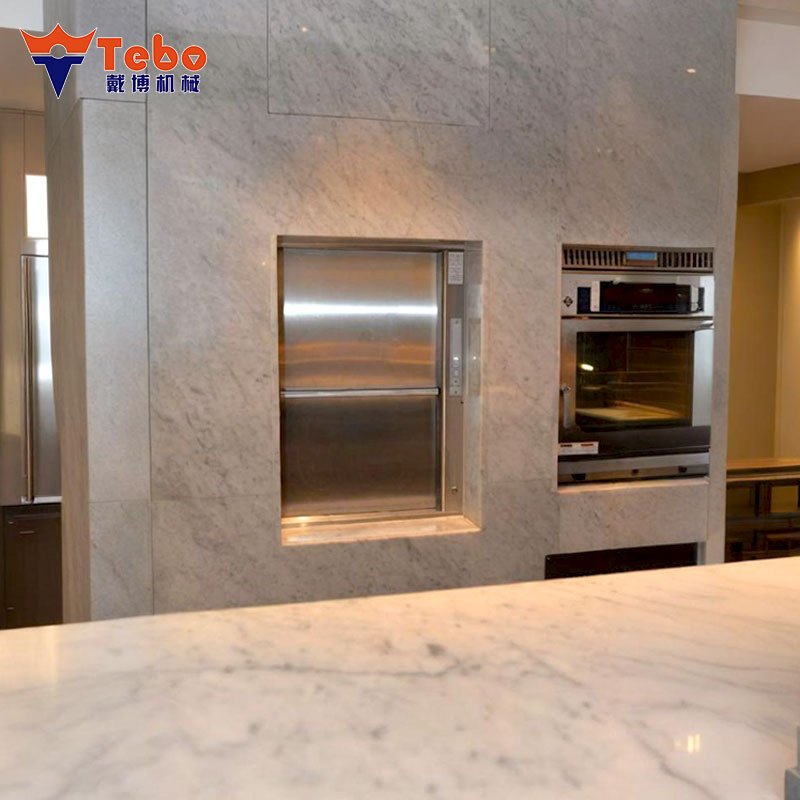

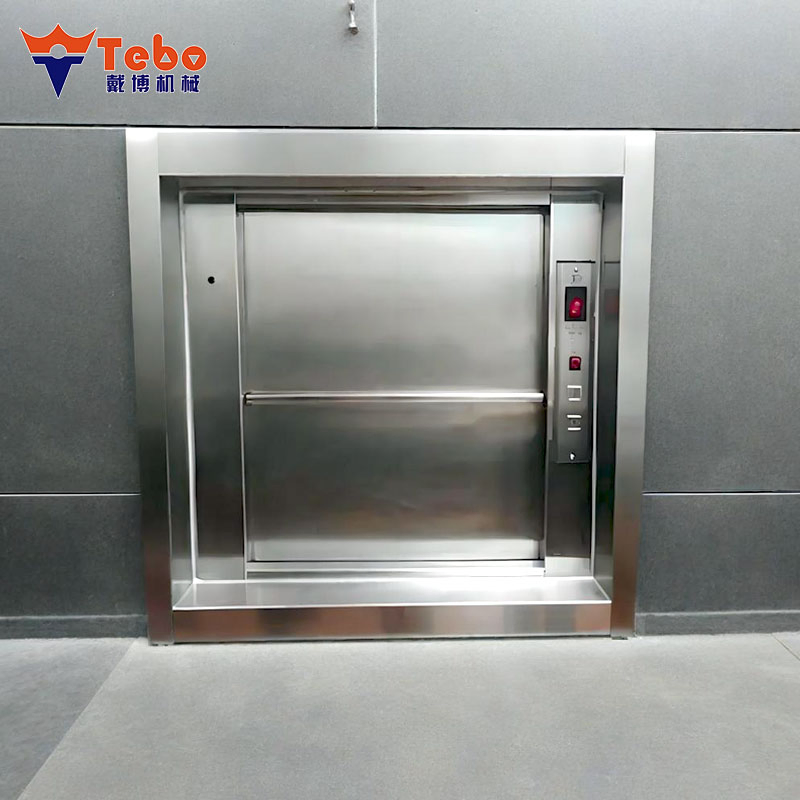

The food delivery lift is a vertical transportation device designed specifically for multi-floor food service environments. It is built with a robust shaft structure, stainless-steel cabin, efficient driving system, and intelligent control unit to achieve fast and safe delivery of meals, tableware, and small items. The shaft is usually made of high-strength steel and can be customized according to site conditions. The cabin is constructed from food-grade stainless steel, ensuring durability, hygiene, and easy cleaning.

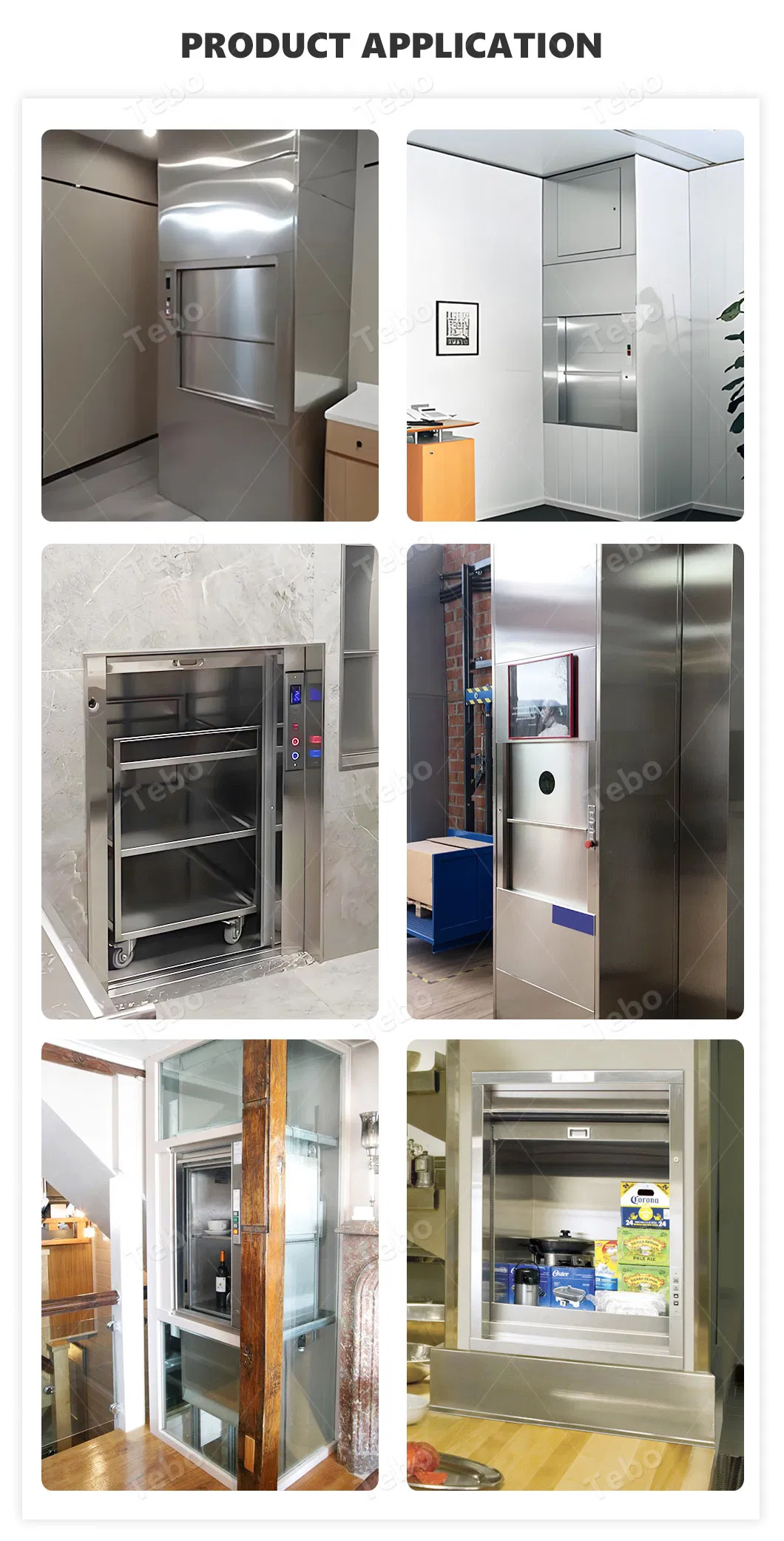

This lift significantly enhances operational efficiency in restaurants and hotels by eliminating the need for staff to repeatedly climb stairs, speeding up food circulation, and reducing physical workload. Its enclosed cabin prevents contamination and meets strict food hygiene standards. With its small footprint, easy installation, and strong adaptability, the food delivery lift is widely used in hotels, restaurant chains, cafés, and hospital meal distribution centers.
📊 Technical Parameters

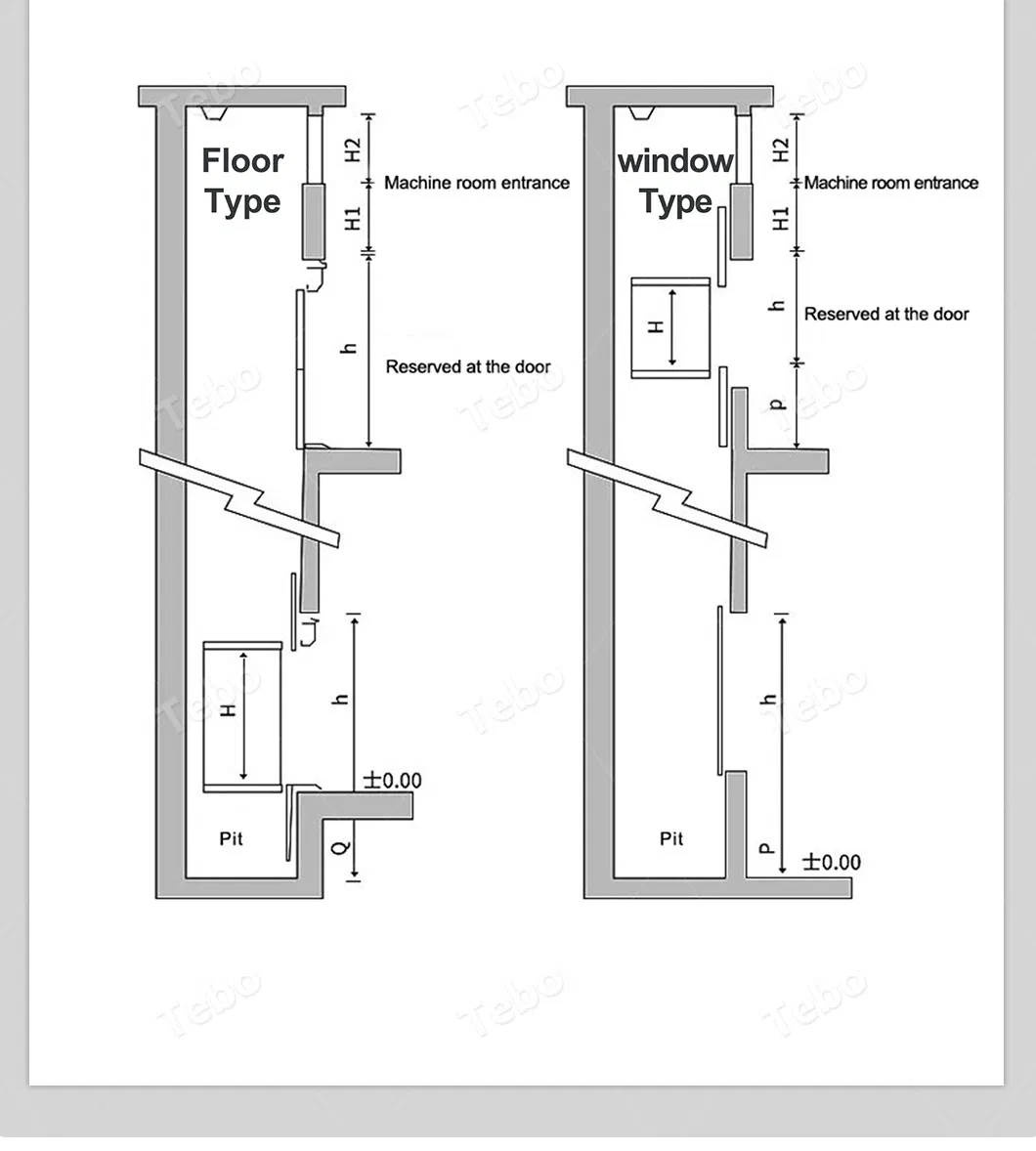

| Window Type Parameters |
| Type |
Load(kg) |
Cabin Size (W*D*H) |
Landing Door |
Cabin Door |
Door Size (W*H) |
Sill Height |
Overhead |
| Window Type |
100 |
600*400*800 |
Standard |
Optional |
600*800 |
800 |
2800 |
| 200 |
800*800*800 |
Standard |
Optional |
800*800 |
800 |
2800 |
| 200 |
1000*1000*1000 |
Standard |
Optional |
1000*1000 |
800 |
3200 |
| Floor Type Parameters |
| Type |
Load(kg) |
Cabin Size (W*D*H) |
Landing Door |
Cabin Door |
Door Size (W*H) |
Pit Depth |
Overhead |
| Floor Type |
200 |
800*800*1000 |
Standard |
Optional |
800*1000 |
600 |
2800 |
| 300 |
1000*1000*1200 |
Standard |
Optional |
1000*1200 |
700 |
3200 |
| 400 |
1000*1200*1400 |
Standard |
Optional |
1200*1400 |
800 |
3600 |
🏢 Profile
Our company is a Chinese enterprise specializing in the R&D and manufacturing of mechanical equipment. The company has assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, and have secured numerous independent intellectual property rights and patent technologies.
Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. By leveraging stable hydraulic drive systems and exceptional load-bearing capacity, these products provide solutions for vertical transportation in residential buildings and efficient heavy-duty freight lifting in various commercial settings.
📜 Certifications & Logistics
❓ Frequently Asked Questions
What are the main advantages of our lift equipment?
We are one of the leading manufacturers in China with a production base that ensures quality and price advantages. We provide on-site installation guidance and a 12-month warranty for the whole equipment without man-made faults.
What services are provided for pre-sales and after-sales?
Pre-sales include expert consultation and detailed blueprints for bespoke machines. After-sales includes follow-up services, assembly manuals, and installation drawings. Technical queries are typically answered within 2 hours.
How is the equipment packaged for international shipping?
We normally use robust plywood cases to protect the equipment. Special shipping marks and specific packaging requirements can be accommodated upon request.
How long does shipping take after order confirmation?
Lead time depends on the specific product requirements, but we guarantee fast shipping. Standard orders typically take 10 working days after payment is received.
What are the available payment and trade terms?
We accept EXW, FOB, CFR, and CIF terms. Orders are confirmed with a pre-production payment, and the remaining balance is settled before final delivery.
Can the lift dimensions be customized for specific shafts?
Yes, both Window Type and Floor Type lifts support fully customized services. Cabin dimensions, load capacities, and overhead heights can be tailored to meet your site conditions.
