Vanguard Lift
Vanguard Lift

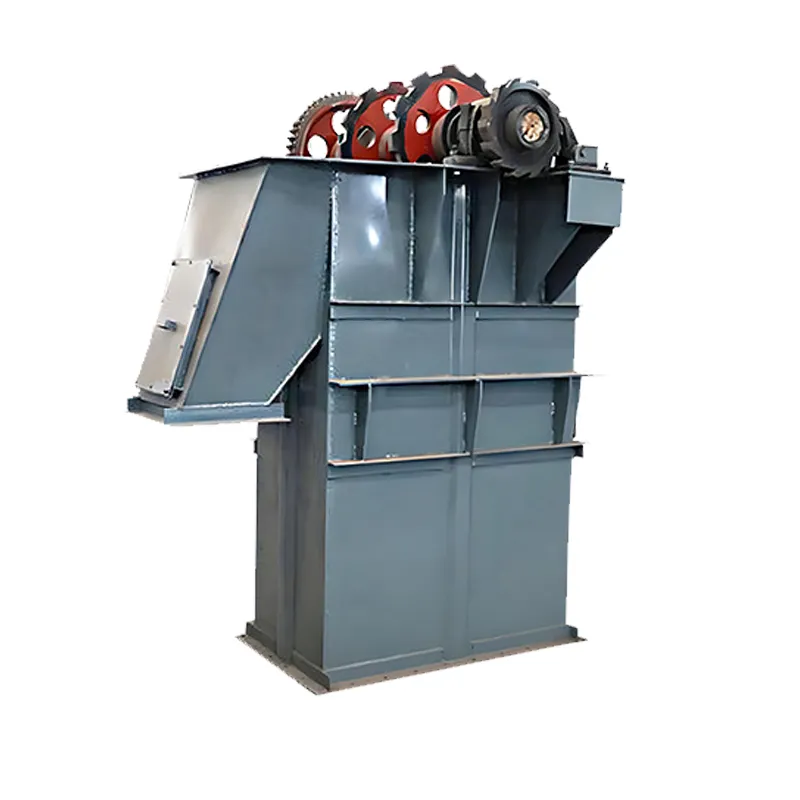

A bucket elevator is a stationary mechanical conveying device primarily suitable for the continuous vertical lifting of powdery, granular, and small lump materials. It is widely used in feed mills, flour mills, rice mills, oil mills, starch mills, grain depots, and port terminals of various sizes for lifting bulk materials.
These elevators are specifically designed to vertically lift granular materials such as limestone, coal, gypsum, clinker, and dry clay that have passed through a crusher, as well as powdery materials such as raw materials, cement, and coal powder.
| Model | Capacity (m³/h) | Bucket (L) | Distance (mm) | Speed (m/s) | Max Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| NE15 | 15 | 2.5 | 203.2 | 0.5 | 50 | 27.5 |
| NE30 | 35 | 7.8 | 304.8 | 0.5 | 65 | 35 |
| NE50 | 60 | 15.7 | 304.8 | 0.5 | 65 | 64 |
| NE100 | 110 | 35.0 | 400 | 0.5 | 95 | 89 |
| NE150 | 170 | 52.2 | 400 | 0.5 | 95 | 112.3 |
| NE200 | 220 | 84.6 | 500 | 0.5 | 125 | 134 |
| NE300 | 320 | 127.5 | 500 | 0.5 | 125 | 188 |
| NE400 | 400 | 182.6 | 600 | 0.5 | 145 | 205 |
| NE500 | 500 | 260.9 | 700 | 0.5 | 165 | 223 |
| NE600 | 600 | 330.2 | 700 | 0.5 | 165 | 274 |
| NE800 | 800 | 501.8 | 800 | 0.5 | 195 | 313 |
