Explosion-Proof Elevator in Chemical Factories

Customization:	Available
After-sales Service:	Installation
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

SC50-ISH, SC100-ISH, SC200-ISH

Type

Rack and Pinion

Load Capacity

1T - 2T

Speed

40M/Min - 60M/Min

Usage

Mining, Shaft, Chimney

Lift Drive

Electric Motor

Max Height

450m

Motor Power

13kw*2, 11kw*3, 11kw*2

Cage Dimension

3*1.5*2.2m, 1*1*2.2m (Customizable)

Electrical System

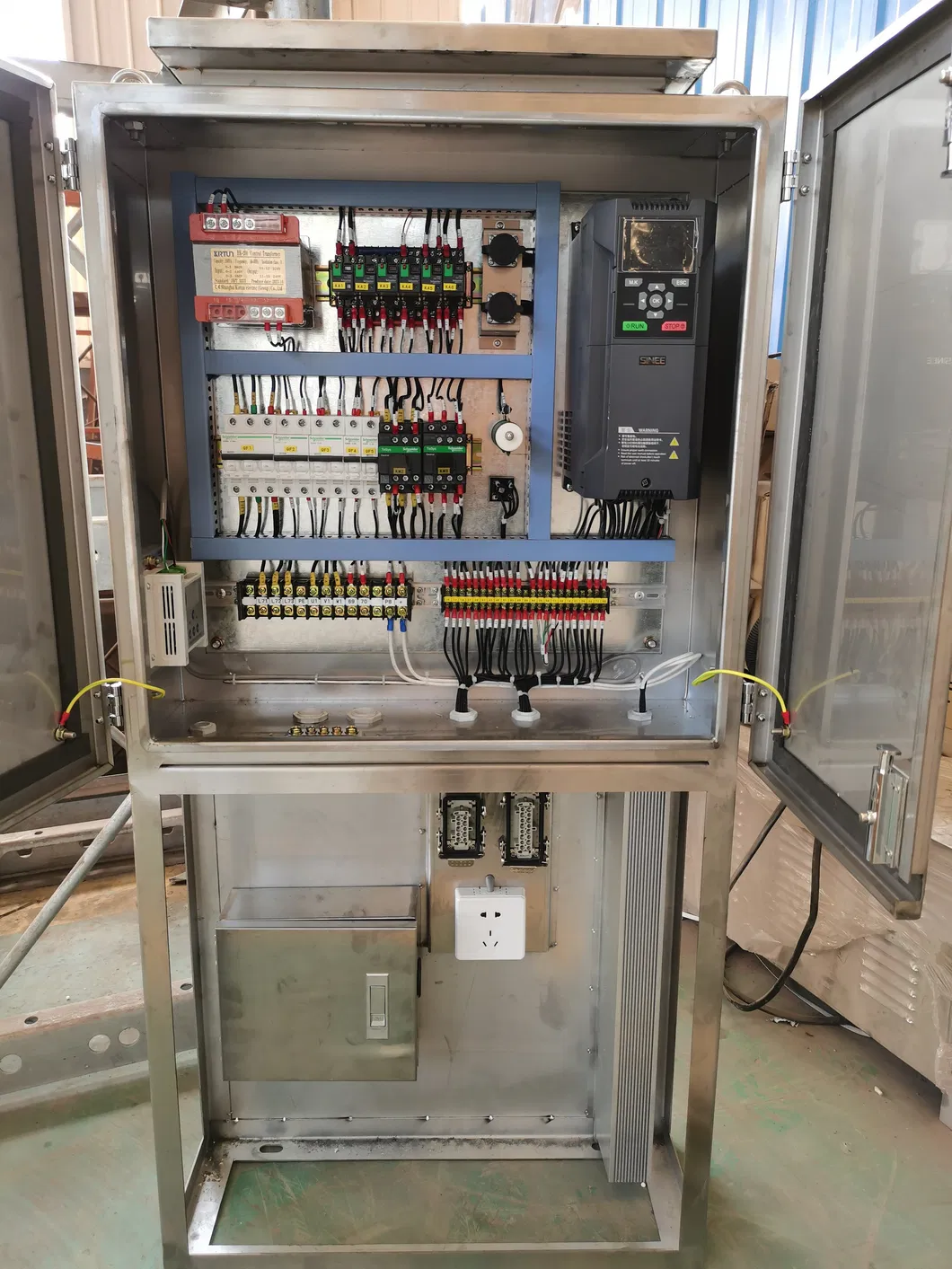

Schneider (PLC Fault Sensor available)

Product Description

🛡️

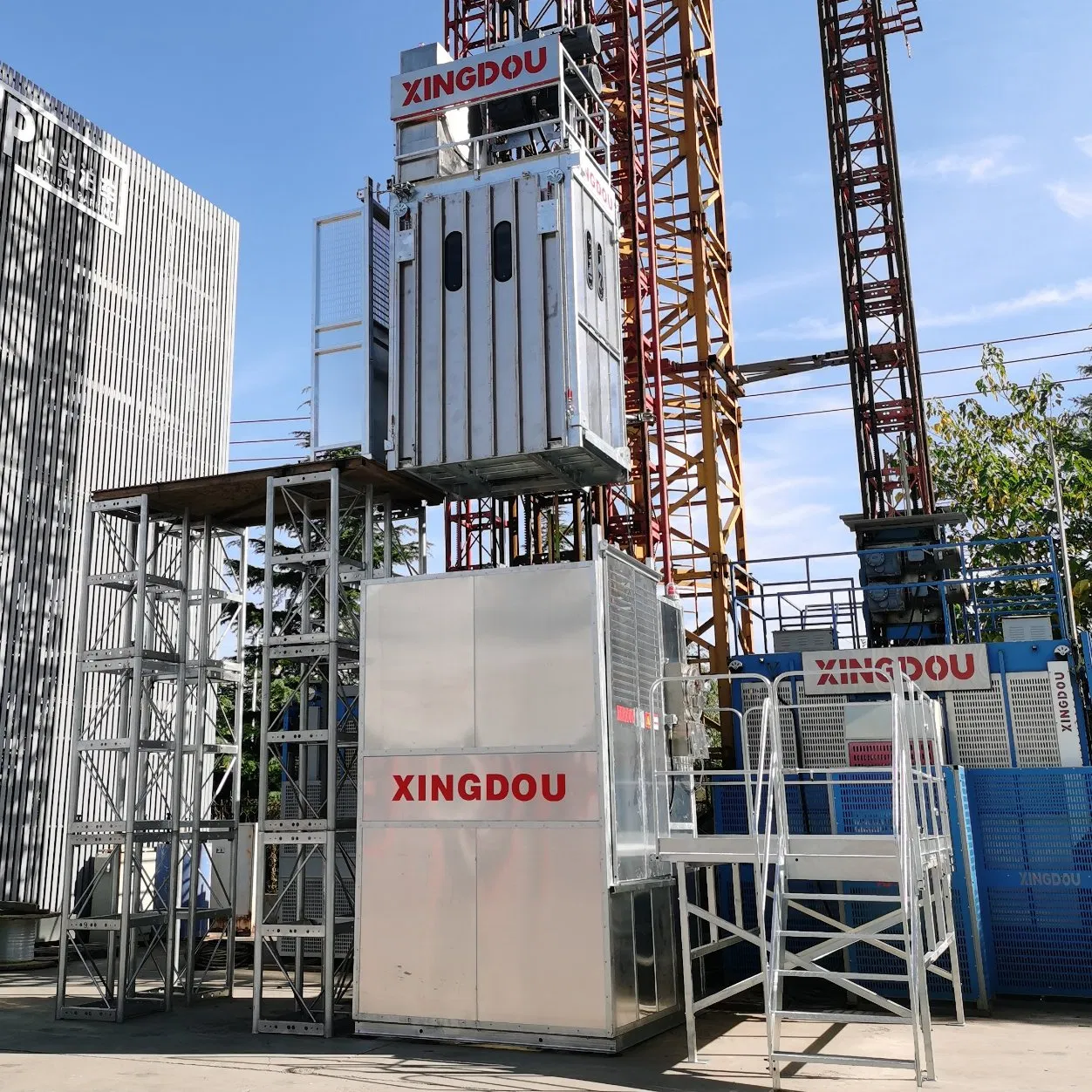

Explosion-Proof Elevator Solutions

The SC ISH series industrial elevator is professional lifting and transportation equipment designed for special applications. It meets service requirements in harsh environments such as low temperature, humidity, heat, dust, and explosion-proof conditions.

Δ1. Service Lift	Standard: EN 81-20, EN 12159 Applications: Bridge Maintenance, Power Plants, Wind Turbines, Chimneys, Shipboard Towers, Warehouse Storage, Mines.
Δ2. Explosion-proof Lift	Standards: EN 81-20, EN 12159, EN 60079 / ISO 80079 Certifications: ATEX, IECEx, EAC 012, CNEX Hazardous Zones: Zone 1, 2, 21, 22 \| Group: IIB, IIC \| Class: T1-T4
Δ3. Lifts for Cranes	Standard: EN 81-43, EN 12159 Certification: CE

Heavy-duty, explosion-proof industrial elevator for mining applications with advanced safety features and high-capacity material handling capabilities. All electrical components are encased in explosion-proof housings, using non-sparking metals and anti-static materials.

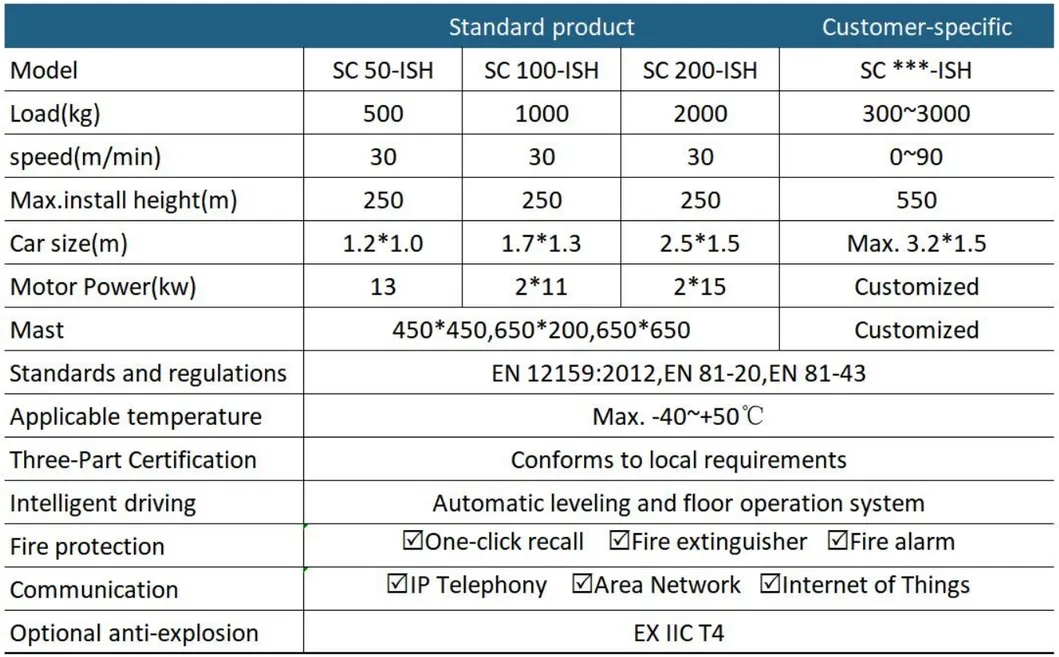

Product Parameters

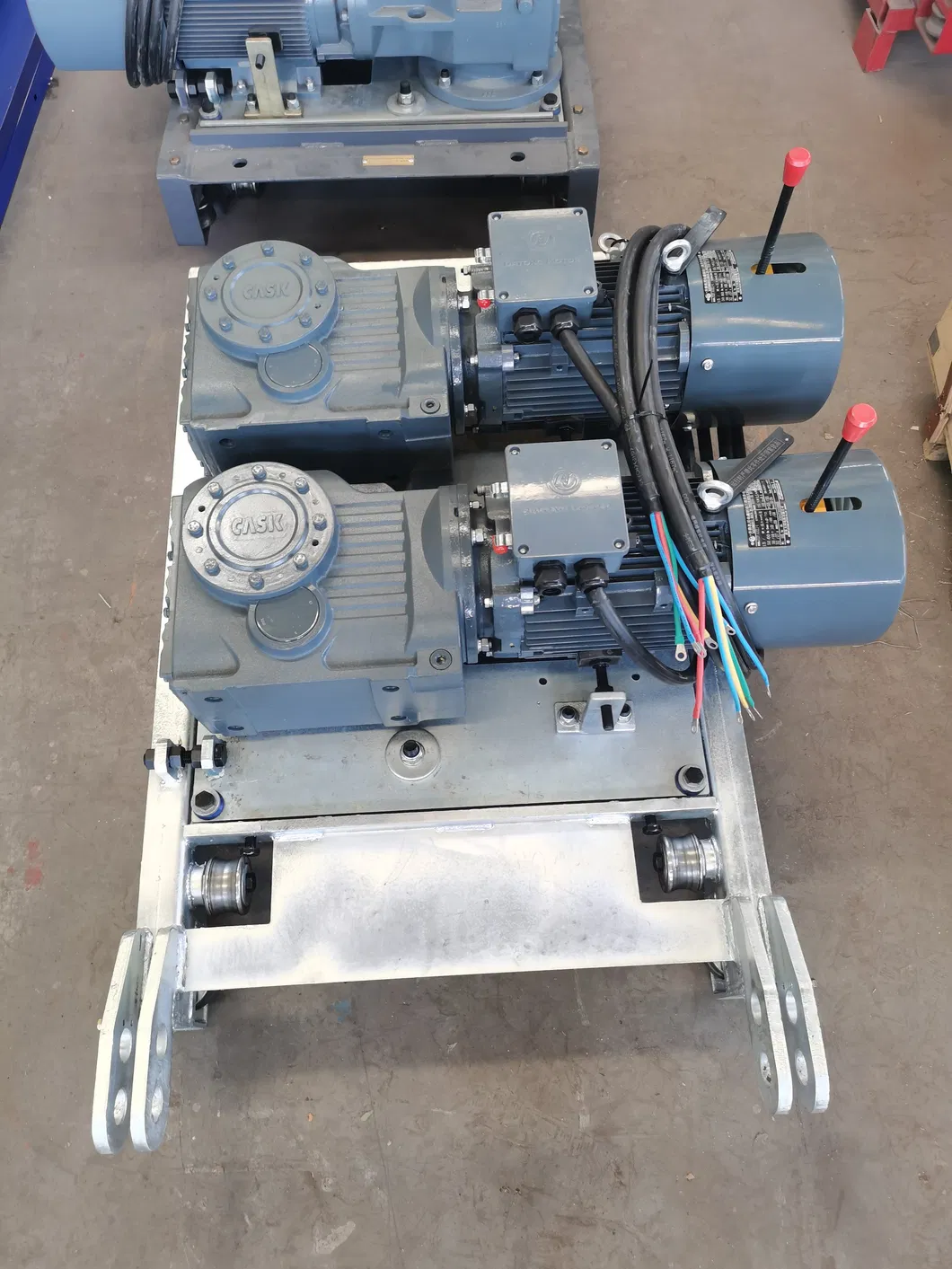

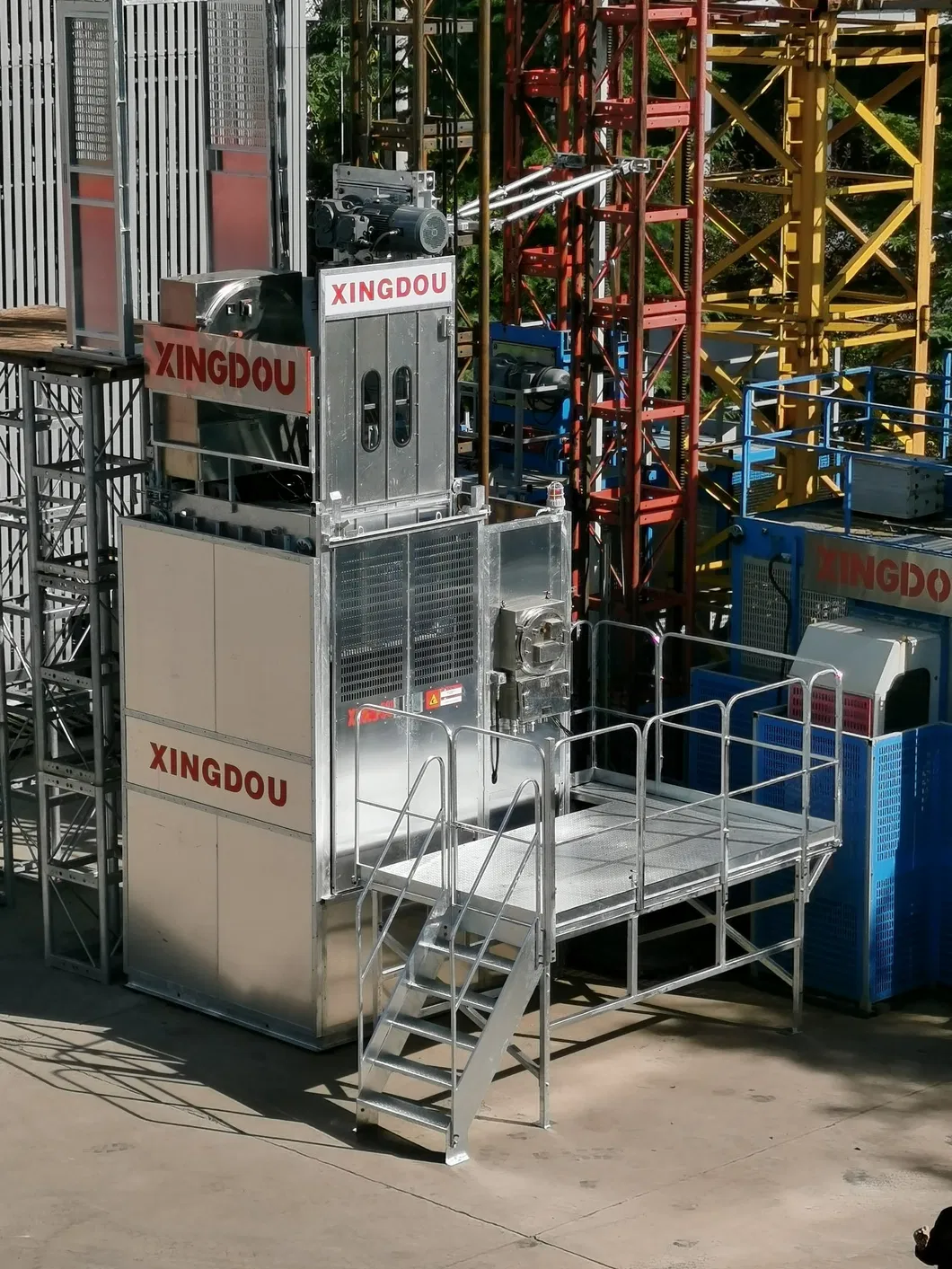

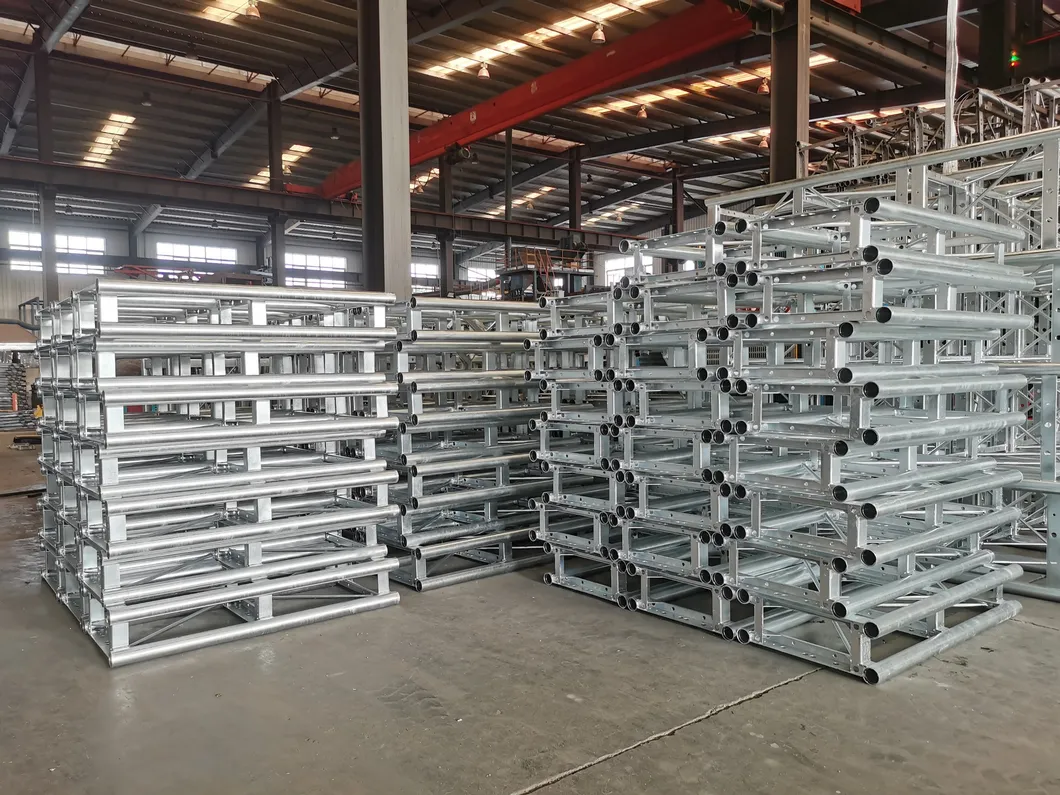

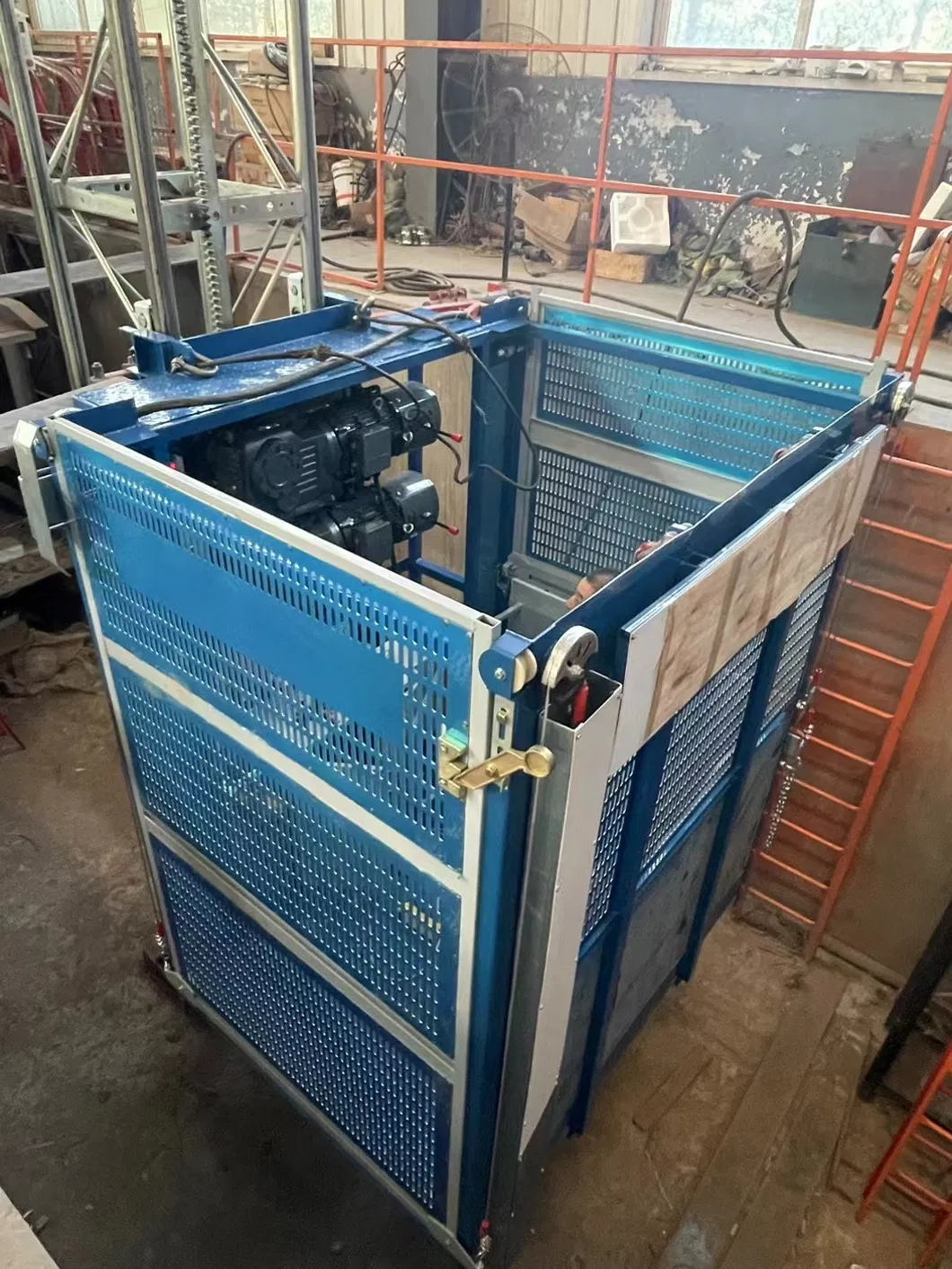

Detailed Photos

Our industrial elevators are designed with components tailored to site conditions, ensuring efficiency, safety, and energy savings. We can design according to your drawings or special requirements.

Certifications

📜

Our elevators meet international export standards. We hold certificates including CE, EAC, ISO9001, SGS, and BV for construction hoists.

Professional Manufacturing

18 Years of Manufacturing Experience
Exported to more than 20 Countries
1 Year Warranty and Quick Delivery
Quality approved by CE, EAC, ISO9001, TUV Certificates
Customized OEM services available

After Sales Service

1. Quality Assurance: Advanced manufacturing technology and strict quality control management.

2. Excellent Packaging: Standard, strong protective packaging to prevent external damage.

3. Rapid Response: Detailed information and technical support provided quickly upon inquiry.

Frequently Asked Questions

What makes these elevators "explosion-proof"?

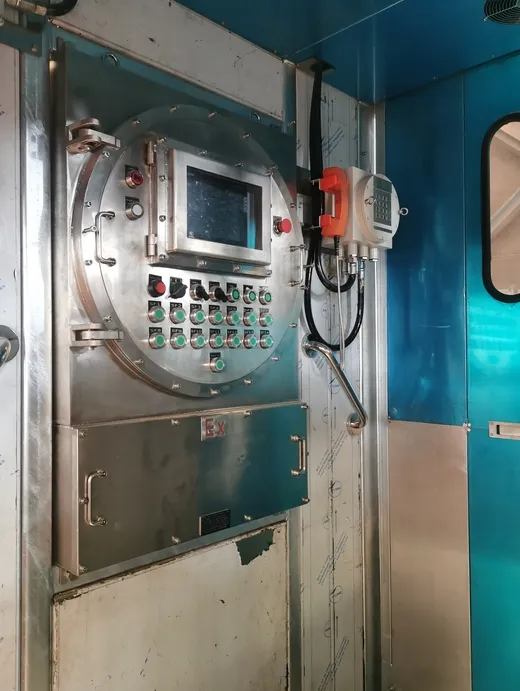

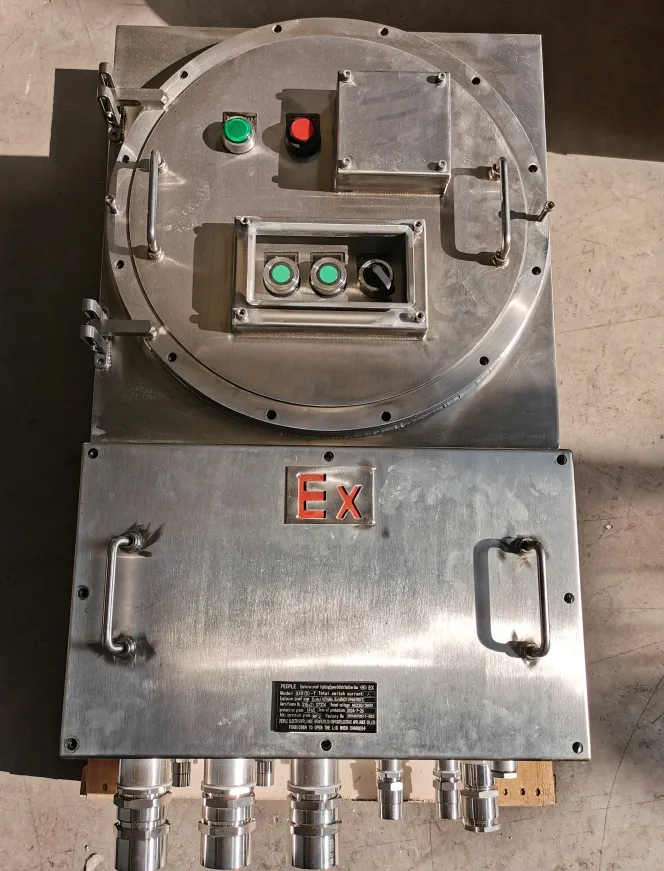

All electrical components are encased in explosion-proof housings. The elevator car is constructed using non-sparking metals and anti-static materials to eliminate accidental sparks in hazardous environments.

What is the maximum height these industrial lifts can reach?

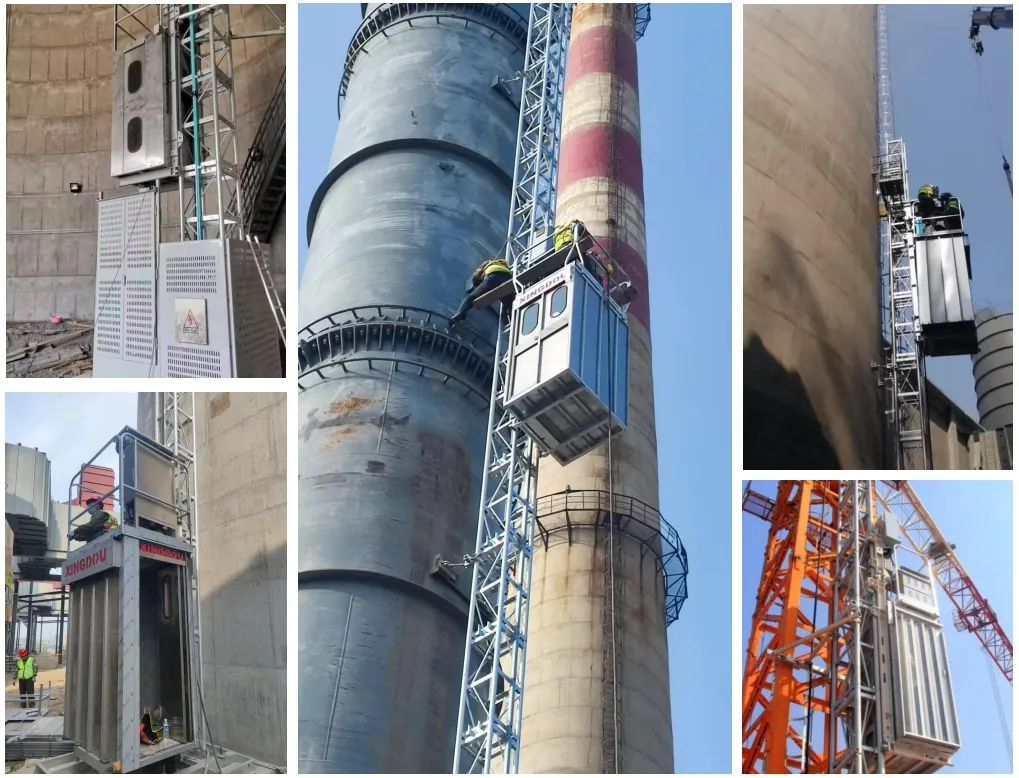

Our industrial elevators can reach a maximum erection height of up to 450 meters, making them suitable for deep mines and tall chimneys.

Can the cage size be customized for specific site requirements?

Yes, cage dimensions are changeable. Standard sizes include 3x1.5x2.2m and 1.5x1.5x2.2m, but we can design them according to your specific construction site drawings.

Which hazardous zones are the explosion-proof lifts certified for?

They are certified for Zone 1, Zone 2, Zone 21, and Zone 22, covering both gas and dust explosive atmospheres (Groups IIB, IIC; Classes T1-T4).

What kind of maintenance support is provided?

We provide a 1-year warranty, quick delivery of spare parts, and detailed technical information to ensure your equipment remains operational and safe.
