Explosion Proof Hoist / Elevator Manufacturer Factory Supplier

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Month

Send Inquiry

Product Description

Basic Specifications

Model NO.

SC200/200

Type

Stationary

Load Capacity

1T - 2T

Speed

20M/Min - 40M/Min

Usage

Construction Hoist

Sling Type

Wire Rope

Lift Drive

Electric Motor

Mechanism

Articulated Lift

Cage Size

3m*1.5m*2.2m

Motor Number

3 Motor

Lifting Speed

100m/Min

Mast Section

0.65m*0.65m*1.508m

Double Cages

2X2000 Kgs

Origin

China

HS Code

84262000

Capacity

100,000 units

Product Description & Features

We pay all our attention for the product design and manufacturing

All Production Line adopt special fixture, mould, and gauge to ensure precision in all detailed sizes.
Selection of high-quality raw materials from China Bao Steel Group. Components like motors, reducers, and gearboxes are chosen for low noise and reliability.
Equipped with high-standard electrical components (Schneider or Korea reputable brands) for guaranteed quality.
Special design with a compact and reasonable structure, ensuring easy installation and adjustment.
Every unit undergoes factory testing including motor brake adjustment, safety device operation, limit switch testing, dropping tests, loading tests, and mast section erection tests.

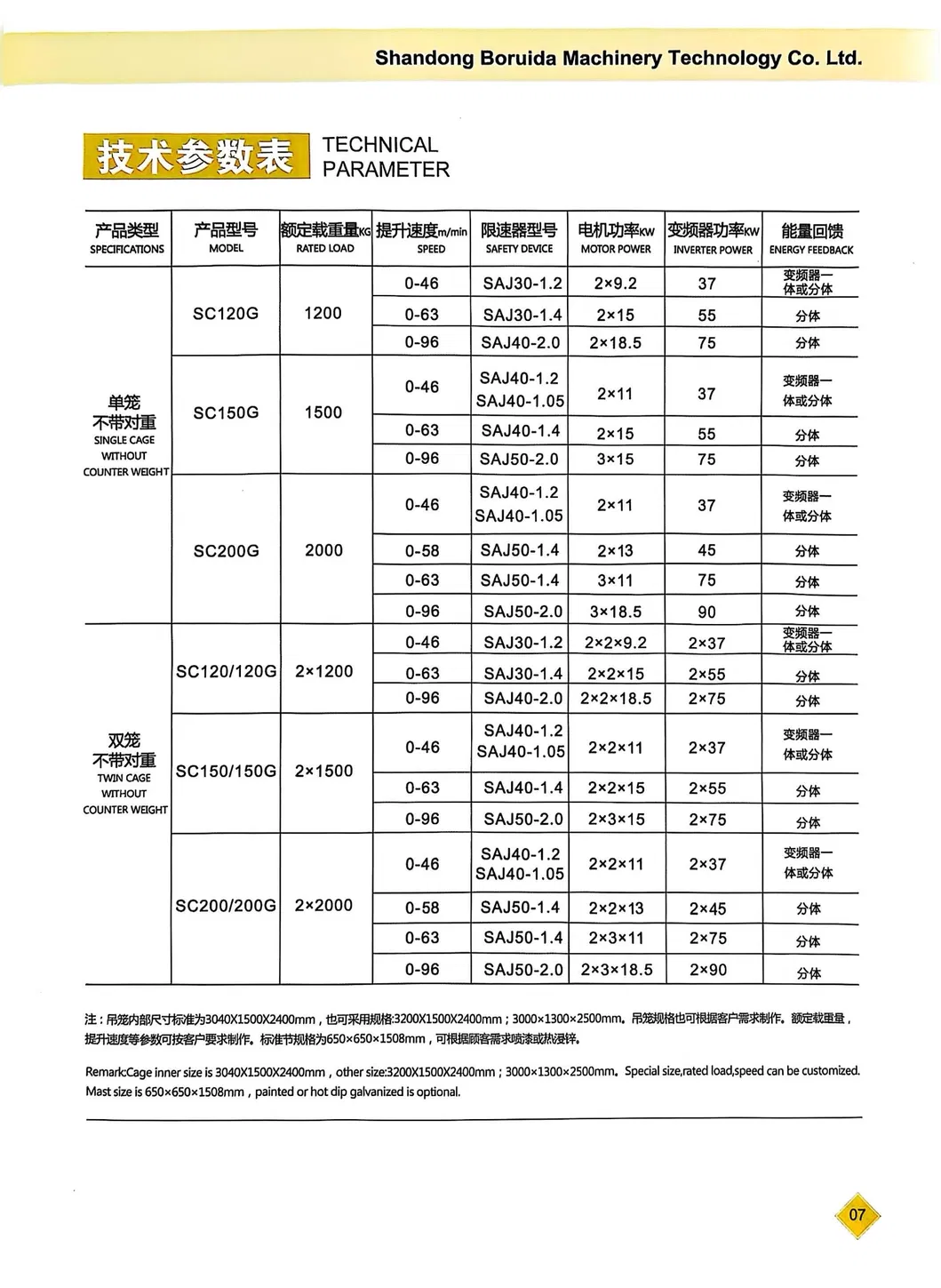

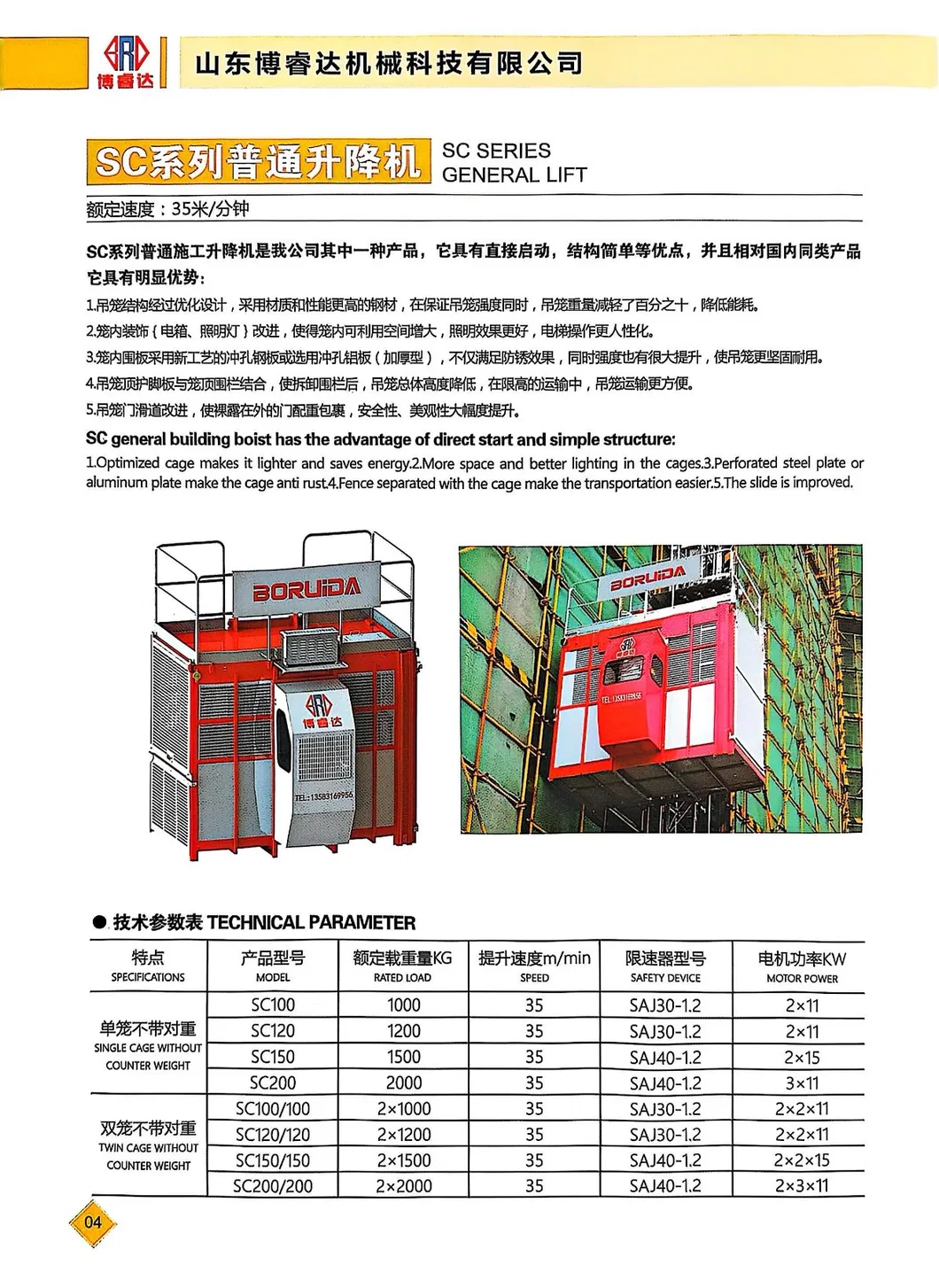

Characteristic	Type	Model	Rated Loading	Lifting Speed	Motor Power
Double cages	Standard	SC200/200	2x2000kg	33m/min	2x(3x11kw) / 2x(3x8.5kw)
	Standard	SC150/150	2x1500kg	33m/min	2x(2x13kw)
	Standard	SC100/100	2x1000kg	33m/min	2x(2x11kw)
Single cage	Standard	SC200	2000kg	33m/min	3x11kw /3x8.5kw
	Standard	SC150	1500kg	33m/min	2x13kw
	Standard	SC100	1000kg	33m/min	2x11kw
Double cages	Low speed	SC200/200D	2X2000kg	0-40m/min	2x(3x11kw)
Double cages	Mid speed	SC200/200Z	2x2000kg	0-60m/min	2x(2x23kw)

Prominent Features of Construction Lift

Robot Welding: Mast sections are welded by Robots to ensure reliable quality and elegant appearance.
Rust Removal: All steel structures are processed with blasting technology for outstanding surface painting adhesion.

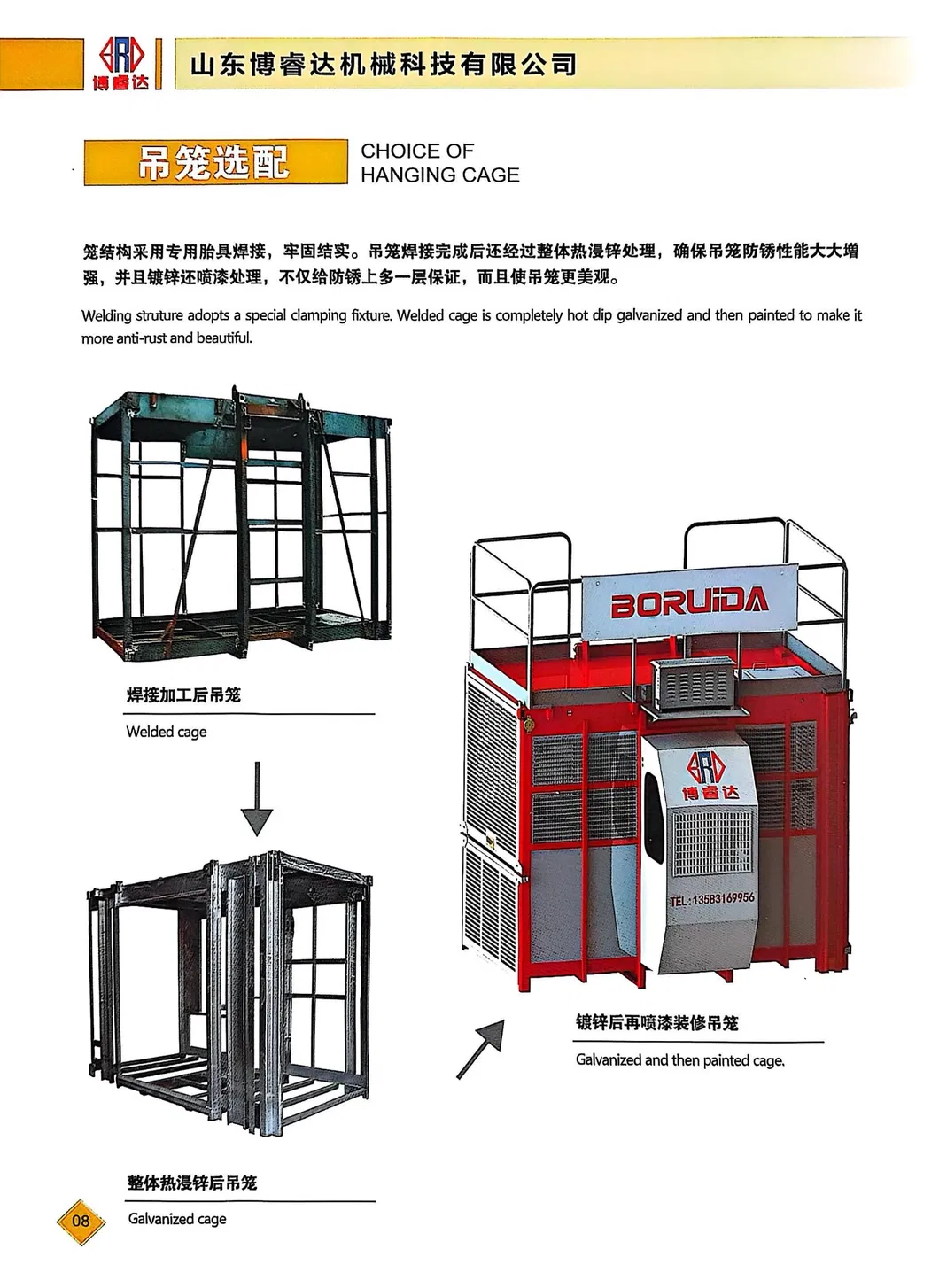

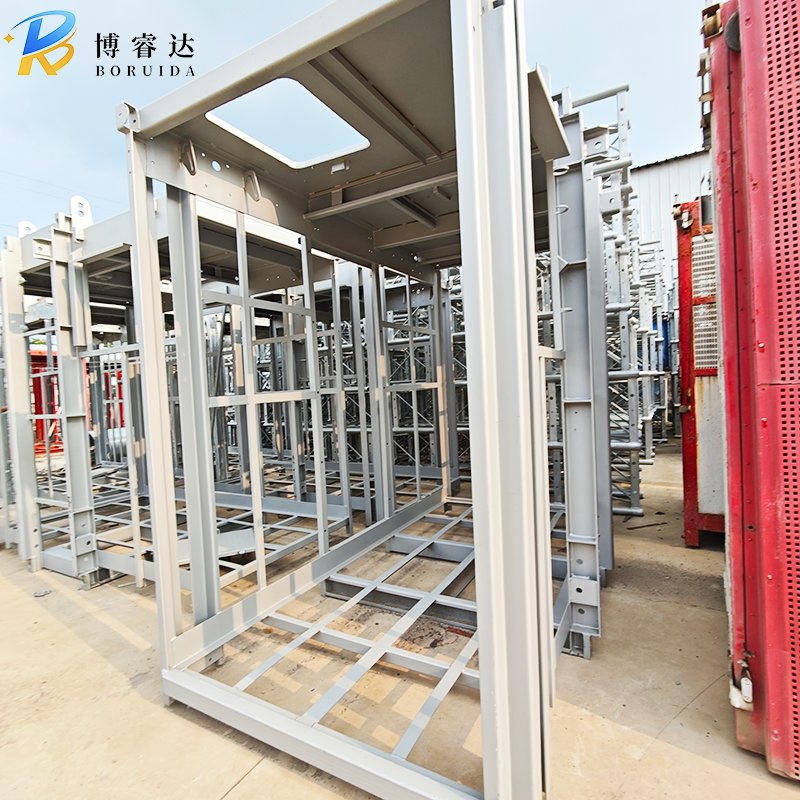

Aluminum Components: Suspension cage guarding board uses figured aluminum plate, making the cage lightweight and artistic.

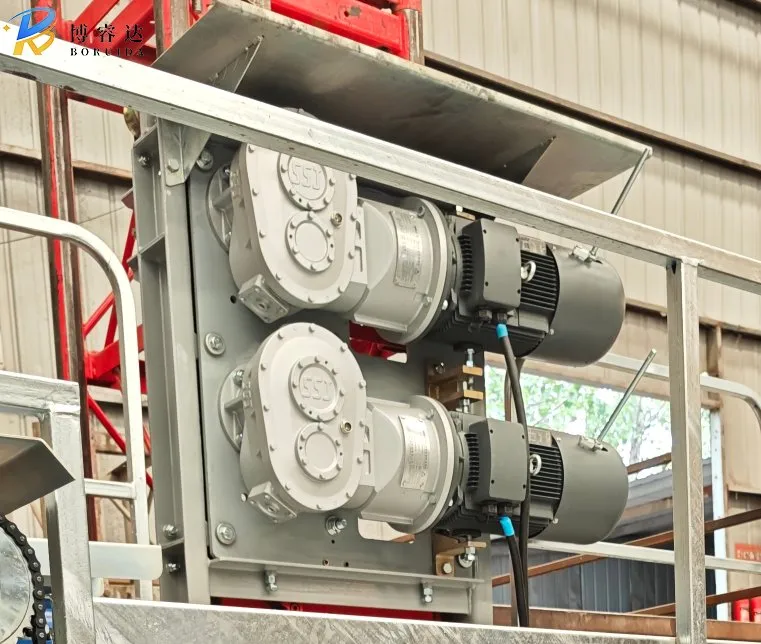

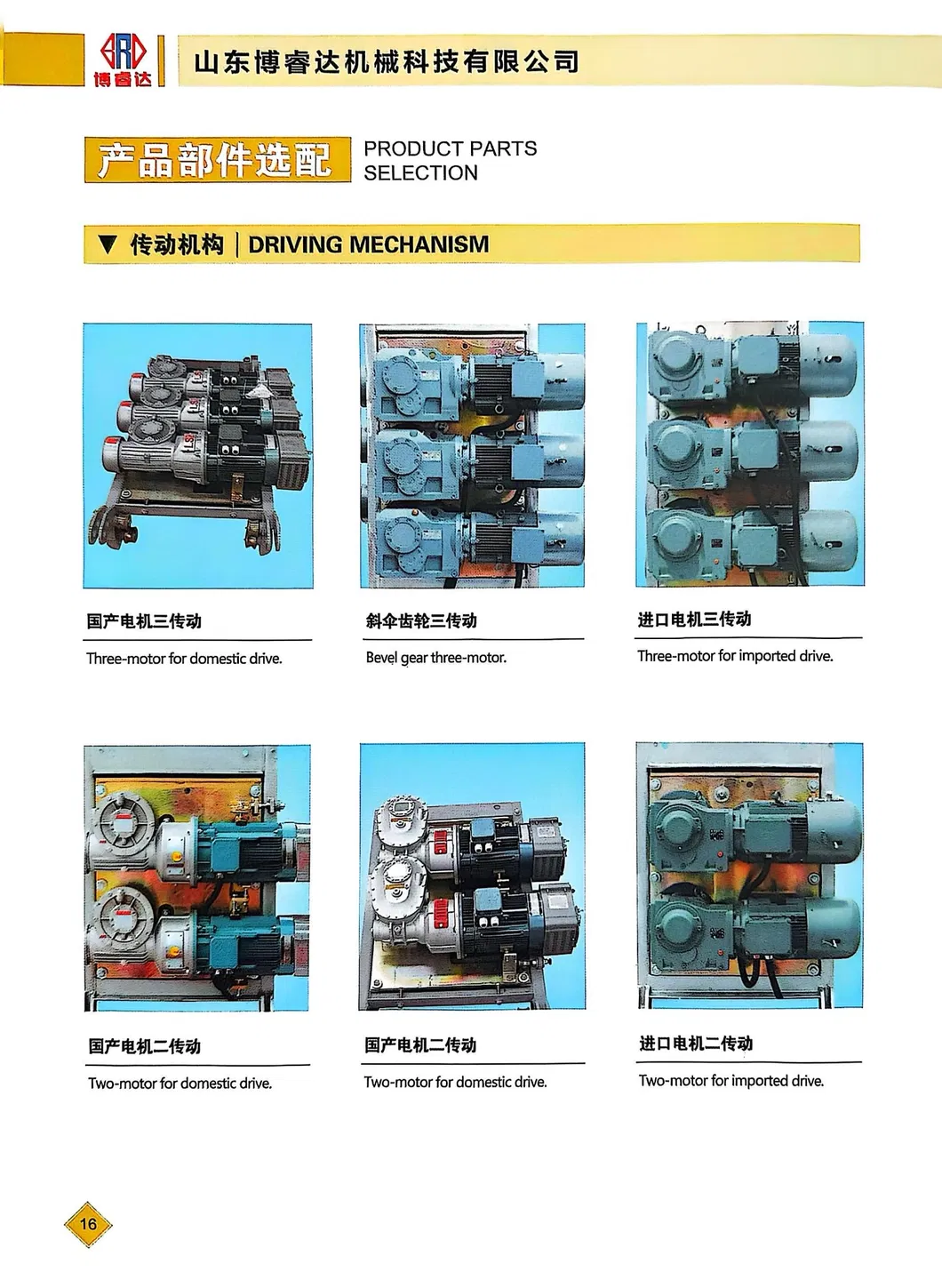

Efficiency: Transmission mechanisms are supplied by professional manufacturers for high efficiency and long service life.

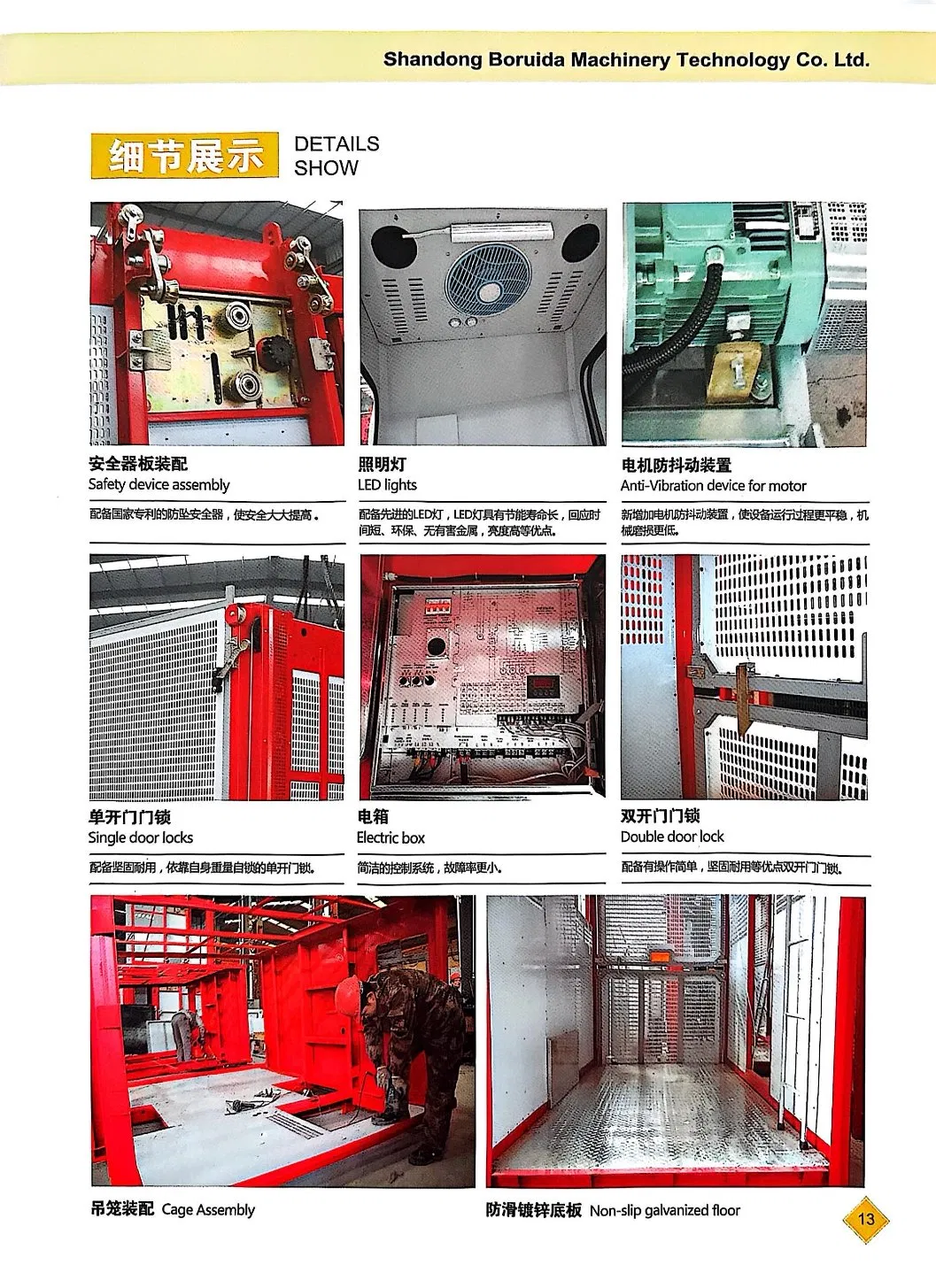

Safety First: Complete overload protection, various limiters, and mechanical chain devices. Includes SAJ40-1.2 anti-falling safety device.

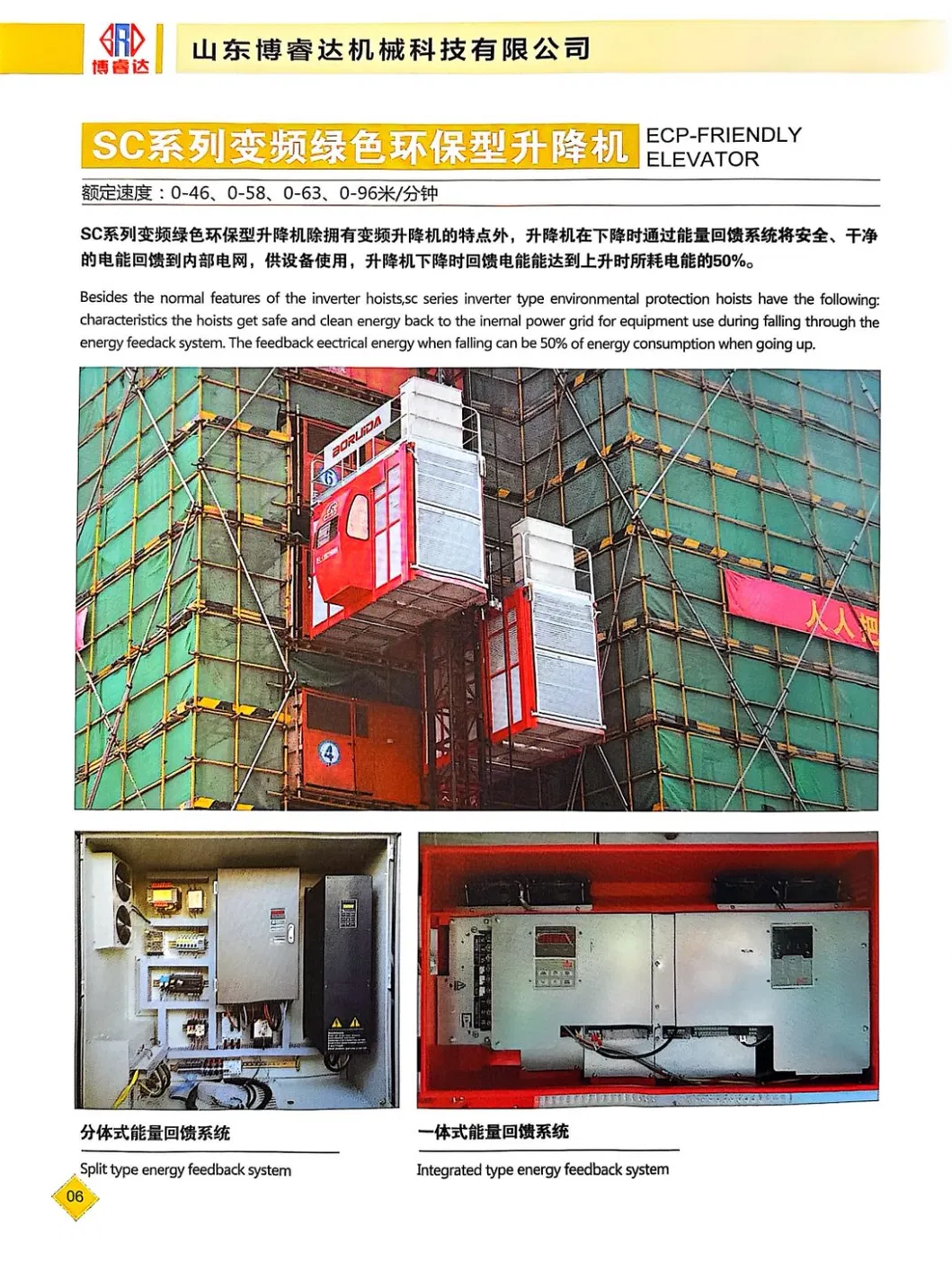

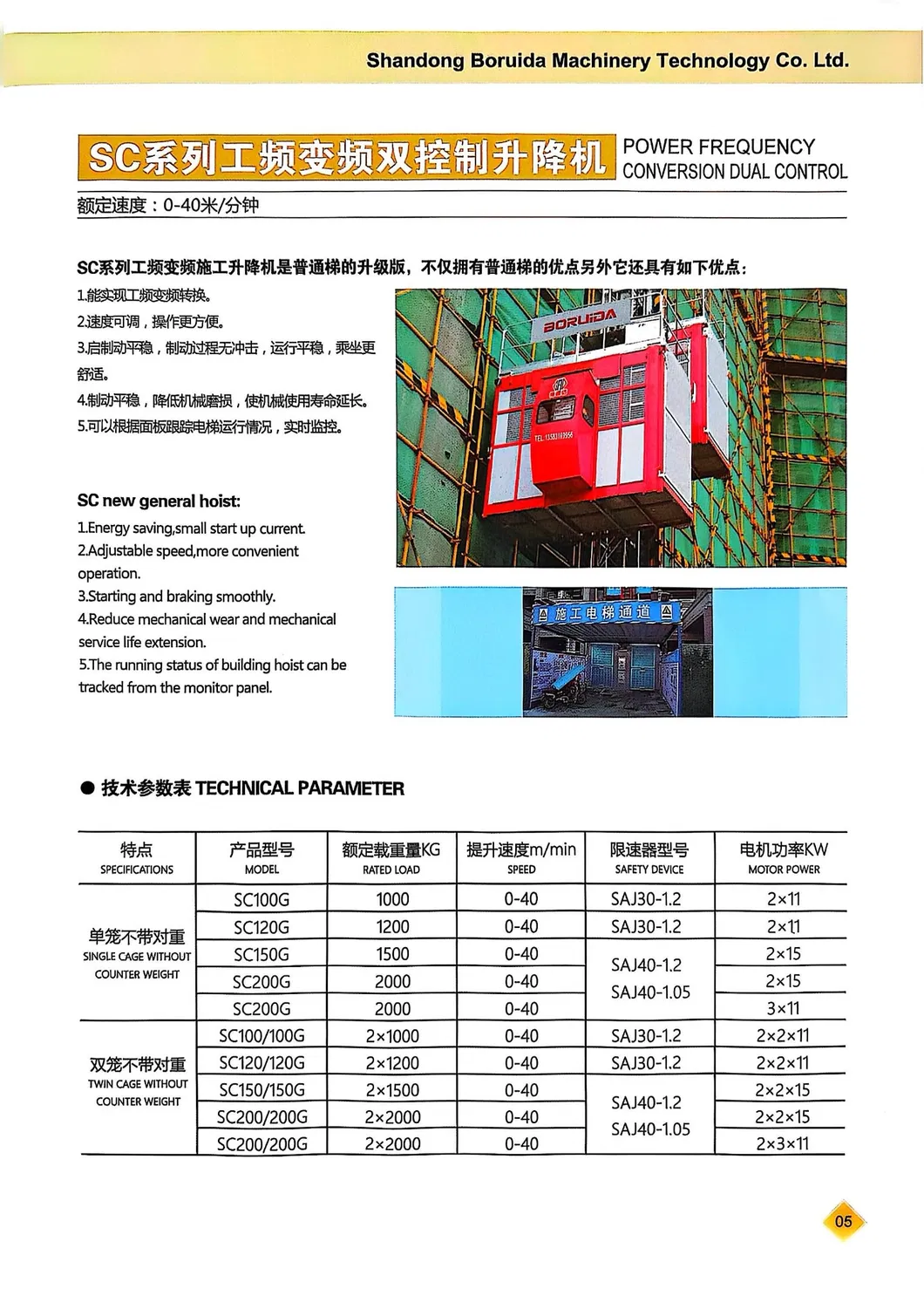

Energy Saving: Frequency conversion systems ensure safe, stable, and comfortable operation with lower starting electricity requirements.

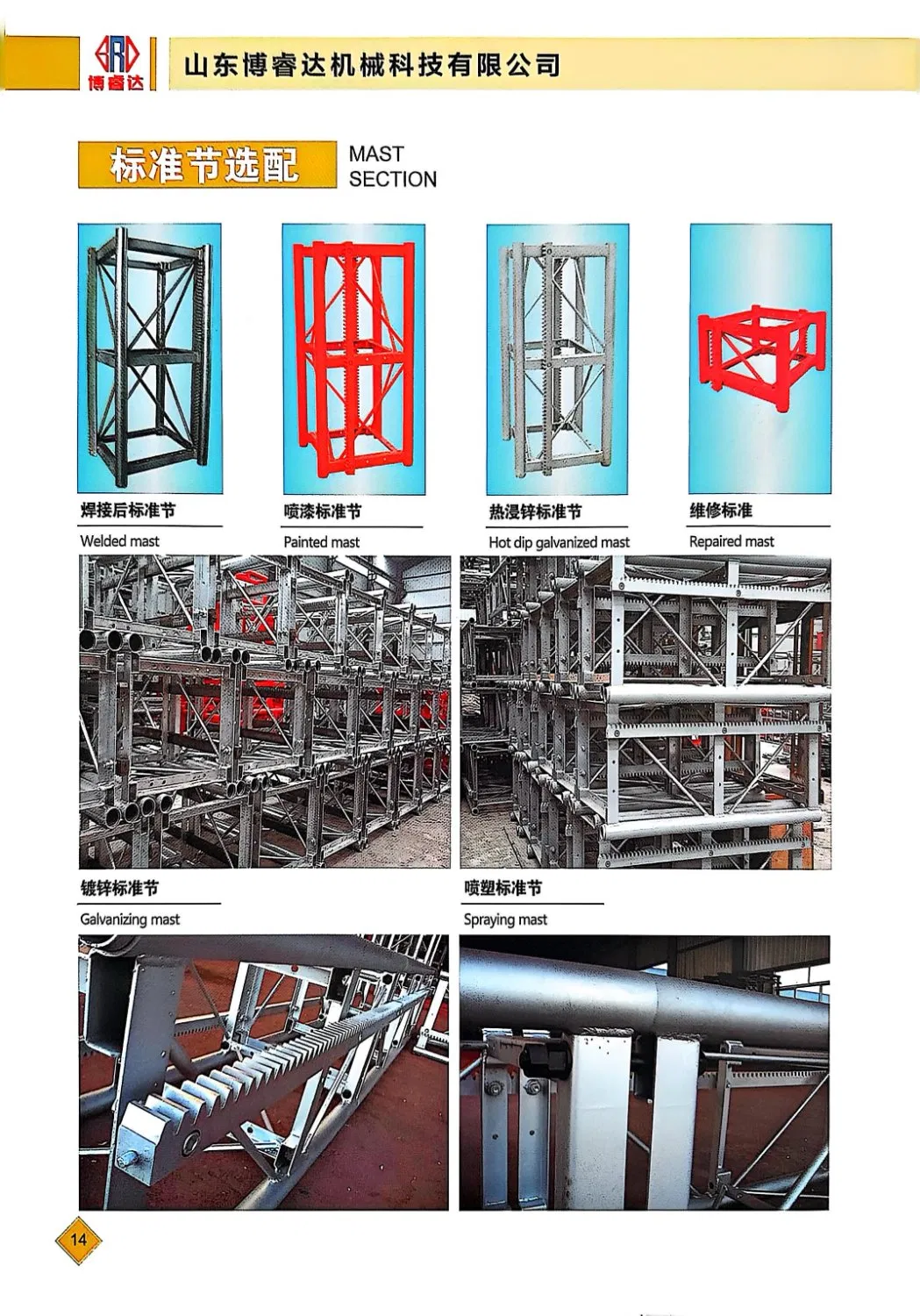

High Quality Piping: Mast sections are made of high-quality seamless steel pipe for excellent verticality and anti-pressure performance.

Frequently Asked Questions

What is the maximum load capacity for the SC200/200 model?

The SC200/200 model features double cages, each with a rated loading capacity of 2000kg, totaling 4000kg for the entire system.

How do you ensure the safety of the construction hoist?

We use a complete set of safety devices, including the SAJ40-1.2 anti-falling safety device, overload protection, and multiple limit switches. All units undergo rigorous dropping and loading tests before leaving the factory.

Are the mast sections resistant to rust and corrosion?

Yes, all steel structures are processed using blasting technology to remove rust before high-adhesion surface painting or galvanization is applied, ensuring long-term durability.

Does the hoist support frequency conversion?

Yes, we offer frequency conversional construction elevators which are safer, more stable, and energy-efficient compared to standard models.

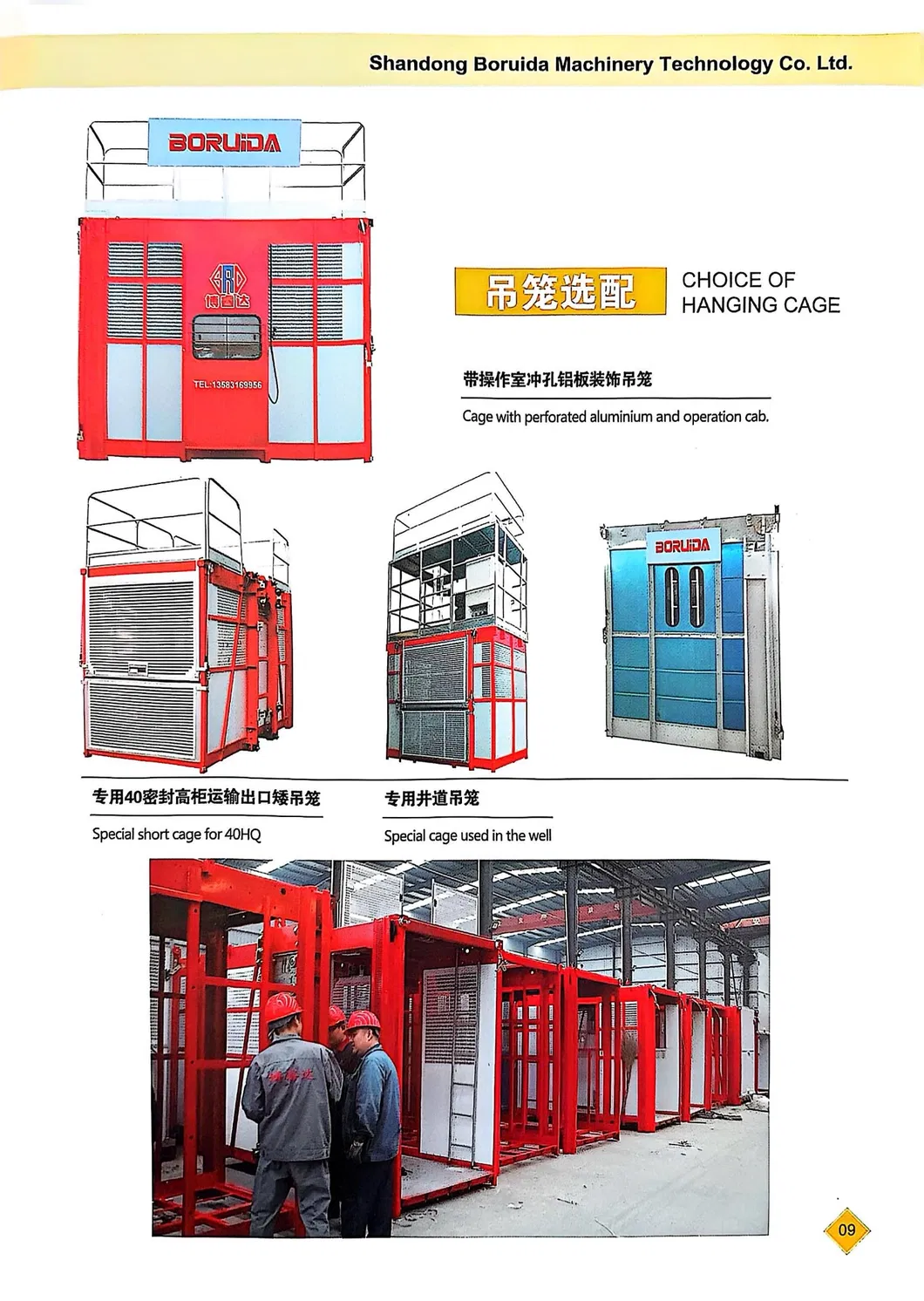

What materials are used for the suspension cages?

The suspension cages utilize figured aluminum plates and numerical control punched aluminum, making them lightweight, durable, and aesthetically pleasing.

What brands are used for the electrical components?

We use high-reputation global brands such as Schneider or reputable Korean brands for our electrical systems to ensure reliability and global serviceability.
