150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
1 / 5
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher
150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher

150kg Big Payload Fire Extinguisher Fire Fighting Drone Livraison Equipment for Forest Factory Firefighting with Heavy Lifting Fire Extinguisher

Customization: Available
Agent: Water
Type: Transportable Fire Extinguisher
Send Inquiry

Product Description

Basic Specifications
Model
HZH XF120
Type
Portable Extinguisher Drone
Effective Range
20m
Power Source
Electric
Maximum Load
150 Kg
Max. Takeoff Weight
257.8 Kg
Max. Flight Altitude
500 M
Max. Flight Time
45 Min
Axis Configuration
8
Dimensions
4605*4605*990mm
Product Description

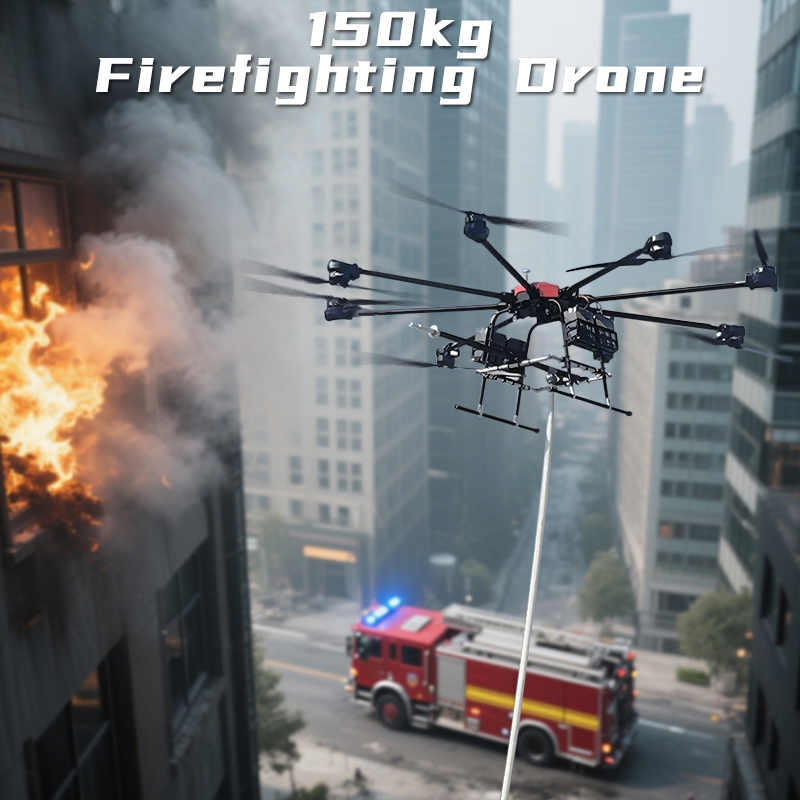

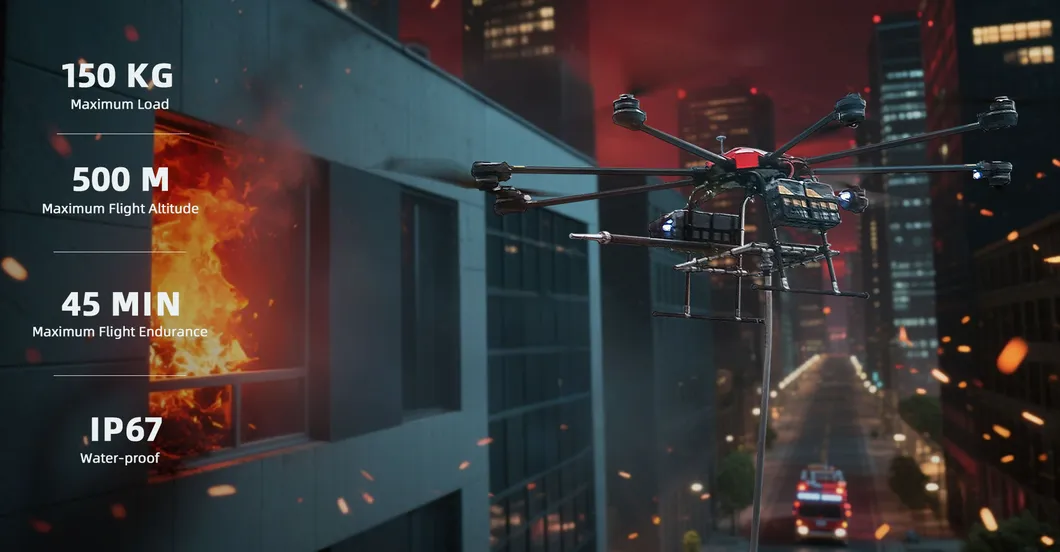

Fire Fighting Drone 150kg Payload
150kg Big Payload Fire Extinguisher Fire Fighting Drone Equipment
HZH XF120 Technical Data
Dimensions (Unfolded)4605*4605*990mm
Max. Payload150kg
Max. Takeoff Weight257.8 kg
Max. Flight Altitude500 M
Max. Altitude Limit4500 m
Operation Height≤ 1000m
Max. Flight Time45 minutes

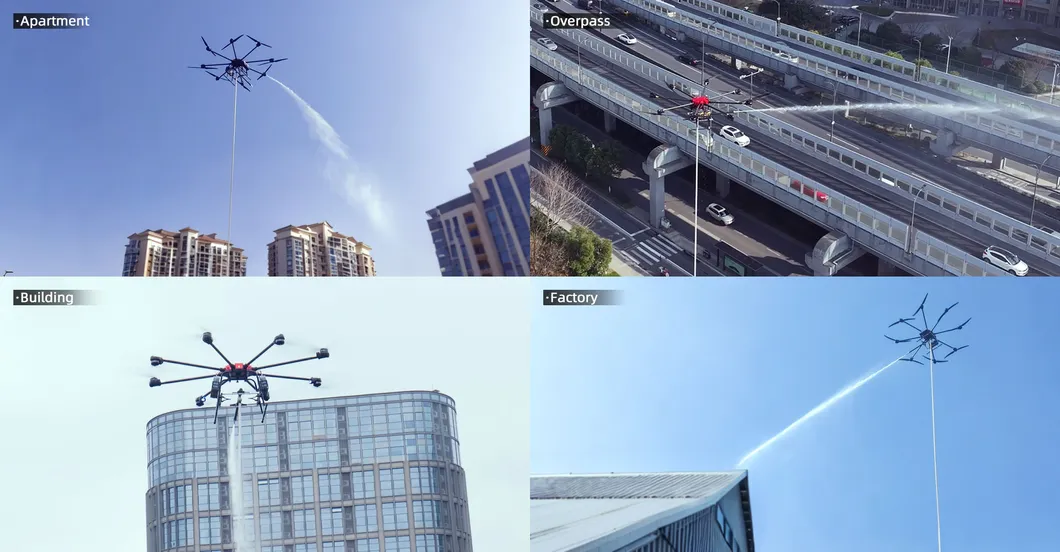

Application Scenarios
Drone Application Scenarios
Apartments

Quickly assess scale and spread in densely populated complexes. Equipped with high-pressure water nozzles to prevent vertical spread and enhance safety for residents.

Overpasses

Reaches incident sites rapidly, avoiding road congestion. Deploys fire extinguishing bombs precisely onto vehicle accidents or hazardous material spills.

Buildings

Ascends rapidly to upper stories of commercial and office structures, bypassing blocked stairwells to cool flames and protect critical infrastructure.

Factories

Handles large machinery and combustible environments by deploying fire extinguishing bombs or high-volume water spraying functions.

Core Advantages & Configuration

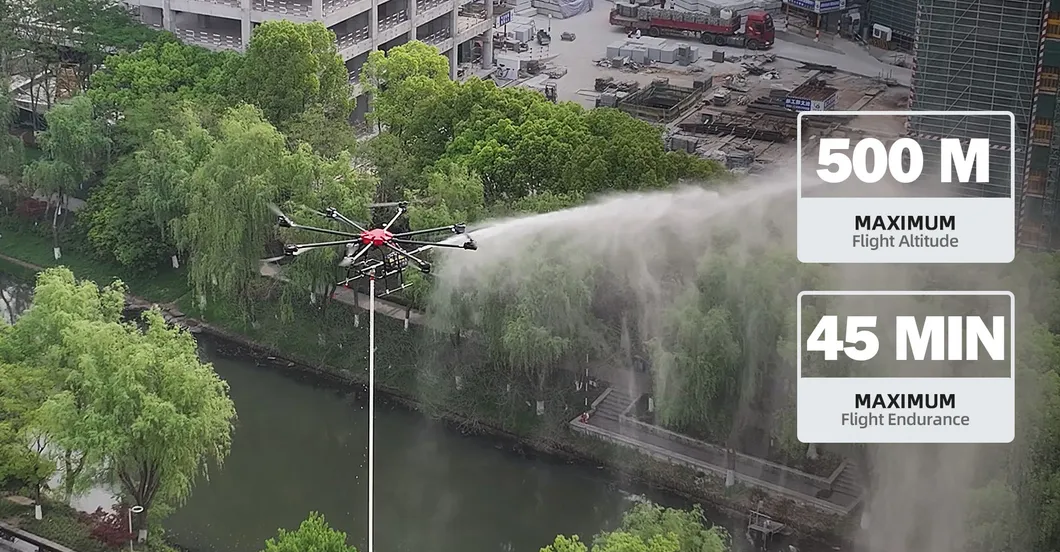

Configuration 1

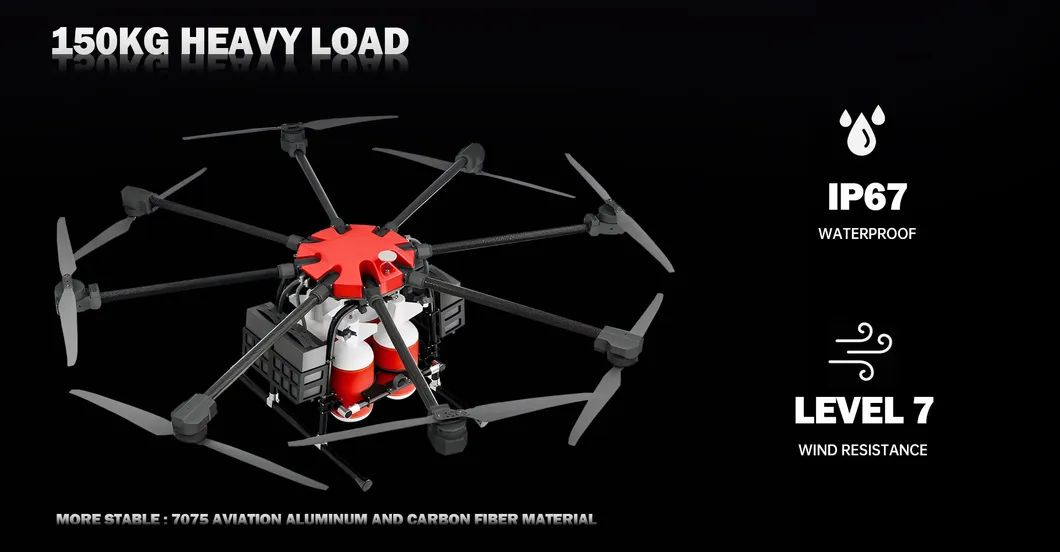

Configuration 2
🚀
Exceptional Vertical Reach: 500-meter maximum flight altitude allows access to skyscraper upper floors and tall industrial structures.
🔋
Prolonged Mission Endurance: 45-minute flight time enables sustained missions for large-scale warehouse or industrial park fires.
🛡️
Robust Composite Structure: Built with 7075 aerospace aluminum and carbon fiber for optimal durability and agility.
💧
Superior Waterproof Design: IP67 rating ensures operational versatility and long lifespan in water-intensive scenarios.
💨
Exceptional Wind Resistance: Capability to resist winds up to Level 7, maintaining steady flight paths in harsh conditions.

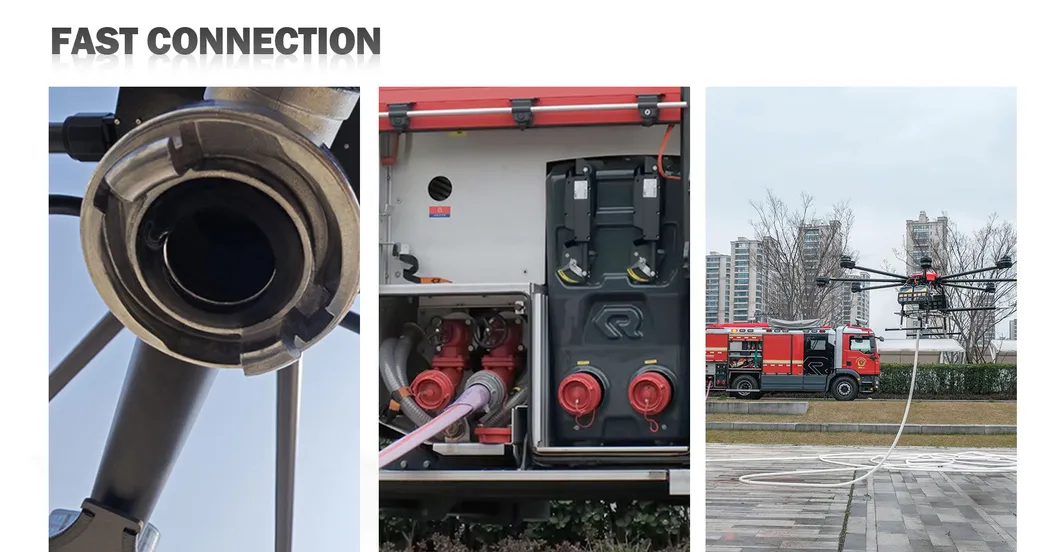

Agile Deployment

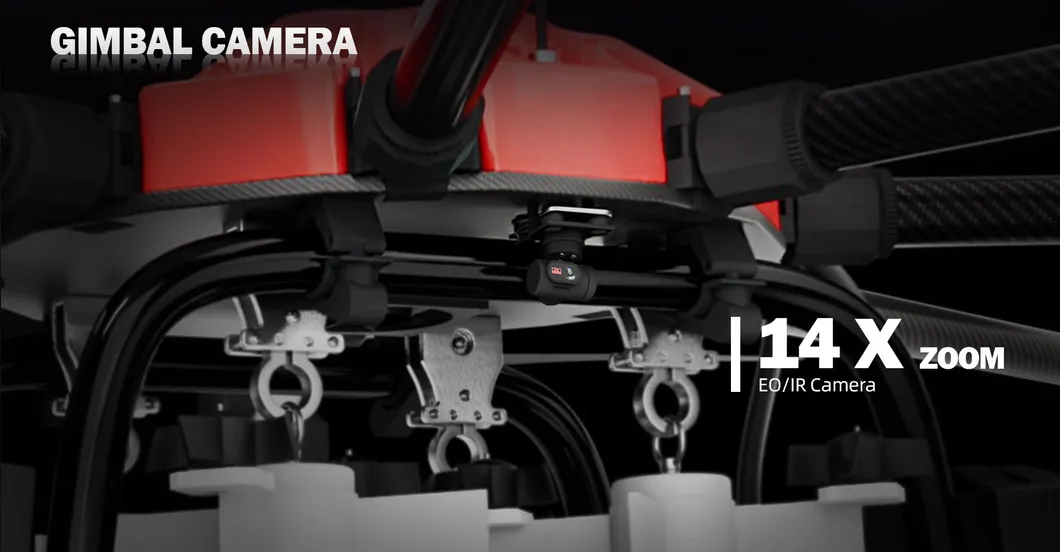

Imaging System
⏱️
Rapid Deployment: Fully assembled and operational in a mere 5 minutes, slashing response time in critical emergencies.
📷

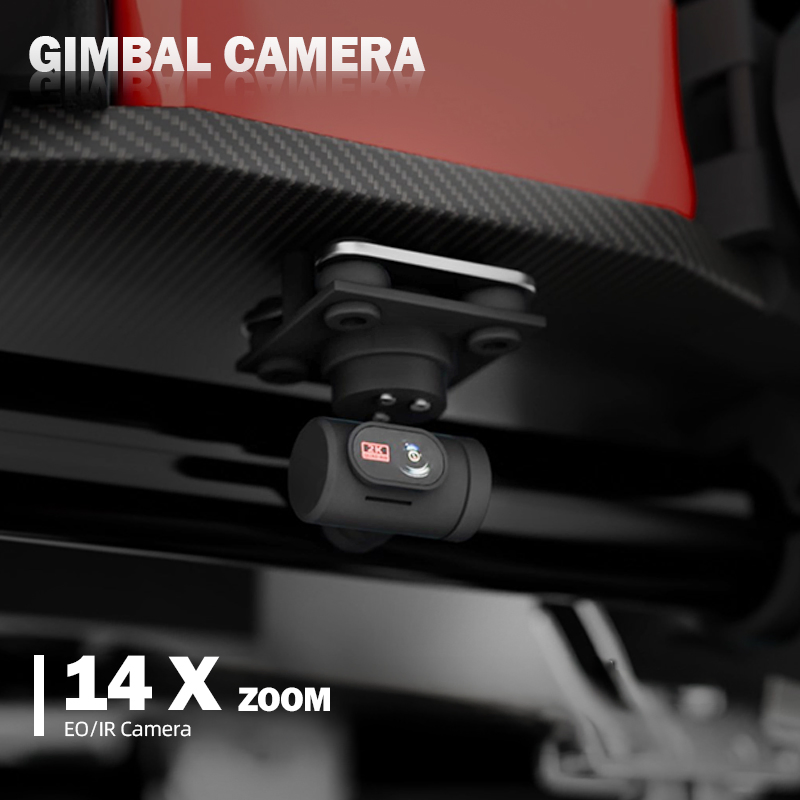

14X Zoom EO/IR Camera: High-precision imaging for detecting heat signatures and identifying hidden fire sources or trapped individuals.

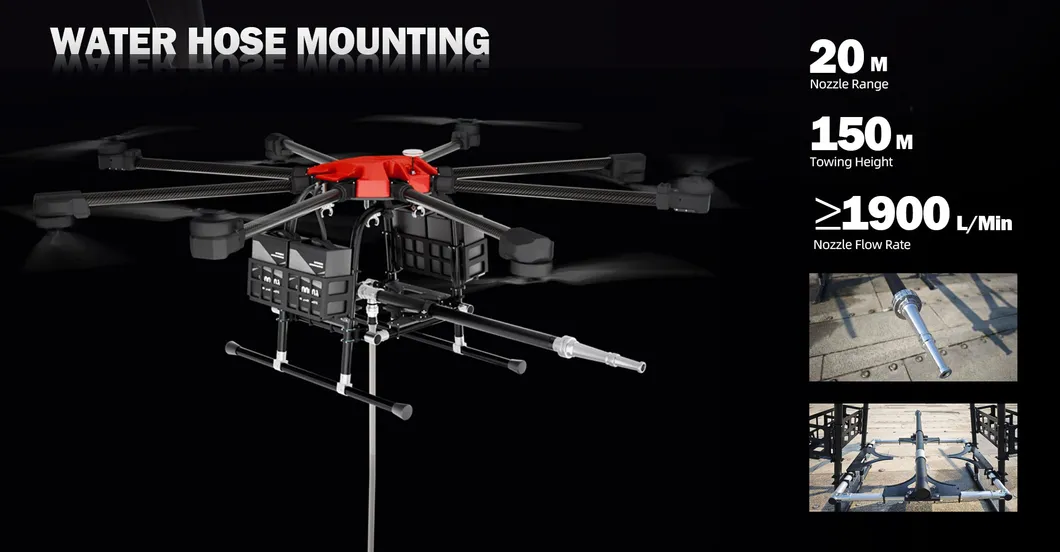

Mounting Parameters

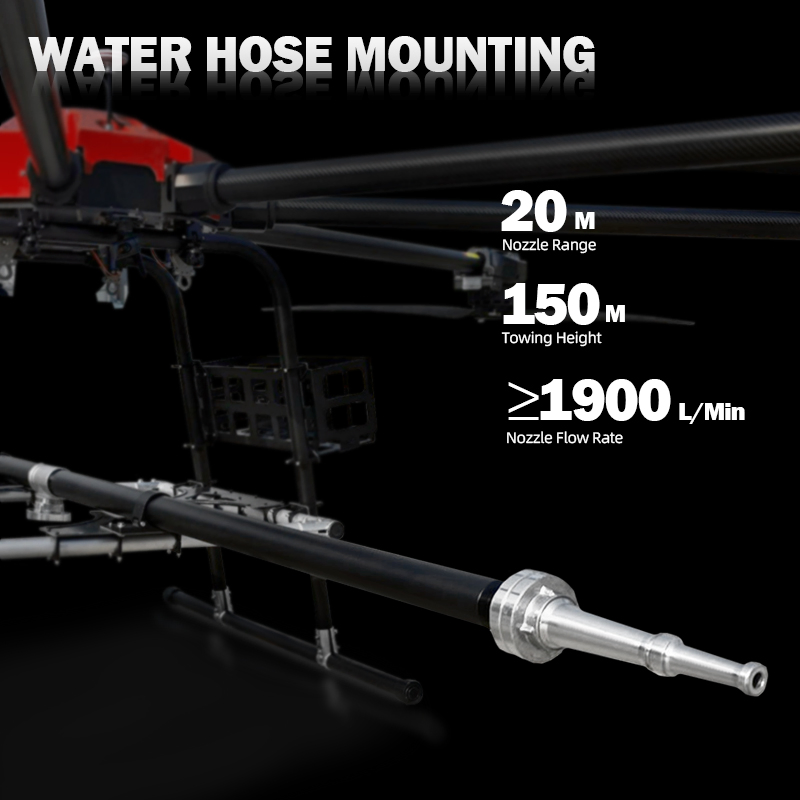

Water Hose Mounting Parameters
Hose Diameter50mm
Nozzle Length3 m
Nozzle Range20m
Nozzle Flow Rate≥1900 L/min
Towing Height150m
Fire Extinguisher Bomb
Fire-Extinguisher Bomb Parameters
Bomb Weight≤ 23kg
Net Agent Weight≥ 25 kg
Agent TypeABC dry chemical or water-based
Dispersion Radius≥ 5 m
Coverage Area≥ 50 m²
Safety Arming Height≥ 50 m
Detailed Views

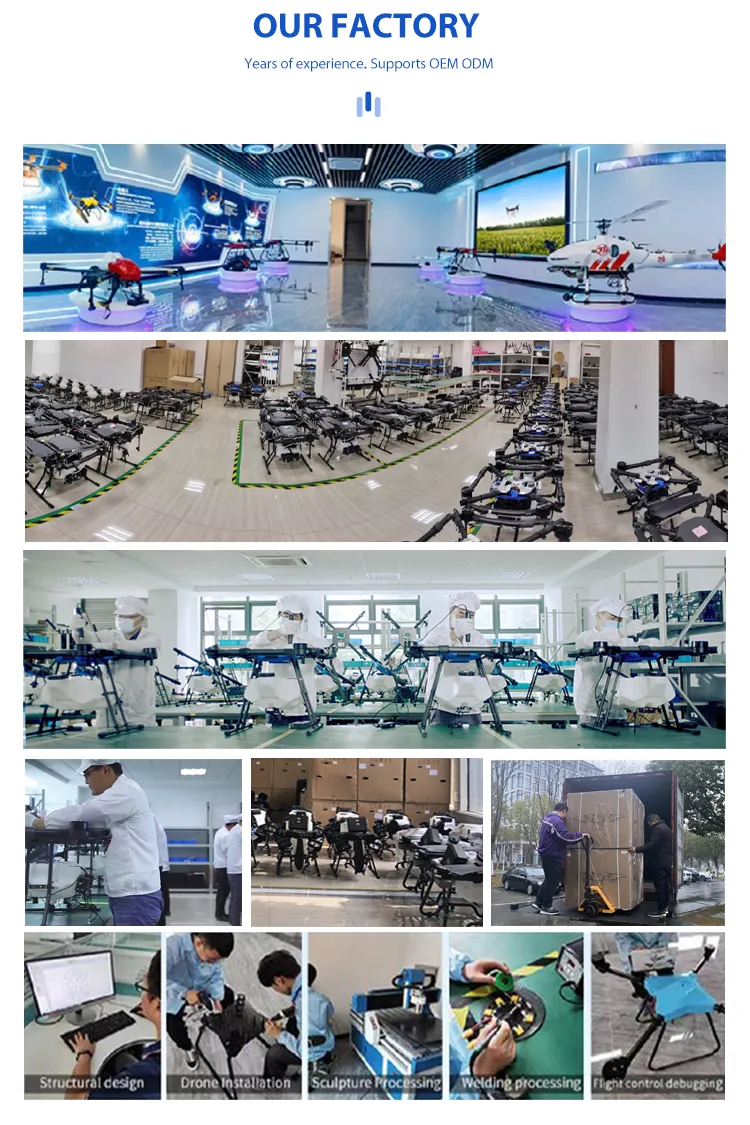

Detail 1
Detail 2
Detail 3
Frequently Asked Questions (FAQ)
1. What is the maximum payload of the HZH XF120 drone?
The HZH XF120 drone features an impressive maximum payload capacity of 150kg, making it suitable for heavy-duty fire extinguishing missions.
2. How long can the drone operate on a single charge?
The drone provides a maximum flight time of up to 45 minutes, allowing for sustained firefighting operations without frequent battery changes.
3. What types of fire extinguishing agents can it use?
It is versatile and can utilize either ABC dry chemical agents (for Class A, B, and C fires) or water-based agents for cooling and smothering Class A fires.
4. Is the drone capable of working in rainy or windy conditions?
Yes, the drone has an IP67 waterproof rating and is designed to resist winds up to level 7, ensuring reliability in harsh weather.
5. How high can the drone reach for high-rise firefighting?
The drone has a remarkable maximum flight altitude of 500 meters, allowing it to effectively target high-rise buildings and skyscraper fires.
6. How quickly can the drone be deployed at a fire scene?
The HZH XF120 is designed for rapid response and can be fully assembled and ready for flight within just 5 minutes of arrival.
