Firefighting Remote Control Uav Bomberos RC GPS Long Flight Drones PARA Apagar Incendios Industrial Inspection Fire Fighting Drone with IR Eo Gimbal Camera

1 / 5

Firefighting Remote Control Uav Bomberos RC GPS Long Flight Drones PARA Apagar Incendios Industrial Inspection Fire Fighting Drone with IR Eo Gimbal Camera

Customization:	Available
Height:	Ultra High-Altitude
Operating Radius:	Remote

Send Inquiry

Product Description

📊

Overview & Basic Info

Model: HZH XF120

Size: Large

Usage: Firefighting

Structure: Wing UAV

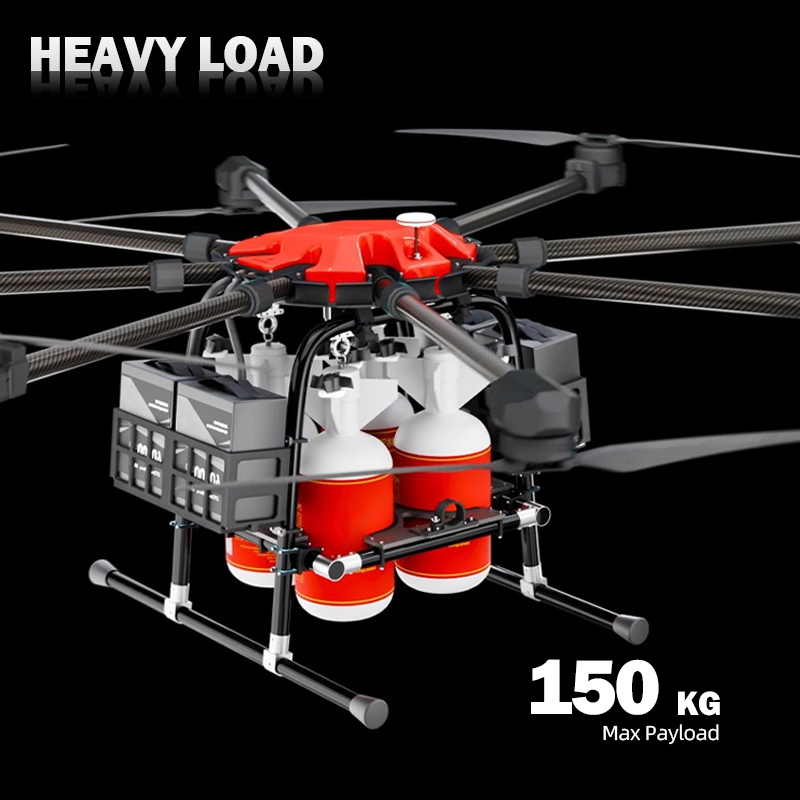

Maximum Load: 150 Kg

Max takeoff Weight: 257.8 Kg

Max Flight Altitude: 500 M

Flight Time: 45 Min

Axis: 8

Dimensions: 4605*4605*990mm

🔥

Product Description

150kg Large Capacity Extinguisher Bomb & Water Gun Hose Multi-Mounting Firefighting Drone

HZH XF120 Technical Specifications
Dimensions (Unfolded)	46054605990mm
Max. Payload	150kg
Max. Takeoff Weight	257.8 kg
Max. Flight Altitude	500 M
Max. Altitude Limit	4500 m
Operation Height	≤ 1000m
Max. Flight Time	45 minutes

🏢

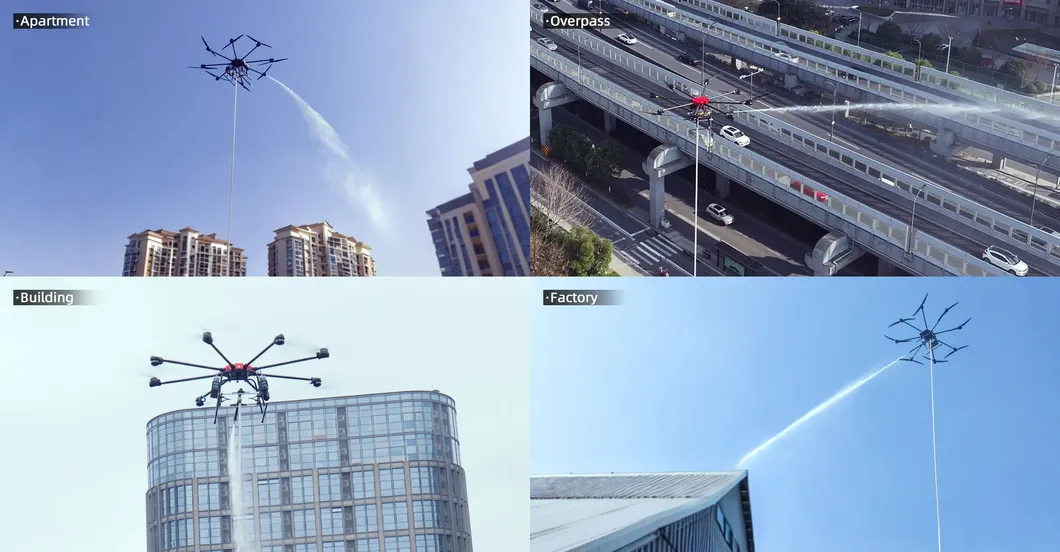

Application Scenarios

Apartments

In densely populated complexes, drones quickly assess scales and spread, providing real-time footage and high-pressure water cooling to prevent vertical spread and enhance resident safety.

Overpasses

Drones reach vehicle accidents or hazardous spills rapidly, deploying extinguishing bombs precisely while bypassing road congestion and protecting infrastructure.

Commercial Buildings

Ascend rapidly to upper stories, bypassing blocked stairwells to drench fires with continuous flow, curbing progression and protecting critical assets.

Factories

Deploy extinguishing bombs for flammable liquids or high-volume water spraying for machinery, safeguarding industrial operations and reducing downtime.

⚙️

Core Features & Configuration

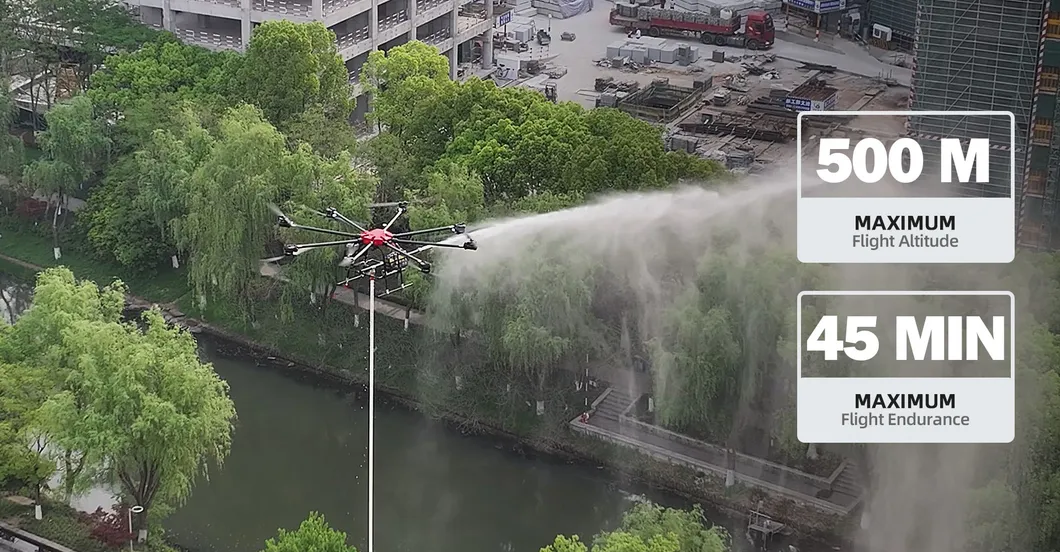

Exceptional Vertical Reach: Boasting a 500-meter maximum altitude, it accesses skyscrapers and tall industrial structures with ease.
Prolonged Mission Endurance: 45-minute flight time allows for sustained missions without frequent recharging during large-scale blazes.
Robust Composite Structure: Constructed from 7075 aerospace aluminum and carbon fiber for optimal durability and agility.
Superior Waterproof & Wind Resistance: IP67 waterproof rating and capability to resist winds up to level 7 for operations in harsh conditions.
Rapid Deployment: Modular design allows full assembly and operation in a mere 5 minutes.

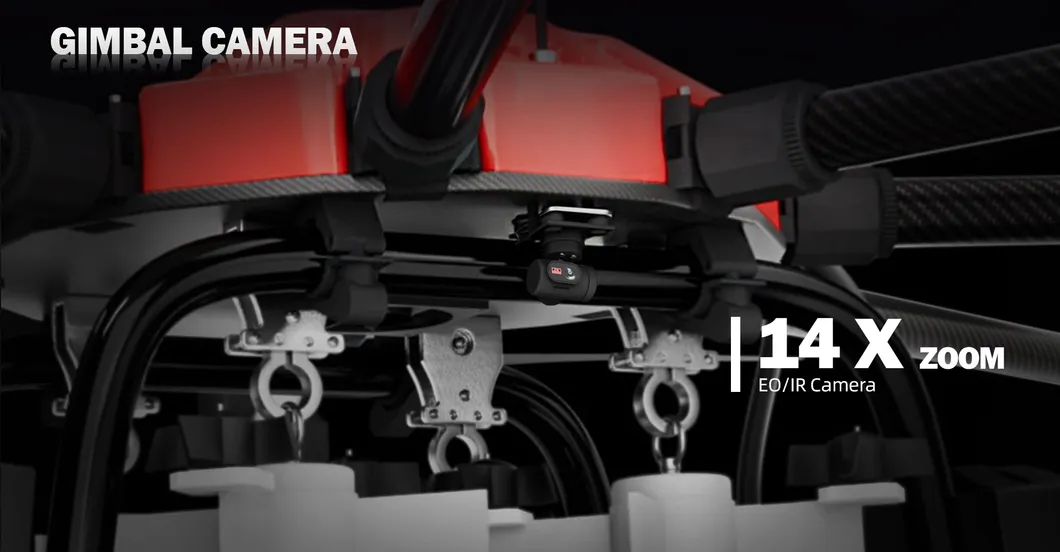

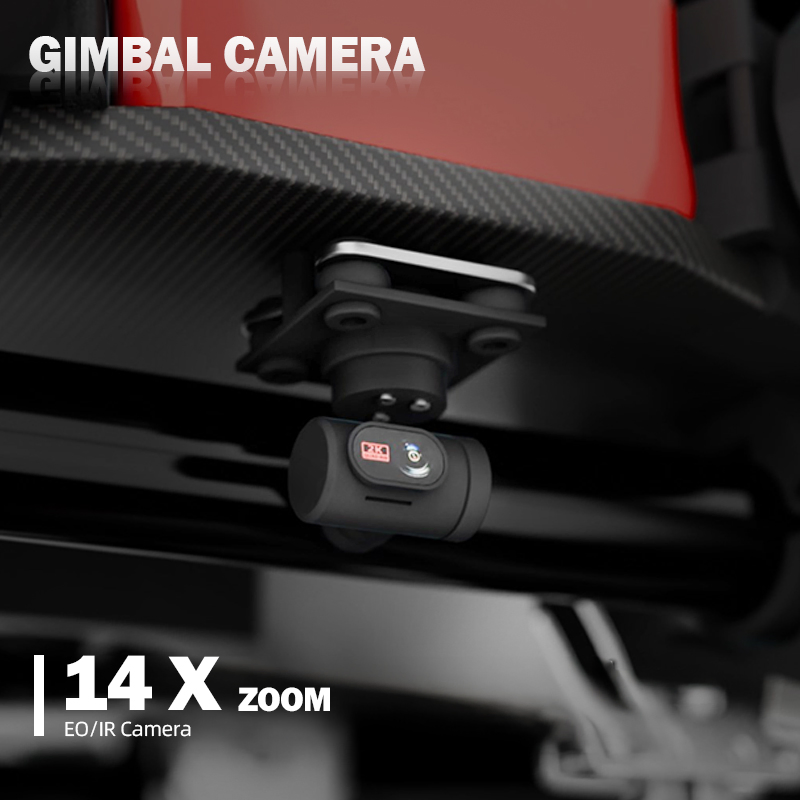

High-Precision Imaging: Outfitted with a 14X Zoom EO/IR camera for visible light and heat signature detection.

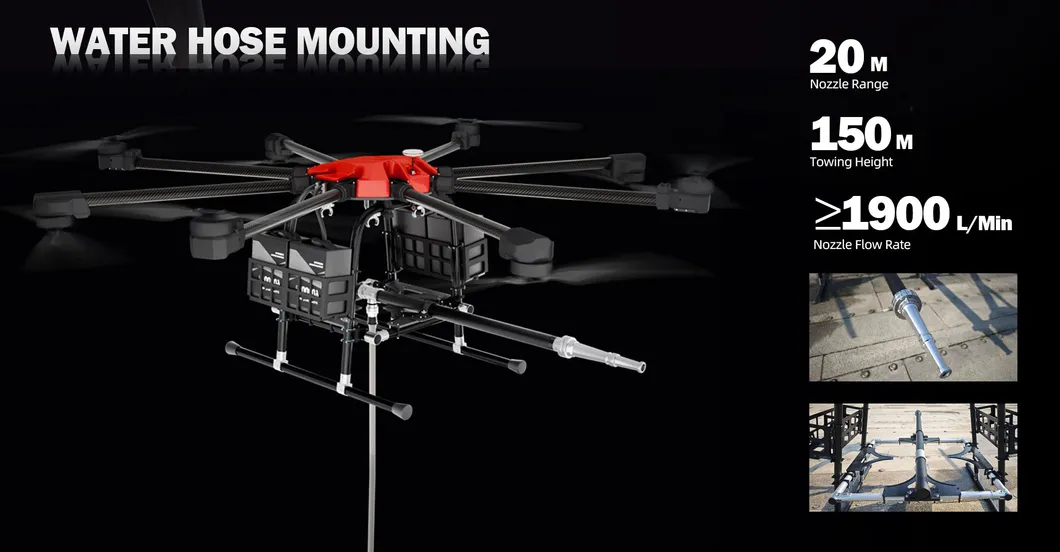

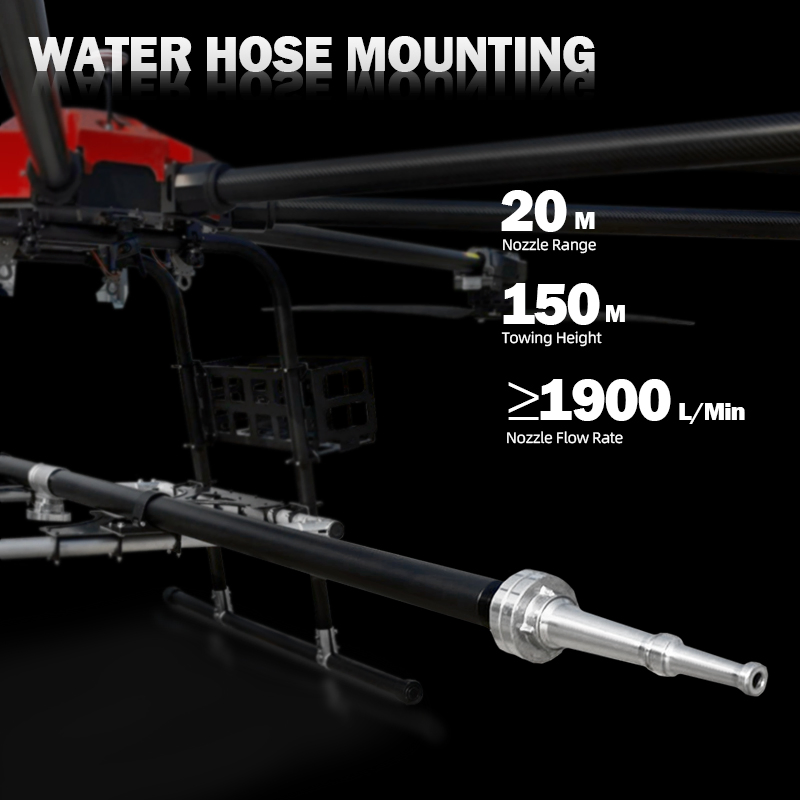

Water Hose Mounting Parameters

Hose Diameter	50mm	Nozzle Length	3m
Nozzle Range	20m	Flow Rate	≥1900L/min
Towing Height	150m

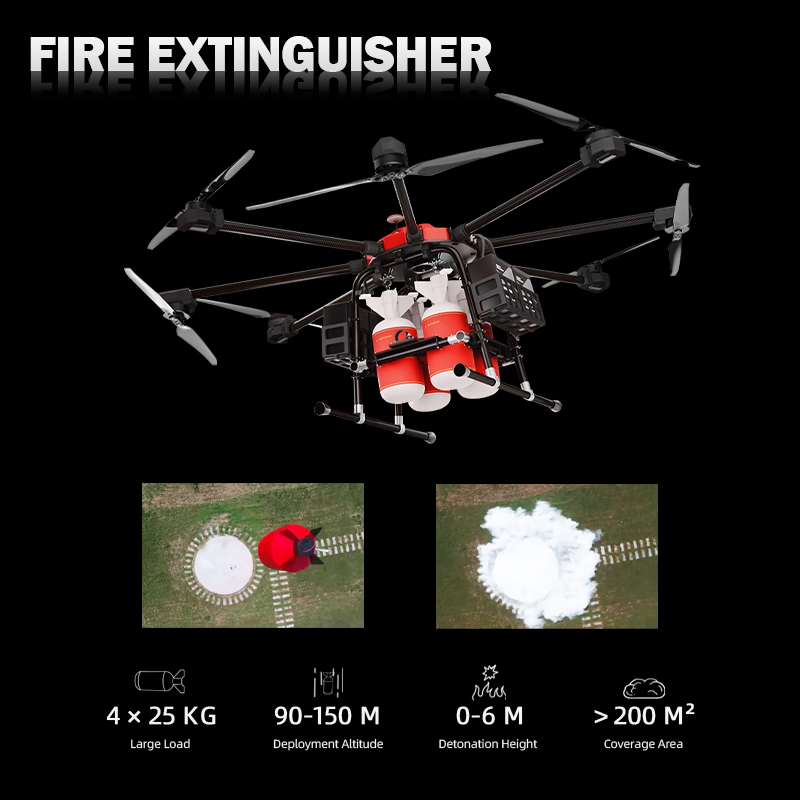

Fire-extinguisher Bomb Parameters

Caliber	≤ φ 260 mm	Total Weight	≤ 23kg
Agent Type	ABC dry chemical / Water-based	Dispersion Radius	≥ 5 m
Coverage Area	≥ 50 m²	Safety Radius	≥ 20 m
Detonation	Radio Proximity / Impact detonation

Why Choose Our Solutions

Wide range of drone products to meet diverse firefighting requirements.
Strong R&D team constantly improving technology and mission success rates.
Competitive price advantage helping you save costs while increasing efficiency.
Commitment to social responsibility and high-quality sustainable solutions.

❓

Frequently Asked Questions

Q1: What is the maximum payload and flight time of the HZH XF120?

The drone supports a maximum payload of 150kg and can fly for up to 45 minutes on a single mission.

Q2: How high can the firefighting drone operate?

It has a maximum flight altitude of 500 meters, making it ideal for high-rise apartment and skyscraper firefighting.

Q3: What extinguishing agents can be used?

The system is versatile and can deploy either ABC dry chemical agents or water-based extinguishing agents.

Q4: How quickly can the drone be deployed at a fire scene?

Thanks to its modular design, the drone can be fully assembled and ready for flight in just 5 minutes.

Q5: Can the drone operate in bad weather?

Yes, it features an IP67 waterproof rating and can resist winds up to level 7, ensuring reliability in harsh environments.

Q6: What is the effective range of the water nozzle?

The nozzle has a projection range of 20 meters with a flow rate of ≥1900 liters per minute.
