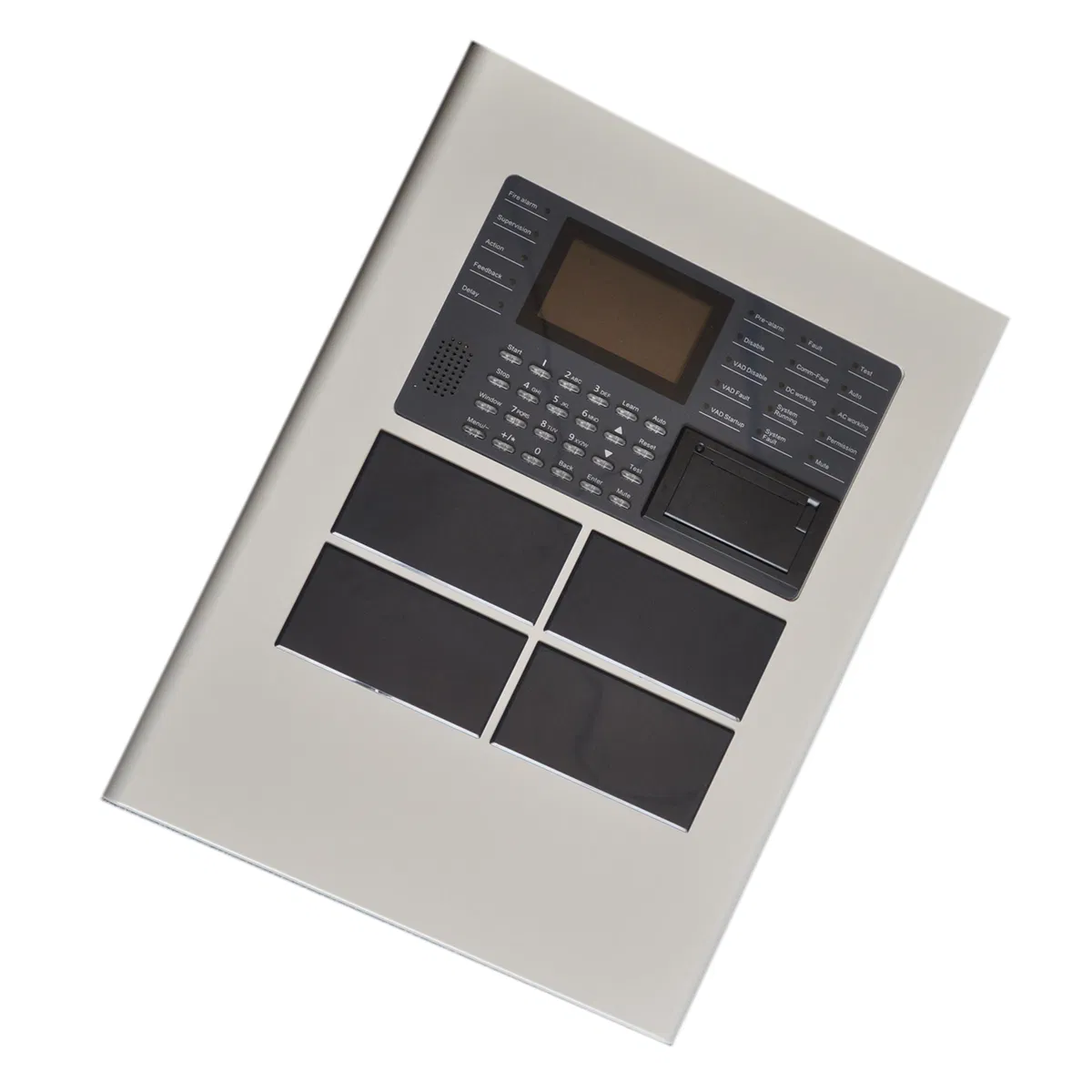

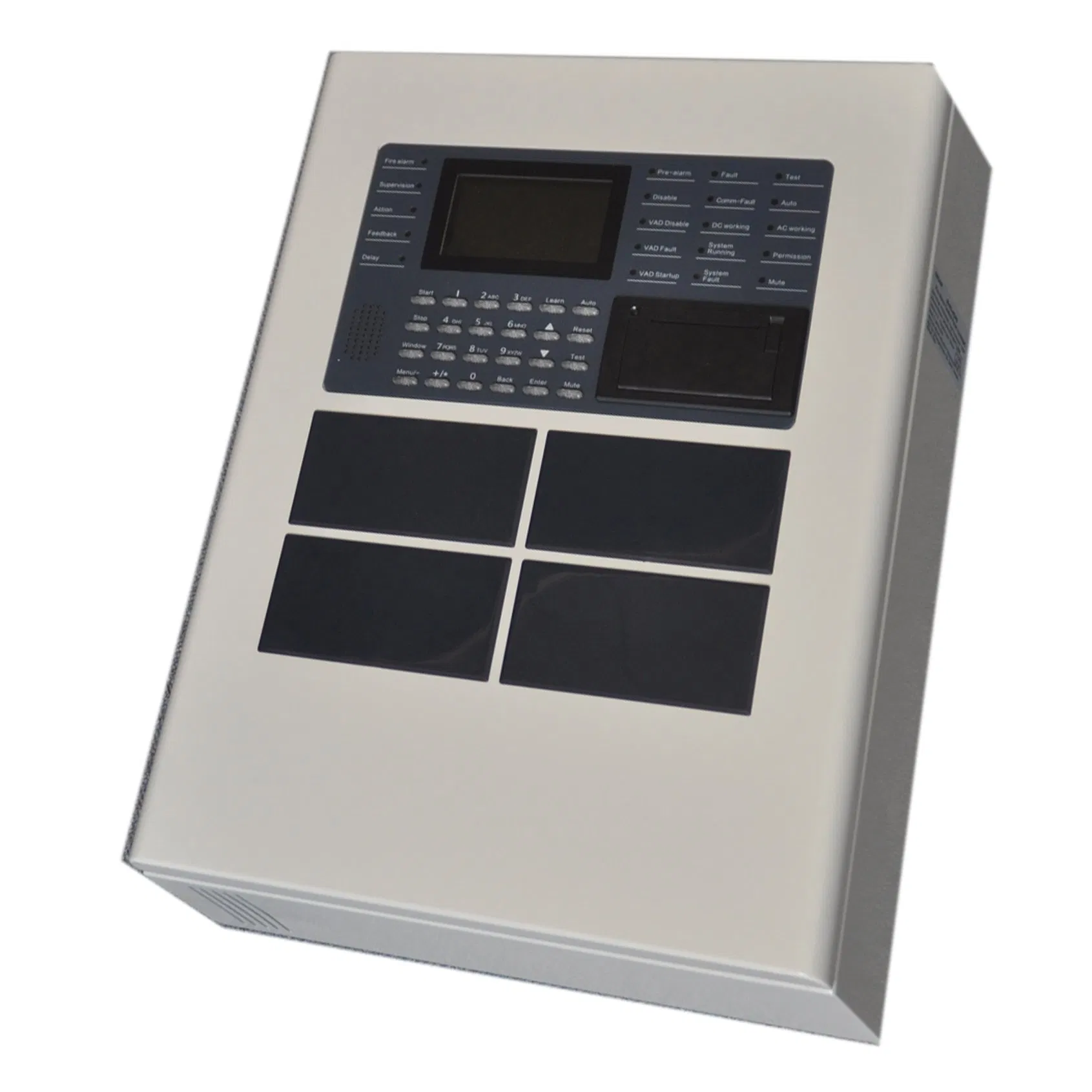

The Fire Alarm Control Panel (F.A.C.P) integrates various functions such as fire alarm, linkage control, supervision alarm, and network communication. It meets standards GB4717-2005 and GB16806-2006. It is widely used in large, medium, and small-sized fire alarm engineering such as hotels, office buildings, residential buildings, gymnasiums, and libraries.

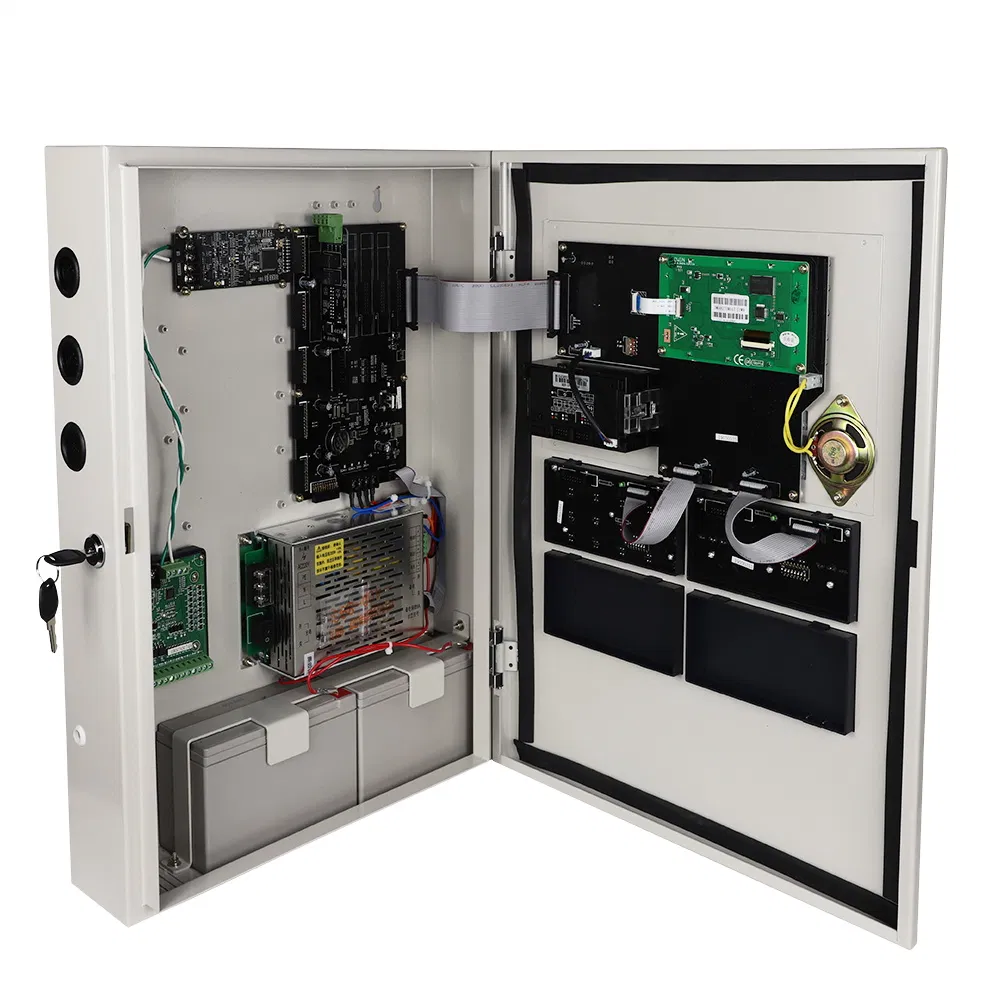

Utilizing high-performance microprocessors and intelligent digital bus technologies, it collects real-time signals for smoke and temperature to conduct fire judgment. It supports modular structure, strong anti-interference ability, and stable performance with a low false alarm rate. The English system features a menu guide for easy operation.
| Specifications | JB-BG-SCM5 | JB-LG-SCM7 | JB-QT-SCM7 |
|---|---|---|---|
| AC Input Voltage | 220V±10%, 50Hz±1% | 220V±10%, 50Hz±1% | 220V±10%, 50Hz±1% |
| AC Input Power | 180W | ||
| Devices (Max) | 1800 | 3800 | 3800 |

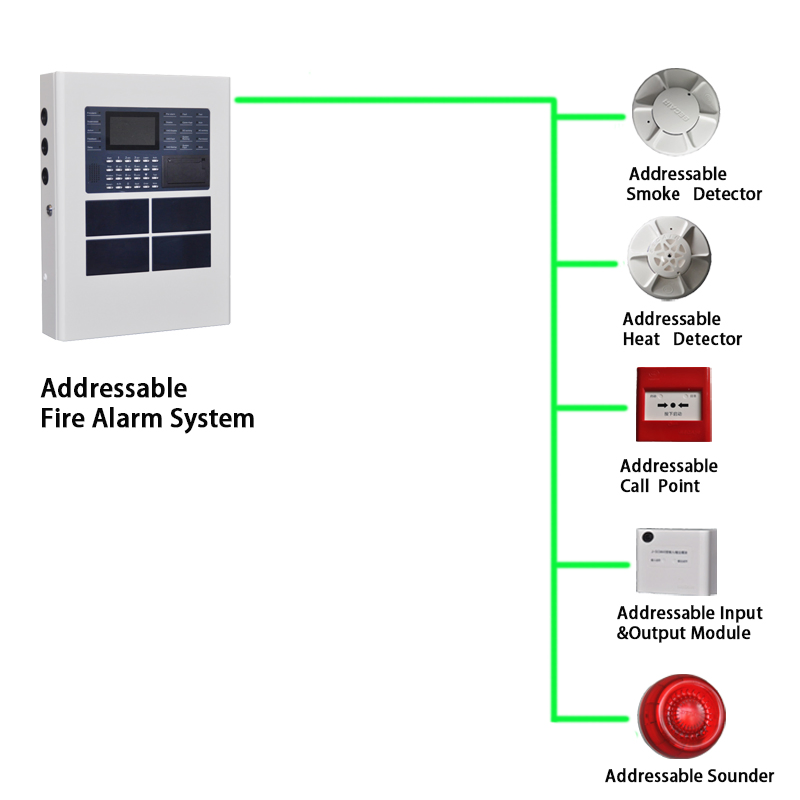

| Wiring Method | Two-wire bus (non-polarized) | ||
| DC Battery | DC24V/7Ah | DC24V/17Ah | DC24V/17Ah |
| Max Loop Length | 5km (based on ZR-RVS-2*1.5mm²) | ||
| Dimensions (WxHxD) | 380 x 510 x 100mm | 550 x 1700 x 450mm | 1050 x 1349 x 910mm |
It is ideal for fire alarm engineering in hotels, office buildings, residential complexes, gymnasiums, and libraries due to its modular and scalable design.
The system features extremely high-speed bus alarming within 0.3 seconds and linkage response within 0.2 seconds.
The system supports multiple dedicated network interfaces including RS485, RS232, LORA, WIFI, CAN, GPRS, and NB-IoT.
Yes, it features automatic switching to backup batteries. The system also includes under-voltage protection to prevent battery damage from excessive discharge.
Yes, the system features a full English menu guide and a large color LCD with a flat UI design for intuitive operation.
The Black Box automatically stores all historical records including fire alarms, pre-alarms, supervision alerts, linkage actions, faults, and power status for later review.
