Vanguard Lift
Vanguard Lift
Skid loaders, also known as skid-steer loaders or multi-functional engineering machines, are specialized wheeled chassis equipment. They utilize linear speed differences between wheels on either side to achieve agile steering. This equipment is primarily designed for confined workspaces, uneven terrain, and frequently changing work requirements.
Ideally suited for infrastructure construction, industrial applications, dock operations, urban maintenance, livestock management, and airport runway upkeep. They serve as excellent primary or auxiliary equipment for large-scale engineering projects. Models are available in both wheeled and tracked configurations.

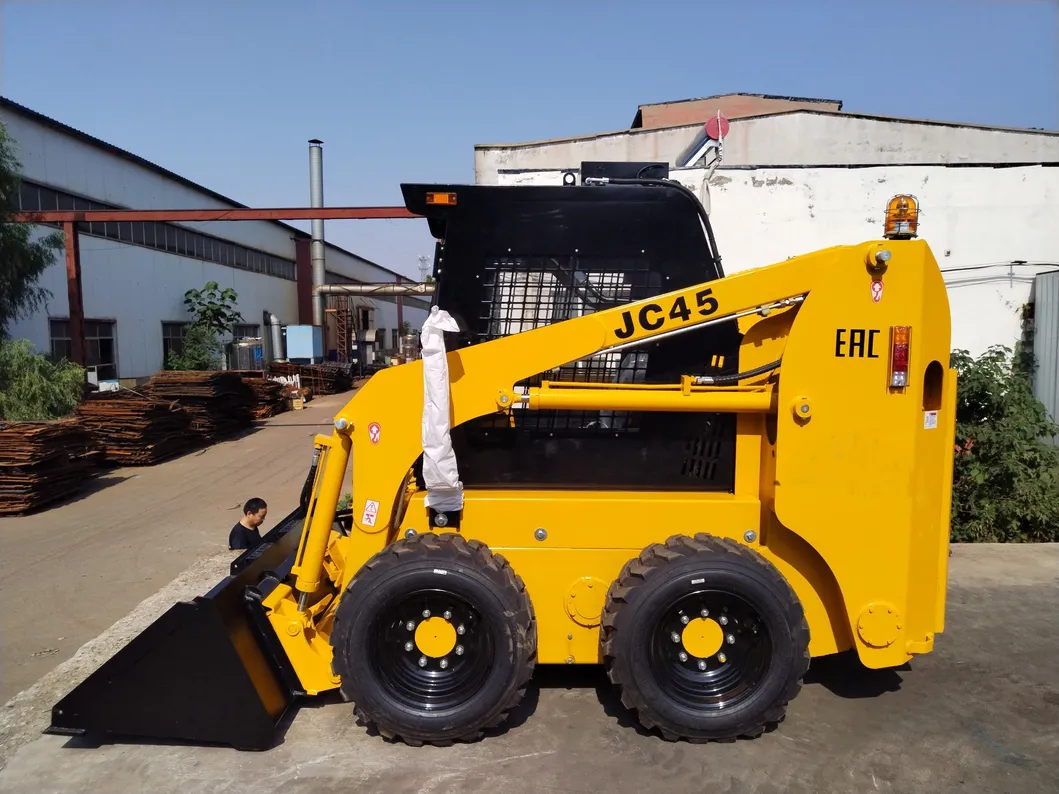

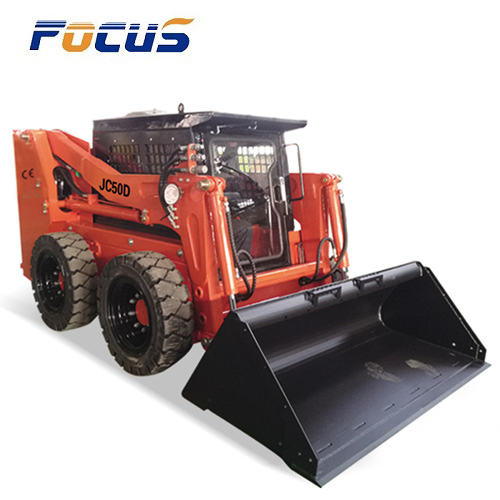

| Model | JC45 | JC60 | JC65G | JC75(65B) | JC100 | JC50D |
|---|---|---|---|---|---|---|
| Operating load (kg) | 700 | 850 | 950 | 1050 | 1200 | 850 |
| Max Speed (km/h) | 12 | 12 | 12 | 12 | 12/18 | 6 |
| Rated flux (L/min) | 75 | 75 | 75 | 80 | 80 | 75 |
| Tire (track) model | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 28*9-15 |
| Rated power (Kw) | 37 | 45 | 55 | 55 | 74 | 45 |
| Self weight bucket (kg) | 3000 | 3200 | 3200 | 3500 | 3550 | 2800 |
| Overall height (mm) | 3980 | 4000 | 4000 | 4070 | 4070 | 3770 |
| Dumping height (mm) | 2380 | 2400 | 2400 | 2450 | 2450 | 2080 |
| Bucket width (mm) | 1720 | 1880 | 1880 | 1880 | 1880 | 1720 |
