Vanguard Lift
Vanguard Lift

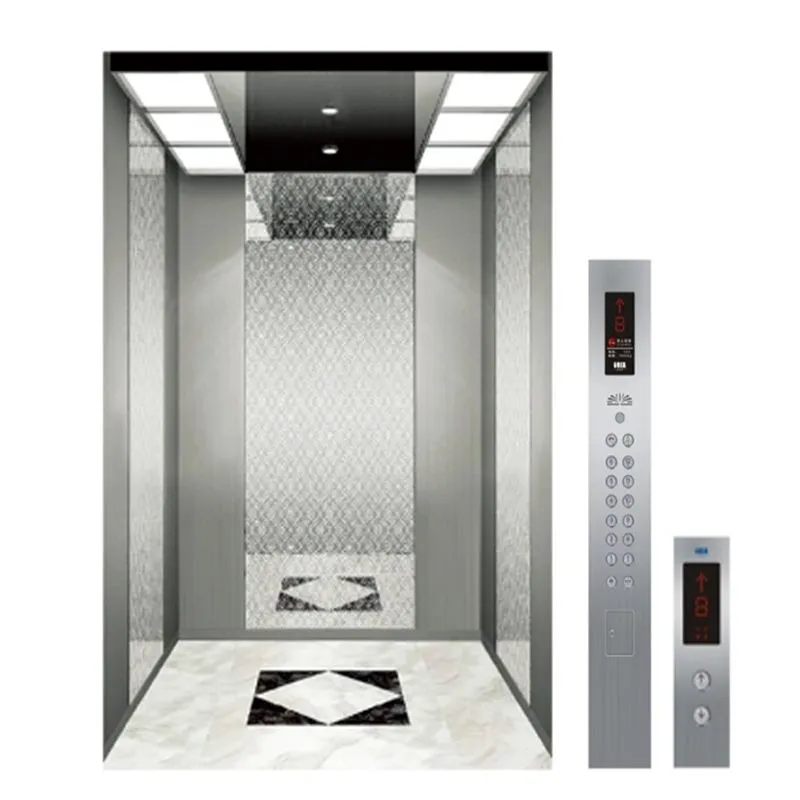

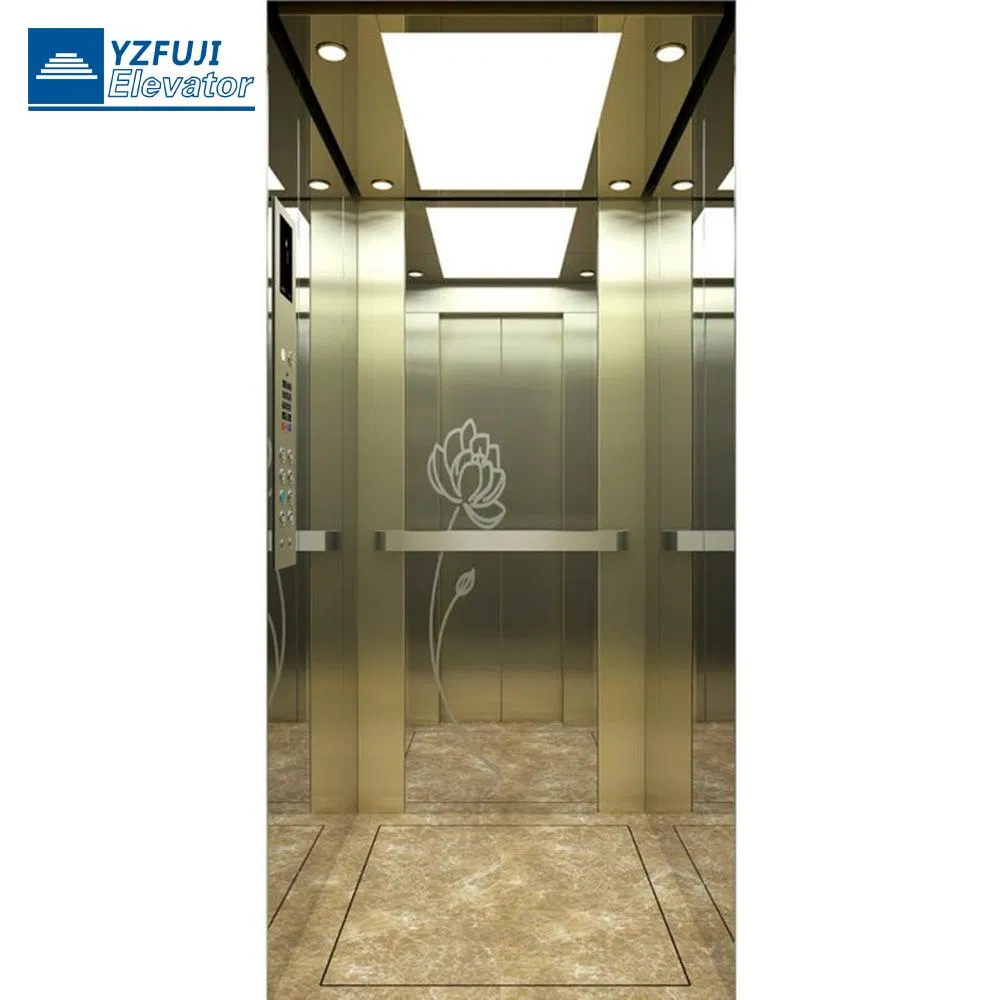

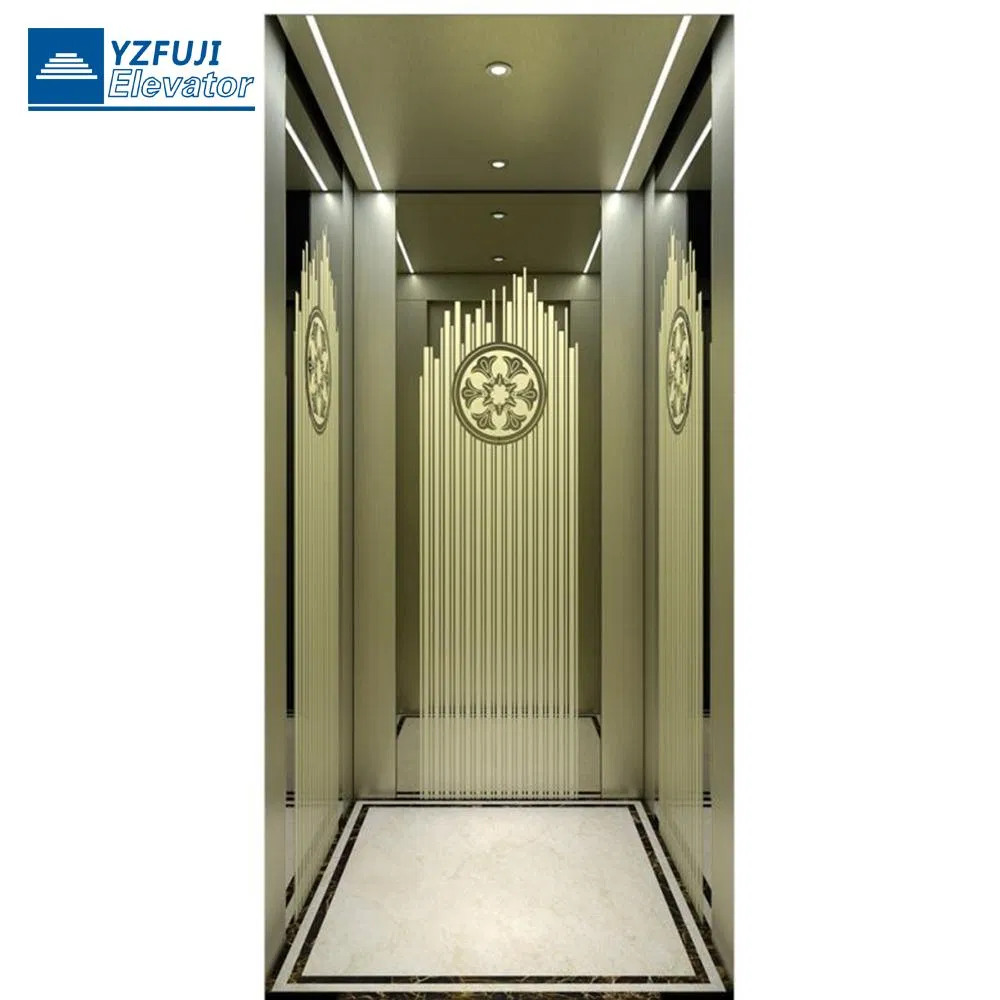

Customization Passenger Elevator
Integrated Architecture: Seamlessly integrates with the building and surrounding environment, adding a moving beautiful landscape to the structure.
Superior Experience: Smooth and comfortable ride with multi-angle landscape views, providing users with enjoyment and novelty.

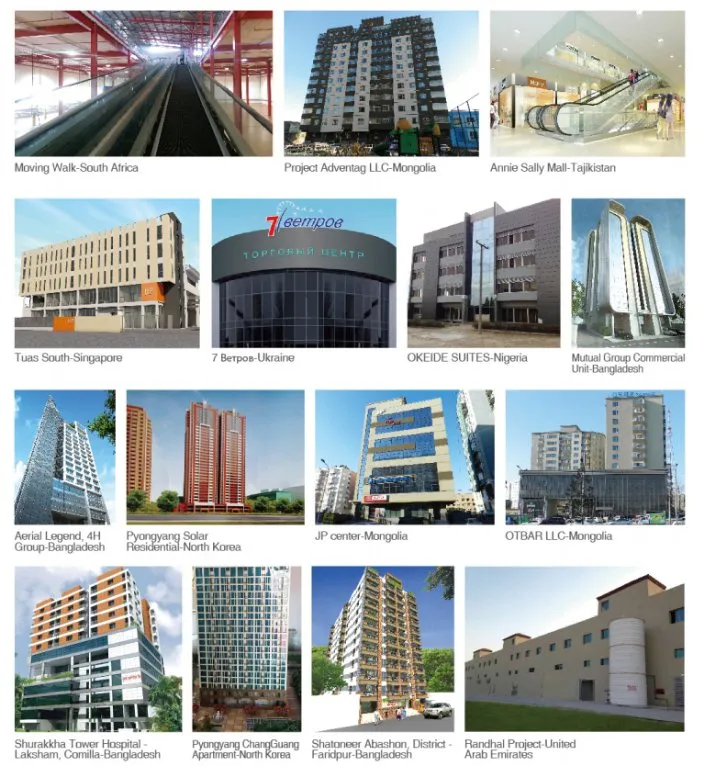

Versatile Application: Widely used in public and private buildings, including shopping malls, hotels, office buildings, and high-end residences.
| Capacity (Kg) | Person | Speed (m/s) | Entrance (mm) | Car Dimension (mm) | Hoistway Dimension (mm) | Pit Depth (mm) | Overhead Height (mm) |
|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 - 1.5 | 700 | 1200x1100 | 1800x1800 | 1500 - 1600 | 4400 - 4500 |
| 630 | 8 | 1.0 - 1.5 | 800 | 1400x1100 | 2000x1800 | 1500 - 1600 | 4400 - 4500 |
| 800 | 10 | 1.0 - 2.0 | 800 | 1400x1350 | 2000x2050 | 1500 - 1800 | 4400 - 4700 |
| 1000 | 13 | 1.0 - 4.0 | 900 | 1600x1450 | 2200x2200 | 1500 - 2000 | 4400 - 5900 |
| 1250 | 16 | 1.0 - 4.0 | 1000 | 1800x1550 | 2400x2300 | 1500 - 2000 | 4400 - 5900 |

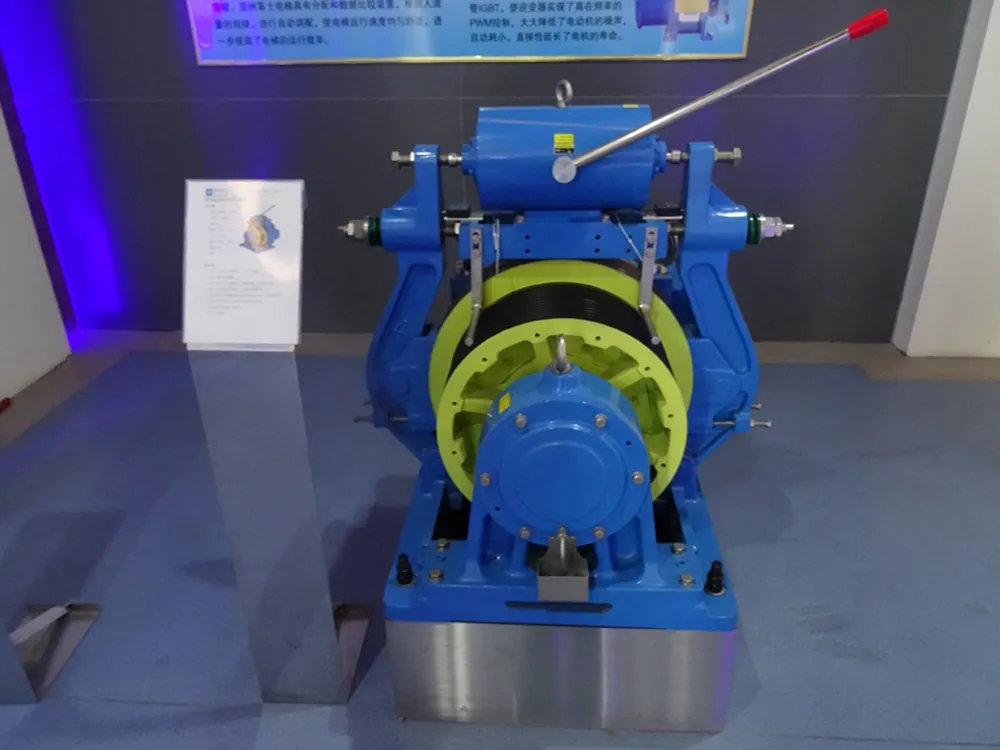

ENERGY-SAVING HOST SYSTEM
Utilizes permanent magnet gearless technology instead of traditional worm types. Realizes miniaturization, light weight, and eliminates mechanical loss, saving more than 60% energy. Achieves environmental protection with no oil, no maintenance, and minimum noise.
VVVF MODULATION TECHNOLOGY
Adopts low noise vector control inverter (VVVF) with advanced IGBT technology. Greatly reduces motor noise and power consumption, directly prolonging motor life while providing a high-performance ride.

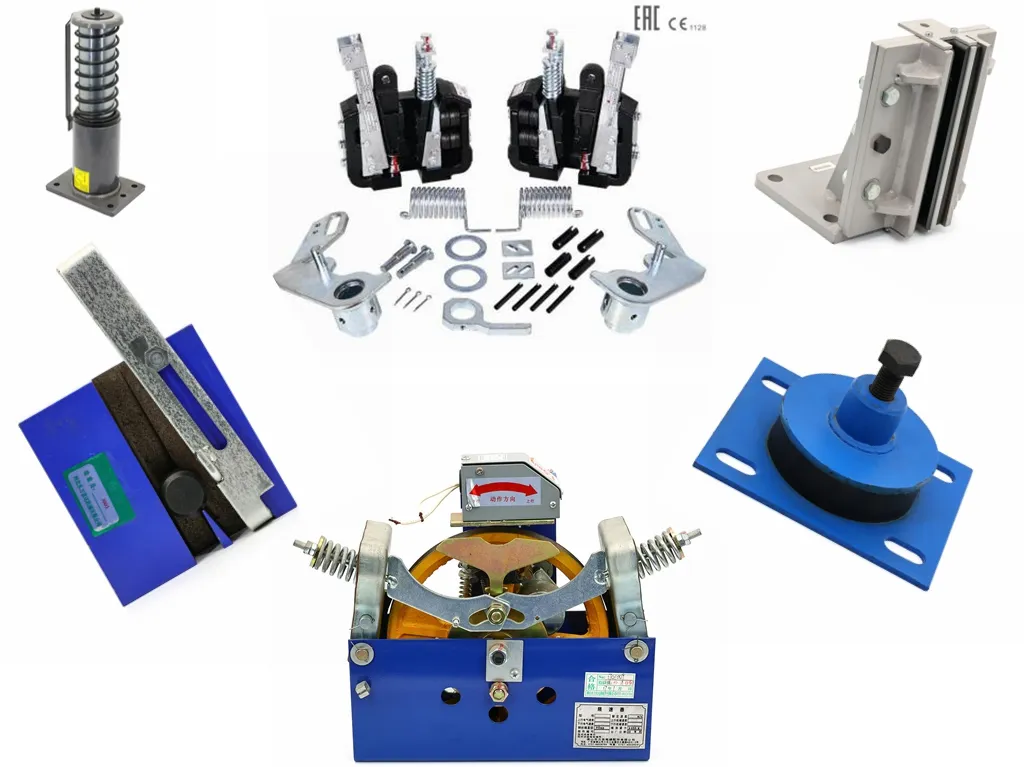

SAFETY COMPONENTS
Equipped with complete brake control components including speed limiters, safety gear, guide shoes, bumpers, and tensioners to ensure long-term normal operation and safety protection.

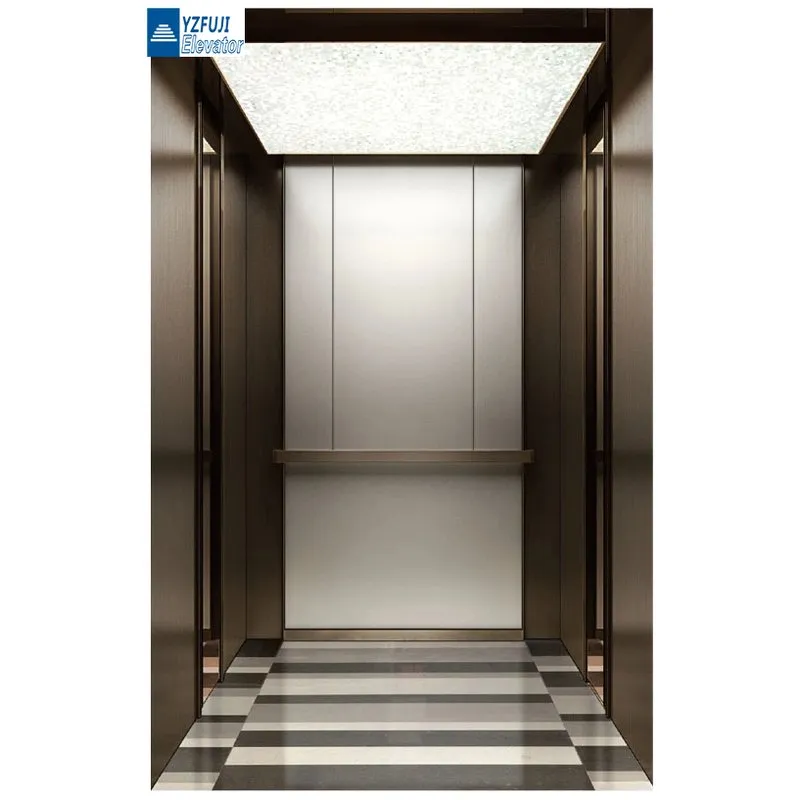

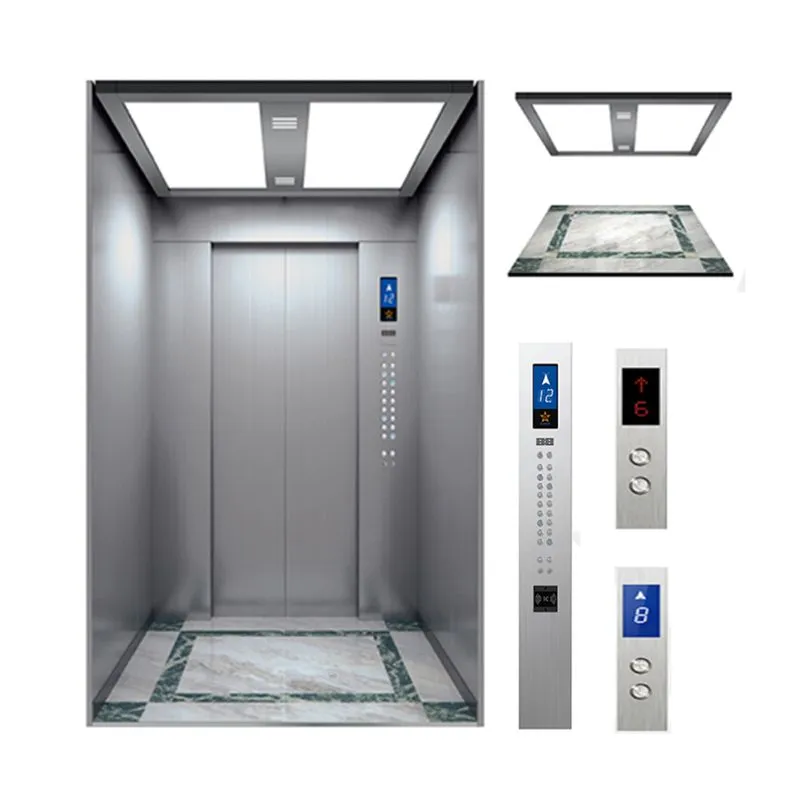

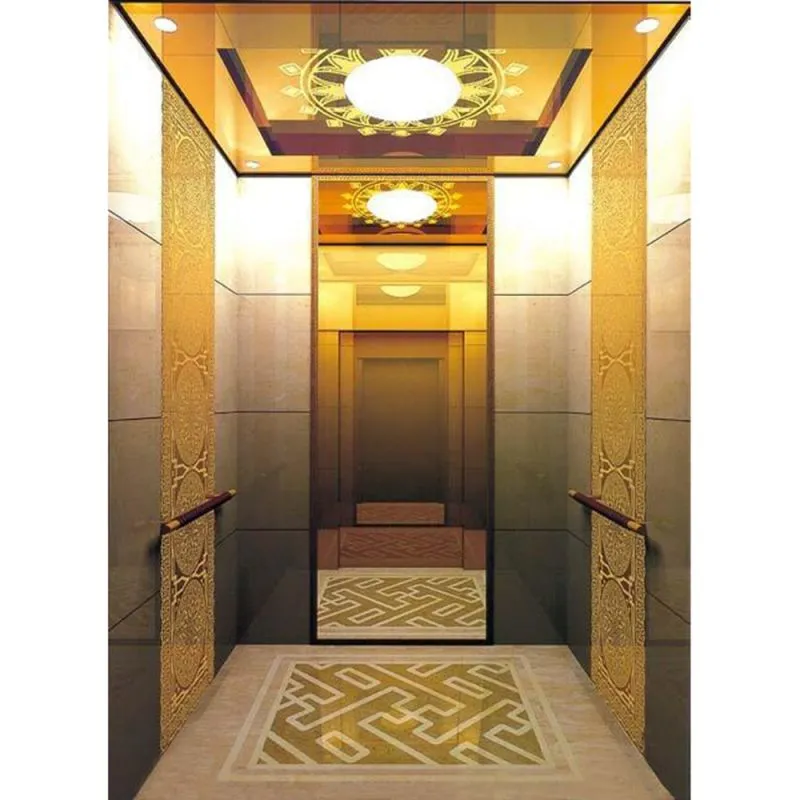

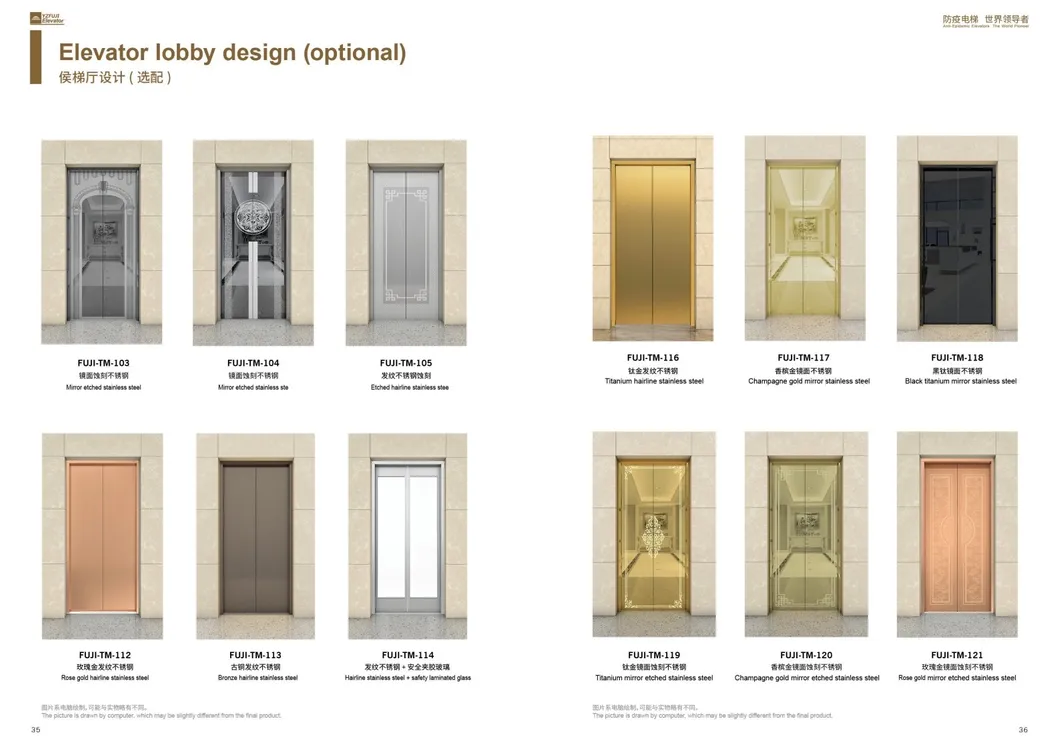

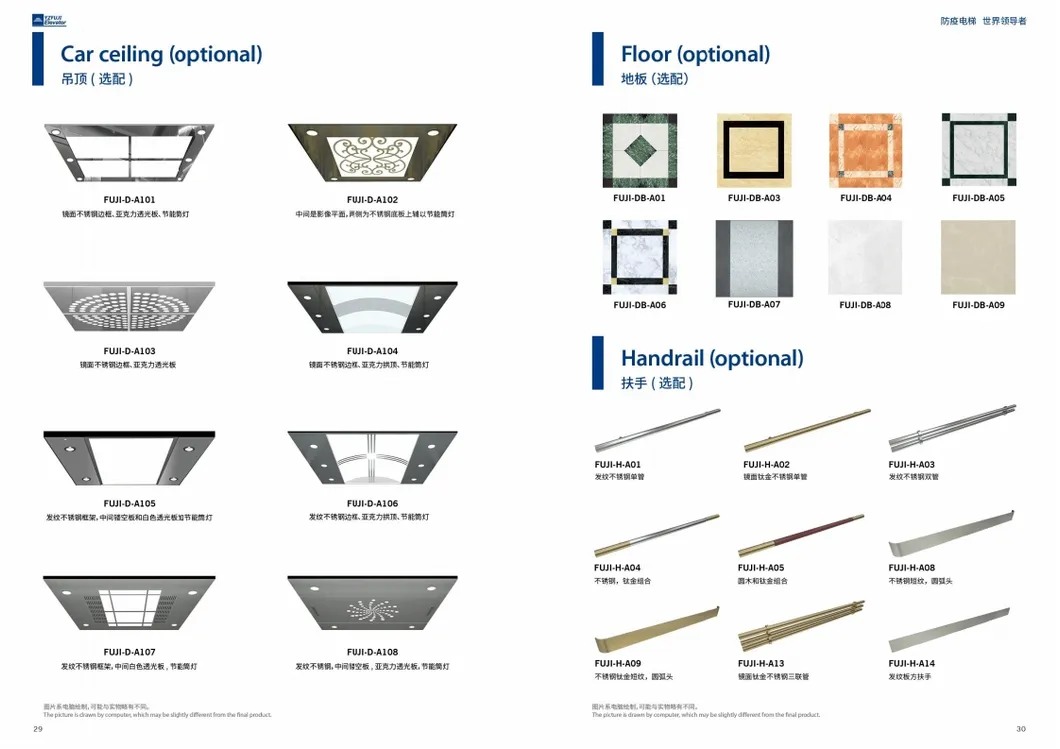

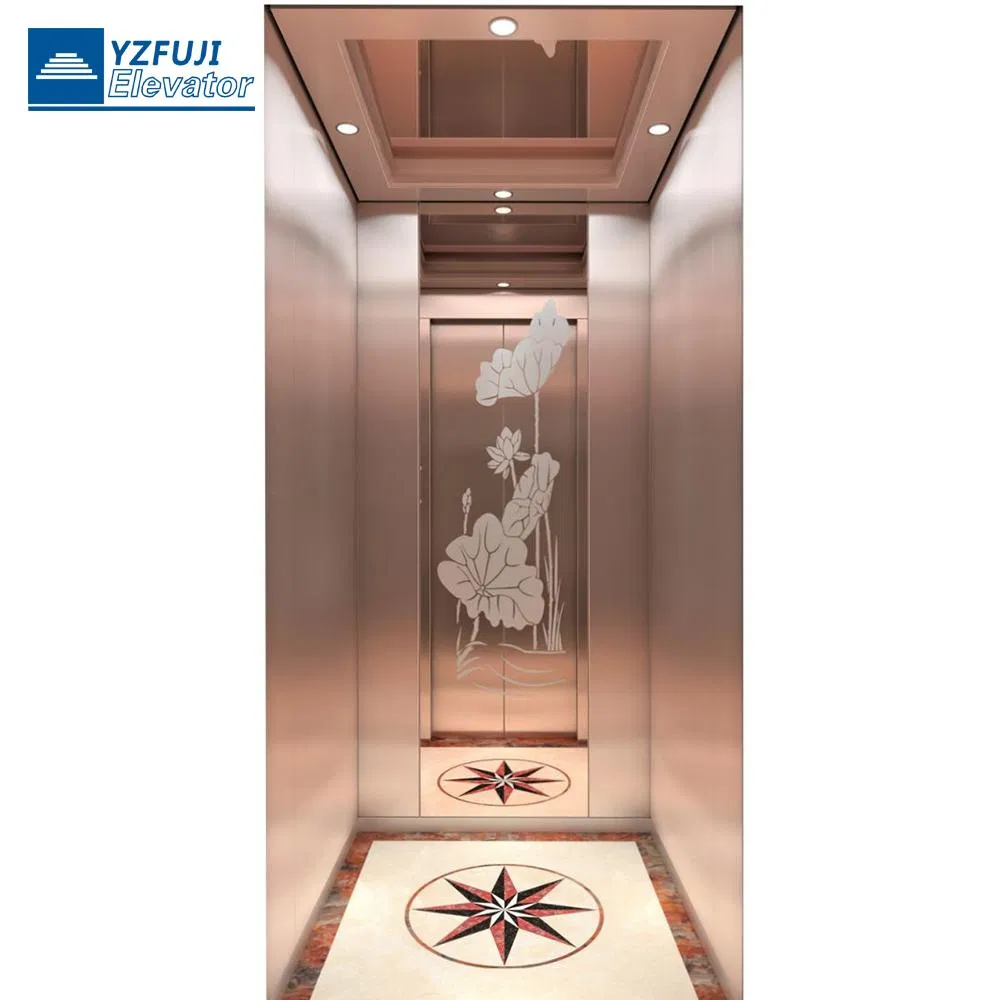

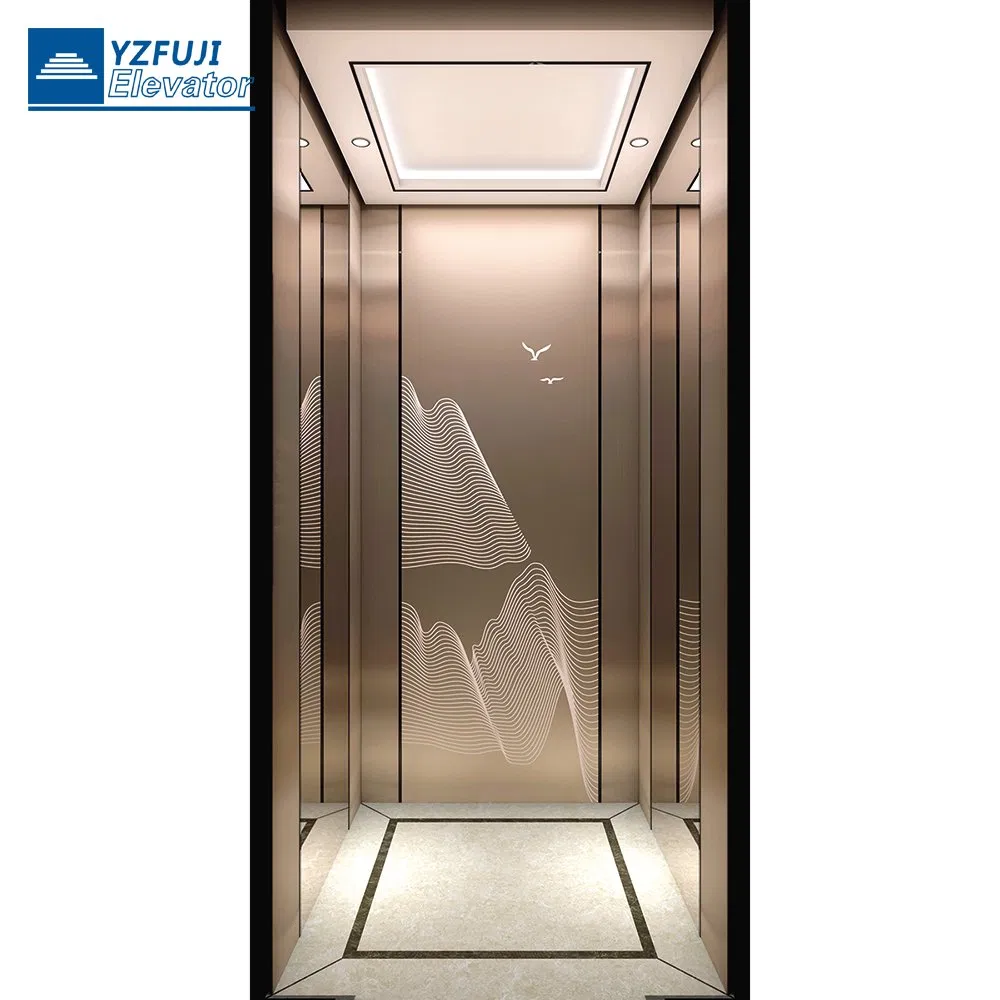

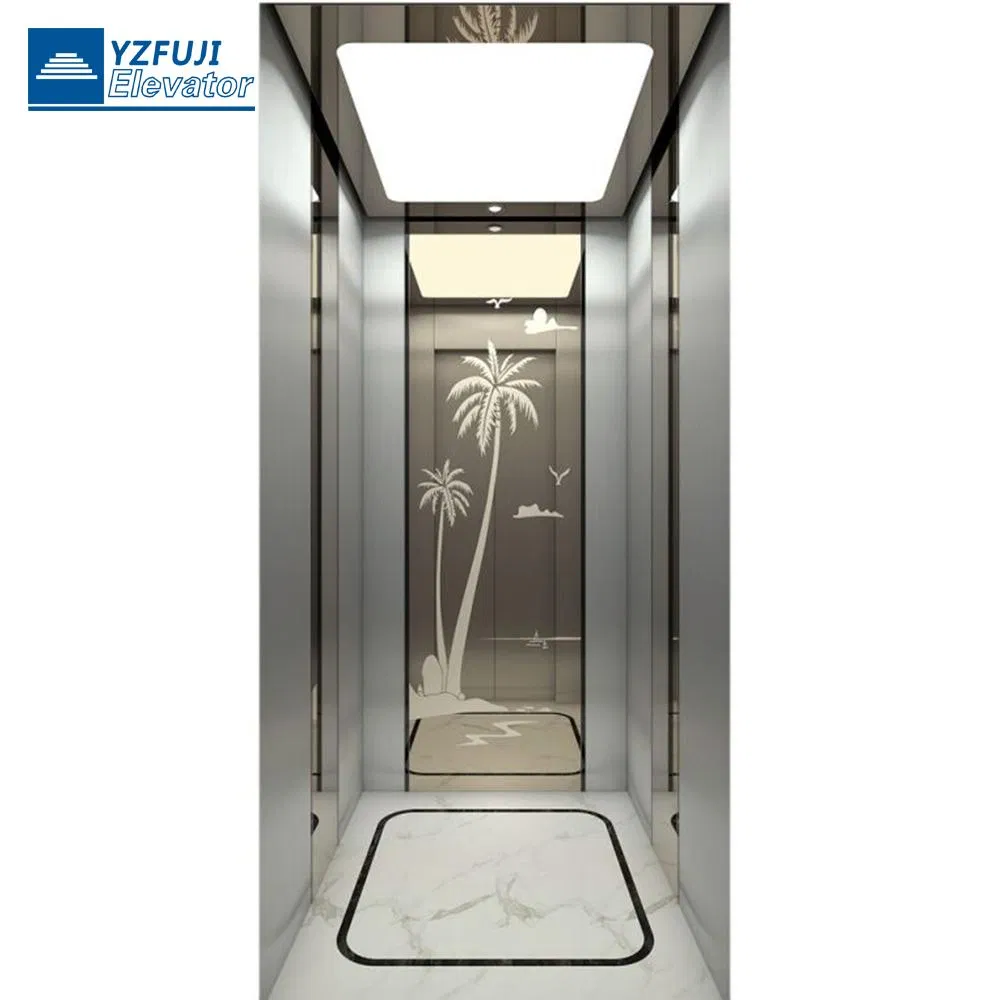

We offer special customized decorations according to requests, including humanized design for COP/LOP and various aesthetic styles.

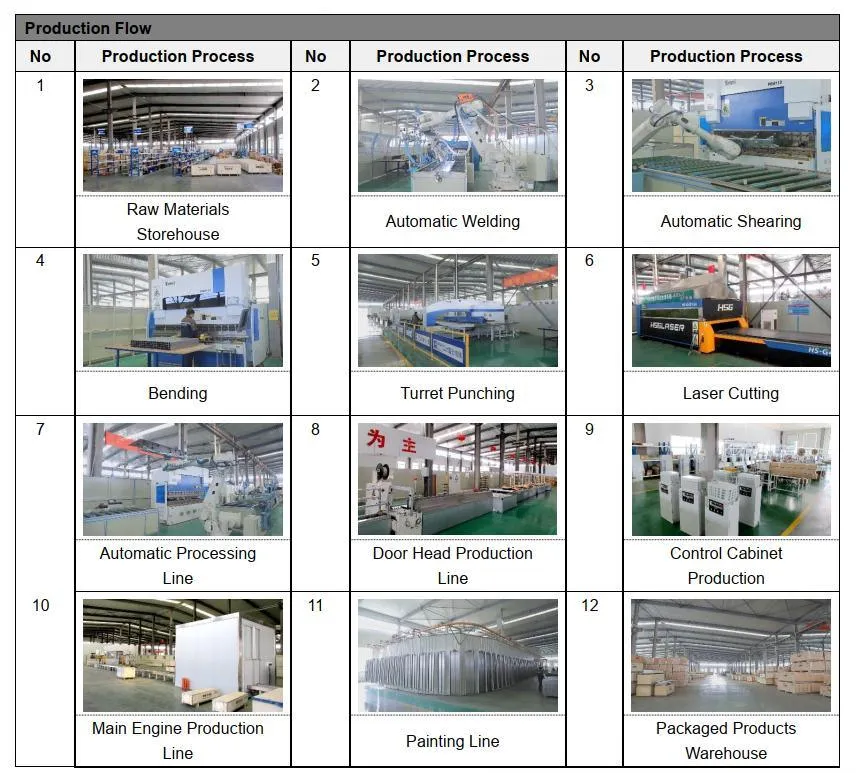

The intelligent production line adopts advanced robotic series, featuring 360-degree rotation from feeding to bending, welding, and gluing. This process ensures high stability and manufacturing accuracy.

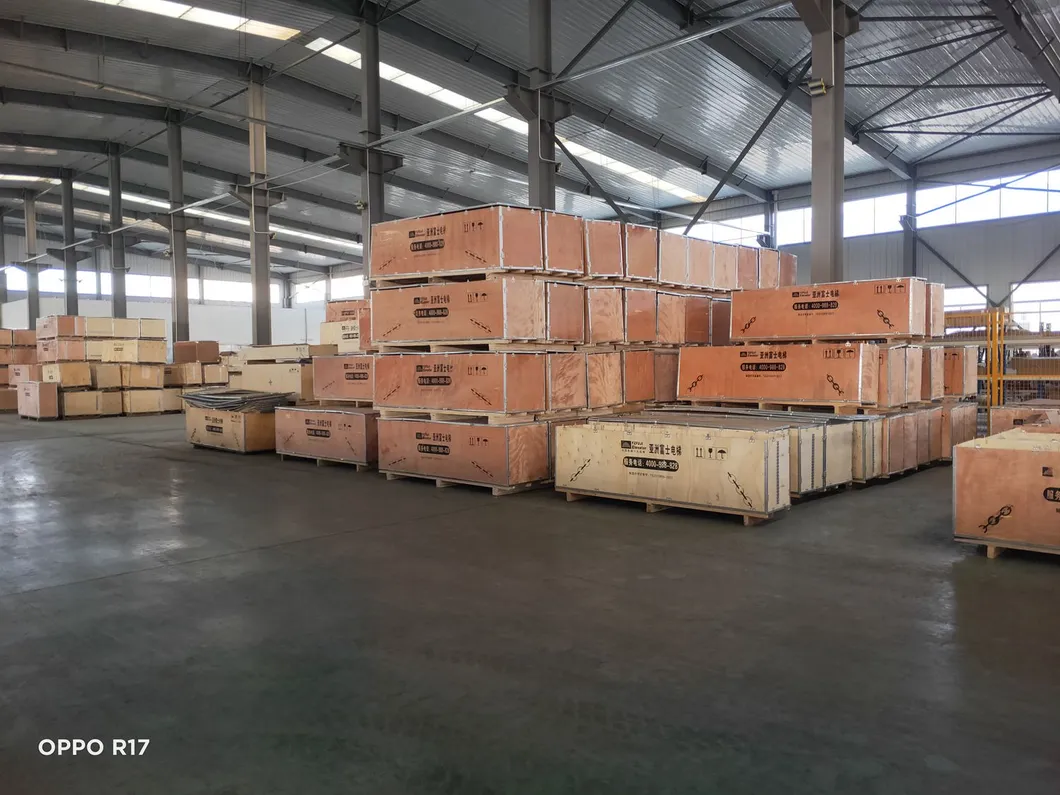

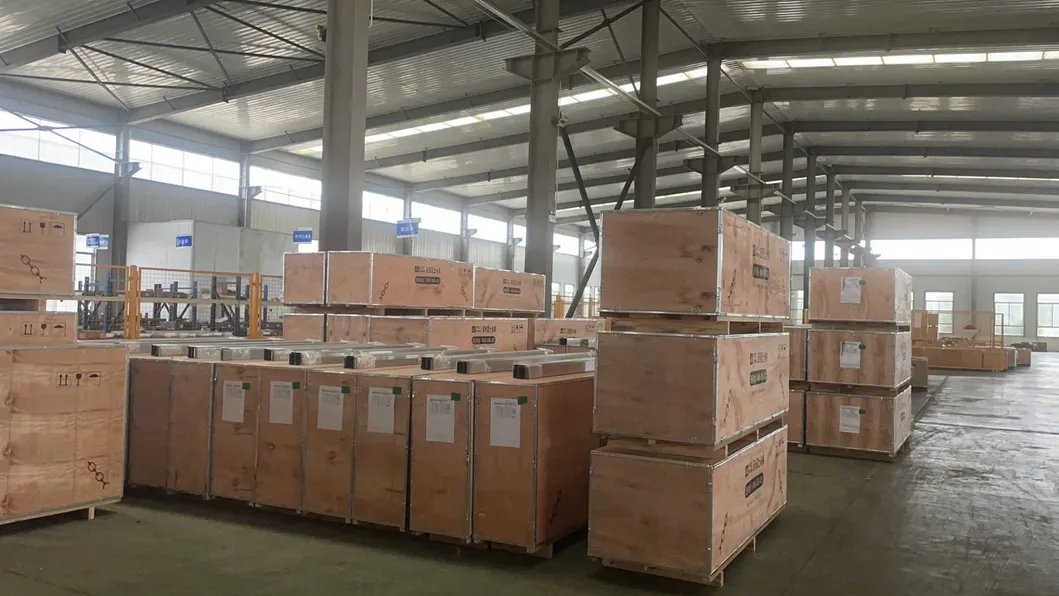

Fumigation-Free Wooden Boxes: Disinfected boxes with thickness no less than 100mm ensure transportation safety.
Modular Packing System: Each box includes a detailed packing list for clear and convenient on-site installation.
Pre-Installation Support
Detailed packing lists, maintenance instructions, and tool lists provided.
24/7 Online Guidance
Remote online installation support from engineers with 20+ years of experience.
English Speaking Team
Sales and technical teams provide services in fluent English.
On-Site Service
Engineers available for on-site guidance, installation, and worker training.
