Vanguard Lift
Vanguard Lift
| Model NO. | HZH XF120 |
| Size | Large |
| Usage | Firefighting |
| Structure | Wing UAV |
| Maximum Load Weight | 150 Kg |
| Max. Takeoff Weight | 257.8 Kg |
| Max. Flight Altitude | 500 M |
| Max. Flight Time | 45 Min |
| Axis | 8 |
| Specification | 4605*4605*990mm |
Professional Fire Fight Rescue Dron Grande Long Range 150kg Heavy Duty Payload Industrial Fire Fighting Drone with Firefighting Bomb Launcher
| HZH XF120 Technical Specifications | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |

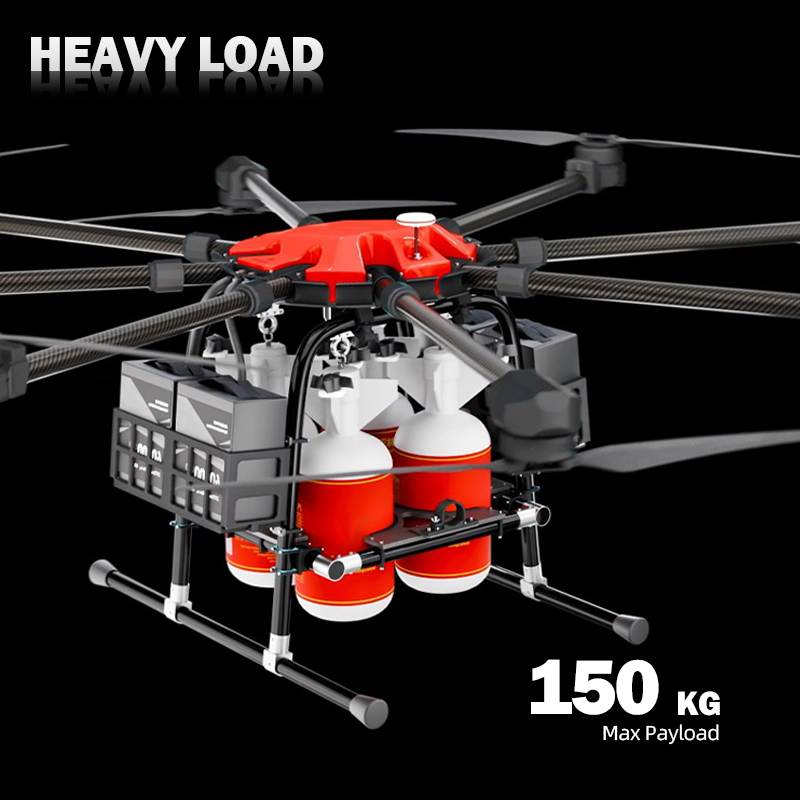

| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

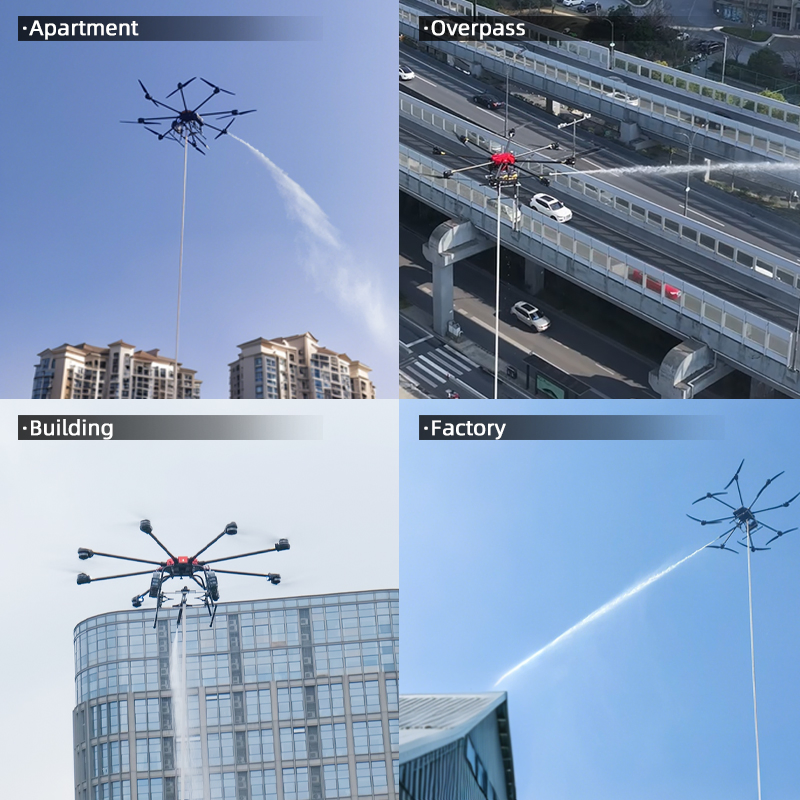

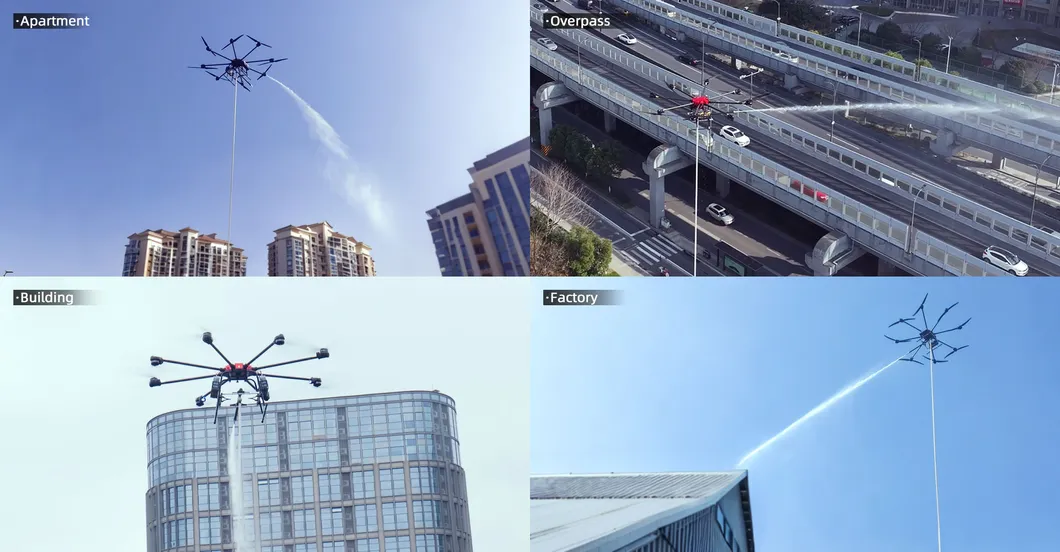

In densely populated apartment complexes, these drones quickly assess fire scale and provide real-time footage. Equipped with high-pressure nozzles, they cool fires and prevent vertical spread, enhancing resident safety.
Drones excel at reaching elevated overpass fires triggered by accidents. They bypass road congestion, deploying fire extinguishing bombs precisely to restore traffic flow quickly.

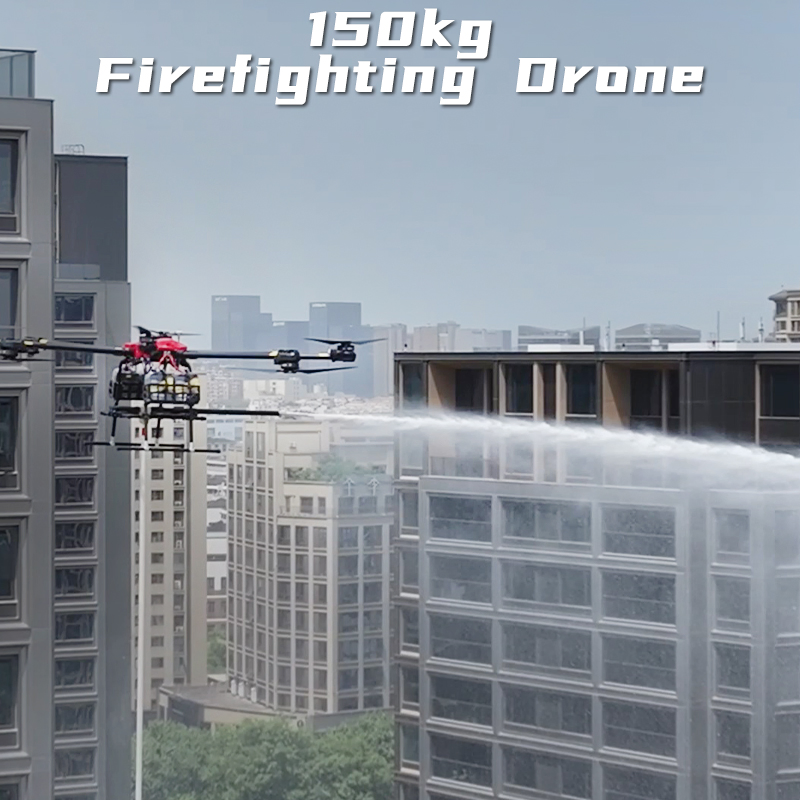

Drones ascend rapidly to upper stories, bypassing blocked stairwells. They drench flames with continuous water flow, curbing progression and protecting critical infrastructure.
For industrial environments with combustible materials, drones deploy specialized bombs or water streams to safeguard operations and protect the workforce from explosive dangers.

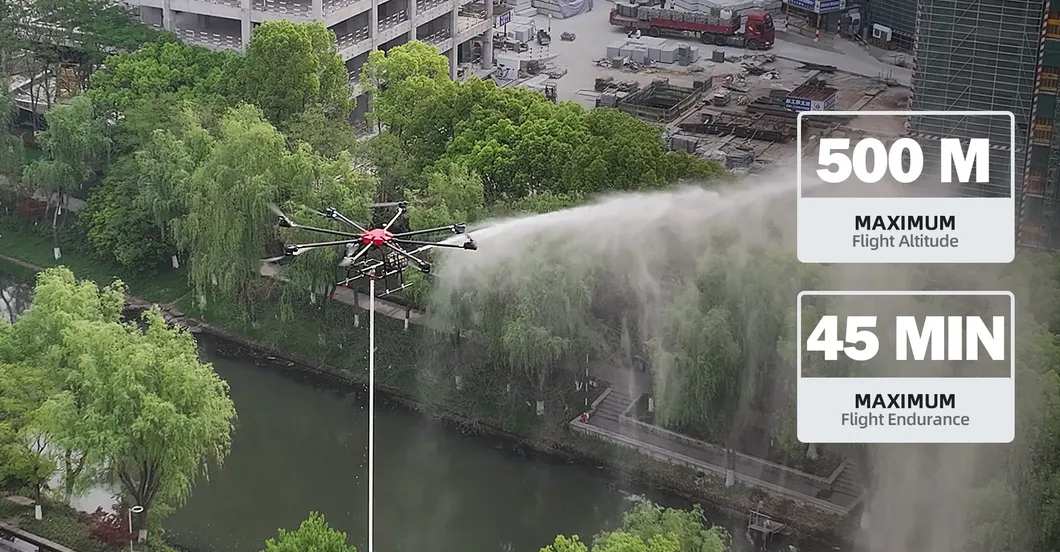

Boasting a 500-meter maximum flight altitude, this drone accesses skyscraper fires and tall industrial structures with ease, providing targeted support where ground crews cannot reach.
With 45 minutes of flight time, it supports sustained missions during large-scale fires, providing continuous suppression and real-time intelligence without frequent recharging.

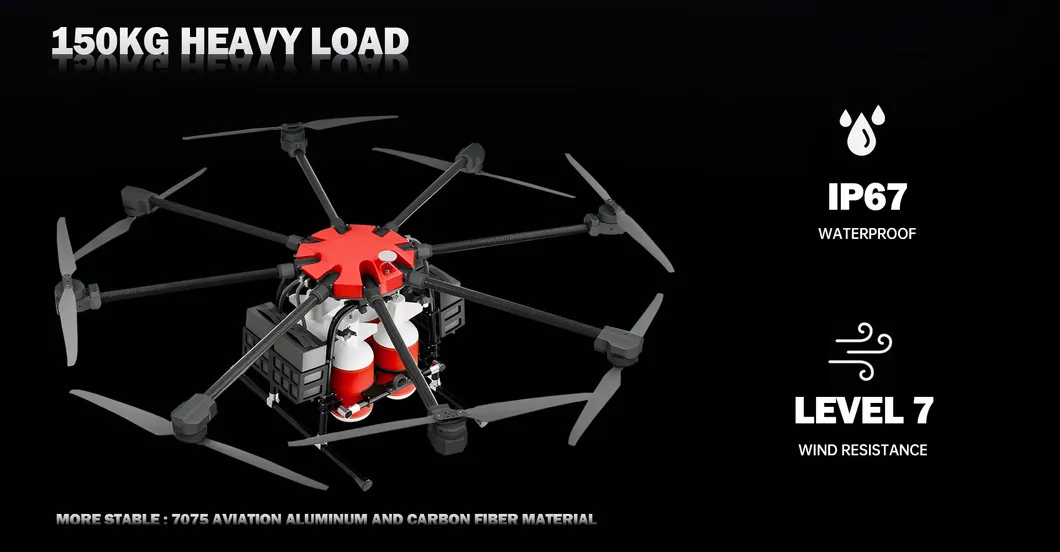

Constructed from 7075 aerospace aluminum and carbon fiber, balancing extreme durability with agility to endure harsh firefighting conditions.
Modular design allows for full assembly and operation in just 5 minutes. Its advanced flight control ensures nimble mid-air maneuverability around obstacles.

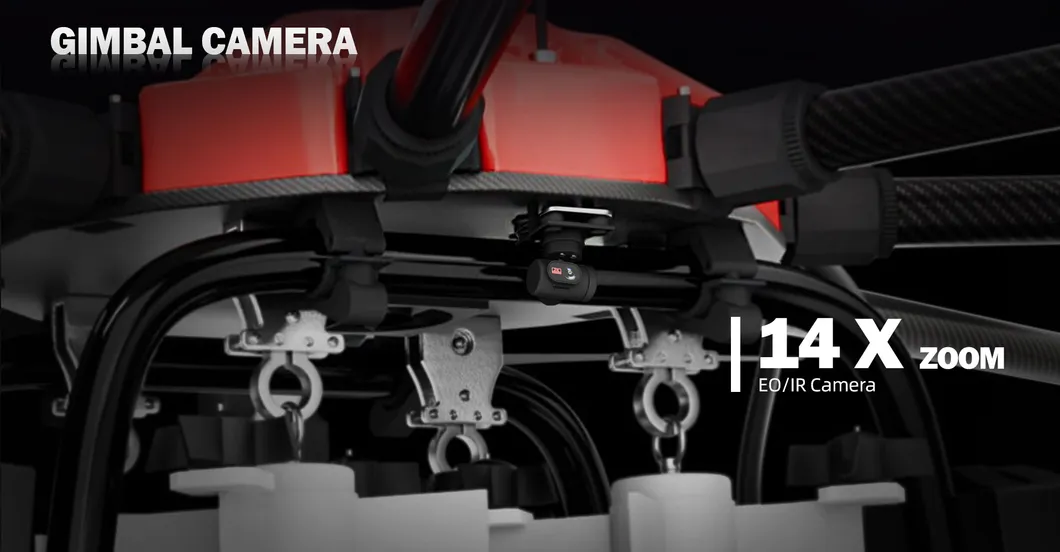

Equipped with visible light and infrared sensors to detect heat signatures, hidden fire sources, and trapped individuals in low-visibility environments.

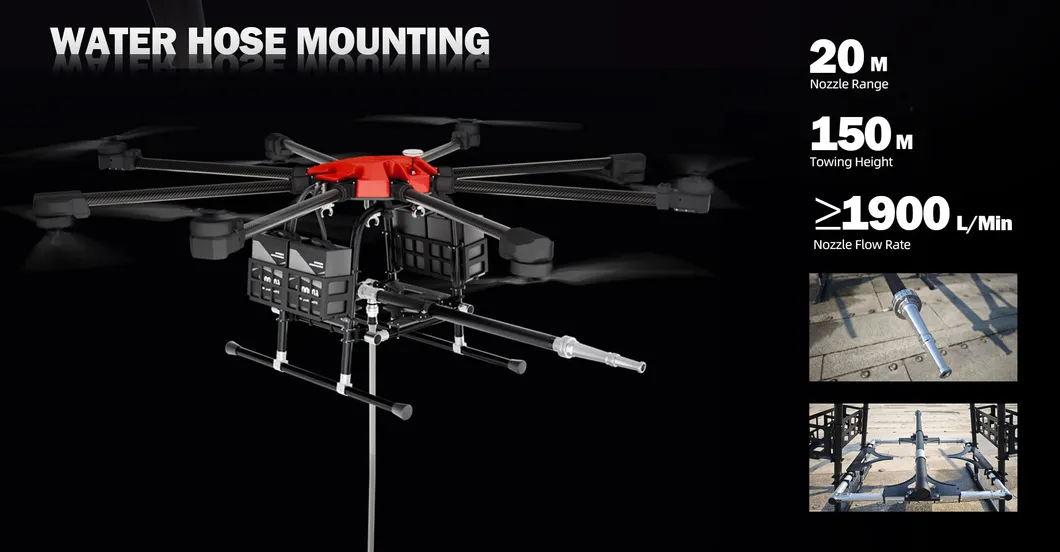

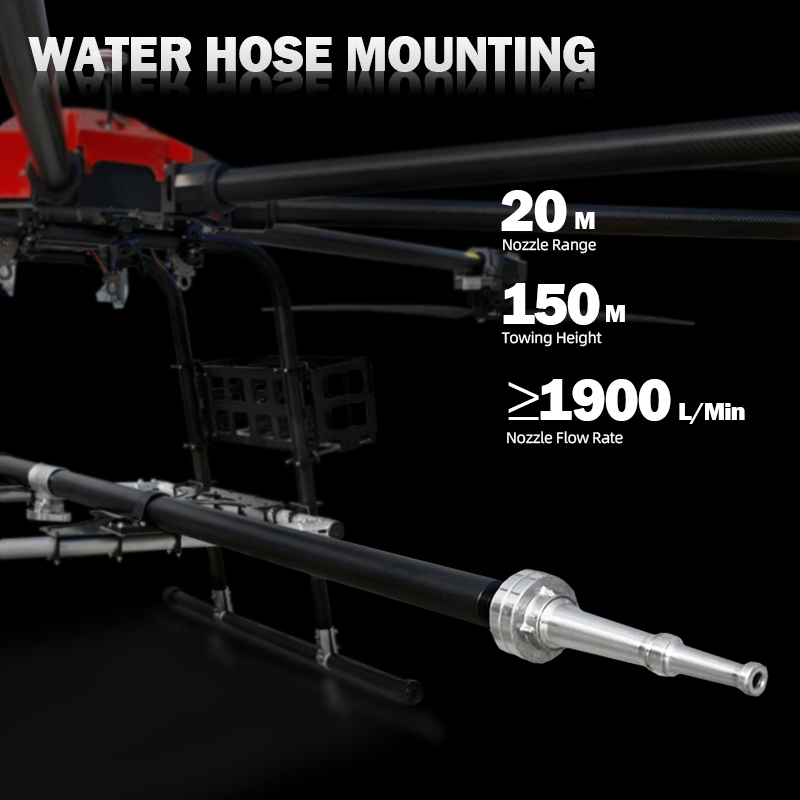

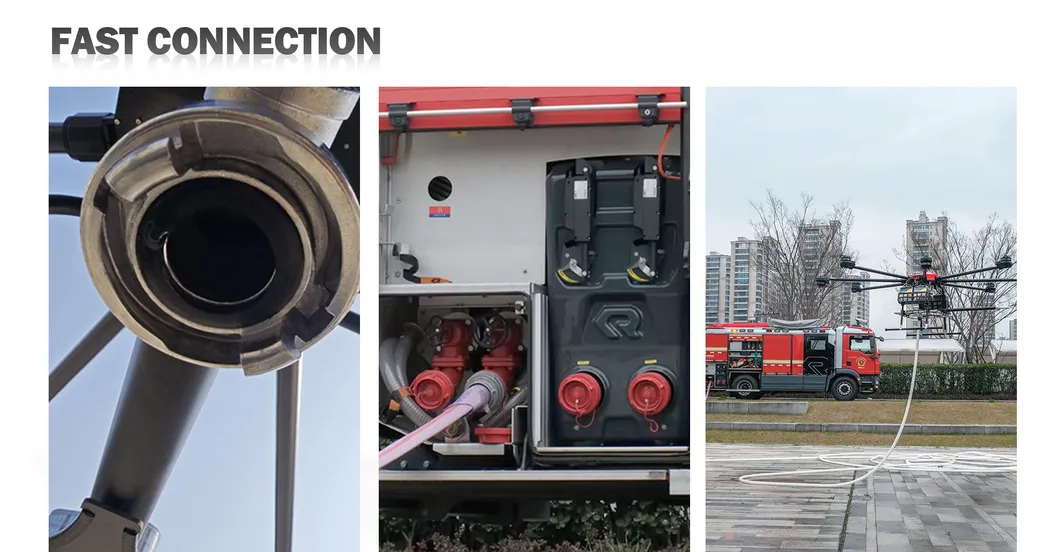

| Water Hose Mounting Parameters | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length | 3m |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |

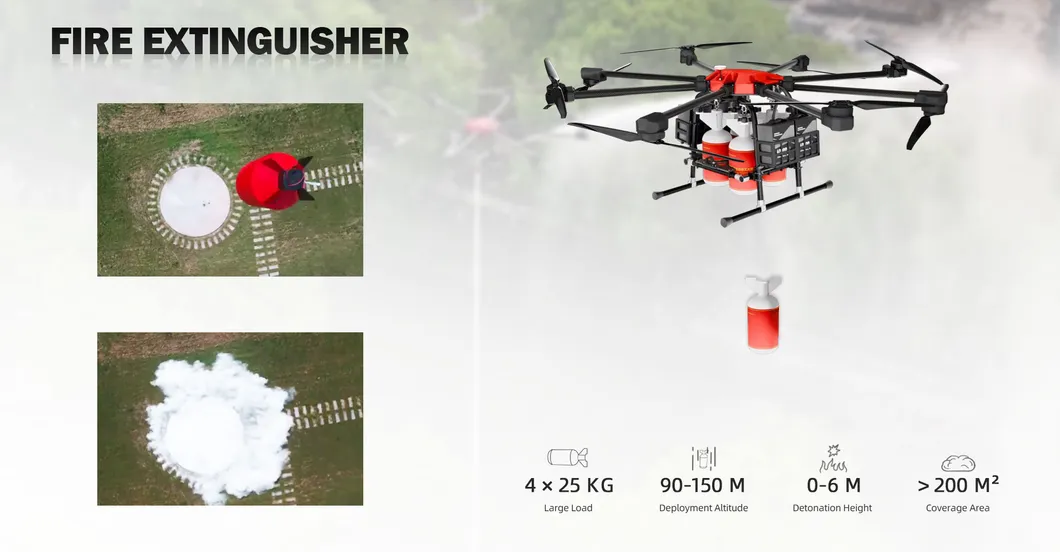

| Fire-extinguisher Bomb Parameters | |
|---|---|
| Caliber | ≤ φ 260 mm |
| Total Weight | ≤ 23kg |
| Agent Type | ABC dry chemical or water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Arming Height | ≥ 50 m |
