Vanguard Lift
Vanguard Lift
Heavy Lifting 150kg Aerial Rescue & Firefighting Drone
| Technical Parameters | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |
| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

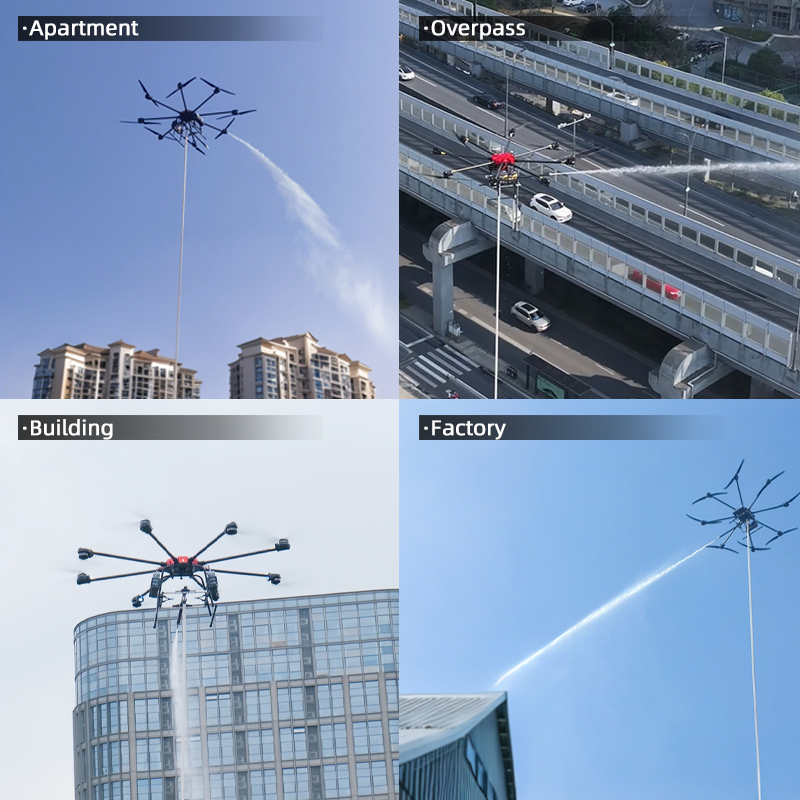

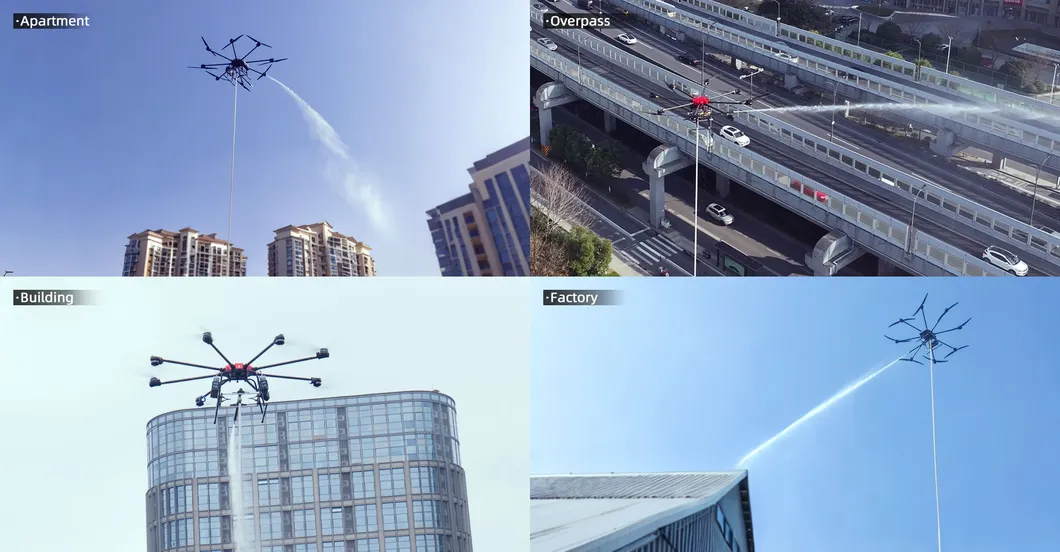

🏢 Apartments
Quickly assess and contain fires in high-density complexes. Equipped with high-pressure nozzles to prevent vertical spread and ensure resident safety.
🌉 Overpasses
Deploy fire extinguishing bombs precisely on vehicle accidents or hazardous spills, bypassing road congestion to restore traffic flow.
🏗️ Buildings
Ascend rapidly to high stories of commercial towers, bypassing blocked elevators to cool down flames and protect critical infrastructure.
🏭 Factories
Versatile solutions for flammable liquids or machinery fires. Uses water spraying or specialized bombs to protect workforces and equipment.

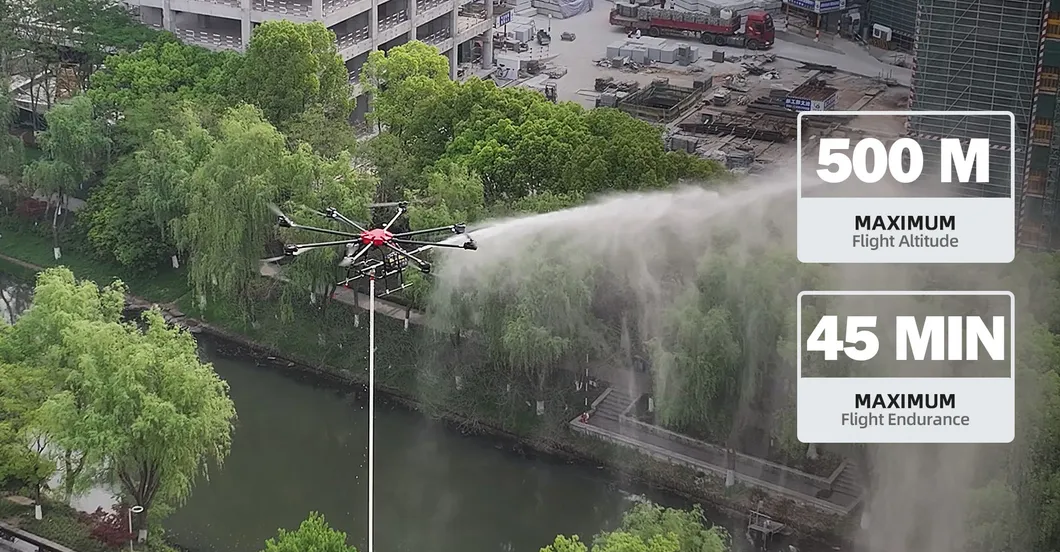

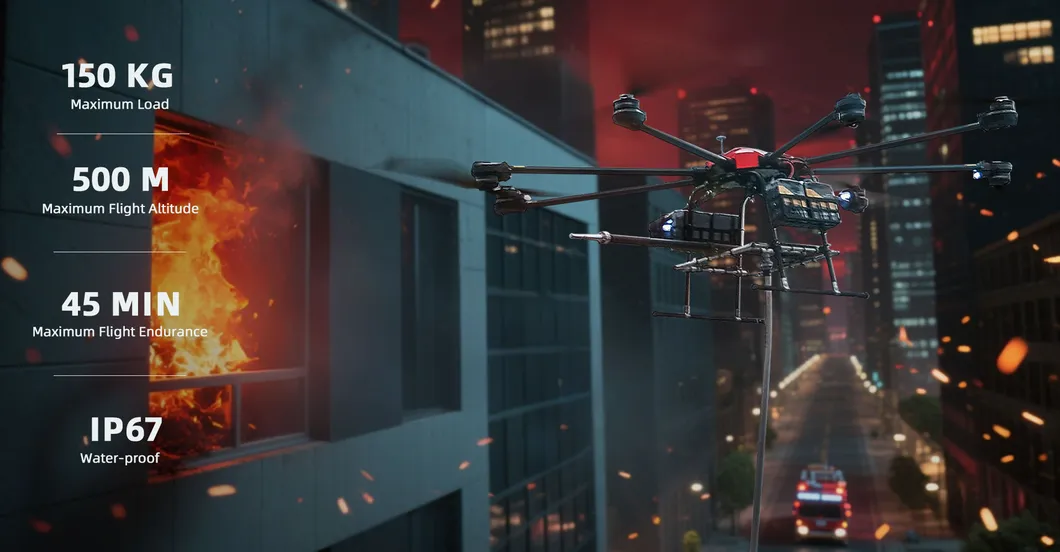

Exceptional Vertical Reach & Endurance
Boasting a 500-meter flight altitude and 45-minute endurance, this drone handles sustained missions in skyscrapers and large industrial parks without frequent recharging.

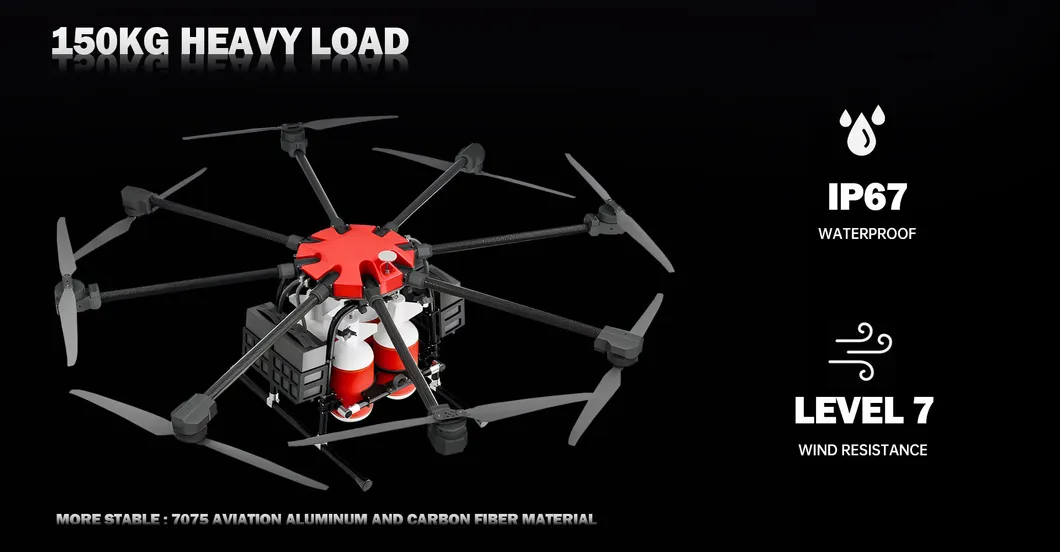

Robust Composite Structure & Waterproofing
Constructed from 7075 aerospace aluminum and carbon fiber. IP67 waterproof rated and resistant to level 7 winds, ensuring stability in harsh environments.

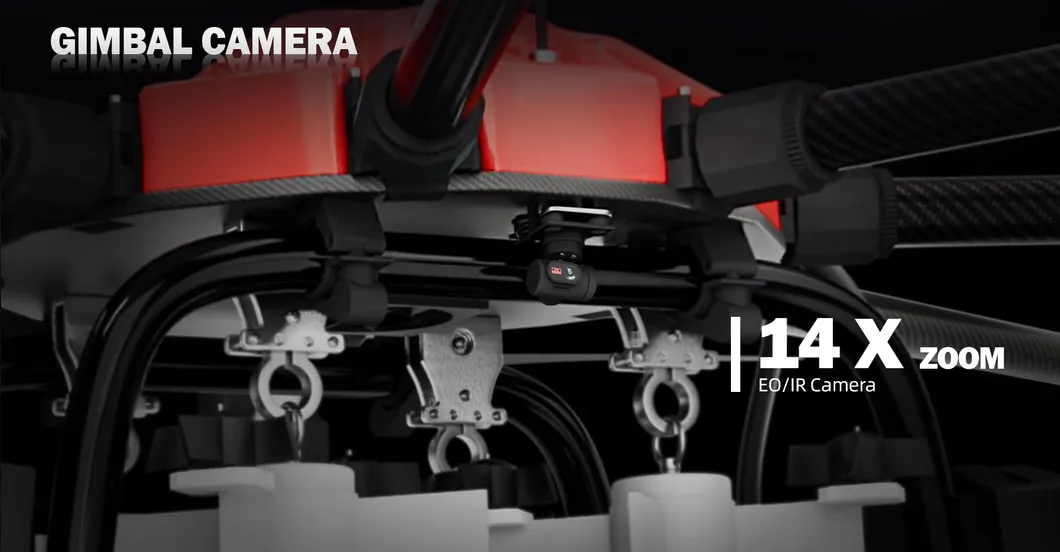

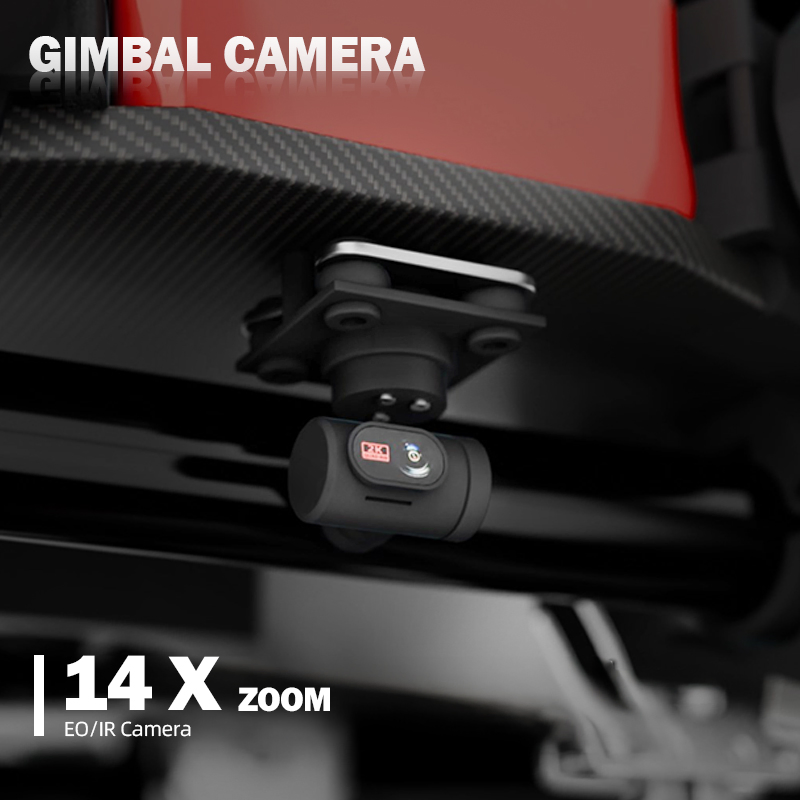

High-Precision Imaging
Equipped with a 14X Zoom EO/IR camera. Detect heat signatures, hidden fire sources, and trapped individuals in low-visibility or smoke-filled conditions.

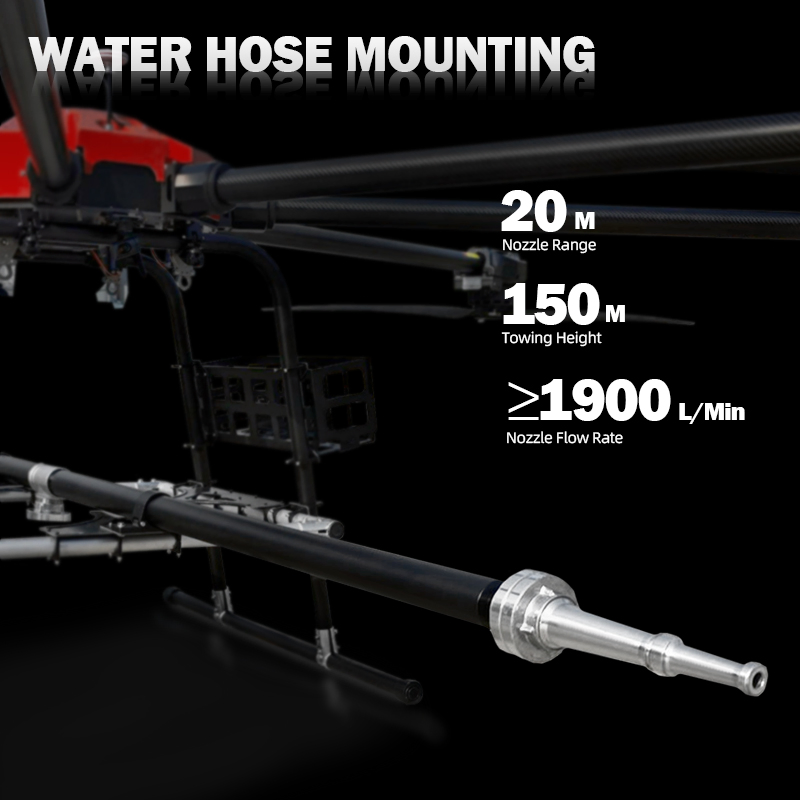

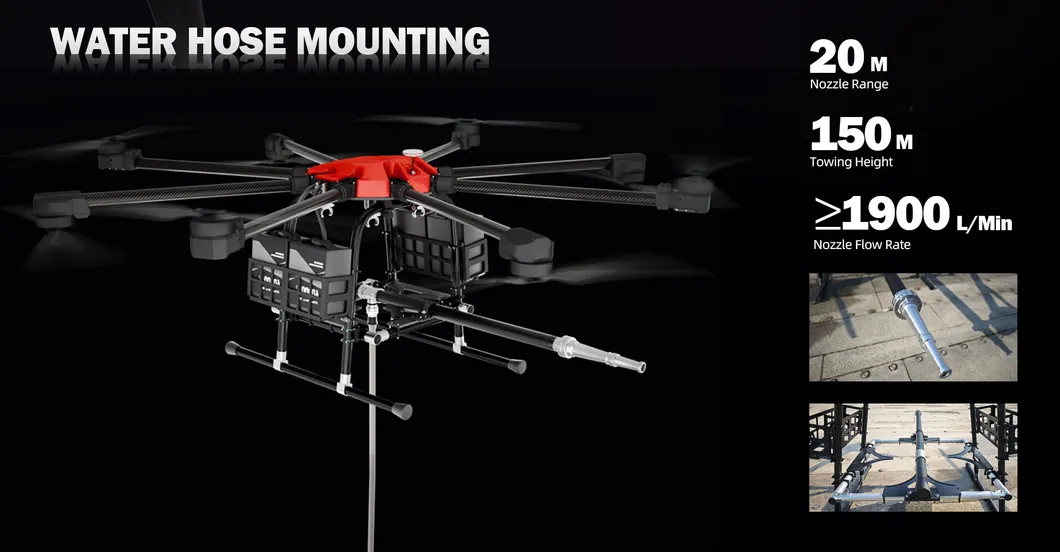

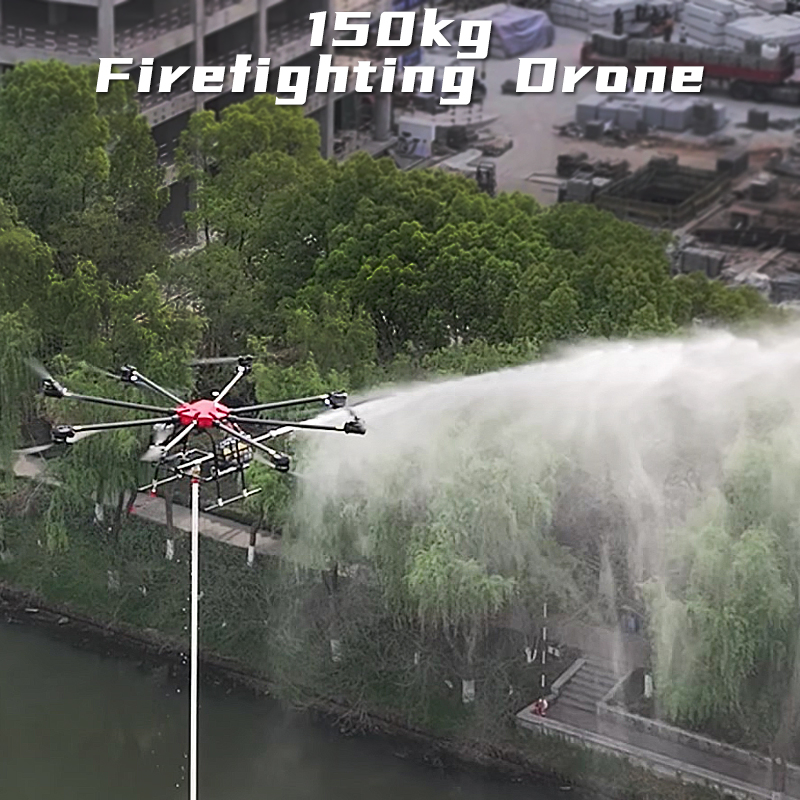

| Water Hose System | |
|---|---|
| Hose Diameter / Nozzle Length | 50mm / 3m |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |
| Fire Extinguisher Bomb | |
|---|---|
| Total Weight / Net Weight | ≤ 23kg / ≥ 25 kg |
| Agent Type | ABC dry chemical or water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Arming Height | ≥ 50 m |
✅ Wide Product Range: Solutions for diverse firefighting requirements.
✅ Expert R&D: Long history in manufacturing with continuous improvements.
✅ Global Network: Fast and convenient delivery worldwide.
✅ Cost Advantage: Competitive pricing for durable, high-quality equipment.
✅ Sustainable Vision: Committed to high-quality solutions that create real value.
A: The drone is designed for heavy lifting with a maximum payload capacity of 150kg.
A: It features an impressive maximum flight endurance of up to 45 minutes, allowing for sustained firefighting missions.
A: Yes, it is engineered with an IP67 waterproof rating and can resist winds of up to level 7.
A: The nozzle has a projection range of 20 meters with a high flow rate of ≥1900L/min.
A: Thanks to its modular design, the drone can be fully assembled and ready for operation in approximately 5 minutes.
A: The drone supports both ABC dry chemical (for Class A, B, and C fires) and water-based agents (for Class A fires).
