Joyive Indoor 10 Degree Moving Walkway for Public Transportation

Customization:	Available
After-sales Service:	Online Technical Guidance
Warranty:	12 Months After Installation Finished

Send Inquiry

Product Description

Overview & Basic Info

Model:Moving Walkway

Type:Moving Walk

Slope Angle:10/11/12 Degree

Speed:Max 0.5m/s

Nominal Width:800/1000mm

Drive Mode:VVVF

Use Occasions:Indoor Public Place

Handrail:Translucent/Opaque/Transparent

Control Type:Microcomputer Frequency Control

Waterproof:IP21, IP55

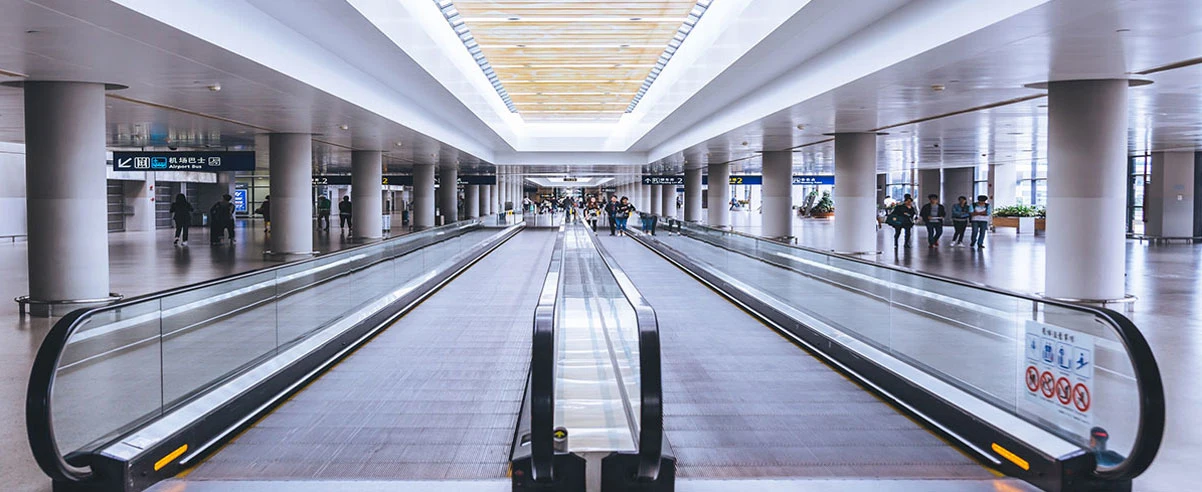

Indoor Moving Walkway for Public Transportation

Product Specifications

Applicable Site: Shopping mall, supermarket
Standard: EN115-1:2008+A1:2010 GB16899
Technology: Frequency conversion control for energy saving and environmental protection.

Speed: <=0.5m/s
Use Section Length: L<=43.47m
Step Width: 800mm / 1000mm
Inclination Angles: 10°, 11°, 12°

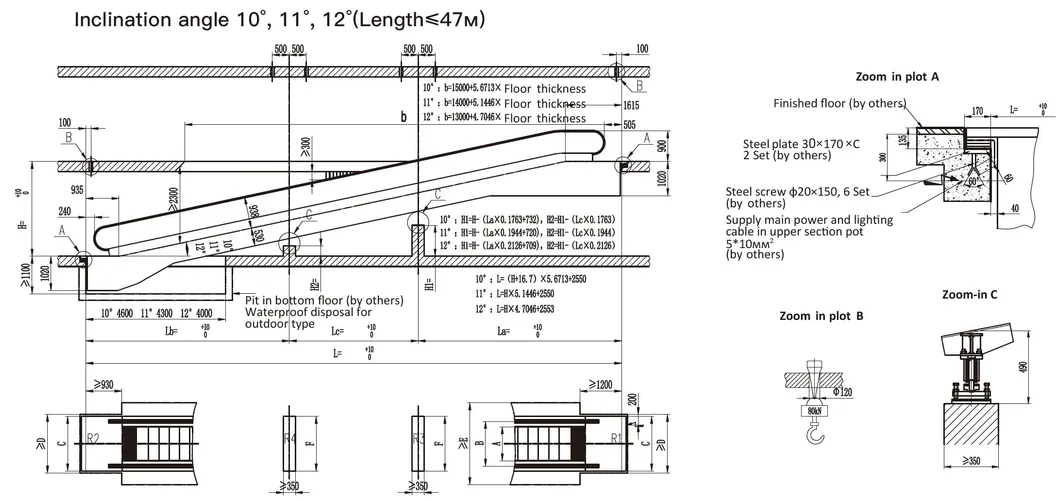

Technical Data & Dimensions

Dimensions (MM)
Code	Description	800mm Step	1000mm Step
A	Width of step	800	1000
C	Width of travolator	1400	1600
B	Width of handrail	1038	1238
D	Width of pit	1460	1660

Motor Power (Kw)
Step Width (mm)	Rising Height (mm)	Power
1000	1200-3000	5.5
1000	3000-4500	8
1000	4500-6000	11
800	1200-3800	5.5
800	3800-5500	8
800	5500-6000	11

Standard Safety Devices

Phase lack/loss protection
Motor overload protection
Electrical circuit protection

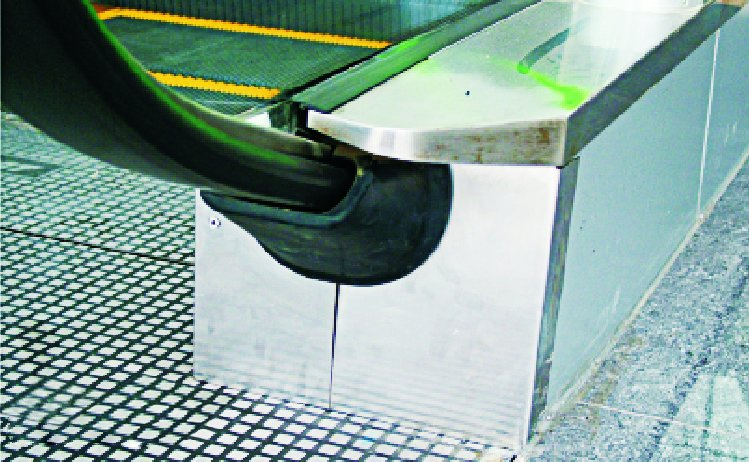

Handrail inlet protection
Comb plate safety device
Step sagging protection
Drive chain broken protection
Over-speed protection
Direction reversal protection
Emergency stop button
Skirt panel protection
Automatic lubrication

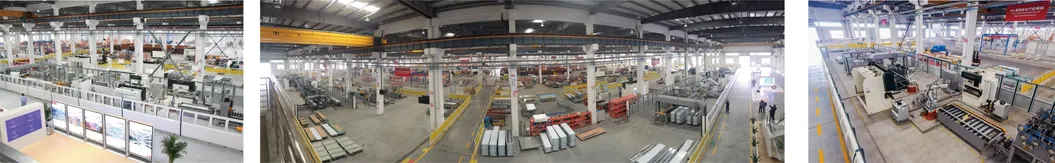

Production & Certification

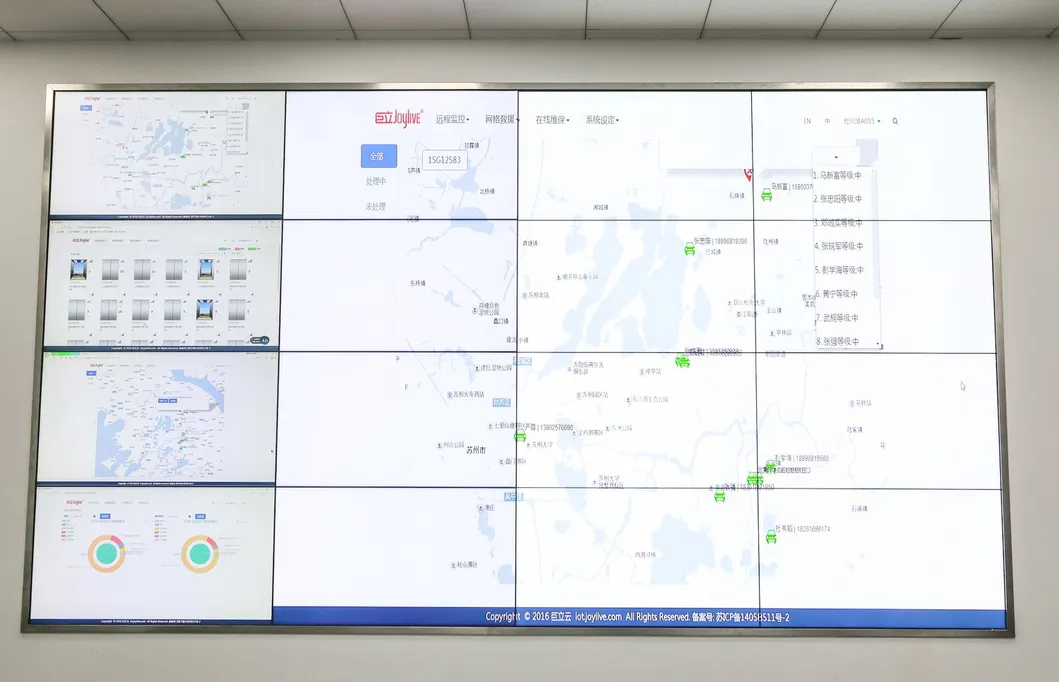

Innovative IoT Monitoring

Elevator IoT Platform

A comprehensive network linking government departments, maintenance companies, and property management for 24-hour safety management. Features include:

Dynamic & Remote Monitoring
On-line Maintenance Records
Grid Rescue System
Interactive Experience Support

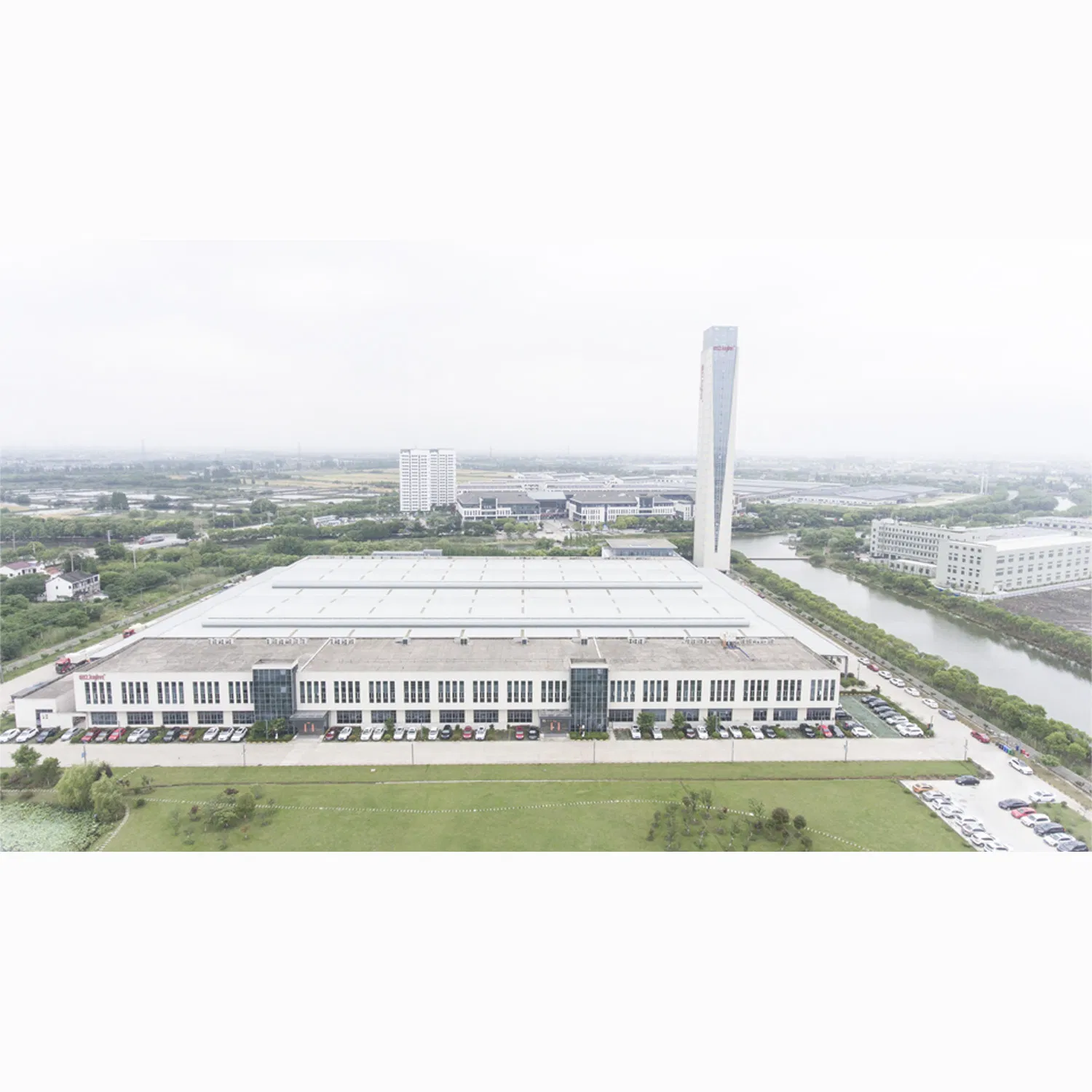

About the Company

Established in 2002 and listed on the stock exchange in 2015, the company specializes in elevator and escalator manufacturing with an industry-leading intelligent manufacturing center spanning 70,000m². Our product range includes passenger elevators, home elevators, freight elevators, escalators, and automatic walkways.

We have built a global marketing and service network covering more than 100 countries, including Russia, Australia, Southeast Asia, the Middle East, and Africa. We focus on high-end manufacturing and quality brand building to provide competitive solutions worldwide.

Frequently Asked Questions

What are the available inclination angles for the moving walkways?

Our indoor moving walkways are available in 10°, 11°, and 12° angles to suit different architectural requirements.

What is the maximum speed and capacity of the walkway?

The maximum speed is 0.5m/s, and the walkways come in nominal widths of 800mm and 1000mm to accommodate public transportation needs.

Is the moving walkway suitable for outdoor use?

The standard model is designed for indoor public places. However, we offer optional waterproof grades up to IP55 and surface treatments like hot-dip zinc for outdoor adaptability.

How does the IoT platform improve safety?

The IoT platform provides 24-hour dynamic monitoring and remote diagnostics, allowing for faster response times during maintenance or emergency rescue situations.

Does the system include energy-saving technology?

Yes, the moving walkways utilize VVVF (Variable Voltage Variable Frequency) microcomputer control technology to optimize energy consumption based on traffic flow.
