Vanguard Lift
Vanguard Lift
| Model | HZH XF120 | Size | Large |
|---|---|---|---|
| Usage | Firefighting | Structure | Wing UAV |
| Maximum Load Weight | 150 Kg | Max. Takeoff Weight | 257.8 Kg |
| Max. Flight Altitude | 500 M | Max. Flight Time | 45 Min |
| Axis | 8 | Specification | 4605*4605*990mm |
150kg Large Capacity Extinguisher Bomb & Water Gun Hose Firefighting Drone
| Performance Overview | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |

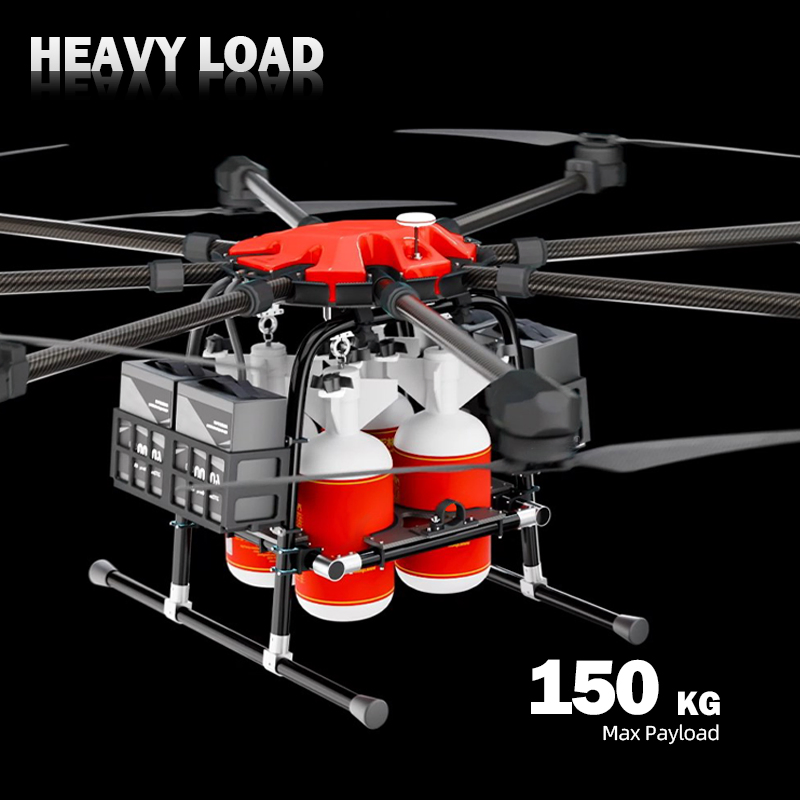

| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

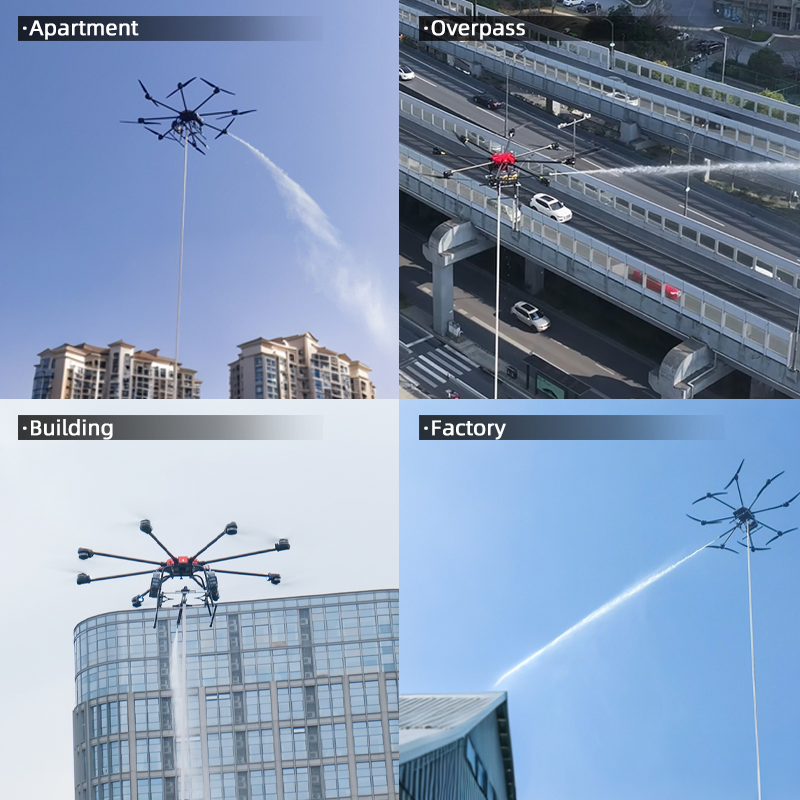

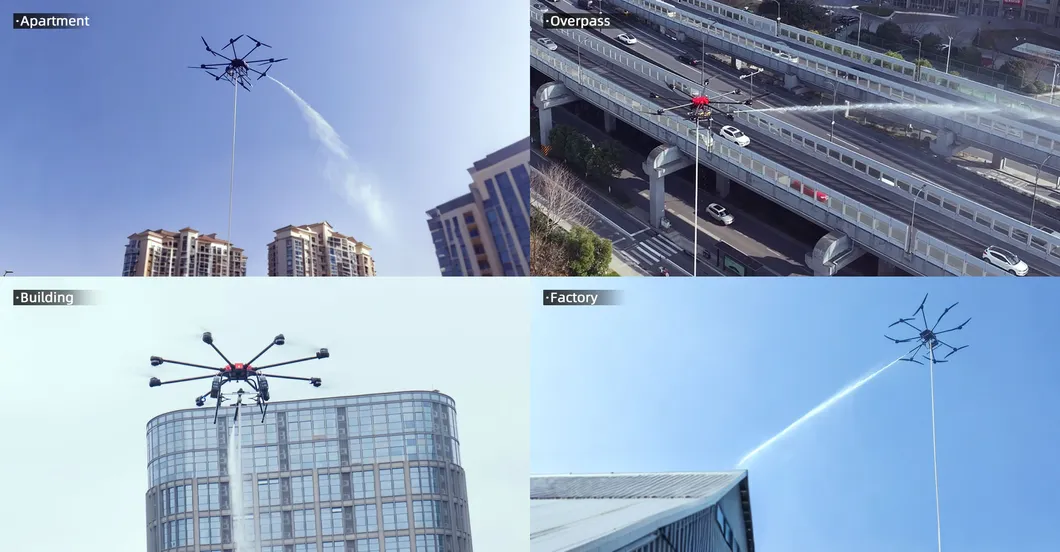

In densely populated apartment complexes, these drones quickly assess fire scale and provide real-time footage. Equipped with high-pressure nozzles, they spray continuous water streams to prevent vertical spread and enhance resident safety.
Drones excel in overpass fires by bypassing road congestion. They hover steadily to deploy fire extinguishing bombs precisely onto vehicle fires or hazardous spills, restoring traffic flow quickly.
Drones ascend rapidly to upper stories, bypassing blocked elevators. They cool flames with continuous water flow, curbing both vertical and horizontal progression in commercial structures.
For flammable liquids or machinery fires, drones deploy extinguishing bombs or water spray to smother flames and prevent spread to adjacent equipment, safeguarding industrial operations.

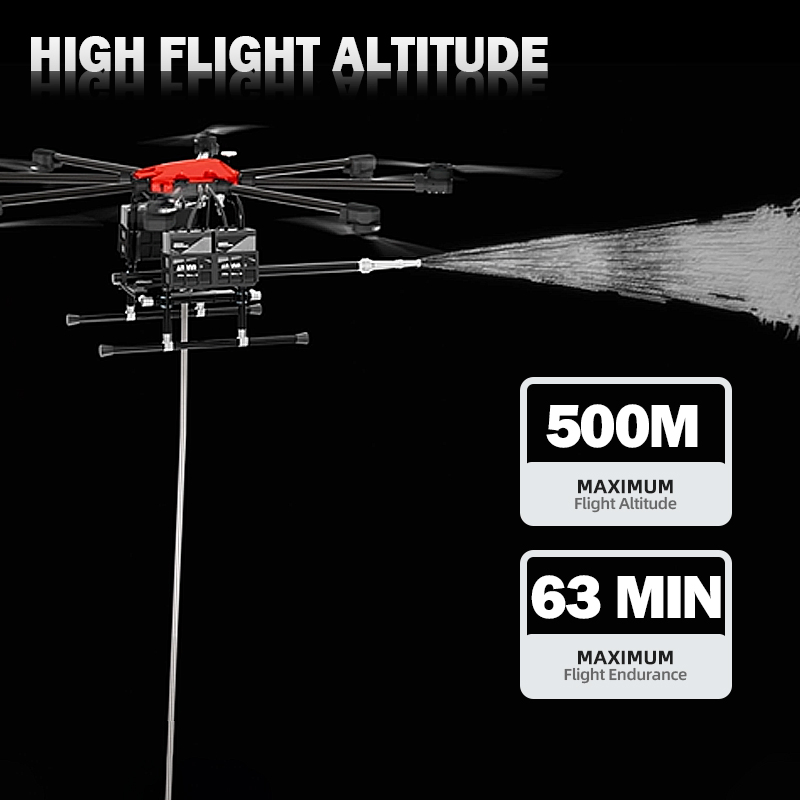

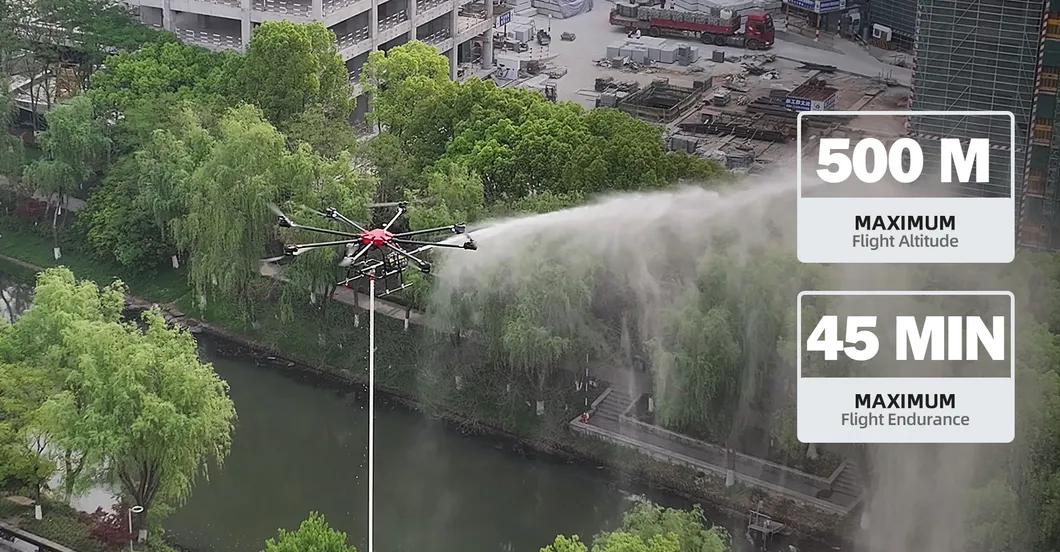

Boasting a 500-meter maximum flight altitude, this drone transcends traditional limitations, reaching the upper floors of skyscrapers and tall industrial structures with ease.

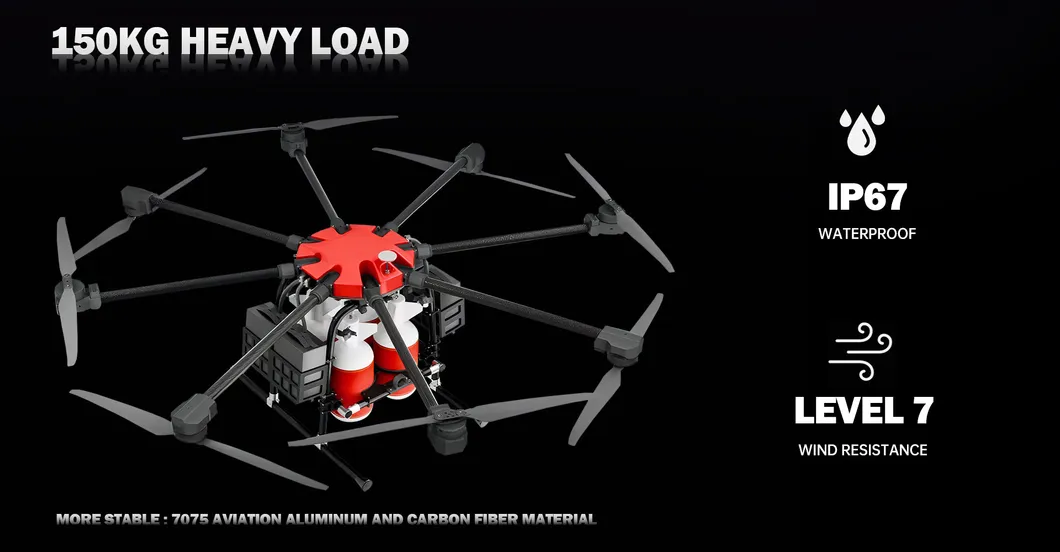

Constructed from 7075 aerospace aluminum and carbon fiber, achieving an optimal balance between durability and agility. It features IP67 waterproof rating and Level 7 wind resistance.

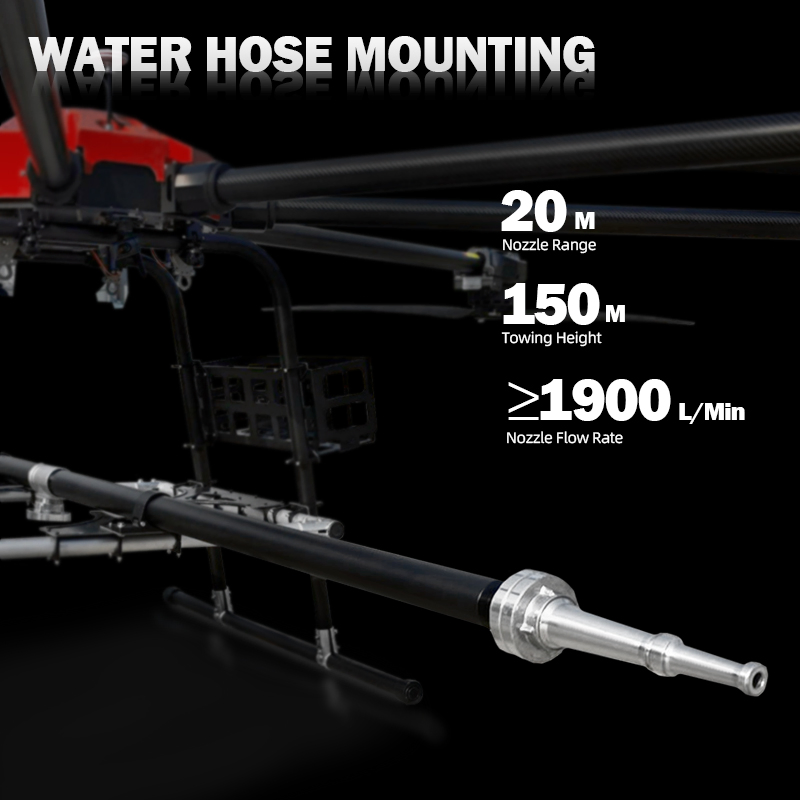

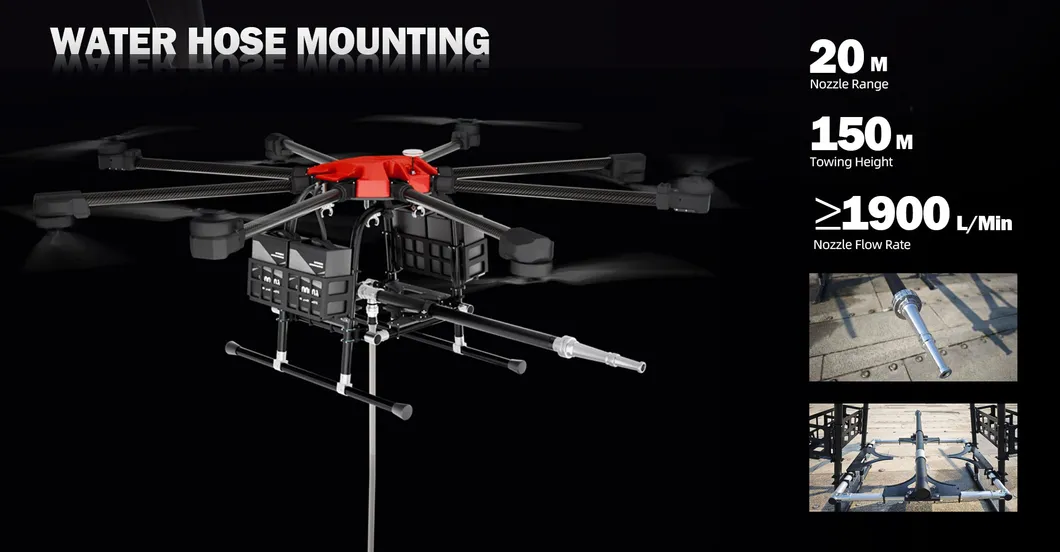

| Hose Diameter | 50mm | Nozzle Length | 3m |
|---|---|---|---|
| Nozzle Range | 20m | Nozzle Flow Rate | ≥1900L/min |

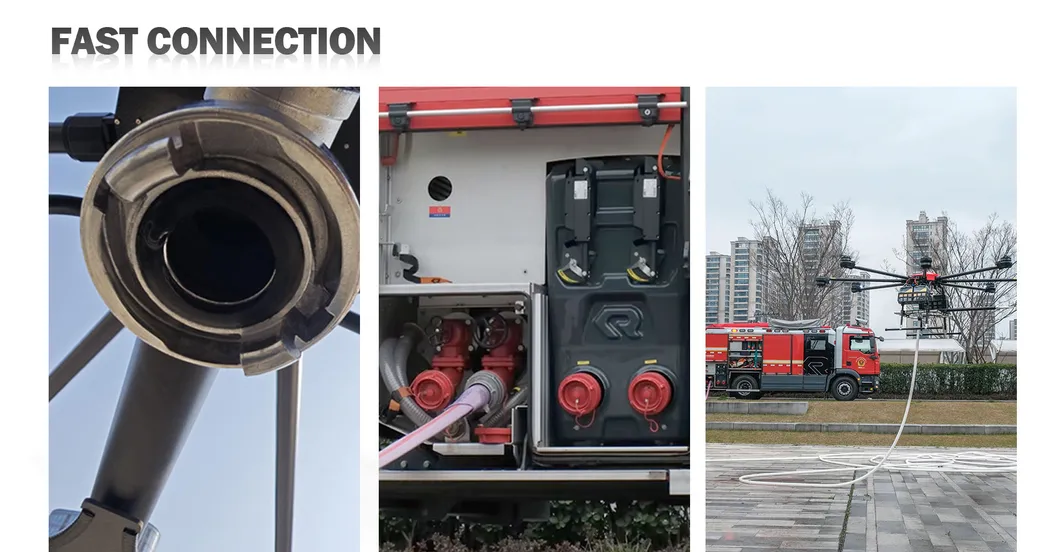

| Towing Height | 150m | Deployment Time | 5 Minutes |

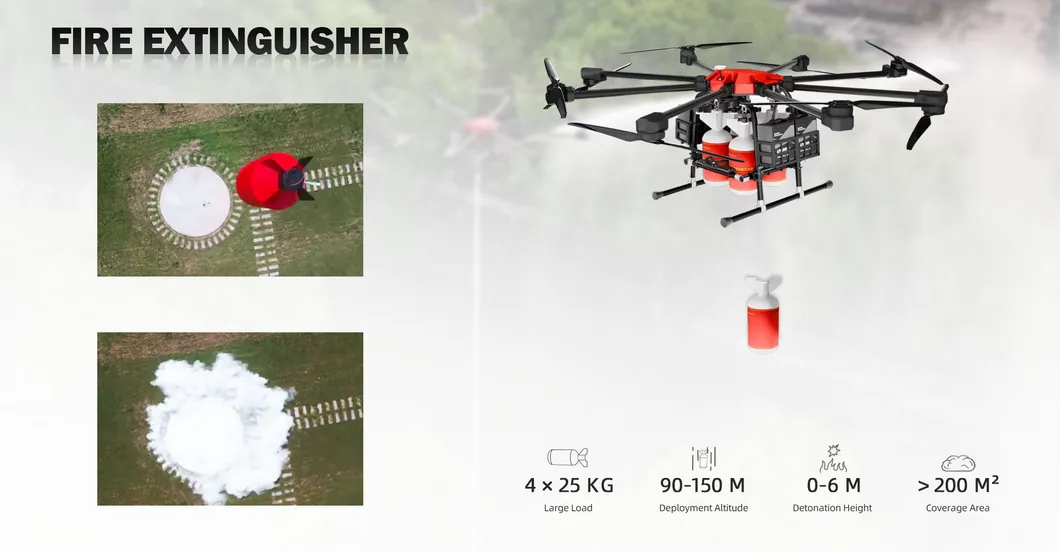

| Total Weight | ≤ 23kg | Agent Type | ABC Dry Chemical / Water-based |
|---|---|---|---|
| Dispersion Radius | ≥ 5 m | Coverage Area | ≥ 50 m² |
| Safety Radius | ≥ 20 m | Arming Height | ≥ 50 m |
