M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
1 / 5
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair
M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair

M-ESC001 Electric Climbing Automatic Stair Lift Chair Wheelchair

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
M-ESC001
Capacity
250 Kg
Moves
Self-propelled
Driven Type
Rack & Pinion
Running Mode
Stationary
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Product Size
131*50*155 cm
Power Supply
24V Lithium Ion Battery
Origin
Jiangsu, China

Product Description

M-ESC001 Electric climbing automatic stair lift chair wheelchair is designed for hospitals, emergency centers, fire departments, and family use for hauling patients up and down stairs. This high-rise building stair stretcher allows a single operator to transfer patients efficiently and safely.

⚡
Unique Track Structure

Ensures convenient and safe movement when the stretcher descends the stairs.

⚙️
High Strength Material

Constructed from high-strength stainless steel for durability and stability.

🔄
Four-Wheel Design

Equipped with four wheels (dia 125/75mm) for easy maneuverability on flat ground.

Model NameM-ESC001 climbing wheelchair
ColorBlue, yellow, red
CertificateCE
Product Size131*50*155 CM
Folded Size105*51*38 CM
N.W. / G.W.28 KG / 32 KG
Load Capacity200 KG
Motor24 V / 120 W

Core Advantages

  • ✔ Lightweight Design: Only weighs 28kg including the battery for easy handling.
  • ✔ Adjustable Ergonomics: Four different handle height types designed for various job requirements.
  • ✔ Smart Braking: Automatic breaking system with electronic brake locks to stop instantaneously on ascent or descent.
  • ✔ Direct Drive Transmission: Electronically controlled motor with chair tracks for maximum safety.
  • ✔ Compact Storage: Positive locking for security and folds to a compact size for convenient storage.

Product Gallery

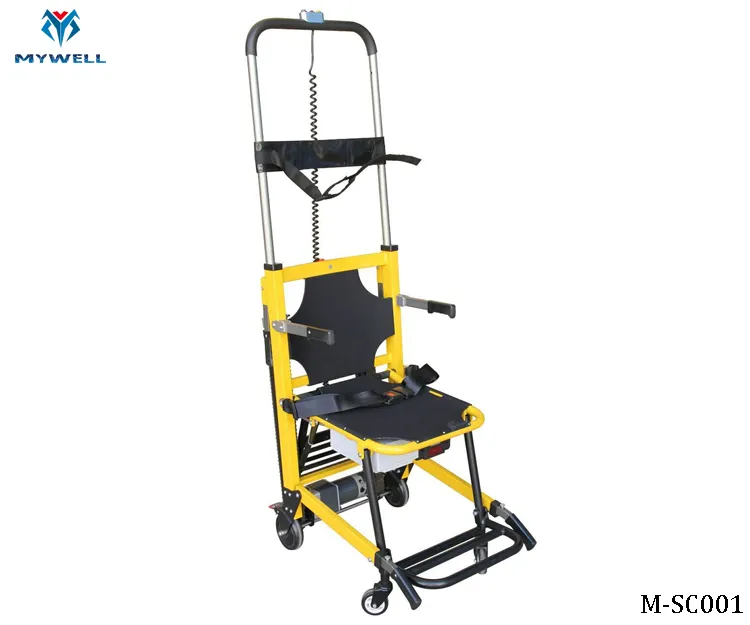

Electric climbing chair operation

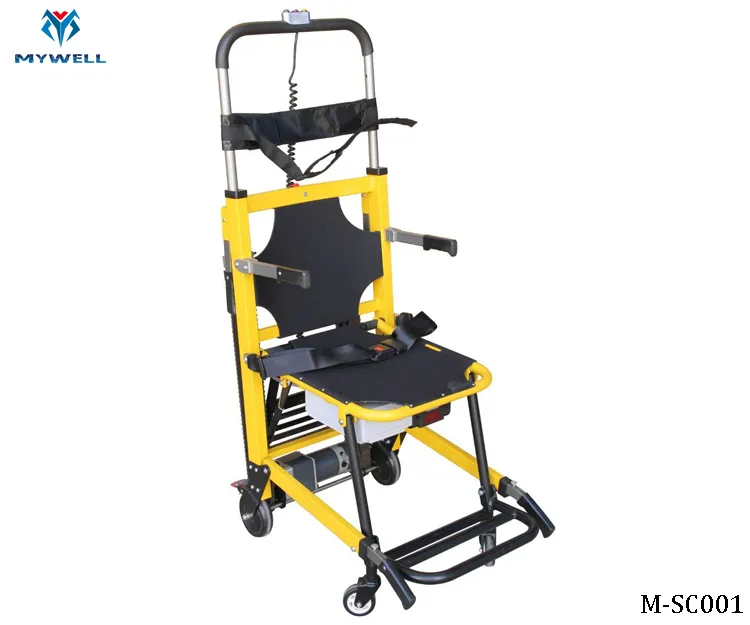

Stair lift chair details

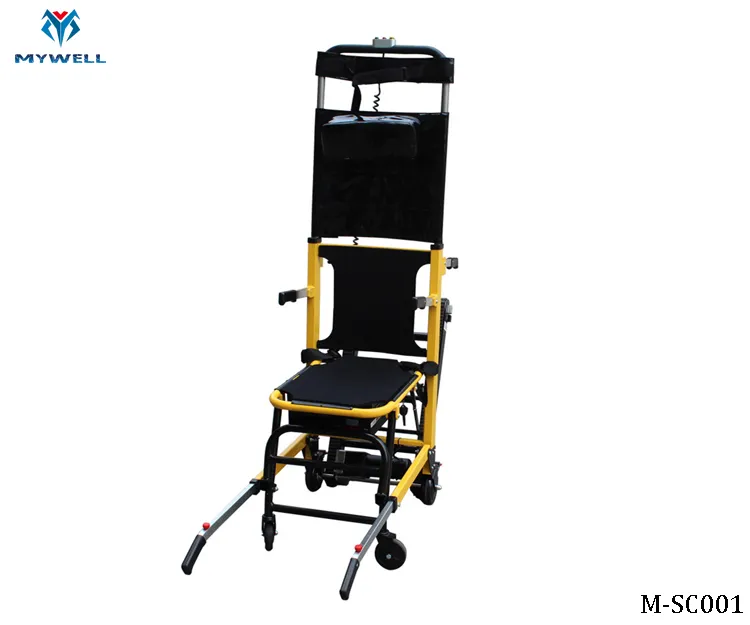

Foldable climbing wheelchair
Wheelchair battery and motor
Stair climbing mechanism

Our Services

24-Hour Response

Any inquiries will be replied to within 24 hours.

Quality Assurance

Strict quality checking in-house before packing.

1-Year Warranty

Free maintenance within the warranty period.

Frequently Asked Questions

What materials are used in the construction of this chair?
The main materials used are high-strength aluminum alloy and stainless steel. Material selection can also be customized based on specific requirements.
How does the automatic braking system work?
The chair features an integrated electronic brake that locks the tracks instantaneously during stops on both ascent and descent for maximum user safety.
Is the wheelchair easy to store in an ambulance or home?
Yes, the chair features a positive locking mechanism and folds down to a compact size (105*51*38 cm), making it ideal for storage in tight spaces.
What is the weight capacity and net weight of the M-ESC001?
The wheelchair has a net weight of only 28kg (including battery) and can support a load capacity of up to 200kg-250kg depending on configuration.
Can the chair be operated by a single person?
Yes, the electronically controlled motor and unique track structure allow one person to safely operate and transfer patients up and down stairs.
What certifications does the product hold?
Our manufacturing processes and products have gained ISO, CE, RoHS, GS, and SGS authentication to ensure the highest quality standards.
