Vanguard Lift
Vanguard Lift

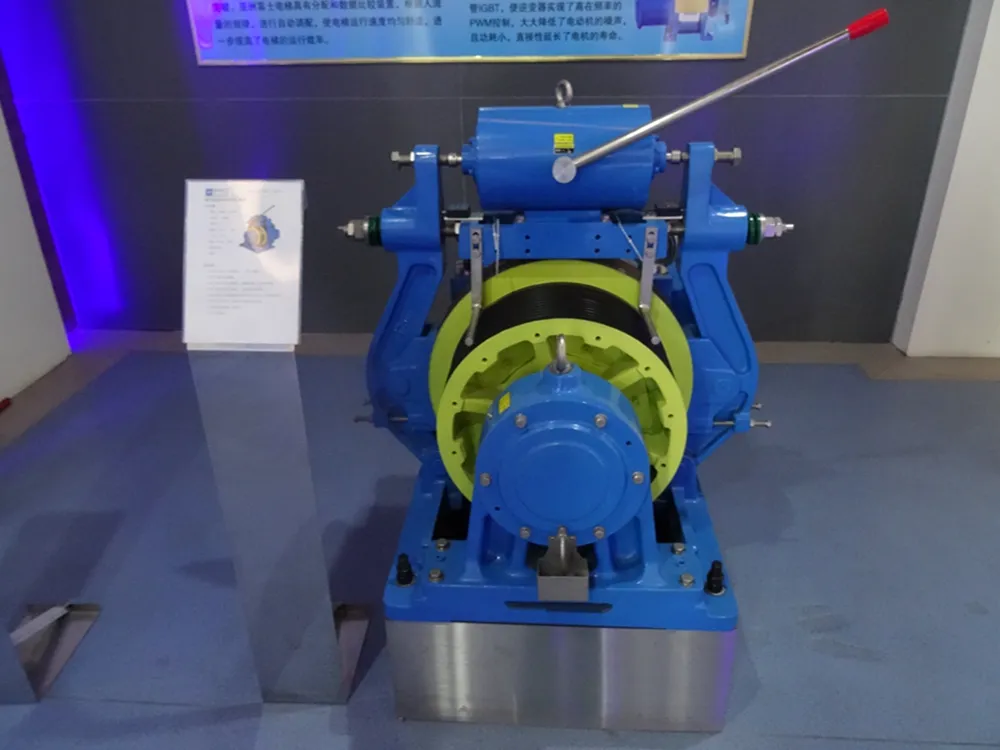

With the advancement of science and technology, the MRL elevator was created to be added to the interior without destroying the original appearance of ancient buildings. This technology has achieved permanent magnet gearless traction MRL elevator after several trials and experiments.
Energy-saving & Space-saving: Adopting VVVF control technology and permanent magnet synchronous motor technology, saving energy and protecting the environment. It is a competitive home elevator product that possesses a different style and is multi-functional.
| Capacity (Kg) | Persons | Speed (m/s) | Entrance (mm) | Car Dimension (mm) | Hoistway Dimension (mm) | Pit Depth (mm) | Overhead Height (mm) |
|---|---|---|---|---|---|---|---|
| 450 | 6 | 1.0 - 1.5 | 700 | 1200x1100 | 1800x1800 | 1500 | 4400 |
| 630 | 8 | 1.0 - 1.5 | 800 | 1400x1100 | 2000x1800 | 1500 | 4400 |
| 800 | 10 | 1.0 - 2.0 | 800 | 1400x1350 | 2000x2050 | 1500-1800 | 4400-4700 |
| 1000 | 13 | 1.0 - 4.0 | 900 | 1600x1450 | 2200x2200 | 1500-3800 | 4400-5900 |
Using high-performance vector control technology and digital direct parking technology. The control cabinet arrangement meets power system requirements, facilitating inspection and repair safely.

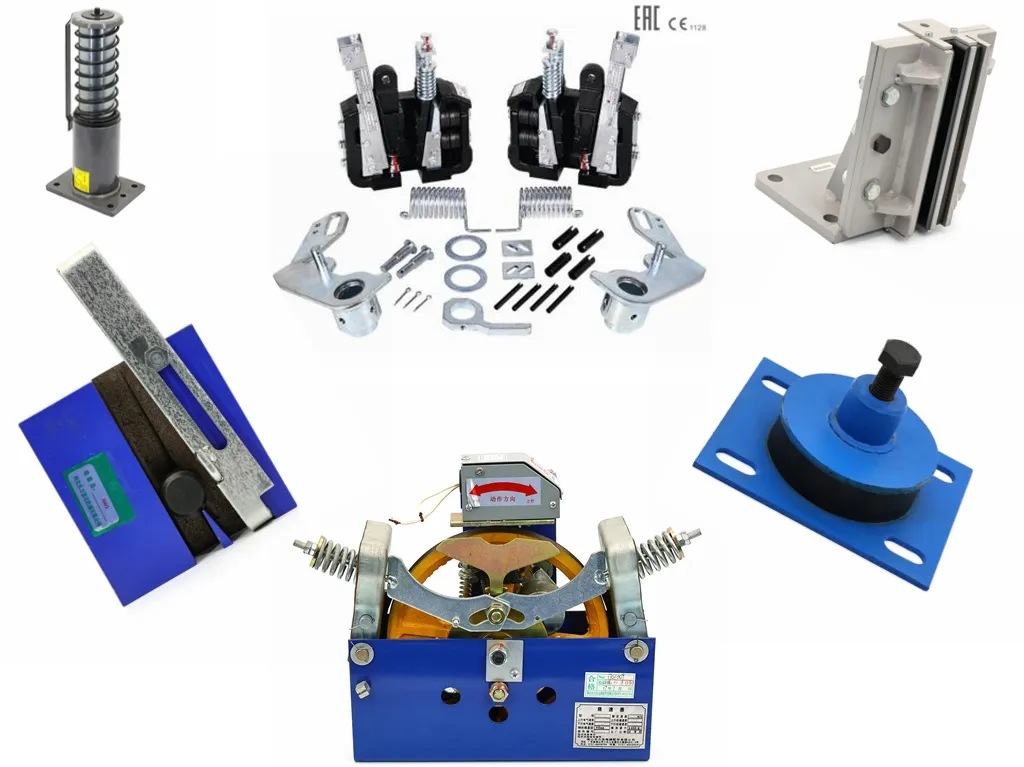

Under strict system control, the failure rate is greatly reduced. Includes speed limiter, safety gear, guide shoes, bumper, and tensioner to ensure long-term safety protection.

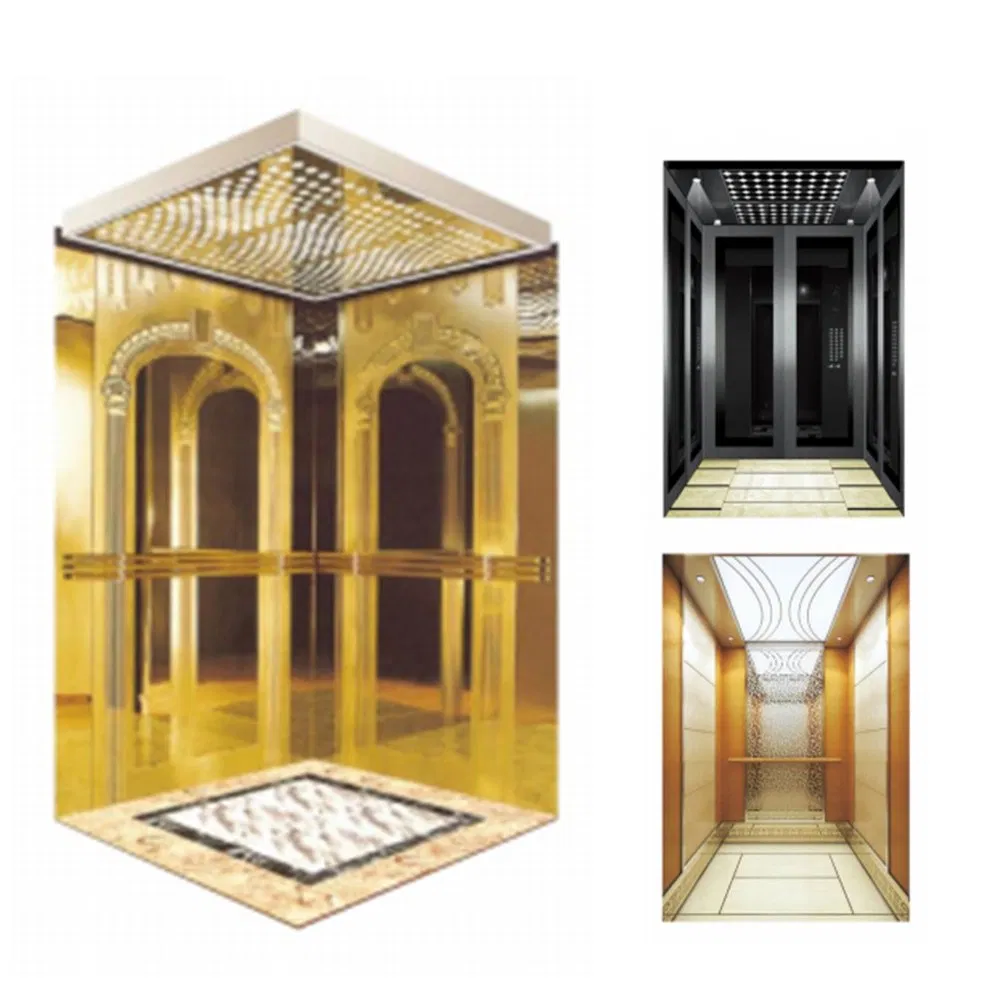

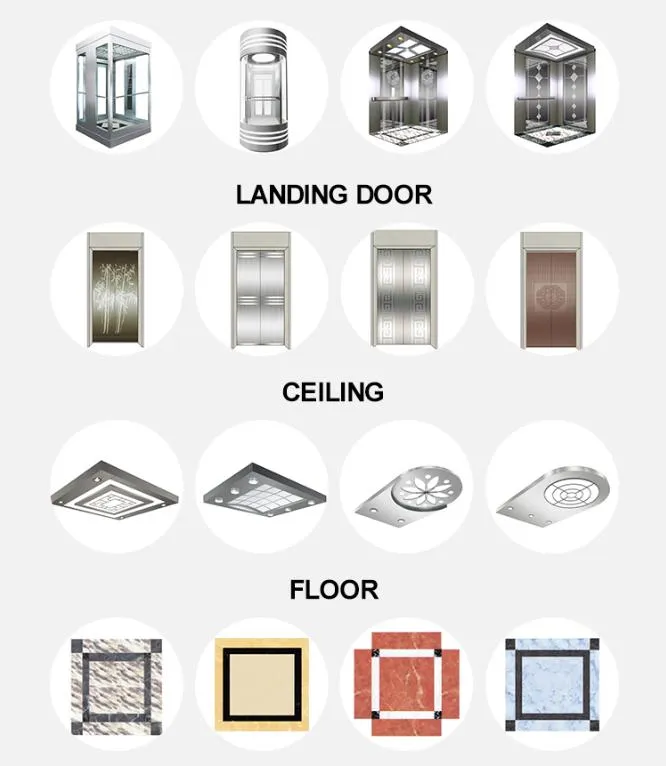

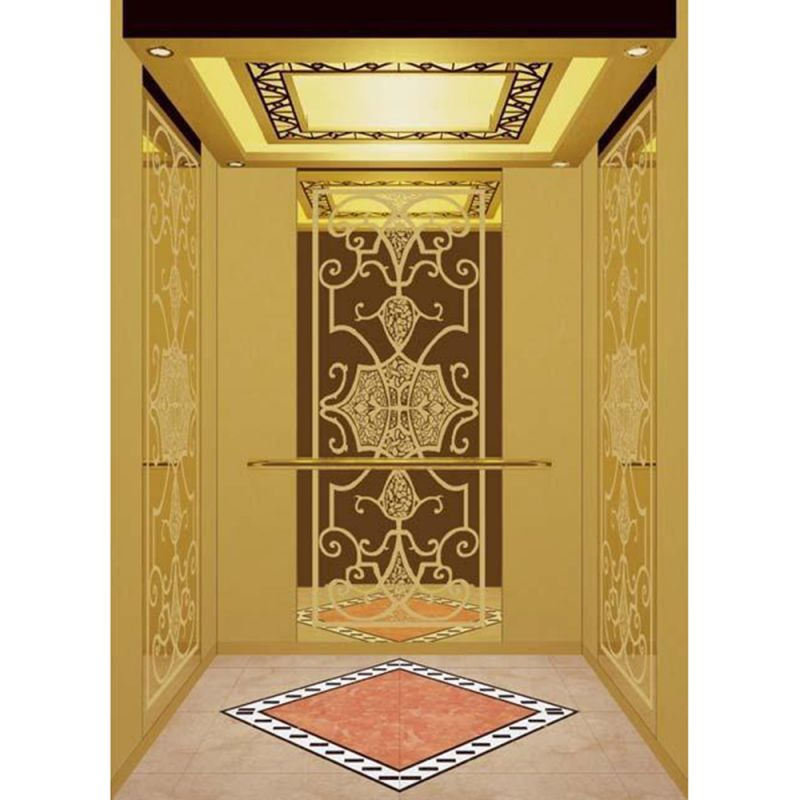

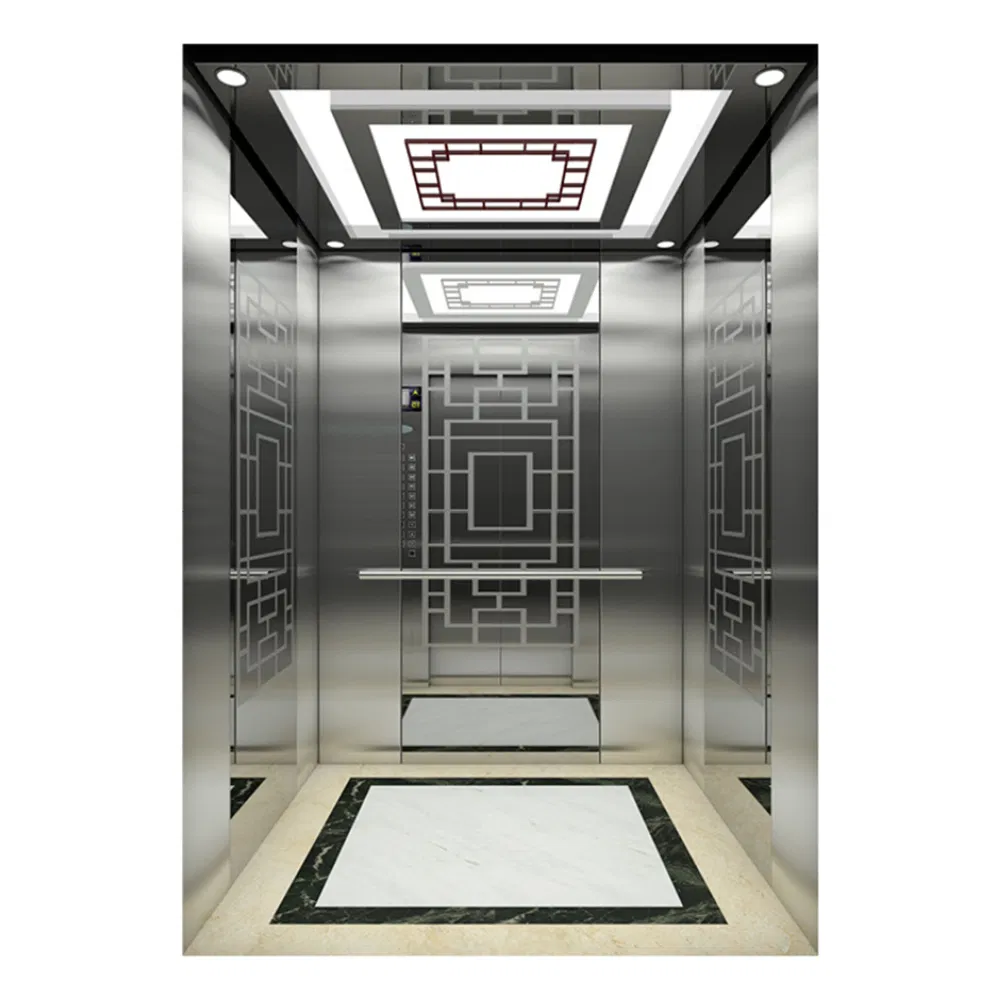

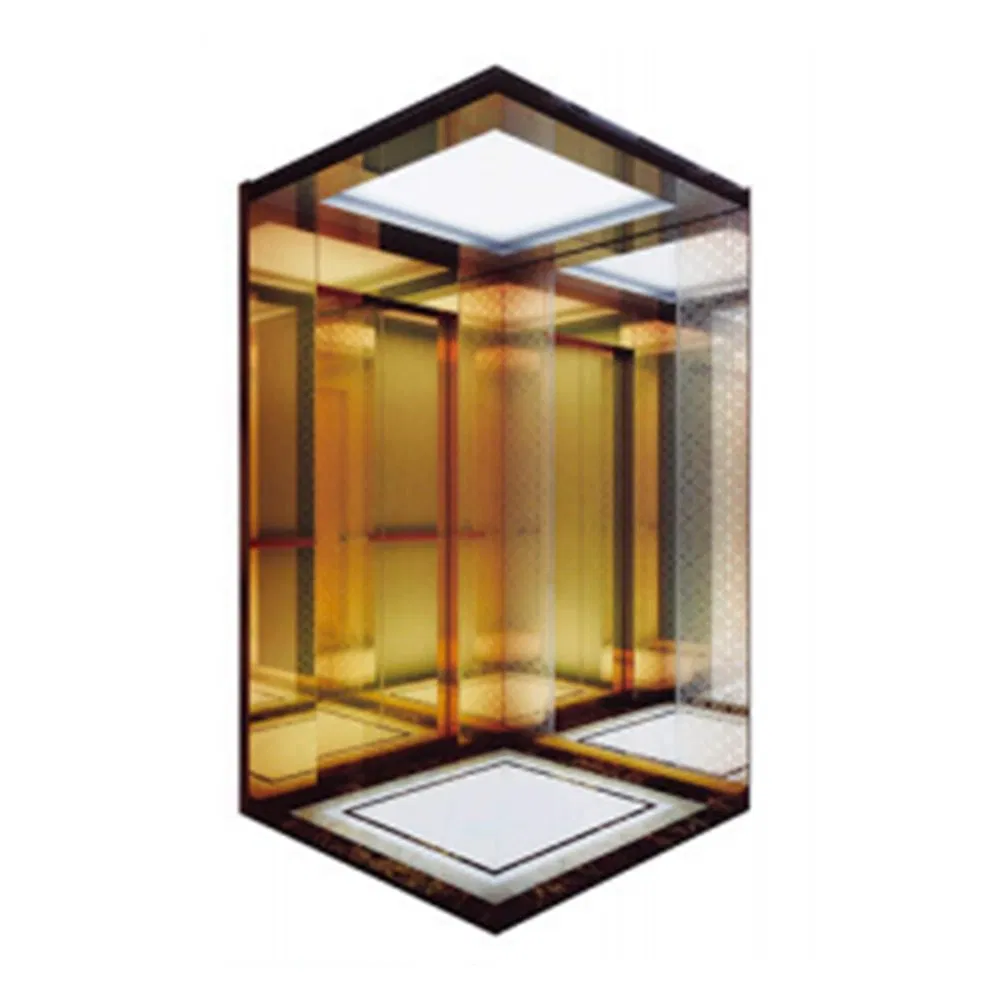

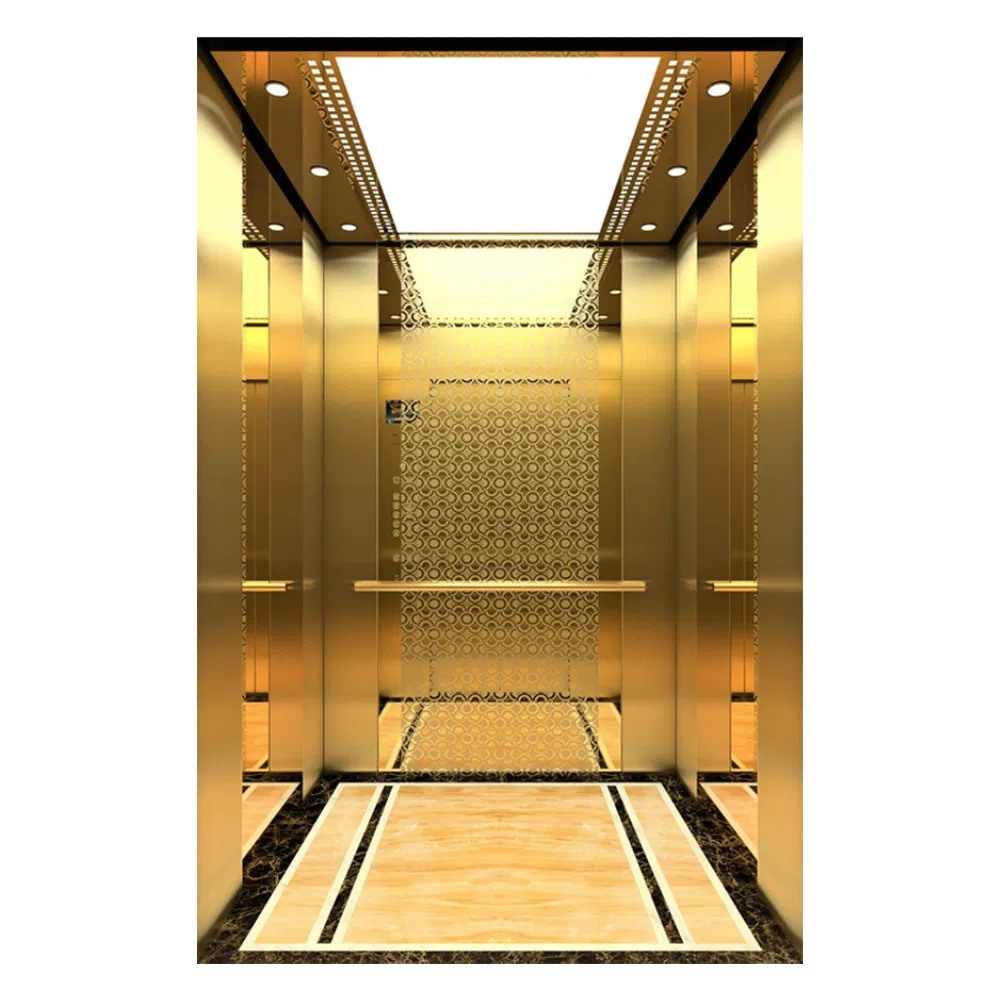

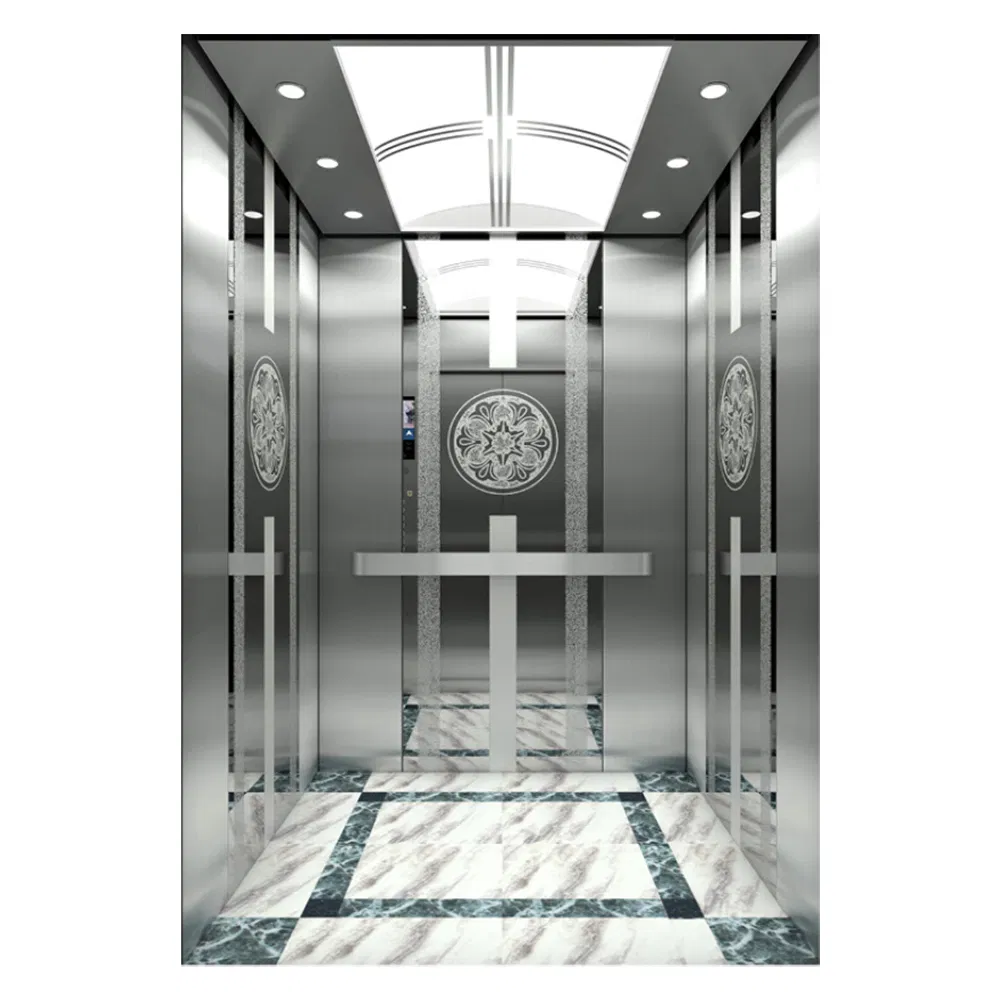

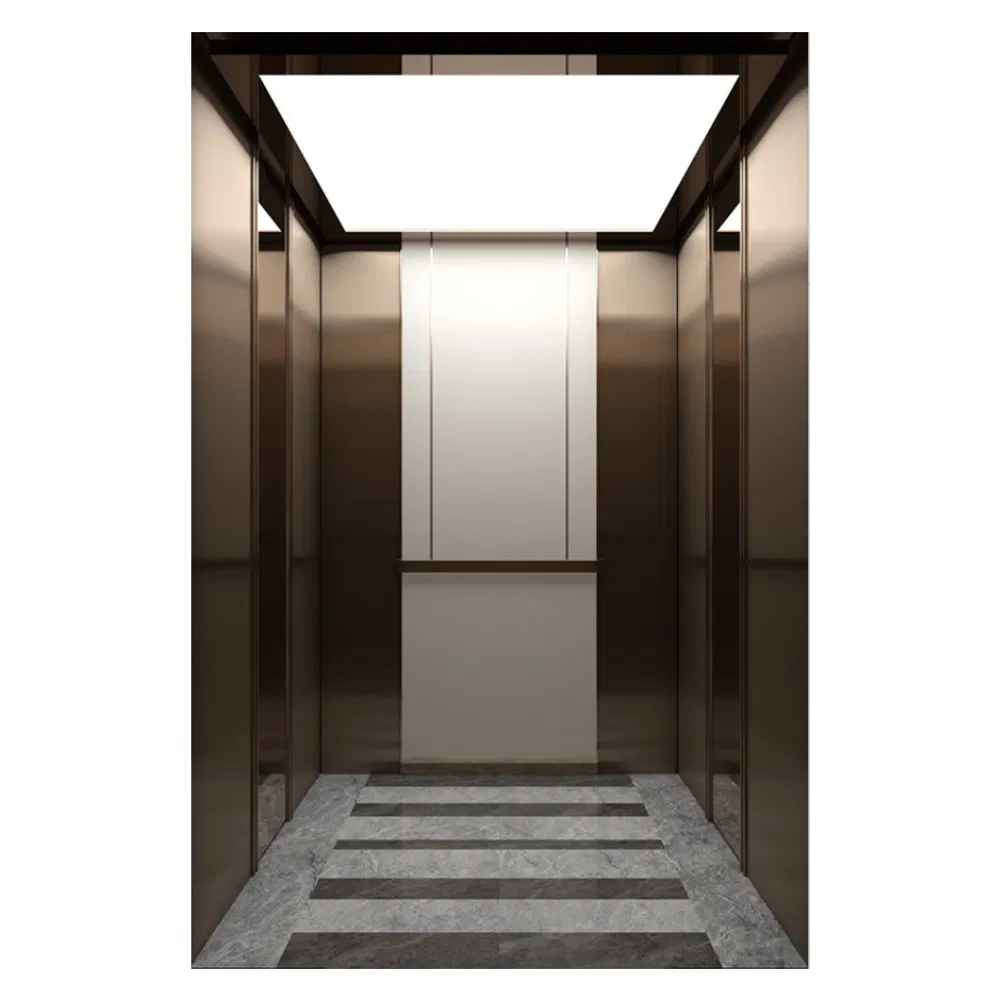

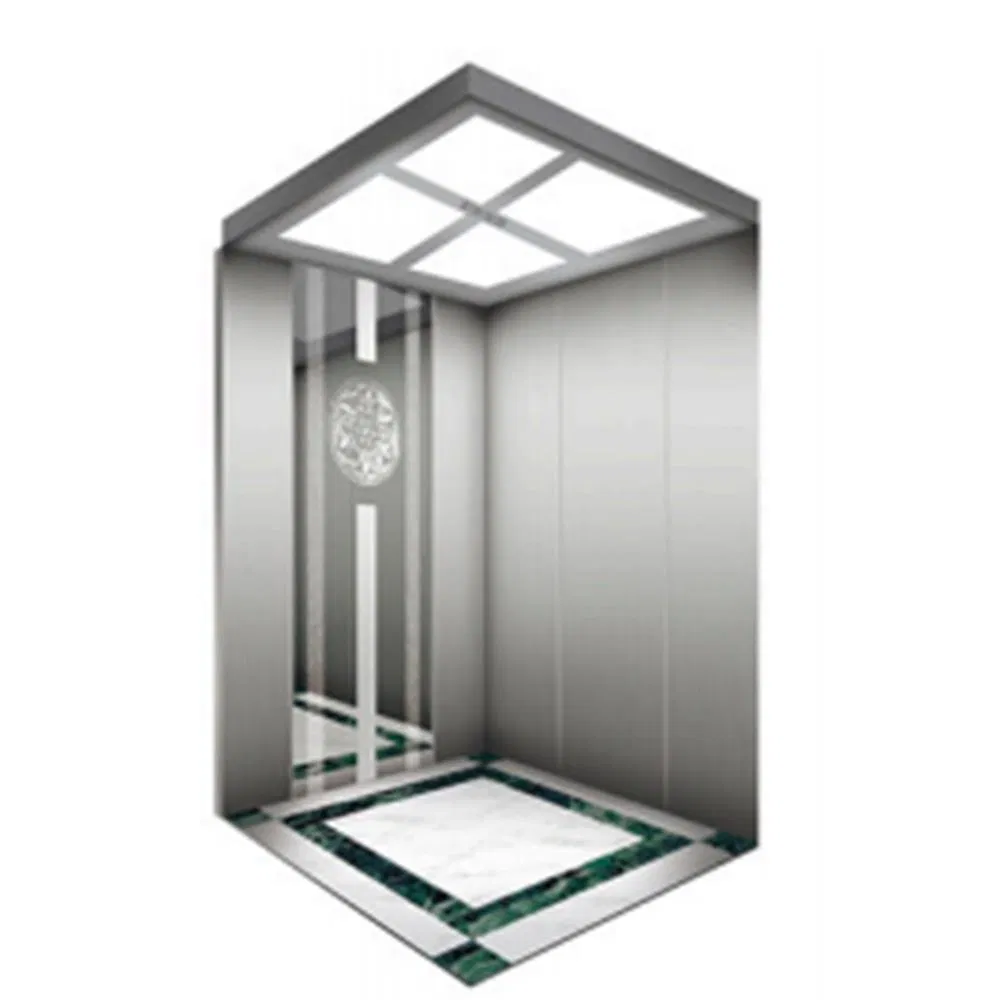

We offer special customized decorations according to customer requests to cater to specific building styles.

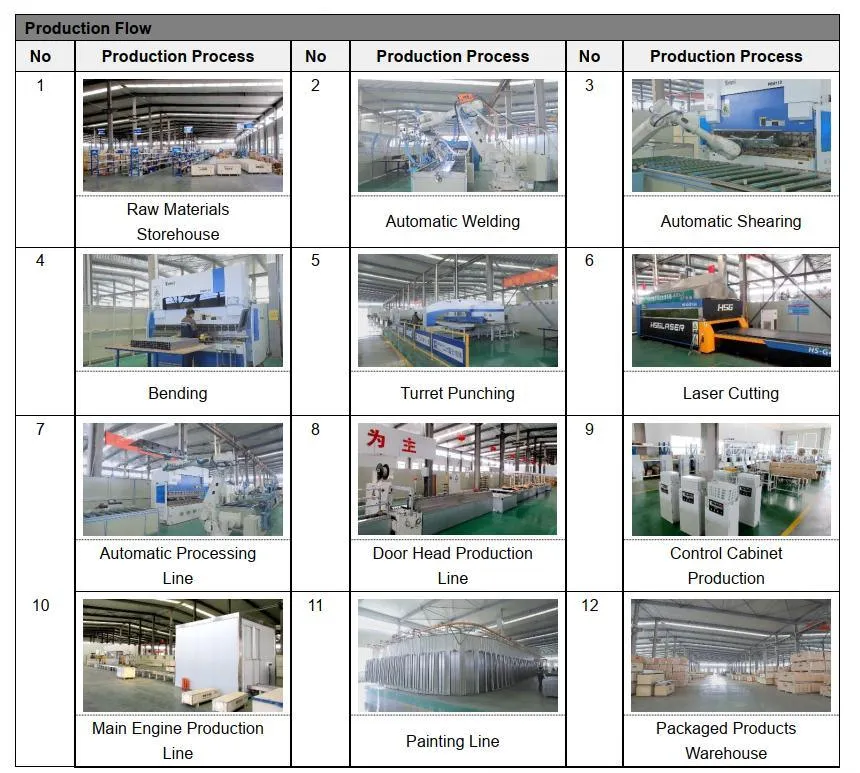

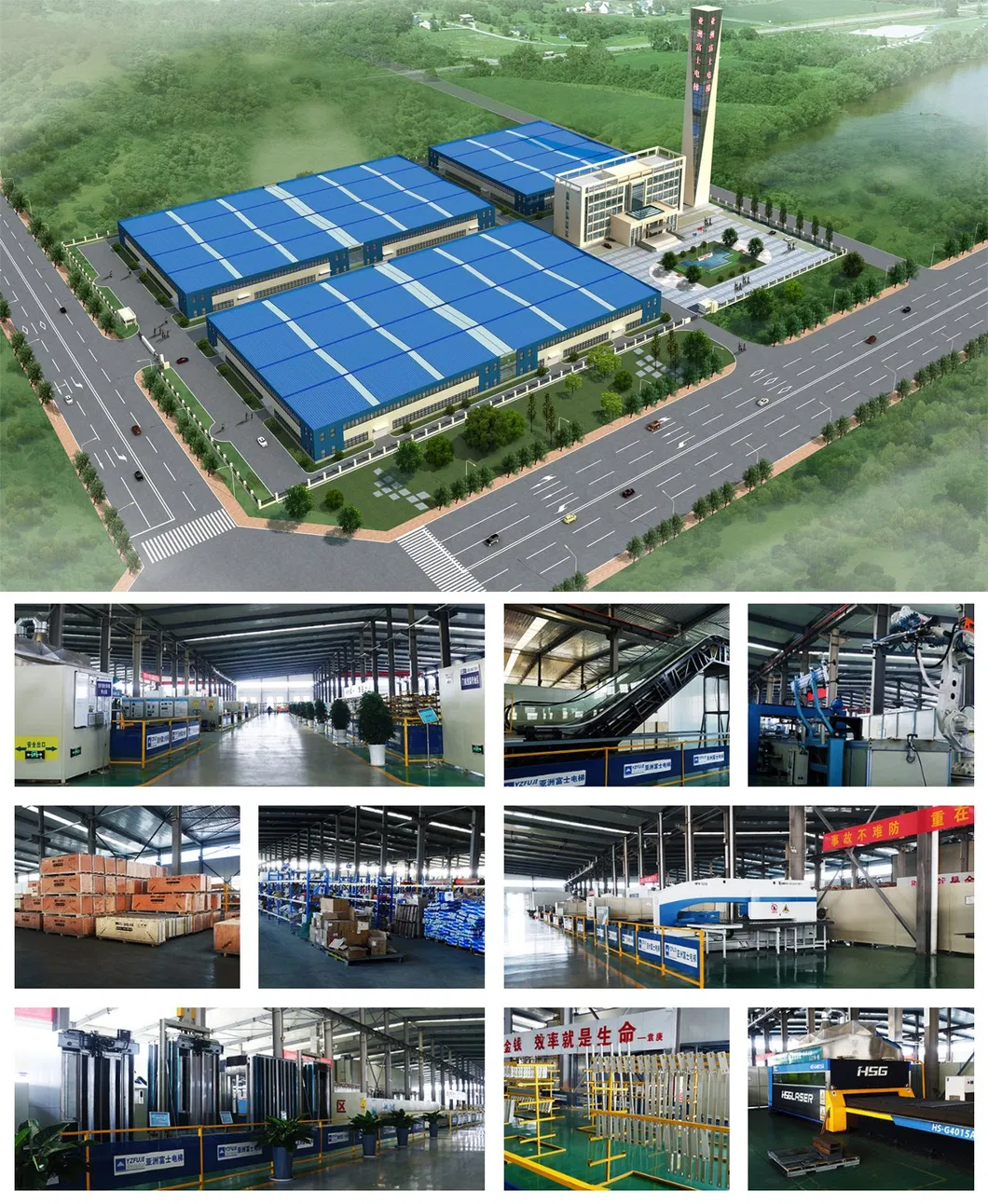

Our intelligent production line adopts high-end robotic series with 360-degree rotation capabilities. From feeding and bending to welding and gluing, the process ensures maximum manufacturing accuracy.
Orderly loading ensures the installation team works efficiently. Goods are classified into containers with detailed packing lists to reduce on-site management difficulty.
