Vanguard Lift
Vanguard Lift

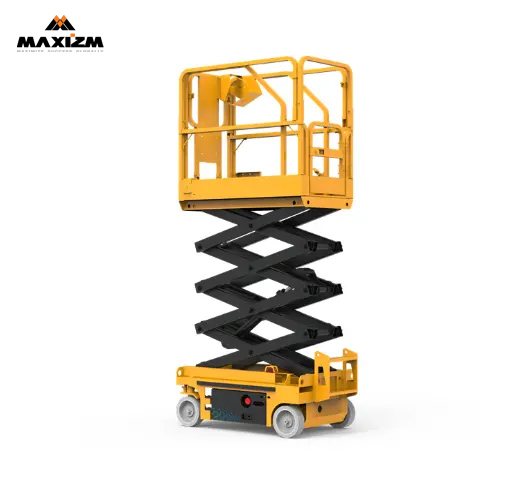

The XG series aerial work platform includes scissor lifts, articulated boom lifts, and telescopic boom lifts. The XG scissor lifts series covers 6m to 16m in height, offering safe, reliable, and easy-to-operate solutions. These lifts are widely used in various indoor and outdoor high-altitude operations.

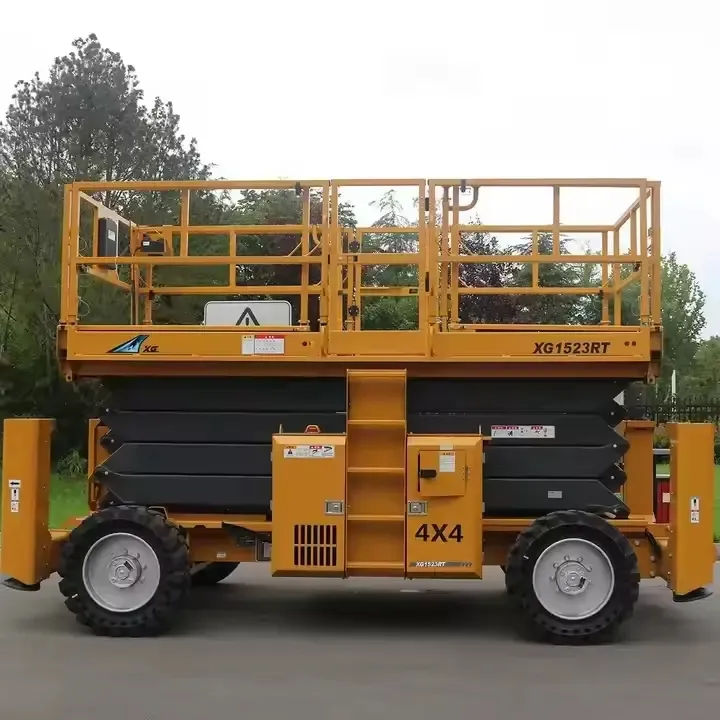

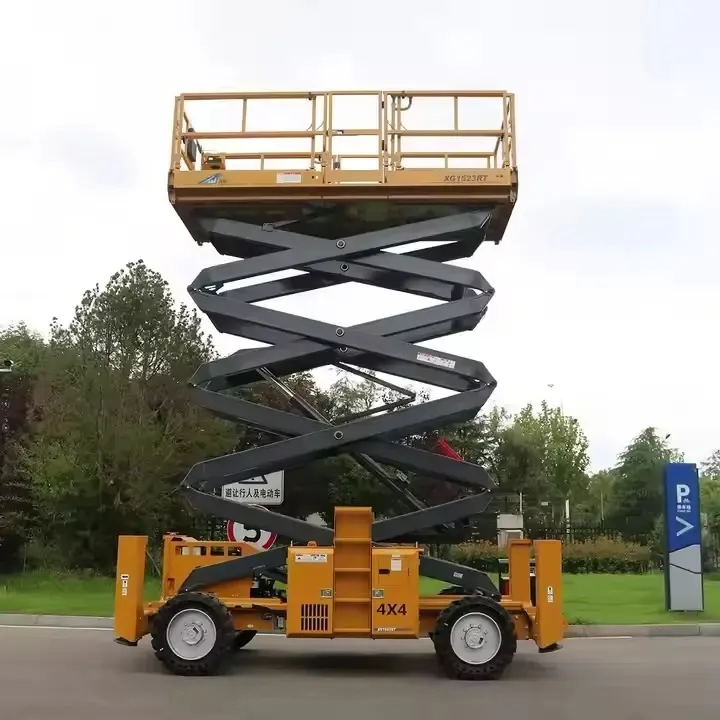

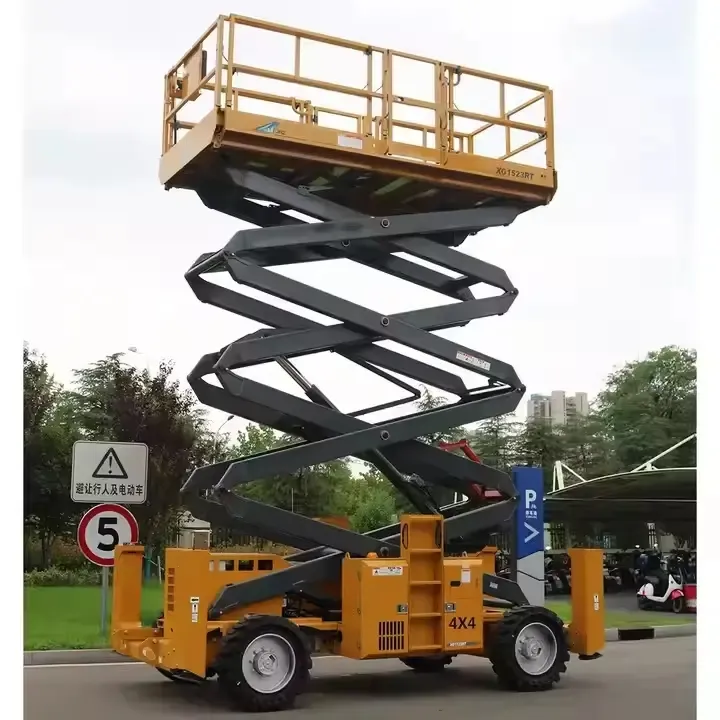

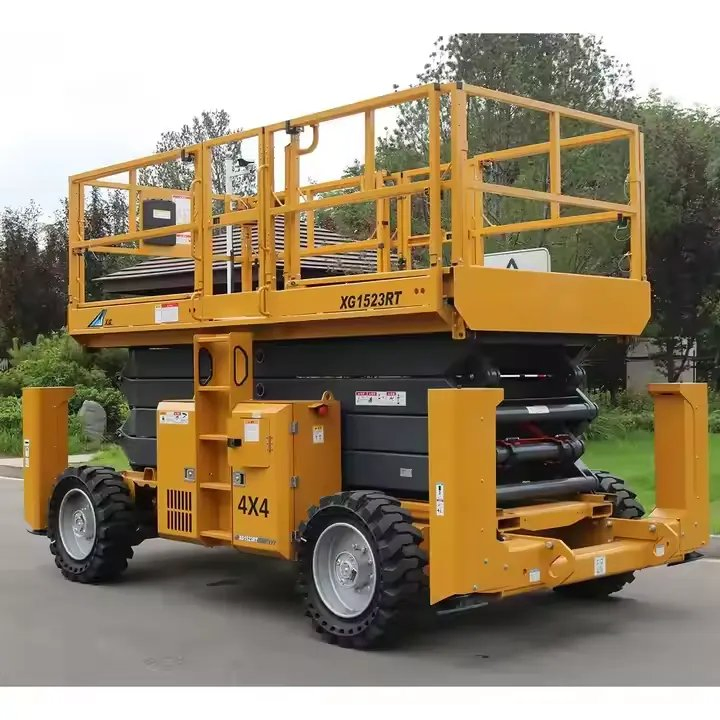

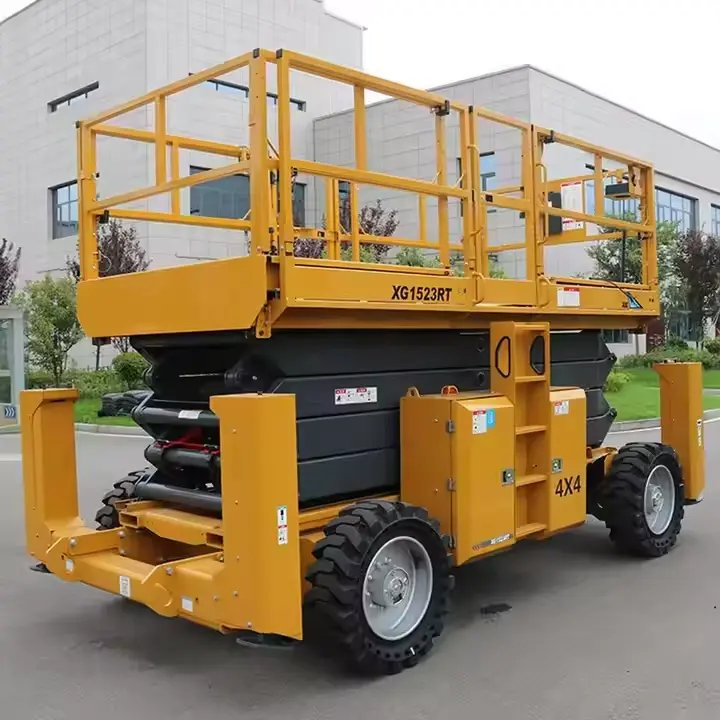

Rough terrain scissor lift XG1523RT features a compact layout for convenient transportation. The gravity of the boom is reduced, making construction more energy-efficient and stable. Equipped with standard off-road wide tires and axle balancing systems, it ensures efficient obstacle crossing and strong water passing capacity.
| Item | Unit | Parameters |
|---|---|---|
| Dimensions (LxWxH) | mm | 2477x1170x2480 |
| Wheel base | mm | 1877 |
| Wheel track | mm | 1043 |
| Min. Ground clearance (pit protector lifting / decline) | mm | 100/20 |
| Working platform dimension(Length x Width) | mm | 2277×1120 |
| Platform extension length | mm | 900 |
| Total weight | kg | 2900 |
| Max. Platform height | m | 10 |
| Max. Working height | m | 12 |
| Platform rated load | kg | 320 |
| Max. Walking speed (low position) | km/h | 4.0 |
| Max. gradeability | % | 25 |
| Battery Voltage | v | 24 |
| Battery Capacity | Ah | 240 |
