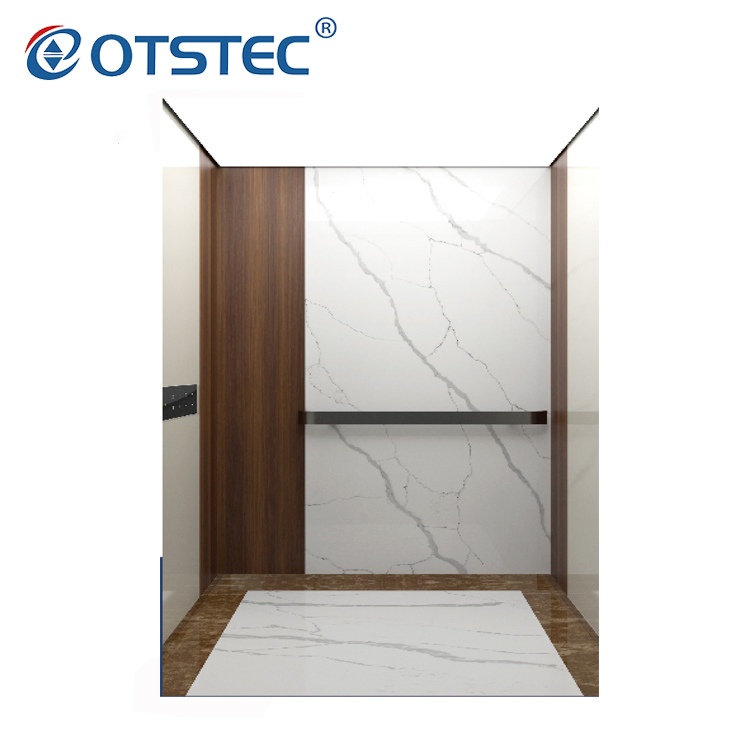

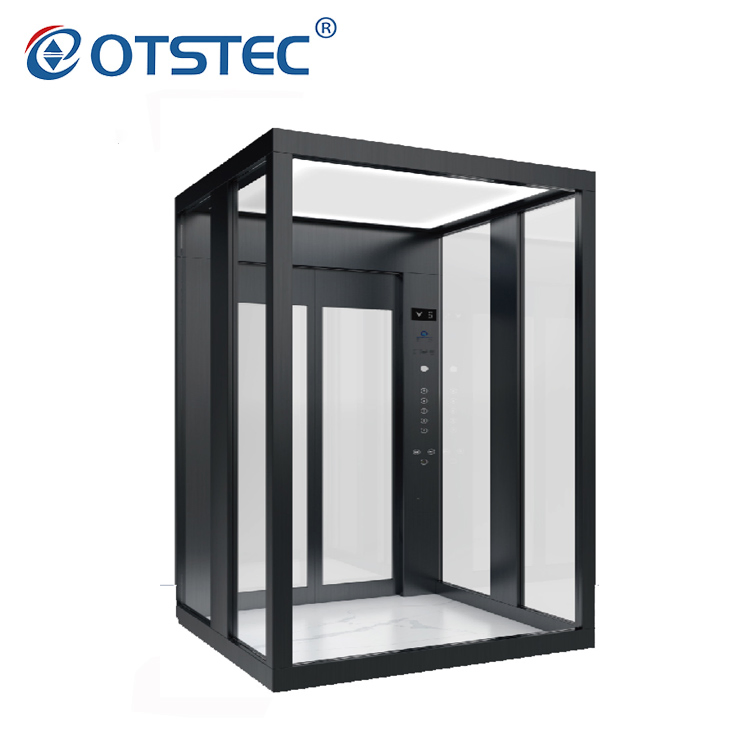

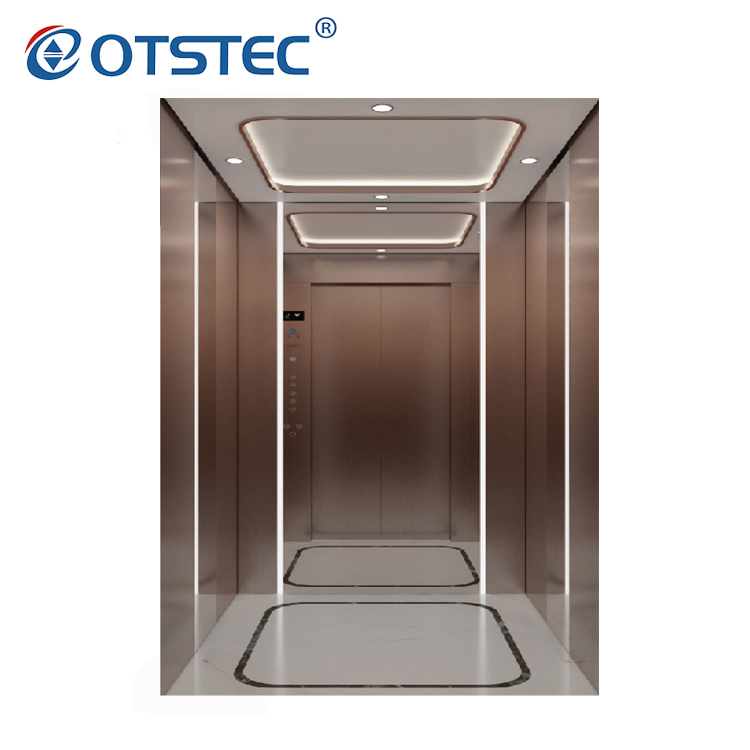

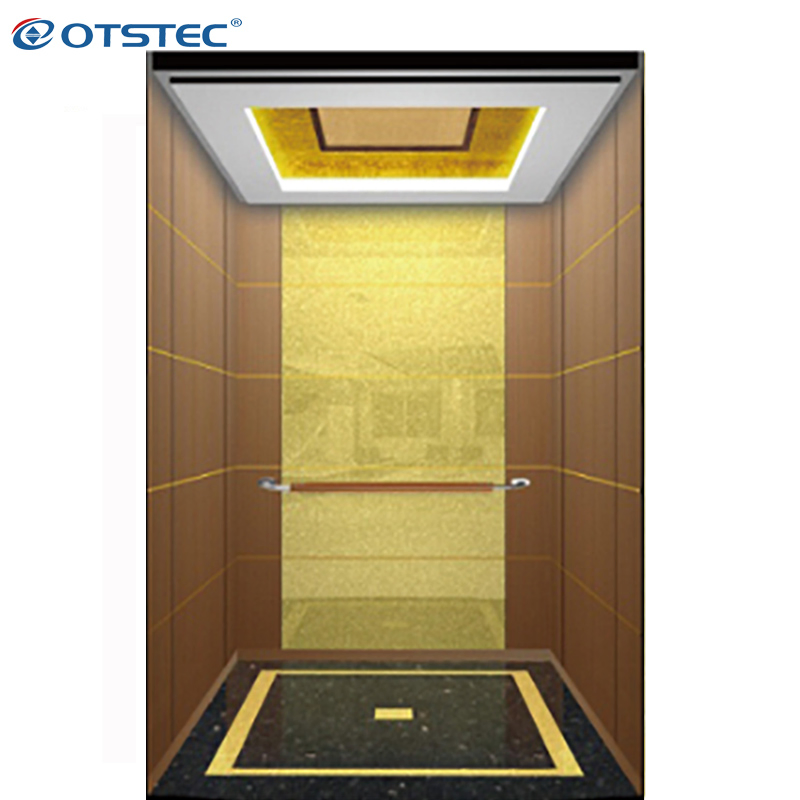

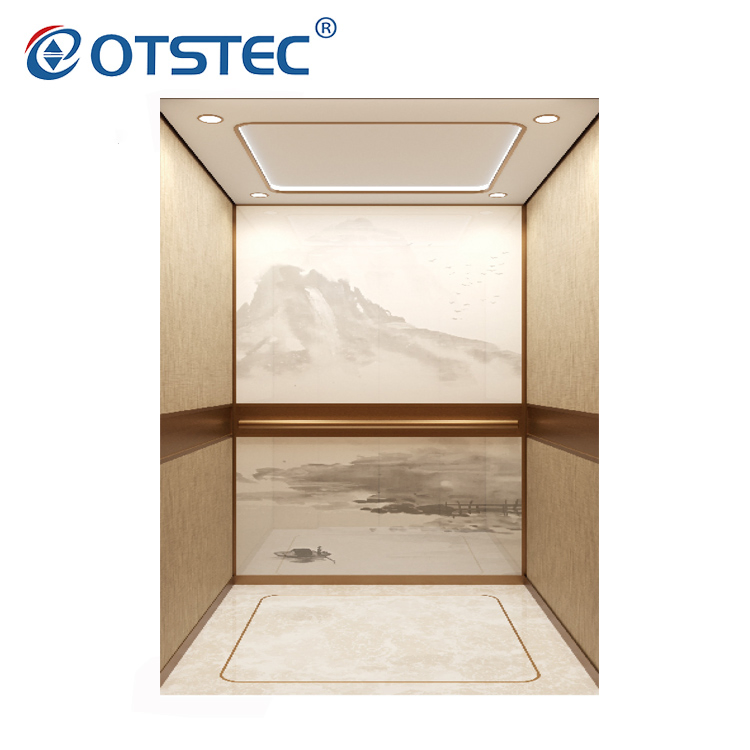

Vanguard Lift
Vanguard Lift
Available Materials: Painted steel, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass.
Load Capacity Options: 250KG, 320kg, 400kg, up to 1600kg.
Speed Range: 0.4m/s, 1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s.

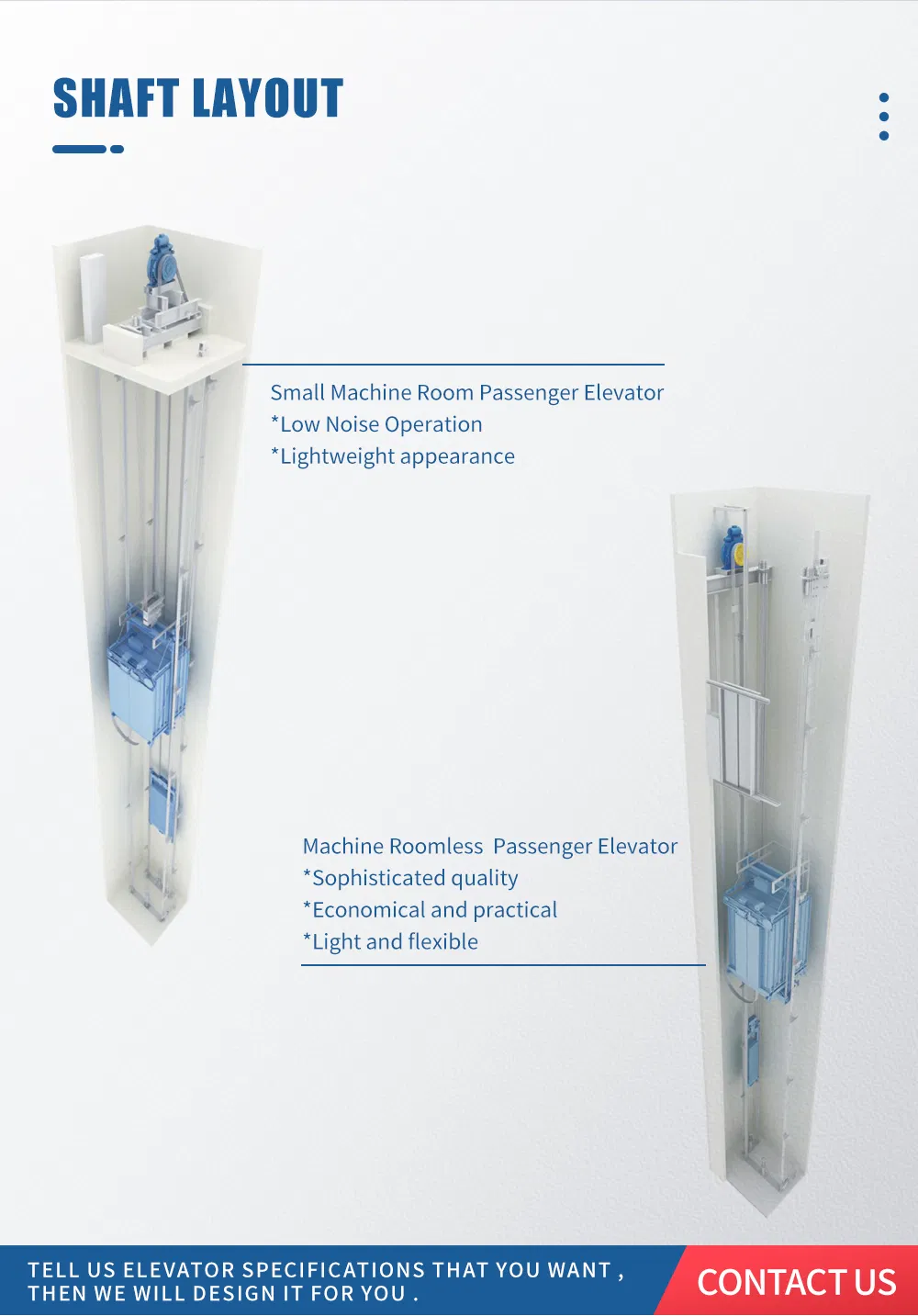

| Technical Specifications - Small Machine Room | ||||||
|---|---|---|---|---|---|---|
| Passengers | Capacity (kg) | Speed (m/s) | Car Size (W*D*H) | Shaft Min. (W*D) | Overhead (mm) | Max Rise (m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1700*1800 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2000*1800 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2000*2000 | 4500 | 120 |
| 13 | 1000 | 1.0-3.0 | 1600*1500*2400 | 2200*2200 | 4500 | 150 |
| 16 | 1250 | 1.0-4.0 | 1950*1400*2400 | 2600*2100 | 4500 | 180 |

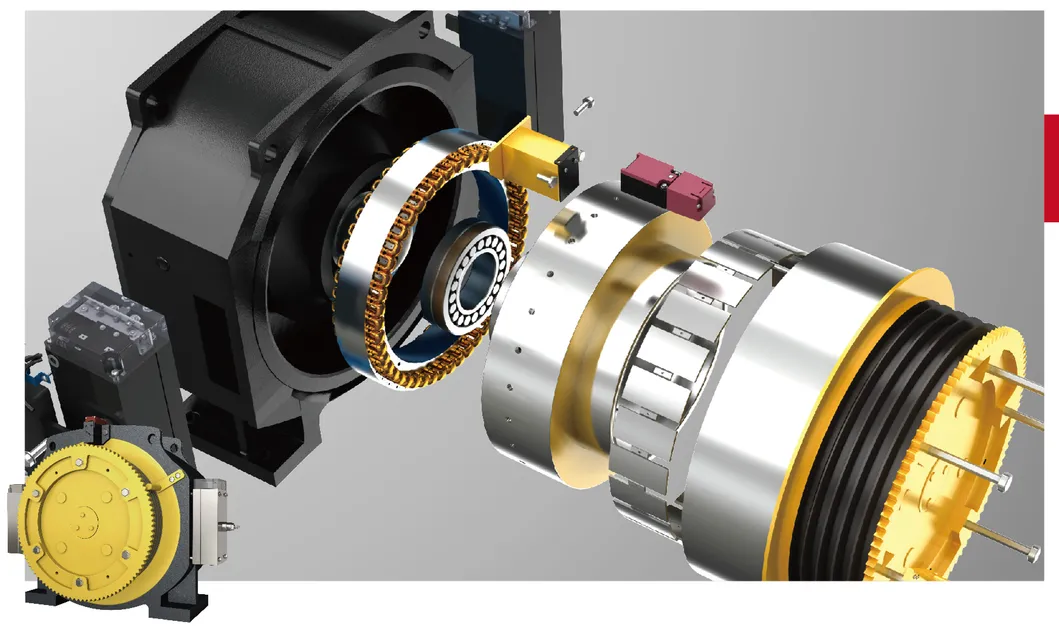

Integrates rare earth materials and digital frequency technology. Saves up to 40% energy compared to traditional systems. Low noise, oil-free, and minimal maintenance costs.
Automatically adjusts current and precisely controls torque according to the car load, ensuring a stable and comfortable riding experience.

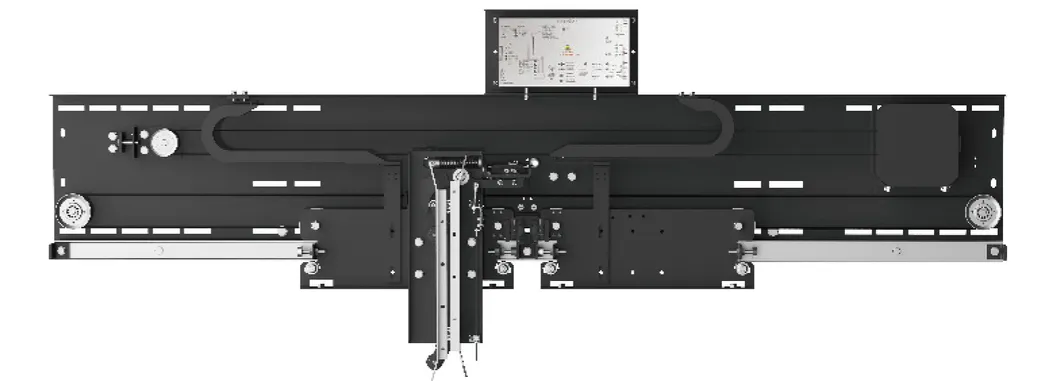

Equipped with VVVF control for smooth, quiet operation. Features a door load detector with self-learning capability to adjust opening/closing speeds automatically for maximum safety.
✅ High-Quality Components: We use world-class gearless motors, door operators, and control systems from industry-leading suppliers.
✅ Precision Design: Our strict management ensures seamless installation and stable, efficient performance.
✅ Energy Efficiency: Modern traction technology reduces operation costs and heat loss.
