Vanguard Lift
Vanguard Lift

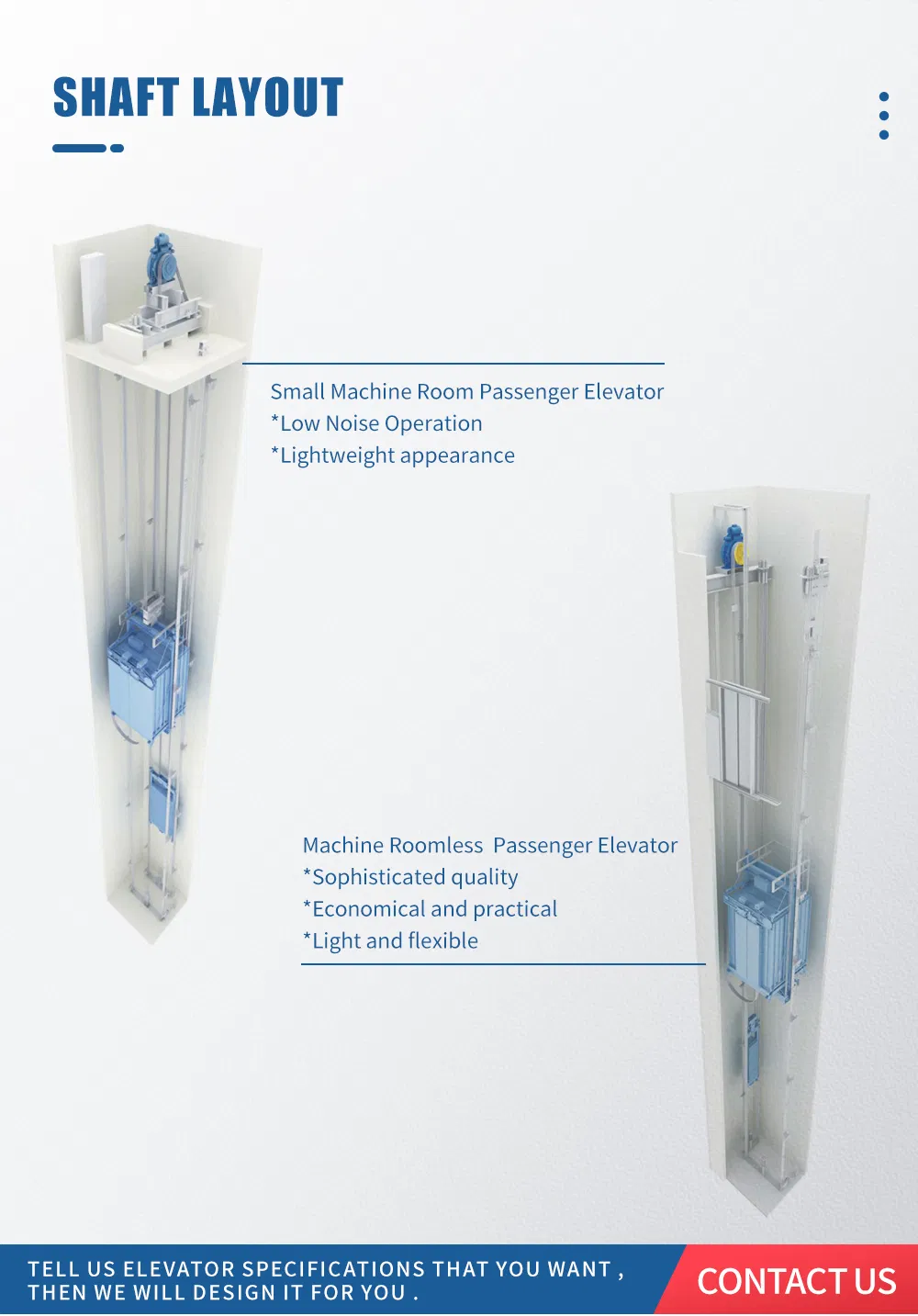

| Small Machine Room | ||||||
|---|---|---|---|---|---|---|
| Passenger | Capacity (Kg) | Speed (m/s) | Car Size W*D*H(mm) | Shaft(Min.) W*D(mm) | Overhead Height (mm) | Rise(Max.) (m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1700*1800 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2000*1800 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2000*2000 | 4500 | 120 |
| 13 | 1000 | 1.0-3.0 | 1600*1500*2400 | 2200*2200 | 4500 | 150 |
| Machine Roomless | ||||||
|---|---|---|---|---|---|---|
| Passenger | Capacity (Kg) | Speed (m/s) | Car Size W*D*H(mm) | Shaft(Min.) W*D(mm) | Overhead Height (mm) | Rise(Max.) (m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1900*1500 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2200*1500 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2200*1700 | 4500 | 120 |
| 13 | 1000 | 1.0-2.5 | 1600*1500*2400 | 2400*1900 | 4500 | 150 |

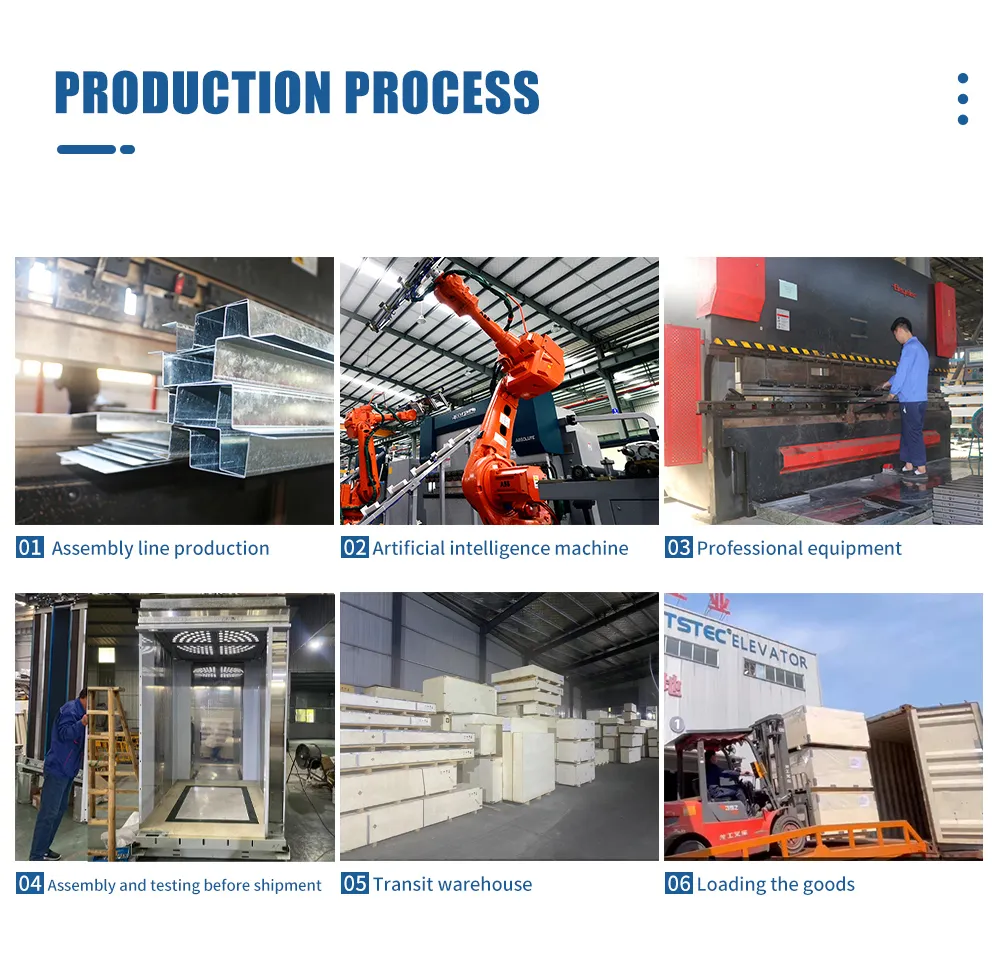

Production Process:

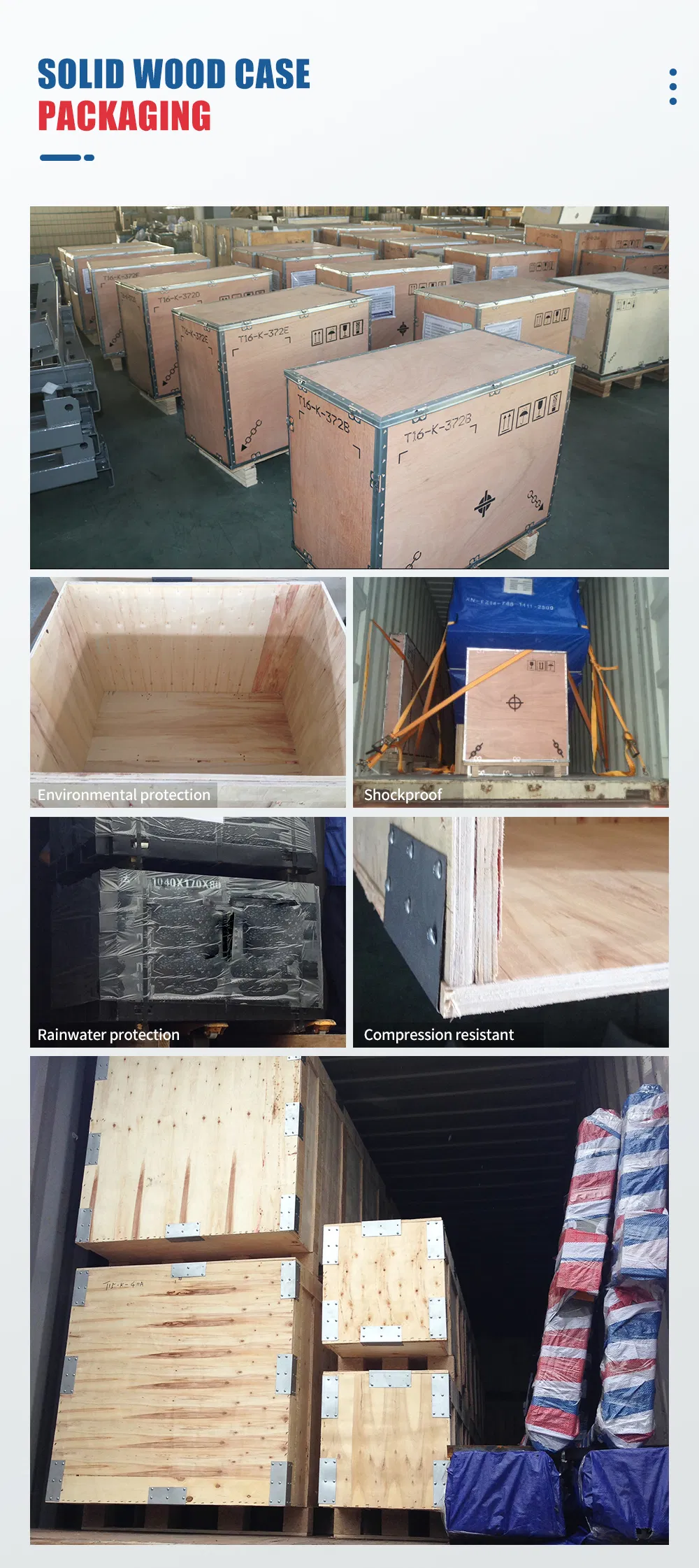

Packaging & Shipping:
