Vanguard Lift
Vanguard Lift
| Model NO. | HZH XF120 | Size | Large |
| Usage | Firefighting | Structure | Wing UAV |
| Max Load Weight | 150 Kg | Max Takeoff Weight | 257.8 Kg |
| Max Flight Altitude | 500 M | Max Flight Time | 45 Min |
| Axis | 8 | Dimensions | 4605*4605*990mm |

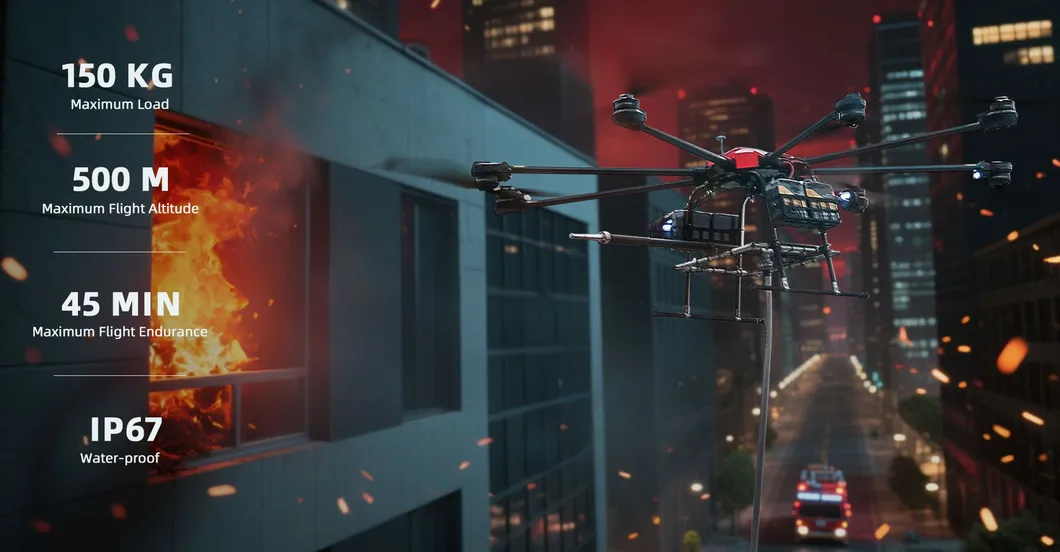

The HZH XF120 is a heavy-lifting industrial drone specifically engineered for building, forest, and wildland fire rescue. With a 150kg payload capacity, it provides a powerful remote-controlled solution for high-risk firefighting environments.
| Technical Performance Parameters | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |

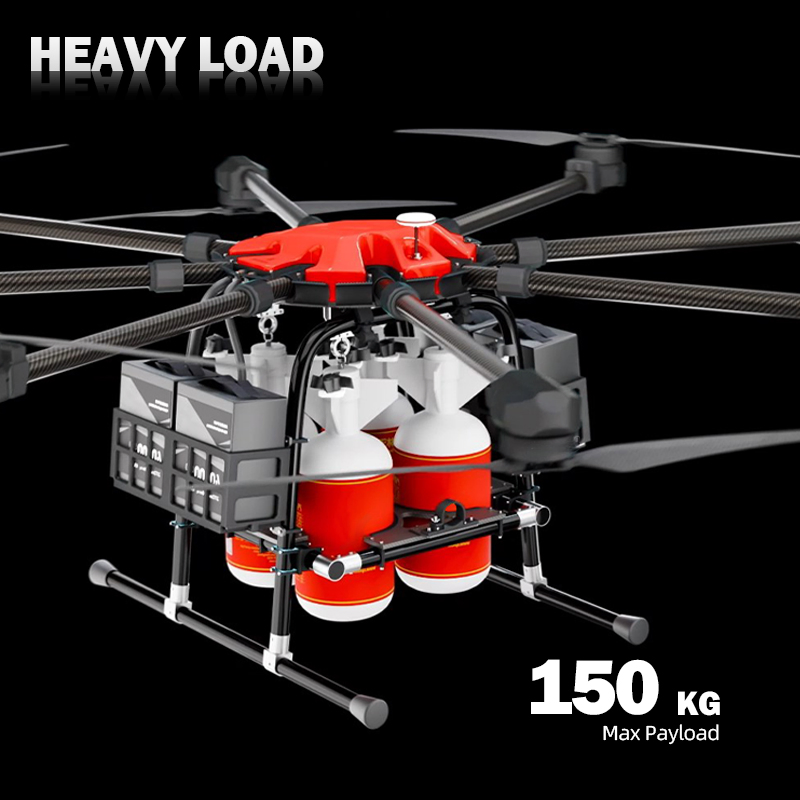

| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Max. Flight Time | 45 minutes |

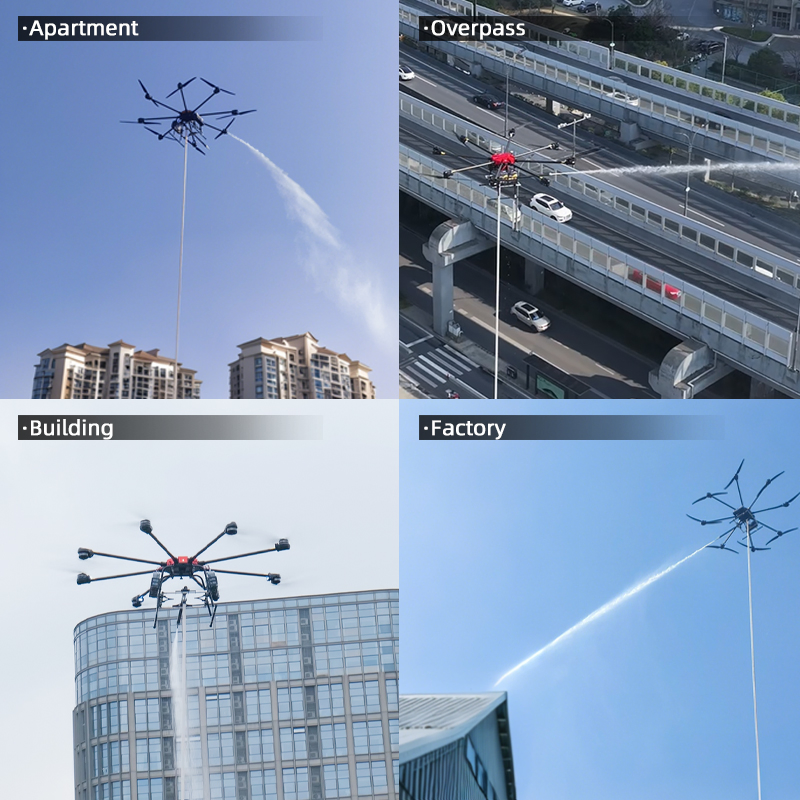

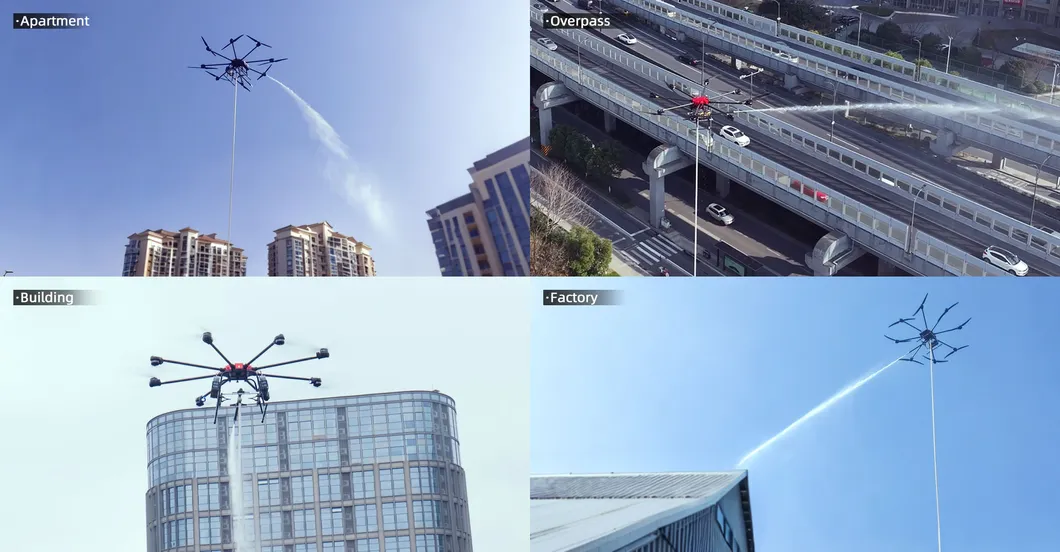

In densely populated apartment complexes, these drones quickly assess fire scale and provide real-time footage. Equipped with high-pressure water nozzles, they spray a continuous stream to cool fires and prevent vertical spread.
Firefighting drones excel by rapidly reaching elevated sites and deploying fire extinguishing bombs precisely onto flames, avoiding road congestion and reducing secondary accident potential.
Drones bypass blocked stairwells and elevators in towering commercial structures, ascending rapidly to upper stories to drench fires and curb vertical progression.
For combustible or explosive industrial environments, drones deploy extinguishing bombs to smother flames or use water-spraying functions to cool large-scale machinery.

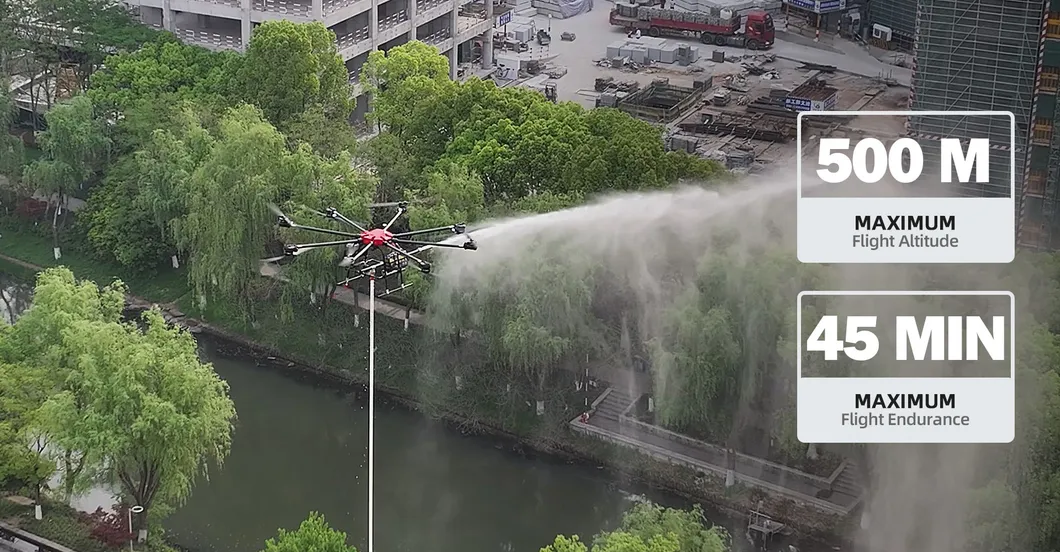

▶ Exceptional Vertical Reach: Boasting a 500-meter maximum flight altitude, allowing access to skyscraper floors and tall industrial structures.
▶ Prolonged Mission Endurance: 45-minute maximum flight time enables sustained suppression missions without frequent recharging.

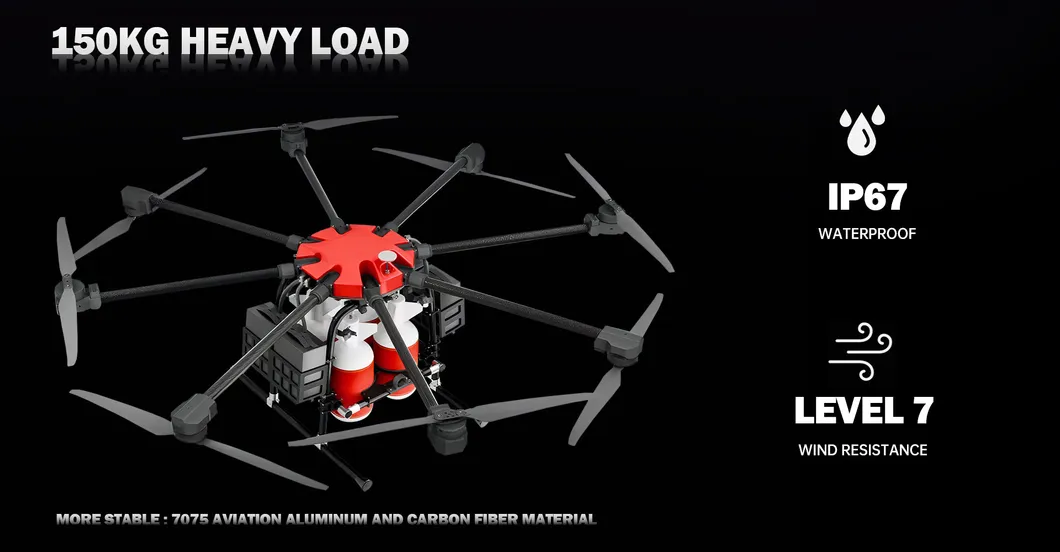

▶ Robust Composite Structure: Built from 7075 aerospace aluminum and carbon fiber for an optimal balance of durability and agility.
▶ Advanced Defense: Features an IP67 waterproof rating and Level 7 wind resistance for operation in harsh weather conditions.

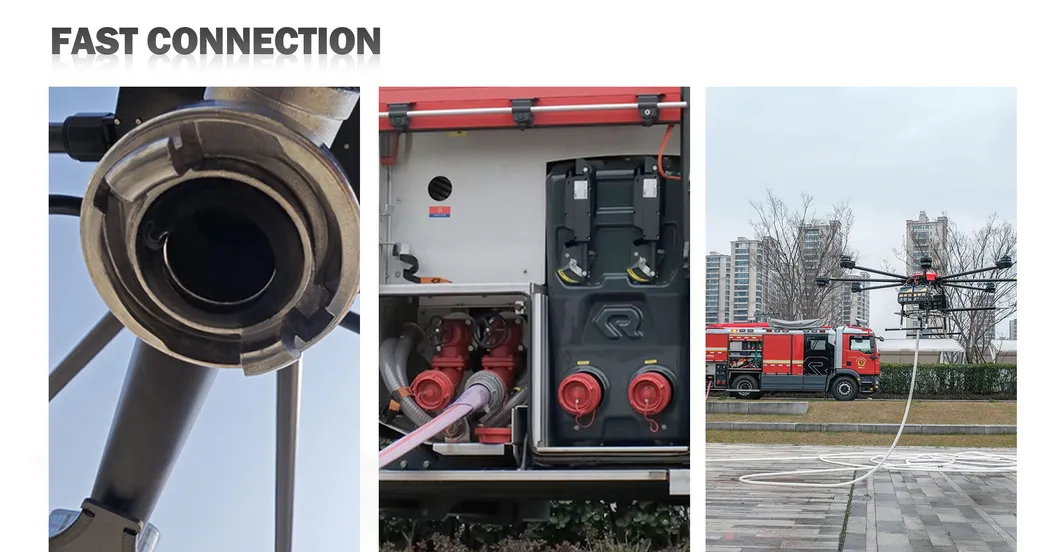

▶ Rapid Deployment: Modular design allows full assembly and operation readiness in just 5 minutes.

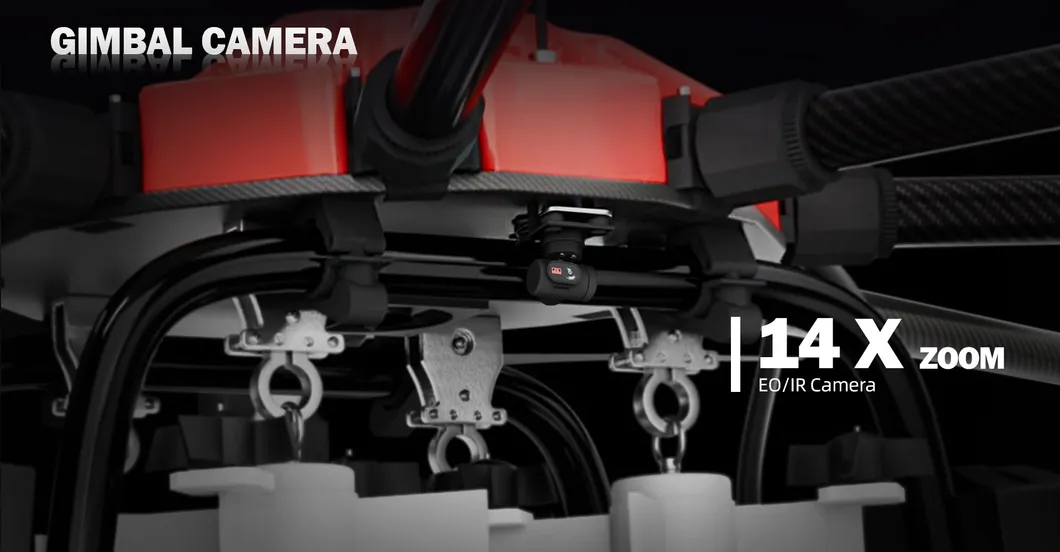

▶ High-Precision Imaging: Outfitted with a 14X Zoom EO/IR camera to detect heat signatures and trapped individuals through smoke.

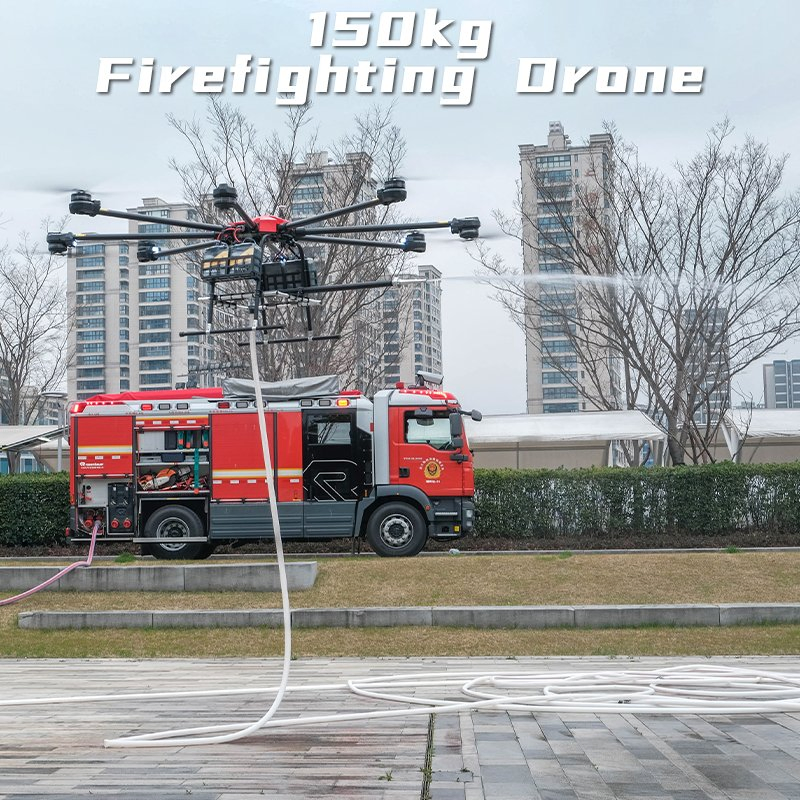

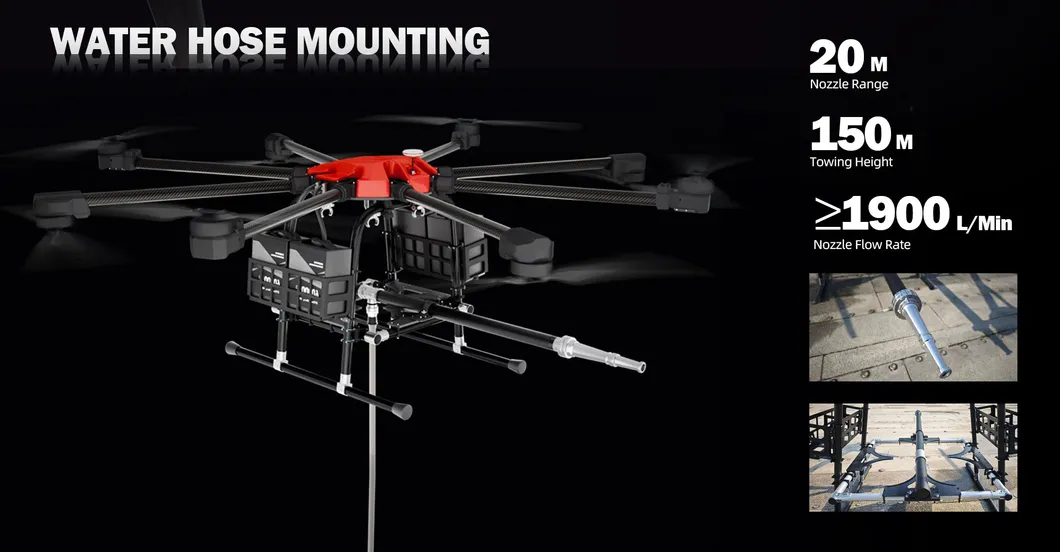

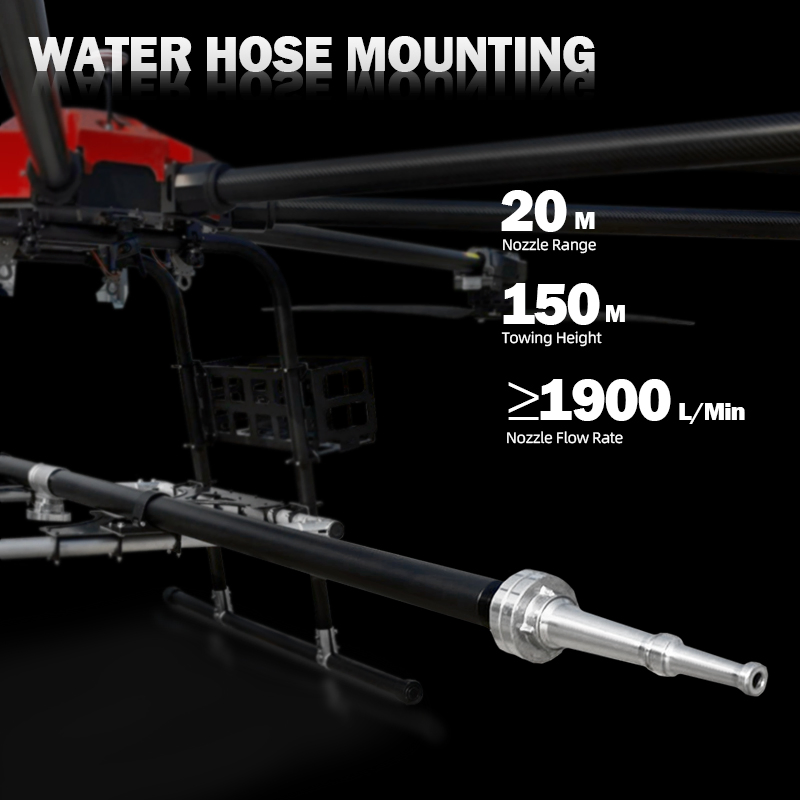

| Water Hose Mounting Parameters | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length | 3m |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900 L/min |
| Towing Height | 150m |

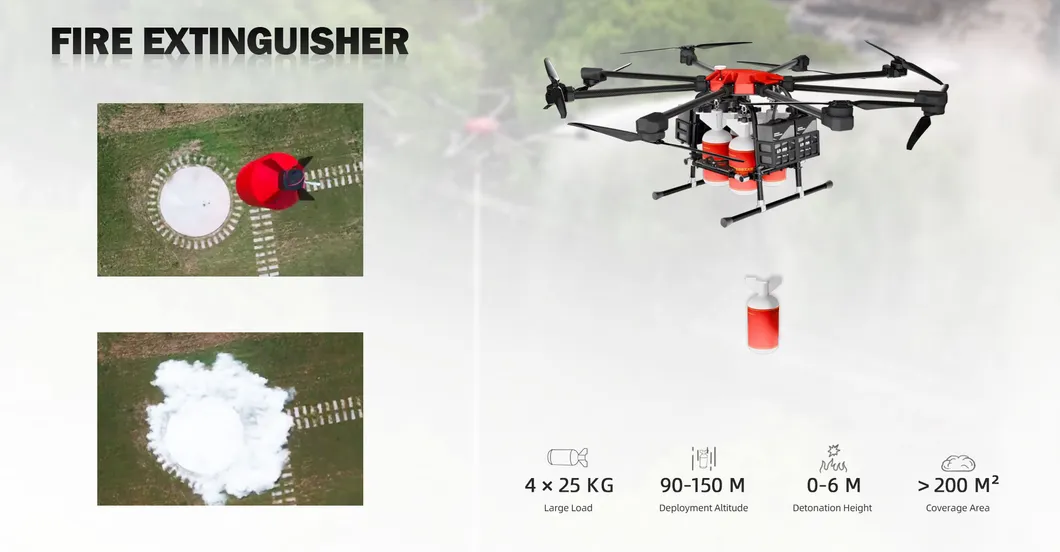

| Fire-Extinguisher Bomb Specs | |
|---|---|
| Total Weight | ≤ 23kg |
| Agent Type | ABC dry chemical or water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Arming Height | ≥ 50 m |
1. Comprehensive Product Range: Meeting diverse industrial requirements.
2. Strong R&D: Continuous improvement in drone manufacturing technology.
3. Global Sales Network: Ensuring quick and convenient delivery.
4. Competitive Pricing: Cost-effective solutions without compromising durability.
5. Sustainability: Committed to natural resource management and efficient rescue operations.
The drone supports a maximum load weight of 150kg and has an impressive flight endurance of up to 45 minutes.
It has a maximum flight altitude of 500 meters and an altitude limit of up to 4500 meters, making it ideal for high-rise building rescue.
Yes, the drone is built with an IP67 waterproof rating and can resist winds up to Level 7, ensuring stability in challenging environments.
The nozzle has a projection range of 20 meters and a massive flow rate of ≥1900 liters per minute for rapid fire suppression.
It is equipped with a 14X Zoom EO/IR camera that can detect heat signatures and provide clear visuals through smoke.
Each bomb has a dispersion radius of ≥5 meters and can cover an area of ≥50 square meters.
