Global Residential and Commercial Dumbwaiters for Efficient Home Restaurant Kitchen Food Transportation

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Product Overview

Model NO.

ZW002

Type

Wellhole

Load Capacity

200kg

Speed

0.40m/s

Drive Mode

AC

Open & Close Type

Automatic

Lift Mechanism

Telescoping Lift

Deceleration Device

With Deceleration Device

Guide Rail

Hollow Guide

Elevator Door

Straight Fractional Door

Main Power

AC 380V, 3 Phase 50Hz

Packing

Plywood Box

Product Description

The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift. It silently serves various industries, playing a significant role in the smallest space. We redefine the dumbwaiter with a complete product series: floor type and window type elevators are equipped with two different door opening methods.

Core Advantages

1 Occupies a small space; does not require strong civil engineering bearing capacity.

2 Advanced PC control module for smooth operation and accurate leveling.

3 Humanized design makes operation flexible and intuitive.

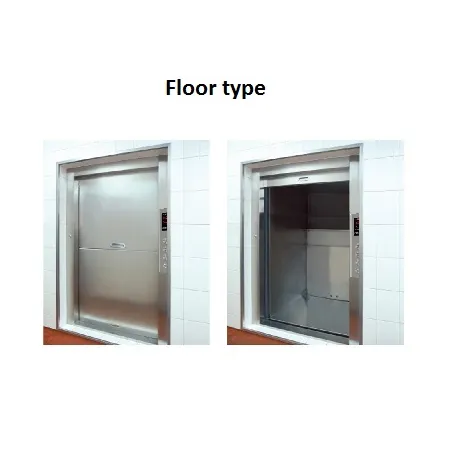

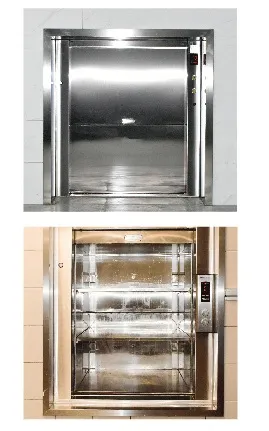

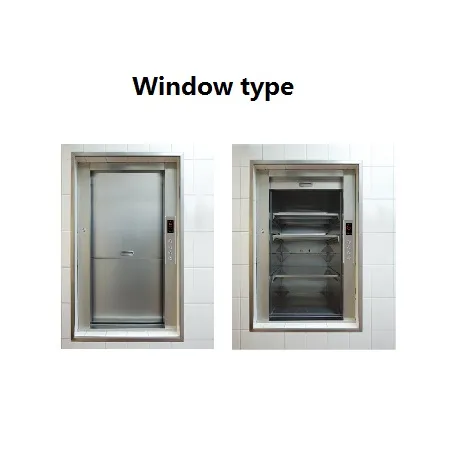

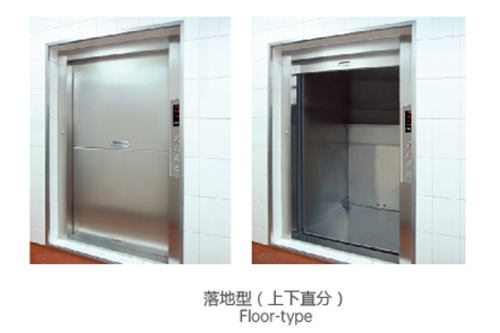

4 Available in window type and floor type to suit different needs.

5 Elegant, quiet, and easy to maintain.

Technical Parameters

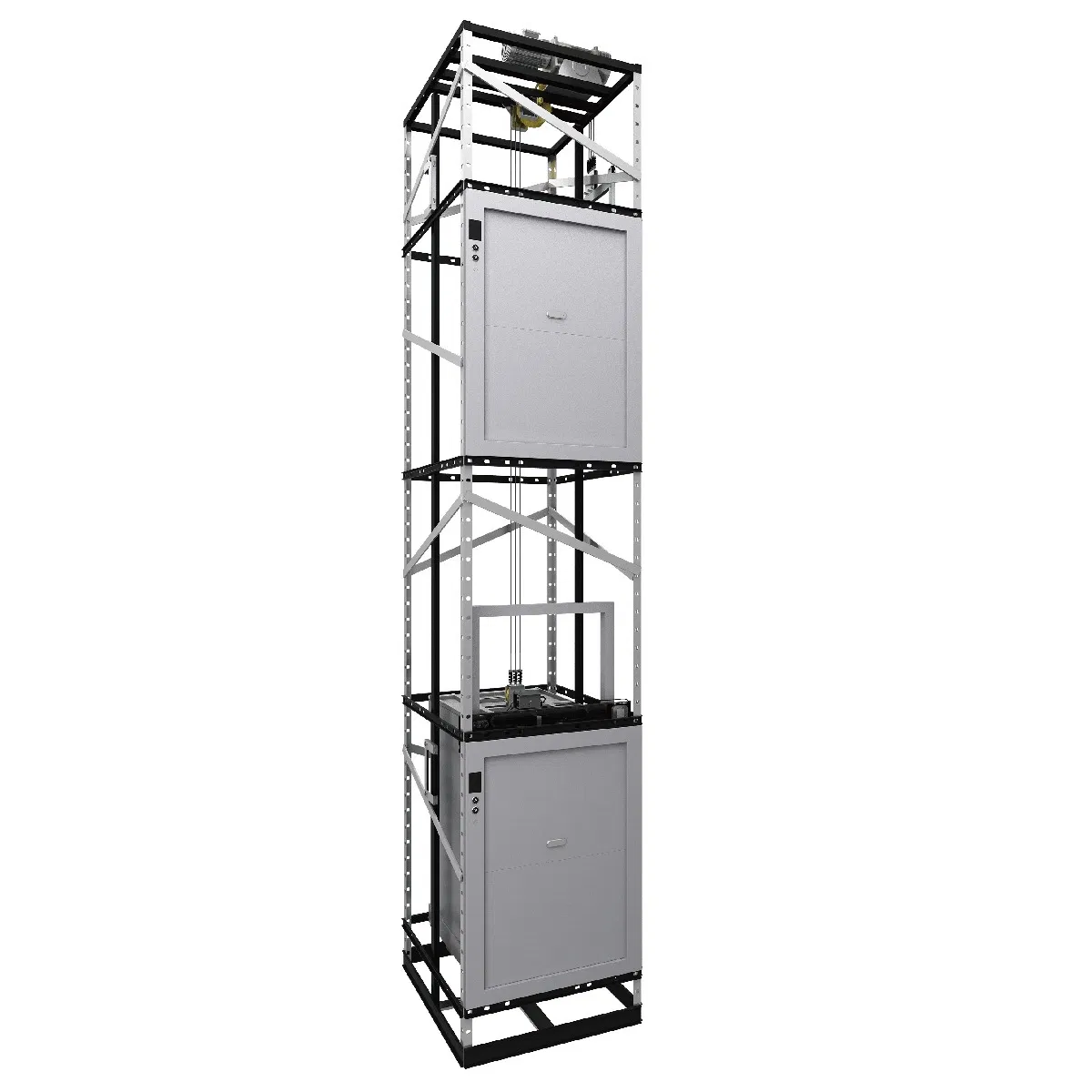

Dumbwaiter Elevators Without Machine Room

No.	Load (kg)	Speed (m/s)	Cabin Size (WXDXH)mm	Door Size (WxH)mm	Shaft Size (WxD)mm	Working Mode
1	100	0.4	500x500x900	500x900	1000x800	Window Type
2	200	0.4	600x600x900	600x900	1100x900	Window Type
3	250	0.4	800x800x900	800x900	1300x1100	Window Type
1	100	0.4	500x500x1000	500x1000	1000x800	Floor Type
2	200	0.4	600x600x1000	600x1000	1100x900	Floor Type
3	250	0.4	800x800x1000	800x1000	1500x1100	Floor Type

Safety Functions

No.	Safety Feature	No.	Safety Feature
1	Motor overheat protect	9	Safety gear contact
2	Power phase fault detect	10	Main fuse (controller)
3	Drive running time detect	11	Main power switch (controller)
4	Inspection running	12	Car lighting switch and fuse
5	Emergency door opening key	13	Hall calling register display
6	Car door contact	14	Car position indicator
7	Shaft emergency stop switch	15	Running direction indicator

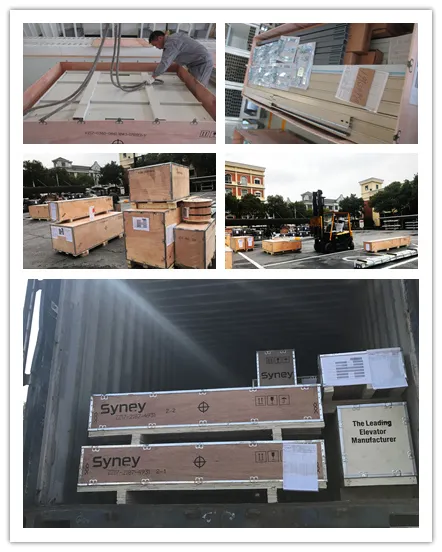

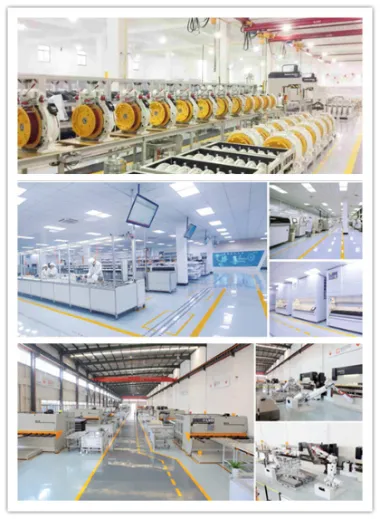

Manufacturing & Packing

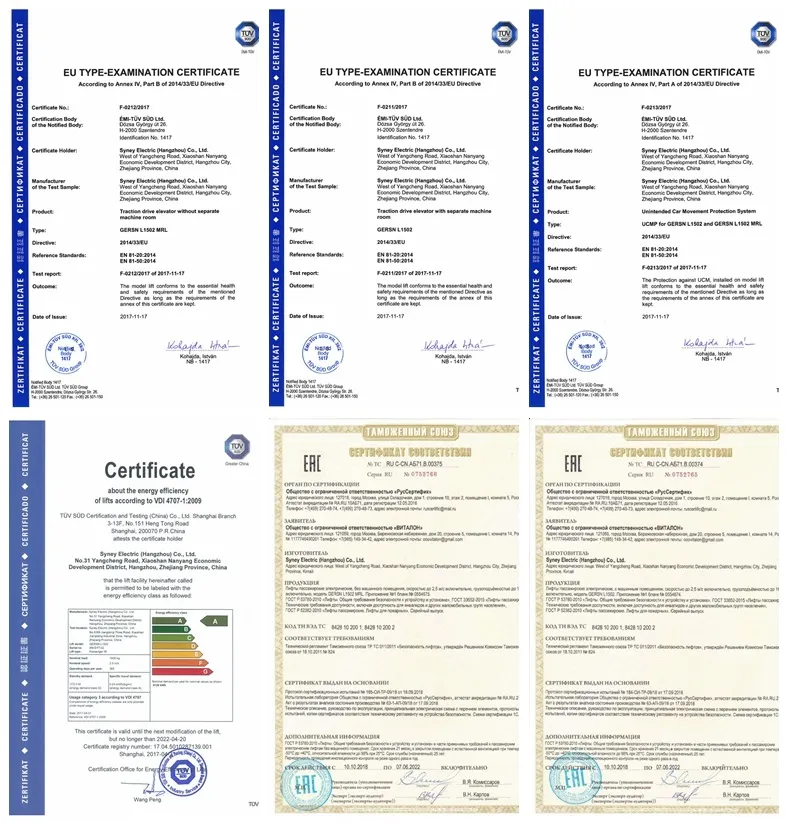

Global Certifications

We hold some of the strictest certificates worldwide, widely accepted in European countries. These marks indicate that our quality certification system meets international body requirements.

✅ CE Certificate (With/Without Machine Room)
✅ CE Certificate of energy-efficiency: Grade A
✅ EAC Certificate for elevators

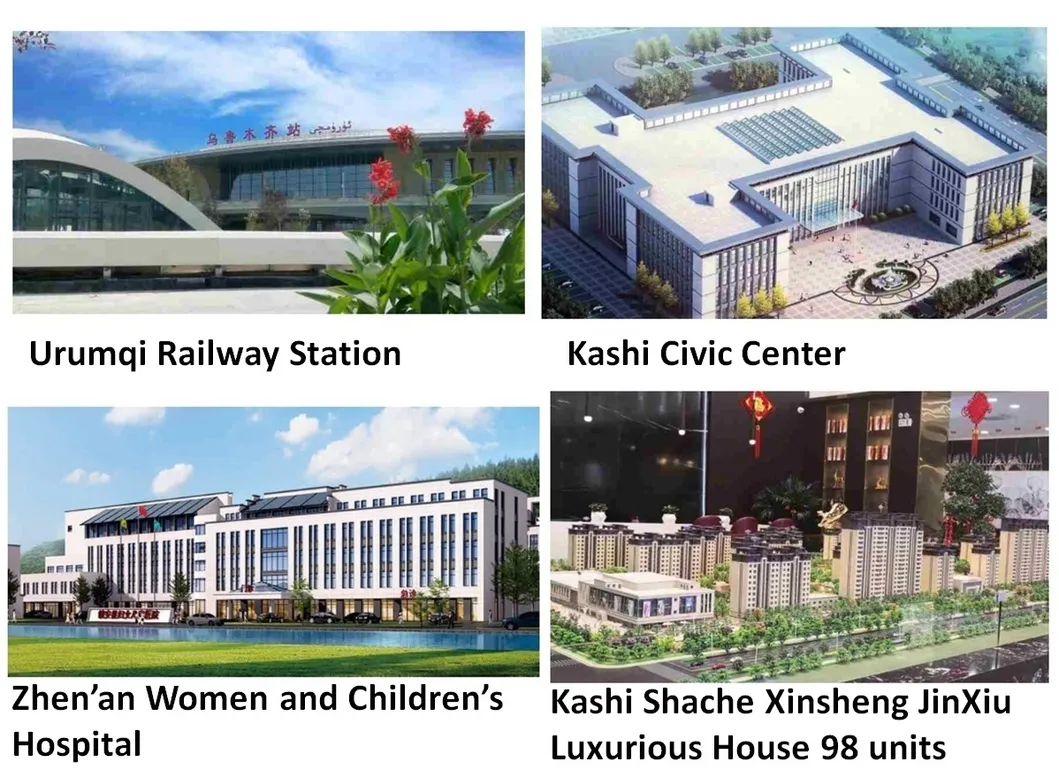

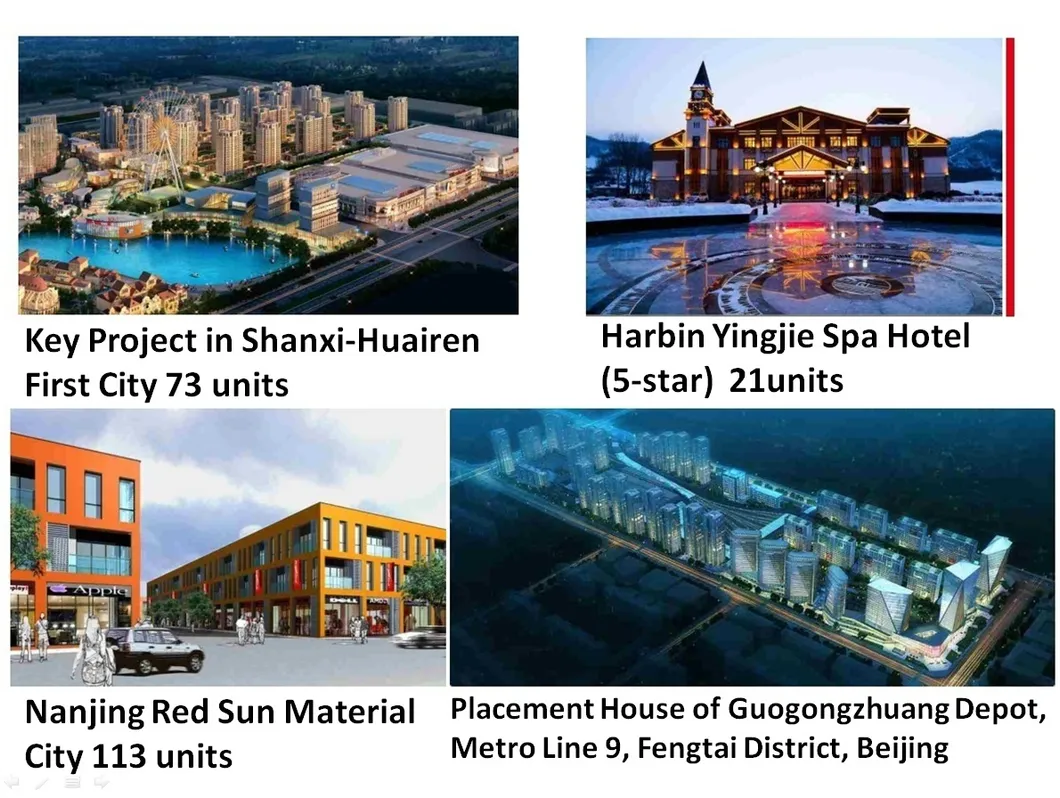

Successful Projects

Frequently Asked Questions

How to get a fast reply for an inquiry?

Send complete information including elevator type (Kitchen food dumbwaiter), capacity (e.g., 100kg), number of floors/stops, shaft size, and pit depth.

What is the typical delivery time?

Usually 30 days after the arrival of the deposit. Urgent production is available for special project requirements.

What is the product warranty period?

The standard warranty for our elevators is 18 months after delivery.

Do you provide installation support?

Yes, we provide a complete set of installation manuals and remote guidance. For special projects, engineers can be sent to the site.

What types of dumbwaiters are available?

We offer both Window Type (usually for food service) and Floor Type (for larger trolleys or goods) to accommodate different architectural needs.

How are after-sales issues handled?

Please provide the contract or serial number. Our factory can verify product specifications against the code to provide precise support.
