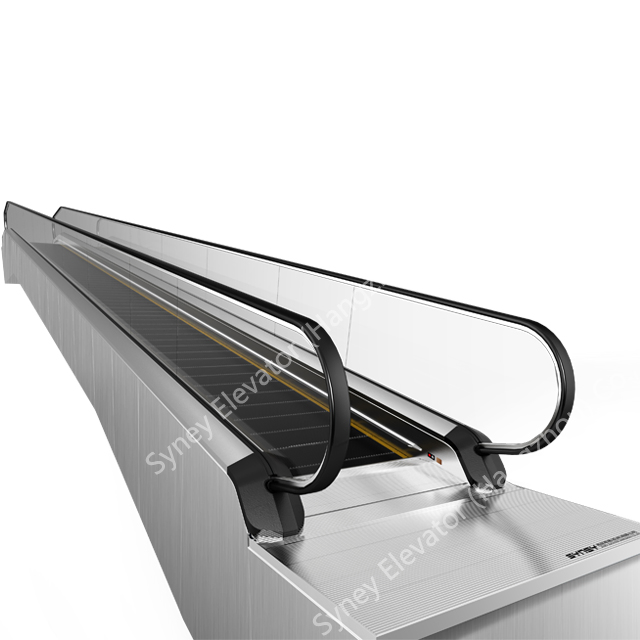

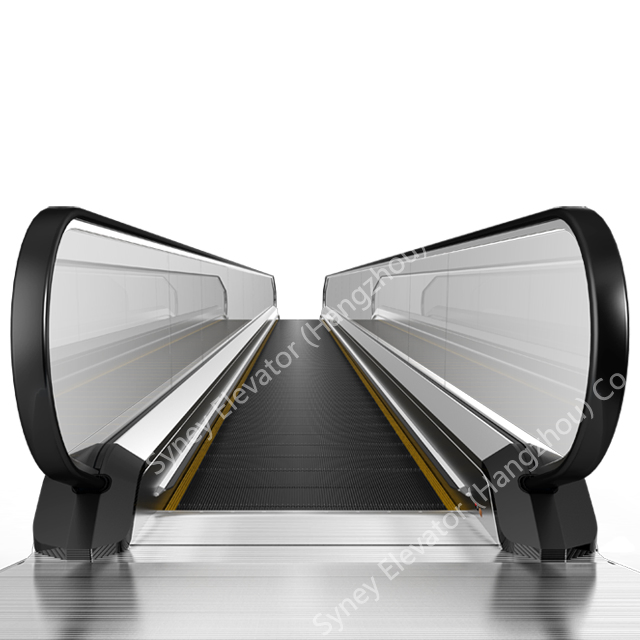

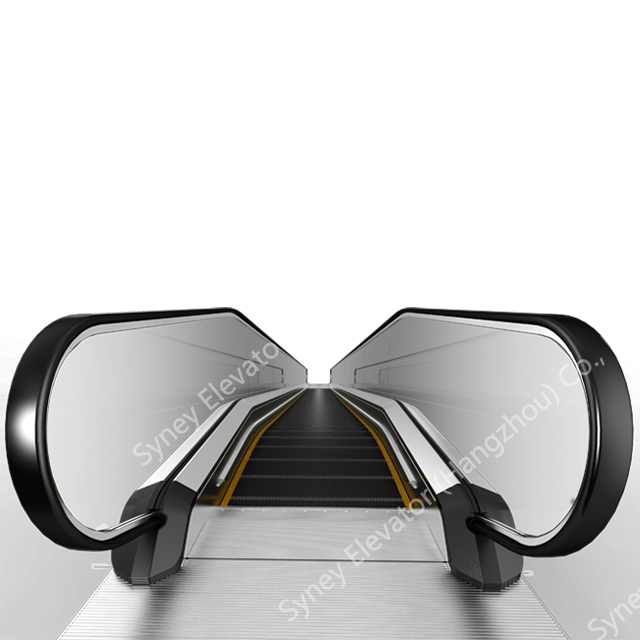

Safe Production Good Price Moving Walkway with SGS Certificate
Mode: M1511

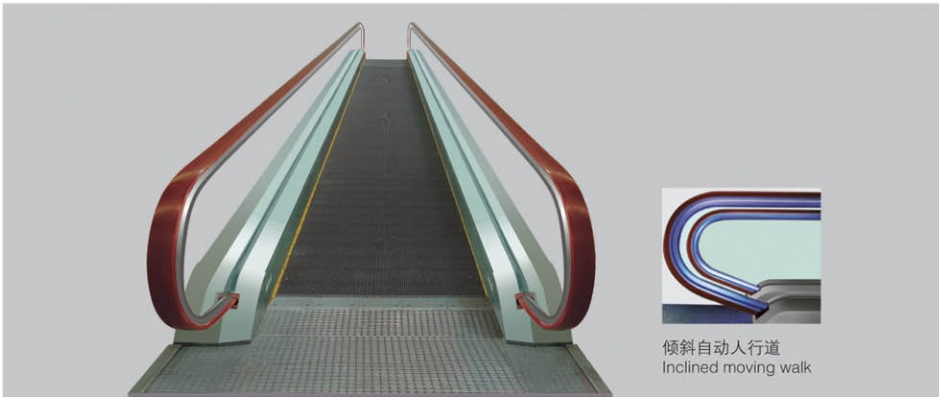

In Busy Cities, Supermarkets and Shopping Malls, Where People Gathered, Broadly Spread Moving Walks, Creating a Space Full of Imagination, Drawing Splendid Lines Which Link Every Flowing Sights. Safe, Comfortable and Beautiful, Moving Walks Give People a Leisure Time.
| Moving walk | Moving walkway, travelator, passenger conveyor, sidewalk, autowalk |
| Span Length | L≤105000mm |
| Step Width | 800mm, 1000mm, 1200mm, 1400mm |
| Inclined Degree | 0°, 10°, 11°, 12° |
| Speed | 0.5m/s, 0.65m/s |
| Noise | ≤65dB |
| Vibration | ≤35cm/s² |
| Running | Single speed up & down reversible |
| Delivery | 40ft high container |
| Power Supply | Power 380V , 50Hz Three Phase Five Wire System; Lighting 220V, single phase |
| Energy Saving Function | VVVF, Auto start stop |

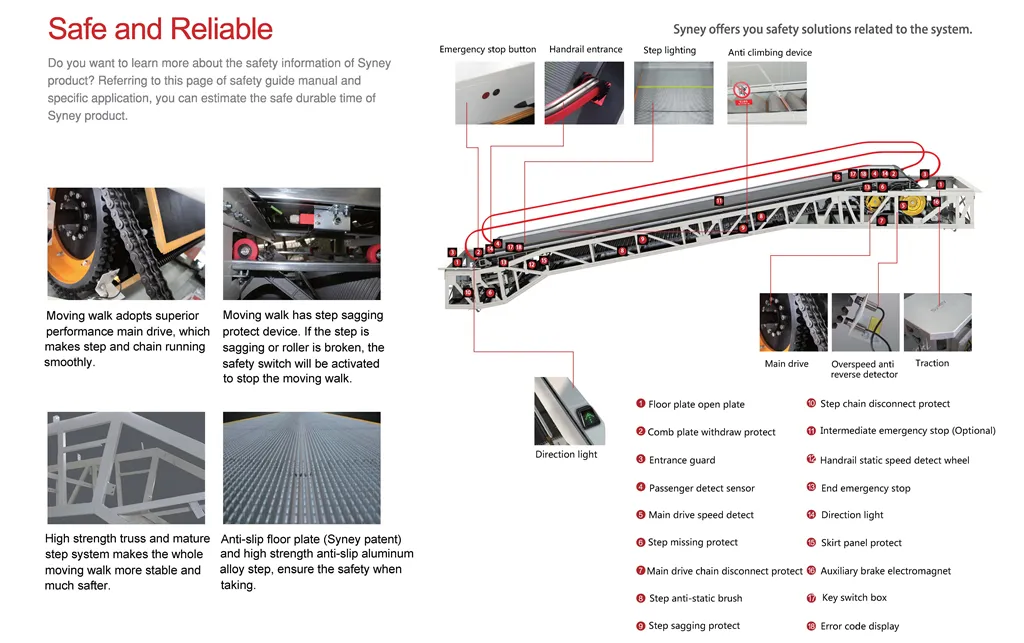

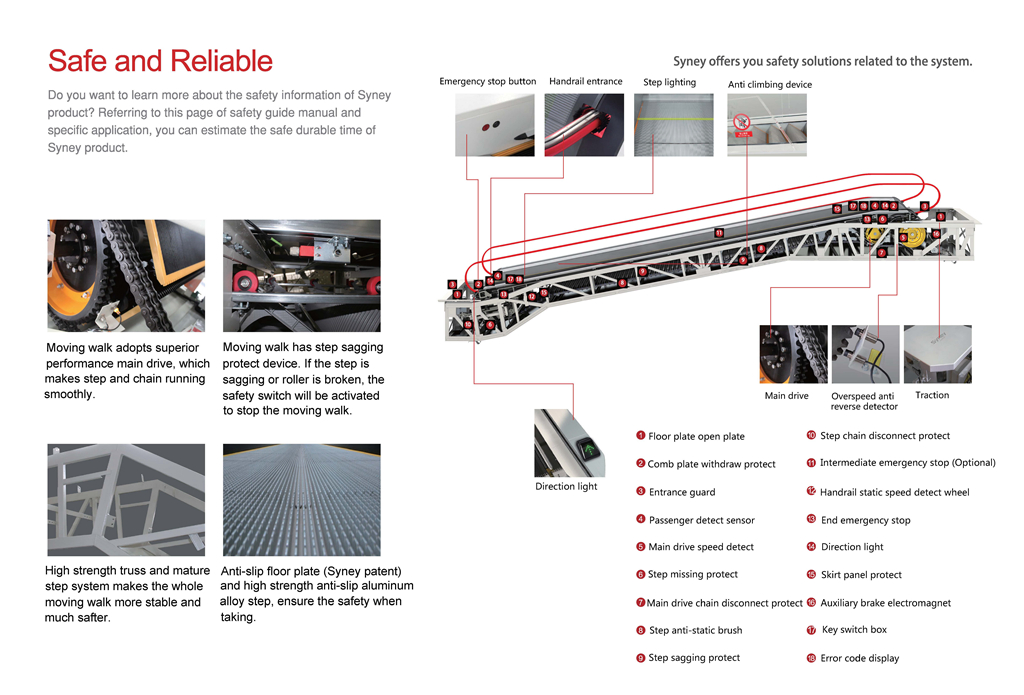

| Standard Safety Functions | |||||
|---|---|---|---|---|---|
| 1 | Emergency Stop Button | Yes | 19 | Machine Room Protect Board | Yes |
| 2 | Handrail Entry Contact | Yes | 20 | Step Light | Yes |
| 3 | Broken Step Chain Protection | Yes | 21 | Skirt Panel Contact | Yes |
| 4 | Comb Plate Contact | Yes | 22 | Step Yellow Safety Line | Yes |
| 5 | Inspection Socket | Yes | 23 | Alarm Bell When Start | Yes |
| 6 | Phase Failure Protection | Yes | 24 | Floor Plate Open Device | Yes |
| 7 | Step Sag Contact | Yes | 25 | Alarm Signs | Yes |
| 8 | Stop Button | Yes | 26 | Main Driving Chain Broken Protect | Yes |
| 9 | Main Power Switch | Yes | 27 | Overspeed Protection | Yes |
| 10 | Circuit Grounding Device | Yes | 28 | Step Static-free Device | Yes |
| 11 | Reversal Safety Device | Yes | 29 | Handrail Speed Detect | Yes |
| 12 | Overload Protect | Yes | 30 | Floor Plate Open Detect | Yes |
| 31 | Step Missing Detect | Yes | 32 | Working Brake Open Detect | Yes |
| 33 | Skirt Panel Anti Clamp | Yes | 34 | Working Brake | Yes |
| 35 | Auto Lubricating Device | Yes | |||
No rejected raw material will be accepted!
All materials are inspected by the QC department upon arrival. Only qualified materials enter the warehouse.

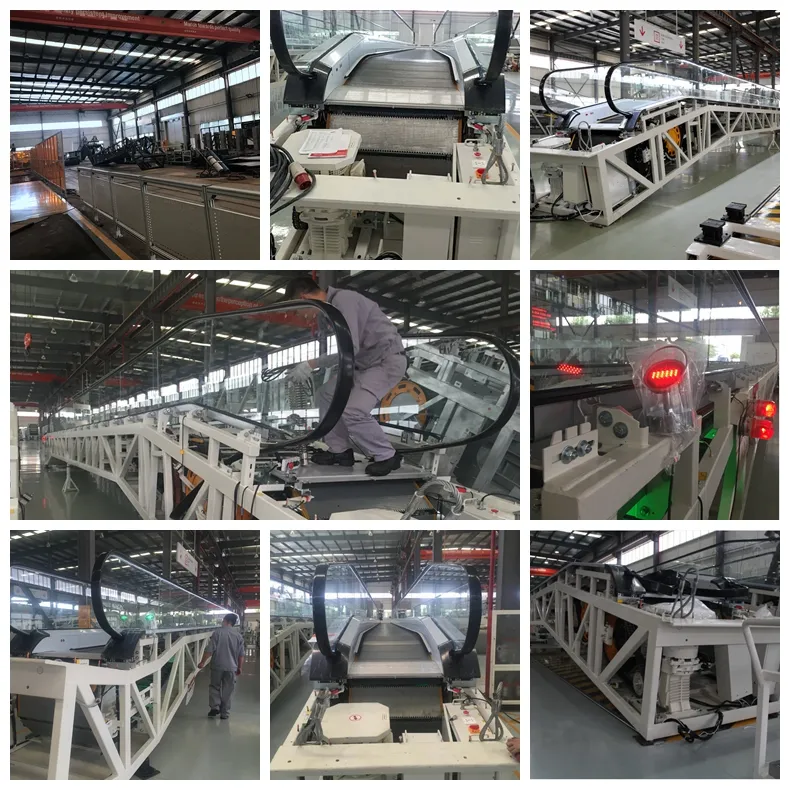

Production Management: Weekly production plans are updated on digital boards in each workshop. Managers conduct daily 15-minute equipment checks before operation starts.
Quality Control Steps:
