Vanguard Lift
Vanguard Lift

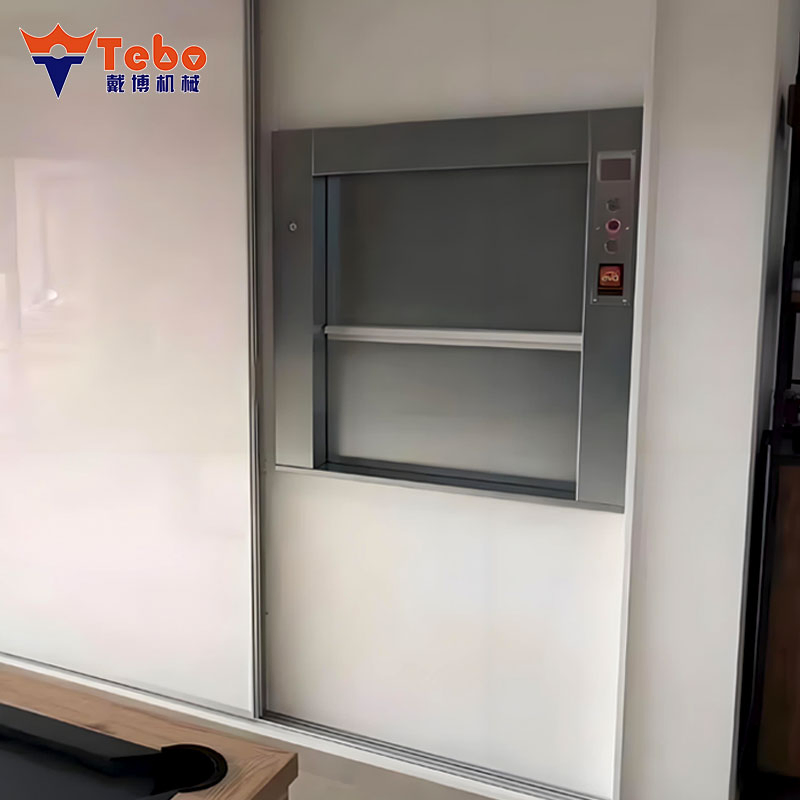

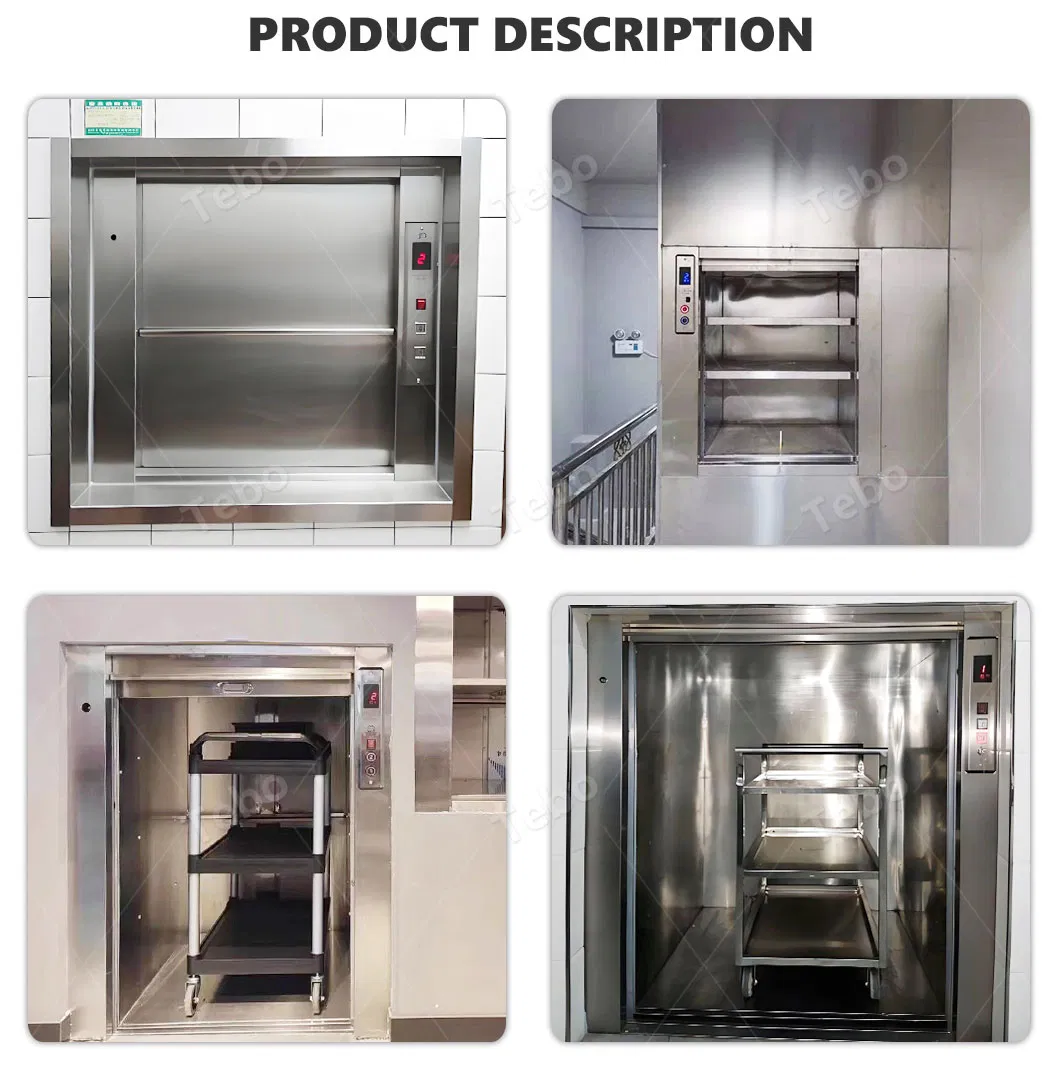

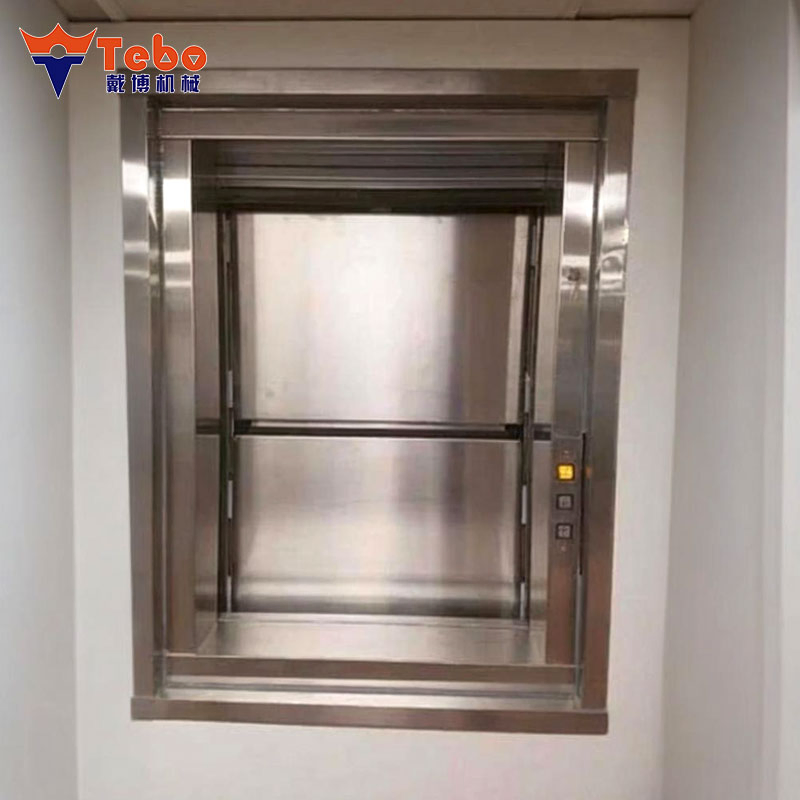

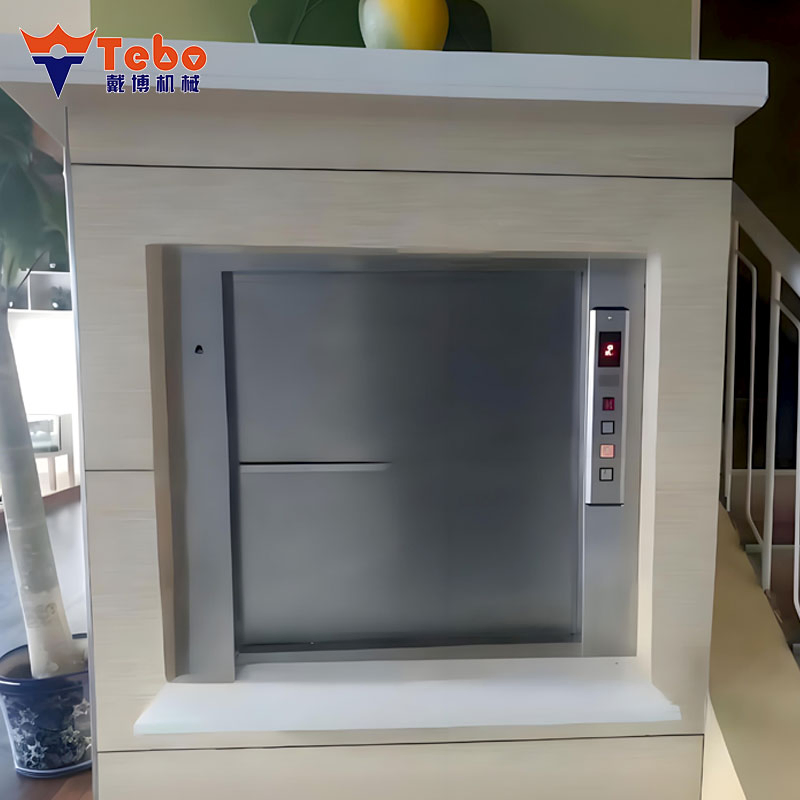

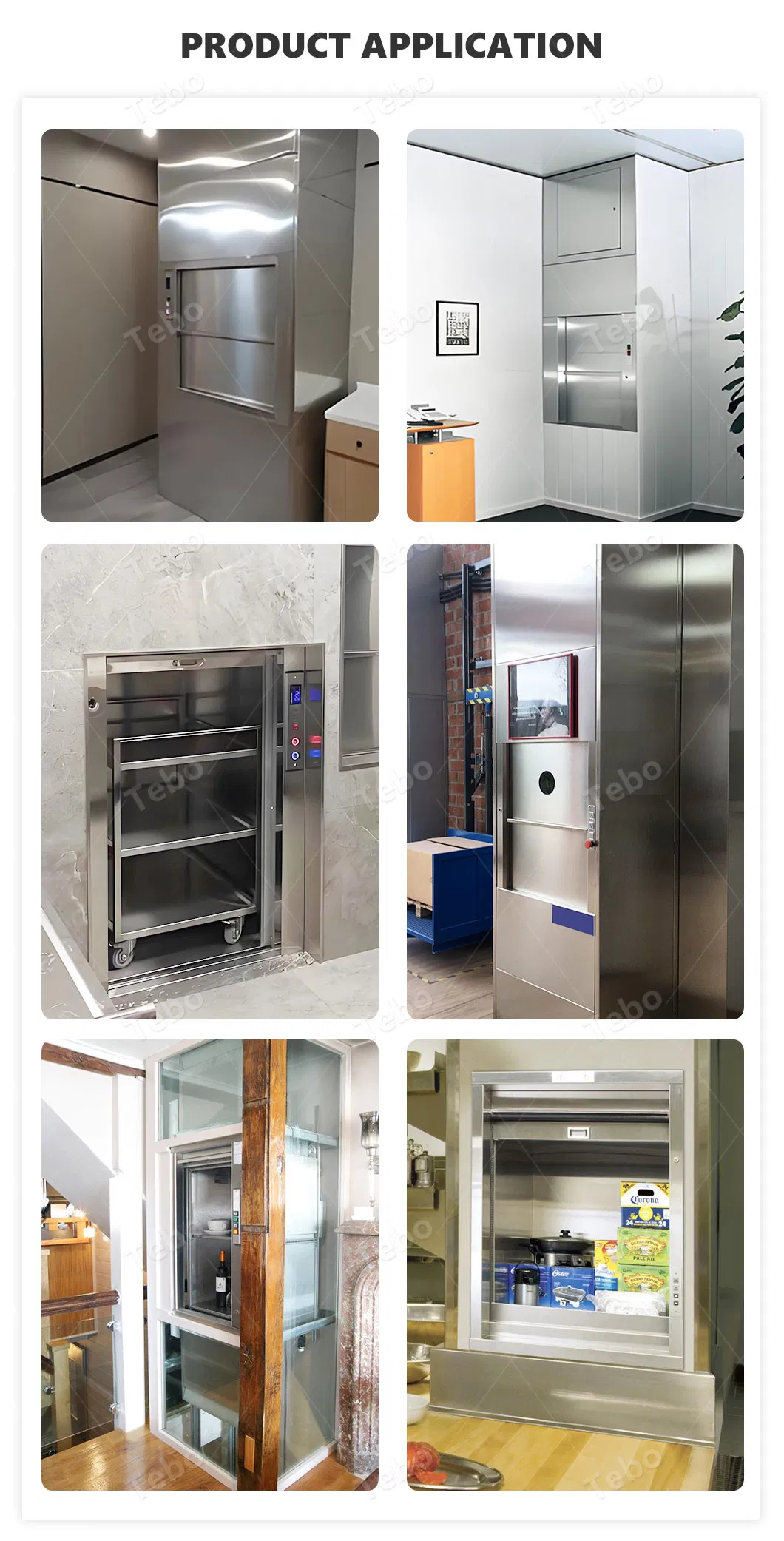

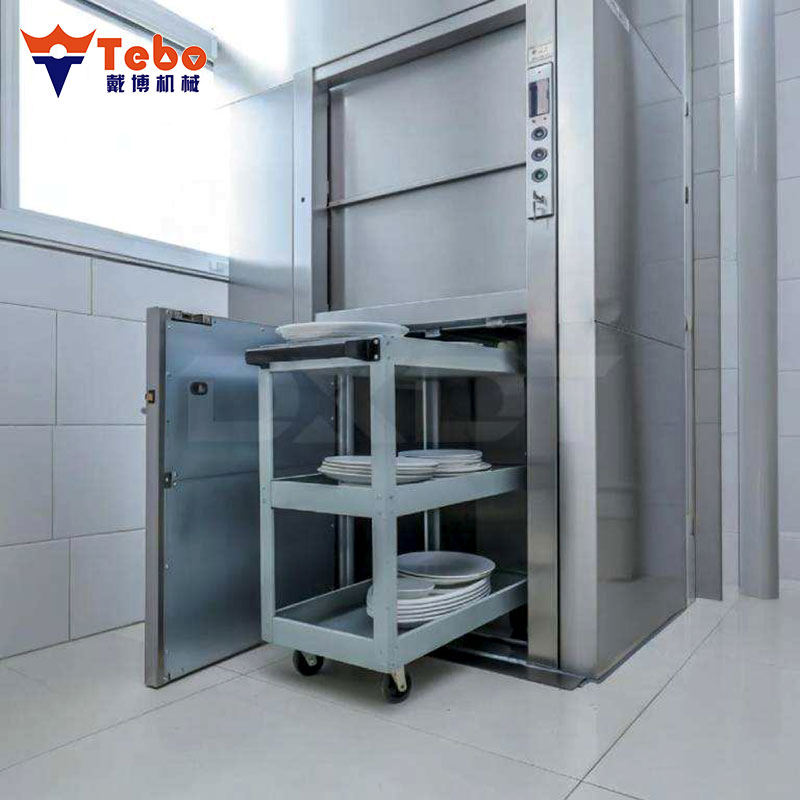

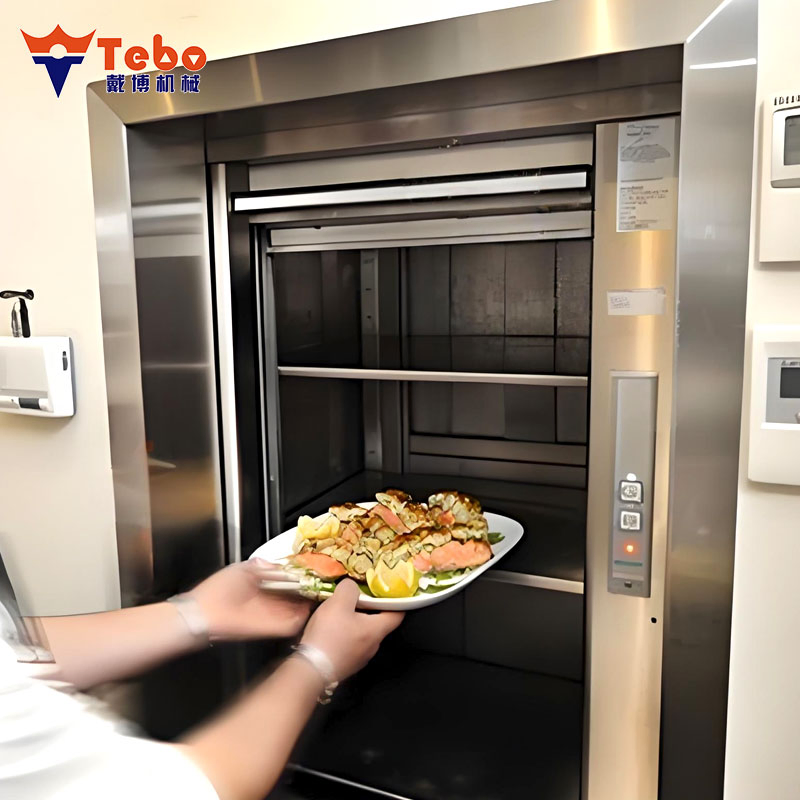

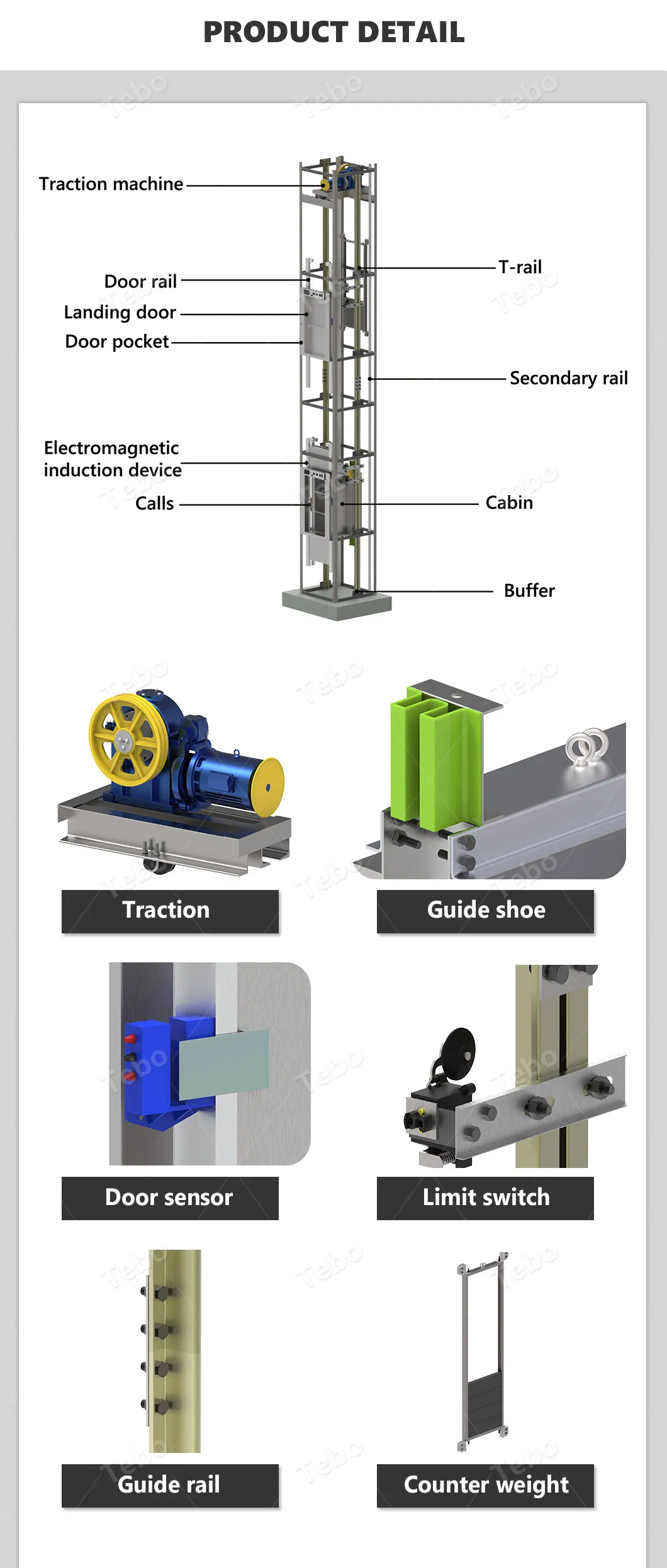

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.
Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use.

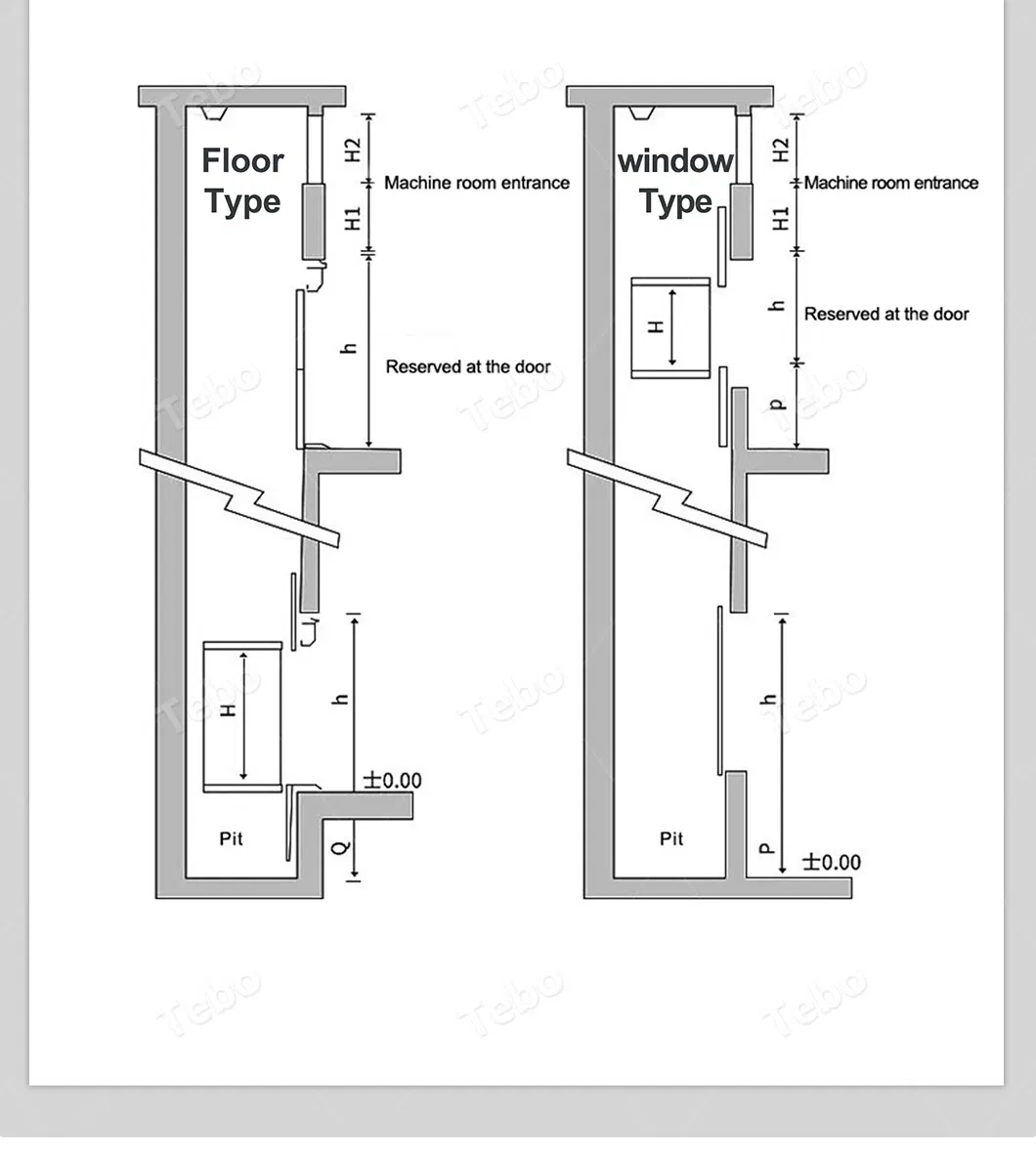

| Load (kg) | Cabin Dimension (W*D*H mm) | Landing Door | Door Size (W*H mm) | Sill Height | Overhead Height |
|---|---|---|---|---|---|
| 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 |
| 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 |
| 200 | 800*800*1000 | Standard | 800*1000 | 800 | 3000 |
| 200 | 1000*1000*1000 | Standard | 1000*1000 | 800 | 3200 |
| Load (kg) | Cabin Dimension (W*D*H mm) | Landing Door | Pit Depth | Overhead Height |
|---|---|---|---|---|
| 200 | 800*800*1000 | Standard | 600 | 2800 |
| 200 | 1000*1000*1000 | Standard | 600 | 2800 |
| 300 | 1000*1000*1200 | Standard | 700 | 3200 |
| 400 | 1000*1200*1400 | Standard | 800 | 3600 |
Our operational and production base utilizes stable hydraulic and traction drive systems to provide exceptional load-bearing capacity. These products offer smooth and quiet vertical transportation for residential buildings and meet the demands for efficient, heavy-duty freight lifting in commercial and industrial settings. We are equipped with advanced modern CNC machining centers, automated welding equipment, and precision inspection instruments.
