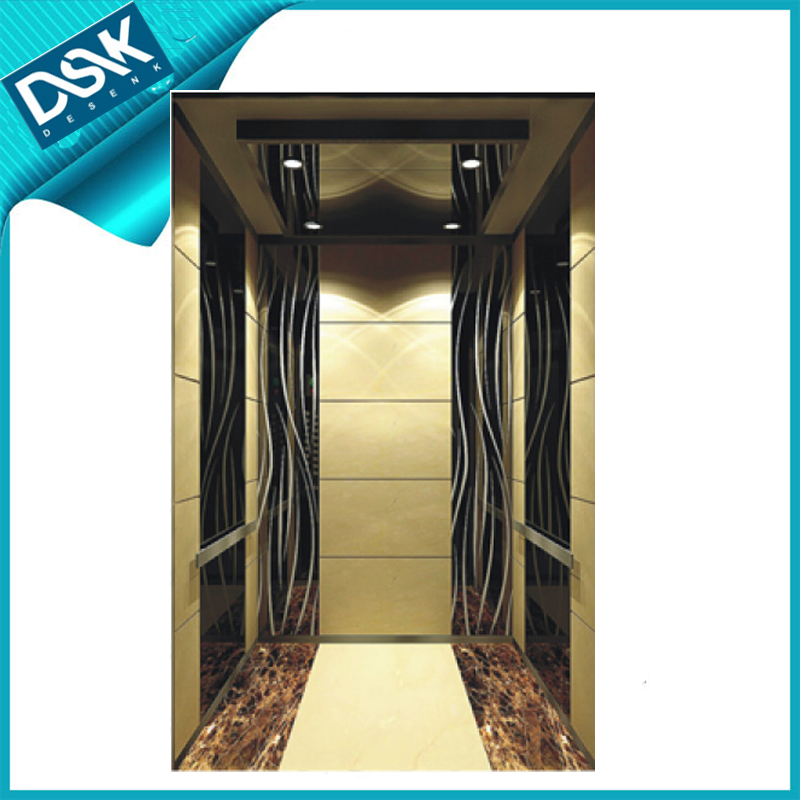

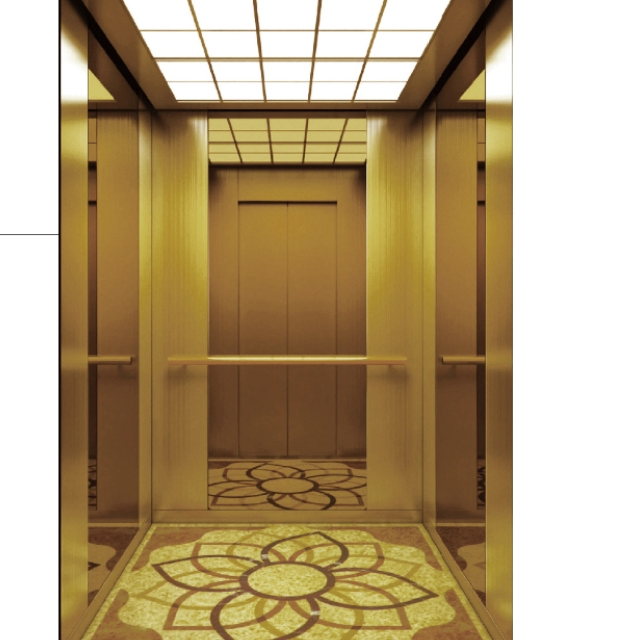

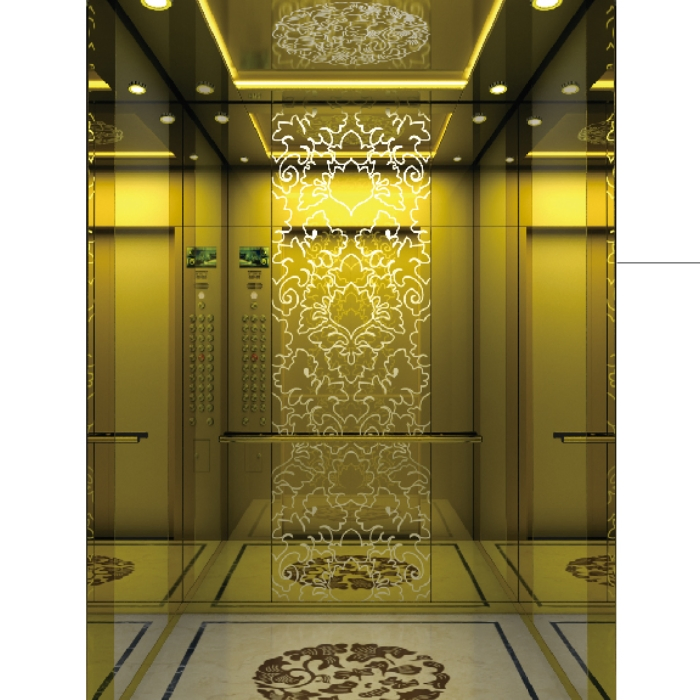

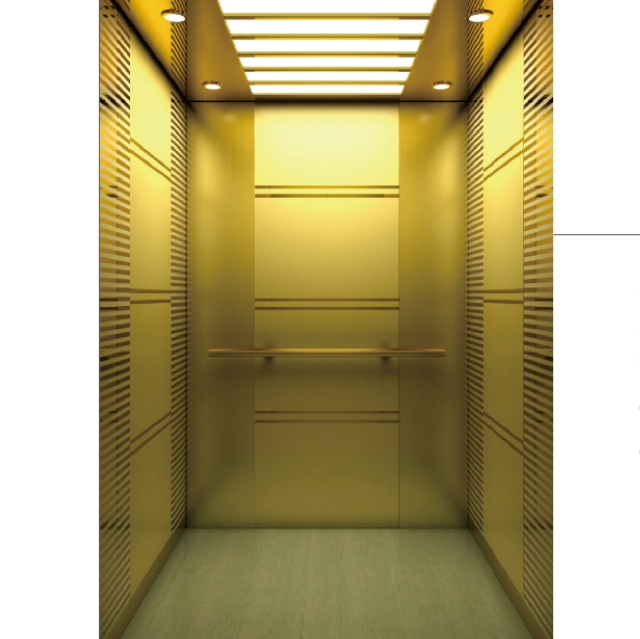

Small Machine Room Passenger Elevator Home Elevator Commercial Elevator with Good Decoration

1 / 5

Small Machine Room Passenger Elevator Home Elevator Commercial Elevator with Good Decoration

After-sales Service:	2 Years
Warranty:	2 Years
Driving Type:	AC Elevator

Send Inquiry

Product Description

📋 Basic Information Overview

Model NO.	DSK-K
Capacity	450kg-2000kg
Persons	6-21
Speed	1.00 - 2.00m/s
Control Mode	Collective Selective Control
Position of Computer Room	Up
Elevator Door	Center Opening Door
Model	Gearless Small Machine Room Passenger Elevator
Drive	VVVF
Traction Machine	Xizi Forvorda
Material	Mirror Etched Stainless Steel and HSS
Certificate	ISO9001, ISO14001, OHSAS18001
Specification	GB7588-2003 and EN81

🏭 Profile

Focusing on global elevator development and manufacturing, the company is a professional manufacturer integrating product development, design, manufacturing, sales, installation, and maintenance. The product range includes passenger elevators, home elevators, escalators, and freight elevators.

⚙ Product Parameters

Specification Item	Details
Machine room	MR/MRL Passenger Elevator
Load capacity	450kg, 630kg, 800kg, 1000kg, 1150kg, 1250kg, 1350kg, 1600kg, 2000kg
Speed	1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4m/s
Travel height	3.2m - 125m
Drive type	VVVF
Control system	Monarch/Step Elevator Control System
Traction machine	Gearless Elevator Motor

✨ Features and Advantages

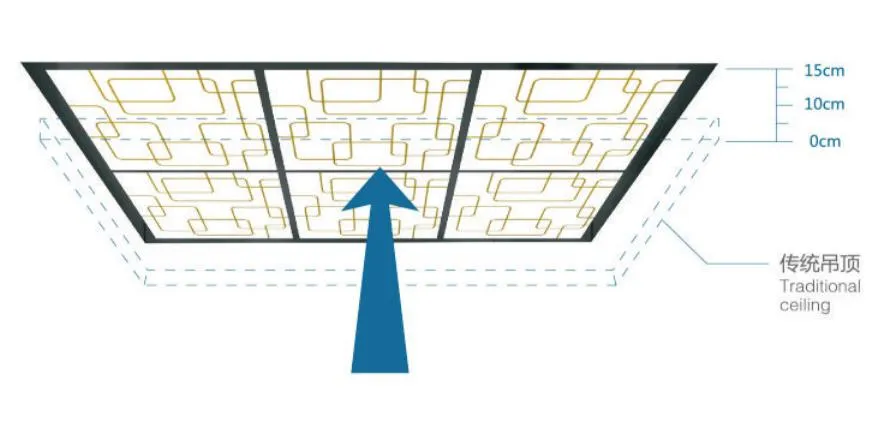

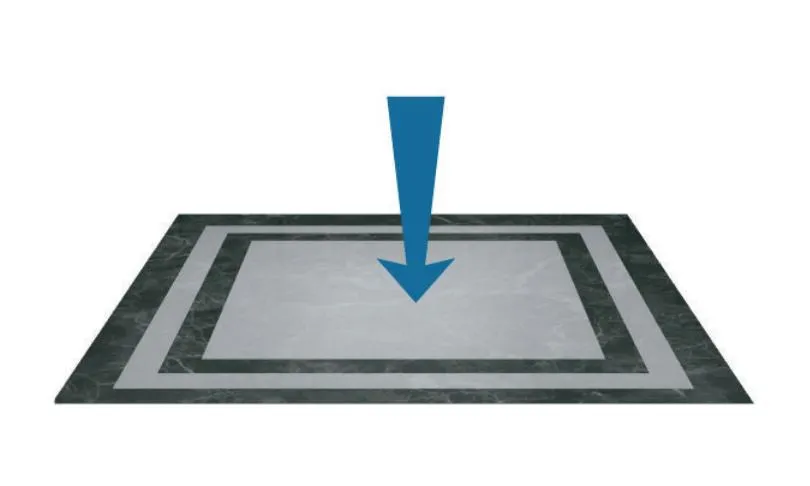

Creating Unprecedented Cabin Height

Adopting a new cabin height for elevators according to future trends, making the cabin space more elegant, high-end, and wider than traditional designs. This unique design increases door-to-door distance and overall volume for a superior passenger experience.

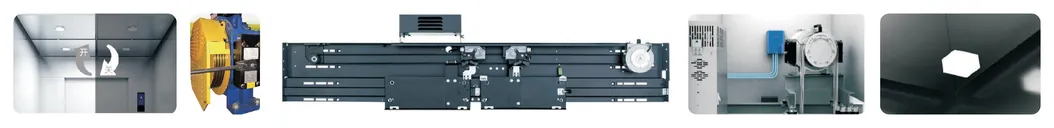

Elevator Energy Saving Technologies

🔋
Automatic Wake-up Device: Saves energy during non-operating conditions.
💡
Gearless Permanent Magnet Motor: Increases transmission efficiency by 25%-35% and saves over 40% energy compared to traditional machines.
🚪
Variable-Frequency Door Operator: No reduction box, low speed output, and larger torque; saves over 50% energy.
🔁
Energy Return Technology: Collects energy generated during no-load up or full-load down trips to power other equipment.
☀
LED Illumination: Reduces electricity consumption by over 30% compared to traditional light sources.

🎖 Certifications

• Manufacture License (Maximum speed 8m/s)
• CE Certificate
• Elevator Quality Certificate

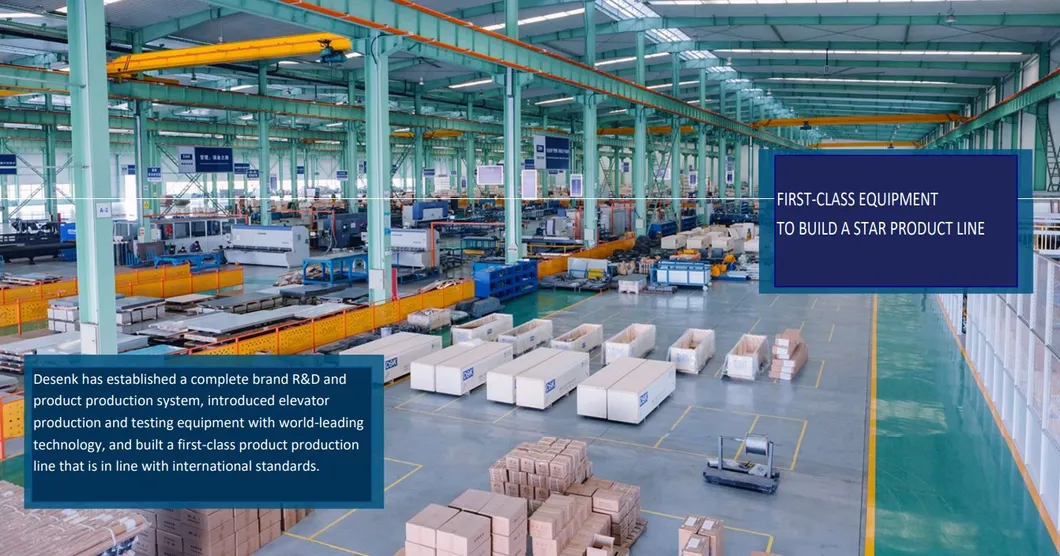

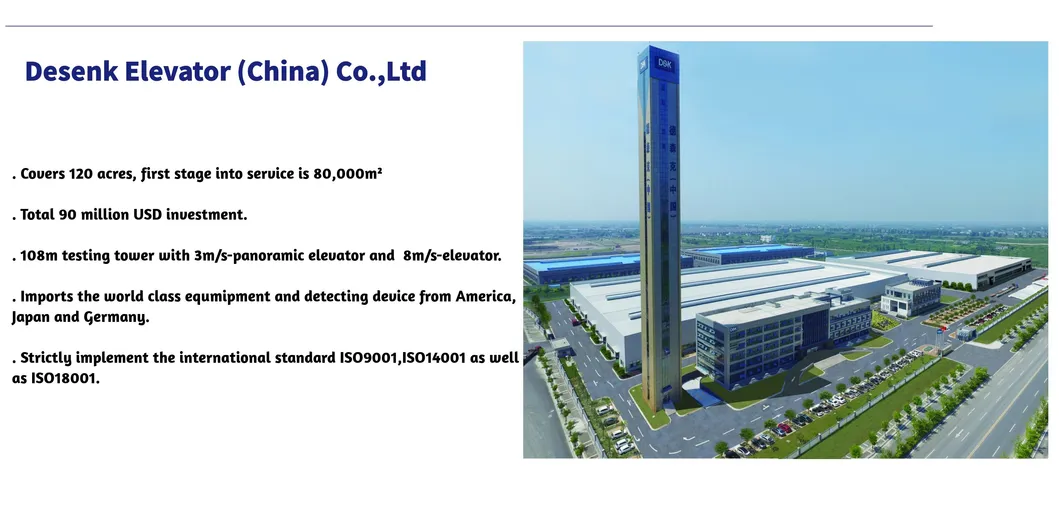

🏭 Workshop & Exhibition

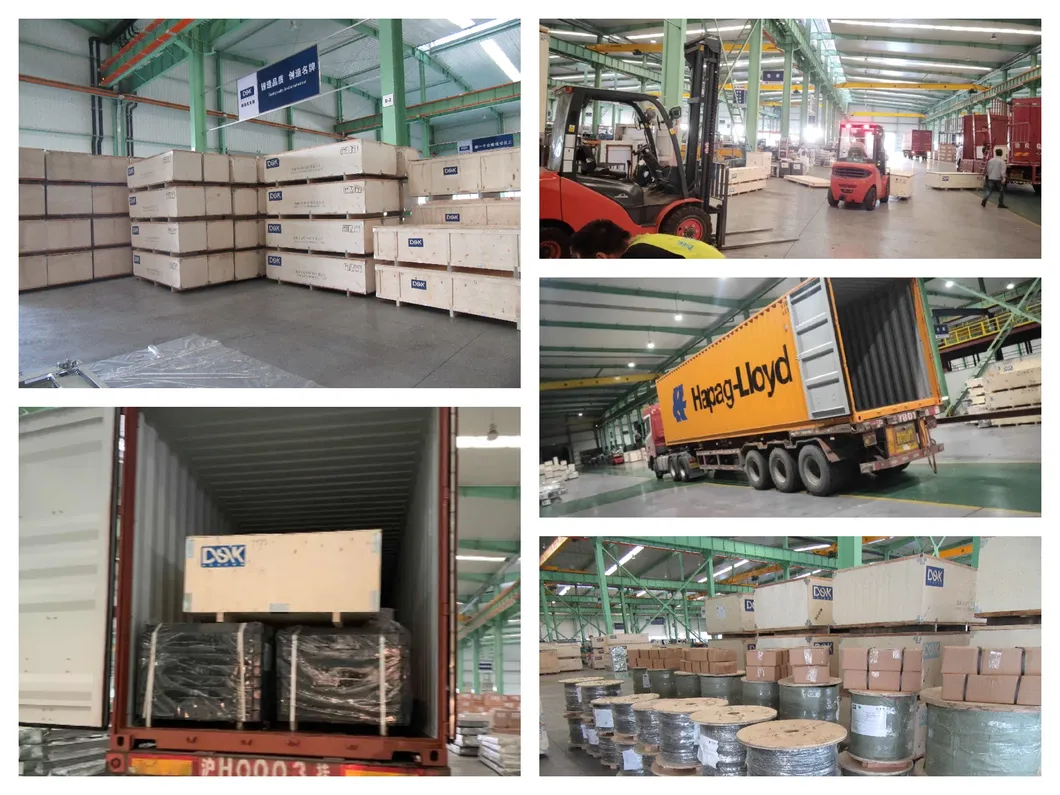

📦 Packaging & Shipping

Solid wooden boxes in containers are used for long-distance sea transportation to ensure safety. Standard shipping occurs within 30 days after payment.

❓ Frequently Asked Questions

1. What information is needed before purchasing an elevator? We need to know the loading capacity (number of people), the number of floors, the shaft size (width and depth), and whether there is a machine room on top.

2. What are the technical advantages of your elevators? We use high-quality components, including gearless motors from Xizi, door operators from Shenling or Wittur, and control systems from Monarch or STEP.

3. How are installation and maintenance handled? We provide a detailed manual with the shipment. We recommend hiring a professional local company for installation, though we provide technical assistance via mail or phone.

4. What is the standard payment term? We typically accept T/T or L/C at sight.

5. What is the warranty period for your products? We provide an 18-month guarantee period, during which we offer free replacements for qualified parts.

6. What is the typical delivery timeframe? Standard delivery is usually 30 days after the deposit is received, though urgent production schedules can be arranged if necessary.
