Vanguard Lift
Vanguard Lift
FUJI passenger elevator puts safety first, ensuring each passenger is safely delivered to their destination with full responsibility.
New layouts for machine rooms increase space availability and provide flexibility for building designs.
Equipped with gearless permanent magnet synchronous motors to protect the environment and reduce power consumption.
Stable control system with up to 1600kg capacity. Intelligent lifting and dispatching systems provide optimal ride solutions.

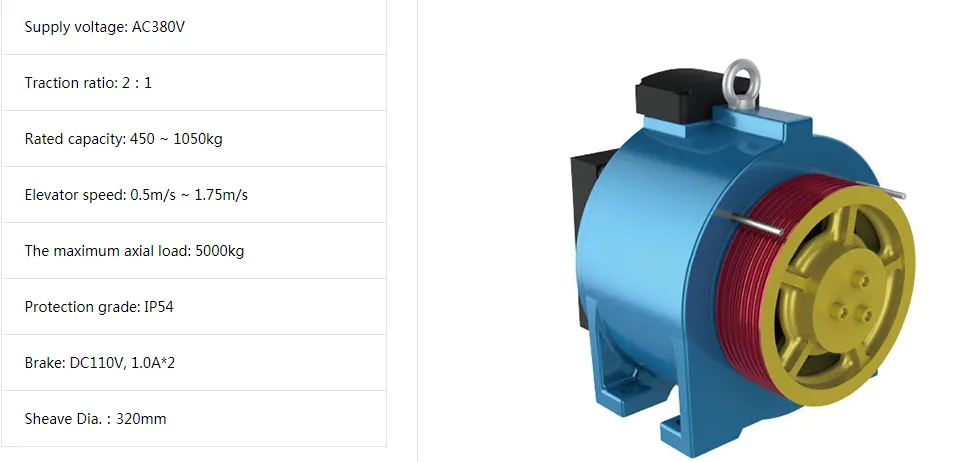

New generation permanent magnet synchronous and gearless traction machine using rare earth materials. Merges co-axial drive, digital variable frequency, and group-computer combined technology for low running costs.

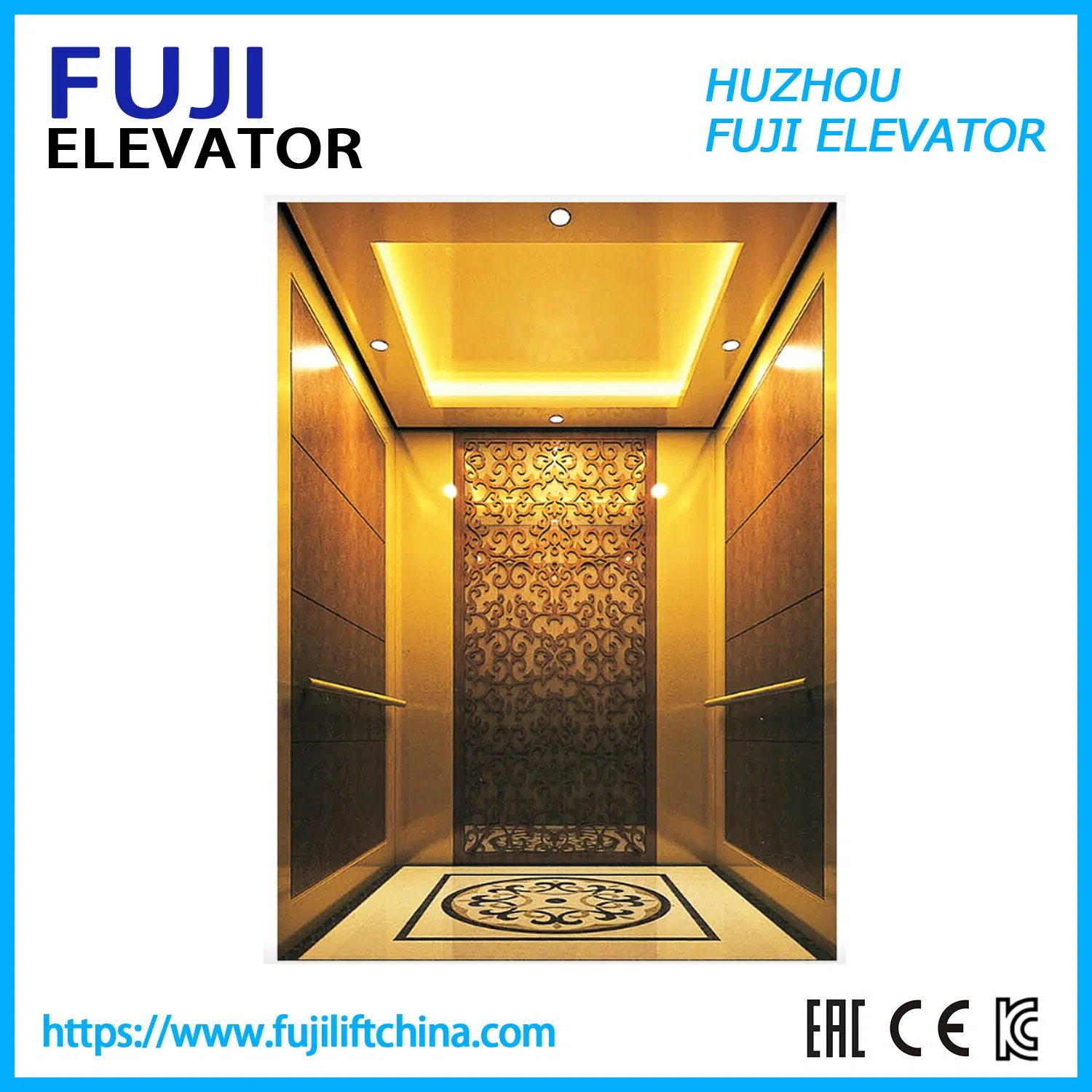

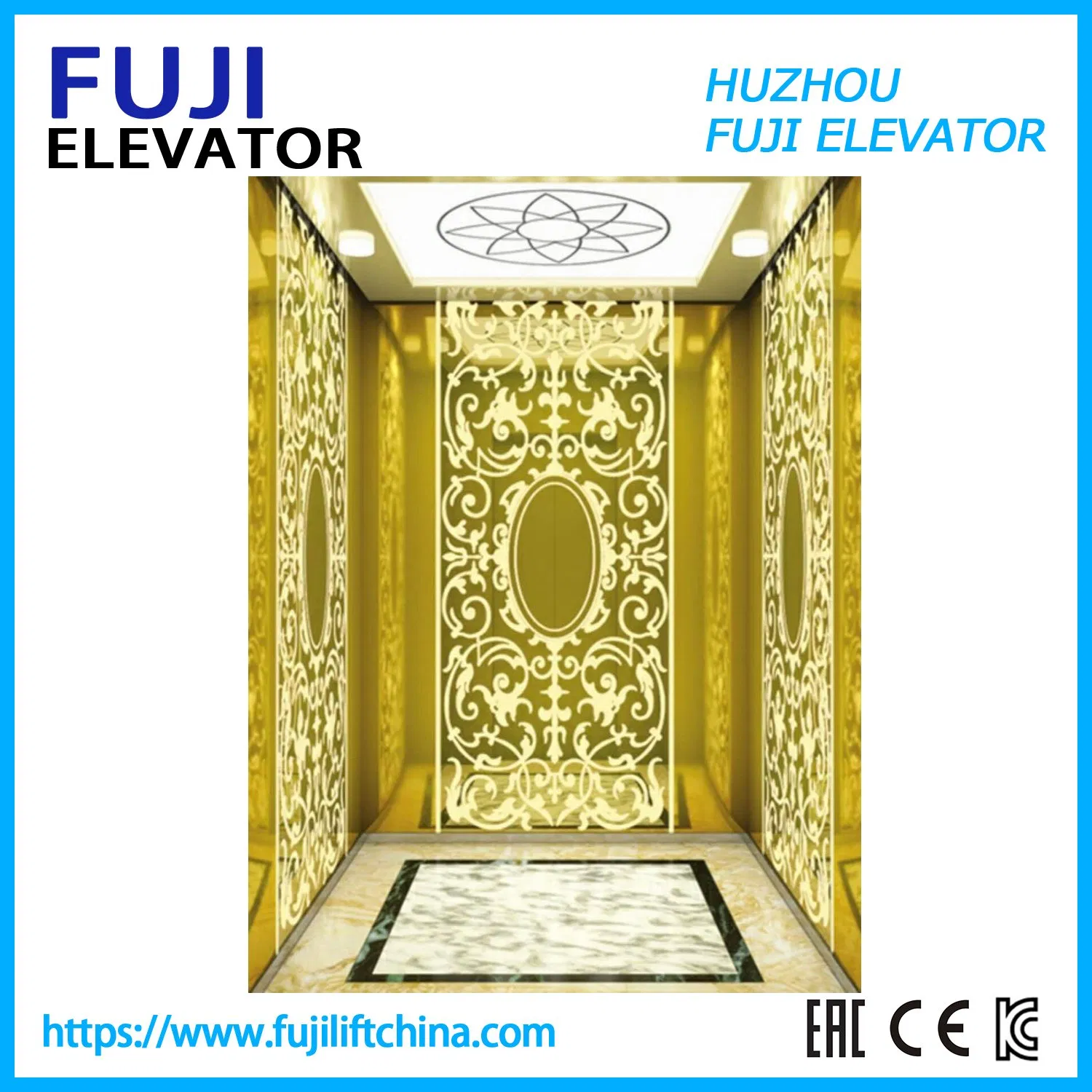

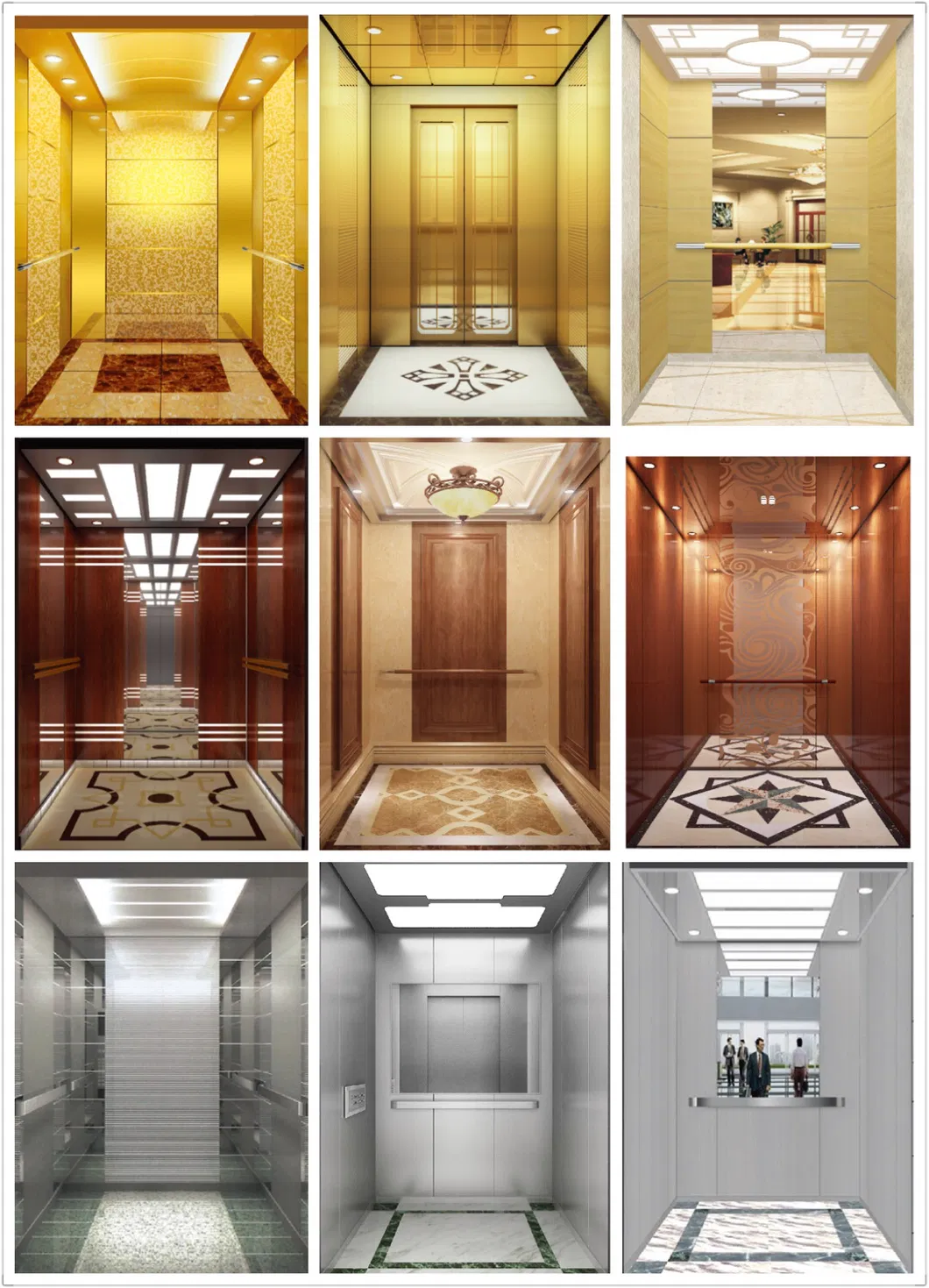

| It's wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car bottom | PVC |
| Jamb material | First layer hairline, remaining steel plate spraying |
| Hall door | First layer hairline, remaining steel plate spraying |
| Load (Kg) | Rated Speed (m/s) | Car Size (mm) | Door Size (mm) | Shaft Size (mm) | Pit Depth (mm) |
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 1500 |
| 630 | 1/1.5/1.75 | 1400×1100 | 800×2100 | 2250×1900 | 1500/1600 |
| 800 | 1/1.5/1.75 | 1400×1350 | 800×2100 | 2200×1950 | 1500/1600 |
| 1000 | 1/1.5/1.75 | 1500×1550 | 900×2100 | 2350×2150 | 1600 |
| 1600 | 1/1.5/1.75 | 1800×2000 | 1100×2100 | 2900×2200 | 1500/1600 |

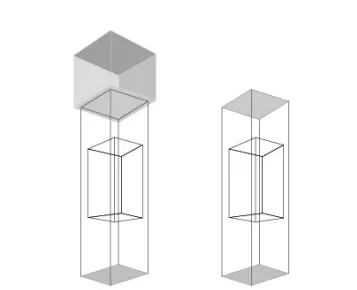

Machine room-less elevators remove the traditional room at the building top, allowing for flexible outline design and superior computerized data network control.

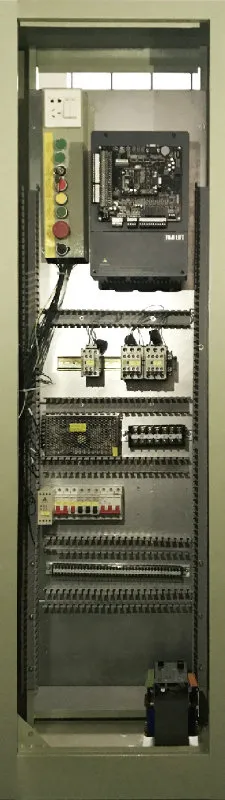

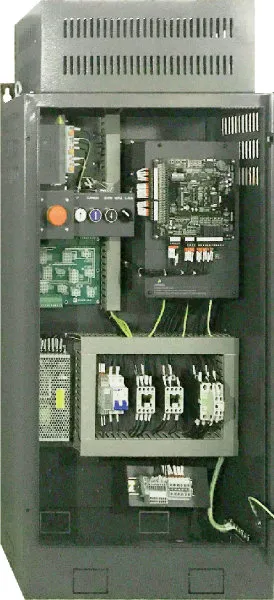

FUJI elevator fulfills intellectual managements such as multi-computer, modular, and network control, feeding back running conditions instantly for efficient service.

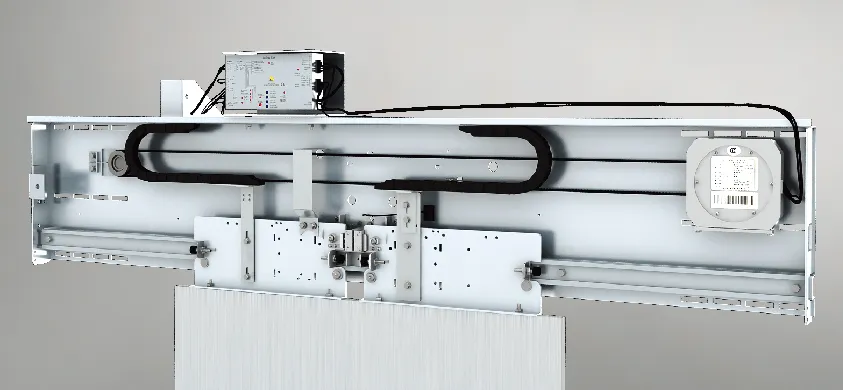

Features a dual control system (main controller and door operator controller) to significantly reduce non-opening accidents.
| Safety Feature | Description |
| Over-load protection | Protection against risk of motor continually over-loading. |
| Emergency stop button | Stops the elevator immediately during an emergency. |
| Over-speed protection | Activated if speed exceeds 20% of rated speed. |
| Un-intentional reversal | Protection against accidental reverse movement. |
| Short circuit protection | Hardware protection against electrical faults. |
| Step missing detection | Safety sensor to detect missing stairway steps. |
FUJI utilizes advanced international management modes and innovative technical fruits. We offer a superior product system including manufacture, sales, installation, repair, and maintenance.
