Vanguard Lift
Vanguard Lift

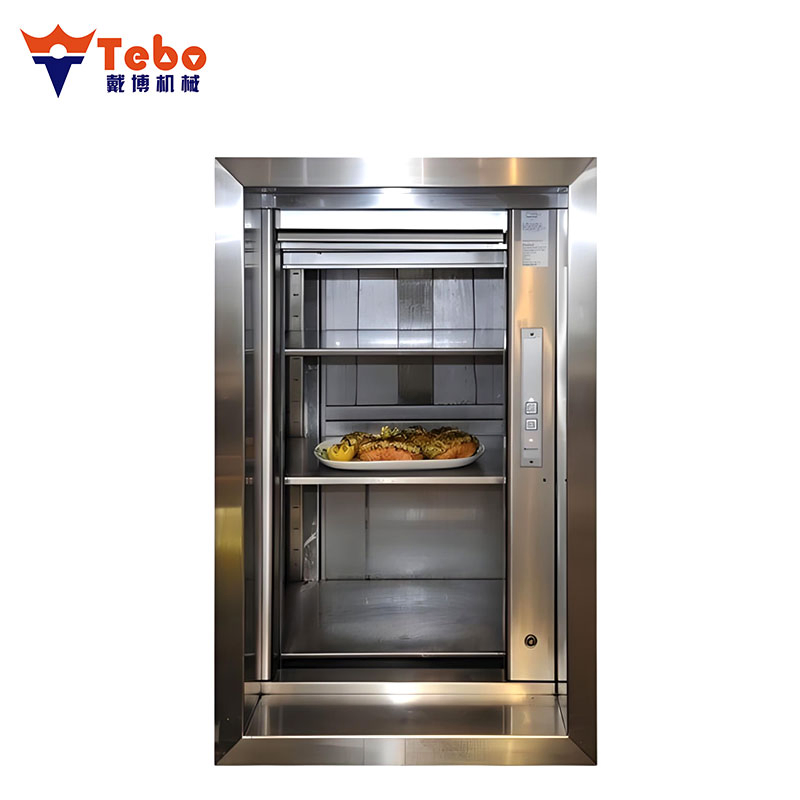

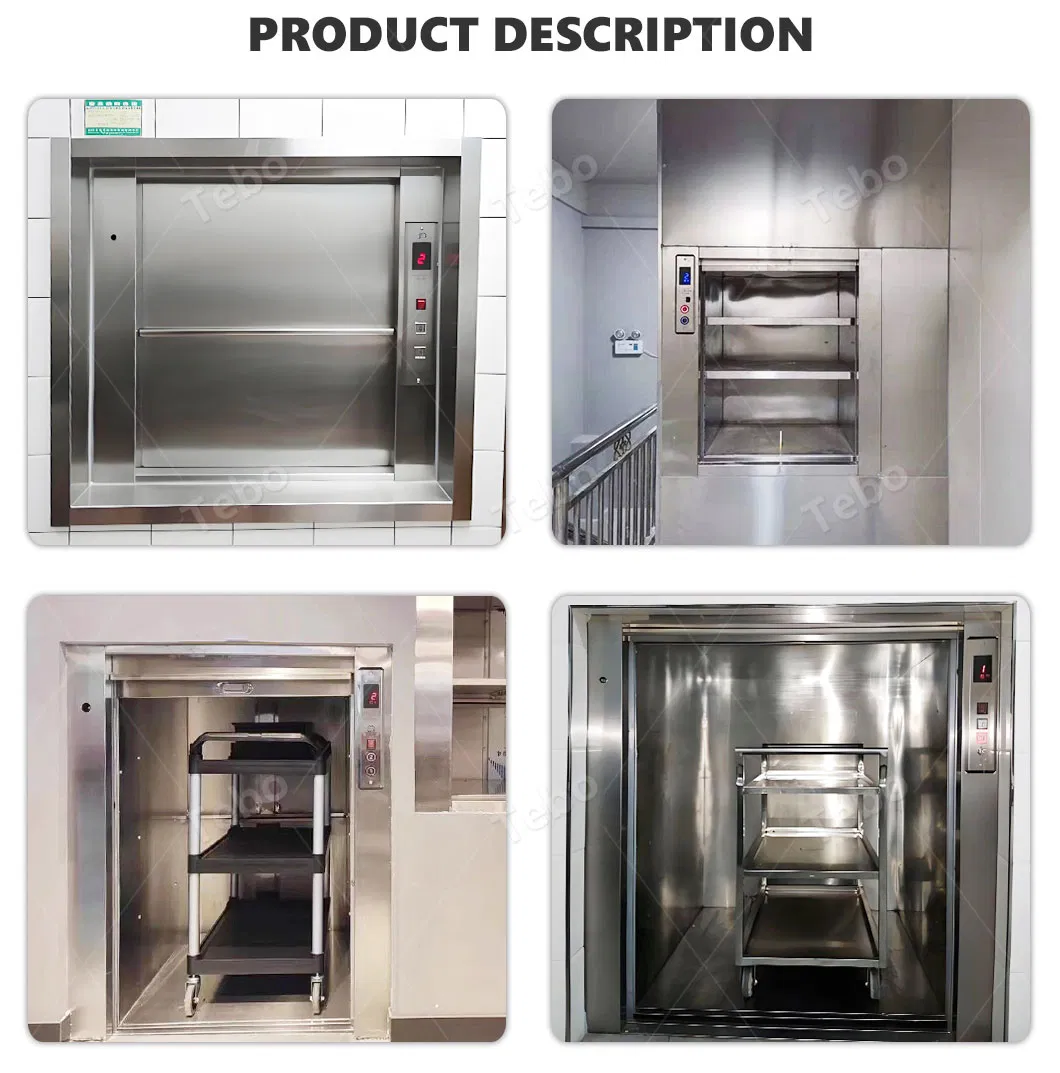

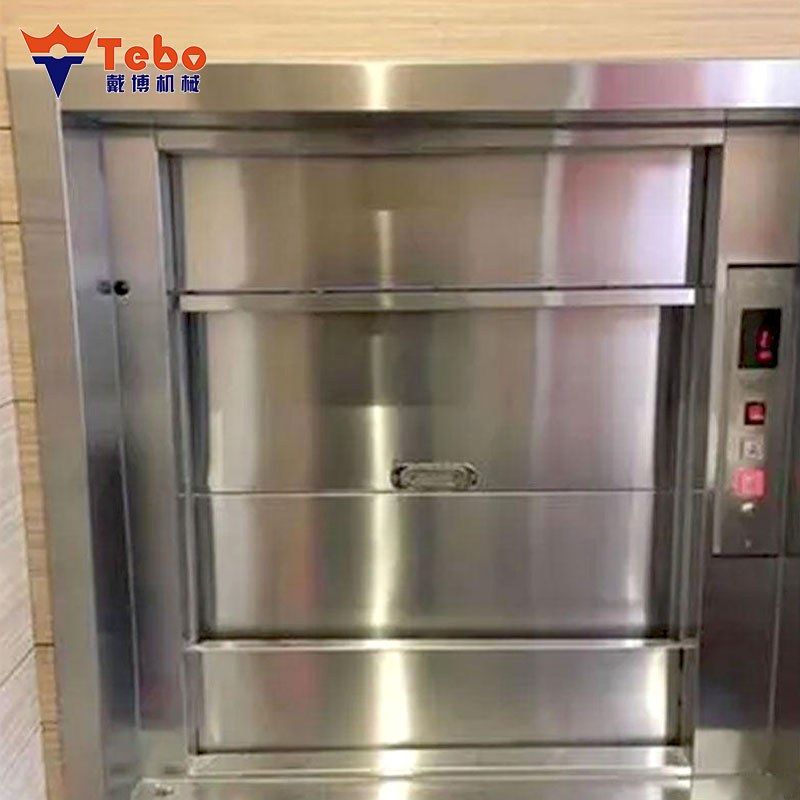

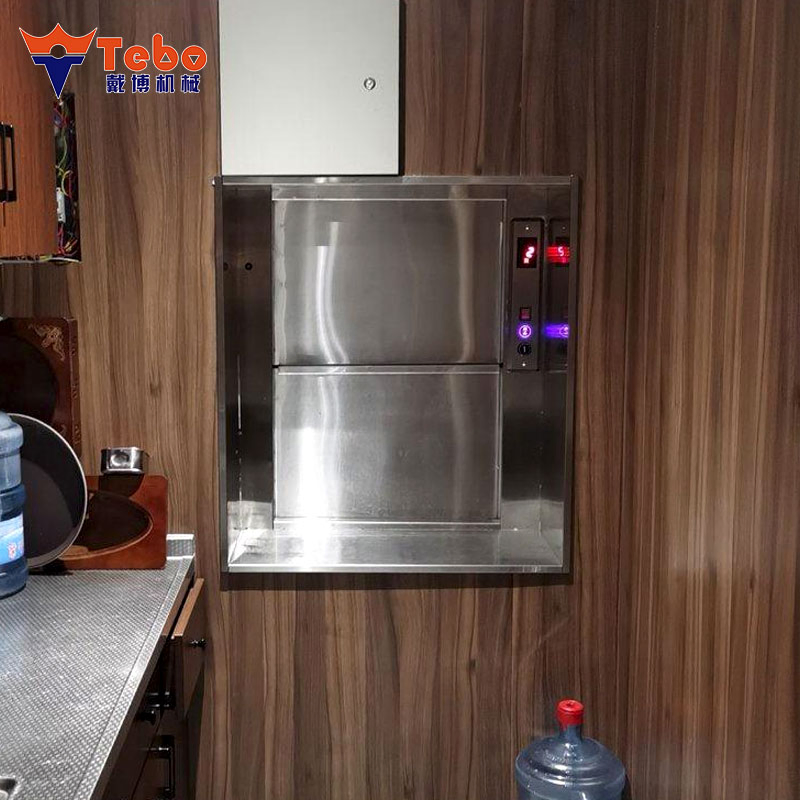

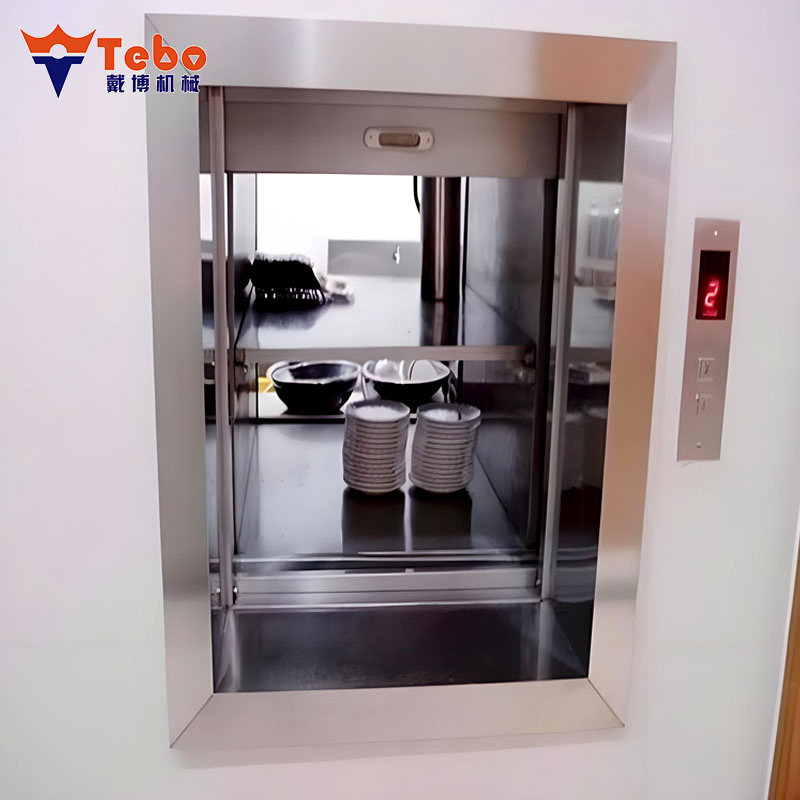

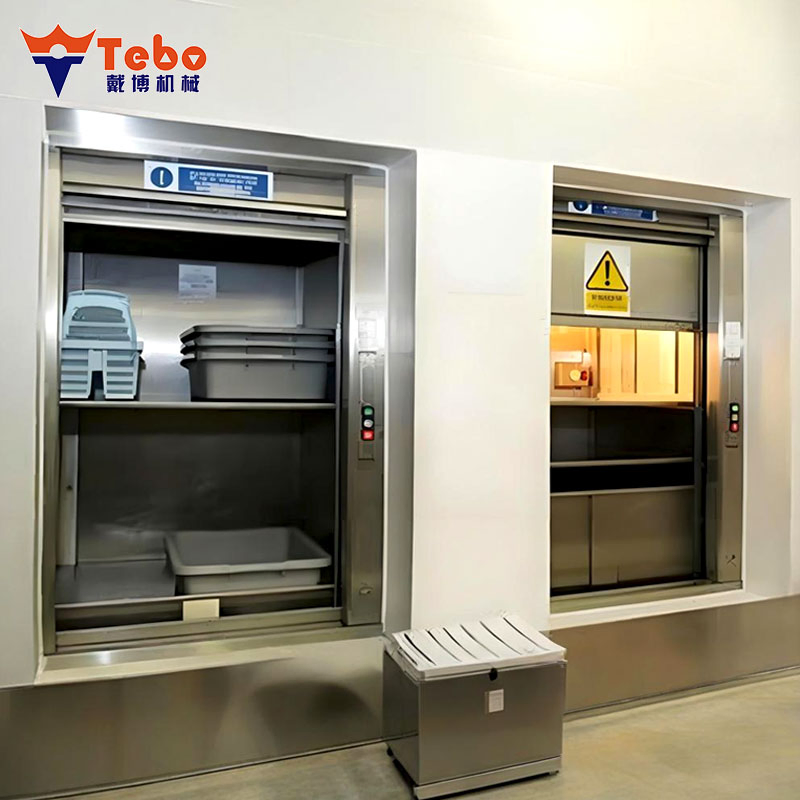

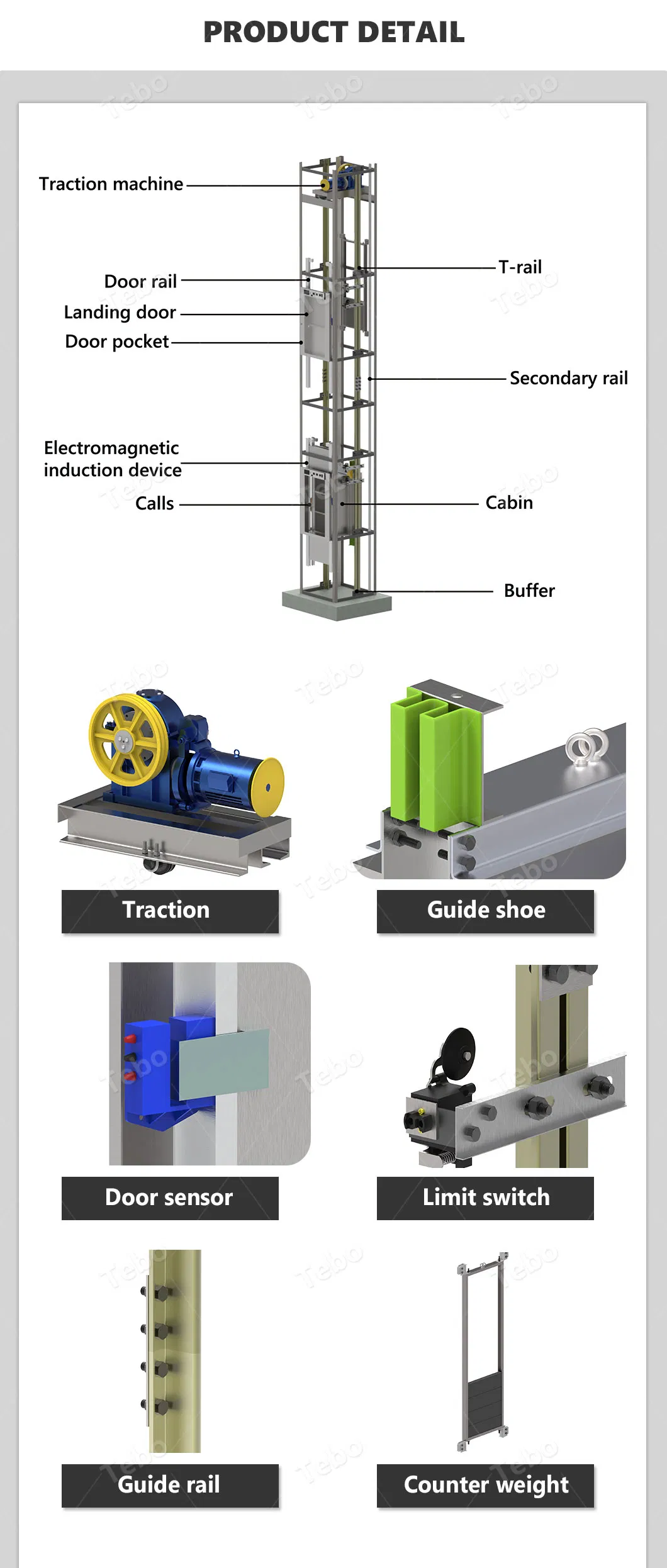

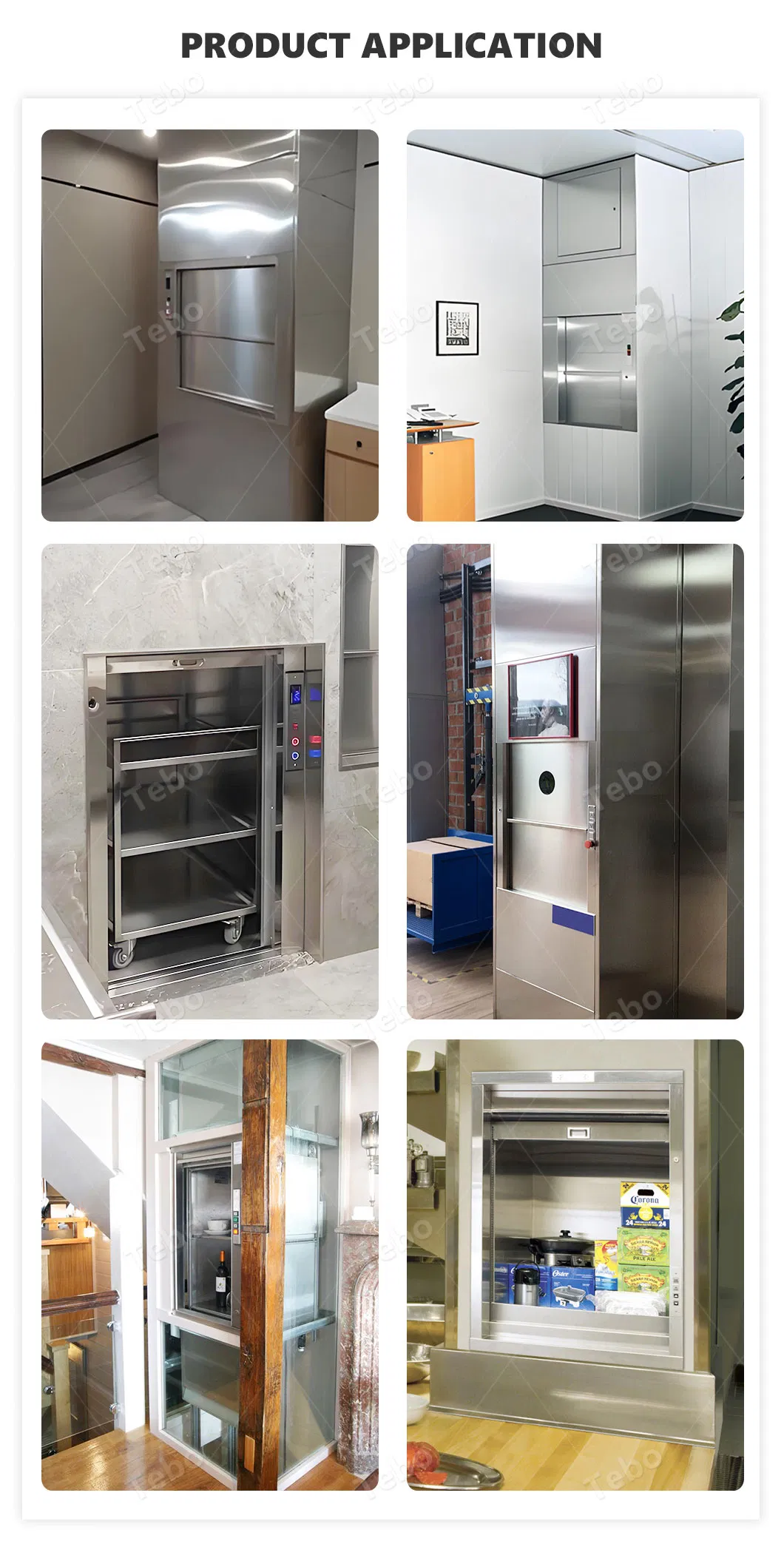

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel carbin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.
Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use.

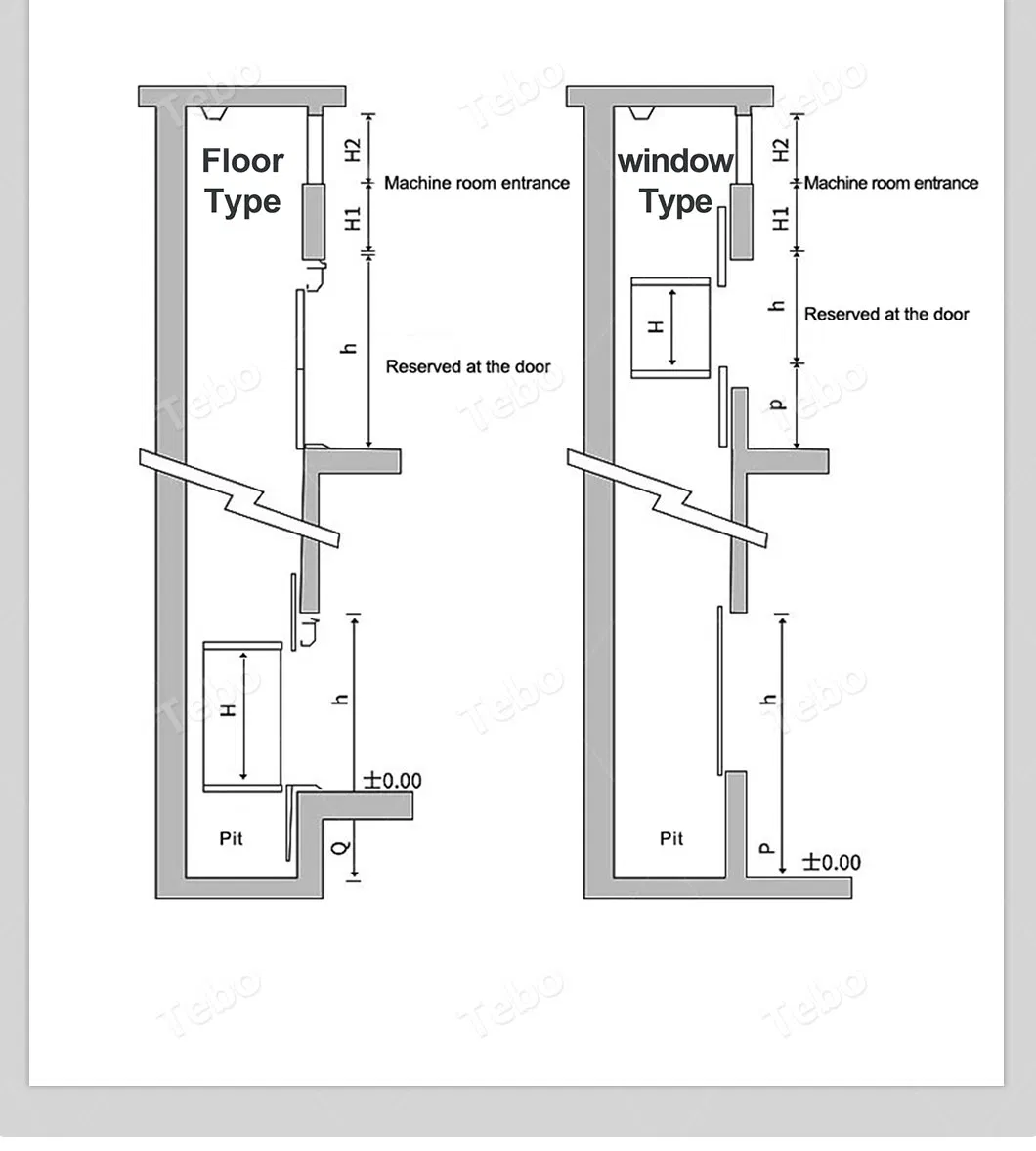

| Window Type Parameters | ||||||
| Load(kg) | Cabin Dimension W*D*H(mm) | Landing Door | Door Size W*H(mm) | Window Sill Height | Overhead Height | |
|---|---|---|---|---|---|---|
| 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 | |
| 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 | |
| 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 | |
| 200 | 800*800*1000 | Standard | 800*1000 | 800 | 3000 | |
| 200 | 1000*1000*1000 | Standard | 1000*1000 | 800 | 3200 | |
| Floor Type Parameters | ||||||
| Load(kg) | Cabin Dimension W*D*H(mm) | Landing Door | Door Size W*H(mm) | Min Pit Depth | Overhead Height | |
|---|---|---|---|---|---|---|
| 200 | 800*800*1000 | Standard | 800*1000 | 600 | 2800 | |
| 200 | 1000*1000*1000 | Standard | 1000*1000 | 600 | 2800 | |
| 300 | 1000*1000*1200 | Standard | 1000*1200 | 700 | 3200 | |
| 400 | 1000*1200*1400 | Standard | 1200*1400 | 800 | 3600 | |

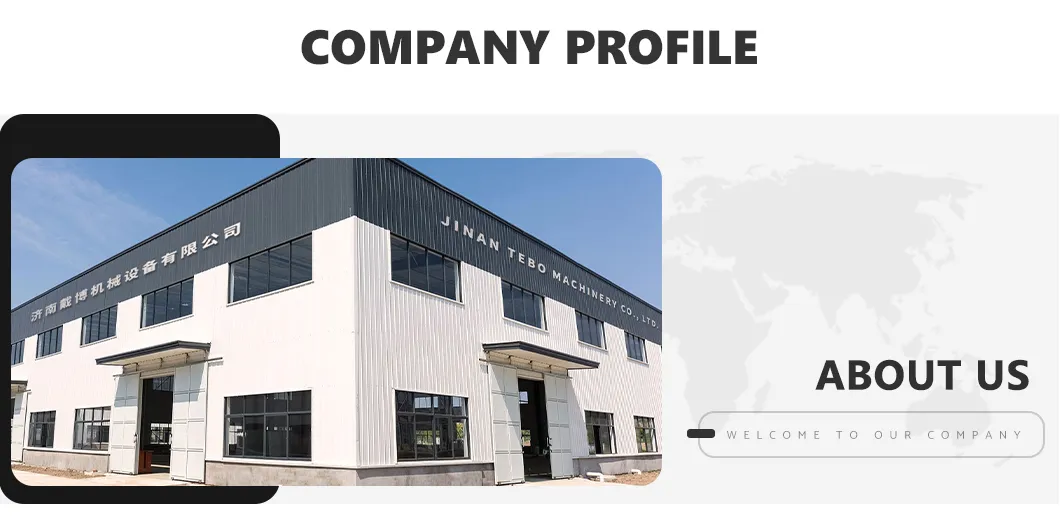

The company is a professional enterprise specializing in the R&D and manufacturing of mechanical equipment. With an experienced and highly innovative technical team, we continuously develop and optimize multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, securing numerous independent intellectual property rights and patent technologies.
Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. Equipped with advanced production facilities like CNC machining centers and automated welding equipment, we ensure efficient end-to-end production and rigorous quality control.
