Basic Specifications
Usage
Supermarket, Airport
Inclined Degree
0, 6, 10, 11, 12
Product Overview
🛡️

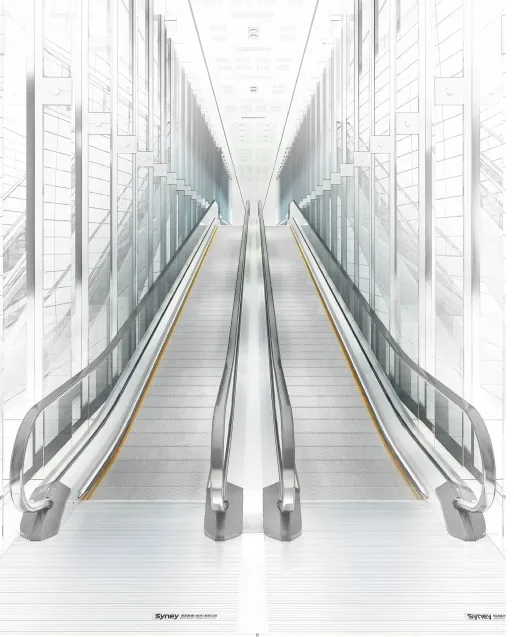

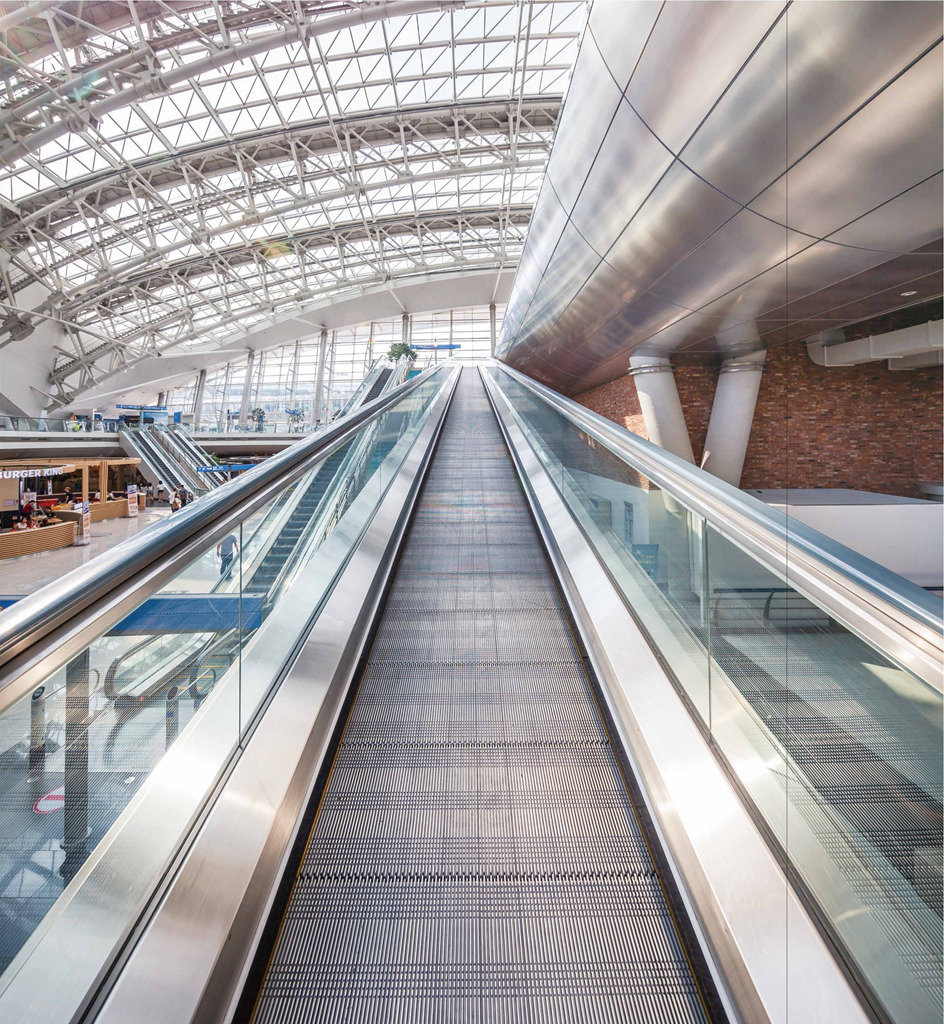

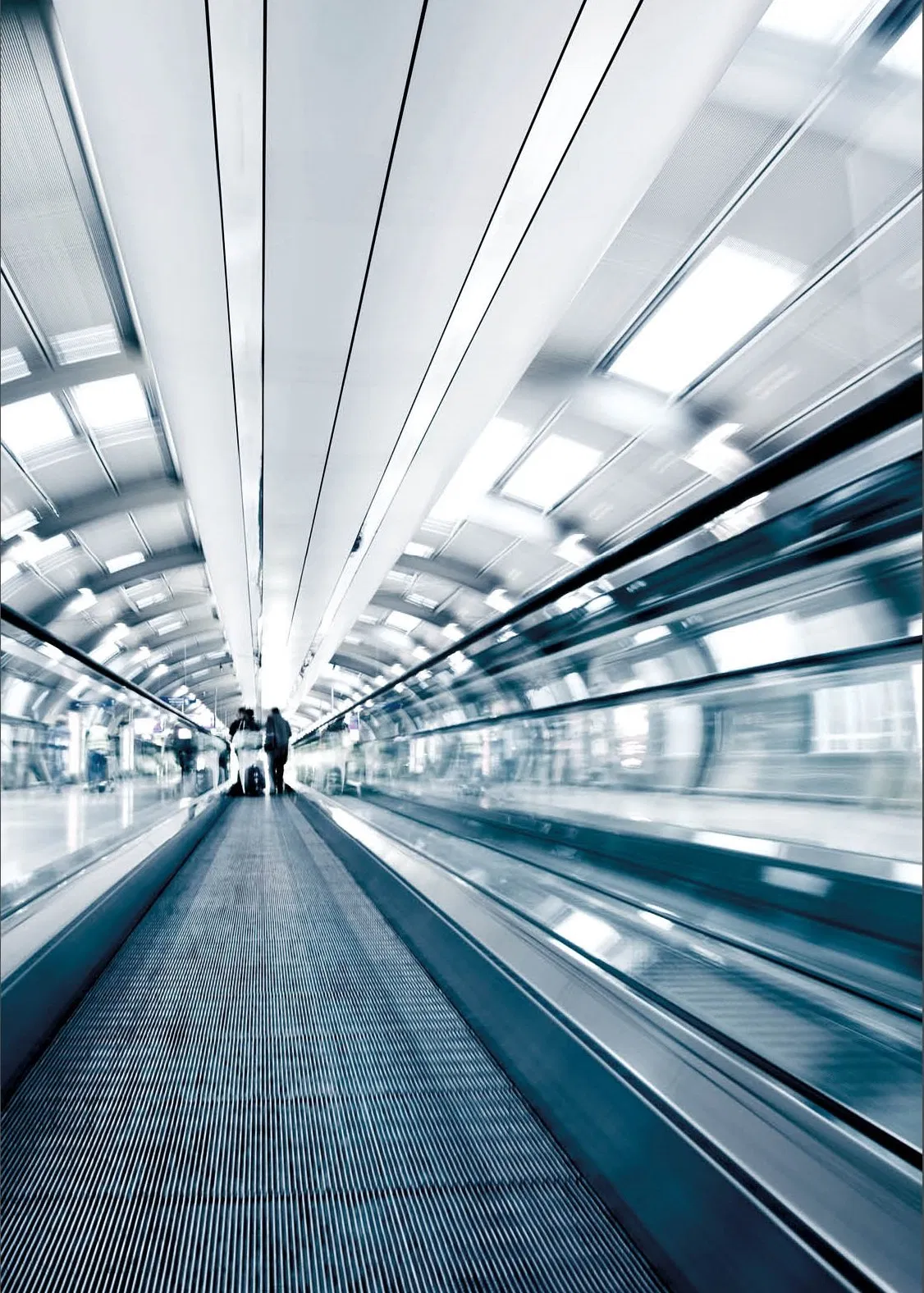

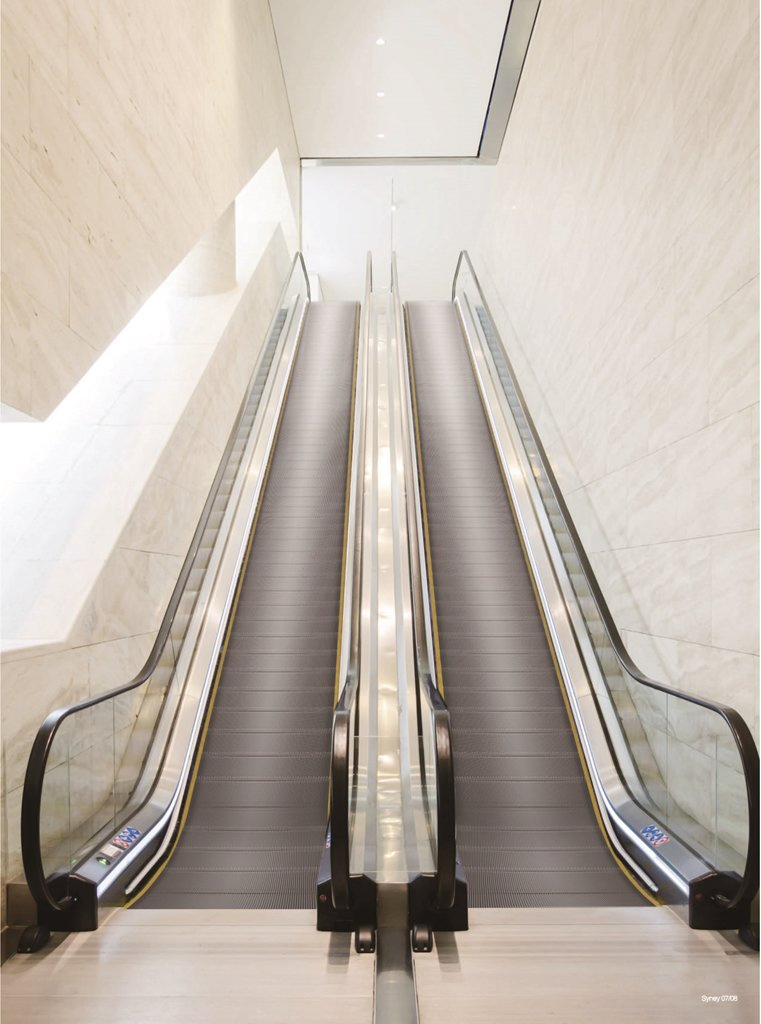

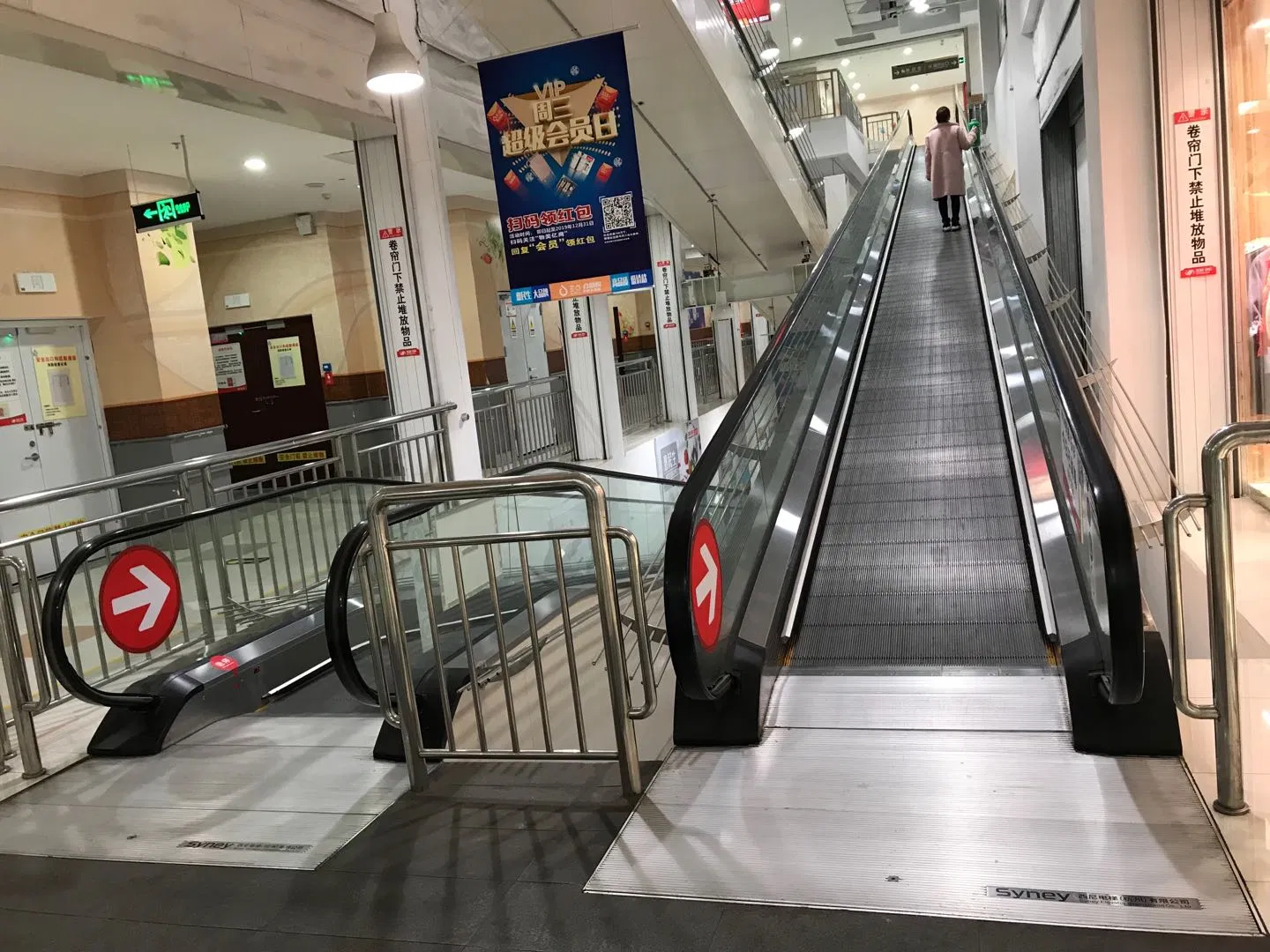

TUV Approved Safe Running Moving Walkway
In busy cities, supermarkets, and shopping malls, our moving walks create a space full of imagination, linking every flowing sight with safe, comfortable, and beautiful lines for a leisure experience.
| Parameters |
Details |
| Span Length | L ≤ 105,000mm |
| Speed Options | 0.5m/s, 0.65m/s |
| Noise Level | ≤ 65dB |
| Vibration | ≤ 35cm/s² |
| Power Supply | 380V, 50Hz (3-Phase 5-Wire) / Lighting 220V |
| Energy Saving | VVVF, Auto start-stop |

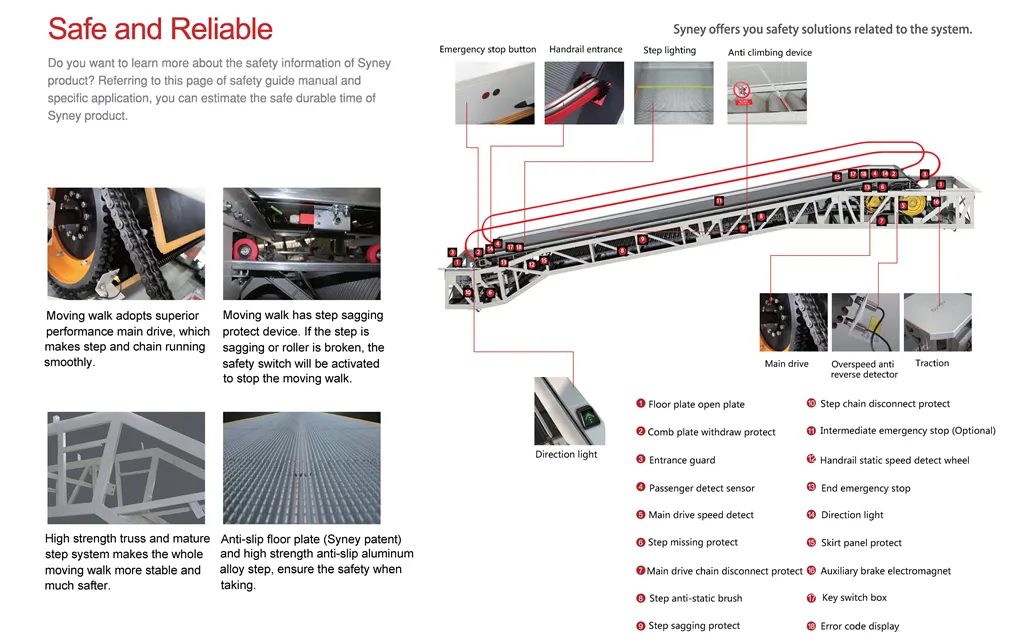

Advanced Safety Measures
Standard Safety Functions
| 1. Emergency Stop Button | 2. Handrail Entry Contact | 3. Broken Step Chain Protection |
| 4. Comb Plate Contact | 5. Phase Failure Protection | 6. Step Sag Contact |
| 7. Overload Protect | 8. Overspeed Protection | 9. Step Missing Protection |
| 10. Skirt Panel Anti-Clamp | 11. Auto Lubricating | 12. Working Brake |
Production & Quality Management
🔍
Raw Material Control: All incoming materials are inspected by QC. No rejected materials are accepted into the warehouse.
⚙️

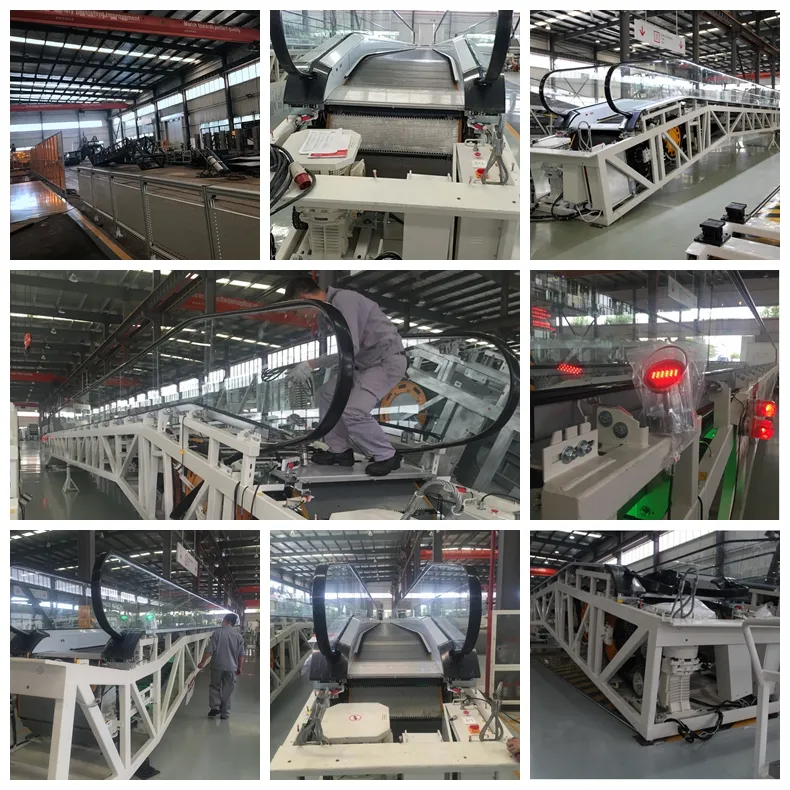

Production Management: Weekly production plans with digital tracking in each workshop ensures project schedules are strictly followed.
📦

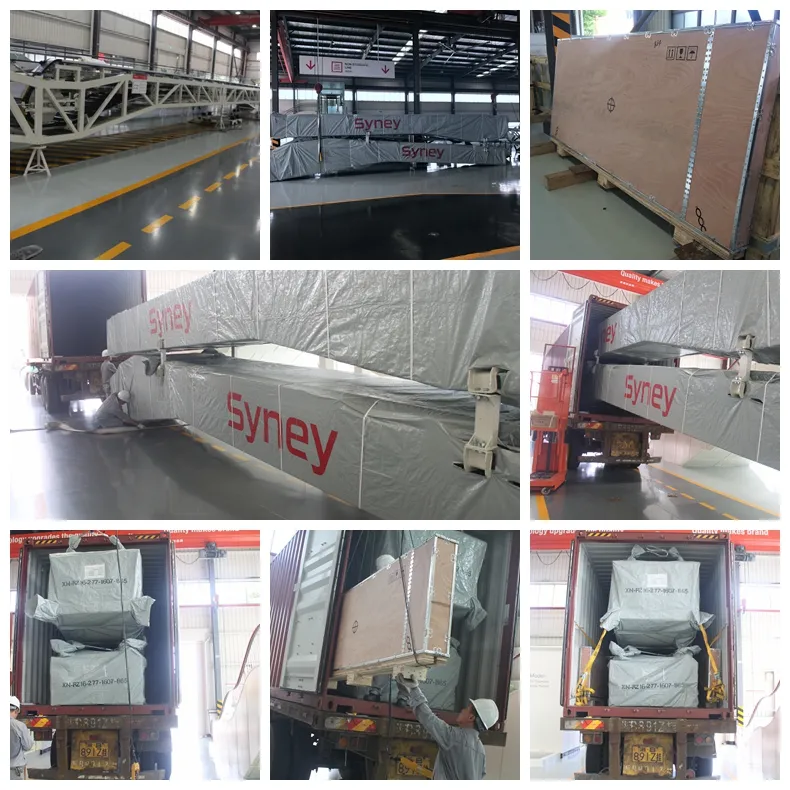

Professional Packing: Parts are packed in solid, fumigation-free plywood boxes designed for long-distance sea shipping.

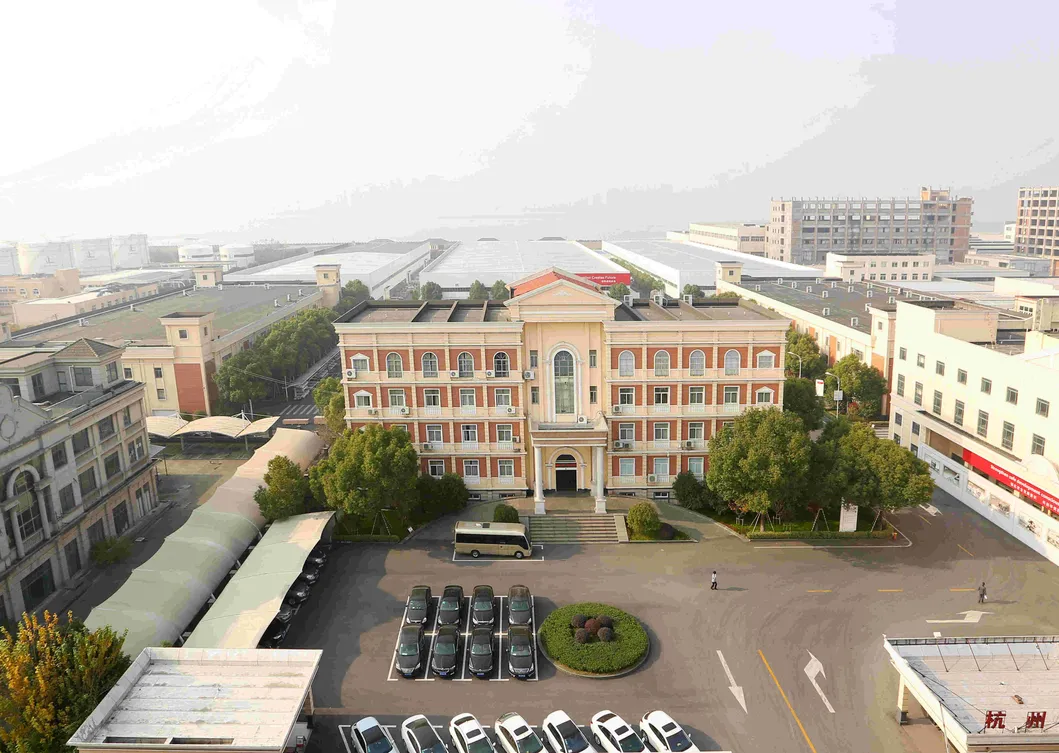

Manufacturing Excellence

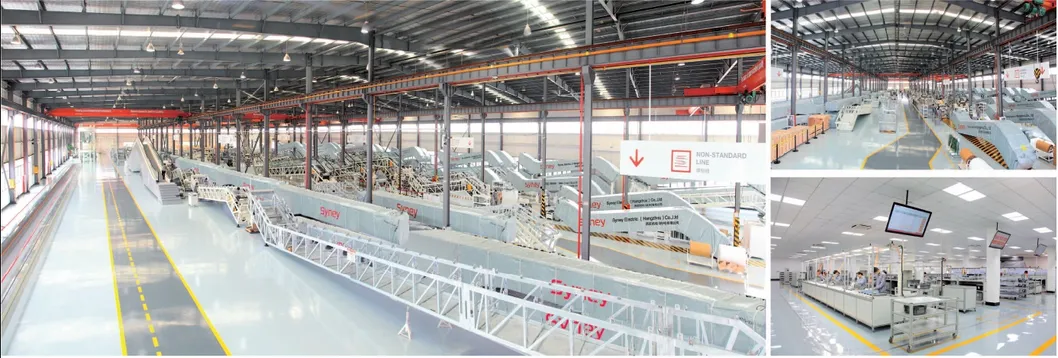

Our manufacturing facility is a leader in elevator and escalator production. With two specialized factories covering nearly 99,000 square meters, we employ over 80 engineering technicians and a senior management team dedicated to quality. Our products serve markets globally, including Russia, the Middle East, Southeast Asia, Korea, and America.

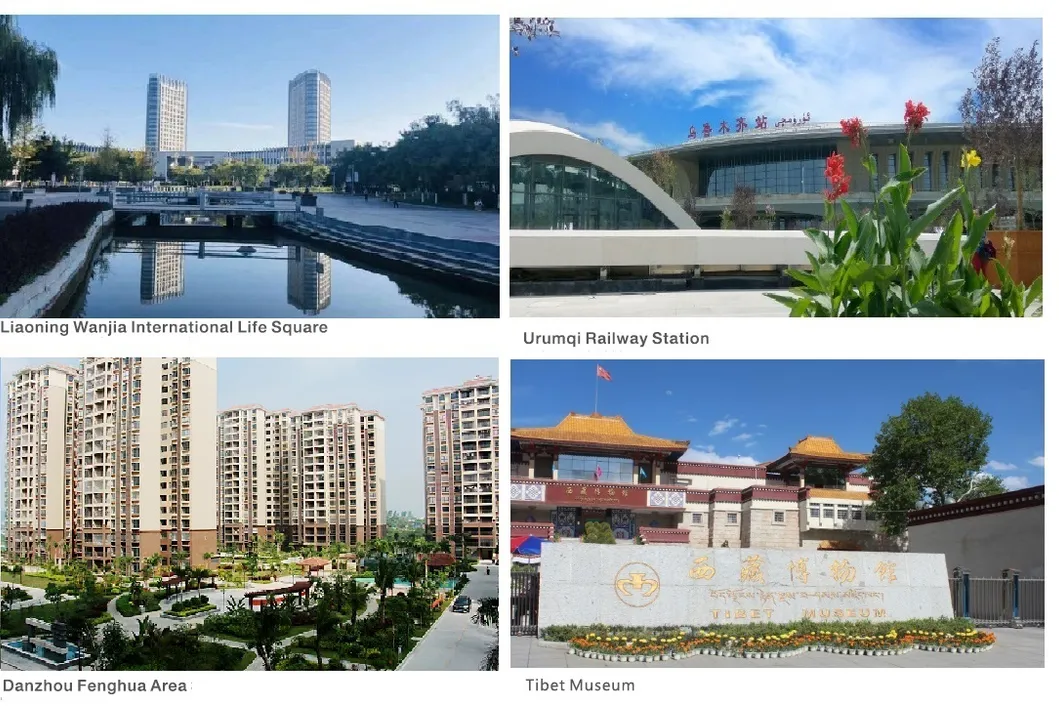

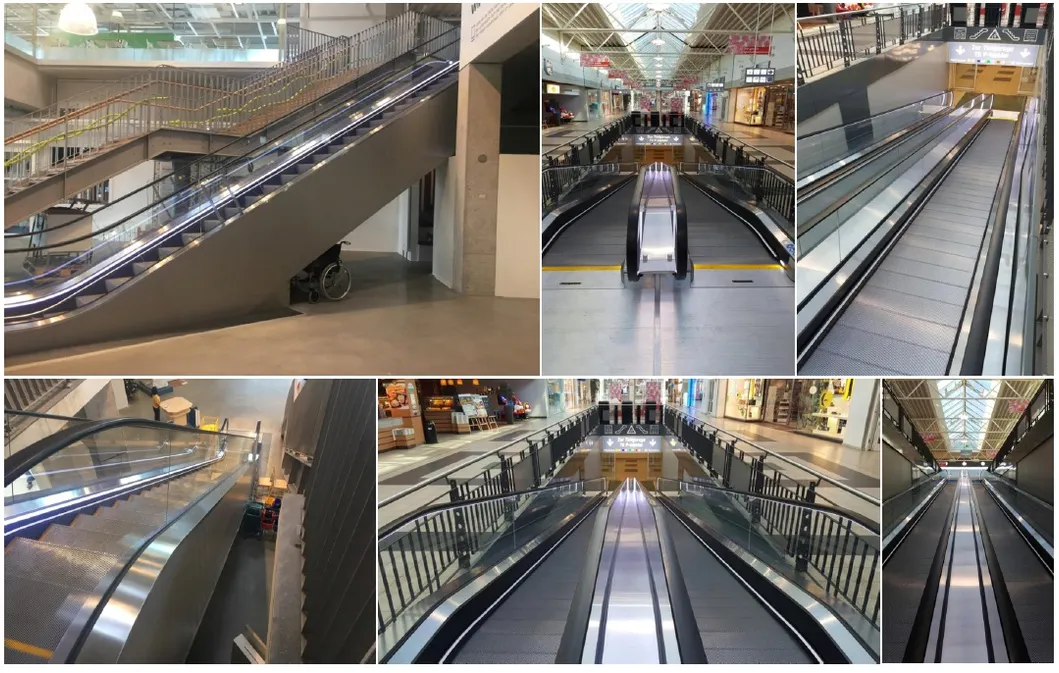

Global Projects
Frequently Asked Questions
What is the standard warranty period for the moving walkway?
We provide a comprehensive 18-month warranty after delivery to ensure long-term reliability and customer satisfaction.
How does the moving walkway achieve energy efficiency?
The system utilizes VVVF (Variable Voltage Variable Frequency) technology and an auto start-stop function, achieving an A+++ energy-saving grade.
What step widths are available for this model?
The standard step widths range from 800mm to 1400mm, with the M1511 model commonly utilizing a 1000mm width.

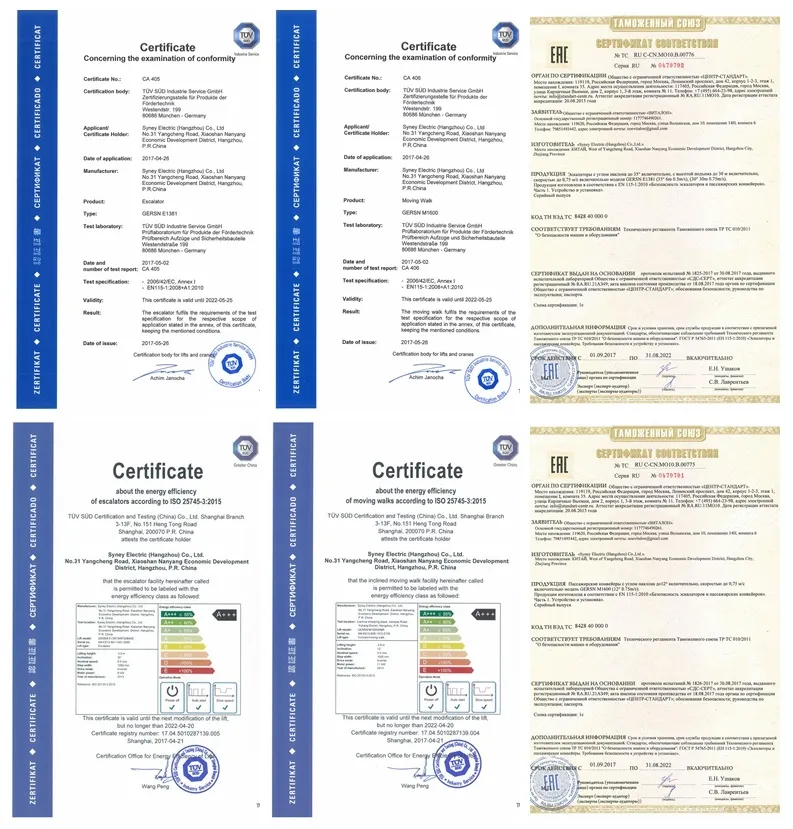

What certifications does the product hold for safety?
The product is fully certified with CE (EN115-1:2008+A1:2010), TUV, and EAC certificates, ensuring compliance with international safety standards.
How is the equipment protected during international shipping?
All parts are packed in solid, fumigation-free plywood boxes. Sensitive components like control cabinets and motors are wrapped in a protective film with desiccant to prevent moisture damage.
Can the moving walkway be used for outdoor applications?
While this specific model is designed as an indoor type, it is ideal for heavy-traffic environments such as supermarkets, airports, and bus stations.
