Vanguard Lift
Vanguard Lift
| Driving Type | Traction |
| Capacity | <500kg |
| Persons | <5 |
| Speed | 2.00 - 3.50m/s |
| Control Mode | Push-Button Control |
| Machine Room | MRL (Machine Room-Less) |

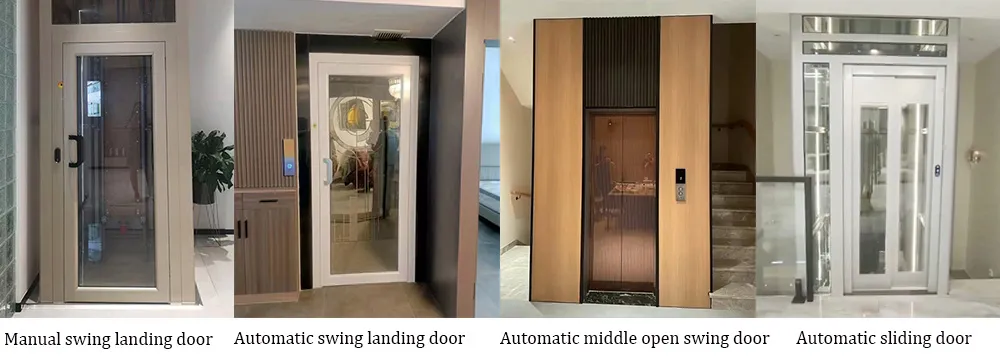

| Door Type | Side Open / Central Open / Swing Door |
| Pit Requirement | With or Without Pit Optional |

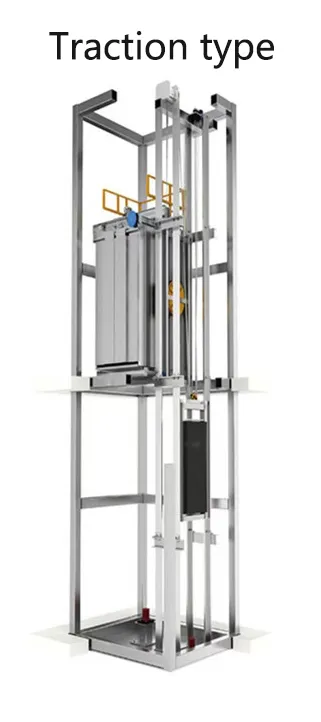

Traction lifts utilize a sophisticated system where a motor is attached to a toothed pulley (sheave), with high-strength cables looped over it. One end is attached to the lift car, while the other connects to a counterweight. This balance reduces the strain on the motor, requiring significantly less power to move the car compared to other systems.
| Parameter Item | Specifications |
|---|---|
| Model | VPL Series |
| Load Capacity | Up to 400kg |
| Max Car Size | 1200 x 1300mm |
| Travel Height | Up to 6 floors (Net rise 16m) |
| Rated Speed | Max 0.4m/s |
| Power Supply | 220V 2-phase or 380V 3-phase, 50/60hz |
| Materials | Stainless Steel 304 / Tempered Glass / Wood |
| Pit Depth | >150mm |
| 1. Emergency Lighting | 2. Overload Protection |
| 3. Automatic Fault Detection | 4. One-touch Emergency Call |
| 5. Pit Buffer Device | 6. Light Curtain Door Protection |
| 7. Limit Protection Devices | 8. UPS Power Outage Leveling |

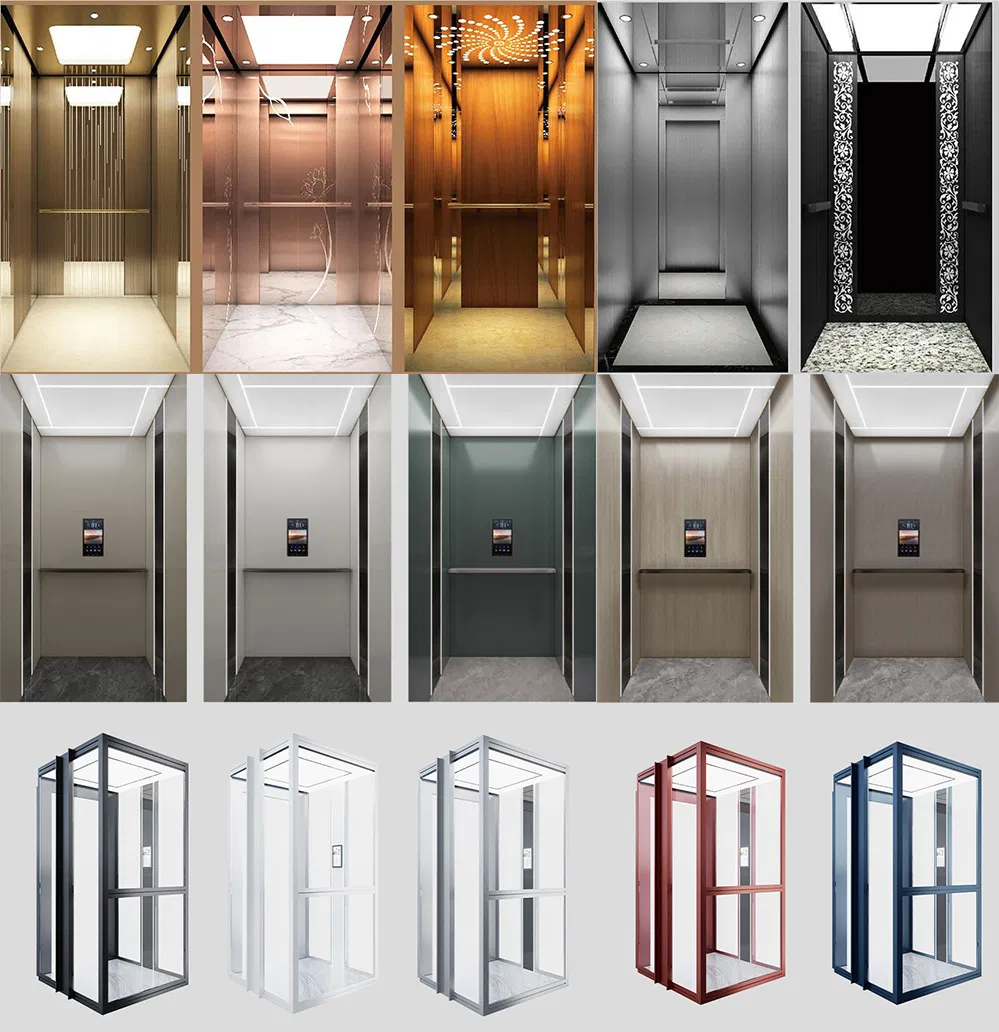

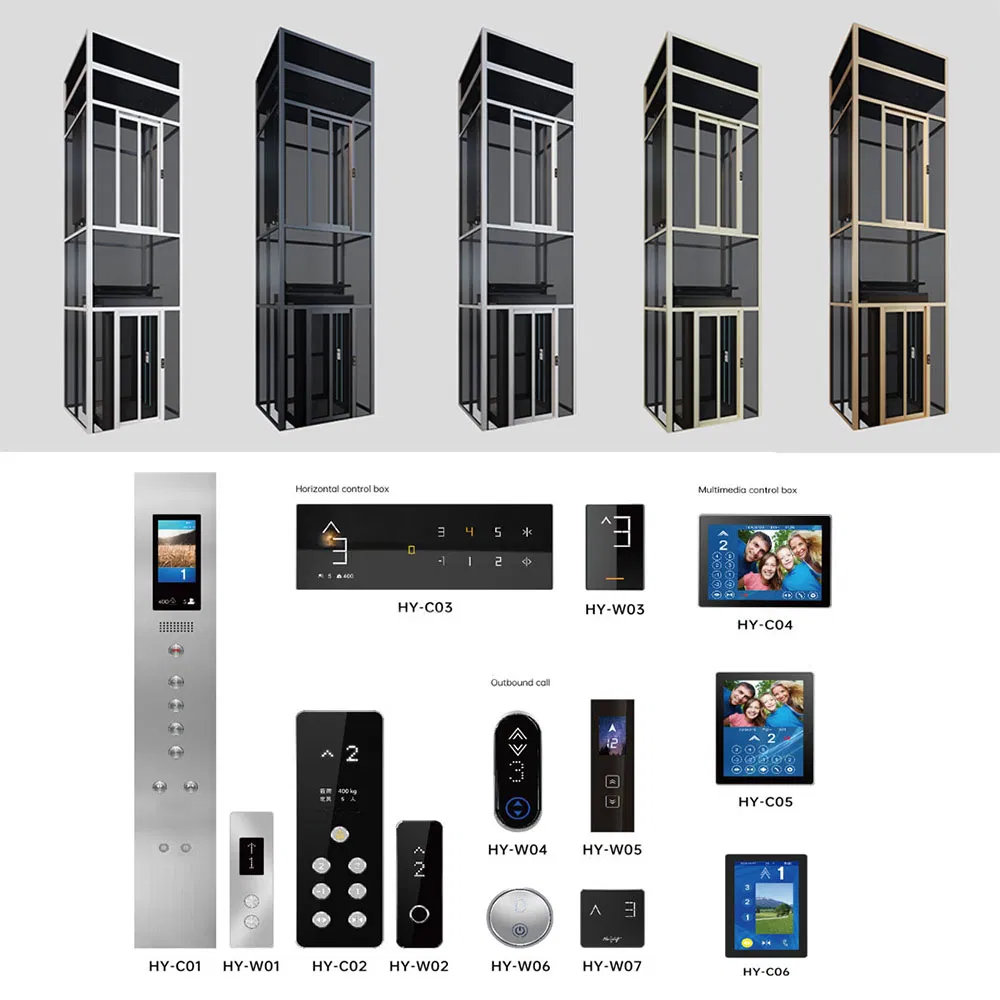

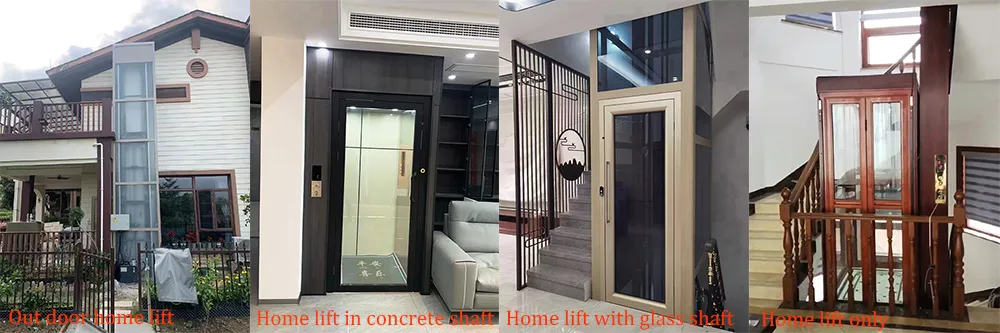

Tailor your lift to match your home's interior. Choose from various opening methods, colors, and finishes.

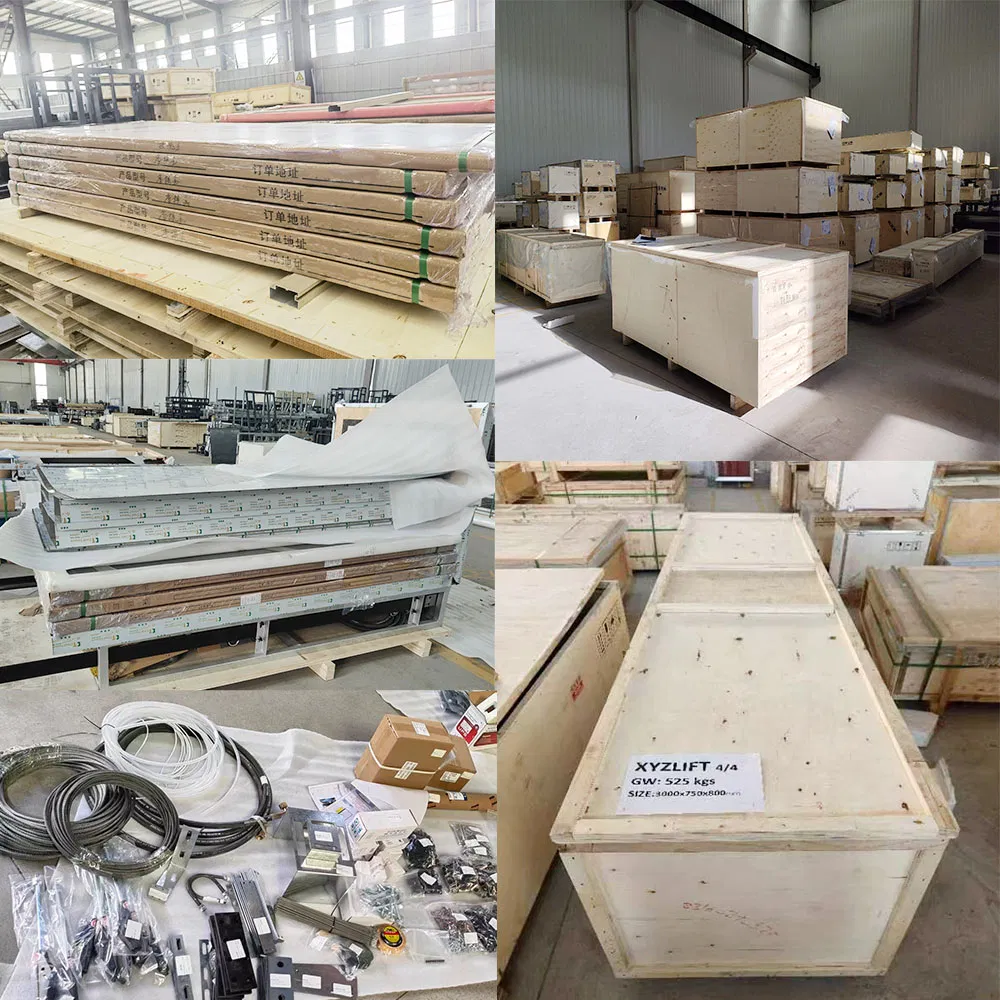

All components are secured in seaworthy plywood boxes lined with waterproof materials. Each package is clearly labeled with an identification tag and includes a detailed packing list.
Traction lifts are space-efficient. While they usually require a small overhead space (minimum 2850mm) and a shallow pit (150mm), modern MRL designs eliminate the need for a separate machine room.
Our traction systems can serve up to 6 floors with a total travel height of approximately 16 meters.
Yes, our lifts are equipped with a UPS (Uninterruptible Power Supply) for emergency leveling, ensuring the car returns to the nearest floor and opens the doors during a power outage.
Absolutely. We offer a wide range of materials including various stainless steel colors (gold, rose gold, black), tempered glass, and wood panels to match your home decor.
Traction lifts are highly durable. We recommend a professional safety inspection and maintenance check once or twice a year to ensure all mechanical parts remain in peak condition.
No, traction lifts are known for their quiet and smooth operation. The advanced motor and counterweight system minimize vibration and noise compared to hydraulic alternatives.
