Open & Close Type
Automatic
Deceleration Device
With Deceleration Device
Elevator Door
Center Opening Door
Production Time
Within 25-30 Days
Machine Room
with and Without
Transport Package
High Quality Export Wooden Case

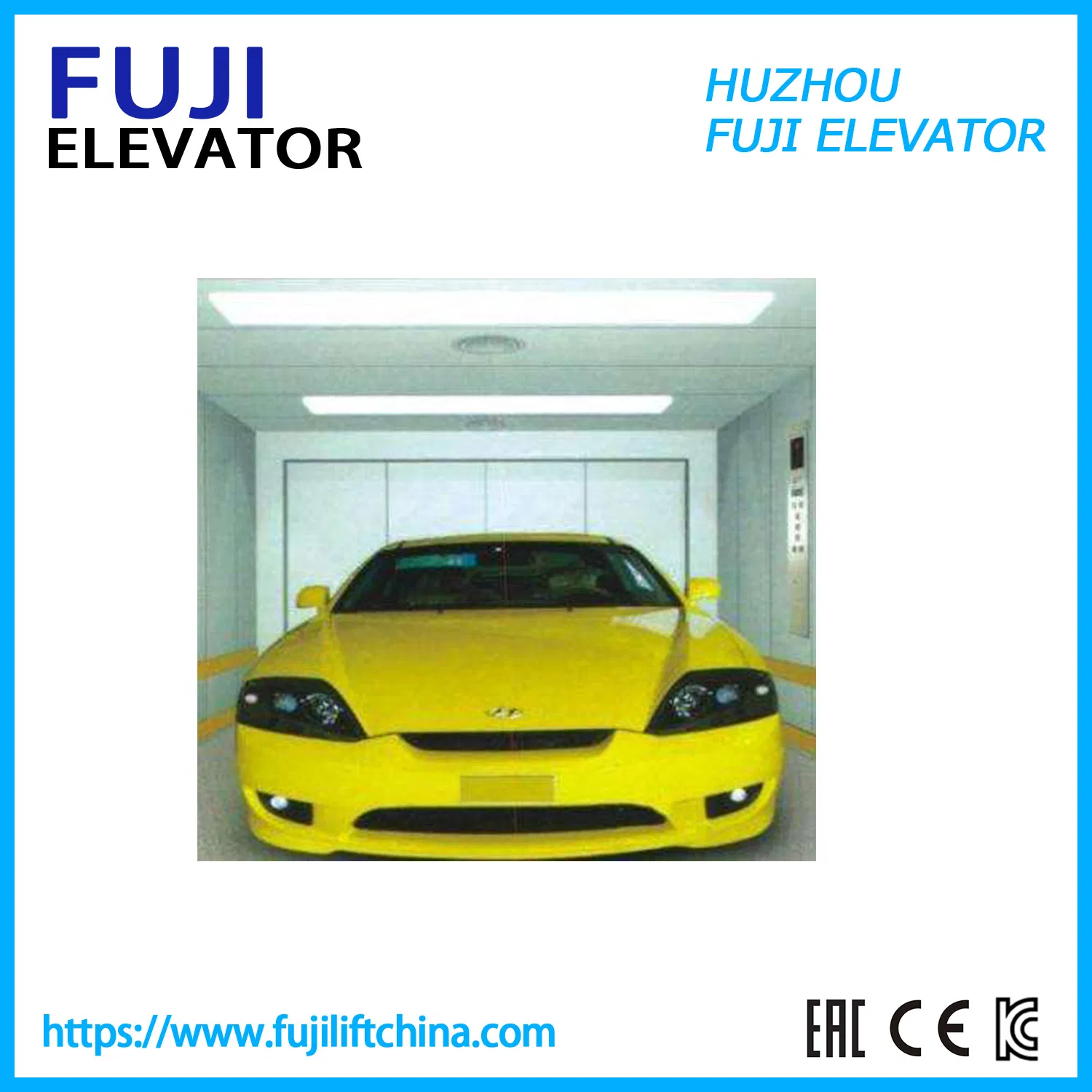

About Automobile Elevator
FUJI intelligent automobile elevator introduced the well-developed international automobile elevation technology. Developed and manufactured through absorption, conversion, and enhancement, our advanced technology eliminates the negative factors of shaking. It reduces noise from the traction system and ensures even force distribution to the elevator car, optimizing the entire product series.
After-Sales Service Support
- Installation Manuals: Comprehensive guides provided for your technical staff.
- Remote Guidance: Expert assistance for accurate commissioning via remote channels.
- On-site Assistance: Engineers available for site visits for special installation requirements.
- Agent Training: Partners are welcome to send technicians for factory-level inspection and training.
Car Elevator Features
- Rapid Load Adaptation: Structural design specifically adapted to rapid increases and decreases in load stress.
- Dual Control Boxes: Equipped with two button boxes so drivers can operate without stepping out.
- High Capacity: Rated load over 3 tons with a large car area for all types of small vehicles.

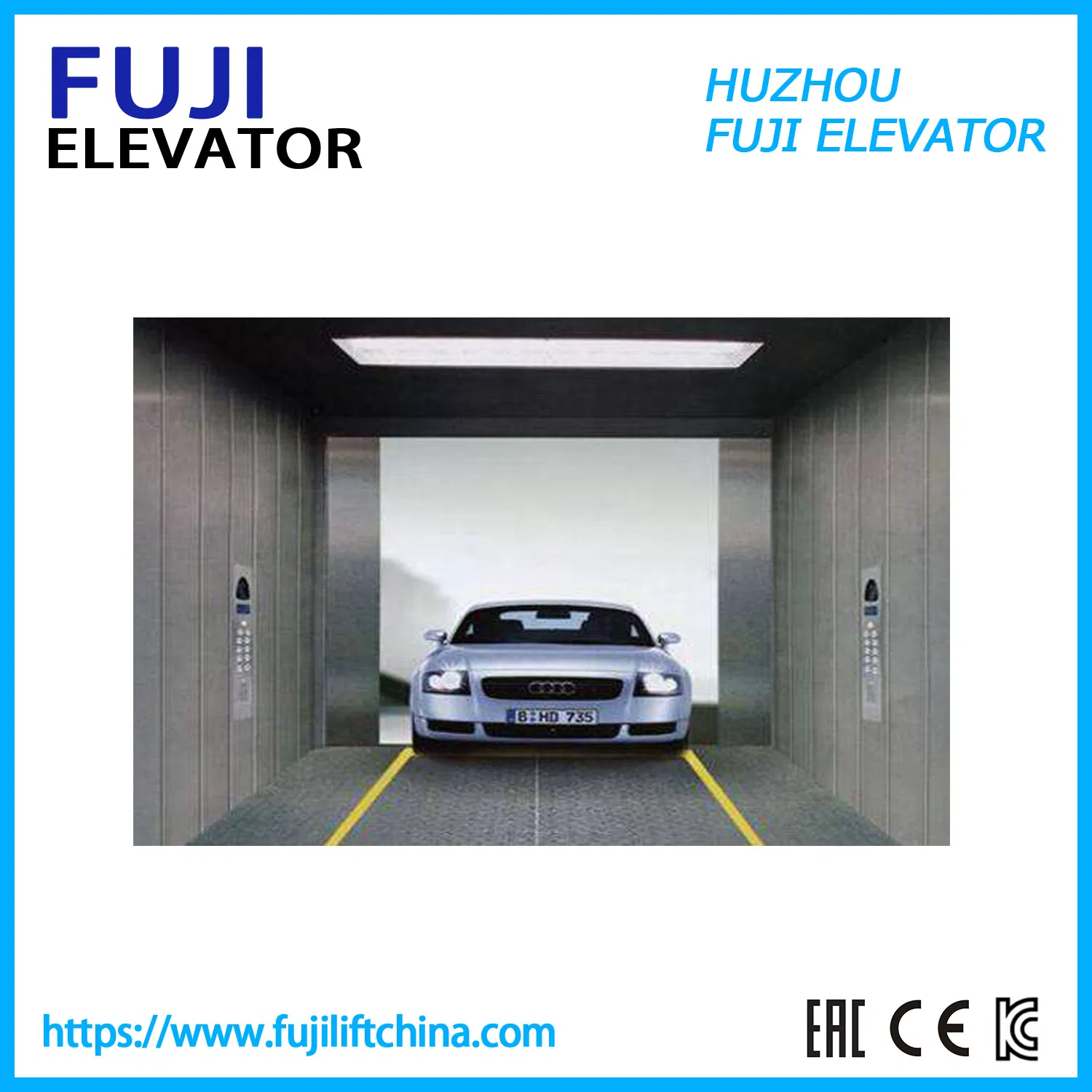

- Front and Rear Access: Front and rear through-door settings facilitate easy entry and exit.

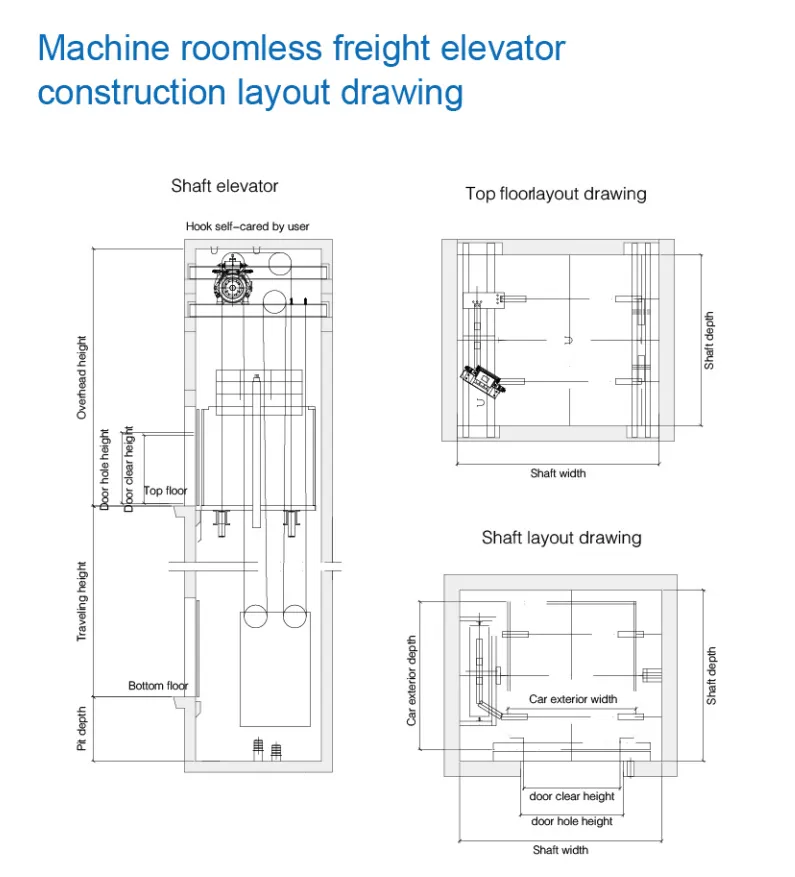

Technical Parameters
| Capacity (KG) |
Speed (m/s) |
Car Size (WxDxH)mm |
Door Opening (WxD)mm |

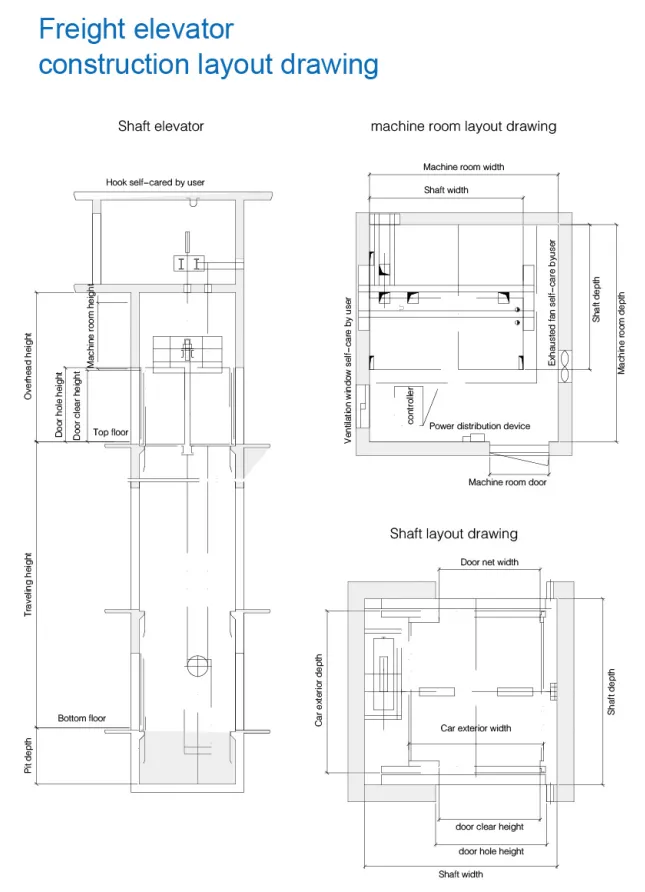

Shaft Size (WxD) |
OH (mm) |
Pit Depth (mm) |
| 3000 |
0.25/0.5 |
2700x5800 |
2400x2200 |
4100x6160 |
4800 |
1600 |
| 5000 |
0.25/0.5 |
3500x7200 |
2600x2200 |
4750x7560 |
4800 |
1600 |
Safety Guarantee & Stable Transport
Our elevators use high-strength section materials for car manufacture, capable of bearing heavy loads without deformation. The car bottom applies a doubled consolidation design to support various weights from different goods. A specially designed shock-absorbing mechanism ensures secure and comfortable operation during passenger or goods entry/exit.
Frequently Asked Questions
What is the production lead time for the car elevator?
The standard production time is within 25 to 30 days after order confirmation.
Does the driver need to exit the vehicle to operate the elevator?
No, the car is equipped with two control button boxes, allowing the driver to control the elevator directly from inside the vehicle.
What safety features are included in the standard configuration?
Standard features include infrared light curtain protection, overload voice-light alarms, fire running functions, and self-diagnostics for faults.
Can this elevator handle heavy freight besides vehicles?
Yes, with a rated capacity of up to 5000KG and a high-strength structural design, it is highly suitable for various freight and warehouse applications.
How is the elevator shipped to ensure safety?
All components are packed in high-quality export-standard wooden cases to ensure protection during international transport.
Is remote technical support available for installation?
Yes, the factory provides remote guidance for accurate commissioning and can provide on-site engineering support if required.
