Vanguard Lift
Vanguard Lift

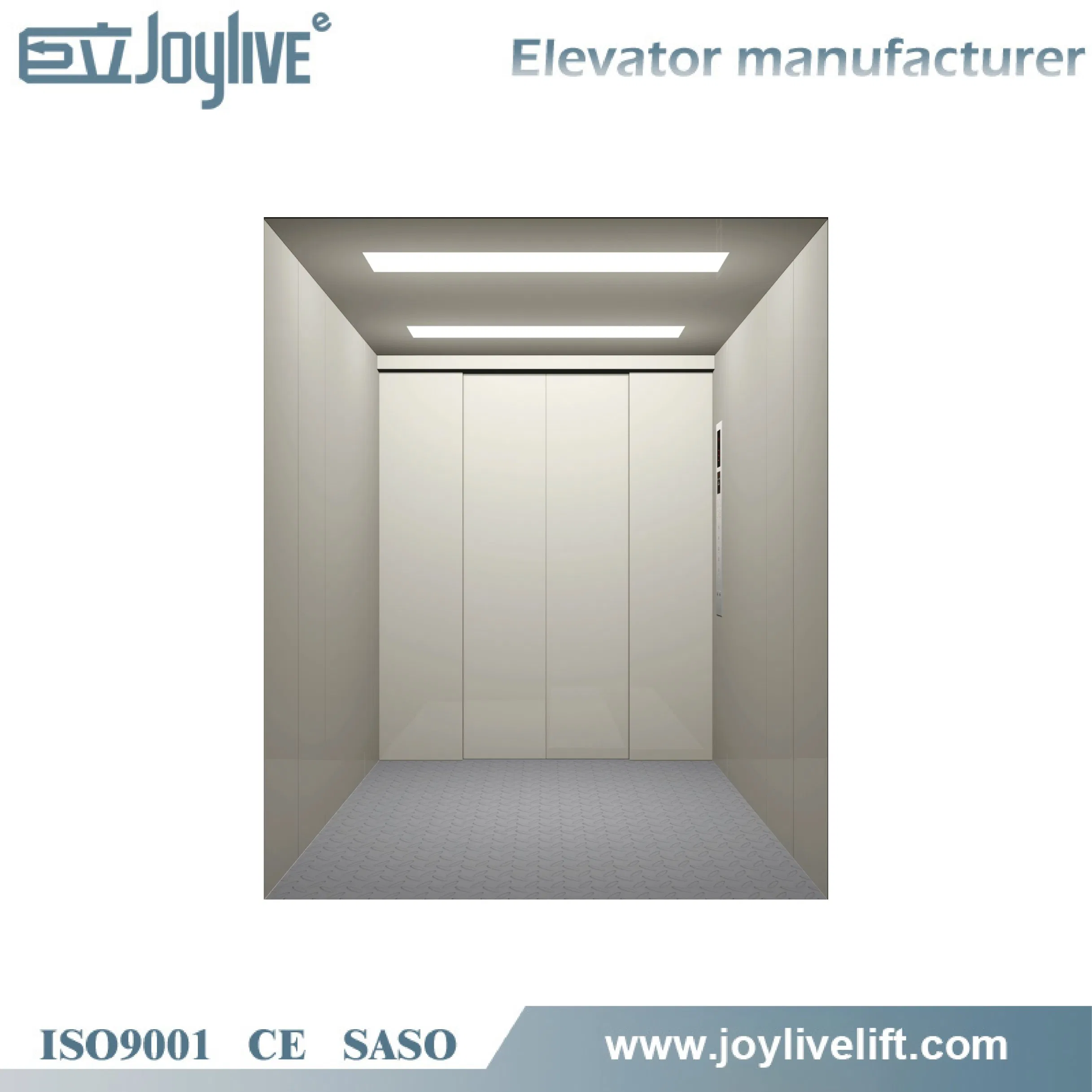

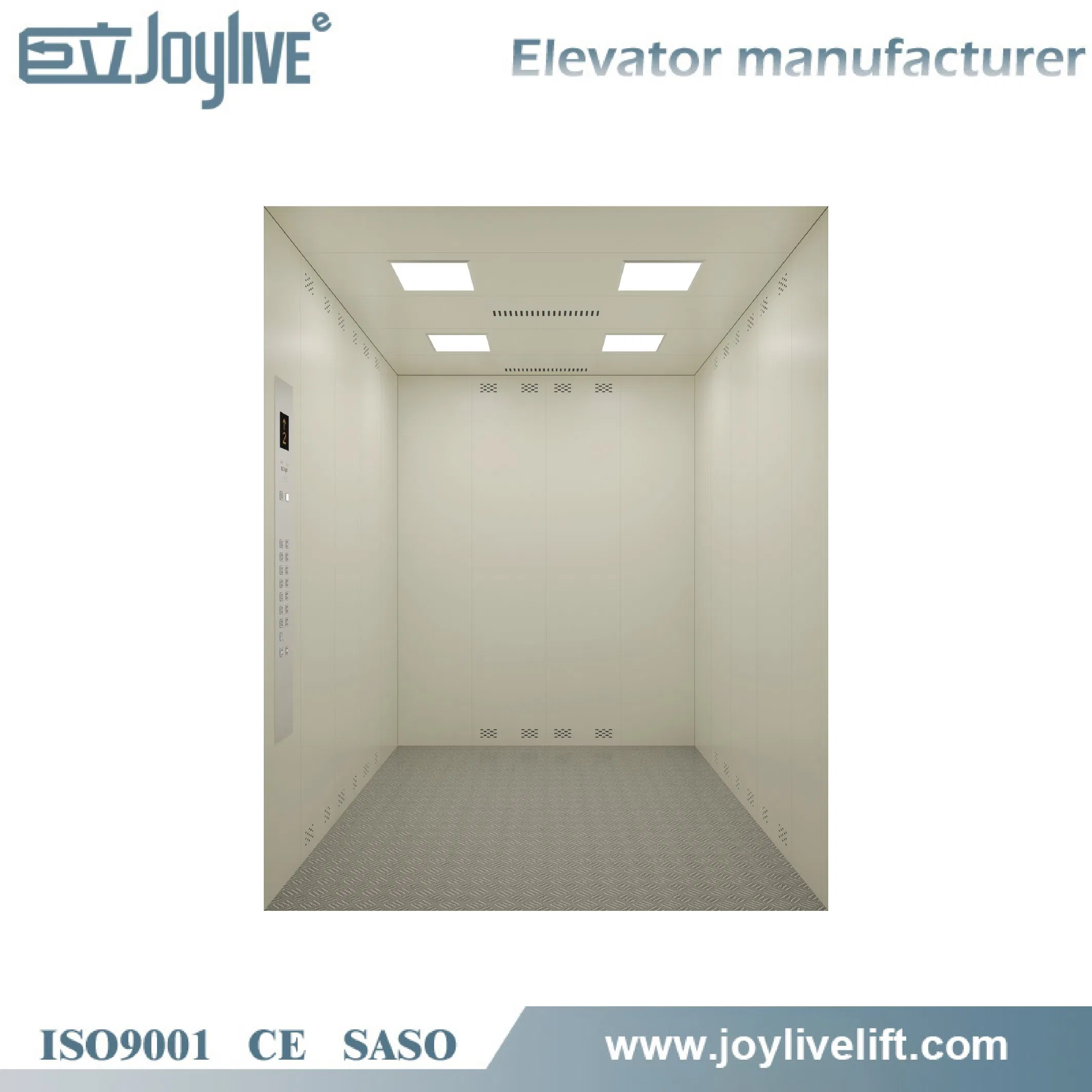

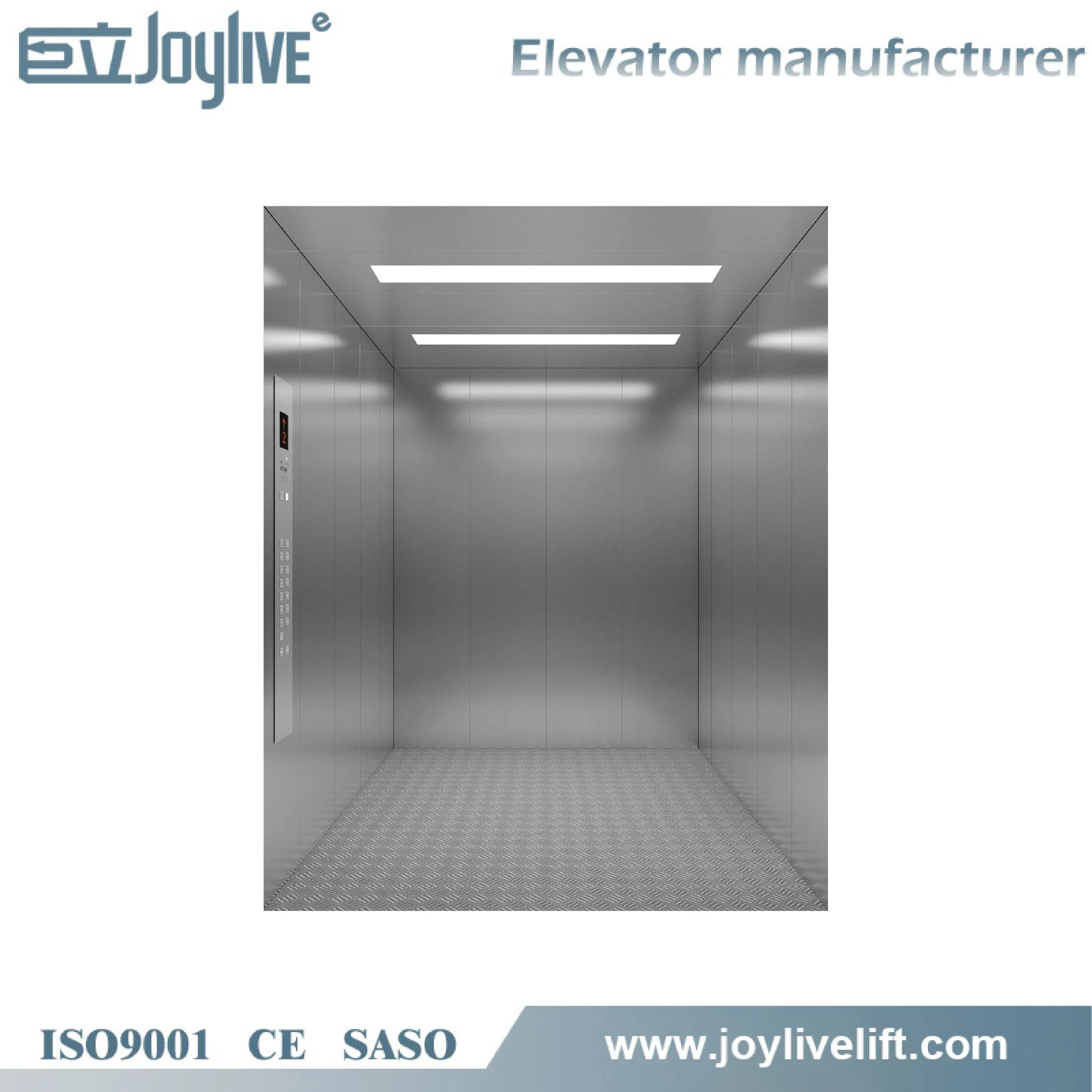

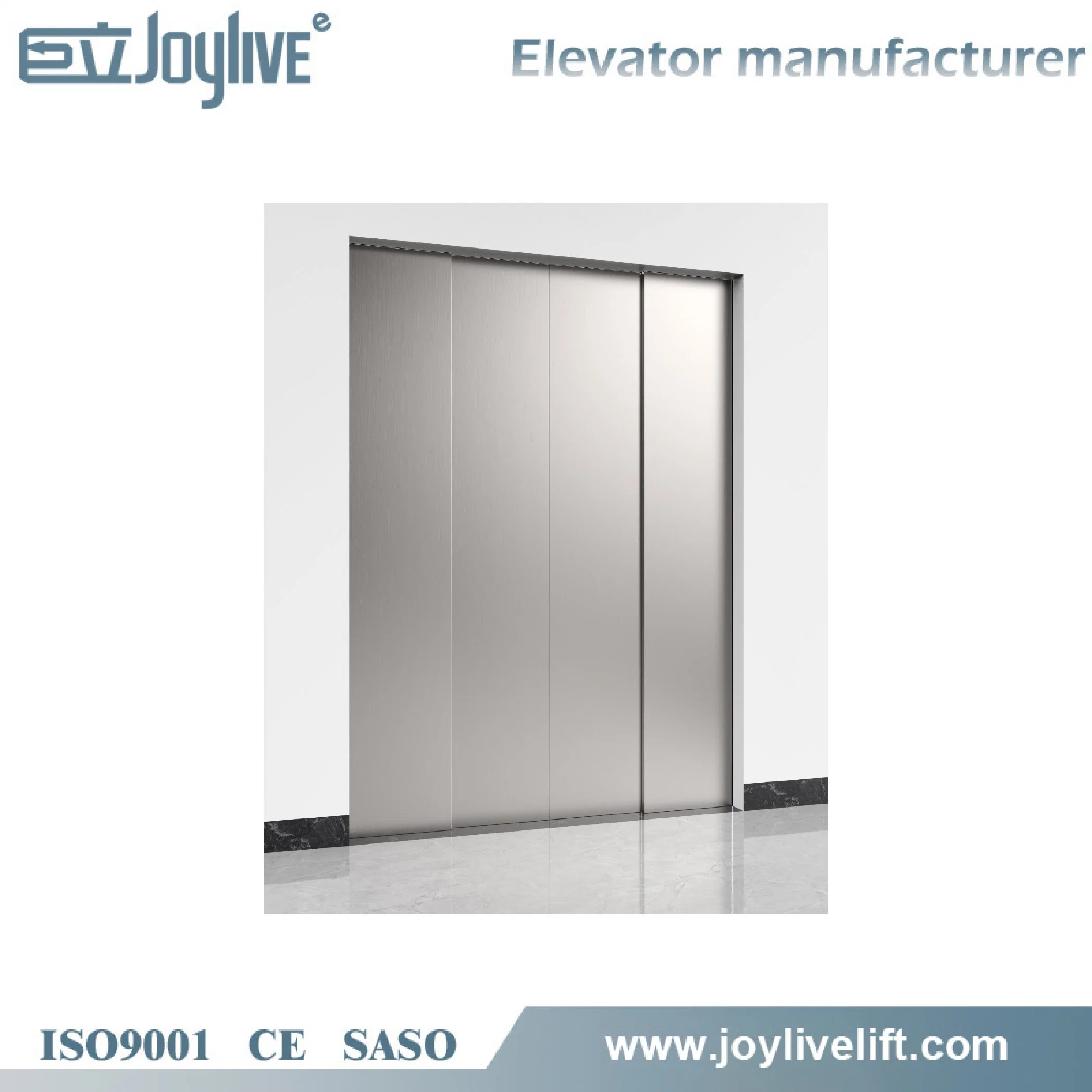

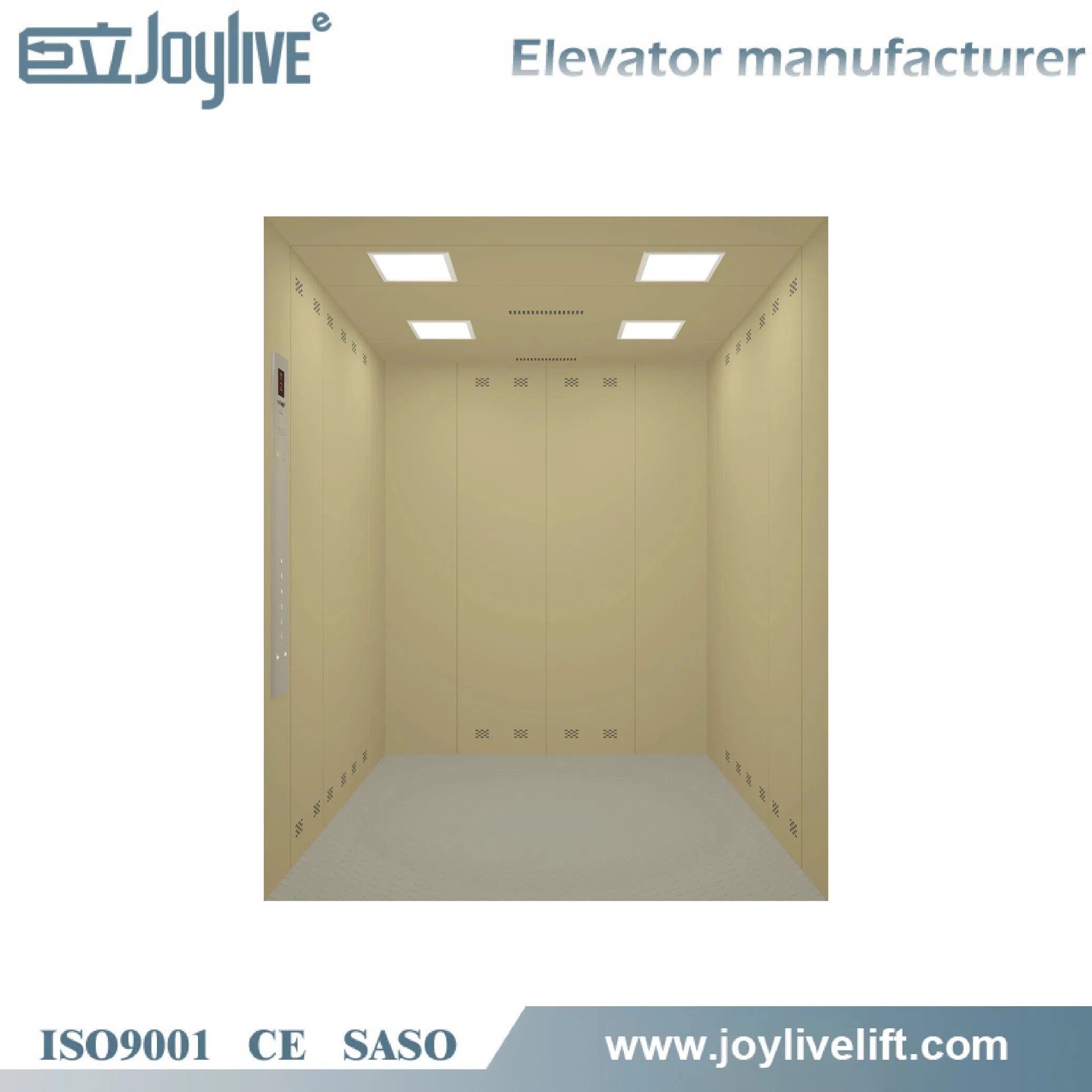

Product Name: Heavy Duty 1000 Kg 2ton Size of Cargo Freight Elevator Used for Factory or Warehouse
Gargo Goods Freight Elevator Lift

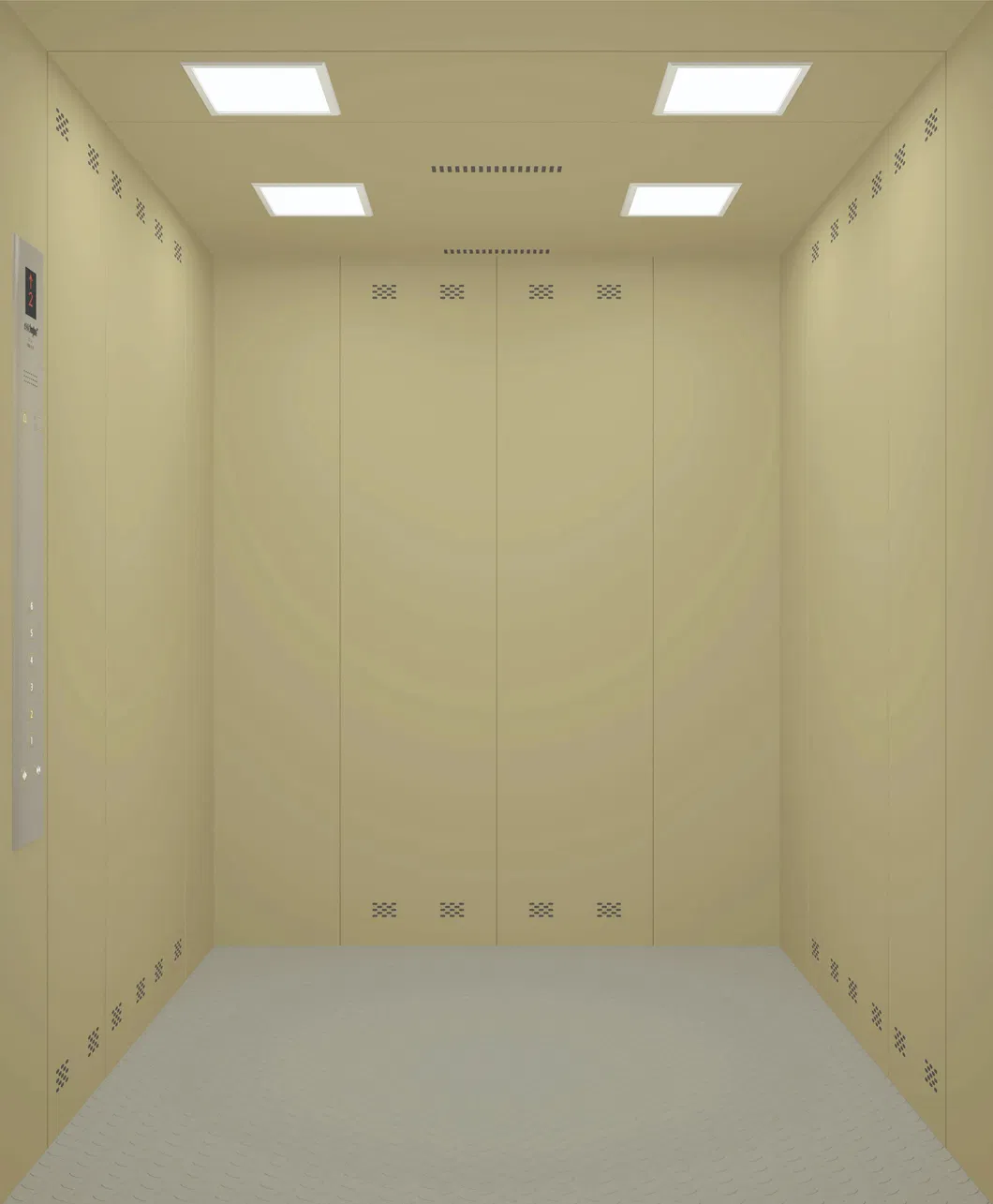

Ceiling: Powder coated steel, LED Lighting
Cabin Wall: Hairline stainless steel, Powder coated steel
Floor: Chequered steel plate
Application: Factory, Warehouse, Shopping mall, Freight center
Our heavy-duty freight elevator provides auxiliary logistics planning for large vehicles transportation, equipment, warehousing and distribution with max. load 20 tons. Automatic dispatching between elevator and AGV(Automated Guided Vehicle) solves obstacles in vertical space transportation.
| Load (kg) | Speed (m/s) | Cabin size (CW×CD) | Door Opening (EW×EH) | Shaft size (HW×HD) | Pit depth (mm) | Top Floor Height (mm) |
|---|---|---|---|---|---|---|
| 1000 | 0.5/1.0 | 1400×1700 | 1200×2100 | 2250×2100 | 1500 | 4300 |
| 2000 | 0.5/1.0 | 1700×2400 | 1700×2100 | 2900×2850 | 1500 | 4300 |
| 3000 | 0.5/1.0 | 2000×2800 | 1800×2100 | 3350×3250 | 1500 | 4300 |
| 5000 | 0.25/0.5 | 2400×3600 | 2400×2300 | 4050×4050 | 1600 | 4800 |

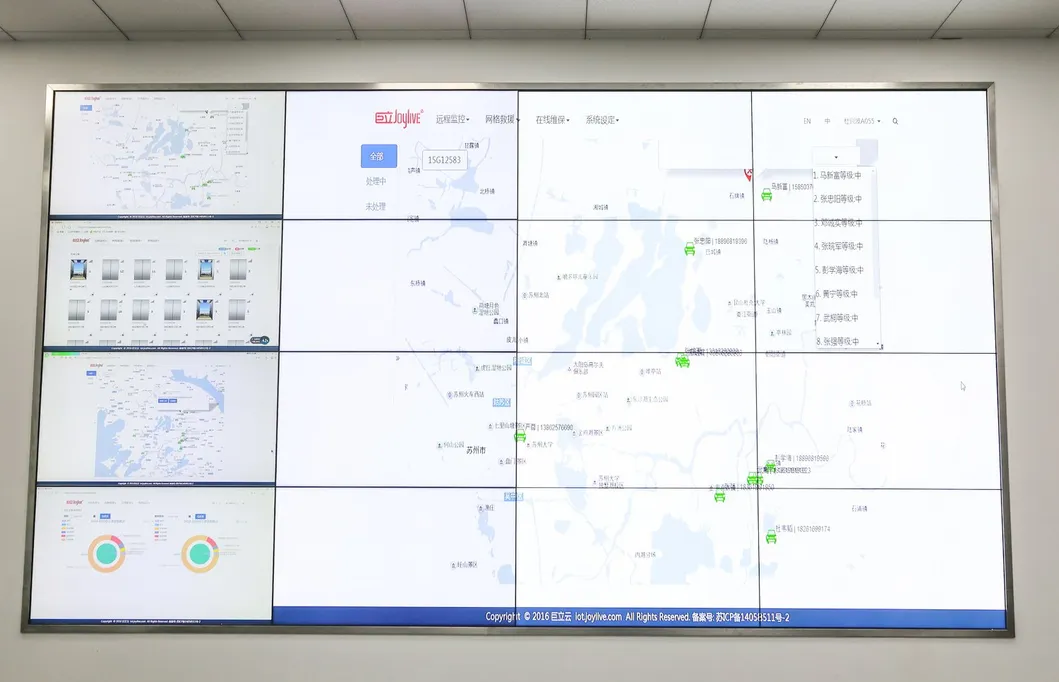

Cloud Elevator IoT Platform
Through our IoT platform, we provide 24-hour uninterrupted operation and safety management services. Our cloud solutions ensure the maintenance process is transparent and management is efficient.

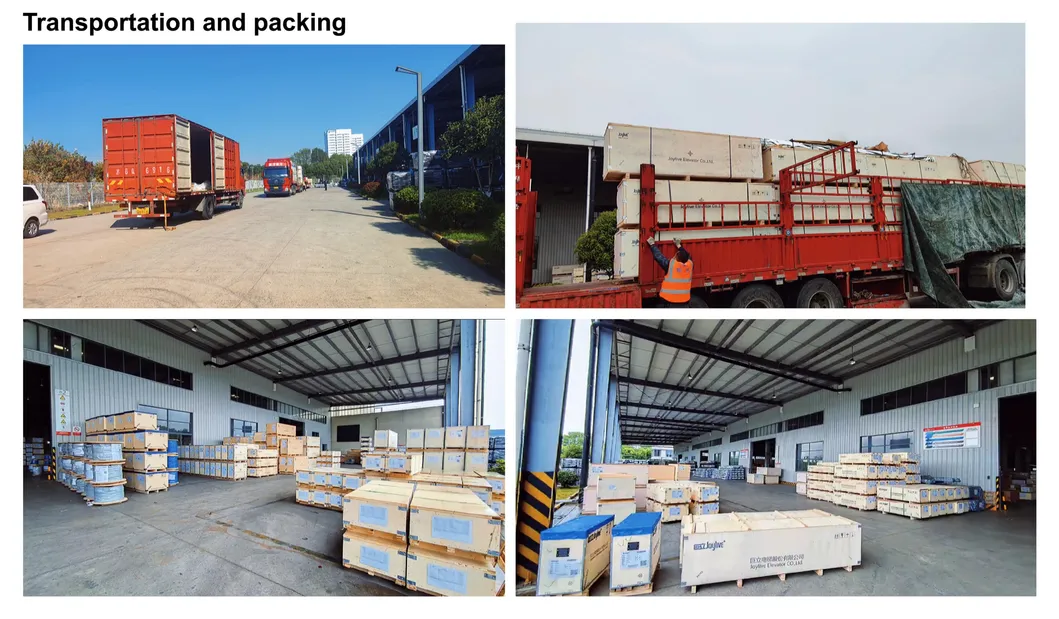

Established in 2002, our company specializes in elevator and escalator manufacturing and related services. We operate an industry-leading intelligent manufacturing center covering 70,000m². Our product range includes Passenger Elevators, Home Elevators, Freight Elevators, Escalators, and Auto Walkways.

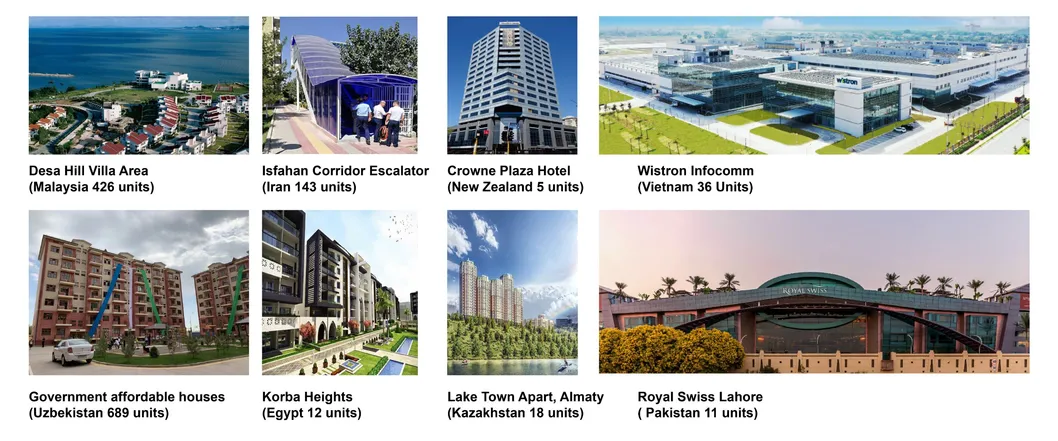

We have created a global marketing and service network covering more than 100 countries including Russia, New Zealand, Australia, Southeast Asia, Middle East, and Africa. We insist on quality and brand building, aiming to be one of the world's most competitive elevator enterprises.
