Vanguard Lift
Vanguard Lift

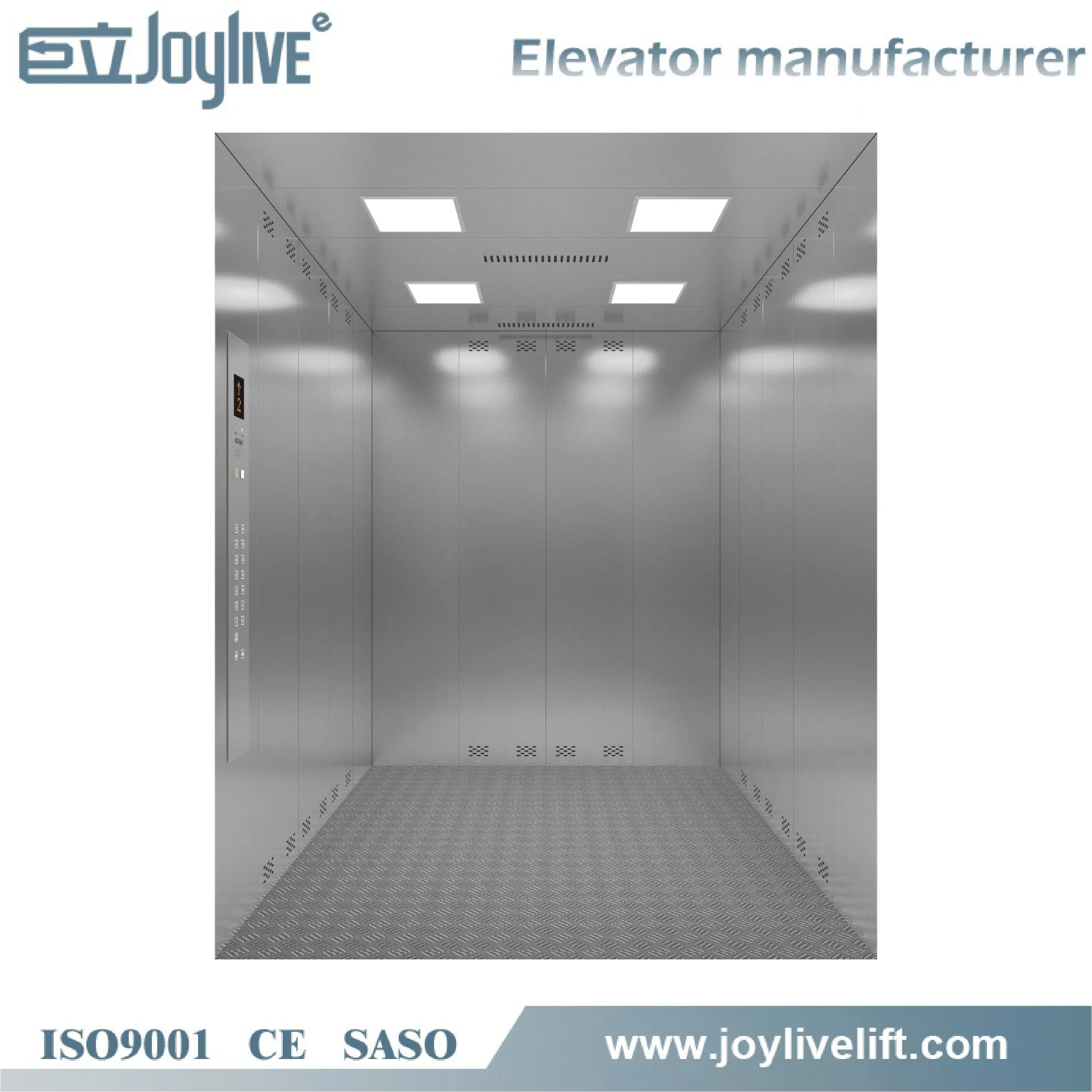

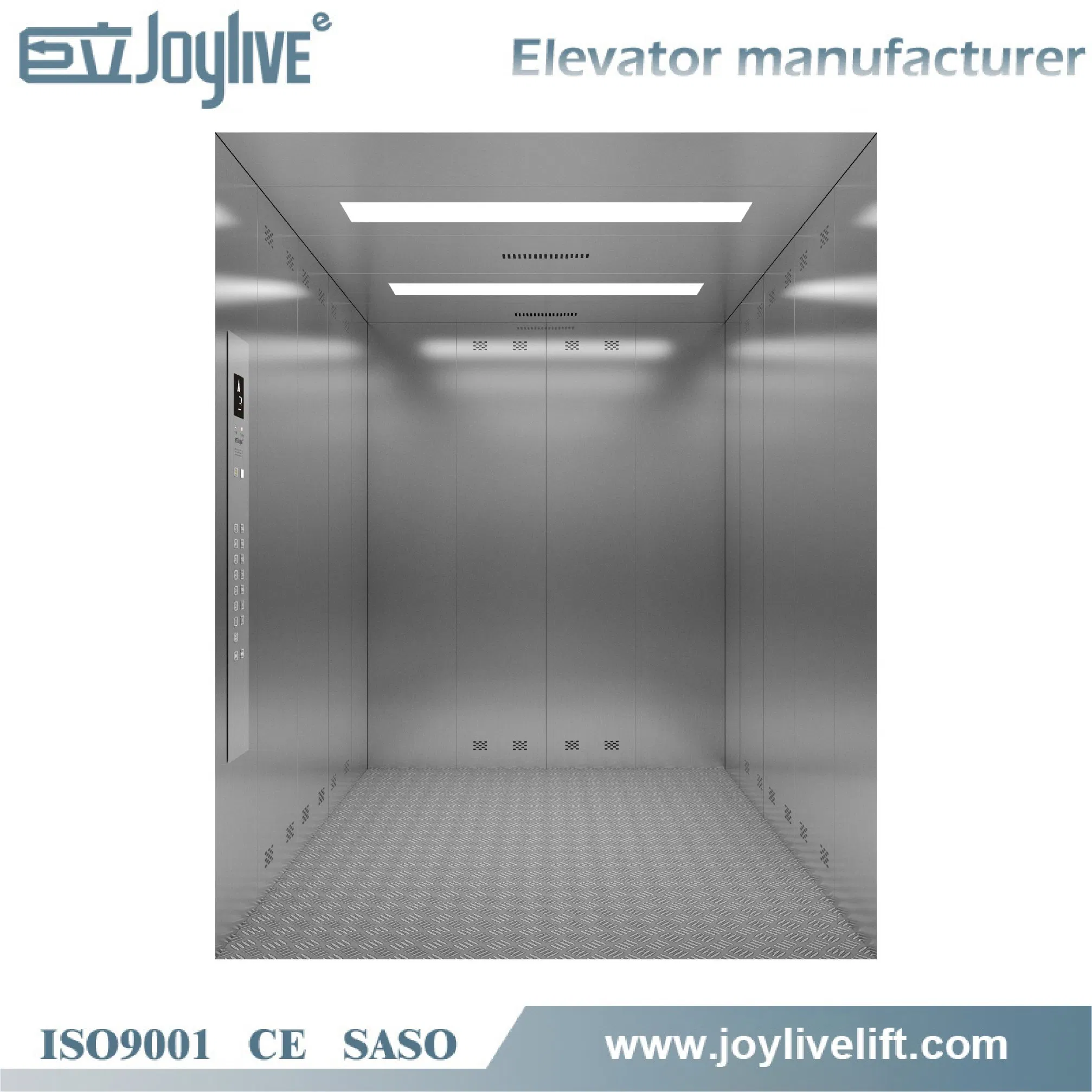

Our heavy-duty freight elevators provide advanced logistics planning for large vehicle transportation, heavy equipment, warehousing, and distribution with a maximum load capacity of up to 20 tons.
Designed for integration with AGVs (Automated Guided Vehicles), these systems ensure efficient and orderly transport across multiple floors, solving obstacles in vertical space transportation and improving workshop automation.

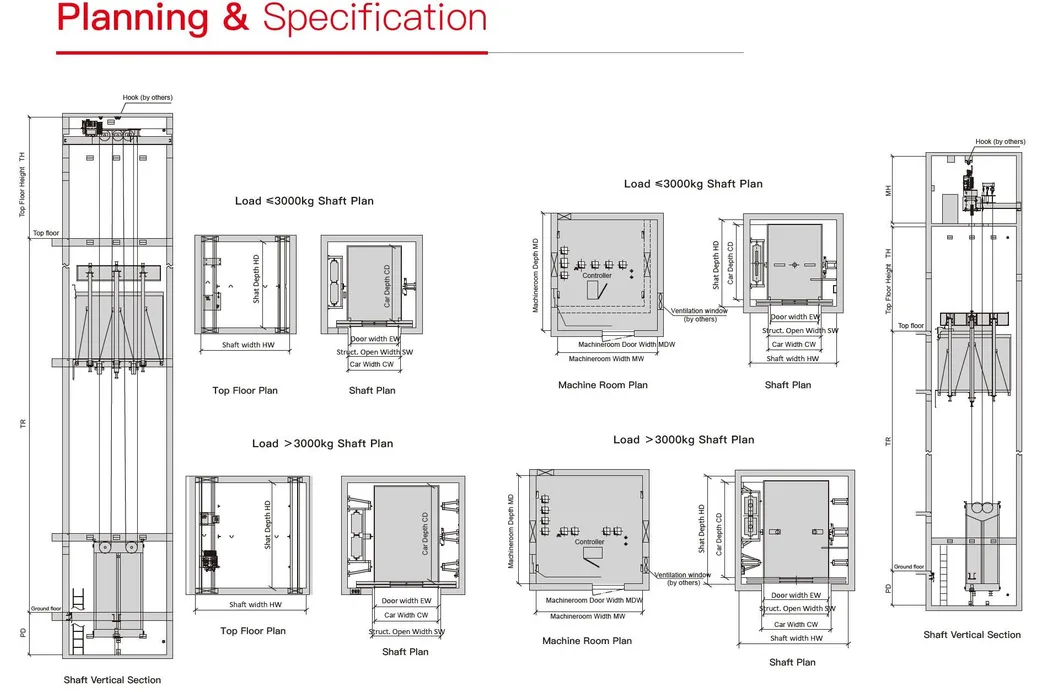

| Load (kg) | Speed (m/s) | Cabin Size (CW×CD) | Door Opening (EW×EH) | Entrance | Shaft Size (HW×HD) | Pit Depth | Top Floor Height |
|---|---|---|---|---|---|---|---|
| 1000 | 0.5 - 1.0 | 1400×1700 | 1200×2100 | Single/Double | 2250×2100 | 1500mm | 4300mm |
| 2000 | 0.5 - 1.0 | 1700×2400 | 1700×2100 | Single/Double | 2900×2850 | 1500mm | 4300mm |
| 3000 | 0.5 - 1.0 | 2000×2800 | 1800×2100 | Single/Double | 3350×3250 | 1500mm | 4300mm |
| 5000 | 0.25 - 0.5 | 2400×3600 | 2400×2300 | Single/Double | 4050×4050 | 1600mm | 4800mm |
| 10000 | 0.5 | 3400×4900 | 3000×3000 | Single/Double | 5300×5200 | 2000mm | 5750mm |
| 20000 | 0.5 | 4600×7000 | 4000×3500 | Single/Double | 6400×7650 | 2500mm | 5800mm |
| Type | Series | Description | Machine Room | Max Speed | Max Load |
|---|---|---|---|---|---|
| Passenger Lift | GP30/50/70 | Economic to High-speed skyscraper lifts | Yes | up to 8.0m/s | 2000kg |
| Residential MRL | GPN30 | Space-saving elevator for housing | No | 1.75m/s | 1050kg |
| Hospital Lift | B5000 | Bed elevators for medical facilities | Optional | 2.5m/s | 1600kg |
| Freight Lift | F100/F200 | Heavy-duty geared or gearless freight | Yes | 1.0m/s | 20000kg |
| Home Lift | GH30 | Highly customized villa elevators | No | 0.5m/s | 410kg |
| Escalator | GE05 | Public transport solutions | / | 0.75m/s | 30°/35° |
