Vanguard Lift
Vanguard Lift

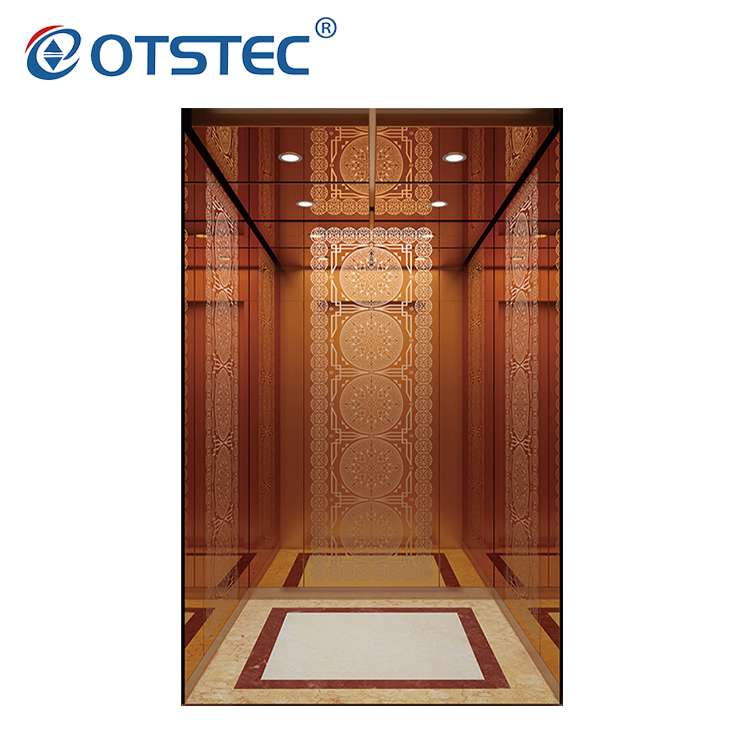

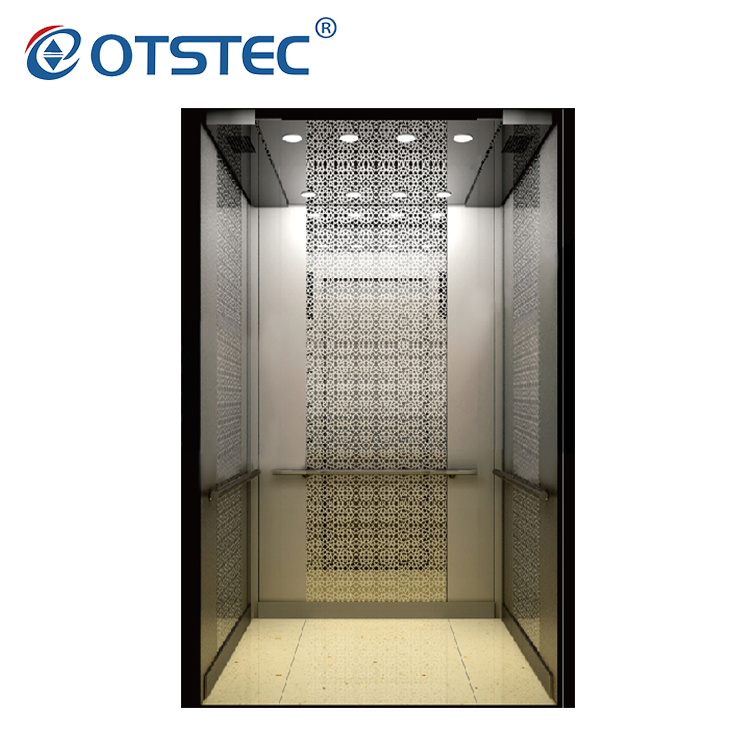

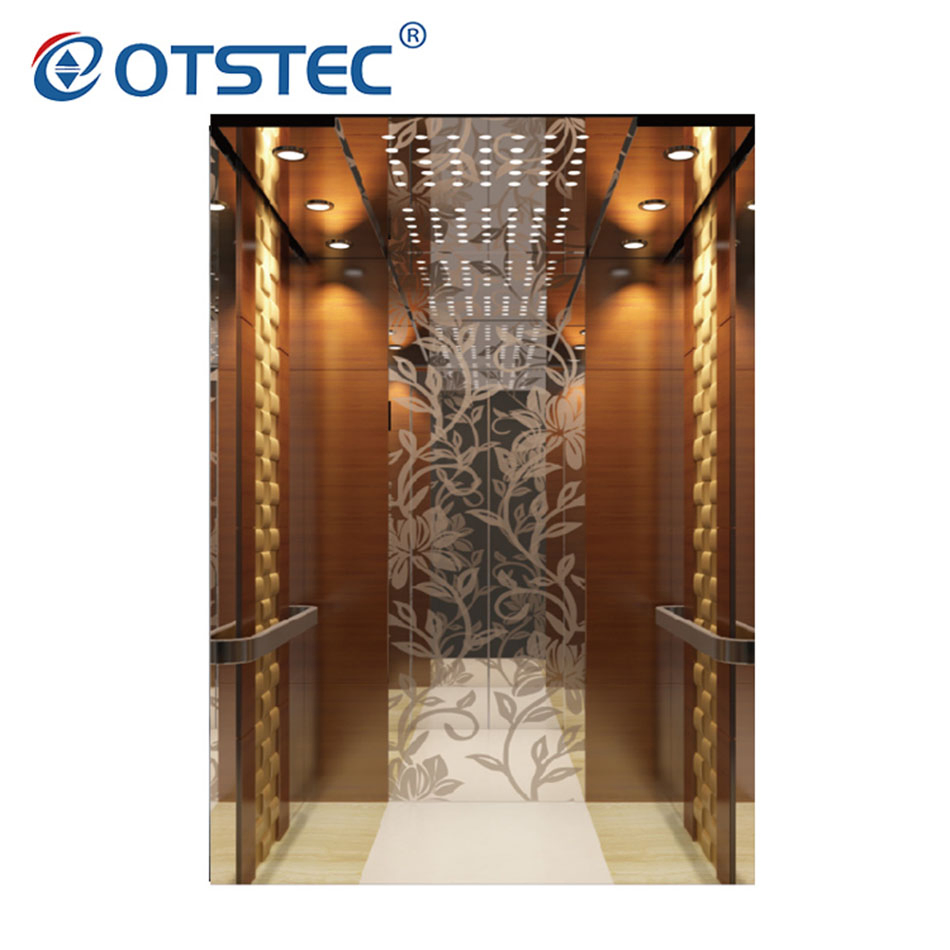

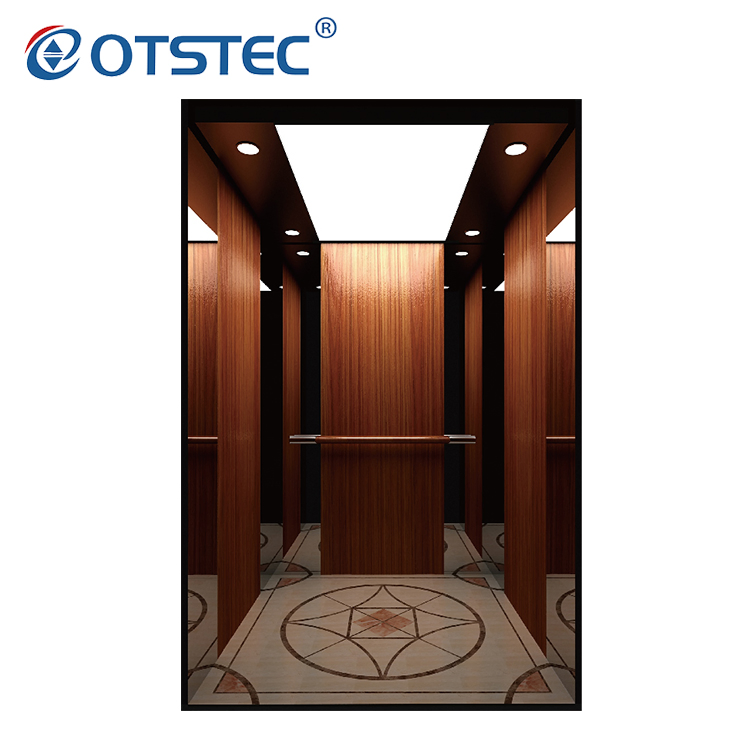

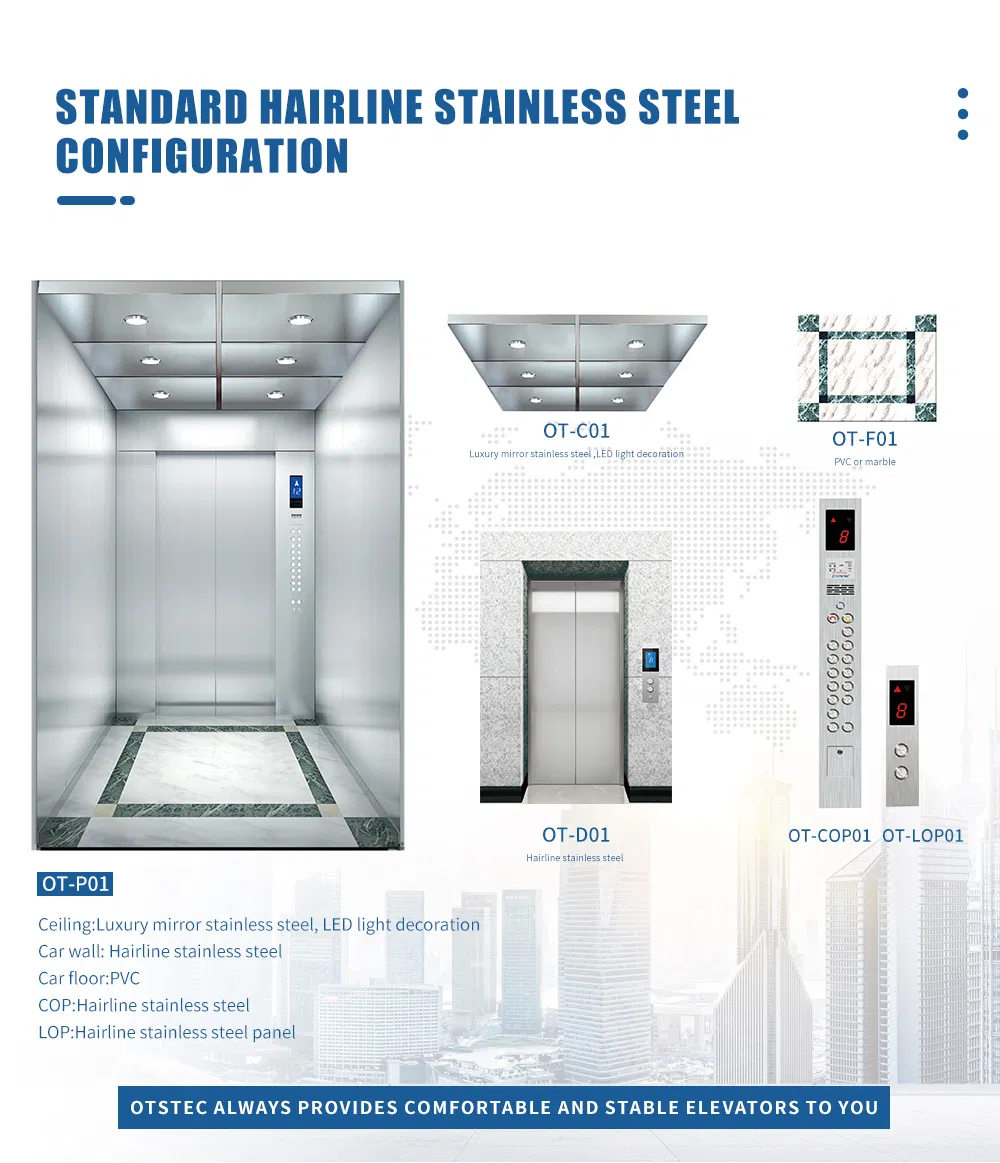

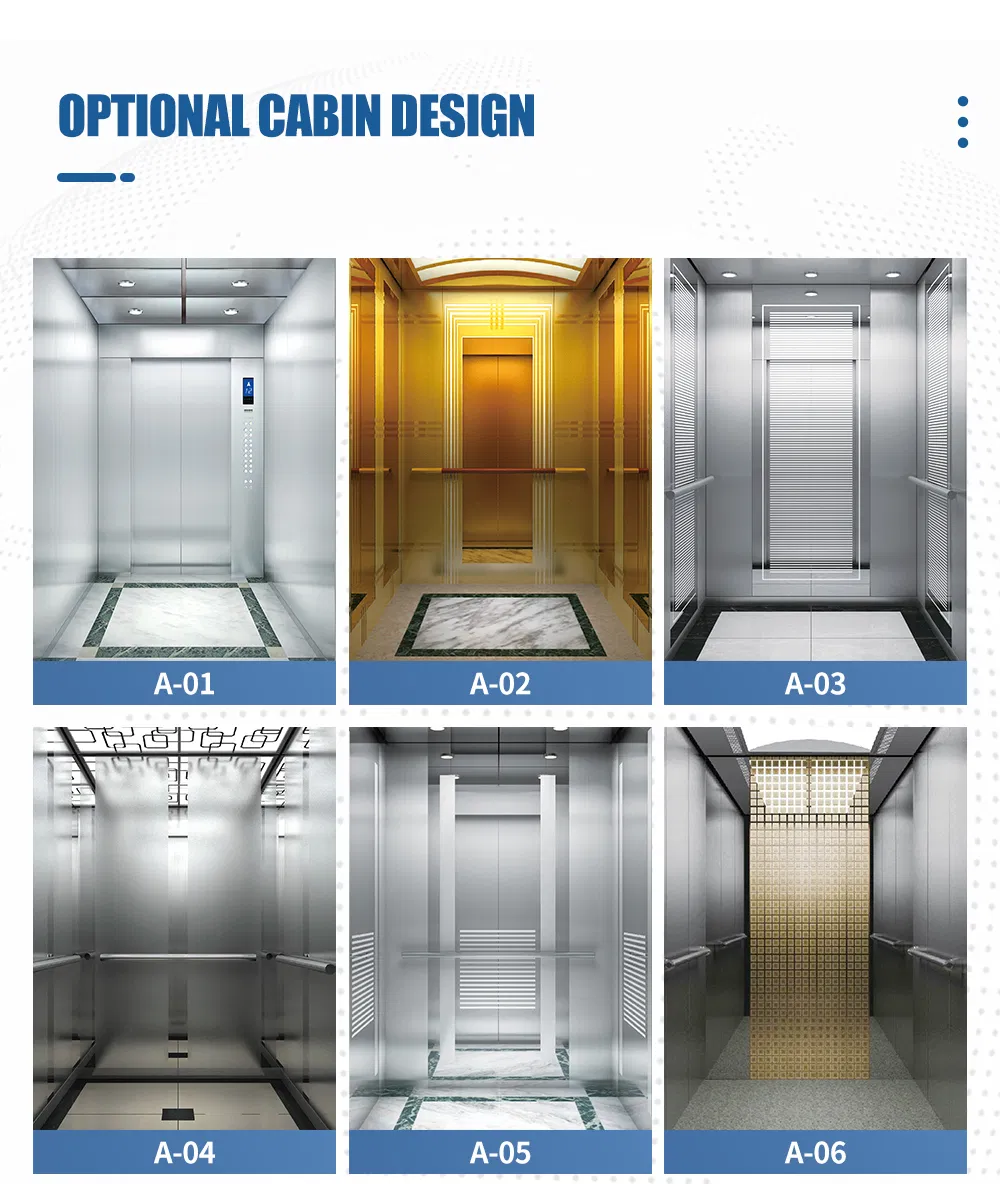

1. Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass;
2. Capacity: 250KG, 320kg, 400kg, 450kg-1600kg;
3. Speed: 0.4m/s, 1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, to 6.0m/s;
4. Type: Traction home elevator, Strong drive home elevator, Steel belt home elevator;

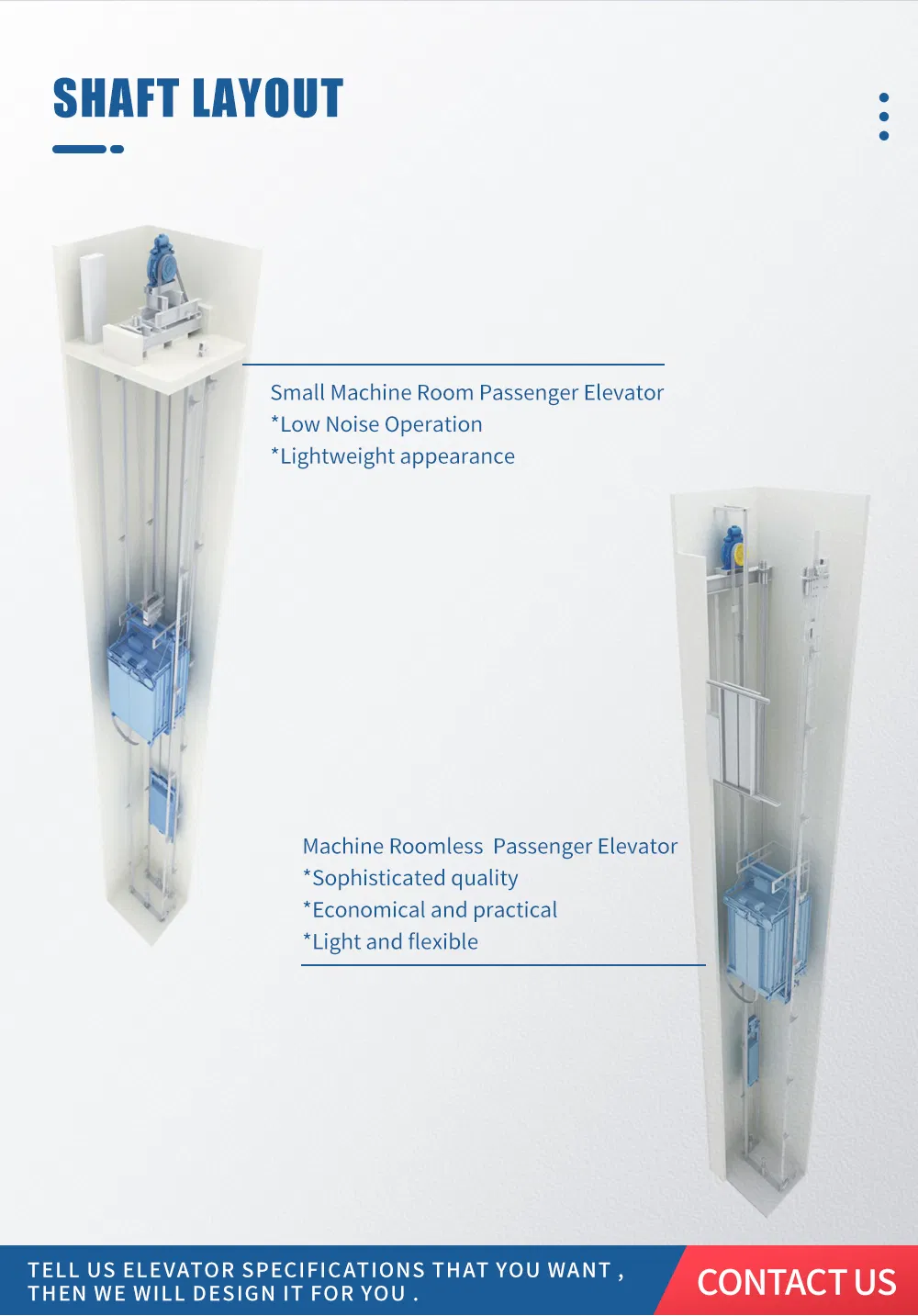

5. Machine Room: Machine Roomless (MRL) / Small Machine Room (MR);
| Capacity (Kg) | Speed (m/s) | Car Size (W*D*H) | Shaft Min. (W*D) | Overhead | Rise Max. |
|---|---|---|---|---|---|
| 450 | 1.0 | 1100*1100*2400 | 1700*1800 | 4500 | 45m |
| 630 | 1.0-1.75 | 1400*1100*2400 | 2000*1800 | 4500 | 95m |
| 800 | 1.0-2.5 | 1400*1300*2400 | 2000*2000 | 4500 | 120m |
| 1000 | 1.0-3.0 | 1600*1500*2400 | 2200*2200 | 4500 | 150m |
| 1250 | 1.0-4.0 | 1950*1400*2400 | 2600*2100 | 4500 | 180m |
| Capacity (Kg) | Speed (m/s) | Car Size (W*D*H) | Shaft Min. (W*D) | Overhead | Rise Max. |
|---|---|---|---|---|---|
| 450 | 1.0 | 1100*1100*2400 | 1900*1500 | 4500 | 45m |
| 630 | 1.0-1.75 | 1400*1100*2400 | 2200*1500 | 4500 | 95m |
| 1000 | 1.0-2.5 | 1600*1500*2400 | 2400*1900 | 4500 | 150m |

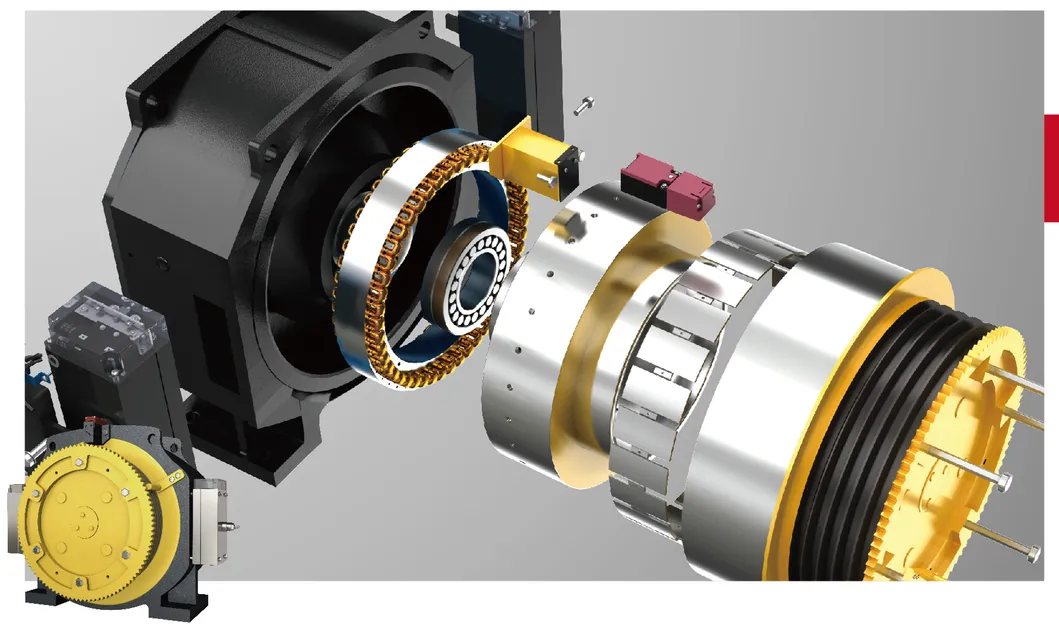

Uses rare earth materials, integrating coaxial transmission and digital frequency technology with group computer control. High-efficient and energy-saving (up to 40% energy saving), low heat loss, and no oil contamination. Quiet riding space design.
Automatically adjusts current and precisely controls torque according to the car load, ensuring the elevator remains stable and comfortable during operation.

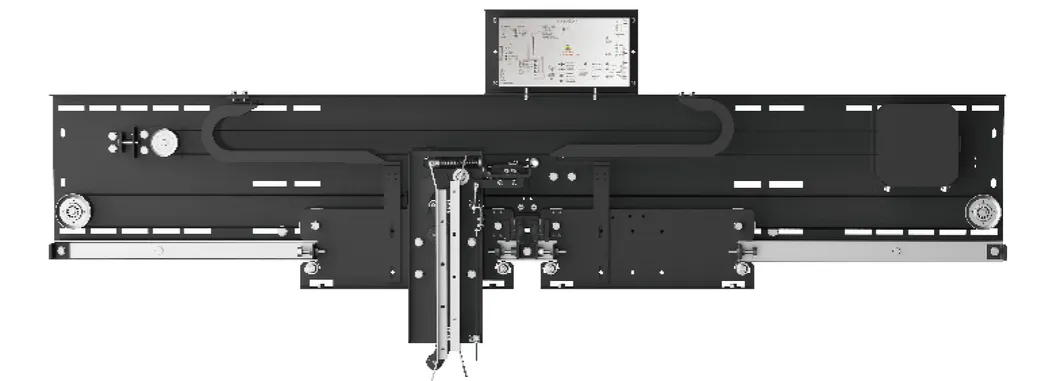

Advanced VVF control ensures smooth and quiet door operation. The self-learning door load detector monitors changes for each floor and reopens automatically if abnormal resistance is detected.
Top-Tier Components: We utilize world-class components including gearless motors from XIZI, door operators from Shenling or Wittur, and control systems from Monarch or STEP.

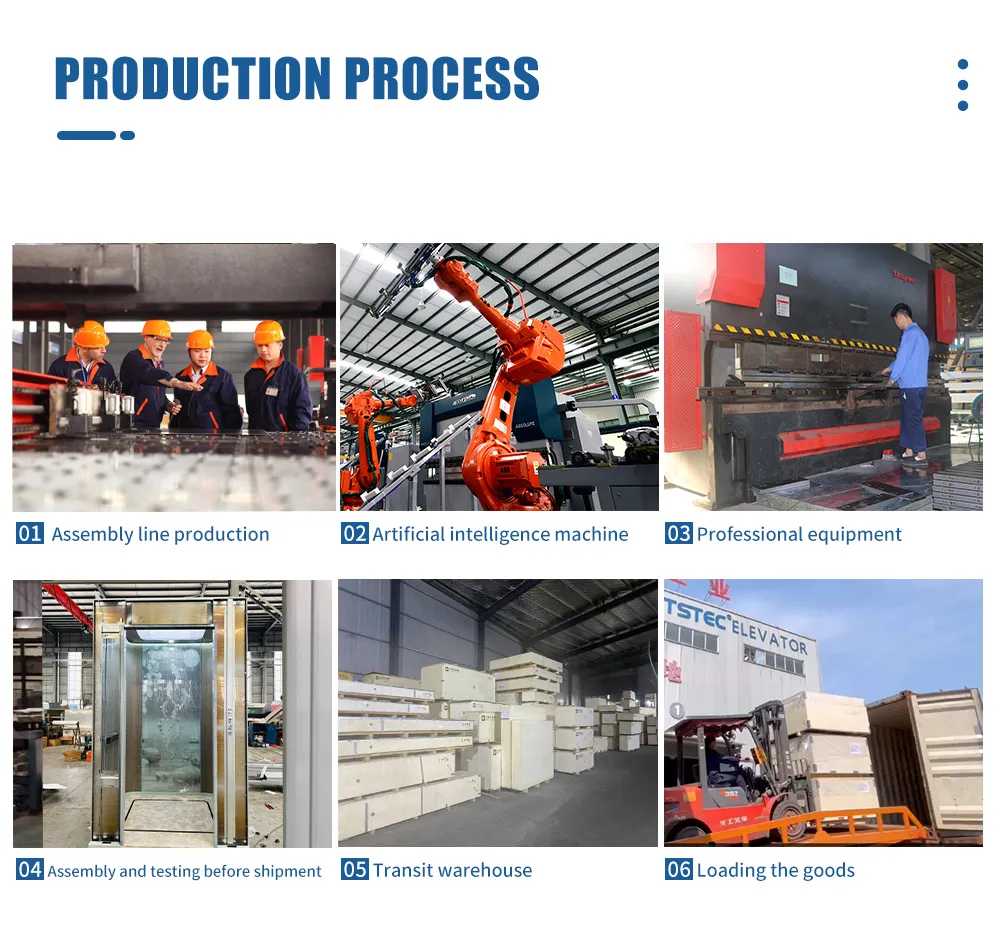

Strict Quality Control: Our management ensures precise design and parts quality. Every elevator is engineered for stable, efficient operation and trouble-free installation.
